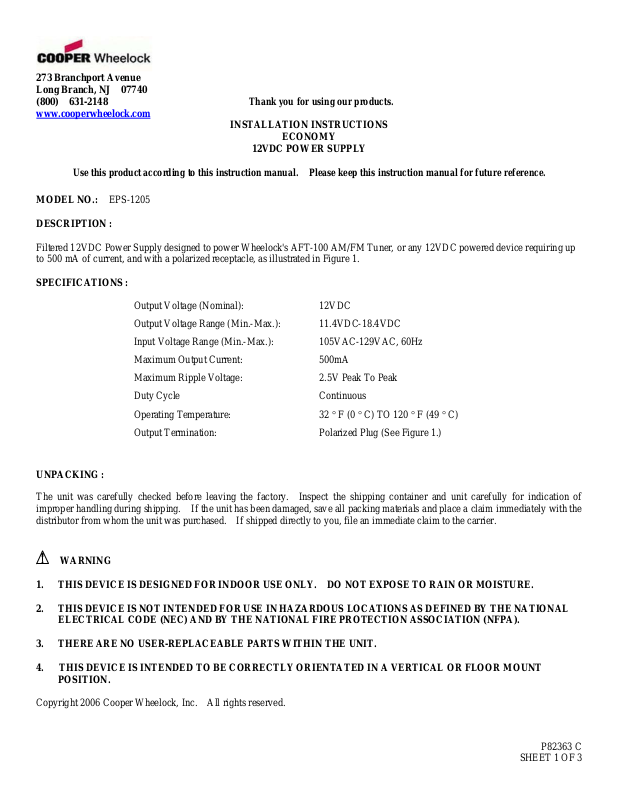

wheelock EPS-1205 INSTALLATION INSTRUCTIONS
273 Branchport Avenue
Long Branch, NJ 07740
(800) 631-2148 Thank you for using our products.
www.cooperwheelock.com
INSTALLATION INSTRUCTIONS
ECONOMY
12VDC POWER SUPPLY
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL NO.: EPS-1205
DESCRIPTION :
Filtered 12VDC Power Supply designed to power Wheelock's AFT-100 AM/FM Tuner, or any 12VDC powered device requiring up
to 500 mA of current, and with a polarized receptacle, as illustrated in Figure 1.
SPECIFICATIONS :
Output Voltage (Nominal): 12VDC
Output Voltage Range (Min.-Max.): 11.4VDC-18.4VDC
Input Voltage Range (Min.-Max.): 105VAC-129VAC, 60Hz
Maximum Output Current: 500mA
Maximum Ripple Voltage: 2.5V Peak To Peak
Duty Cycle Continuous
Operating Temperature:
32 ° F (0 ° C) TO 120 ° F (49 ° C)
Output Termination: Polarized Plug (See Figure 1.)
UNPACKING :
The unit was carefully checked before leaving the factory. Inspect the shipping container and unit carefully for indication of
improper handling during shipping. If the unit has been damaged, save all packing materials and place a claim immediately with the
distributor from whom the unit was purchased. If shipped directly to you, file an immediate claim to the carrier.
WARNING
1. THIS DEVICE IS DESIGNED FOR INDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR MOISTURE.
2. THIS DEVICE IS NOT INTENDED FOR USE IN HAZARDOUS LOCATIONS AS DEFINED BY THE NATIONAL
ELECTRICAL CODE (NEC) AND BY THE NATIONAL FIRE PROTECTION ASSOCIATION (NFPA).
3. THERE ARE NO USER-REPLACEABLE PARTS WITHIN THE UNIT.
4. THIS DEVICE IS INTENDED TO BE CORRECTLY ORIENTATED IN A VERTICAL OR FLOOR MOUNT
POSITION.
Copyright 2006 Cooper Wheelock, Inc. All rights reserved.
P82363 C
SHEET 1 OF 3
INSTALLATION :
1. Be sure the receptacle polarity of the device to be powered by the EPS-1205, matches the EPS-1205 plug polarity, as shown in
Figure 1.
Figure 1: EPS-1205 Plug Polarity
PIN
SLEEVE
2. Plug the Power Supply cord into the 12VDC receptacle on the Wheelock AFT-100 AM/FM Tuner, or other 12VDC powered
device.
3. Plug the Power Supply into a 115VAC, 60Hz power outlet.
Figure 2: EPS-1205 Power Supply Installation
PLUG INTO WHEELOCK
AFT-100 A M /FM T UN ER O R
OTHER 12VDC POWERED DEVICE
WITH MATCHING POLARITY
(SEE FIGURE 1)
115VA C O U TLET
EPS-1205 POWER SUPPLY
ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM COOPER WHEELOCK MANUALS OR
OTHER DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR
FOR ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION,
INSTALLATION AND TESTING IS USED AT THE SOLE RISK OF THE USER AND COOPER WHEELOCK WILL
NOT HAVE ANY LIABILITY FOR SUCH USE.
P82363 C
SHEET 2 OF 3
