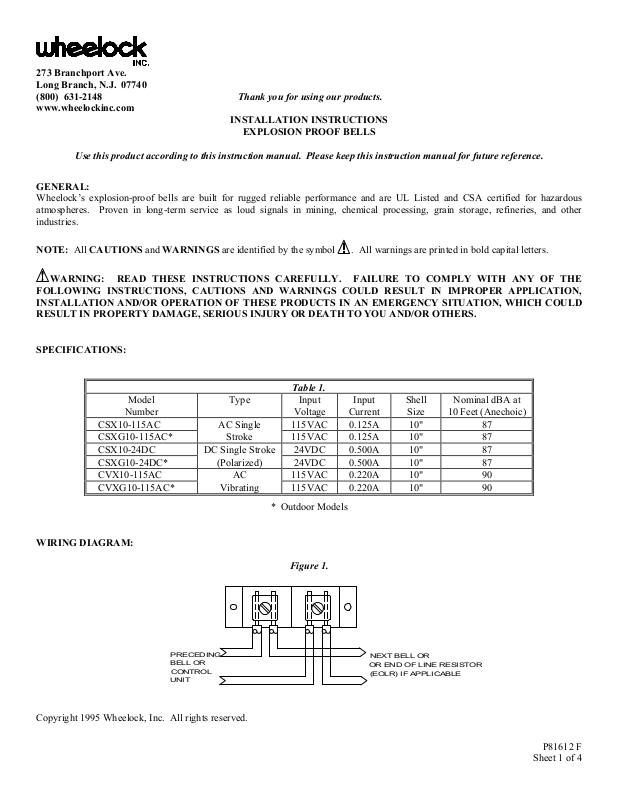

wheelock CSX10-115AC INSTALLATION INSTRUCTIONS

273 Branchport Ave.

R

Long Branch, N.J. 07740
[phone] Thank you for using our products.
www.wheelockinc.com

INSTALLATION INSTRUCTIONS

EXPLOSION PROOF BELLS

Use this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

Wheelock’s explosion-proof bells are built for rugged reliable performance and are UL Listed and CSA certified for hazardous
atmospheres. Proven in long-term service as loud signals in mining, chemical processing, grain storage, refineries, and other
industries.

NOTE: All CAUTIONS and WARNINGS are identified by the symbol

. All warnings are printed in bold capital letters.

WARNING: READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE
FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION,
INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD
RESULT IN PROPERTY DAMAGE, SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.

SPECIFICATIONS:

Table 1.

Model

Number

Type Input

Voltage

Input

Current

Shell

Size

Nominal dBA at

10 Feet (Anechoic)
CSX10-115AC AC Single 115VAC 0.125A 10" 87
CSXG10-115AC* Stroke 115VAC 0.125A 10" 87
CSX10-24DC DC Single Stroke 24VDC 0.500A 10" 87
CSXG10-24DC* (Polarized) 24VDC 0.500A 10" 87
CVX10-115AC AC 115VAC 0.220A 10" 90
CVXG10-115AC* Vibrating 115VAC 0.220A 10" 90

* Outdoor Models

WIRING DIAGRAM:

Figure 1.

PRECEDING
BELL OR
CONTROL
UNIT

Copyright 1995 Wheelock, Inc. All rights reserved.

NEXT BELL OR
OR END OF LINE RESISTO
(EOLR) IF APPLICABLE

P81612 F

Sheet 1 of 4

MOUNTING INFORMATION:

Figure 2.

TAPPED FOR
1/2" CONDUIT

2-3/16

6-3/16

(4) 5/16"

MOUNTING

HOLES

10" SHELL

11-1/2" DIA. MAX.

7" MAX.

6 1/2

TAPPED FOR

1/2" CONDUIT

C

L

7-5/16 MAX.

Figure 3. Figure 4.

STEPS

9

2

DOME

STEPS

7

BELL
SHELL

5

STEPS

10

BELL

1

GUARD

CENTER
BOLT

TEPS

8

STEPS

5

7

3

Figure 5. Figure 6.

BLACK (-)

RED (+)

TOP

STEP

4

STEP

6

MOUNTING HARDWARE
SHOULD BE APPROPRIATE
FOR THE SURFACE TO WHICH
THE BELL IS TO BE INSTALLED

2.1875"

6.1875"

HOUSING

HOUSING

Mounting Template not to Scale

P81612 F

Sheet 2 of 4

INSTALLATION STEPS:

Outdoor Models Only

1. Remove (4) screws which hold the guard to the dome. Remove guard by pulling towards the bottom of the bell.

2. Loosen 2 screws on rear of dome that hold dome to the bell housing. Remove dome by sliding up toward top of bell.

All Models

3. Remove bell shell center bolt and remove bell shell.

4. Mount Bell Housing on wall using (4) mounting holes in base of housing with proper fasteners for type of wall material. (See
Mounting Information)

5. Remove six bolts and washers holding housing cover to backbox. Open housing to locate terminal block.

6. Remove and discard manufacturer's test leads from the terminal block.

7. Wire bell into system per National Electrical Code, using terminals and top or bottom 1/2" threaded conduit entrance for wiring.
(Top entrance is plugged)

8. Close cover and reinstall (6) bolts with (6) lock washers and tighten.

9. Reassemble bell shell to housing per Step 3.

Outdoor Models Only

10. Reassemble dome to housing per Step 2.

11. Reassemble guard to dome per Step 1.

APPLICATION NOTES:

1. Anechoic dB ratings ar for "free field" (anechoic) conditions. Such conditions are approximated in outdoor installations. Indoor
installations provide greater dB because of reflected sound energy. Typical indoor sound output is significantly higher than
rated anechoic.

2. All bells will operate on "coded systems" up to 2 on-off cycles per second.

3. The Explosion Proof Bells are UL listed for the hazardous atmospheres listed below:

CLASS I, GROUP B: Atmospheres containing hydrogen, or gases and vapors of equivalent hazard such as manufactured gas.

CLASS I, GROUP C: Atmospheres containing ethyl and ether vapors.

CLASS I, GROUP D: Atmospheres containing gasoline, petroleum, naphtha, alcohols, acetone, benzene, lacquer solvent vapors

CLASS II, GROUP F: Atmospheres containing carbon black, coal, or coke dust.

and natural gas.

CLASS II, GROUP G: Atmospheres containing flour, starch and grain dusts.

IMPORTANT: READ SEPARATE "GENERAL INFORMATION" SHEET FOR INFORMATION ON THE
PLACEMENT, LIMITATIONS, INSTALLATION, FINAL CHECKOUT, AND PERIODIC TESTING OF NOTIFICATION
APPLIANCES.

ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM WHEELOCK MANUALS OR OTHER
DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR
ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION
AND TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY
FOR SUCH USE.

CAUTION: Check the installation instructions of the manufacturers of other equipment used in the system for any guidelines or

restrictions on wiring and/or locating Notification Appliance Circuits (NAC) and notification appliances. Some system
communication circuits and/or audio circuits, for example, may require special precautions to assure electrical noise immunity (e.g.
audio crosstalk).

P81612 F

Sheet 3 of 4
