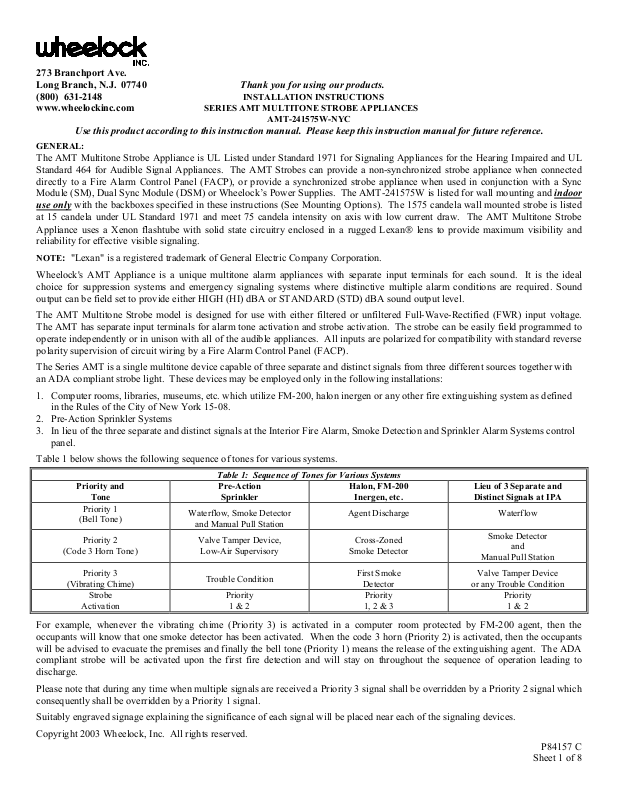

SERIES AMT MULTITONE STROBE APPLIANCES
INSTALLATION INSTRUCTIONS
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
AMT-241575W-NYC
The AMT Multitone Strobe Appliance is UL Listed under Standard 1971 for Signaling Appliances for the Hearing Impaired and UL
Standard 464 for Audible Signal Appliances. The AMT Strobes can provide a non-synchronized strobe appliance when connected
directly to a Fire Alarm Control Panel (FACP), or provide a synchronized strobe appliance when used in conjunction with a Sync
Module (SM), Dual Sync Module (DSM) or Wheelock’s Power Supplies. The AMT-241575W is listed for wall mounting and indoor
use only
with the backboxes specified in these instructions (See Mounting Options). The 1575 candela wall mounted strobe is listed
at 15 candela under UL Standard 1971 and meet 75 candela intensity on axis with low current draw. The AMT Multitone Strobe
Appliance uses a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan lens to provide maximum visibility and
reliability for effective visible signaling.
: "Lexan" is a registered trademark of General Electric Company Corporation.
NOTE
Wheelock's AMT Appliance is a unique multitone alarm appliances with separate input terminals for each sound. It is the ideal
choice for suppression systems and emergency signaling systems where distinctive multiple alarm conditions are required. Sound
output can be field set to provide either HIGH (HI) dBA or STANDARD (STD) dBA sound output level.
The AMT Multitone Strobe model is designed for use with either filtered or unfiltered Full-Wave-Rectified (FWR) input voltage.
The AMT has separate input terminals for alarm tone activation and strobe activation. The strobe can be easily field programmed to
operate independently or in unison with all of the audible appliances. All inputs are polarized for compatibility with standard reverse
polarity supervision of circuit wiring by a Fire Alarm Control Panel (FACP).
The Series AMT is a single multitone device capable of three separate and distinct signals from three different sources together with
an ADA compliant strobe light. These devices may be employed only in the following installations:
1. Computer rooms, libraries, museums, etc. which utilize FM-200, halon inergen or any other fire extinguishing system as defined
in the Rules of the City of New York 15-08.
2. Pre-Action Sprinkler Systems
3. In lieu of the three separate and distinct signals at the Interior Fire Alarm, Smoke Detection and Sprinkler Alarm Systems control
panel.
Table 1 below shows the following sequence of tones for various systems.
Table 1: Sequence of Tones for Various Systems
Priority and
Tone
Priority 1
(Bell Tone)
Priority 2
(Code 3 Horn Tone)
Priority 3
(Vibrating Chime)
Strobe
Activation
Pre-Action
Sprinkler
Waterflow, Smoke Detector
and Manual Pull Station
Valve Tamper Device,
Low-Air Supervisory
Trouble Condition
Priority
1 & 2
Halon, FM-200
Inergen, etc.
Agent Discharge
Cross-Zoned
Smoke Detector
First Smoke
Detector
Priority
1, 2 & 3
Lieu of 3 Separate and
Distinct Signals at IPA
Waterflow
Smoke Detector
and
Manual Pull Station
Valve Tamper Device
or any Trouble Condition
Priority
1 & 2
For example, whenever the vibrating chime (Priority 3) is activated in a computer room protected by FM-200 agent, then the
occupants will know that one smoke detector has been activated. When the code 3 horn (Priority 2) is activated, then the occupants
will be advised to evacuate the premises and finally the bell tone (Priority 1) means the release of the extinguishing agent. The ADA
compliant strobe will be activated upon the first fire detection and will stay on throughout the sequence of operation leading to
discharge.
Please note that during any time when multiple signals are received a Priority 3 signal shall be overridden by a Priority 2 signal which
consequently shall be overridden by a Priority 1 signal.
Suitably engraved signage explaining the significance of each signal will be placed near each of the signaling devices.
Copyright 2003 Wheelock, Inc. All rights reserved.
P84157 C
Sheet 1 of 8
Page 2
: All
NOTE
WARNING: THE AMT STROBE APPLIANCE IS A "FIRE ALARM DEVICE - DO NOT PAINT."
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE TO COMPLY
WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER
APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH
COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
WARNING: THE AMT MULTITONE STROBE APPLIANCES MUST BE FIELD SET TO THE DESIRED dBA SOUND OUTPUT
LEVEL BEFORE THEY ARE INSTALLED. THIS IS DONE BY PROPERLY INSERTING A JUMPER PLUG AND ADJUSTING A
FOUR POSITION SWITCH IN ACCORDANCE WITH THESE INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN
IMPROPER PERFORMANCE AND MAY DAMAGE THE PRODUCT, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
CAUTIONS
and
WARNINGS
are identified by the symbol . All warnings are printed in bold capital letters.
Table 2: UL Listed Models
Model
AMT-241575W 24 16.0-33.0 15* A,B,C,D,E,F,G
Nominal Voltage
(VDC)
Voltage Range Limit
(VDC)
Strobe Candela
(cd)
Mounting
Options
* 15cd models are UL Listed at 15cd and meet 75 on axis.
WARNING: THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF 16-33 VOLTS USING
FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). DO NOT APPLY 80% AND 110% OF THESE VOLTAGE
VALUES FOR SYSTEM OPERATION.
Table 3A: UL Current Ratings (AMPS) for AMT Multitone Audible Signal
Tone
HI/LO
Volume
AVG.
MEAN
16.0VDC 24.0VDC 33.0VDC
DC FWR DC FWR DC FWR
AVG.
RMS
AVG.
RMS
AVG.
MEAN
AVG.
RMS
AVG.
RMS
AVG.
MEAN
AVG.
RMS
AVG.
RMS
HI .015 .035 .023 .019 .042 .031 .025 .053 .040
Bell
STD .011 .015 .016 .015 .020 .022 .019 .026 .028
HI .031 .060 .044 .048 .085 .072 .060 .108 .092 Code 3
Horn
STD .018 .023 .025 .026 .034 .038 .033 .043 .050
HI .009 .023 .017 .014 .032 .024 .018 .041 .033
NOTE:
Chime
Add strobe current from Table 3A to audible appliance current from Table 3B to obtain total current for each unit, if the
STD .006 .009 .011 .011 .015 .017 .014 .020 .022
strobe and audible are wired to operate in unison on a single circuit.
Table 3B: UL Strobe Current Ratings (AMPS0
Rated Average Current Rated Peak Current * Rated Inrush Current *
24VDC
Rated Voltage
Limit
241575W
RMS
24VDC
Rated Voltage
Limit
241575W
24VDC
Rated Voltage
Limit
241575W
16.0VDC 0.101 16.0VDC 0.300 16.0VDC 0.400
24.0VDC 0.064 24.0VDC 0.300 24.0VDC 0.400
33.0VDC 0.047 33.0VDC 0.300 33.0VDC 0.400
16.0VRMS 0.154 16.0VRMS 0.300 16.0VRMS 0.400
24.0VRMS 0.106 24.0VRMS 0.300 24.0VRMS 0.400
33.0VRMS 0.086 33.0VRMS 0.300 33.0VRMS 0.400
The AMT Multitone Audible appliances produce a brief inrush current that lasts for 2 microseconds but it can reach a peak value of
8.0 Amps (11.2 Amps for FWR input).
* The time duration for the peak/inrush current is 10 milliseconds.
P84157 C
Sheet 2 of 8
Page 3
WARNING: MAKE SURE THAT THE TOTAL AVERAGE CURRENT, TOTAL PEAK CURRENT AND TOTAL INRUSH
CURRENT REQUIRED BY ALL APPLIANCES THAT ARE CONNECTED TO THE SYSTEM’S PRIMARY AND SECONDARY
POWER SOURCES AND NAC CIRCUITS, SM, DSM SYNC MODULES AND WHEELOCK’S POWER SUPPLIES DO NOT EXCEED
THE POWER SOURCES’ RATED CAPACITY OR THE CURRENT RATINGS OF ANY FUSES ON THE CIRCUITS TO WHICH
THESE APPLIANCES ARE WIRED. OVERLOADING POWER SOURCES OR EXCEEDING FUSE RATINGS COULD RESULT IN
LOSS OF POWER AND FAILURE TO ALERT OCCUPANTS DURING AN EMERGENCY, WHICH COULD RESULT IN PROPERTY
DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
When calculating the total average, peak or inrush currents: Use Table 3A and 3B to determine the highest value of “Rated Average
Current” for an individual strobe (across the expected operating voltage range of the strobe), to determine the highest value of “Rated
Inrush Current” or “Rated Peak Current” (whichever is higher) of an individual strobe (across the expected voltage range of the
strobe), then multiply these values by the total number of strobes; be sure to add the currents for any other appliances, including
audible signaling appliances, powered by the same source and include any required safety factors.
If the inrush current or peak current exceeds the power supplies’ inrush capacity, the output voltage provided by the power supplies
may drop below the listed voltage range of the appliances connected to the supply and the voltage may not recover in some types of
power supplies. For example, an auxiliary power supply that lacks filtering at its output stage (either via lack of capacitance and/or
lack of battery backup across the output) may exhibit this characteristic.
CAUTION
: Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off.
Table 4: UL dBA Ratings
Tone
Bell
Code 3 Horn
Chime
HI/STD
Volume
16V 24V 33V
HI 80 84 87
STD 73* 78 81
HI 84 88 90
STD 78 81 84
HI 74* 78 81
STD 66* 71* 74*
dBA Reverberant Ratings
Per UL 464
WARNING: AMT MULTITONE STROBE MODELS SET ON VIBRATING CHIME TONE WITH STANDARD dBA DO NOT
MEET THE 75 dBA MINIMUM UL REVERBERANT SOUND LEVEL REQUIRED FOR PUBLIC MODE FIRE PROTECTION
SERVICE (NOTED BY * IN TABLE 4). MODELS WITH SETTINGS WHICH PRODUCE LESS THAN 75 dBA MAY NOT BE HEARD.
THIS SETTING IS ACCEPTABLE ONLY FOR GENERAL SIGNALING (NON-FIRE ALARM) USE. USE THE "HIGH" dBA
SETTING WITH THIS TONE OR USE A DIFFERENT TONE FOR PUBLIC MODE SERVICE.
LIGHT DISTRIBUTION:
Table 5: Horizontal and Vertical Plane
Horizontal Plane Vertical Plane
Angle
(in deg.)
UL
Min.
Typ.
1575cd
Angle
(in deg.)
UL
Min.
Typ.
1575cd
0 15.0 94 0 15.0 94
5 13.5 93 5 13.5 83
10 13.5 88 10 13.5 30
15 13.5 87 15 13.5 19
20 13.5 85 20 13.5 17
25 13.5 80 25 13.5 16
30 11.3 75 30 13.5 15
35 11.3 71 35 9.8 12
40 11.3 62 40 6.9 11
45 11.3 52 45 5.1 10
50 8.3 35 50 4.1 9
55 6.8 32 55 3.3 9
60 6.0 34 60 2.7 9
65 5.3 27 65 2.4 9
70 5.3 19 70 2.3 10
75 4.5 11 75 2.0 10
80 4.5 9 80 1.8 9
85 3.8 10 85 1.8 9
90 3.8 10 90 1.8 9
P84157 C
Sheet 3 of 8
Page 4
AMT MULTITONE SETTINGS:
The Switch (SW1) of the AMT Multitone Strobe Appliances, shown in Figure 1, is used to set the desired dBA sound output level.
The factory settings are shown below. Read these instructions carefully before changing any of these factory settings.
Figure 1.
PC Board Layout Showing Location
of Switch (SW1)
SLIDE HERE FOR (1)
SLIDE HERE FOR (0)
S
ON
24
W
1
1 2 3 4
ON
1 2 3 4
S
24
W
1
THE FACTORY SETTINGS ARE:
HIGH dBA: SW1 POS 1 = 1
Priority 1 (PRI 1) Bell
Priority 2 (PRI 2) Code 3
Priority 3 (PRI 3) Vibrating Chime
DP2
DP3
PRI 2
+
+
PRI 1
-
-
PRI 3
STB
+
-
-+
Switch positions 2, 3, and 4 are not used.
The AMT Multitone Appliance cannot be field set for input voltage. AMT Multitone Strobe Appliance is field set for dBA sound
output level by adjusting a four position Switch (SW1) as shown in Table 6 and Figure 2. Use SW1 Position 1 to select the dBA
sound output level.
Table 6: dBA Sound Output Level Settings
Decibel Level SW1 Settings
HIGH dBA:
STD dBA:
Set SW1 POS 1 on 1 (Factory Setting)
Set SW1 POS 1 on 0
Figure 2.
Switch (SW1) Settings
SLIDE HERE FOR (1)
SLIDE HERE FOR (0)
POS 1
POS 2
POS 3
POS 4
USE A SMALL SCREWDRIVER TO
CHANGE THE SWITCH POSITION.
WARNING: DOUBLE CHECK THE SWITCH (SW1) SETTINGS TO MAKE SURE THEY ARE CORRECT. IMPROPER
SETTINGS CAN DAMAGE THE UNIT OR RESULT IN NO SOUND OUTPUT OR A dBA SOUND OUTPUT LEVEL THAT IS BELOW
THE 75 dBA MINIMUM CODE REQUIREMENTS FOR PUBLIC MODE FIRE PROTECTION. THIS COULD RESULT IN
PROPERTY DAMAGE, SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
:
NOTES
1. The prioritized tones contained are factory pre-set and cannot be changed.
2. The Code 3 Horn incorporates the temporal pattern specified by ANSI/NFPA for standard emergency evacuation signaling. They
should be used only for fire evacuation signaling and not for any other purpose.
The Bell Tone can be used on coded systems with a minimum On-Time of 1/4 second if the audible and strobe are wired to operate
independently. All other tones are recommended for use only on continuous (non-coded) systems.
P84157 C
Sheet 4 of 8
Page 5
STROBE SETTINGS:
Independent Strobe Actuation Setting
WIRING DIAGRAMS:
Unsupervised System Common Positive
NOTE: The strobe input is required only for independent actuation of the strobe.
Supervised System
Isolated inputs are provided for independent supervision and
actuation of the three audible inputs and strobe.
Unsupervised System Common Negative
For applications not requiring supervision: connect all positive
(+) terminals to the power source. The negative (-) terminal for
each appliance will actuate the appliance..
For applications not requiring supervision: connect all negative
(-) terminals to the power source. The positive (+) terminal for
each appliance will actuate the appliance.
In case of simultaneous inputs, the three audible outputs are self-prioritized as follows: 1st priority = PRI 1; 2nd priority = PRI 2; 3rd
priority = PRI 3.
Leave any unused inputs disconnected.
1. The AMT Multitone Strobe model has in-out wiring terminals that accept two #12 to #18 American Wire
Gauge (AWG) wires at each screw terminal. Strip leads 3/8 inches and connect to screw terminals.
2. Break all in-out wire runs on supervised circuits to assure integrity of circuit supervision as shown on left.
The polarity shown in the wiring diagrams are for operation of the appliances. The polarity is reversed by the
FACP during supervision.
P84157 C
Sheet 5 of 8
Page 6

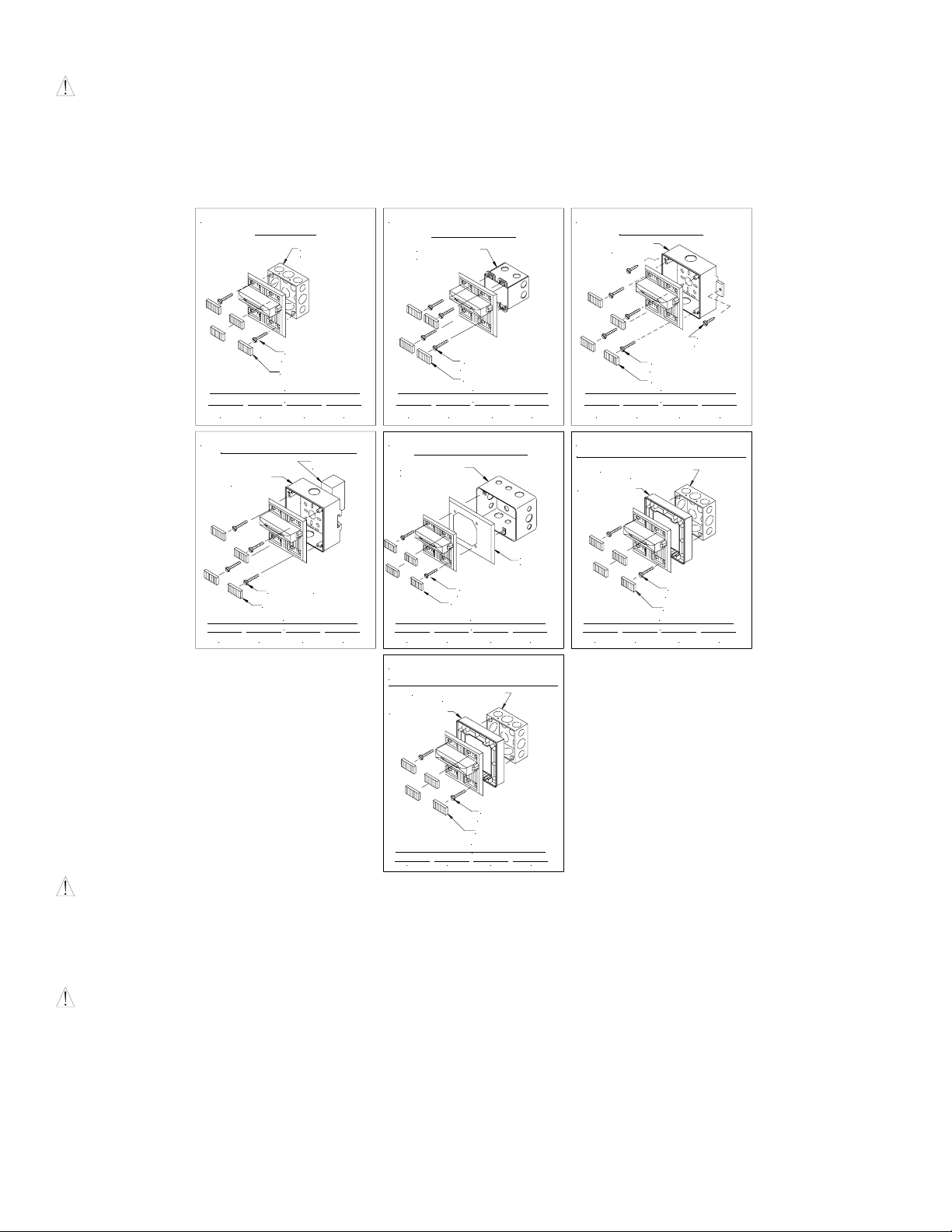

MOUNTING OPTIONS:
CAUTION: The following figures show the maximum number of field wires (conductors) that can enter the backbox used with
each mounting option. If these limits are exceeded, there may be insufficient space in the backbox to accommodate the field wires
and stresses from the wires could damage the product.
Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Wheelock recommends use of
the largest backbox option shown and the use of approved stranded field wires, whenever possible, to provide additional wiring room
for easy installation and minimum stress on the product from wiring.
Figure A
AWG #18 AWG #16 AWG #14 AWG #12
Figure D
FLUSH (4" BOX)
4" SQ. X 2-1/8"
DEEP BACKBOX
(2) #8-32x1"
SCREWS
(4) SCREW COVERS
MAXIMUM NUMBER OF CO NDUCTORS
10 488
CONCEALED CONDUIT MOUNTING
BACKBOX
(IOB)
EXISTING
BOX IN WALL
Figure B
FLUSH (2-GANG BOX)
2-GANG x 3-1/2"
DEEP BACKBOX
(4) #6-32x1"
SCREWS
MAXIMUM NUMBER OF CO NDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
10 488
Figure E
RETROFIT PLATE MOUNTING
EXISTING FSB
BOX IN WALL
(4) SCREW COVERS
Figure C
SURFACE MOUNTING
BACKBOX
(IOB)
(2) WOOD
SCREWS
(4) #8-18x1"
SCREWS
MAXIMUM NUMBER OF CO NDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
16 161616
Figure F
SURFACE OR SEMI-FLUSH (4" X 2-1/8" BOX)
DBB OR 4" SQ. X 2-1/8"
ISP EXTENDER
(4) SCREW COVERS
DEEP BACKBOX
RETROFIT
PLATE
(4) #8-18x1"
(4) SCREW COVERS
MAXIMUM NUMBER OF CO NDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
16 161616
SCREWS
(2) #8-32x1"
SCREWS
(4) SCREW COVERS
MAXIMUM NUMBER OF CONDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
16 161616
Figure G
SURFACE OR SEMI-FLUSH (4" X 1-1/2" BOX)
DBB OR 4" SQ. X 1-1/2"
10 488
DEEP BACKBOX
(2) #8-32x1-1/2"
SCREWS
(4) SCREW COVERS
ISP EXTENDER
MAXIMUM NUMBER OF CO NDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
MAXIMUM NUMBER OF CO NDUCTORS
AWG #18 AWG #16 AWG #14 AWG #12
16 81012
(2) #8-32x1-1/2"
SCREWS
(4) SCREW COVERS
WARNING: WHEN INSTALLING STROBES IN AN OPEN OFFICE OR OTHER AREAS CONTAINING PARTITIONS OR OTHER
VIEWING OBSTRUCTIONS, SPECIAL ATTENTION SHOULD BE GIVEN TO THE LOCATION OF THE STROBES SO THAT
THEIR OPERATING EFFECT CAN BE SEEN BY ALL INTENDED VIEWERS, WITH THE INTENSITY, NUMBER, AND TYPE OF
STROBES BEING SUFFICIENT TO MAKE SURE THAT THE INTENDED VIEWER IS ALERTED BY PROPER ILLUMINATION,
REGARDLESS OF THE VIEWER'S ORIENTATION. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOUR AND/OR OTHERS.
WARNING: A SMALL POSSIBILITY EXISTS THAT THE USE OF MULTIPLE STROBES WITHIN A PERSON'S FIELD OF
VIEW, UNDER CERTAIN CIRCUMSTANCES, MIGHT INDUCE A PHOTO-SENSITIVE RESPONSE IN PERSONS WITH EPILEPSY.
STROBE REFLECTIONS IN A GLASS OR MIRRORED SURFACE MIGHT ALSO INDUCE SUCH A RESPONSE. TO MINIMIZE
THIS POSSIBLE HAZARD, WHEELOCK STRONGLY RECOMMENDS THAT THE STROBES INSTALLED SHOULD NOT
PRESENT A COMPOSITE FLASH RATE IN THE FIELD OF VIEW WHICH EXCEEDS FIVE (5) Hz AT THE OPERATING
VOLTAGE OF THE STROBES. WHEELOCK ALSO STRONGLY RECOMMENDS THAT THE INTENSITY AND COMPOSITE
FLASH RATE OF INSTALLED STROBES COMPLY WITH LEVELS ESTABLISHED BY APPLICABLE LAWS, STANDARDS,
REGULATIONS, CODES AND GUIDELINES.
P84157 C
Sheet 6 of 8
Page 7
MOUNTING NOTES:
CAUTION: Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and
conduit, especially if sheathed multiconductor cable or 3/4" conduit fittings are used.
1. AMT Multitone Strobe models can be flush mounted to a standard 4 inch square by 2-1/8 inch deep electrical box (Figure A) or
a standard 2-gang by 3-1/2" inch minimum deep electrical box (Figure B).
2. All models can also be surface mounted to Wheelock's model IOB backbox (Figure C or D) or to a 4" square backbox (model
DBB or BB) with Wheelock's model ISP extender (Figure F and G).
3. AMT Multitone Strobe models can also be retrofitted to an existing FSB backbox to replace Wheelock's model 7001 Strobe
Horn when used with Wheelock adapter plate model RP (Figure E).
4. All models are supplied with four snap-in covers to hide the mounting holes and provide an attractive installation. The snap-in
covers are interchangeable and have slots on each end so they can be removed if necessary (by prying them up with a thin blade
screwdriver). To insert snap-in cover, slide the outside edge of the cover (furthest edge from the strobe lens) partially into the
mounting hole recess; then align the cover so it is parallel to the grille (not tilted) and snap cover into place.
5. The IOB surface backbox has 1/2 inch conduit knockouts on two sides. It has a variety of knockouts on the back for mounting it
to recessed electrical boxes and for wire entrances (Figure D). It can also be mounted to a surface with the two mounting ears
that are supplied. The ears slide into slots on the back of the box (Figure C). Use appropriate anchors for the wood screws that
are supplied with the box (if necessary).
6. The IOB includes a prefastened gasket and four hole plugs. Make sure the condensation drain holes on the box face down and
that the box is vertical to permit drainage of any moisture. Use the mounting ears to secure the box (do not use the back
knockouts). Use the hole plugs to seal the unused mounting holes on the AMT Multitone grille (press them in securely from the
back side of the grille). Mount the unit to the IOB with the four #8-18 screws supplied with the box.
7. All models are UL Listed for indoor use only with a temperature range of 32oF to 120oF (0oC to 49oC) and maximum humidity
of 85% RH.
8. Mounting hardware for each mounting option is supplied.
9. Conduit entrances to the backbox should be selected to provide sufficient wiring clearance for the installed product. When
extension rings are required, conduit should enter through the backbox, not the extension ring. Use Steel City #53151 (1-1/2"
deep) or #53171 (2-1/8" deep) extension rings (as noted in the mounting options) or equal with the same cut-out area.
10. When terminating field wires, do not use more lead length than required. Excess lead length could result in insufficient wiring
space for the signaling appliance.
11. Use care and proper techniques to position the field wires in the backbox so that they use minimum space and produce minimum
stress on the product. This is especially important for stiff, heavy gauge wires and wires with thick insulation or sheathing.
12. Do not pass additional wires (used for other than the signaling appliance) through the backbox. Such additional wires could
result in insufficient wiring space for the signaling appliance.
WARNING: NFPA CODES REQUIRE SIGNALING APPLIANCES TO BE SUPERVISED. CHECK TO BE CERTAIN
THAT UNSUPERVISED SIGNALING APPLIANCES DO NOT VIOLATE ANY APPLICABLE CODES.
NOTE: NFPA 72/ANSI 117.1 Conform to ADDAAG Equivalent Facilitation Guidelines in using fewer, higher intensity strobes
within the same protected area.
These appliances can produce a distinctive three pulse Temporal Pattern Fire Alarm Evacuation Signal (For total evacuation in
accordance with NFPA 72 1999 Edition.
CAUTION: Check the installation instructions of the manufacturers of other equipment used in the system for any guidelines or
restrictions on wiring and/or locating Notification Appliance Circuits (NAC) and notification appliances. Some system
communication circuits and/or audio circuits, for example, may require special precautions to assure immunity from electrical noise
(e.g. audio crosstalk).
The AMT Multitone Strobe products and these instructions are copyrighted by Wheelock and the AMT Multitone Strobe products
contain proprietary, confidential and trade secrets of Wheelock. No part of the AMT Multitone Strobe products and these instructions
may be photocopied, printed or reproduced in any form or modified, adapted, changed or enhanced, or converted to another
programming language, or used to create updated, related or derivative works, without the prior written consent of Wheelock. No
part of the AMT Multitone Strobe products shall be decompiled, disassembled or reverse engineered.
ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM WHEELOCK MANUALS OR OTHER
DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR
ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION
AND TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY
FOR SUCH USE.
P84157 C
Sheet 7 of 8
Page 8
IMPORTANT: READ SEPARATE "GENERAL INFORMATION" SHEET FOR INFORMATION ON THE
PLACEMENT, LIMITATIONS, INSTALLATION, FINAL CHECKOUT, AND PERIODIC TESTING OF NOTIFICATION
APPLIANCES.
Limited Warranty
Wheelock products must be used within their published specifications and must be PROPERLY specified, applied, installed, operated,
maintained and operationally tested in accordance with these instructions at the time of installation and at least twice a year or more
often and in accordance with local, state and federal codes, regulations and laws. Specification, application, installation, operation,
maintenance and testing must be performed by qualified personnel for proper operation in accordance with all of the latest National
Fire Protection Association (NFPA), Underwriters' Laboratories (UL), Underwriters’ Laboratories of Canada (ULC), National
Electrical Code (NEC), Occupational Safety and Health Administration (OSHA), local, state, county, province, district, federal and
other applicable building and fire standards, guidelines, regulations, laws and codes including, but not limited to, all appendices and
amendments and the requirements of the local authority having jurisdiction (AHJ). Wheelock products when properly specified,
applied, installed, operated, maintained and operationally tested as provided above are warranted against mechanical and electrical
defects for a period of three years from date of manufacture (as determined by date code). Correction of defects by repair or
replacement shall be at Wheelock's sole discretion and shall constitute fulfillment of all obligations under this warranty. THE
FOREGOING LIMITED WARRANTY SHALL IMMEDIATELY TERMINATE IN THE EVENT ANY PART NOT FURNISHED
BY WHEELOCK IS INSTALLED IN THE PRODUCT. THE FOREGOING LIMITED WARRANTY SPECIFICALLY
EXCLUDES ANY SOFTWARE REQUIRED FOR THE OPERATION OF OR INCLUDED IN A PRODUCT. WHEELOCK
MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS, IMPLIED OR STATUTORY
WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.
USERS ARE SOLELY RESPONSIBLE FOR DETERMINING WHETHER A PRODUCT IS SUITABLE FOR THE USER'S
PURPOSES, OR WHETHER IT WILL ACHIEVE THE USER'S INTENDED RESULTS. THERE IS NO WARRANTY AGAINST
DAMAGE RESULTING FROM MISAPPLICATION, IMPROPER SPECIFICATION, ABUSE, ACCIDENT OR OTHER
OPERATING CONDITIONS BEYOND WHEELOCK'S CONTROL.
SOME WHEELOCK PRODUCTS CONTAIN SOFTWARE. WITH RESPECT TO THOSE PRODUCTS, WHEELOCK DOES
NOT WARRANTY THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE OR
THAT THE SOFTWARE WILL MEET ANY OTHER STANDARD OF PERFORMANCE, OR THAT THE FUNCTIONS OR
PERFORMANCE OF THE SOFTWARE WILL MEET THE USER'S REQUIREMENTS. WHEELOCK SHALL NOT BE LIABLE
FOR ANY DELAYS, BREAKDOWNS, INTERRUPTIONS, LOSS, DESTRUCTION, ALTERATION, OR OTHER PROBLEMS
IN THE USE OF A PRODUCT ARISING OUT OF OR CAUSED BY THE SOFTWARE.
THE LIABILITY OF WHEELOCK ARISING OUT OF THE SUPPLYING OF A PRODUCT, OR ITS USE, WHETHER ON
WARRANTIES, NEGLIGENCE, OR OTHERWISE, SHALL NOT IN ANY CASE EXCEED THE COST OF CORRECTING
DEFECTS AS STATED IN THE LIMITED WARRANTY AND UPON EXPIRATION OF THE WARRANTY PERIOD ALL
SUCH LIABILITY SHALL TERMINATE. WHEELOCK IS NOT LIABLE FOR LABOR COSTS INCURRED IN REMOVAL,
REINSTALLATION OR REPAIR OF THE PRODUCT BY ANYONE OTHER THAN WHEELOCK OR FOR DAMAGE OF ANY
TYPE WHATSOEVER, INCLUDING BUT NOT LIMITED TO, LOSS OF PROFIT OR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE EXCLUSIVE
LIABILITY OF WHEELOCK.
IN NO CASE WILL WHEELOCK'S LIABILITY EXCEED THE PURCHASE PRICE PAID FOR A PRODUCT.
Limitation of Liability
WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING NEGLIGENCE AND BREACH OF WARRANTY,
FOR ANY LOSS OR DAMAGE RESULTING FROM, ARISING OUT OF, OR CONNECTED WITH THIS CONTRACT, OR
FROM THE MANUFACTURE, SALE, DELIVERY, RESALE, REPAIR OR USE OF ANY PRODUCT COVERED BY THIS
ORDER SHALL BE LIMITED TO THE PRICE APPLICABLE TO THE PRODUCT OR PART THEREOF WHICH GIVES RISE
TO THE CLAIM. WHEELOCK'S LIABILITY ON ANY CLAIM OF ANY KIND SHALL CEASE IMMEDIATELY UPON THE
INSTALLATION IN THE PRODUCT OF ANY PART NOT FURNISHED BY WHEELOCK. IN NO EVENT SHALL
WHEELOCK BE LIABLE FOR ANY CLAIM OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A
DIRECT CAUSE OF SUCH CLAIM. FURTHER, IN NO EVENT, INCLUDING IN THE CASE OF A CLAIM OF
NEGLIGENCE, SHALL WHEELOCK BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
PRECEDING LIMITATION MAY NOT APPLY TO ALL PURCHASERS.
5/03
P84157 C
Sheet 8 of 8
Loading...
