Programme Sub
OPERATING MANUAL AND USER GUIDE
PROFESSIONAL SOUND SYSTEMS
www.wharfedalepro.com
Programme
series
105 / 105T
108 / 108T
205 / 205T
206 / 206T
406 / 406T
Su b w o o f e r
Programme
OPERATING MANUAL AND USER GUIDE
1
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
1. READ ALL INSTRUCTIONS – carefully and become familiar with the features and functions of these
products before operating them.
2. RETAIN THESE INSTRUCTIONS – for future reference.
3. COMPLY WITH ALL WARNINGS – All warnings and instructions for this product should be adhered to.
4. USE WITH AMPLIFIERS – In order to avoid damage to drivers and other equipment, it is advisable to
establish and follow a routine for powering up and powering down a sound system. With all system
components connected, turn on source equipment (mixers, signal processors, record and playback
units, etc.) BEFORE powering up amplifiers. Transient voltages from powering up source equipment
can damage speakers if amplifiers are already turned on. Make sure that amplifier volumes are
set to their minimum settings and power up any system amplifiers LAST. It is recommended that
all system components be allowed to stabilize for several seconds before any source signals are
introduced or level setting adjustments are made. Similarly, when shutting systems down, turn all
amplifiers off first, before powering down any other system components.
5. CABLES – Do not use shielded or microphone cables for connection between amplifiers and speakers.
Use only approved speaker cables with proper connectors.
6. RIGGING – SUSPENDING – MOUNTING – Rigging, suspending and mounting of these speaker
systems can expose members of the public to serious health risks and even death. UNDER NO
CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR OTHERWISE MOUNT THESE SPEAKERS UNLESS
YOU ARE FULLY QUALIFIED AND CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL
AUTHORITIES. ALL RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF YOU ARE NOT
PROPERLY QUALIFIED OR DO NOT KNOW OF PERTINENT REGULATIONS, CONSULT QUALIFIED
PERSONNEL FOR ADVICE.
7. CAUTION – These professional loudspeaker systems are capable of generating very high sound
pressure levels. Use care with placement and operation to avoid exposure to excessive volume levels.
Permanent hearing damage can result when operated to extreme levels.
8. SERVICE – There are no user serviceable parts inside this product. Users should not attempt to service
this product. Warranty nullification could result if this is attempted.
Programme series
2
1. Important Warnings and Safety Instructions…………………………....….…
2. What about the Programme Series………………………………………………
3. Introduction/Programme Series Overview……………………………....….…
4. Features……………………….…………………………………….…………….....
5. Setting up/ Speaker Placement…………………………….………..................
6. Connections/ Wiring……………………………………………………................
7. High-Impedance / Constant-Voltage Systems………………………........

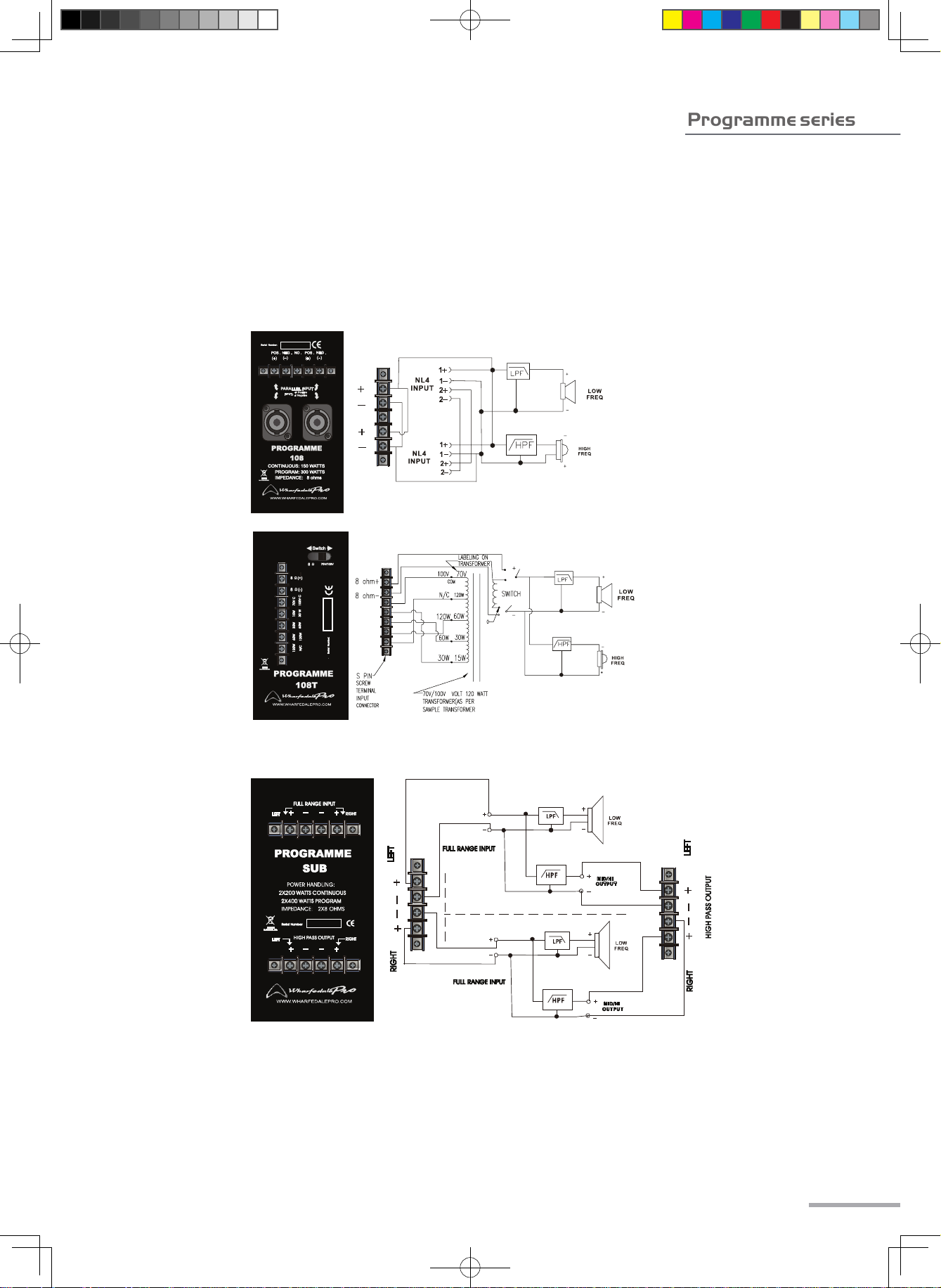

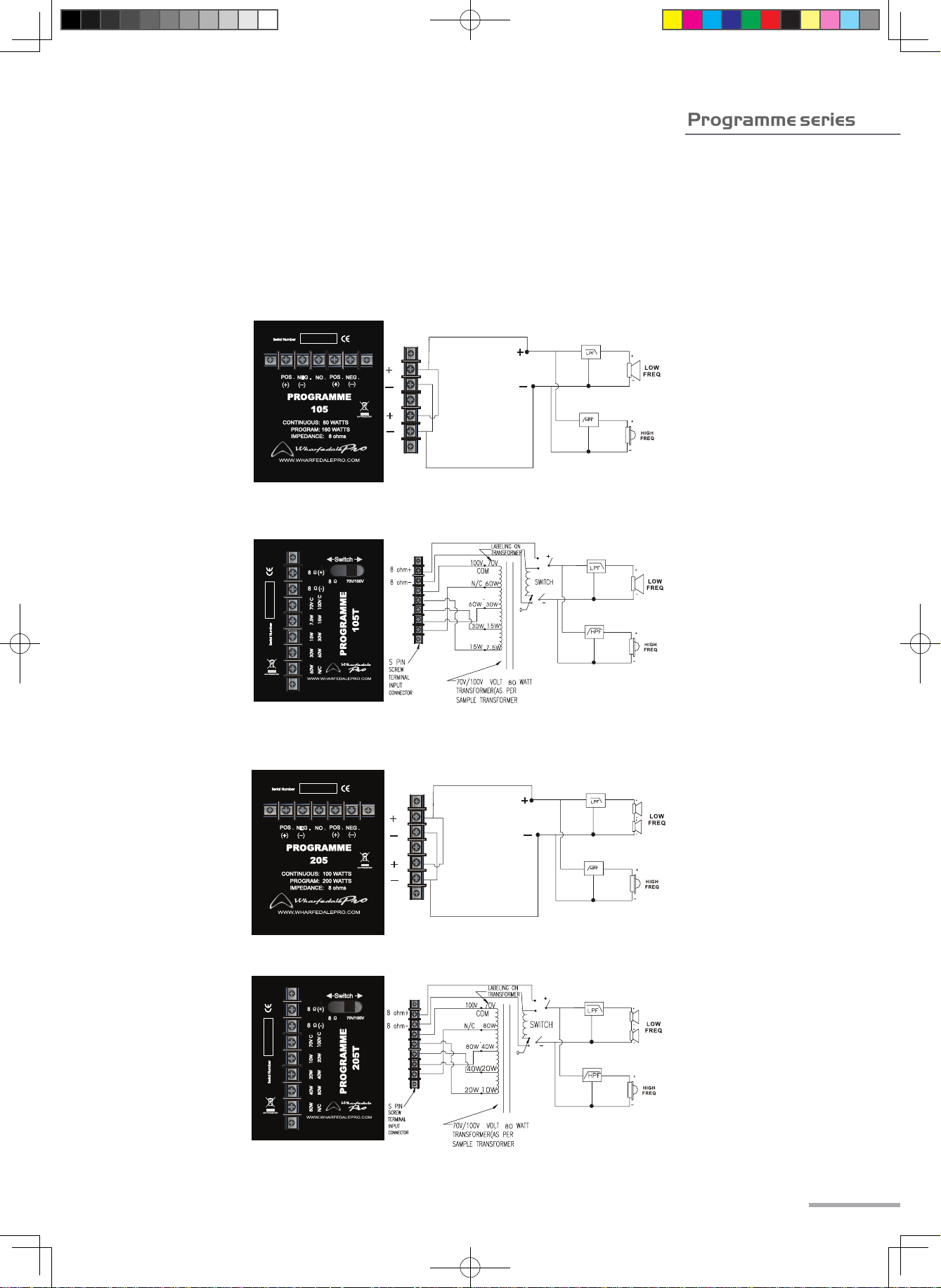

8. Con necti ons/C rosso ver/Tran sform ers………………………………. ..... ..
9. Specifications …………………………………….………………………….………

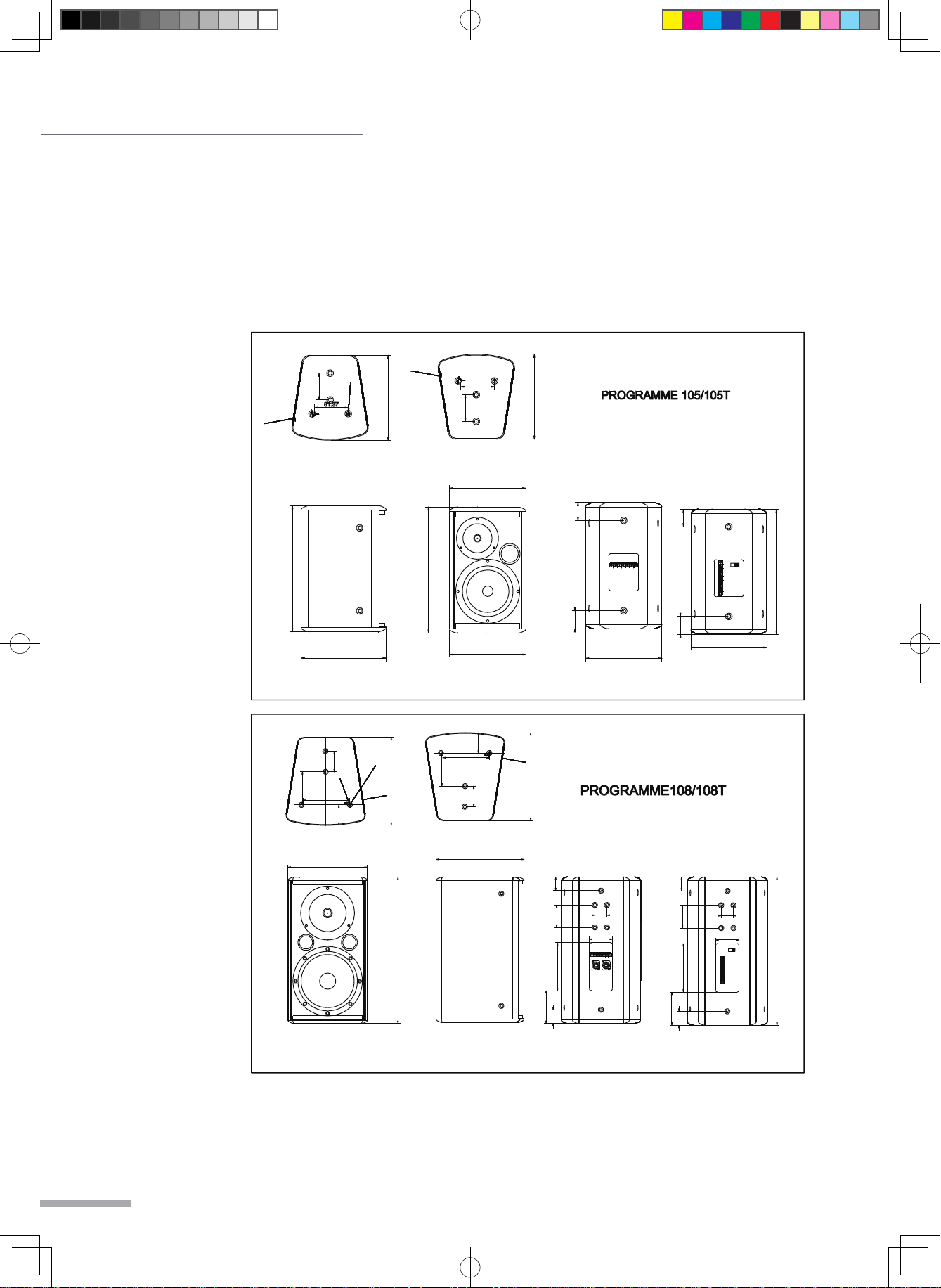

10. Dimensional Drawings Programme 105/105T + 108/108T...............

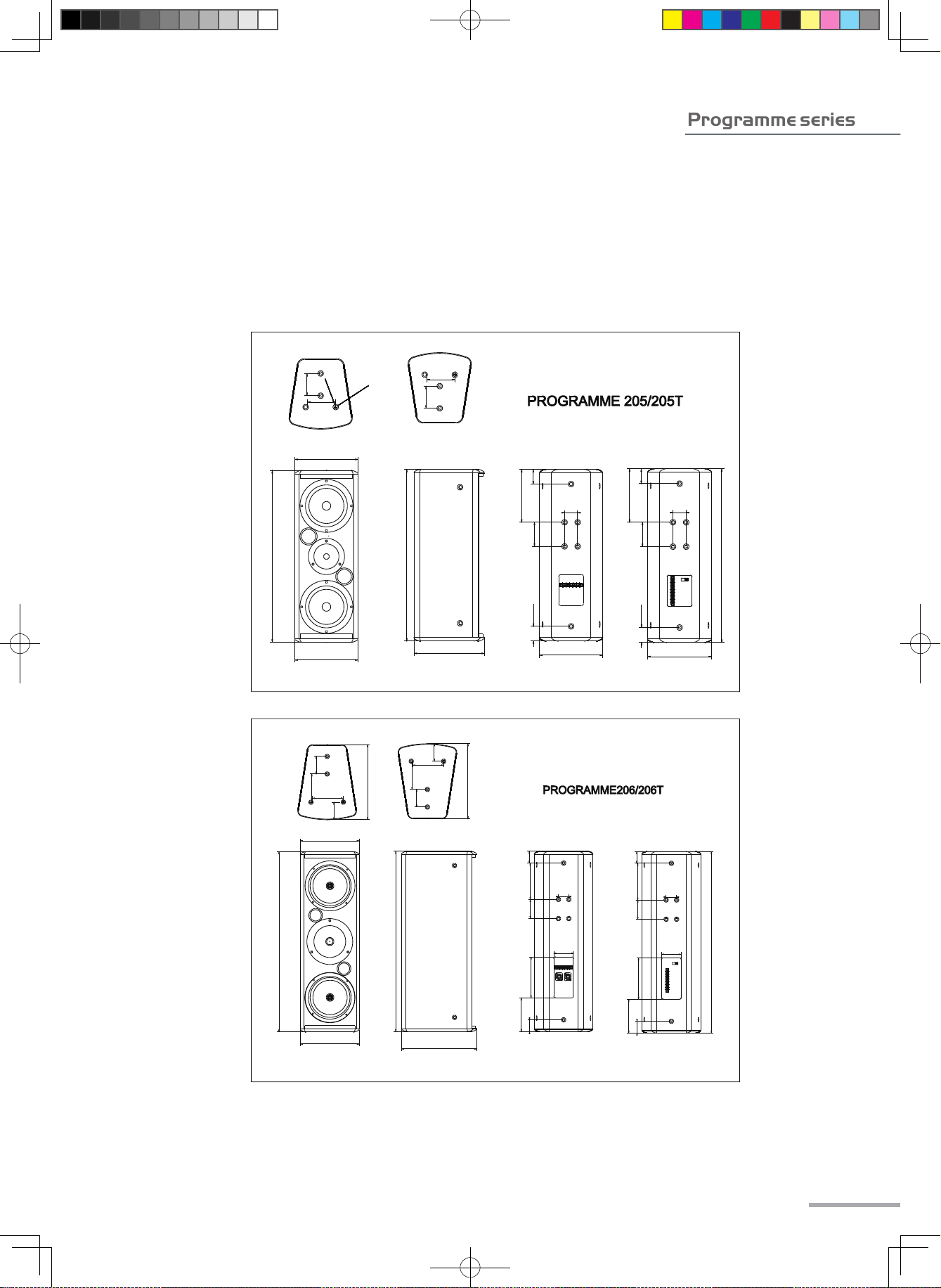

11. Dimensional Drawings Programme 205/205T + 206/206T.............

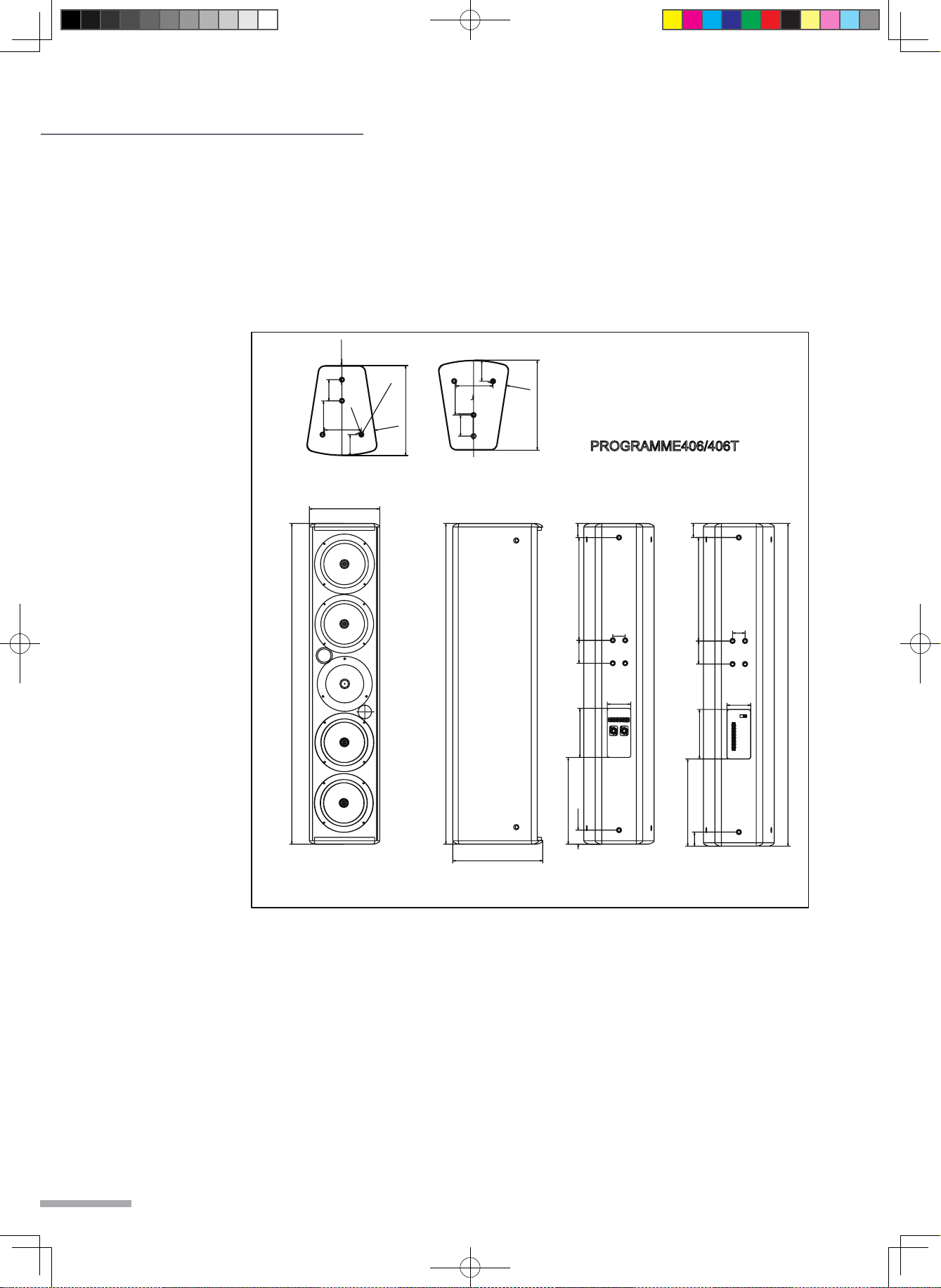

12. D imen sion a l D r awin gs Prog r amme 406/ 4 06T.... . .... .... .... . .... ...

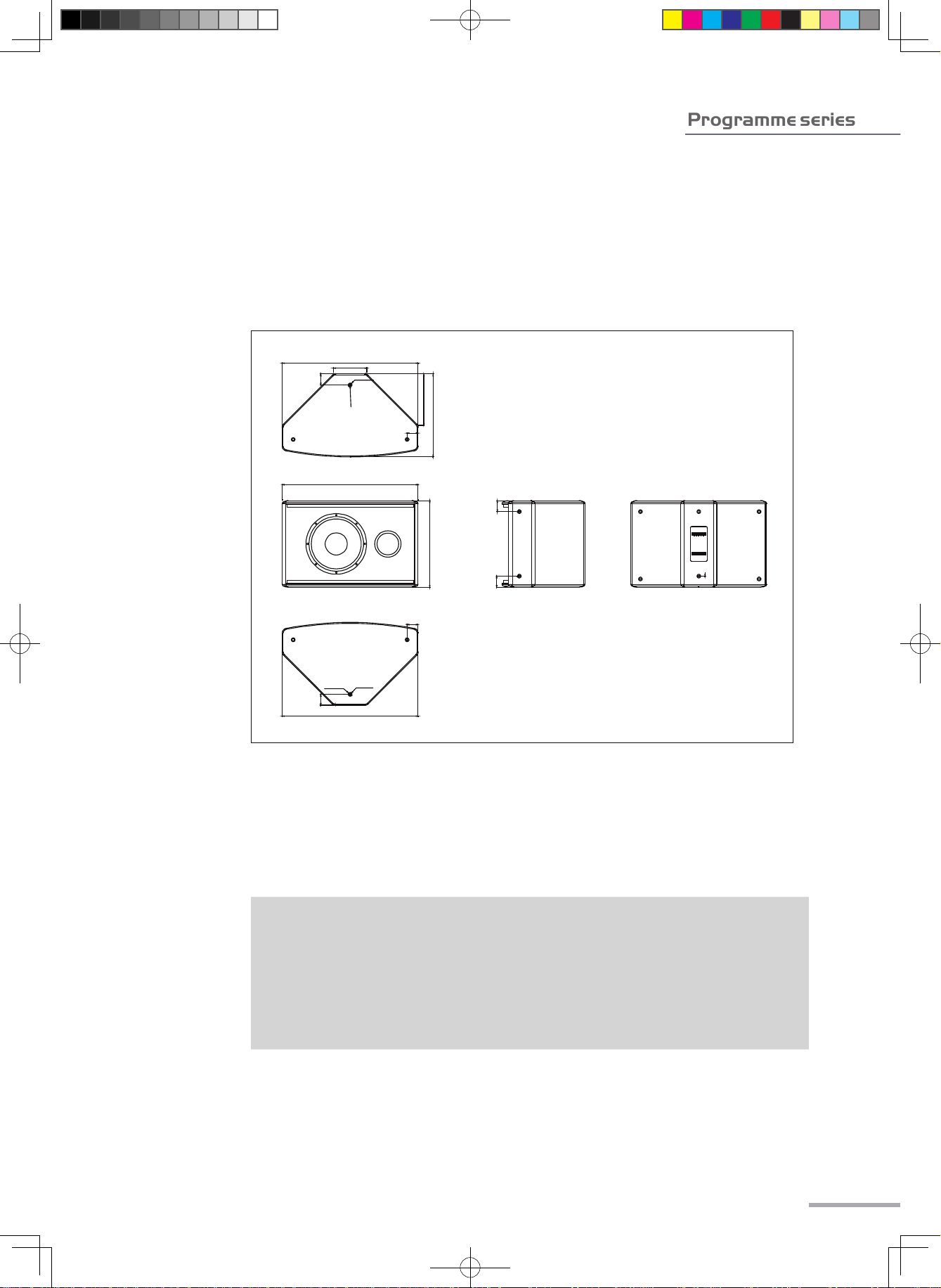

13. Dimensi onal Dr awings Prog ra mme Subwoofer............. ...............
14. Warranty…………………………..……....…………………………..……...........
TABLE OF CONTENTS
1
3
4
5
7
7
11
12
15
17
18
19
19
20
OPERATING MANUAL AND USER GUIDE
3
Wharfedale Programme Series foreground/back-ground music speakers are designed for
demanding professional applications such as reproduction and reinforcement of music and
sound in venues as diverse as airports, houses of worship, schools, retail shops, restaurants
and public houses.
When you need a powerful, easy to install and use sound reinforcement or background
music system, you choose the system that can deliver the biggest sound for your money the
Programme Series system is just what you asked for.
With its powerful 10 inch (254mm), dual coil woofer, and High-Pass Left and Right outputs,
The Programme Sub is the perfect addition to the full range speakers in the Series.
WHAT ABOUT THE PROGRAMME SUBWOOFER?
6XEZRRIHU
Programme series
4
Wharfedale Programme Series loudspeakers are the result of many years of experience in
the use, design and manufacturing of professional loudspeaker products. We take great
pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you
for entrusting us with your sound.
Please take a few minutes to read this manual completely in order to ensure that you get
the most out of your Programme Series Loudspeaker system.
PROGRAMME SERIES OVERVIEW:
The Programme Series loudspeaker systems are designed to deliver accurate, high power
sound in a lightweight, compact and easy to install package.
Each Programme Series speaker may also be used in constant voltage distributed systems.
With an internal, switchable transformer, you can economically install a background music
or paging system, while still only using one amplifier.
The Programme Series has a speaker to fit your sound requirements. From the compact,
lightweight Programme105 to the multiple driver Programme406, or adding the Programme
Sub, you have the flexibility you need to provide the best sound value. With the included
mounting brackets, transformer option (full range), you will be impressed with the ease of
wall or ceiling mounting as well as the clear, accurate sound coming out of these speakers.
INTRODUCTION
OPERATING MANUAL AND USER GUIDE
5
♦
2-way loudspeaker systems
♦
1” (25.4mm) Titanium Dome HF (105/205)
♦
1” (25.4mm) Titanium Compression Driver (206/406/108)
♦
Low distortion, high power woofers
o Programme 105: 5” (133.4mm) woofer
o Programme 108: 8” (203.2mm) woofer
o
Programme 205: 5” x 2 (133.4mm) woofer
o
Programme 206: 6.5” x 2 (165.1mm) woofer
o Programme 406: 6.5” x 4 (165.1mm) woofer
♦
80 – 250 Watts Continuous Power Handling
♦
High strength Trapezoidal cabinet
♦
Pro-tech® (PTC) driver protection (Programme 105)
♦
Pro-tech® (Bulb) driver protection (108/205/206/406)
♦
M8 High Strength Hanging Points
♦
Barrier Strip or SpeakOn™ Input Connectors
♦
Models available with 70v/100v Transformer (‘T’ version)
FEATURES
Programme series
6
♦
Subwoofer loudspeaker system
♦
10” (254 mm) Dual coil woofer
♦
2 x 2” (50.8mm) voice coils
♦
400 Watts Continuous Power Handling (both inputs driven)
♦
High strength rectangular cabinet
♦

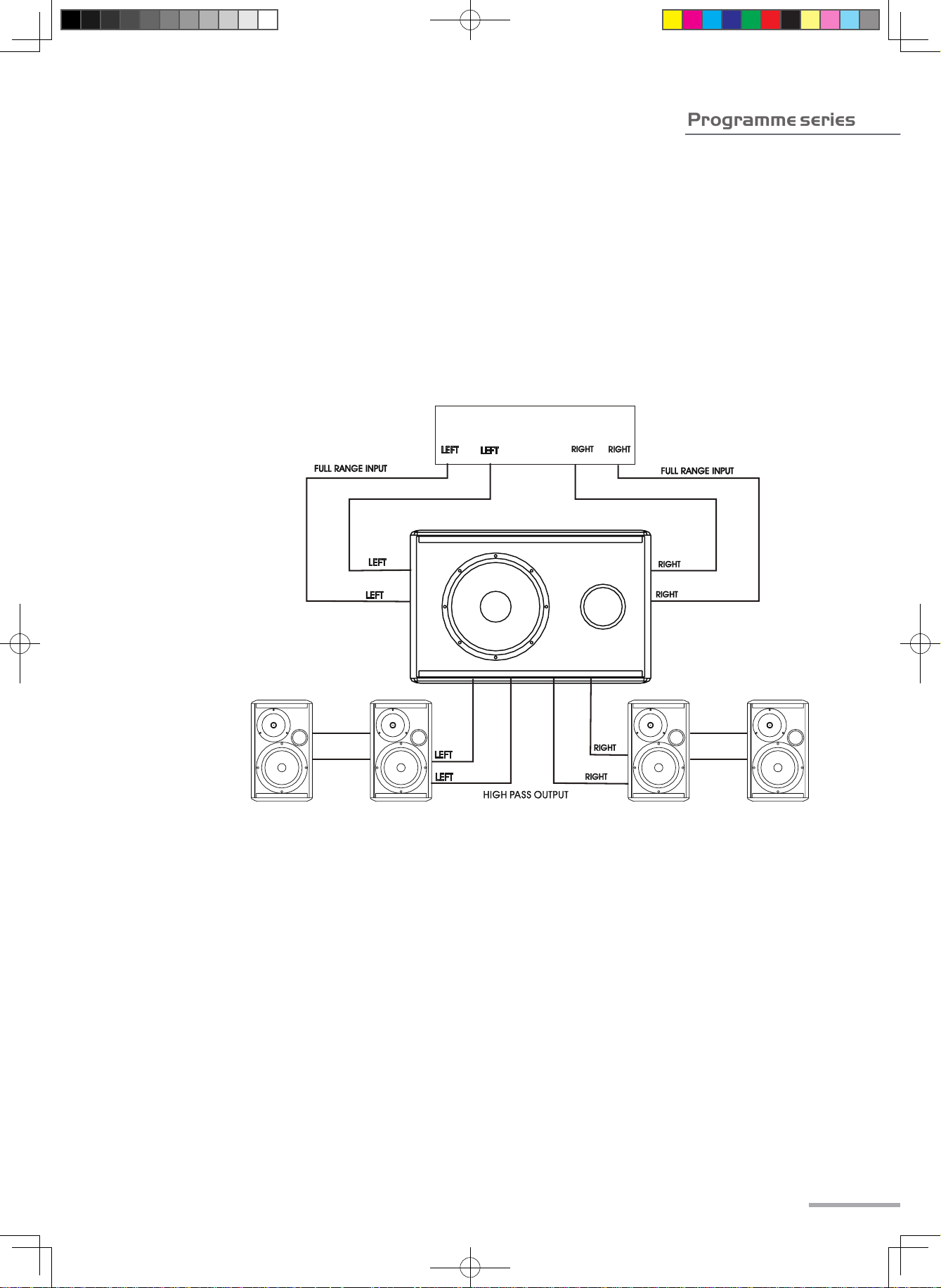

High pass output for other Programme Series speakers
♦
Low and High Pass filters for smooth frequency response
♦
Barrier Strip Input & Output Connectors
♦
Wall mount bracket included
♦
M8 High Strength Hanging Points
FEATURES (Programme Subwoofer)
