Wharfedale Titan AX12 Data Sheet

WWW.WHARFEDALEPRO.COM

IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK

Tel: [phone]

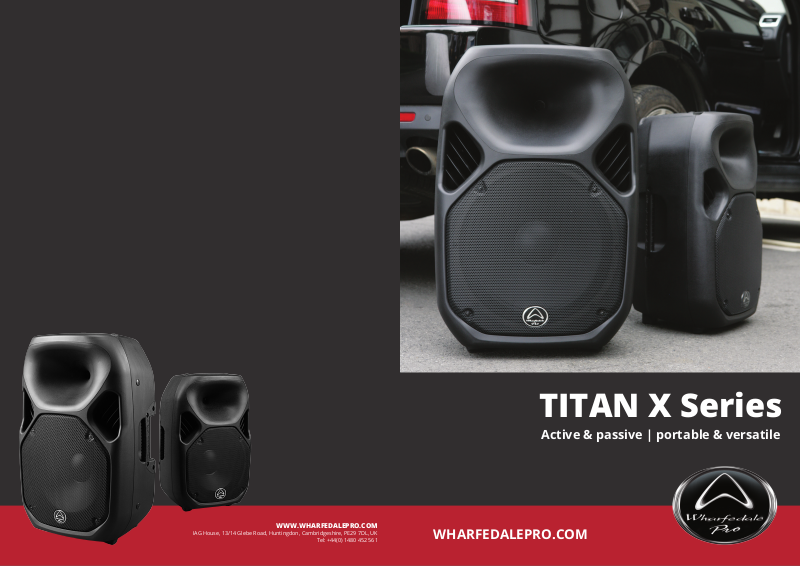

TITAN X Series

Active & passive | portable & versatile

WHARFEDALEPRO.COM

VERSATILE LIGHTWEIGHT PA SPEAKERS, DURABLE FOR INDOORS AND OUT

IRIS X driver technologies

For many years the name ‘Titan’ has become the benchmark for portable and versatile loudspeakers.
TITANs are used day in, night out around the world in almost every audio environment imaginable.
Available in active or passive, black or white, TITANs deliver high quality audio with peace of mind
reliability.

Designed to perform in portable and xed installation applications alike TITANs, with their ultra-light­weight composite enclosure, oer a range of mounting options including tripod oor stands, wall
mounting brackets or even on their side as a oor monitor.

TITANs use state of the art, gas assist

LAMINAR RIB

FLOW LIGHT

WEIGHT CABINET

CONSTRUCTION

injection moulding technology, plus

an internal laminar ow rib pattern,

increasing rigidity and reducing its
weight compared with standard
injection moulded enclosures. TITAN
X loudspeakers are the lightest in their
class.

Although the product weight and
rubberised handles are perfect for the

MOISTURE

PROOF WOOFER

mobile musician, this technology also
lends itself to installations where weight
is an issue, not to mention that the
polypropylene material and moisture
proof woofers can withstand outdoor
conditions.

The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Our
new TITAN X loudspeakers now include our proprietary IRIS X design which delivers Increased coil
Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation
during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer
converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat

dissipation and improved eciency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market
with specications and are designed and built entirely within Wharfedale Pro.

I Increased
R Radius
I Increased
S Sensitivity

With the largest voice coils and highest sensitivity in their

class, its these transducers which make TITAN X truly
unique.

NEW

Hybrid Symmetry

Horn 100° x 80°

NEW

HF compression

driver

DESIGN

TITAN loudspeakers are cosmetically designed

for practical, real-world applications.

On stage the trapezoidal shape allows for arrays
and to use a TITAN as a stage monitor. For
installation comprehensive mounting points
and optional hardware allows a TITAN to be
placed almost anywhere.

PASSIVE MODELS

TITAN X12 and TITAN X15

The new TITAN X12 and and X15 now feature

all-new HF and LF drivers. The IRIS X4 HF
compression driver has been completely re-

evaluated for both coverage and sound quality
ensuring a much smoother sound, especially
at high output.

The all-new LF driver has improved moisture

rejection characteristics which allows TITAN X
to be installed into hostile environments.

We have also tweaked the laminar rib cabinet

structure to improve structural strength for
durability and acoustic performance. TITAN X
raises the bar for portable PA and is built to
last.

NEW

LF transducer with

improved moisture rejection

NEW

Improved laminar

rib cabinet

ACTIVE

Mounting hardware and options

Using state of the art, bi-amplied technology coupled with the same rugged build of the TITAN X
Passive speakers, TITAN AX12 and AX15 actives are ready for almost anywhere - band practice, on

stage, in studios, at rehearsals, theaters, even houses of worship.

Bi-Amplied

Engineers have selected the perfect amplier combination

for the transducers and crossovers. The AX12 and AX15

each include 2 discrete ampliers to ensure maximum
eciency and unparalleled audio quality.

Protection

Active models feature a comprehensive self protection
system to ensure reliable operation right up to the power
limit. Intelligent electronics constantly monitor for DC,
overload, short circuit, thermals and LF/HF limiting giving
you peace of mind and preventing internal damage.

Onboard mixing

A top stacking feature is provided for multi-loudspeaker applications and the TITAN X can be used on its

side as a stage monitor. The speaker stand receptacle features a locking screw to ensure stability and

rubber-padded carry handles make the job of transporting the enclosure even easier.

On the base is a convenient pole mount socket that is used
for easy mounting on a standard 35mm diameter speaker
poles. Cord wrap and cable anchor features are also moulded
into the enclosure. Threaded rigging points are provided for a

variety of safe ying congurations with four of these inserts
available, bottom-mounted.

The AX12 and AX15 active models feature handy mixing

functions. Two inputs with separate level controls allow

for overall balance and control. With easy interfacing to
external mixers and processors its simple to connect to
larger systems or to expand the system.

Flagship DSP

TITAN AX12 and AX15 active loudspeakers now feature our cutting

edge 6-position DSP engine. No other competitive model features
such powerful and eective DSP.

This new DSP engine provides sophisticated internal loudspeaker
management functions. These include limiting, compression,
signal delay, dynamic boost, dynamic cut, crossover control and
parametric EQ. Micro adjustments within each parameter ensure
sonic clarity over the full frequency range.

We’ve optimised these DSP parameters to create 6 user-friendly
settings including Monitor, Speech, Bass, Punch and an exclusive
mode called “Live”. This Live mode applies dierent DSP settings to
each of the 2 inputs - perfect for solo entertainers using a mic and

a line level source.

More Protection, Same Convenience

Wharfedale Pro Titan Tourbags
add exceptional protection to

your TITAN X loudspeakers, and
to keep the same ergonomics
and convenience the bag has
been conveniently designed
with removable front covers,
rear panels, side panels and
speaker pole sections so you can
move and install your speaker
without ever having to take the

tourbags o. The front cover

removes to show a unique mesh
material, which adds additional
protection and leaves the sound
unfettered.

TITAN X and AX models are compatible with all previous TITAN series mounting hardware and
tourbags.

SPECIFICATIONS PASSIVE SPECIFICATIONS ACTIVE

Model Name TITAN X12 TITAN X15

System Type Passive Passive

Conguration 12" 2-way 15" 2-way

Frequency Response (+/-3dB) 55Hz-20kHz 50Hz-20kHz

Frequency Range (- 10 dB) 50Hz-20kHz 40Hz-20kHz

Sensitivity (2.83v/1m) 98dB 97dB

Calculated Maximum SPL @1m 128dB 129dB

System Rated Impedance 8Ω 8Ω

Low Frequency Transducer

Size 305mm / 12" 381mm / 15"

Voice-Coil Size 64.26mm / 2.5" 75mm / 3.0"

High Frequency Transducer

HF Driver Type IRIS X4 Compression Driver IRIS X4 Compression Driver

Voice-Coil Size 44mm / 1.75" 44mm / 1.75"

Exit Size 25mm / 1" 25mm / 1"

Diaphragm Material Titanium Titanium

Nominal Coverage (H x V) Hybrid Symmetry Horn 100°x80° Hybrid Symmetry Horn 100°x80°

Power

System Continuous Power 250w 400w

System Programme Power 500w 800w

System Peak Power 1000w 1600w

Crossover frequency 2.6kHz 2.7kHz

Input Connector 2 x NL4 (speakON compatible) / 2 x 1/4" Jack 2 x NL4 (speakON compatible) / 2 x 1/4" Jack

Hardware

Pole Mount 35mm with lock screw 35mm with lock screw

Handles 2 on sides 2 on sides

Mounting points M8 * 10 M8 * 10

Enclosure

Enclosure Material Trapezoidal / Polypropylene Trapezoidal / Polypropylene

Finish Black / white Black / white

Grille Material & Finish 1.2 steel 1.2 steel

Dimensions - Unpacked

Height 582.7mm / 22.9" 728.5mm / 28.7"

Width Front 384.6mm / 15.1" 480.6mm / 18.9”

Depth 318.6mm / 12.5" 395.6mm / 15.6"

Dimensions - Packed

Height 663mm / 26.1" 830mm / 32.7"

Width Front 435mm / 17.1" 514mm / 20.2"

Depth 408mm / 16.1" 489mm / 19.3"

Weight

Net Weight (kg / lbs) 12.0kg / 26.4lbs 22.0kg / 48.4lbs

Gross Weight (kg / lbs) 15.1kg / 33.2lbs 26.8kg / 59.0lbs

Weight

Net Weight (kg / lbs) 12.0kg / 26.4lbs 22.0kg / 48.4lbs

Gross Weight (kg / lbs) 15.1kg / 33.2lbs 26.8kg / 59.0lbs

Model Name Titan AX12 Titan AX15

System Type Active 12” 2-way Bi-Amplied Active 15” 2-way Bi-Amplied

Frequency Response (+/-3dB) 55Hz-20kHz 50Hz-20kHz

Frequency Range (-10dB) 50Hz-20kHz 40Hz-20kHz

Calculated Maximum SPL @1m 128dB 129dB

Transducers

Low Frequency Transducer

Size (mm / inches) 305mm / 12” 381mm / 15”

Coil Size (mm / inches) 64.26mm / 2.5" 75mm / 3.0"

High Frequency Transducer

Type IRIS X4 Compression Driver IRIS X4 Compression Driver

Coil Size (mm / inches) 44mm / 1.75" 44mm / 1.75"

Exit Size (mm / inches) 25mm / 1” 25mm / 1”

Diaphragm Material Titanium Titanium

Nominal Coverage (H x V) Hybrid Symmetry Horn 100° x 80° Hybrid Symmetry Horn 100° x 80°

Electronics

Low-Frequency Power Amplier RMS/Peak Watts 250/500W (Class D) 350/700W (Class D)

High-Frequency Power Amplier RMS/Peak Watts 50/100W (Class D) 70/140W (Class D)

DSP

Hi Pass switch 90Hz 90Hz

Amp / Thermal protection Yes Yes

Low Line Voltage Shut Down 60% Nominal line voltage 60% Nominal line voltage

Driver Protection Independent LF and HF limiters Independent LF and HF limiters

DC / Short Protection Yes Yes

Clip Limiter Turns on ~250W output Turns on ~350W output

Limiter Indicator Red LED Red LED

Power Indicator Green LED Green LED

Connectors

Input – type Switchable balanced mic or line level (Chan 1) Switchable balanced mic or line level (Chan 1)

Input Connector 2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC) 2 * XLR & 2 * 1/4" jack (Chan 1 Line/MIC)

Line Output Connector Switchable LOOP/MIX Balanced Female XLR Switchable LOOP/MIX Balanced Female XLR

AC Power

Power Supply SMPS SMPS

AC Power Options AC100-120V/220-240V~ 50/60Hz AC100-120V/220-240V~ 50/60Hz

Power On Indicator Rear LED Rear LED

Hardware

Rigging / Bracket / Mounting Options

LED Horn lighting (On/O switch) Yes Yes

Enclosure

Enclosure Material and nish Injection Moulded Polypropylene Injection Moulded Polypropylene

Colour Options Black / White Black / White

Grille Material & Finish 1.2mm steel 1.2mm steel

Dimensions - Unpacked

Height 582.7mm / 22.9" 728.5mm / 28.7"

Width Front 384.6mm / 15.1" 480.6mm / 18.9"

Depth 318.6mm / 12.5" 395.6mm / 15.6"

Dimensions - Packed

Height 663mm / 26.1" 830mm / 32.7"

Width Front 435mm / 17.1" 514mm / 20.2"

Depth 408mm / 16.1" 489mm / 19.3"

Net Weight (kg / lbs) 12.4kg / 27.28lbs 22.94kg / 50.3lbs

Gross Weight (kg / lbs) 15.5kg / 34.1lbs 27.7kg / 60.9lbs

Advanced user selectable presets.
1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE

10 M8 threaded inserts including 4 M8 threaded

inserts on bottom in OmniMount 30.0-type footprint

35mm receptacle with lock screw 35mm receptacle with lock screw

2 carry handles (one on each side) 2 carry handles (one on each side)

Advanced user selectable presets.
1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE

10 M8 threaded inserts including 4 M8 threaded inserts on

bottom in OmniMount 30.0-type footprint
