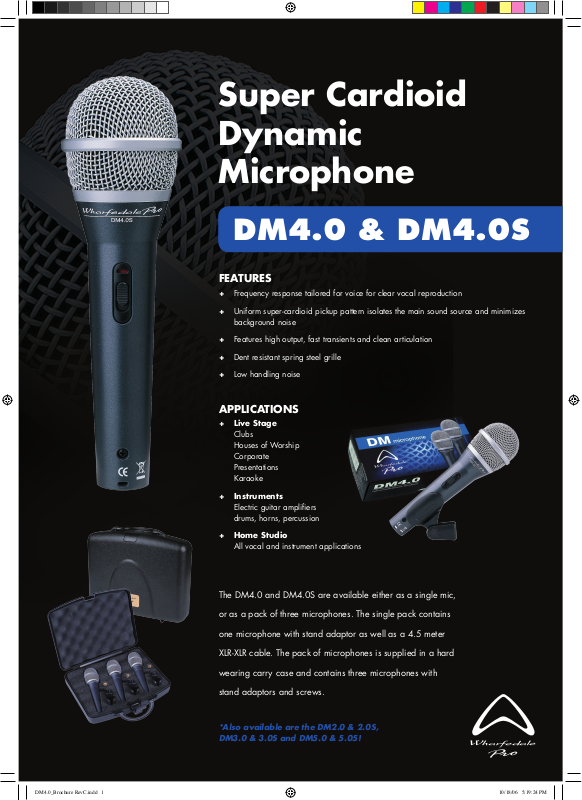

Wharfedale DM4.0, DM4.0S User Manual

FEATURES

+ Frequency response tailored for voice for clear vocal reproduction

+ Uniform super-cardioid pickup pattern isolates the main sound source and minimizes

background noise

+ Features high output, fast transients and clean articulation

+ Dent resistant spring steel grille

+ Low handling noise

APPLICATIONS

+ Live Stage Clubs

Houses of Worship Corporate Presentations Karaoke

+ Instruments Electric guitar ampliﬁers drums, horns, percussion

+ Home Studio

All vocal and instrument applications

The DM4.0 and DM4.0S are available either as a single mic,

or as a pack of three microphones. The single pack contains

one microphone with stand adaptor as well as a 4.5 meter

XLR-XLR cable. The pack of microphones is supplied in a hard

wearing carry case and contains three microphones with

stand adaptors and screws.

*Also available are the DM2.0 & 2.0S, DM3.0 & 3.0S and DM5.0 & 5.05!

Super Cardioid Dynamic Microphone

DM4.0 & DM4.0S

DM4.0_Brochure RevC.indd 1 10/18/06 5:19:24 PM

POLAR CHARTS

The frequency response curve shown above (measuring response at +3dB) and polar pattern correspond to typical production run speciﬁcations for this microphone.

OVERVIEW

The DM4.0 is a dynamic moving coil microphone designed to handle a wide variety of vocal and instrument applications for both live sound and recording. This microphone is also available with an integral on/off switch (model DM4.0S). Characteristics of the DM4.0, such as a tight super-cardioid pickup pattern with a frequency response of 45Hz – 18kHz, slight bass proximity and mid range presence result in a warm and natural sounding response for every application. The DM4.0 is engineered to handle very high source levels without distortion and provides over 36dB of off axis feedback rejection.

Low impedance and balanced output allow for interference free performance. The DM4.0 is built solidly with a cast alloy body, steel mesh grille ball and internal pop screen.

SPECIFICATIONS

Transducer Type: Dynamic Frequency Response: 45Hz−18KHz Polar Pattern: Super-cardioid Output Impedance: 250ohms Sensitivity: –53dB (0dB=1V/Pa) Off-axis rejection: >26dB at 125o Maximum SPL: >136dB Cable/Connector: 3 pin gold plated male XLR Polarity: Positive voltage on pin 2

relative to pin 3 of output XLR connector

Housing: Zinc alloy Weight: 330 grams/11.75 oz.

www.wharfedalepro.com

IAG House, Sovereign Court,Ermine Business Park, Huntingdon, Cambs P E29 6XU England

Tel: +44(0)1480 447700 Fax: +44 (0)1480 431767
