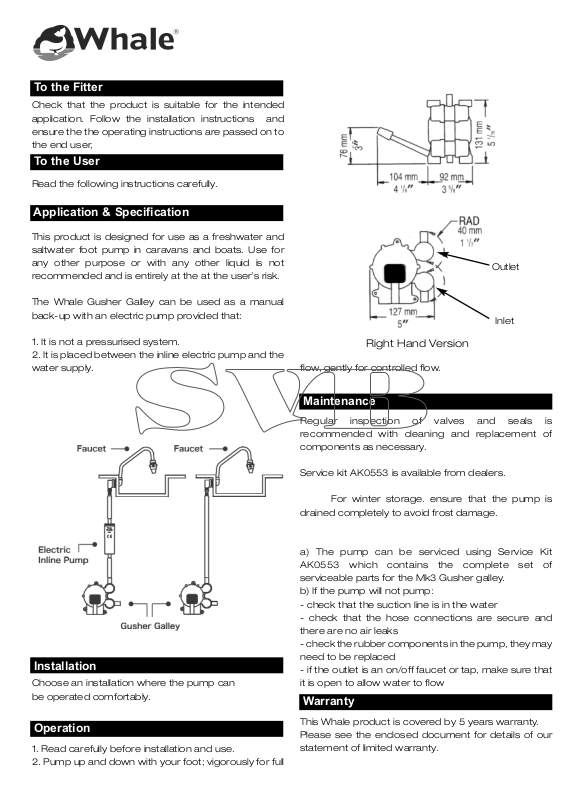

Page 1
Gusher Galley
Mk 3 GP0550 / GP0551
Check that the product is suitable for the intended
application. Follow the installation instructions and
ensure the the operating instructions are passed on to
the end user,
Read the following instructions carefully.
This product is designed for use as a freshwater and
saltwater foot pump in caravans and boats. Use for
any other purpose or with any other liquid is not
recommended and is entirely at the at the user’s risk.
The Whale Gusher Galley can be used as a manual
back-up with an electric pump provided that:
1. It is not a pressurised system.
2. It is placed between the inline electric pump and the
water supply.
Choose an installation where the pump can
be operated comfortably.
1. Read carefully before installation and use.
2. Pump up and down with your foot; vigorously for full
flow, gently for controlled flow.
Regular inspection of valves and seals is
recommended with cleaning and replacement of
components as necessary.
Service kit AK0553 is available from dealers.
Note:
For winter storage. ensure that the pump is
drained completely to avoid frost damage.
Helpful Hints
a) The pump can be serviced using Service Kit
AK0553 which contains the complete set of
serviceable parts for the Mk3 Gusher galley.
b) If the pump will not pump:
- check that the suction line is in the water
- check that the hose connections are secure and
there are no air leaks
- check the rubber components in the pump, they may
need to be replaced
- if the outlet is an on/off faucet or tap, make sure that
it is open to allow water to flow
This Whale product is covered by 5 years warranty.
Please see the enclosed document for details of our
statement of limited warranty.
To the Fitter
To the User
Application & Specification
Maintenance
Warranty
Operation
Installation
Right Hand Version
Outlet
Inlet
Page 2
Munster Simms Engineering Ltd.
Old Belfast Road, Bangor, N. Ireland BT19 1LT Tel: +44 (0)28 9127 0531 Fax: +44 (0)28 9146 6421
Web: www.whalepumps.com Email: [email protected]
Ref No. Gusher_Galley_v1_0710
