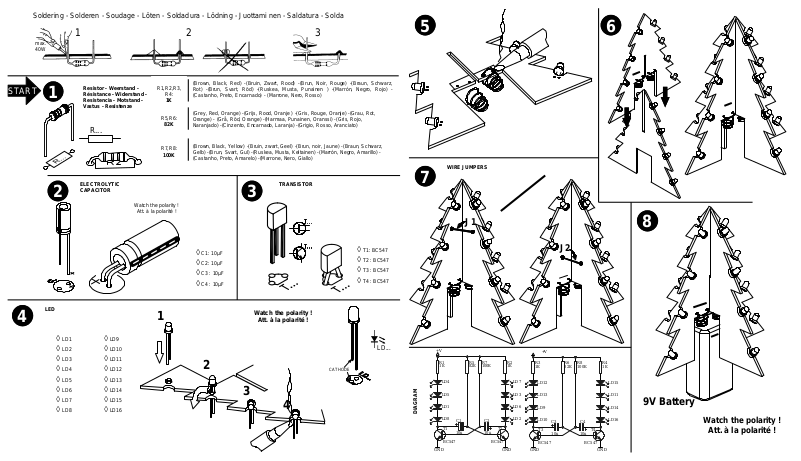

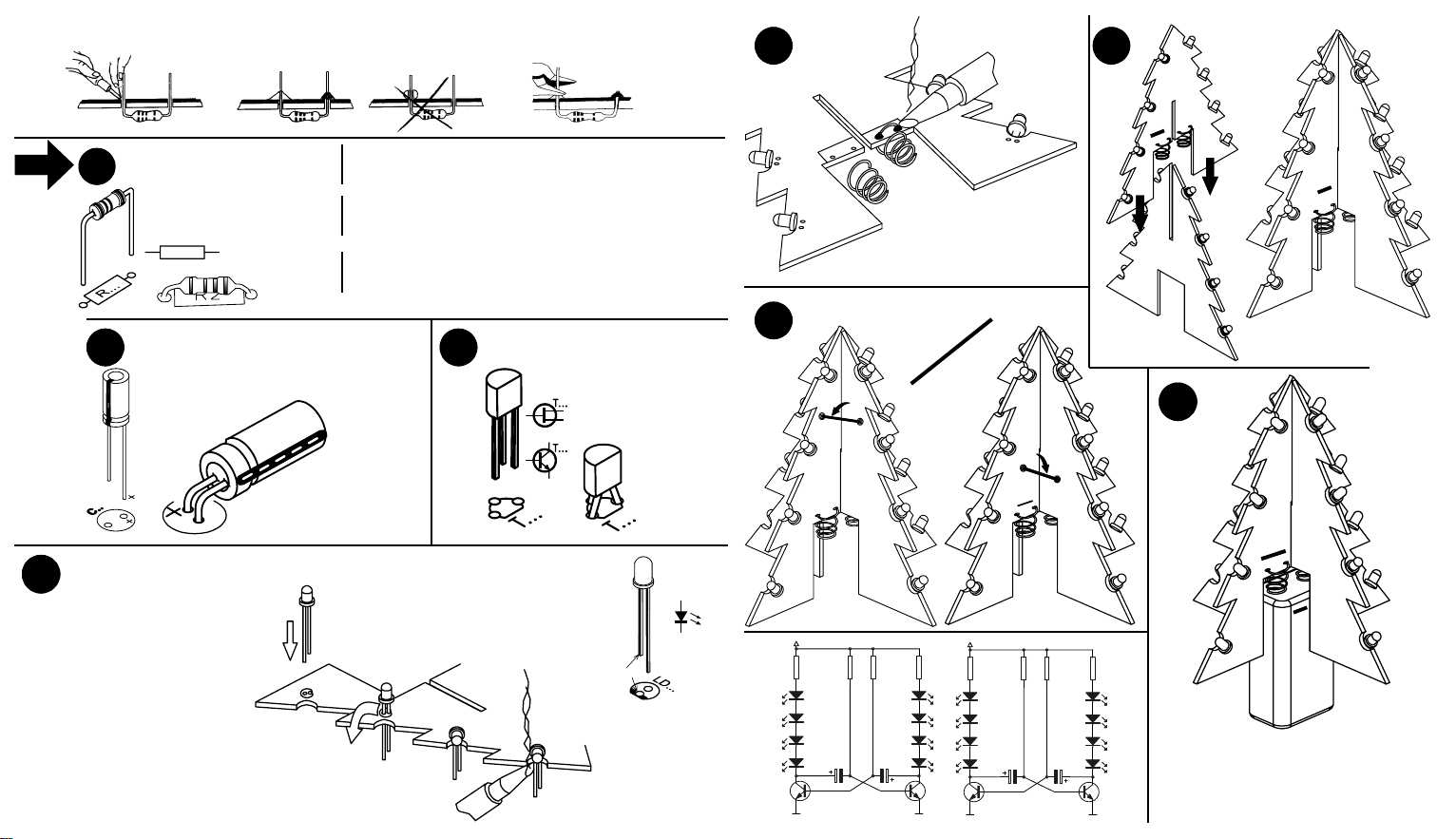

Page 1
Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
START
max.
40W
1 3
Resistor - Weerstand -
2
ELECTROLYTIC
CAPACITOR
Résistance - W i derstand -
Resistencia - Motstand Vastus - Resistenze
R...
Watch the polarity !
Att. à la polarité !
1
R1,R2,R3,
R4:
1K
R5,R6:
82K
R7,R8:
100K
2
(Brown, Black, Red) -(Bruin, Zwart, Rood) -(Brun, Noir, Rouge) -(Braun, Schwarz,
Rot) -(Brun, Svart, Röd) -(Ruskea, Musta, Punainen ) -(Marrón, Negro, Rojo) (Castanho, Preto, Encarnado) - (Marrone, Nero, Rosso)
(Grey, Red, Orange) -(Grijs, Rood, Oranje ) -(Gris, Rouge, Oranje) -(Grau, Rot,
Orange) - (Grå, Röd, Orange) -(Harmaa, Punainen, Oranssi) -(Gris, Rojo,
Naranjado) -(Cinzento, Encarnado, Laranja) -(Grigio, Rosso, Aranciato)
(Brown, Black, Yellow) -(Bruin, zwart, Geel) -(Brun, noir, Jaune) -(Braun, Schwarz,
Gelb) -(Brun, Svart, Gul) -(Ruskea, Musta, Keltainen) -(Marrón, Negro, Amarillo) (Castanho, Preto, Amarelo) -(Marrone, Nero, Giallo)
TRANSISTOR
3
5
7
WIRE JUMPERS
J1
6
8
4
LED
◊ LD1
◊ LD2
◊ LD3
◊ LD4
◊ LD5
◊ LD6
◊ LD7
◊ LD8
◊ LD9
◊ LD10
◊ LD11
◊ LD12
◊ LD13
◊ LD14
◊ LD15
◊ LD16
CATHODE
◊ T1: BC547
◊ T2 : BC547
◊ T3 : BC547
◊ T4 : BC547
LD...
+V
R1
R5
1K
82K
LD4
LD5
LD1
DIAGRAM
T1
BC547
C1
10µ
R7
100K
R2
1K
LD7
LD3
LD6
LD2LD8
C2
T2
10µ
BC547
GNDGND
◊ C1: 10µF
◊ C2: 10µF
◊ C3 : 10µF
◊ C4 : 10µF
1
Watch the polarity !
Att. à la polarité !
2
3
4
R3
1K
LD12
LD13
LD9
T3
BC547
J2
+V
R4
R8
R6
82K
C3
10µ
100K
1K
LD15
LD11
LD14
LD16LD10
C4
T4
10µ
BC547
GNDGND
9V Battery
Watch the polarity !
Att. à la polarité !
