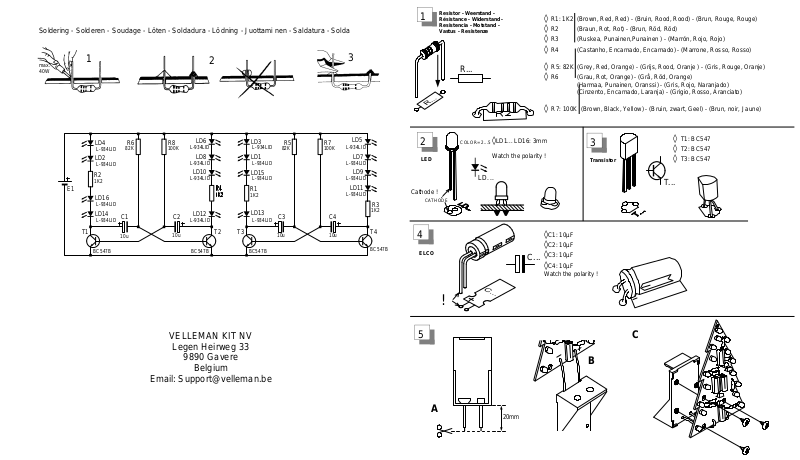

Page 1
Soldering - Solderen - Soudage - Löten - Soldadura - Lödning - Juottami nen - Saldatura - Solda
max.
40W
1
2
3
Resistor - Weerstand -
1
Résistance - Widerstand -
Resistencia - Motstand Vastus - Resistenze
R...
◊ R1: 1K2 (Brown, Red, Red) - (Bruin, Rood, Rood) - (Brun, Rouge, Rouge)
◊ R2 (Braun, Rot, Rot) - (Brun, Röd, Röd)
◊ R3 (Ruskea, Punainen,Punainen ) - (Marrón, Rojo, Rojo)
◊ R4 (Castanho, Encarnado, Encarnado) - (Marrone, Rosso, Rosso)
◊ R5: 82K (Grey, Red, Orange) - (Grijs, Rood, Oranje ) - (Gris, Rouge, Oranje)
◊ R6 (Grau, Rot, Orange) - (Grå, Röd, Orange)
(Harmaa, Punainen, Oranssi) - (Gris, Rojo, Naranjado)
(Cinzento, Encarnado, Laranja) - (Grigio, Rosso, Aranciato)
◊ R7: 100K (Brown, Black, Yellow) - (Bruin, zwart, Geel) - (Brun, noir, Jaune)
LD6
L-934LID
L-934LID
L-934LID
L-934LID
10u
R6
82K
C1
LD4
LD2
R2
1K2
E1
LD16
LD14
T1
BC547B
R8
100K
C2
10u
L-934LID
LD8
L-934LID
LD10
L-934LID
LD12
L-934LID
BC547B
T2
T3
LD3
L-934LID
LD1
L-934LID
LD15
L-934LID
R1
1K2
LD13
L-934LID
BC547B
C3
10u
82K
R5
VELLEMAN KIT NV
R7
100K
C4
10u
LD5
L-934LID
LD7
L-934LID
LD9
L-934LID
LD11
L-934LID
R3
1K2
T4
BC547B
2
LED
Cathode !
CATHODE
4
ELCO
5
!
COLOR= 2...5
+
◊LD1... LD16: 3mm
Watch the polarity !
LD...
◊C1: 10µF
◊C2: 10µF
◊C3: 10µF
C...
◊C4: 10µF
Watch the polarity !
3
Transistor
C
◊ T1: BC547
◊ T2: BC547
◊ T3: BC547
T...
Legen Heirweg 33
9890 Gavere
Belgium
B
Email: [email protected]
A
20mm
