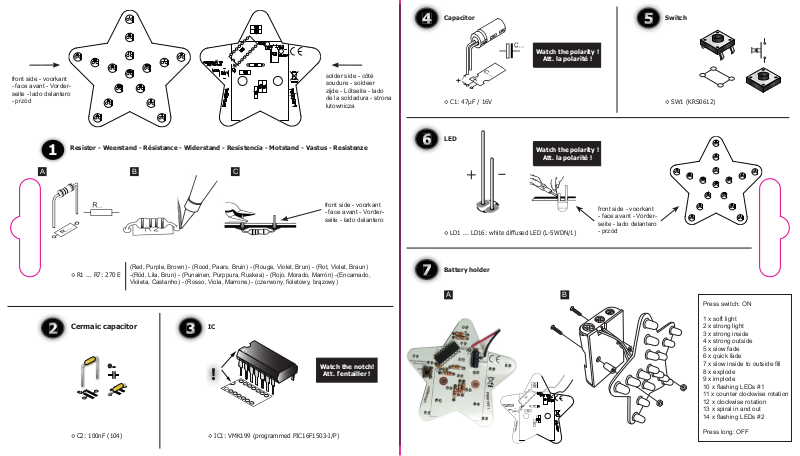

A B C
front side - voorkant
- face avant - Vorderseite - lado delantero
front side - voorkant
- face avant - Vorderseite - lado delantero
- przód
solder side - côté
soudure - soldeer
zijde - Lötseite - lado
de la soldadura - strona
lutownicza
front side - voorkant
- face avant - Vorderseite - lado delantero
- przód

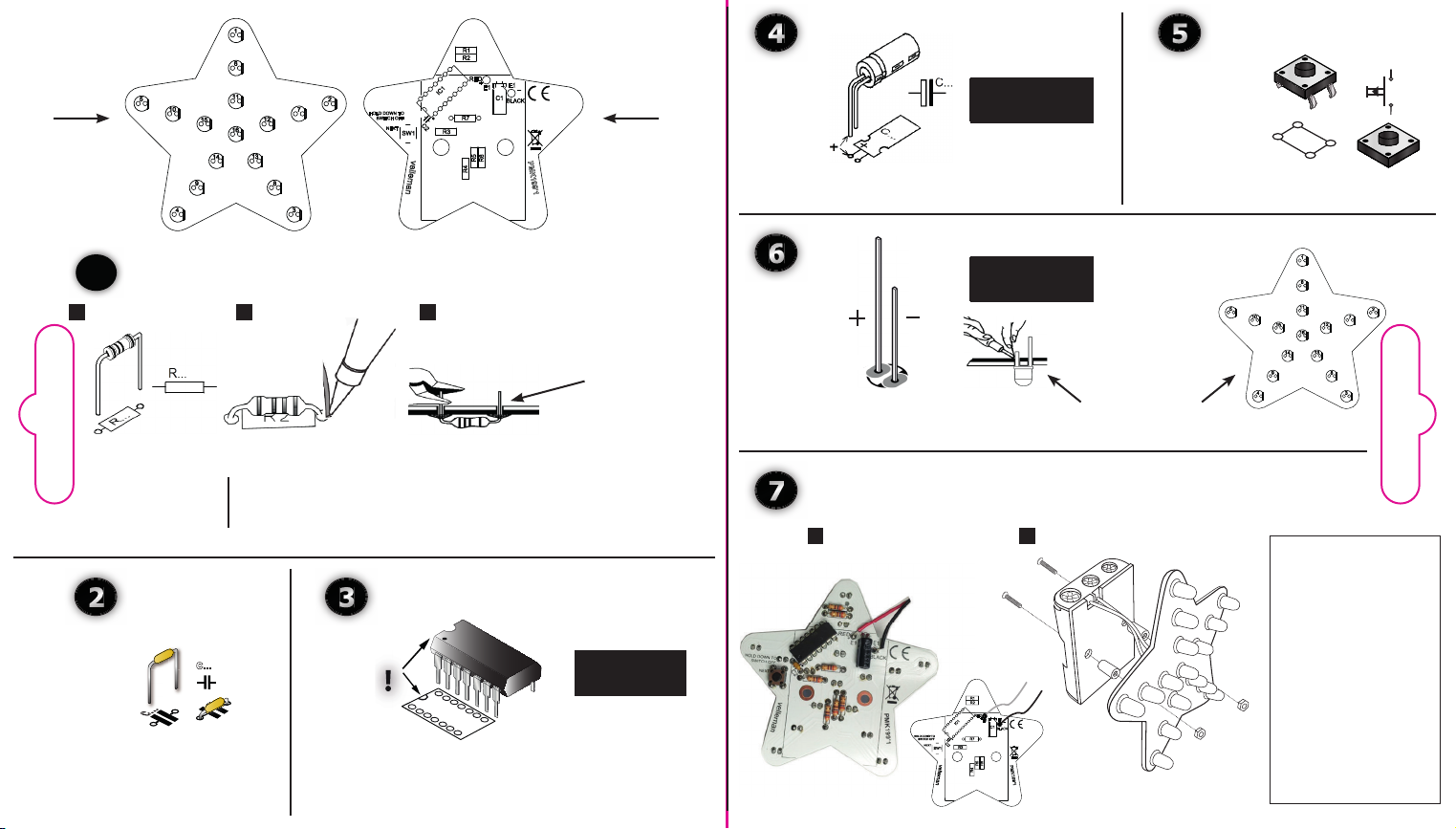

Resistor - Weerstand - Résistance - Widerstand - Resistencia - Motstand - Vastus - Resistenze
◊ R1 ... R7: 270 E
LED
1
◊ LD1 ... LD16: white diffused LED (L-5WDN/1)
Watch the polarity !
Att. la polarité !
(Red, Purple, Brown) - (Rood, Paars, Bruin) - (Rouge, Violet, Brun) - (Rot, Violet, Braun)
-(Röd, Lila, Brun) - (Punainen, Purppura, Ruskea) - (Rojo, Morado, Marrón) -(Encarnado,
Violeta, Castanho) - (Rosso, Viola, Marrone) - (czerwony, fi oletowy, brązowy)
IC
Cermaic capacitor
◊ C2: 100nF (104)
c
...
c
...
◊ IC1: VMK199 (programmed PIC16F1503-I/P)
◊ C1: 47µF / 16V
Capacitor
Watch the polarity !
Att. la polarité !
Switch
◊ SW1 (KRS0612)
Watch the notch!
Att. l’entailler !
Battery holder
A B
Press switch: ON
1 x soft light
2 x strong light
3 x strong inside
4 x strong outside
5 x slow fade
6 x quick fade
7 x slow inside to outside fi ll
8 x explode
9 x implode
10 x fl ashing LEDs #1
11 x counter clockwise rotation
12 x clockwise rotation
13 x spiral in and out
14 x fl ashing LEDs #2
Press long: OFF
