Instructions for Use
Translation of the original operating manual
Technical handpiece 945
Contents
Symbols....................................................................................................................................................................................4
1. Introduction .........................................................................................................................................................................5
2. Safety notes ........................................................................................................................................................................ 7
3. Product description .............................................................................................................................................................8
Technical handpiece ...........................................................................................................................................................................8
4. Operation ..............................................................................................................................................................................9
Assembly/Removal ............................................................................................................................................................................. 9
Rotary instruments ..........................................................................................................................................................................10
Inserting the rotary instrument ....................................................................................................................................................... 11
Test run ...............................................................................................................................................................................................12
Removing the rotary instrument...................................................................................................................................................... 13
2
5. Maintenance ......................................................................................................................................................................14
6. Technical Data ...................................................................................................................................................................15
Explanation of warranty terms .............................................................................................................................................16
EC Declaration of Conformity / Manufacturer’s Declaration .............................................................................................. 17
Authorized W&H Service Partners .......................................................................................................................................18
3
Symbols
(risk of injury)
4
WARNING!
ATTENTION!
(to prevent
damage occurring)
General explanations,
without risk to
persons or objects
1. Introduction
Customer satisfaction has absolute priority in the W&H quality policy. This medical device has been developed,
manufactured and subjected to final inspection according to legal regulations, quality and industry standards.
For your safety and the safety of your team
These instructions explain to you how to use your W&H product. However, we must also warn against possible
hazardous situations. Your safety and the safety of your team are of paramount importance to us.
Intended use
For light technical work on dental materials. Not intended for use on patients. (Not sterilizable)
The technical handpiece is not designed as a medical device!
It is not permitted for use on patients!
5
Skilled application
The technical handpiece is intended only for skilled application in the dental or medical field according to its purpose
of use in compliance with the valid health and safety at work regulations, the valid accident prevention regulations as
well as in compliance with these instructions for use. Non-compliance with these instructions or use of accessories
and spare parts that are not approved by W&H invalidate all claims under warranty and any other claims.
Service
If you observe problems, please contact an authorized W&H service partner immediately (see page 18).
Repair and maintenance work must only be carried out by an authorized W&H service partner.
6
2. Safety notes
The technical handpiece is delivered sealed in PE film.
> Always ensure that you have the correct operating conditions.
> Check the technical handpiece for damage and loose parts prior to each use.
> Only fit the technical handpiece when the motor is at a complete standstill.
> Comply with the necessary protective measures such as the wearing of safety goggles, use of protective
screens, etc.
7

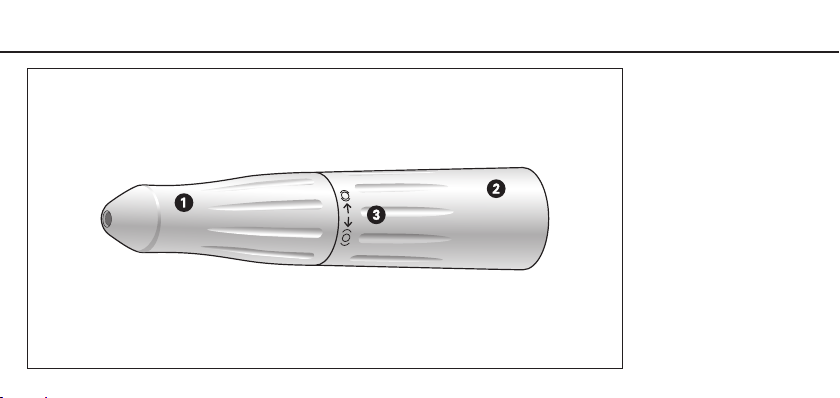

3. Product description
8
Technical handpiece
Handpiece tip with
twist chuck
Sheath
Symbols
( 0 ) = Twist chuck
open
(O) = Twist chuck
locked
