WORR MACHINE® MARKER OWNERS MANUAL
WORR G AME PRODUC TS, LLC.
252 Grani te Street
Corona, Ca 92879-1283
Tel: (951) 520-9969
T
ww w.worr.c om
© Copyright 2006 Worr Game Products, LLC. All rights reserved.
WORR GAME PRODUCTS, LLC.
WORR MACHINE® MARKER OWNERS MANUAL
Always wear paintball approved eye and face protection w hen dealing with a pressurized
paintball marker.
WAR NING:
This is not a toy. Misuse may cause serious injury or death. Eye protection designed specifi­cally for paintball must be worn by the user and persons within range. Recommend 18 years or older to purchase. 14 years old to use with adult supervision or 10 years old to use on paintball fields meeting ASTM-standard F1777-97. READ OPERATION MANUAL BEFORE USING.
Always wear paintball approved eye and face protection w hen dealing with a pressurized
paintball marker.
WAR NING:
Never shoot at anyone without proper protective equipment for eyes, ears, throat and head, which must be worn at all times. Eye protection must be designed specifically for paintball use. Failure to follow these safety precautions may result in bodily injury including blindness and deafness.
If you have a problem,
DO NOT RETURN TO PLACE OF PURCHASE.
Contact WGP for service.
WORR MACHINE® MARKER OWNERS MANUAL
Page 3
W
elcome to the world of the new Worr Machine, and thank you for your purchase of a new Wor r
Machine® marker. You will now be able to experience paintball at it s highest level.
TAbLE Of CON TEN TS
I. Rules of Safe Paintball Marker Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
II. Preparing for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
III. Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
IV. Worr Machine EG (Elec tronic) — E-Grip Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
V. Worr Machine EG (Elec tronic) — Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
VI. Cleaning Your Marker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VI I. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
VI II. F.A.Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
VI I. Warranty .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
WORR MACHINE® MARKER OWNERS MANUAL
Page 4
WORR MACHINE® MARKER OWNERS MANUAL
I. RU LES Of SAfE PA IN TbA LL M A RKER HAN DLING
Your Wor r MACHINE®MArk Er Is Not A to Y.
18 years old to purchase. 14 year s old to play with adult supervision or 10 year s old to use on paintball fields mee ting ASTM-standard F1777-97. Respect other peoples’ property and when using the Worr Machine marker, obey all local, state and federal laws. W hen entering a pain tball field, become aware of their rules and regulations. It is very important to have the proper paintball protection b efore going to the paintball field for play. This includes and is not limi ted to eye, head, throat, and body protec tion. All protection used should be de signed for the sport of paintball, e.g.: eye gear designed specifically for paintball usage.
Always have a bar rel plug or barr el sock in place and k eep the safety ON when handling your mark­er. When repairing or cleaning your marker first r emove barrel and gas cylinder, then depr essurize your marker by pointing in safe direc tion and dry-fi ring. Always treat the paintball marker as i f it were loaded. When handling th e marker, always keep your fingers or any other objec ts away from the trig ger assembly to a void accidental dischar ges. Make sure w hen carrying or transporting the marker, to ke ep the muzzle pointed dow nward with a barrel blocking device in p lace. Before trans­porting your mar ker through public areas , such as airpor ts, or bus and tr ains stations , call ahead for regulator y information regarding the car rying and trans porting of such an item.
Remember, the W orr Machine marker should ne ver be pointed or fired at anyone without the proper paintball approved eye and face protection, and should only be used at a supervised, licensed and insured paintball fields .
NOTE: A safe env ironment is an ar ea where you and everyone within 200 yards is wearing
paintball approved safe ty goggles and equipmen t. An area that is netted in and meets AS TM-standar d F1777-97.
Page 5
WORR MACHINE® MARKER OWNERS MANUAL
I. RU LES Of SAfE PA IN TbA LL M A RKER HAN DLING (CONT.)
• Treat every mark er as if it were loaded.
• Never look dow n the barrel of a paintball mar ker.
• Keep your finger off the tr igger until ready to shoo t.
• Nev er shoot a person not wear ing proper protection.
• Never point the marker a t anything you don’ t wish to shoot, even if i t is not loaded and there is no air s ource attac hed.
• Keep the marker on safe until ready to shoot.
• Keep the barr el blocking dev ice in/on the marker when no t shooting.
• Al ways remove paintballs and propellant sour ce before disassembly.
• Af ter removing propellant sour ce, point marker in safe direction and dischar ge until marker is degassed.
• Store the marker unloaded and degas sed in a secure place.
• Follow warnings listed on propellant source f or handling and storage.
• Do no t shoot at fragile objec ts such as windows.
• Every per son within range must w ear eye, face and ear pr otection designed specifically to s top paintballs.
• Always measure your marker ’s velocity before playing paintball and never shoot a t velocities in e xcess of 300 feet per second.
• Nev er engage in vandalism.
• Do no t modify your markers air s ystem or regulators in any way.
• Do no t use any paintball marker for drive -by shootings.
• Faliure to follow these safety precautions may r esult in bodily injury including blindness and death.
Page 6
WORR MACHINE® MARKER OWNERS MANUAL
II. PR EPAR ING fOR USAGE
1. Screw bar rel onto marker
2. Place barr el blocking device pr operly onto the marker
3. Pull the cocking pin back until it latches into place
4. Make sure the safety is pushed to th e “PUSH SAFE” position.
5. Connect the tank to the A SA (air system adap ter.)
NOTE: Make sure to always g et your tank filled by author ized, skilled and know ledgeable
technic ians for the corr ect fill limit s of each tank. Do not try to r efill tanks by your­self. Do no t use tanks that hav e not been properly maintained or tha t are damaged. WGP recomends c ompressed air but C02 will wor k. Always be sure to only use ASTM compliant tanks for your marker. Always use cau tion when refilling, a ttaching and handling any type of air tank.
6. Attach the loader to the feed por t of the marker
NOTE: Use only 0.68 caliber paintballs in your Wor r Game Produc ts Worr Machine marker.
All WGP Worr Machine markers are timed and tes ted prior to leav ing the factor y.
Before field use, ensure the veloc ity is in compliance with field safe ty guidelines. General field veloci ty limits are usually between 250-300 fps (feet per second). Your paintball markers velocity should ne ver exceed 300 fps. Observe and abide by all local laws , regulations and field saf ety guidelines per taining to the use of paintball mar kers.
Always wear paintball approved eye and face protection w hen dealing with a pressurized
paintball marker.
WAR NING:
Always wear paintball approved eye and face protection when dealing with a pressurized paintball marker.
Page 7
WORR MACHINE® MARKER OWNERS MANUAL
Always wear paintball approved eye and face protection w hen dealing with a pressurized
paintball marker.
WAR NING:
Page 8
WORR MACHINE® MARKER OWNERS MANUAL
II. PR EPAR ING fOR USAGE (CON T.)
NOTE: If you are using a C02 tank, you need to be aware that C 02 has some limitations. If you
play in a cold environment and you fire rapidly you may experience rapid fluct uations in velocity (shoot down) or you may ex perience “mar ker freeze up”. This is normal for C02. C02 is a liquid , and as you shoot the marker rapidly you ar e firing this liquid into the marker causing the marker to freeze up. The remedy for this problem is to allow the marker and tank to warm-up to room temper ature. WGP sugges ts the use of compress ed air when shooting r apidly or in cold weather.
Always wear paintball approved eye and face protection w hen dealing with a pressurized
paintball marker.
WAR NING:
This is not a toy. Misuse may cause serious injury or death. Eye protection designed specifi­cally for paintball must be worn by the user and persons within range. Recommend 18 years or older to purchase. 14 years old to use with adult supervision or 10 years old to use on paintball fields meeting ASTM-standard F1777-97. READ OPERATION MANUAL BEFORE USING.
Always wear paintball approved eye and face protection w hen dealing with a pressurized
paintball marker.
WAR NING:
Never shoot at anyone without proper protective equipment for eyes, ears, throat and head, which must be worn at all times. Eye protection must be designed specifically for paintball use. Failure to follow these safety precautions may result in bodily injury including blindness and deafness.
Page 9
WORR MACHINE® MARKER OWNERS MANUAL
II. PR EPAR ING fOR USAGE (CON T.)
• Paintball indus try approve d protecti ve gear (for face and eyes) must be worn
at all time s while operating and per forming adjus tments on this mar ker.
• Prior to beginning any work on your marker, check to make sure that all excess
pressure has been relea sed by pointing the marker in a safe dire ction and pulling the trig ger. This is a neces sary precau tion due to the fac t that the marker may still contain pr essure even after the removal of the gas source.
• Damage s to the marker due to improper adjustments are NOT covered under
warranty. If you are uncertain , unable or do not know how to per form work on the marker, have adjus tments and repairs made by W GP.
III. VELOCI Ty
• If using the Worr Machine EG (Electronic) Marker, cunsult mode
selection instructions on the following page.

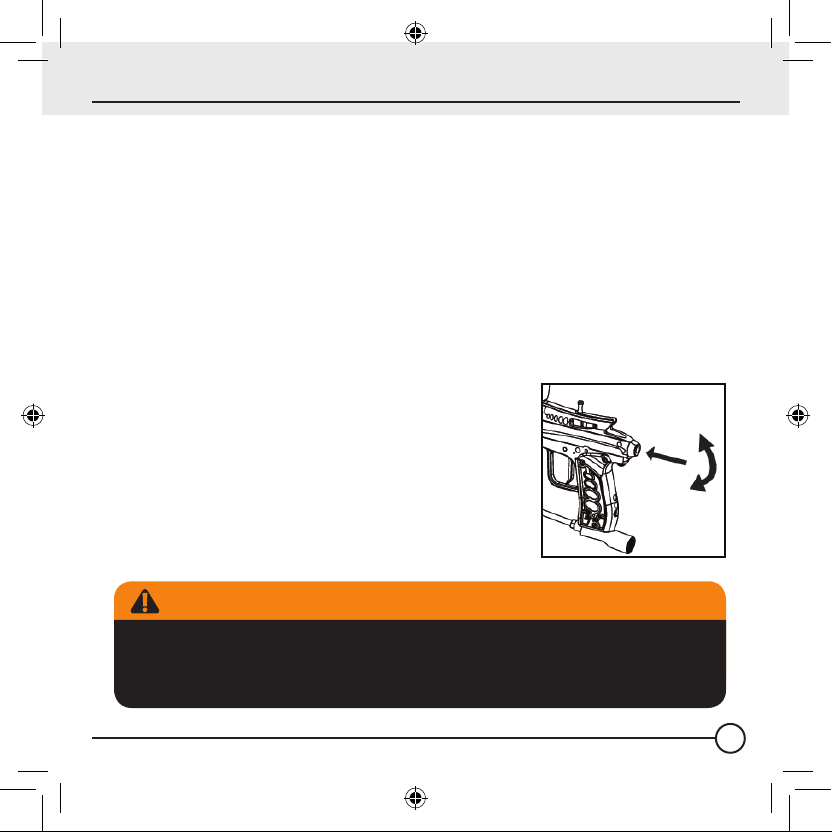

• To adjust the velocity, insert the velocity adjustment wrench
provided with your marker into the screw at the rear of the marker. Turning the screw clockwise increases the markers velocity, turn­ing it counterclockwise decreases the velocity.. Be sure to follow all local and ASTM standard rules when adjusting your velocity. Also make sure that you are always wearing paintball apporved safety equipment when handling your marker.
WAR NING:
WGP does not set the velocity prior to leaving the factory. You MUST set the velocity within field and safety limits using a chronograph prior to playing. Always use a chronograph to verify that your mark­ers velocity does not exceed maximum safety limits.
Page 10
WORR MACHINE® MARKER OWNERS MANUAL
IV. WORR MA CH IN E EG (ELECTRONIC) — E-GRI P OP ER AT ION
1. Eye Protection: Ensure all indiv iduals within 20 0 yards are properly pr otected against paintball impact s.
2. Engage Safety & Install Barr el Sleeve: Push Safety fro m left to right on marker ; Red Band around the safety should no t be showing if the safety is on. Pr operly Install Barrel Sleev e.
3. Install Bat tery: Remove three allen screws and remove right side gr ip cover and properly install 9 volt battery .
4. Test for Power: To test f or power press and hold down bot tom button (below two ligh ts on back of g rip) for approximately 2 seconds. 2 Green ligh ts should be illuminated. Reinstall grip c over (Do Not Over-Tighten Screws).
5. Switching Betw een Modes: Once th e power is turned on, the marker will be in the initial setting of Semi-Au tomatic Mode (setting 1). This setting will be indica ted by the botto m light turning Green. To swi tch to the 3 Round Bur st Mode (setting 2) press the bu tton once, the bot tom light should t urn Amber. You should now be in 3-Round Burst Mode. To switch to the Full-Auto Mode pre ss the button once, the bo ttom light should turn Red. You should now be Full-Auto Mode. To switch back to the initial Semi-Auto Mode (setting 1) press the button once, the botto m light should tur n Green. You should now be in the ini tial setting of Semi -Auto Mode (set ting 1).
Page 11
WORR MACHINE® MARKER OWNERS MANUAL
V. WORR MACHINE EG (EL EC TR ON IC) — MODE SE TTI NGS
SEMI-AUTO
M
ODE
3-ROUND bU RST
M
ODE
fU LL-AU TO
M
ODE
2 Green L ights Indicates
Semi- Auto Mode
Top Light Gr een,
Bottom Light Amber
Indicates 3-Round
Burs t Mode
Top Light Gr een,
Bottom Light Red
Indicates Full- Auto Mode
NOTE: The top light should be green in all three modes. A low batter y is indicated by th e top light
turning Amber or Red. When this occurs, replace the lo w battery wi th a new quality 9 volt battery or a quali ty rechargeable 9 volt batter y.
The Electronic Anti -Chop Eye is in an A lways On position and cannot be turned off.
Page 12

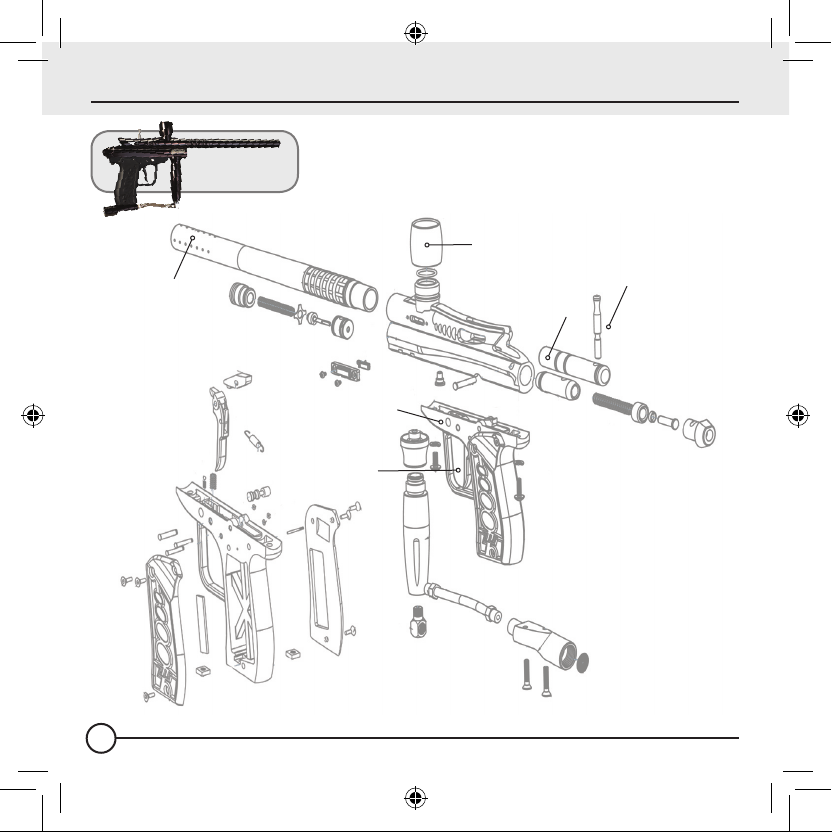

WORR MACHINE® MARKER OWNERS MANUAL
0
SAFETY (PUSH FIRE/SAFE)
TRIGGER
BARREL
BOLT
FEED TUBE
COCKING
PIN
Page 13
WORR MACHINE® MARKER OWNERS MANUAL


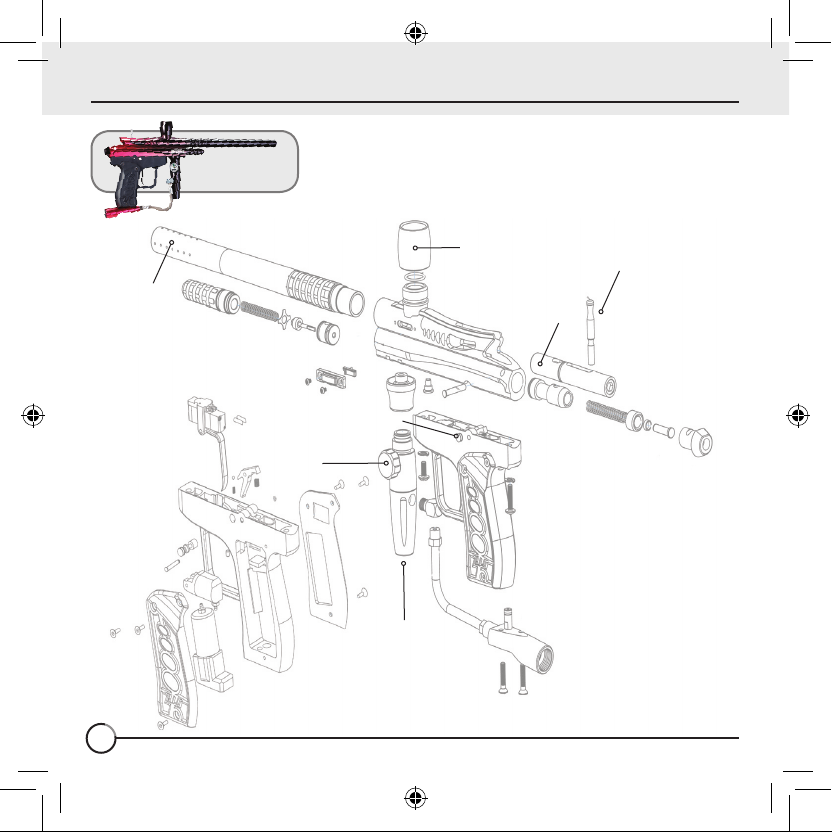

WORR M ACHIN E RG (REGU LATED)
TRIGGER
SAFETY (PUSH FIRE/SAFE)
REGULATOR
GUAGE
FEED TUBE
COCKING
PIN
BOLT
BARREL
Page 14

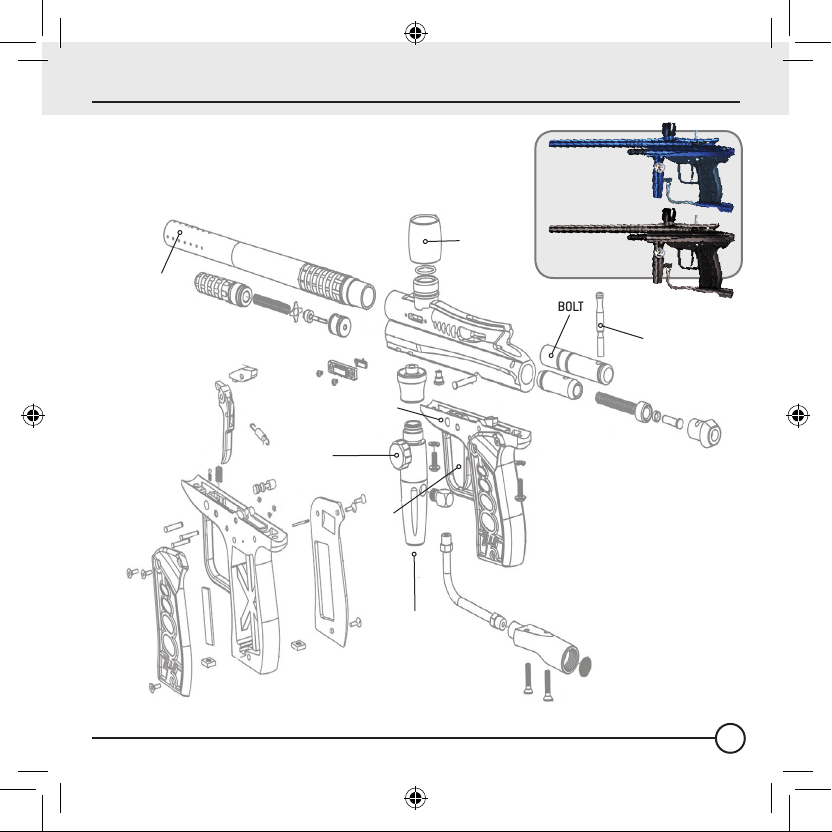

WORR MACHINE® MARKER OWNERS MANUAL

BARREL
FEED TUBE
BOLT
COCKING
PIN
REGULATOR
GUAGE
SAFETY (PUSH FIRE/SAFE)
WORR M ACHIN E AG (AIR ASSISTED) WORR M ACHIN E EG (ELECTRON IC)
Page 15
WORR MACHINE® MARKER OWNERS MANUAL

BOLT
REGULATOR
GUAGE
COCKING
PIN
FEED TUBE
BARREL
SAFETY (PUSH FIRE/SAFE)
ANTI-CHOP
EYE
BALL DETENT
& LEFT EYE COVER
VELOCITY
ADJUSTMENT
SCREW
BATTERY
COMPARTMENT
SOLENOID
TRIGGER
BATTERY POWER INDICATOR MODE SETTING INDICATOR POWER BUTTON
RIGHT
EYE COVER
Page 16
WORR MACHINE® MARKER OWNERS MANUAL

VI. CL EAN ING yOU R MAR KER
It isn’t necess ary to completely disassemble your marker to c lean it. WGP recommends the following cleaning be done after each day of play:
1. Before you star t ALWAYS make sur e that all paintballs are out of the marker.
2. Remove air source and en sure that all air has been released fr om the marker.
3. Remove the bar rel sock and then r emove the barr el.
4. Lightly spray marker down with a 50-50 mix of rubbing alcohol and wa ter and then wipe dow n.
5. Wipe down the marker with a clean cloth, or blow off the marker with compressed air (NOT CO2).
6. Remove bolt and lubricate bol t O-rings wi th Mineral oil, then reinstall.
7. Lubricate all moving parts with Mineral oil, and reassemble.
8. WGP recommends that after ev ery 4-5 days of play you place 3 -4 drops of 3 in 1 or other paintball marker sp ecific oil in the air r eceiver and fir e the marker 10-15 times without the barr el. This will distribute the oil throughout the mar ker and lubrica te the internals.
Factory Approved Lubricants:
• Mineral oil only
WAR NING:
Always make sure you and everyone around you wears protection when you clean the marker or check it for paintballs.
Page 17
WORR MACHINE® MARKER OWNERS MANUAL

VI I. TROUbLESHOOT IN G
NOTE: Prior to beginning any work on your marker, check to make sure that all excess
pressure has been relea sed by pointing the marker in a safe dire ction and pulling the trig ger. This is a neces sary precau tion due to the fac t that the marker may still contain pr essure even after the removal of the gas source.
1. Gas leaks from the tank connection.
• Check and or replac e tank o-ring.
2. Gas leaks from inside barrel.
• Try firing the marker a f ew times in a safe enviroment.
• Valve seal may be damage d, repace valve stem assembly.
3. Marker fails to fire.
• Cock the marker and try again.
• Make sur e the tank has gas/air in i t, and be sure it is screwed all the way on to the marker.
• Safel y check for broken paint sh ells in chamber, lubricate all mo ving parts.
4. Marker fails to recoc k.
• Check and/or replace str iker o-ring .
• Make sur e the tank has gas/air in i t, and be sure it is screwed all the way on to the marker.
5. Marker rapid fires or me chanism stick s or hangs up.
• Broken paintball s hell stuck inside, clean the mechanism.
• Lack of lubricant, lubr icate strik er and bolt.

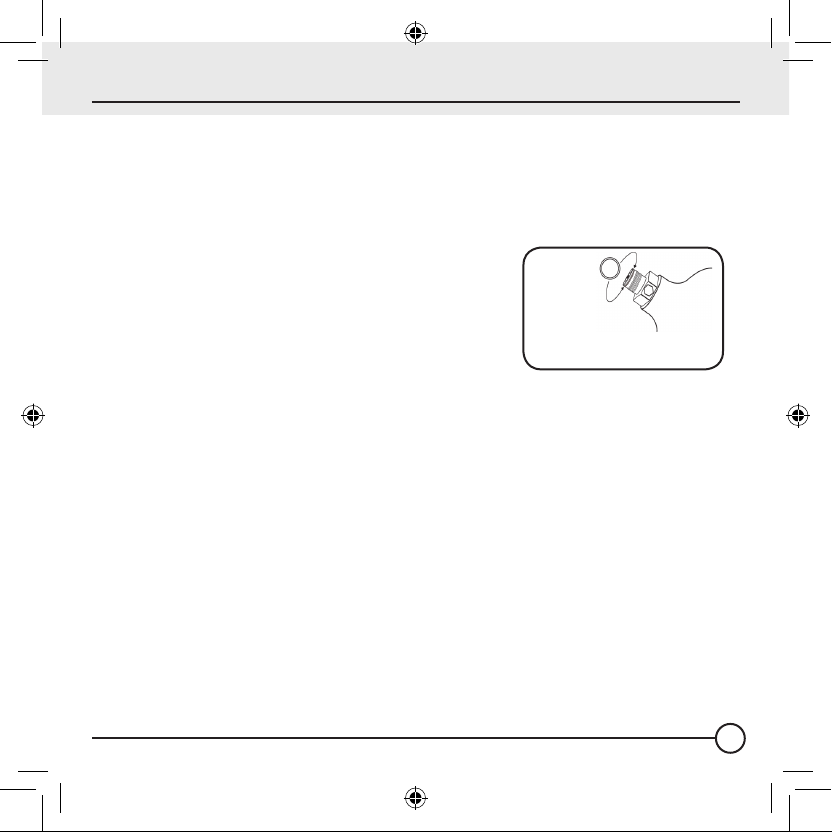

The tank o-ring is located at the top of your tank.
Page 18
WORR MACHINE® MARKER OWNERS MANUAL

VI II. f.A .Q.
Q) How do I saf ely maintain my WGP Worr Machine® marker?
A) Safely maintaining your mar ker is simple and easy . You need
only to clean and oil your marker to ke ep it up and running .
Q)
How do I oil my marker?
A) You only need to lubric ate your marker after every 4 to 5 days o f play. To oil your maker
you first remo ve your loader, then fir e all excess pain tballs out of the marker. Nex t remove your tank and fire all excess air f rom the marker. Now r emove your barrel. Nex t drop 3 to 4 drops o f approved paintball marker oil into the air rec eiver and safely fire the marker 10-15 times. T his will distr ibute the oil throughout the inter nals of the marker. At thi s time you can also lubricate your bolt 0 -rings and your s triker. Be sure that the hole in between the 2 O-rings on your bolt is always facing down. Fac tory appro ved lubricants: Miner al oil.
Q) How do I saf ely clean my marker?
A) To clean your marker you firs t find a safe envir onment then remo ve your loader, then fir e all
exces s paintballs out o f the marker. Next r emove your tank and fi re all excess air from the marker. now r emove your barrel, then lightly spray dow n marker with water and then w ipe it down with a clean c loth.
Q)
Does WGP recomend C02 or c ompressed air on my marker?
A) WGP recommend s compresse d air, but the marker s will also work on CO2. If you are using
a C02 tank , you may experience the mar ker getting cold, this is normal for C02. C02 consists of fro zen liquid and when this liquid en ters the the marker it will c ause the marker to get cold. To remedy thi s problem, let your marker warm up to r oom temperature in a safe, secur e place.
Page 19
WORR MACHINE® MARKER OWNERS MANUAL

VI II. f.A .Q. (CONT.)
Q) My mar ker is shooting w hen I air it up, what do I do?
A) Bef ore you air up your marker always be sur e to cock the marker firs t, then fire your mar ker.
It is not recommended to adjust or remove the internals withou t proper training.
Q)
I broke a paintball in my marker. How do I clean it?
A) To clean br oken paintball ou t of your marker yo u will first remove your loader, nex t your
tank be sur e to fire all excess paintballs and air fr om your marker. Nex t remove your barrel and then your bolt. U sing a squeegee or battle s wab, run it thr ough the same chamber you pulled the bolt fr om, then run it through the barrel. Reinstall the bol t. Be sure that the hole in betw een the 2 o-rings on your bol t between the 2 o -rings is facing down and your ready to go.
Q) I’ve remove d my bolt and replac ed it, and my velocity has dr opped. What is the problem?
A) Any time your remove the bolt from your marker, you must al ways be sure that the hole in be-
tween the 2 O-rings on your b olt is always facing down befor e reinstalla tion. This is common problem that could direc tly effec t the velocity o f your marker.
Q) What is the reason to have dif ferent barrel size s?
A) The reason for using dif ferent barr el sizes is, pain tballs are different sizes due to freshness,
weather and other factor s. By having dif ferent barr el sizes your ar e able to match your paint to your bar rel to get the best accuracy and c onsistency out of your marker.
Q) I have a question tha t is not on this lis t. What do I do?
A) If you hav e more questions and did no t find the answer s here, Please c ontact WGP directly at
800-755 -5061. Or visit w ww.worr.comm.
Page 20
WORR MACHINE® MARKER OWNERS MANUAL

IX . ON E yE AR LI MITED WA RRA NTy
Worr Game Products®, LLC. warrants that your Worr Machine marker will be free from defects in materials and workmanship for one year from purchase date.
Any product determined by WGP to be defective in materials or workmanship in accordance with the above warranty will be repaired or replaced, at the option of WGP, free of charge when received at the factory freight prepaid, together with proof of purchase.
This warranty is expressly in lieu of all other warranties. Any implied warranties of merchantability or fitness for a particular purpose are limited to the same duration as this express warranty.
This warranty does not cover incidental or consequential damages. WGP shall not be liable for any incidental or consequential damages. Some states do not allow the exclusion or limitation of implied warranties, incidental or consequential damages, so the above limitations and exclusions may not apply to you.
This warranty does not cover any problem resulting from misuse, abuse, neglect, alteration, failure to perform maintenance as instructed, unauthorized repair or service, or damage caused by contaminants.
This warranty does not cover any representation or warranty made by Dealers beyond the provisions of this warranty. Non warranty repairs may incure a repair charge.
This warranty does not cover costs incurred for normal repair, inspection and preventive maintenance.
You must establish proof of purchase to obtain warranty service or replacement. You may establish proof of purchase by completing the Warranty Registration Card and mailing it to WGP.
This warranty gives you specific legal rights, and you also have other rights which vary from state to state If you have any questions about your WGP product, please call us toll free at 1-800-755-5061.
Warranty Ser vice is available by sending your mar ker to:
Worr Game Produ cts LLC.
Attn: WARR ANTY SE RVICE
252 Grani te St. Corona, CA 92879
P: 951-520-99 69 F: 951-520-9699
ww w.worr.com
IMPORTANT: You mus t call Worr Game Products L LC. to request an RMA number
before sending your WGP marker in for war ranty or tech services.
Page 21
WORR MACHINE® MARKER OWNERS MANUAL

ATTENTION WAR RAN T y SE RV ICE
Worr Game Products LLC.
Warranty Registration Card
Please ll out this warranty card and mail with a
photocopy of your purchase receipt to WGP. Thank You.
Worr Machine Ser ial # _________________________________________________________________________________________________________________________________ Name _____________________________________________________________________________________________________________________________________________________________ Address _________________________________________________________________________________________________________________________________________________________ City ________________________________________________________________________________________________________________________________________________________________ State _____________________________________ Zip Code _______________________________ Country __________________________________________________________ Phone ___________________________________ E-mail ____________________________________________________________________________________________________________ Purc hased Date ___________________________________________________________________________________________________________________________________________ Purc hased From __________________________________________________________________________________________________________________________________________ ( ) Pro Shop ( ) Inter net ( ) Field ( ) Sporting Goods ( ) Oth er
How much did you pay for your Worr Machine® ?_____________________________________________________________________________________ Where did you hear ab out Worr Machine®?______________________________________________________________________________________________ What paintball mar ker did shoot prior to this Worr Machine®? ____________________________________________________________ How many years have you been playing paintball? _______________________________________________________________________________ What type of paintball do you play?__________________________________________________________________________________________________________ What made you choose a WGP mar ker? ___________________________________________________________________________________________________ What paintball maga zines do you read? __________________________________________________________________________________________________ What model of Wor r Machine® did you pur chase? __________________________________________________________________________________ What paintball maga zines do you read? __________________________________________________________________________________________________ What made you choose a WGP Worr Machine®? ______________________________________________________________________________________ What paintball magazines do you read? _________________________________________________________________________________________________
PlEAsE M AIl Your CArd IMMEdIAtElY.
Page 22
WORR GA ME P RODUCTS LLC.
252 Grani te Street
Corona, CA 92 879
U.S. A.
Phone: 909.520.9969
Fax: 9 09.520.9699
ww w.worr.com
P/N 142222-000
Loading...
