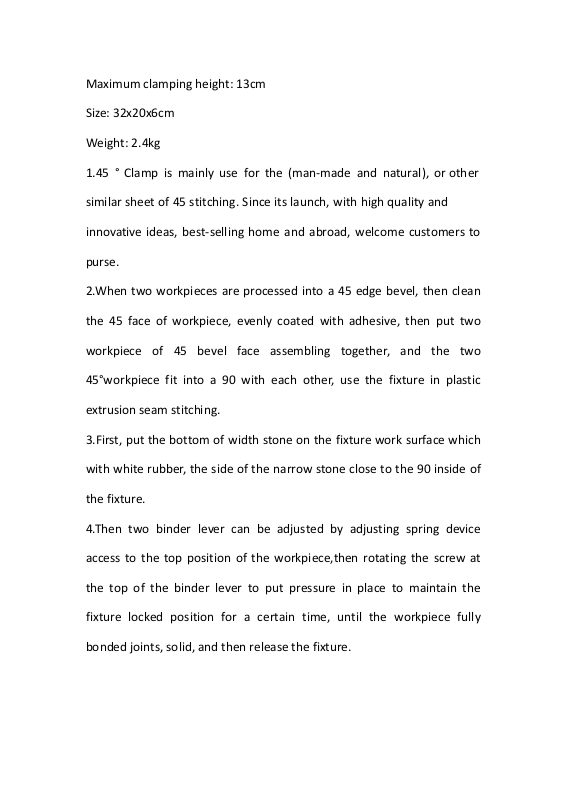

Maximum clamping height: 13cm
Size: 32x20x6cm
Weight: 2.4kg
1.45 ° Clamp is mainly use for the (man-made and natural), or other
similar sheet of 45 stitching. Since its launch, with high quality and
innovative ideas, best-selling home and abroad, welcome customers to
purse.
2.When two workpieces are processed into a 45 edge bevel, then clean
the 45 face of workpiece, evenly coated with adhesive, then put two
workpiece of 45 bevel face assembling together, and the two
45°workpiece fit into a 90 with each other, use the fixture in plastic
extrusion seam stitching.
3.First, put the bottom of width stone on the fixture work surface which
with white rubber, the side of the narrow stone close to the 90 inside of
the fixture.
4.Then two binder lever can be adjusted by adjusting spring device
access to the top position of the workpiece,then rotating the screw at
the top of the binder lever to put pressure in place to maintain the
fixture locked position for a certain time, until the workpiece fully
bonded joints, solid, and then release the fixture.
