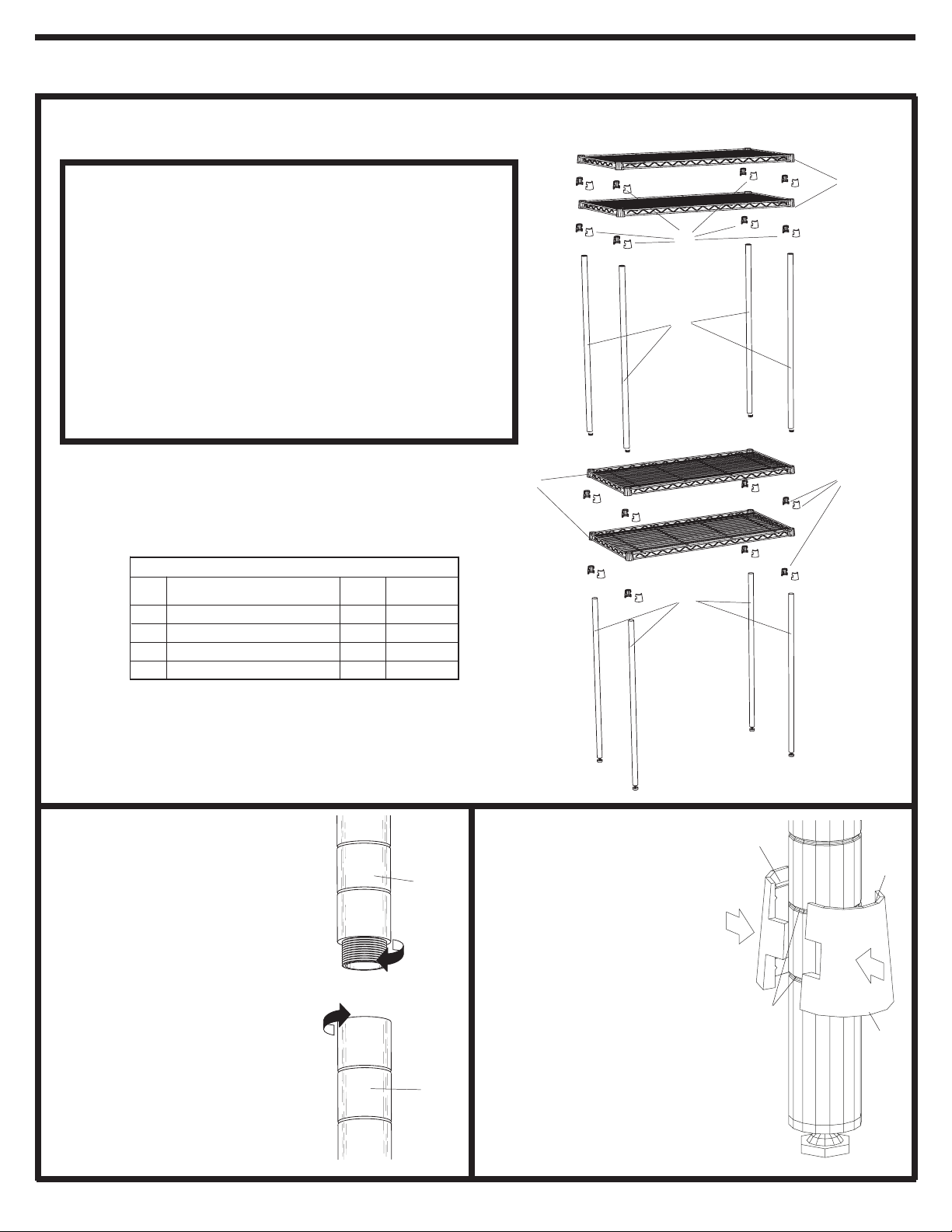

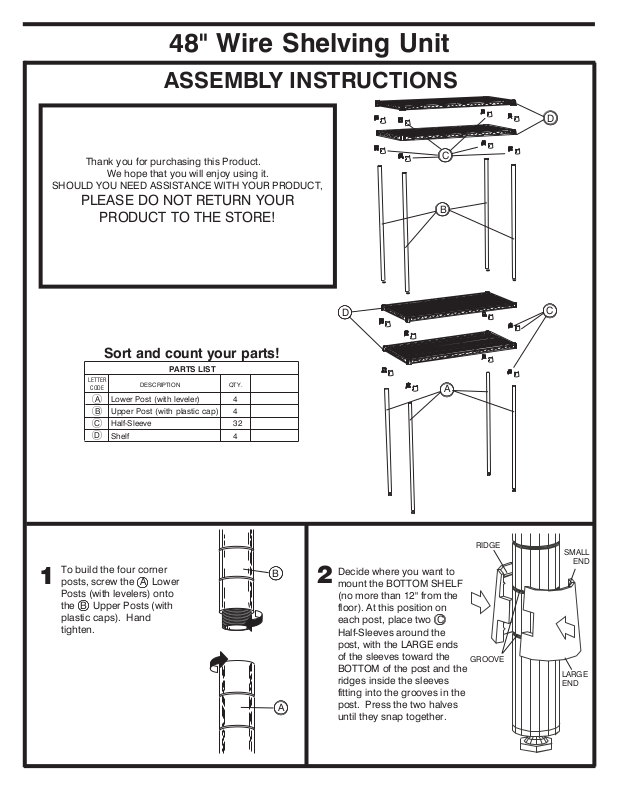

48" Wire Shelving Unit
ASSEMBLY INSTRUCTIONS
Thank you for purchasing this Product.
We hope that you will enjoy using it.
SHOULD YOU NEED ASSISTANCE WITH YOUR PRODUCT,
PLEASE DO NOT RETURN YOUR
PRODUCT TO THE STORE!
C
QQ
Q
QQ
B
QQ
Q
QQ
D
QQ
Q
QQ
Sort and count your parts!
LETTER
CODE
A
Lower Post (with leveler) 4
Q
B
Upper Post (with plastic cap) 4
Q
C
Half-Sleeve 32
Q
D
Shelf 4
Q
To build the four corner
1
posts, screw the A Lower
Posts (with levelers) onto
the B Upper Posts (with
QQ
Q
QQ
plastic caps). Hand
tighten.
PARTS LIST
DESCRIPTION QTY.
QQ
Q
QQ
B
QQ
Q
QQ
QQ
Q
QQ
D
QQ
Q
QQ
A
QQ
Q
QQ
RIDGE
Decide where you want to
2
mount the BOTTOM SHELF
(no more than 12" from the
floor). At this position on
each post, place two C
Half-Sleeves around the
post, with the LARGE ends
of the sleeves toward the
BOTTOM of the post and the
ridges inside the sleeves
fitting into the grooves in the
A
post. Press the two halves
until they snap together.
QQ
Q
QQ
GROOVE
C
QQ
Q
QQ
SMALL
END
LARGE
END
Page 2

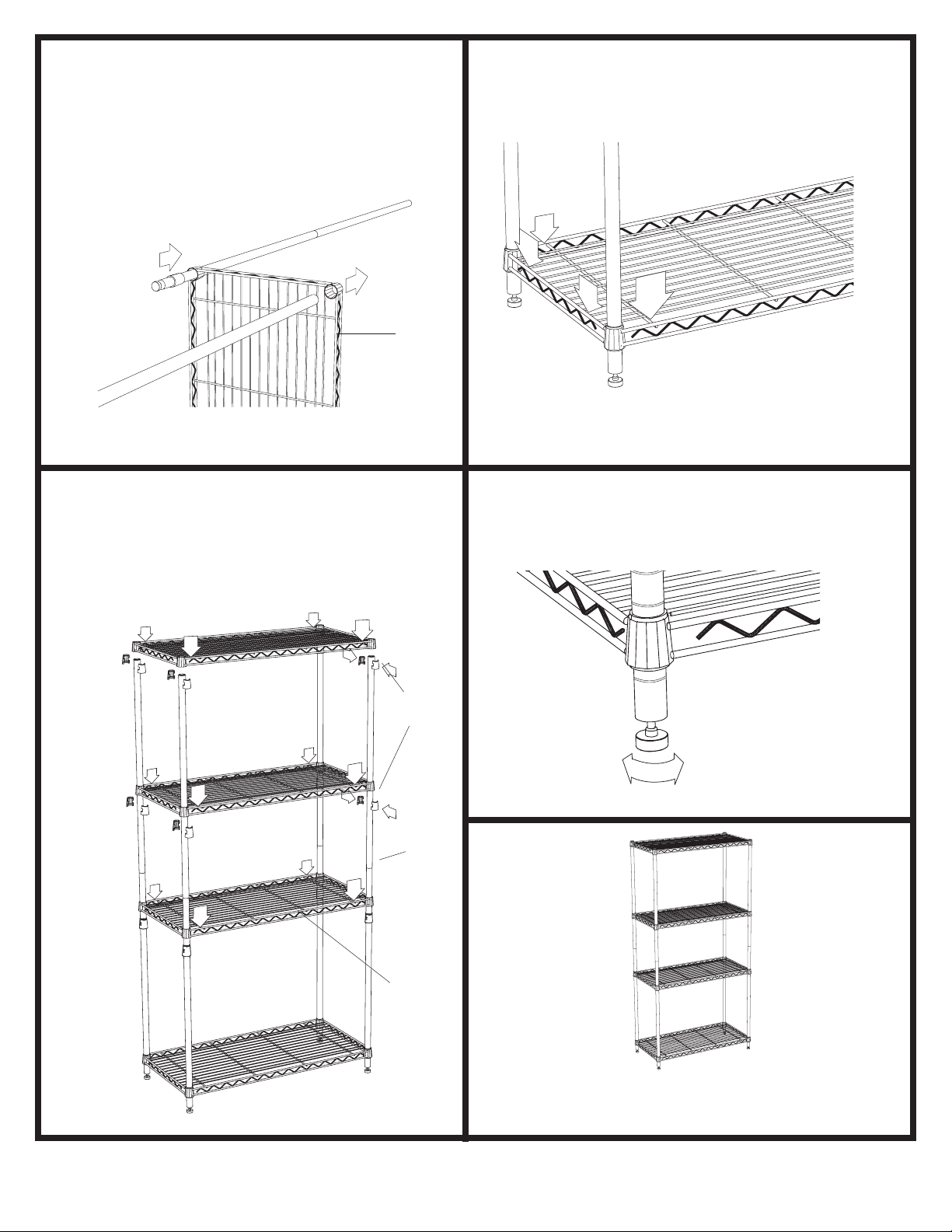

Stand a D Shelf on end, and from the BOTTOM
3
side of the shelf (the bottom side is recessed),
slide the TOP end of a post through a corner hole
until the half-sleeves are seated in the corner hole.
Repeat with remaining posts.
QQ
Q
QQ
D
QQ
Q
QQ
Set the unit upright. Press the shelf firmly at each
4
shelf corner, close to the corner holes, until firmly
seated.
Snap half-sleeve sets onto all four posts at the
5
desired height for the NEXT shelf. Lower this shelf
into position and press until fully seated. Install the
third and fourth shelves in the same manner, with
both shelves mounted ABOVE the post seams.
HALFÂSLEEVES
POST
SEAM
Set the unit into place and adjust the
6
levelers at the bottoms of the posts until
shelves are level in both directions.
SHELF
(SHOWN ASSEMBLED)
