Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
2/39
Normal use
..............................................................................................................................4
General safety instructions
.................................................................................................4
Transport and storage
..........................................................................................................4
Ambient requirements
..........................................................................................................4
Structure and operating principle
......................................................................................5
1. Mobile trolley.....................................................................................................................5
1.1 Height adjustment facility.........................................................................................................
5
1.2 Electrical distribution
.......................................................................................................5
1.3 Upgrade items
................................................................................................................5
2. Bassinet ............................................................................................................................6
2.1 Tilting facility
..................................................................................................................6
3. Conductive under-pad heating..........................................................................................6
4. Wall system....................................................................................................................... 6
5. Frame system ...................................................................................................................6
5.1 Take-off sockets
.............................................................................................................6
5.2 Swivel facility for the radiant warmer .......................................................................................
6
5.3 Upgrade items/accessories
..............................................................................................7
6. Infrared radiant warmer..................................................................................................... 7
Start-up and functions, functional test
.............................................................................8
Functions of the conductive under-pad heating...................................................................10
First start of the conductive under-pad heating
......................................................................10
Temperature selection
........................................................................................................10
Heating up from cold state
..................................................................................................11
Heating up from partly cooled state
......................................................................................11
Repeated start from warm state
...........................................................................................11
Alarms
..............................................................................................................................11
Deviation between selected and actual temperature exceeding 1°C
....................................11
Bassinet temperature exceeding 40°C
.............................................................................12
Insufficient capacity of power failure alarm battery
............................................................12
Power failure alarm
.......................................................................................................12
Temperature sensor alarm
.............................................................................................12
System check
....................................................................................................................13
End of operation
................................................................................................................13
Functions of the infrared radiant warmer.............................................................................14
First start of the radiant warmer
...........................................................................................15
Functional process and alarms
............................................................................................16
Use
..........................................................................................................................................18
Bassinet with wall system .................................................................................................... 18
Temperature selection of the conductive under-pad heating...............................................19
Radiant warmer ...................................................................................................................20
Intensity selection of the radiant warmer .............................................................................21
Exceeding the maximum intensity selection
..........................................................................22
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
3/39
Warnings for use
..................................................................................................................23
General................................................................................................................................ 23
Height adjustment facility..................................................................................................... 23
Conductive under-pad heating.............................................................................................23
Radiant warmer ...................................................................................................................24
Upgrade items and accessories
.......................................................................................25
Safety and alarm functions
................................................................................................26
Conductive under-pad heating.............................................................................................26
Radiant warmer ...................................................................................................................28
Cleaning and disinfection
..................................................................................................32
Waste disposal
.....................................................................................................................32
Maintenance
..........................................................................................................................33
System check of the conductive under-pad heating............................................................ 34
Extended functional test of the radiant warmer ...................................................................35
Technical data
......................................................................................................................37
Transport and storage .........................................................................................................37
Ambient requirements..........................................................................................................37
General data........................................................................................................................ 37
Software version..................................................................................................................38
Operating/Performance data ............................................................................................... 38
General
............................................................................................................................38
Conductive under-pad heating
.............................................................................................38
Radiant warmer
.................................................................................................................38
Classification .......................................................................................................................39
Standards ............................................................................................................................ 39
Registration .........................................................................................................................39
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
4/39
Normal use
The resuscitation and intensive care system VARIOTHERM is used for postnatal care and resuscitation,
warming care, oxygen therapy as well as intensive care of infants up to 12 kg weight. It is laid out for
continuous operation and conforms to the "Particular requirements for the safety of blankets, pads and
mattresses, intended for heating in medical use EN-60601-2-35" as well as the "Particular requirements for
the safety of infant radiant warmers EN 60601-2-21".
General safety instructions
The user must be thoroughly acquainted with this instruction for use. The resuscitation and intensive care
system must only be used under medical supervision by qualified instructed persons who are acquainted
with the use and risks of conductive warming devices and radiant warmers for infants.
If the device shall be used for another purpose than the normal use described above, this must not be done
without our written consent.
In order to guarantee the safe operation, the resuscitation and intensive care system should be subject to
regular preventive maintenance measures by authorized qualified persons. For normal operating conditions
we recommend yearly preventive maintenance intervals whereas under unfavourable ambient conditions
and in case of high-duty use half-yearly intervals should be observed. We can only be held responsible for
the safety features of this device when maintenance and modifications are carried out by authorized
qualified persons, by using original spare parts.
Transport and storage
For transport and storage the following conditions should be observed:
Temperature: 0°C to 70°C
Relative air humidity: 15 % to 95 %
Atmospheric pressure 900 to 1100 hPa
The device must not be exposed to strong vibrations.
Ambient requirements
The device can be used under the following operation conditions:
Temperature: 18°C to 30° C
Relative air humidity: 15 % to 95 %
Atmospheric pressure: 900 to 1100 hPa
This device is not suitable for the use in explosion-hazardous areas.
When using HF-surgery devices are applied, it should be observed that the under-pad heating consists of
electrically conductive material and that it is earthed.
Mobile telephones may interfere the function of electro-medical devices. Therefore no mobile telephones
should be used within a distance of 10 meters around the device.
It has to be considered that other heating sources, fans and cold walls may change the effect of the device.
Therefore a distance of 1 m should be kept clear and the bassinet should be protected from direct sunlight.
Furthermore the device should not be placed in draughts (e.g. air condition) and at windows. Fluids and
inflammable agents must not be brought into touch with the radiant warmer. In order to avoid the risk of fire
there must not be any inflammable material (e.g. curtains) within an area of 70 cm around the radiant
warmer.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
5/39
Structure and operating principle

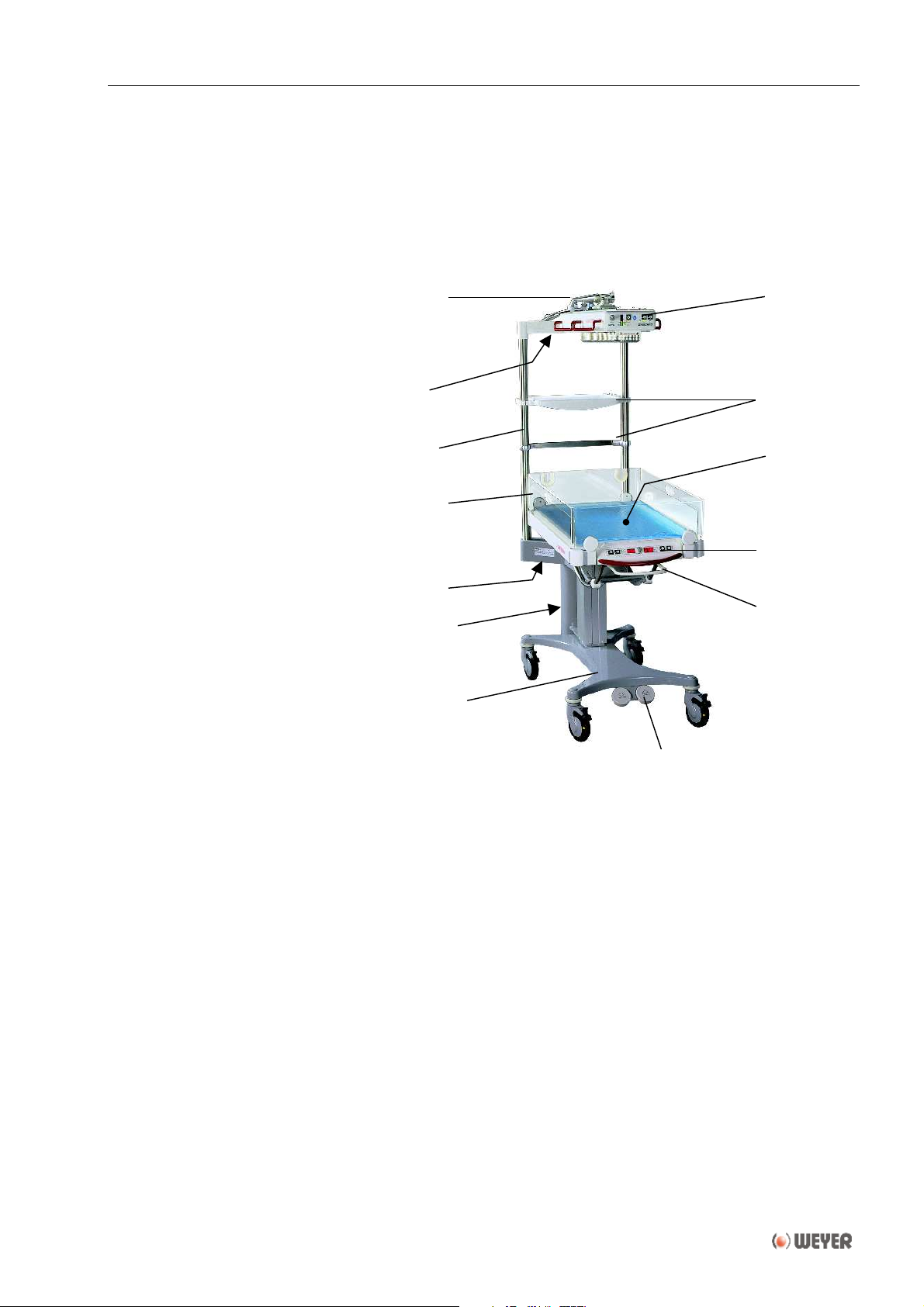

The resuscitation and intensive care system VARIOTHERM REA-KCE consists of the following components
assemblies:
1. Mobile trolley
The solid trolley supports the complete device and is mobile on four antistatic swivel castors with total kickstop. Additional bumpers are provided to protect device and furniture from damages.
1.1 Height adjustment facility
The working level can be adjusted by means of foot pedals, i.e. the complete device is moved electromotively. The foot pedals can be arranged at the front or at one of the two sides of the device. As an option
pedals can be provided both at the front and at the side.
1.2 Electrical distribution
Take-off sockets ~ 230 V and the low voltage transformer of the under-pad heating are arranged below the
rear-side of the trolley. Furthermore the power for infrared radiant warmer and the take-off sockets (5.1.) is
supplied from here.
1.3 Upgrade items
A shelf (order No. WY 2060) or drawers (order No. WY 2061) are available for storing necessary material.
Furthermore an oxygen cylinder up to 10 l can be fixed at the trolley.
1
1.1
1.2
1.3
2
3
2.1
4
5
5.1
5.3
5.2
6
1. Mobile trolley
1.1. Height adjustment
facility
1.2. Electrical distribution
1.3. Upgrade items
2. Bassinet
2.1. Tilting facility
3. Conductive under-pad
heating
4. Wall system
5. Frame system
5.1. Take-off sockets
5.2. Swivel facility for the
radiant warmer
5.3. Upgrade items/
accessories
6. Infrared radiant warmer
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
6/39
2. Bassinet
The bassinet is arranged on the trolley, attached to a tilting device. Raised sides prevent the infant from
trundling out of the bassinet. A heating plate included in the bottom of the bassinet warms up a gel pad. This
gel pad conducts the accumulated heat to the patient.
2.1 Tilting facility
The tilting device under the bassinet allows tilting positions from + 20° to -10°.
3. Conductive under-pad heating
The heating plate, which is included in the bassinet, is operated by safety low-voltage. The electronically
controlled heating-plate temperature can be selected from 30°C to 38,5°C and is conducted to the patient
through the gel pad.
Temperature deviations, system faults and power failure are indicated both visually and audibly. The
selected bassinet temperature (selected value) as well as the actual bassinet temperature (actual value) is
displayed permanently.
This device does not give any indication as to the patient's body temperature. Therefore the effect of the
selected temperature on the patient must be checked in regular intervals.
4. Wall system
The four walls protect the infant from draught and falling from the bassinet. For better accessibility during
treatment the front wall and the two side walls can be folded down with one hand. Two additional safety side
walls are provided which can be retracted into the bassinet if necessary.
Cables and tubes are conveyed through the silicone tube guidings in the rear wall and the open corners of
the wall system.
5. Frame system
The frame supports the infrared radiant warmer and is used for fixing upgrade items and accessories.
5.1 Take-off sockets
2 take-off sockets 230 V are provided in the traverse spar of the frame system, supplying power for
electrical additional devices.
5.2 Swivel facility for the radiant warmer
This facility allows to swivel the radiant warmer to both sides. In side position the radiation is still focussed to
the patient thus preventing him from becoming hypothermic. Thus the area above the patient is kept clear
for examination, X-ray, and phototherapy.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
7/39

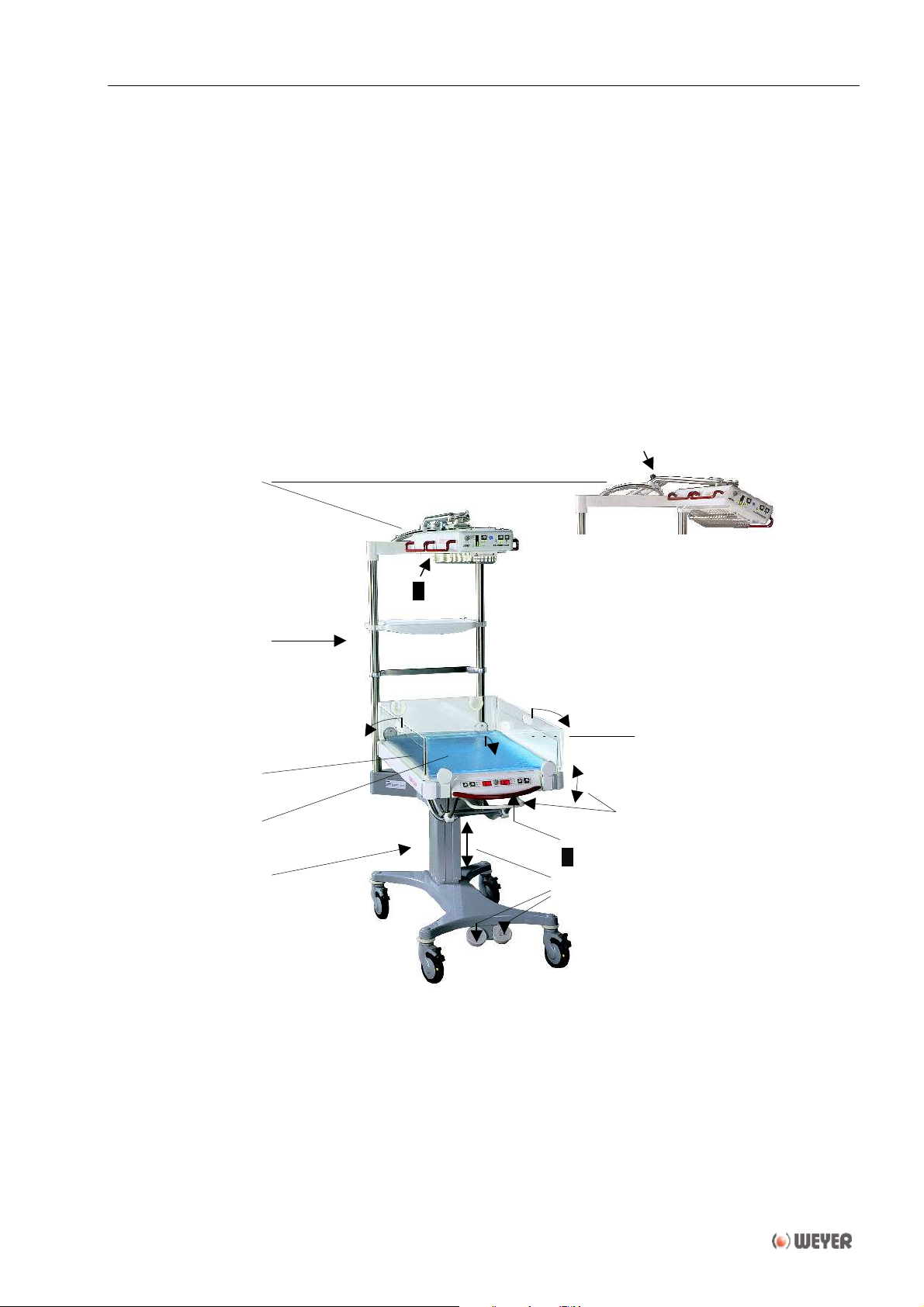

5.3 Upgrade items / accessories
Various accessories, e.g. instrument rails, shelves, flowmeter, compressed air and vacuum devices as well
as additional devices can be mounted at the frame system. The power for electrical devices, e.g. ventilators, monitors, Apgar timer etc. is supplied via the take-off sockets in the traverse spar of the frame system.
For the adaptation of additional devices the "General requirements for the safety of medical electrical
systems EN 60601-1-1 + Supplement A1" must be observed.
6. Infrared radiant warmer
The radiant warmer with swivel facility, which is arranged above the bassinet, is used for pre-warming the
bassinet and the walls and for maintaining the patient's body temperature during treatment. It generates
infrared radiant heat in the range of 0.8 to 10 micrometer (µm). This radiant heat is not visible and is very
well absorbed by the skin without injuring the patient's eyes.
The ceramic heating elements do not scale and are not affected by liquid splashes.
For dazzle-free illumination of the bassinet two light sources are integrated in the radiant warmer.
The radiation intensity effective for the patient is selected at the operating unit of the radiant warmer, defined in mW/cm². The emitted radiation intensity (actual value) is displayed and deviations from the
selected value are indicated visually and audibly.
It must be emphasized that the radiant warmer does not give any indication as to the patient's body temperature. Therefore the effect of the selected radiation intensity on the patient must be checked in regular
intervals.
Under certain circumstances radiation intensities above 10 mW/cm² might bring the patient in a hyperthermic condition. Therefore the radiant warmer provides a safety feature, which in case of intensities above
10 mW/cm² emitted for more than 15 minutes, will reduce the output to a safe value while an audible alarm
sounds. The selected higher value can be reactivated by pushbutton for further 15 minutes. For certain
applications, which are described more detailed in chapter "Functions and alarms" (from page 16) and "Use"
(from page 18) this safety and alarm feature can be deactivated by a conscious action.
In order to prevent the risk of fire and accident the residual heat of the heating elements is displayed until
the device has cooled off.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
8/39
Start-up and functions, functional test
Qualified persons only should install and start-up the device and instruct user's personnel.
When installing the device it has to be considered that other heating sources, fans and cold walls may
change the effect of the device. Therefore a distance of 1 m should be kept clear and the bassinet should
be protected from direct sunlight. Furthermore the device should not be placed in draughts (e.g. air
condition) and at windows. Fluids and inflammable agents must not be brought into touch with the radiant
warmer. In order to avoid the risk of fire there must not be any inflammable material (e.g. curtains) within an
area of 70 cm around the radiant warmer.
Prior to start-up all components of the device must be checked for correct and secure position.
Clean the device in cold condition according to chapter "Cleaning and Disinfection" (page 32).
The functions of the moving mechanical components should be checked as follows:
Move the bassinet to the lowest and highest position by means of the foot pedals (1.1). Make sure that no
items or devices are placed within in the range of the height adjustment.
1.1
2.2
5.2
4.1
4.1
4.2
B
B
5.2.1
1.3
5.3
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
9/39
Unlock the catch (2.2) below the frontside of the bassinet by pulling and tilt the bassinet in both directions.
Check in several positions whether the catch (2.2) locks automatically when being released and whether the
bassinet is fixed in this position.
For checking the wall functions unlock the walls (4.1) and (4.2) by lifting and fold them down. They must
latch securely again simply by folding up.
Both the under-pad heating and the radiant warmer have a 9V battery which is included in the scope of the
device. The battery compartment B for the under-pad heating is placed below the bassinet and the one for
the radiant warmer at the rear bottom side of the warmer, beside the type label.
After pulling and 90° turning of the latch (5.2.1) the radiant warmer can be moved to the right-hand or lefthand side. After checking this function, turn the catch (5.2.1) back by 90° and move the radiant warmer to
normal position until the catch locks.
If upgrade items or accessories are mounted at the device (e.g. 1.3 and 5.3) these must be checked for
secure position.
Before start-up make yourself acquainted with the following control and display elements of the device.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
10/39

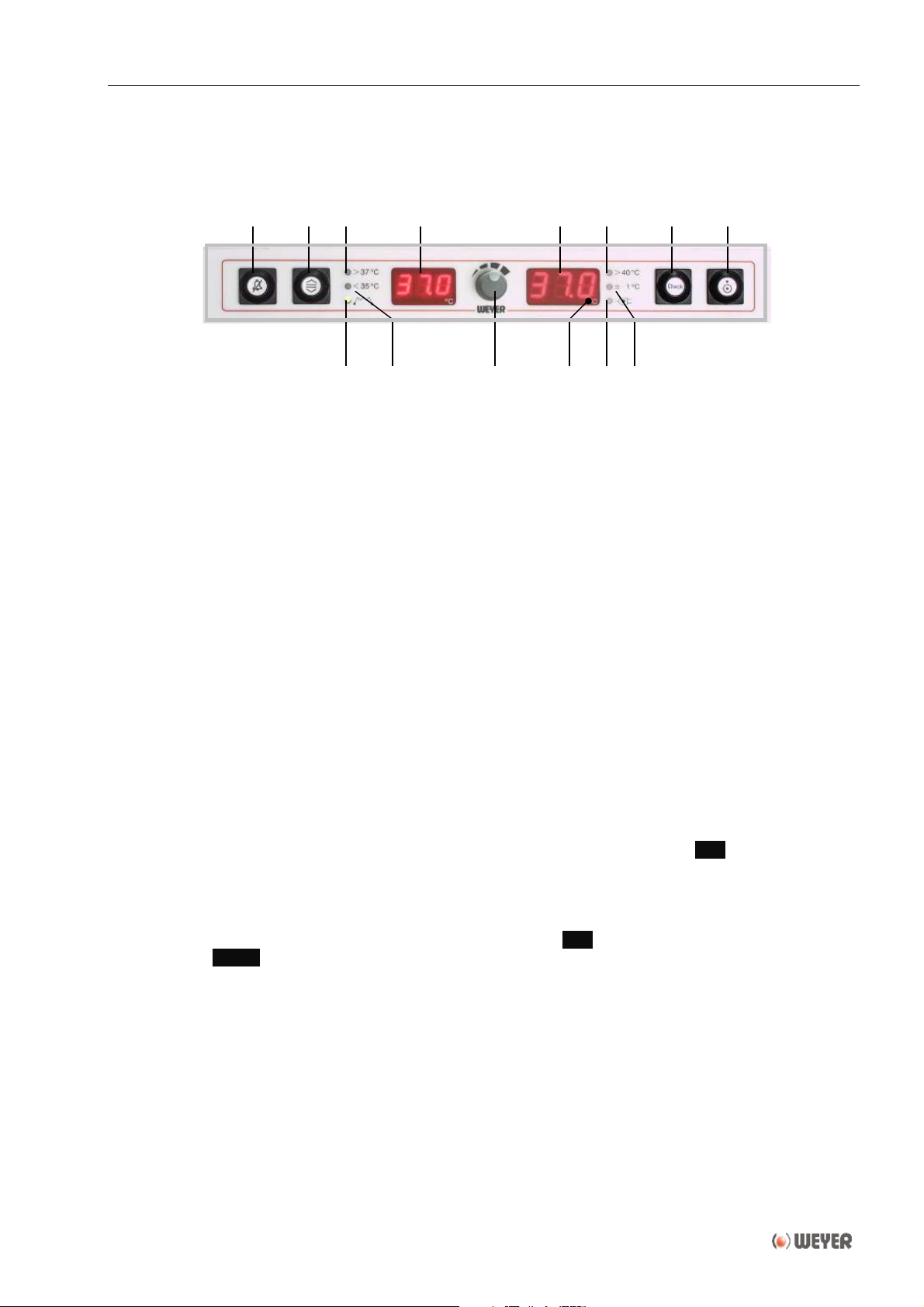

Functions of the under-pad heating
3.1
Button "Alarm reset"
3.2
Button "Unlocking of extended temperature range" (30°C to 35°C and 37°C to 38,5°C)
3.3
Button "System check"
3.4
Button "Heating On-Off"
3.5
Knob "Temperature selection"
3.6
Display "Selected temperature"
3.7
Display "Actual temperature"
3.8
Pilot lamp (green) "Heating power". In normal operation the lamp lights intermittently
3.9
Warning lamp (yellow) "Temperature selection below 35°C"
3.10
Warning lamp (yellow) "Temperature selection above 37°C"
3.11
Warning lamp (red) "Power failure"
3.12
Warning lamp (red) "Deviation between selected and actual temperature exceeding 1°C"
3.13
Warning lamp (red) "Bassinet temperature exceeding 40°C"
3.14
Warning lamp (red) "Heating-up period"
Start-up of the under-pad heating
First of all make sure that the device is connected to the mains supply.
Switch-on the conductive under-pad heating with button (3.4). Now a self-test checks the major displays and
alarm functions. The alarm tone sounds and all displays light up for approx. 2 seconds. Both the selected
temperature display (3.6) and the actual temperature display (3.7) indicate the value 88.8.
Check during these 2 seconds whether all displays, pilot lamps and the alarm tone are functioning.
If the self-test is finished without faults, now the temperature of 37.0°C is offered in the temperature
selection display (3.6). The actual temperature display indicates SET and the selected temperature display
(3.6) indicates 37.0°C. Both displays flash and an intermittent tone sounds.
Now the offered temperature of 37.0° can either be confirmed by pushing button (3.1) or adjusted by the
temperature selection knob (3.5). After confirming by button (3.1.) or temperature adjustment the alarm tone
extinguishes.
Temperature selection
The temperature selection consists of two sections, i.e. the "standard" temperature range (35°C to 37°C)
and the "extended" temperature range (30°C to 35°C and 37°C to 38.5°C).
3.1 3.2 3.10 3.6 3.7 3.13 3.3 3.4
3.8 3.9 3.5 3.14 3.11 3.12
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
11/39
Within the standard temperature the selected temperature can be adjusted by knob (3.5) in increments of
0.1°C. Each adjustment is confirmed by a tone. The selected temperature is increased by turning the knob
clockwise and reduced by turning it anti-clockwise.
Within the extended temperature range the selected temperature can be adjusted by pushing the unlocking
button (3.2) and simultaneous turning knob (3.5). During this procedure the warning lamps (3.9) and (3.10)
light. After the adjustment the button (3.2) can be released. In case of a temperature selection below 35°C
the warning lamp (3.9) lights and in case of a temperature selection higher than 37°C the warning lamp
(3.10) lights.
Heating up from cold state
When the under-pad heating is switched-on at a bassinet temperature more than 5°C lower than the most
recently selected temperature, the device reacts as described in chapter "Start-up of the under-pad heating".
A selected temperature of 37°C is offered which can either be confirmed or adjusted.
The audible low temperature alarm is deactivated for a period of 30 minutes. During this period the warning
lamp (3.14) flashes. When it extinguishes, the normal operating state is reached and the audible low
temperature alarm is activated.
Heating-up from partly cooled state
When the under-pad heating is switched-on at a bassinet temperature min. 1°C and max. 5°C lower than
the most recently selected temperature, this temperature will be adopted automatically.
All alarms are activated, including the audible low temperature alarm. The low temperature alarm, however,
can be reset by button (3.1) for a period of 15 minutes. The warning lamp (3.14) flashes and indicates
normal operating mode only after 30 minutes from switching-on.
Repeated start from warm state
When the under-pad heating is switched-on at a bassinet temperature max. 1°C lower or higher than the
most recently selected temperature, the device will operate in normal mode immediately. All alarms are
activated.

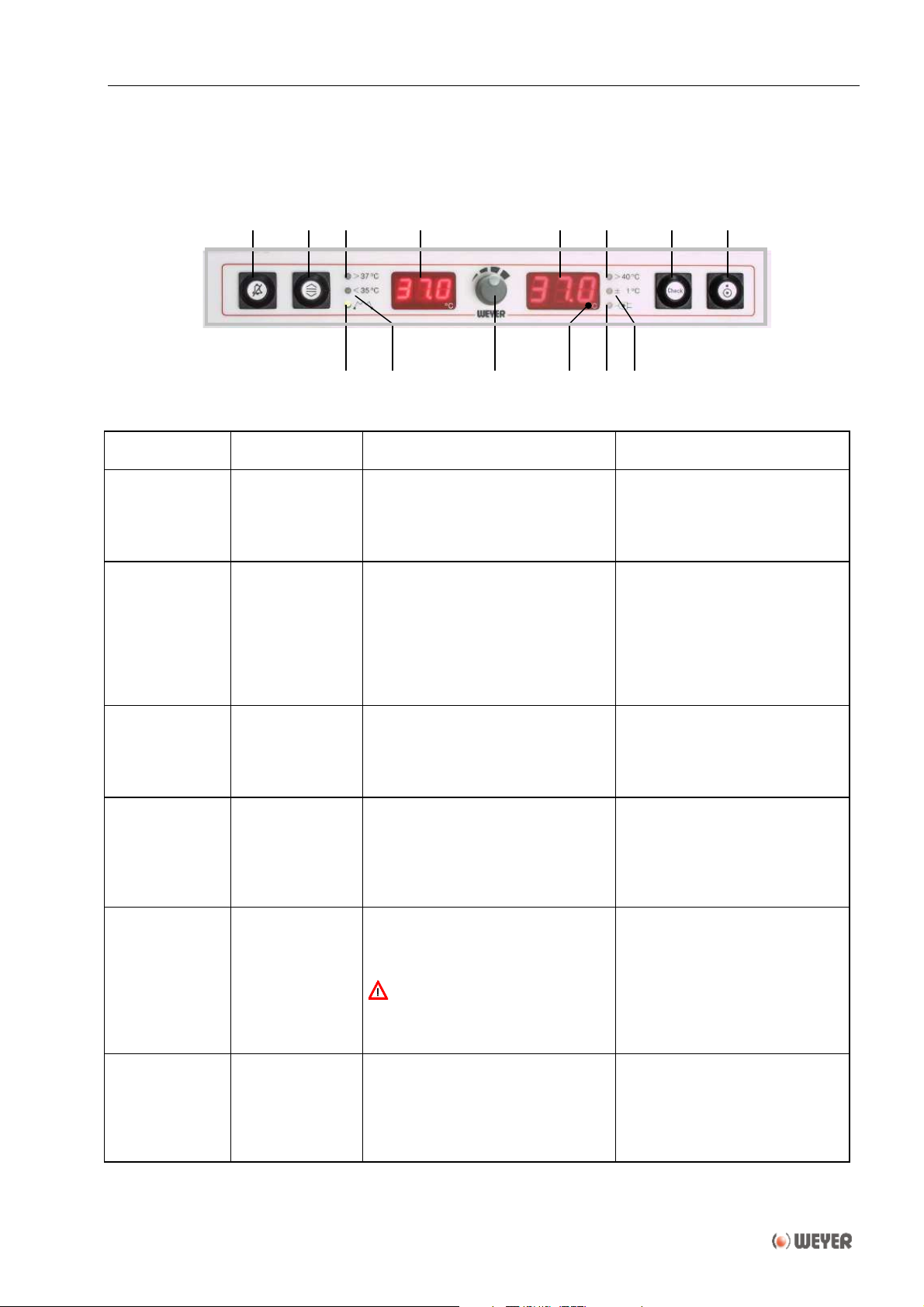

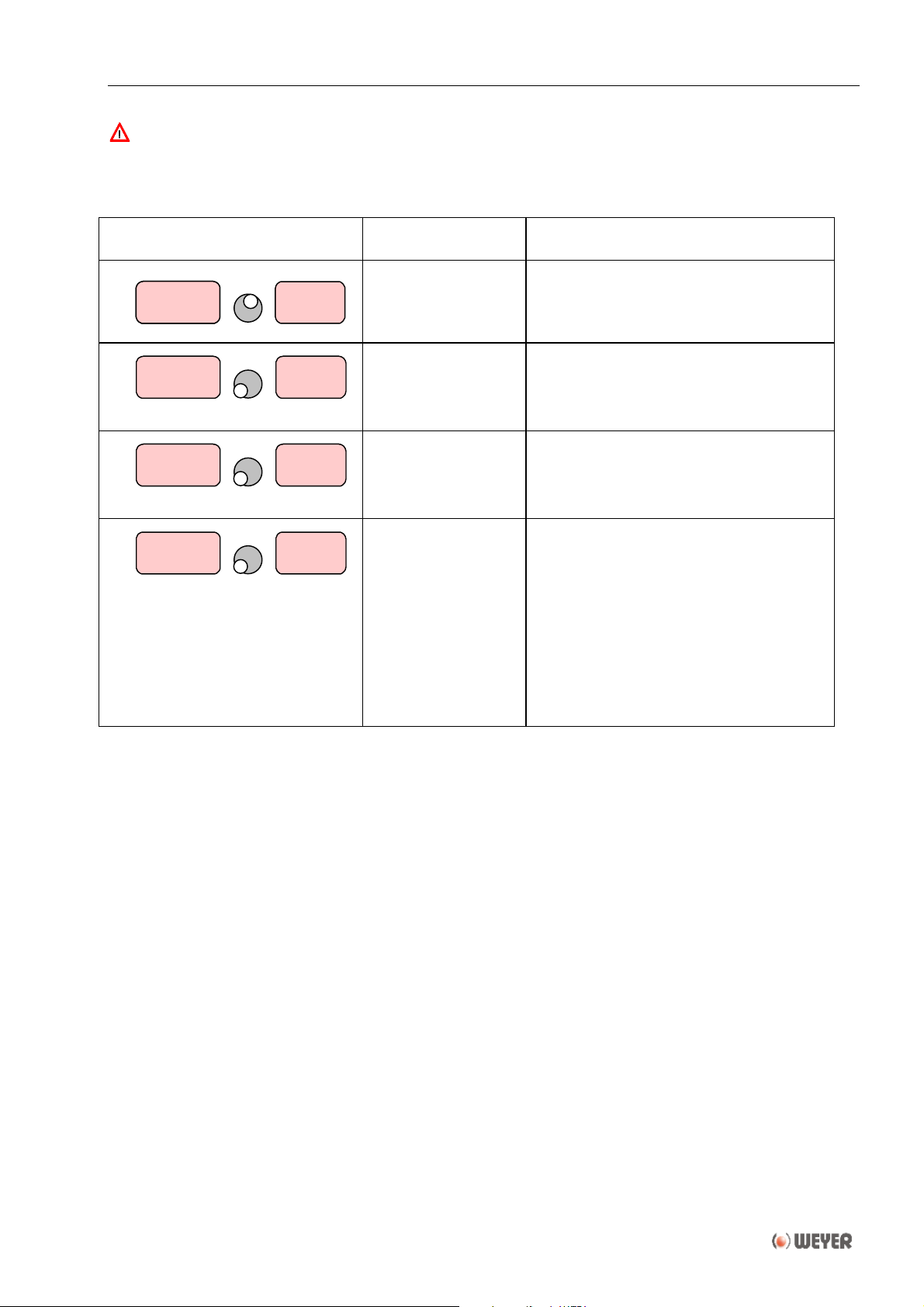

Alarms
Deviation between selected and actual temperature exceeding 1°C:
The following alarms are released:
•
Red warning lamp (3.12) flashes
•
Actual temperature display (3.7) flashes
•
An intermittent alarm tone sounds
By pushing button (3.1) the intermittent tone is deactivated for a period of 15 minutes, the warming lamp
(3.12) lights permanently.
If the deviation between selected and actual temperature is lower than 1°C, the warning lamp (3.12) and the
audible alarm extinguish.
Increased attention has to be given to the patient when the above mentioned alarms are released.
During heating-up period from cold state the audible low temperature alarm is deactivated for a period of
30 minutes (see chapter "Heating-up from cold state").
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
12/39
Bassinet temperature exceeding 40°C:
The following alarms are released:
•
Red warning lamp (3.13) flashes
•
Selected temperature display (3.6) and actual temperature display (3.7) flash
•
A permanent alarm tone sounds
Furthermore at a temperature exceeding 40°C the heating is cut-off automatically.
This alarm relates to a device failure. As long as the bassinet temperature is above 40°C, the alarm tone
cannot be reset with button (3.1).
Switch-off the under-pad heating with button (3.4) and make sure that the patient is cared for in another
way. If this is not possible, place a foam pad min. 2 cm thick or a woollen blanket between patient and gel
pad in order to avoid that heat is withdrawn from the patient by the cooling gel pad.
If in case of an alarm the under-pad heating is switched-off with button (3.4), the residual actual temperature
is displayed. The device is automatically switched-off when the actual temperature has dropped below 35°C.
Insufficient capacity of power failure alarm battery:
The following alarms are released:
•
The displays (3.6) und (3.7) indicate Lo + bAt every 10 seconds
•
The warning lamp (3.11) flashes
•
A short alarm tone sounds every 10 seconds
After changing the battery the alarms are reset automatically.
Power failure alarm:
The following alarms are released:
•
Warning lamp (3.11) lights
•
A permanent alarm tone sounds
Switch-off the under-pad heating with button (3.4) and make sure that the patient is cared for in another
way. If this is not possible, place a foam pad min. 2 cm thick or a woollen blanket between patient and gel
pad in order to avoid that heat is withdrawn from the patient by the cooling gel pad.
Temperature sensor alarm:
The following alarms are released:
•
The displays (3.6) and (3.7) alternately indicate Err + Pt + Err XXX .
XXX refers to an error code.
•
A permanent alarm tone sounds
The alarm tone cannot be reset with button (3.1).
Switch-off the under-pad heating with button (3.4) and make sure that the patient is cared for in another
way. If this is not possible, place a foam pad min. 2 cm thick or a woollen blanket between patient and gel
pad in order to prevent that heat is withdrawn from the patient by the cooling gel pad.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
13/39
System check
The system check serves to test the functions of the control unit. It is released by pushing the button (3.3).
The following functional tests are performed:
1. Lamp and alarm test (approx. 2 seconds)
2. All displays are switched-off (approx. 1 second)
3. The selected value display (3.6) alternately indicates 37.0 and ChE
The actual temperature display should indicate a value of 37.0°C ± 0.1°C. If the deviation is larger
than ± 0.1°C, the control system is not adjusted correctly.
If there are deviations in one of the mentioned functions, a safe operation is no longer guaranteed and the
device must be checked by authorized qualified persons without delay.
End of operation
The conductive warming device is switched-off with button (3.4). After switching-off all displays extinguish,
with the exception of the actual temperature display. The device is automatically switched-off when the
actual temperature has dropped below 35°C.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
14/39

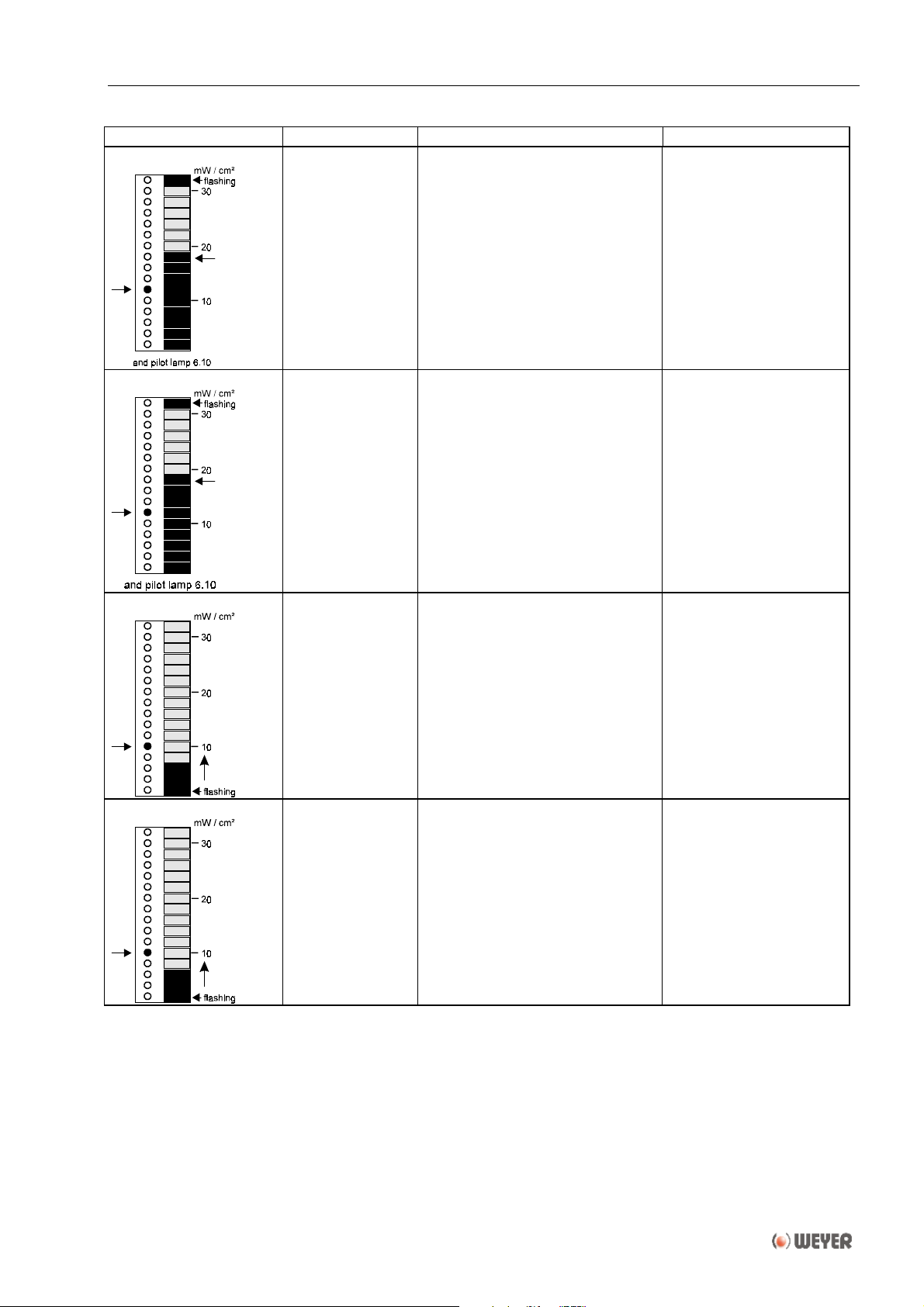

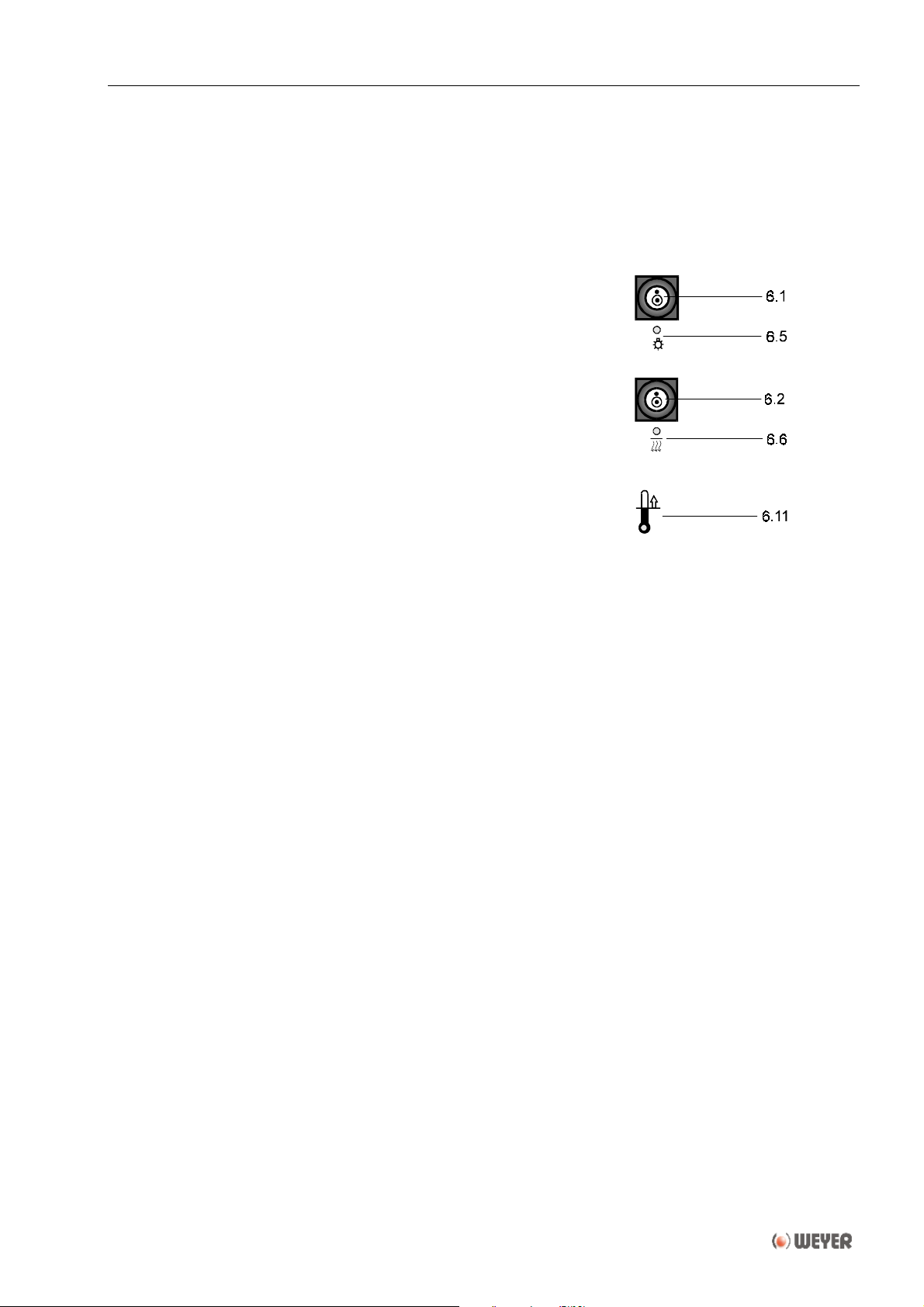

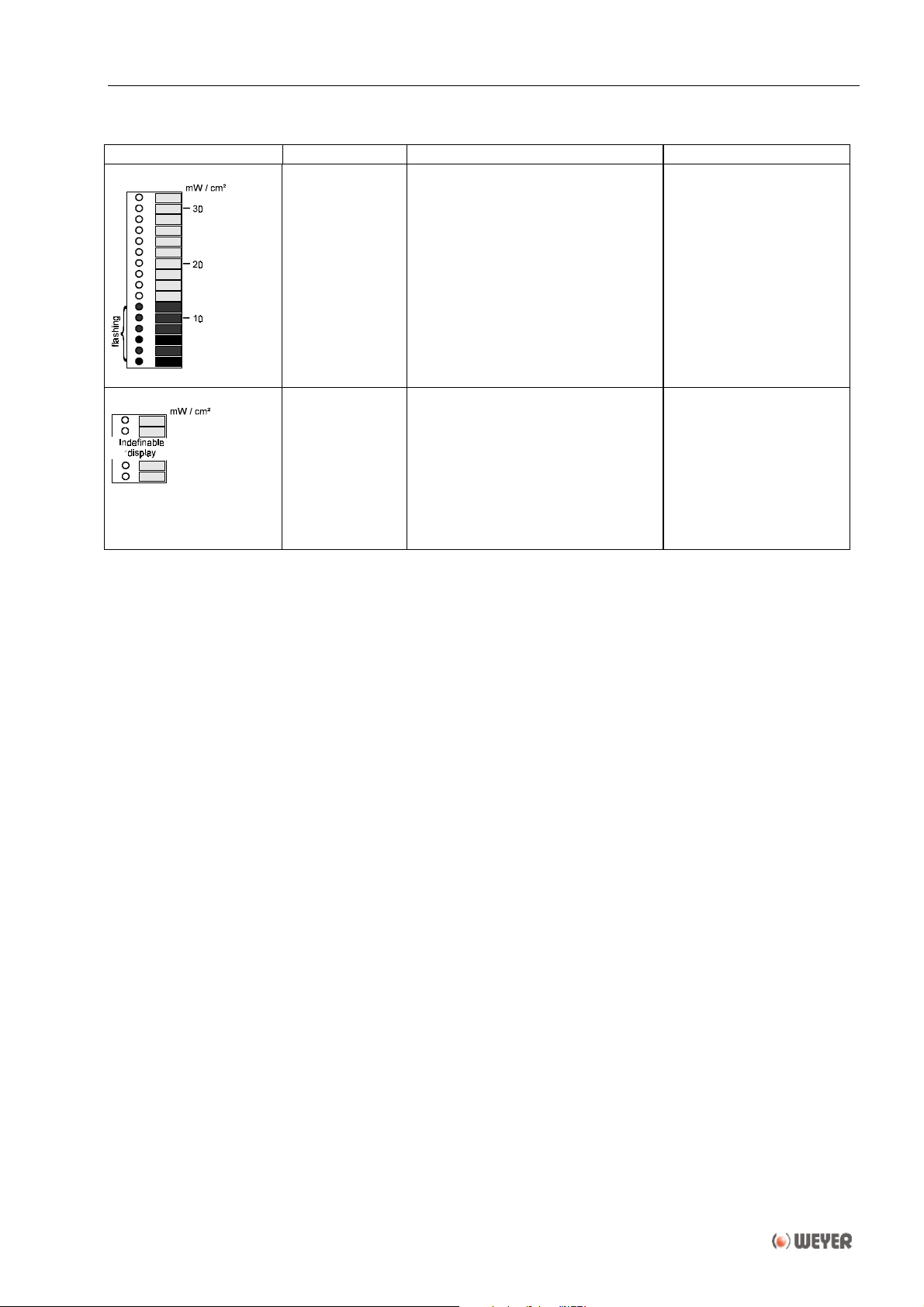

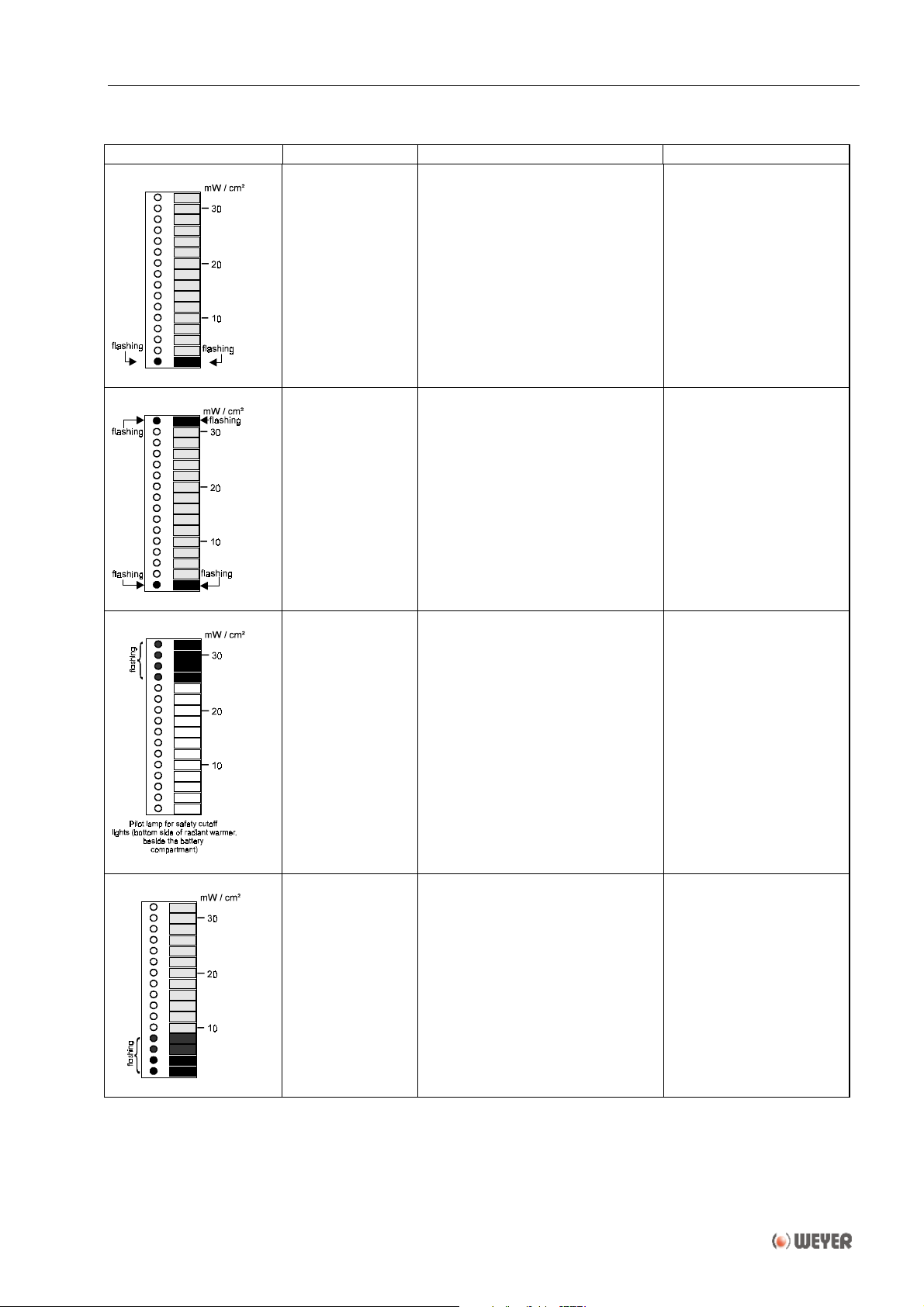

Functions of the infrared radiant warmer
6.1
Button "Illumination On-Off".
6.2
Button "Heating On-Off.
6.3
Label indicating next maintenance.
6.4
Multifunctional button:
a.) Resets the audible high intensity
alarm for 1 minute.
b.) Resets the audible low intensity alarm
for 15 minutes.
c.) Pushing the button for more than
3 seconds deactivates the 15-minutes
alarm and the automatic heating
capacity reduction > 10 mW/cm²,
which is confirmed by two short tones.
The function is reactivated by pushing
the button for more than 3 seconds,
which is confirmed by one short tone.
d.) Button for "Extended functional test"
(page 35).
6.5
Pilot lamp (green): Illumination.
6.6
Pilot lamp (green): Heating.
6.7
Warning lamp (red): Double function:
a.) When the lamp flashes during normal
operation, the capacity of the power
failure alarm battery is below
10 minutes.
b.) When the lamp lights in connection
with an permanent alarm tone, the
power supply is interrupted. The
alarm can be reset by switching-off
the heating with button (6.2). When
the power supply is reinstalled, the
heating must be switched-on again.
6.10
Warning lamp (yellow) > 10 mW/cm²,
double function. At an intensity selection
between 12 and 30 mW/cm² it indicates
that increased attention must be
extended to the patient.
a.) When it lights permanently, the
heating capacity will be reduced
automatically when an intensity above
10 mW/cm² is emitted to the bassinet
for more than 15 minutes.
b.) When it flashes, the automatic
heating capacity reduction is
deactivated, and an increased
attention must be extended to the
patient.
6.11
Pilot lamp (green). It always lights when
the heating elements are energized, i.e.
when the lamp lights, the radiant warmer
will heat-up, when it does not light, the
radiant warmer will cool off.
6.12a
LED for selected intensity and
15-minutes alarm with automatic heating
capacity reduction.
6.12b
Bar graph 2-30 mW/cm² for the actual
intensity emitted to the bassinet and
residual heat after switching-off.
6.12a+b
Combination LED / Bar graph, display of
various functions and alarms.
6.13
Knob with 15 increments for intensity
selection.
6.13 6.12b 6.4 6.3 6.2 6.1
6.12a 6.11 6.10 6.7 6.6 6.5
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
15/39
Switch-on the light with button (6.1). The pilot lamp (6.5)
and the light tubes in the radiant warmer light.
When switching-on the heating with button (6.2), the
device always performs a short self-test. The alarm tone
sounds and all displays and pilot lamps light up for
2 seconds.
Check during these 2 seconds whether all displays,
pilot lamps and the alarm tone are functioning.
The self-test is finished automatically and the device
starts heating-up. This is obvious from the pilot lamp for
the heating power (6.11), which initially lights permanently. The selected radiation intensity is indicated as a
spot in the LED (6.12a). Now select an intensity of
10 mW/cm² with knob (6.13). The bottommost LED-field
of bar graph (6.12b) flashes until the intensity has
reached the selected value.
First start of the radiant warmer
First of all make sure that the device has been connected to the power supply. The pilot lamp for the safety
cut-off beside the battery compartment indicates that the unit is ready for operation.
The ceramic heating elements require approx. 4 to 6 minutes until they have reached the selected intensity
of 10 mW/cm².
The radiation intensity emitted by the ceramic heating elements is displayed in the right field of bar graph
(6.12b). At a selected intensity of 10 mW/cm the LED´s 4 + 6 + 8 mW/cm² light-up progressively. The
radiant warmer has reached the selected radiation intensity when the topmost field of the bar graph (6.12b)
has reached the LED spot of display (6.12a). The pilot lamp for heating power (6.11) now lights intermittently according to the emitted radiation intensity.
For first start and after a longer time of non-use the "Extended functional test" (page 35) should be
performed which will take approx. 20 minutes.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
16/39
Functional processes and alarms
Display
Sequence of functions
Alarm
Heating-up
After switching-on the device with
button (6.2) the heating elements will
warm up. The desired radiation
intensity (6.12) can be selected with
knob (6.13). The heating-up state is
obvious from the actual intensity
display (6.12b). Depending on the
selected intensity and the ambient
temperature the heating-up time will
be between 3 and 15 minutes.
The bottommost field of the actual
intensity bar graph (6.12b) flashes
until the selected intensity (6.12a) is
reached. During the heating-up period
an audible alarm will only be released
after 15 minutes. If this is the case,
low ambient temperature or a failure
in the heating system could be the
reason. The audible alarm can be
reset for 15 minutes with button (6.4).
Normal operation up to 10 mW/cm²
Radiation intensity up to 10 mW/cm²
cannot cause any problems and
under normal conditions it is sufficient to maintain the body temperature of healthy normal-weight infants.
During normal operation the topmost
field of bar graph (6.12b) is at the
same vertical position as the LED for
selected intensity (6.12a).
No alarms
Increasing the radiation intensity
By turning the knob (6.13) clockwise
the radiation intensity will be
increased.
Each adjustment is
confirmed by a short tone.
The
selected intensity is indicated in LED
(6.12a). Corresponding to the
heating-up state, the bar graph
(6.12b) indicates the emitted radiation
intensity. The selected intensity is
reached when the topmost field of the
bar graph (6.12b) has reached the
topmost spot of LED (6.12a).
When the emitted radiation intensity is
lower than the selected intensity, a
low intensity alarm is released.
However, the device recognizes the
conscious intensity increase and
therefore only a visual alarm is
released by flashing of the bottommost field of bar graph (6.12b). When
the new selected intensity is reached,
this flashing field will extinguish. Only
if it will not be reached within 15
minutes, the low intensity alarm will
sound. This audible alarm can be
reset for 15 minutes by button (6.4).
Exceeding the maximum intensity
selection
A maximum intensity of 22 mW/cm²
can be selected. If the intensity knob
(6.13) is set to a value, which the
radiant warmer is unable to reach,
the maximum possible intensity
selection is indicated in LED (6.12a)
by a permanent spot. The (unreachable) selected intensity is
indicated in LED (6.12a) by a flashing
spot.
Optical, as described.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
17/39
Display
Sequence of functions
Alarm
Operation above 10 mW/cm² with
15-minutes alarm and automatic
heating capacity reduction.
If exposed to radiation intensity
> 10 mW/cm² under certain circumstances the infant's body temperature
can increase considerably. An
intensity selection > 10 mW/cm² is
indicated by warning lamp (6.10). If
higher radiation intensity is emitted for
more than 15 minutes, it is automatically reduced to 10 mW/cm². If
the higher intensity should be
continued, this must be confirmed by
pushing the button (6.4).
In LED (6.12a) the spot for the selected intensity and the spot for
10 mW/cm² flash alternately and a
short alarm tone sounds in intervals of
2 seconds. By pushing button (6.4)
the alarm is reset and the selected
intensity is emitted for further
15 minutes.
Normal operation above 10 mW/cm²
Provided that the patient's temperature supervised in another way, for
well-founded reason the automatic
intensity reduction can be deactivated
by pushing button (6.4) for more than
3 seconds and it can be reactivated in
the same way. It must be particularly
paid attention to the danger of
hypothermia in case of operation with
intensity above 10 mW/cm²!
Deactivating the automatic intensity
reduction with button (6.4) is
confirmed by two short tones and the
warning lamp (6.10) flashes. The
reactivation of the automatic intensity
reduction with button (6.4) is confirmed by one short tone. The warning
lamp (6.10) lights, if a value
> 10 mW/cm² is selected.
Reducing the radiation intensity
By turning the knob (6.13) anticlockwise the radiation intensity will
be reduced.
Each adjustment is
confirmed by a short tone.
The
selected intensity is indicated in LED
(6.12a). Corresponding to the coolingoff state, the bar graph (6.12b)
displays the emitted radiation
intensity. The selected intensity is
reached when the topmost field of the
bar graph (6.12b) has dropped to the
topmost spot of LED (6.12a). The
cooling-off can take 1 to 4 minutes,
depending on the selected intensity.
When the emitted radiation intensity is
higher than the selected intensity, a
high intensity alarm is released.
However, the device recognizes the
conscious intensity reduction and
therefore only a visual alarm is
released by flashing of the topmost
field of bar graph (6.12b). When the
device has cooled-off to the new
selected intensity, this flashing field
will extinguish. If not, the high
intensity alarm will sound after 15
minutes. This audible alarm can be
reset for 15 minutes by button (6.4).
Switching-off the heating
The heating is switched-off with button
(6.2) and the pilot lamp for the safety
cut-off beside the battery compartment lights. For safety reasons the
residual heat emitted by the heating
elements is displayed in bar graph
(6.12b). After cooling off below
2 mW/cm² the bar graph is switchedoff automatically.
No alarm
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
18/39
Use
Bassinet with wall system
Bring the bassinet into the desired position by means of the foot pedals 1 of the height adjustment facility.
Cover the gel pad 2 with a
thin nappy
. Make sure that the nappy is not squeezed between the walls and
that it cannot block the locking system. The front and side walls 4 must always close smoothly and latch
securely. The safety walls 3 must be inserted in a way that the infant cannot fall from the bassinet. For
better accessibility they can be taken out of their support and inserted again set off by 180°. Thus the walls
are retracted into the bassinet, allowing full access to the patient.
Drainage tubes are conveyed through and the open corners of the front wall, ventilation tubes can be
connected in level position through the tube guidings in the rear wall.
When the under pad heating has reached the steady temperature, place the patient inside the bassinet.
Take care that the walls are folded up so that the patient cannot fall from the bassinet. Take care that no
body parts, tubes and cables are squeezed. After unlocking the tilting device 5 incline the bassinet to the
desired position.
2. 3
4
1
5
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
19/39
Temperature selection of the under-pad heating
The temperature selection of the under-pad heating
depends on several factors, e.g.:
The patient's temperature must be monitored or checked in regular intervals.
When the under-pad heating is switched-off, the gel pad may cause a reduction of the patient's temperature.
Therefore, if the bassinet shall be used with switched-off under-pad heating, for insulation purposes a foam
pad or woollen nappy, minimum 2 cm thick, must be placed between patient and pad.
In case of an ambient temperature above 30°C and a temperature selection of 30°C there might be released
a high temperature alarm. In that case increase the temperature selection to 32°C or switch-off the underpad heating.
Heat is supplied to the patient
Heat is withdrawn from the patient
Heat flow in balance
•
Age and maturity of the infant
•
Weight
•
Does the patient suffer from Hypothermia /
Hyperthermia?
•
Are vital functions impaired?
•
Which accompanying therapies are applied?
•
Is the infant clothed or unclothed?
When selecting the temperature of the conductive
under-pad heating, it must be considered that the
temperature of the gel pad has a direct influence on
the patient (thermal conduction). If the pad
temperature is higher than the patient's temperature, heat is conveyed to the patient. If on the
other hand the pad temperature is lower than the
patient's temperature, heat may be withdrawn from
the patient!
For a mature unclothed infant a bassinet temperature of approx. 36.5°C should be selected. For a
pre-term neonate a temperature of approx. 37° to
37.5°C is recommendable. For clothed infants the
bassinet temperature may be selected 0.5 to 1°C
lower.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
20/39
Radiant warmer
The radiant warmer generates a long-wave infrared
radiation. The radiation intensity effective for the
patient is selected at the operating unit of the radiant
warmer, as described on page 21.
The safety guard of the heating elements can reach a
temperature above 85°C. When taking infants out of
the bassinet, take care that they do not grip into the
safety guard.
The radiant warmer is swivel-mounted. For taking
X-ray or in order to reduce the heat exposure for the
personnel, it can be swivelled to either side. The
radiation keeps focussed on the patient, preventing
him from hypothermia.
In order to swivel the radiant warmer retract the
locking knob of the swivel device and turn it by 90°.
Now the radiant warmer can be swivelled to both
sides. Use the two handles and do not touch the
safety guard.
In order to return the warmer to central position again
turn the locking knob by 90° and move the warmer to
central position until the locking knob latches
automatically.
Take care that no items whatsoever are placed within
the moving radius of the radiant warmer.
For illuminating the bassinet dazzle-free two light
sources are integrated in the radiant warmer, which
can be switched-on at the front-side of the device, if
necessary.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
21/39
Intensity selection of the radiant warmer
After switching-on the heating with button (6.2), the desired radiation intensity can be selected with knob
(6.13). The selected value is indicted as a spot in LED (6.12a). Now it takes about 3 to 15 minutes until the
selected value is reached. The actually emitted radiation intensity is indicated in the bar graph (6.12b). The
device has reached the selected intensity and is ready for operation when the bottommost field of the bar
graph (6.12b) stops flashing.
The intensity selection of the radiant warmer is decisively dependent from the patient's condition. If the
radiant warmer is used for long-term care, the radiation intensity has to be selected with utmost care. The
intensity selection is mainly dependent from the patient's weight, age, maturity, the anamnesis as well as
the ambient conditions.
•
The smaller and immature the patient, the higher is his heat demand.
•
The lower the ambient temperature, the higher is the patient's heat demand.
If empirical values are not available, for an unclothed infant an initial intensity of 10 mW/cm² should be
selected. The body temperature must be checked in regular intervals. If necessary, the intensity selection
should be adjusted according to the patient temperature.
The intensity selection is ideal when neutral thermal conditions are given, i.e. when the patient's core
temperature in relaxed condition is between 36.7 and 37.3°C.
If higher radiation intensity is emitted to an infant for a longer time, under unfavourable circumstances his
temperature may be increased dangerously. The radiant warmer recognizes this situation and provides an
automatic function for warning and simultaneous reducing the heating capacity.
When a radiation intensity above 10 mW/cm² is emitted to the patient area for more than 15 minutes,
the radiation intensity will be reduced automatically to 10 mW/cm² and an alarm is released.
6.13 6.12b 6.4 6.3 6.2 6.1
6.12a 6.11 6.10 6.7 6.6 6.5
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
22/39
Exceeding the maximum intensity selection
The maximum selectable intensity is 22 mW/cm². If the intensity knob
(6.13) is set to a value, which the radiant warmer is unable to reach, the
maximum selectable value is indicated in LED (6.12a) by a permanent
spot. The (unreachable) selected value is indicated in LED (6.12a) by a
flashing spot. In that case reduce the intensity selection to the maximum
possible intensity by turning knob (6.13) anti-clockwise.
In that case the LED spot for the selected value and the LED spot for 10 mW/cm² in display (6.12a) flash
alternately and a short alarm tone sounds every 2 seconds. Check the patient's temperature and push
button (6.4). Now the alarm is reset and the selected intensity is emitted for further 15 minutes. The warning
lamp (6.10) lights permanently and indicates that the safety function (>10 mW/cm²) is activated.
The actual intensity display (6.12b) refers to the surface of the bassinet. The radiation intensity
reaching the patient's skin is approx. 4 mW/cm² higher than the displayed value because the
distance of the radiant warmer to the patient surface is approx. 10 cm lower than to the surface of
the bassinet.
If during long-term care the patient's demand of heat has stabilized, and if this is above a value of
10 mW/cm², the 15-minutes-alarm and automatic heating capacity reduction can be deactivated by a
conscious action. This, however, does not remove the obligation of checking the patient's temperature in
regular intervals. If the patient's temperature is monitored, the automatic 15-minutes-alarm and the heating
capacity reduction can also be deactivated.
In order to deactivate the 15-minutes-alarm and the automatic heating capacity reduction, push button (6.4)
for approx. 3 seconds until two short tones sound.
When the 15-minutes-alarm and the automatic intensity reduction are deactivated, in case of an intensity
selection above 10 mW/cm² the warning lamp (6.10) flashes permanently.
When the 15-minutes-alarm with automatic intensity reduction shall be reactivated, push button (6.4) for
approx. 3 seconds until one short tone sounds. When in case of an intensity selection > 10 mW/cm² the
15-minutes-alarm and the automatic heating capacity reduction are activated, the pilot lamp (6.10) lights
permanently.
Whenever the radiant warmer is switched-on after non-operation, the 15-minutes alarm and the automatic
heating capacity reduction are activated.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
23/39
Warnings for use
General
•
The patient's temperature must be monitored or checked in regular intervals.
•
The radiant warmer does not give any indication as to the patient's temperature.
•
Take care that the patient is always under observation when one or more walls (4.1 or 4.2) of the
bassinet are folded down.
•
Sunlight, draughts, cold walls and windows in direct ambience to the resuscitation and intensive care
crib will influence the patient's temperature balance negatively.
•
The ambient conditions for the resuscitation and intensive care system must in no case be influenced by
further warming or air condition devices.
•
For the adaptation of additional devices the "General requirements for the safety of medical electrical
systems EN 60601-1-1 + Supplement A1" must be observed.
Height-adjustment facility
•
When operating the height-adjustment make sure that no items or devices are placed within in the
moving range.
•
It should also be considered that accessories, which are not fixed at the device, will not be moved and
therefore might be pulled off.
•
Before moving the resuscitation and intensive care system to another place bring the height adjustment
into the lowest position.
Under-pad heating
•
The under-pad heating shall only be used together with the original gel pad order No. WY 0620.
•
When the under-pad heating is switched-off, the gel pad may cause a reduction of the patient's
temperature. Therefore, if the bassinet shall be used with switched-off under-pad heating, for insulation
purposes a foam pad or woollen nappy, minimum 2 cm thick, must be placed between patient and pad.
•
The gel pad cannot destaticize, is not autoclavable and not washing-machine proof.
•
The gel mattress can only be bent slightly and therefore must not be folded or laid over sharp edges.
Sharp instruments like needles, knives or scissors will damage or even destroy the mattress.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
24/39
Radiant warmer
•
It should be considered that when being exposed to a radiation intensity above 10 mW/cm² for a longer
period, the patient's temperature may be increased considerably.
•
Do not place any dark metal items within the field of radiation, as after a longer period they can become
dangerously hot.
•
It must be mentioned that under radiant warmers the trans-epidermal humidity losses in patients can
increase unconsciously.
•
Never use the radiant warmer together with inflammable anaesthesia gas or other inflammable material
and (cleaning) fluids as e.g. alcohol, ether etc.
•
When a radiant warmer is used in connection with a phototherapy device, it must be observed that
patient temperature and humidity losses can increase.
•
Do not place any medical drugs or infusion fluid above the radiant warmer or within the area of
radiation.
•
The safety guard of the radiant warmer can reach a temperature of > 85°C. Therefore during operation
it should be avoided to touch the safety guard or the top of the radiant warmer.
•
Never use the radiant warmer in connection with other warming devices, if the combination has not
particularly been accepted in the instruction for use.
•
The actual intensity display (12b) refers to the surface of the bassinet. The radiation intensity reaching
the patient's skin is approx. 4 mW/cm² higher than the displayed value because the distance of the
radiant warmer to the patient is approx. 10 cm lower than to the surface of the bassinet.
•
Do not place anything on top of the radiant warmer.
•
Never cover the unit as long as it is warm. This would impair the convection, which increases the
danger of fire.
•
When moving the resuscitation and intensive care system to another place, the swivel facility of the
radiant warmer must be locked in central position.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
25/39
Upgrade items and accessories
A number of upgrade items and accessories are
available for the resuscitation and intensive care
system VARIOTHERM. External devices can also
be fixed at the standardized instrument rail or
placed on an instrument and monitor shelf.
Any of the accessories mentioned in the product
brochure can be combined with this unit.
When external devices are connected to the
resuscitation and intensive care system VARIOTHERM, it must be checked whether the maximum
load of the instrument rail or the monitor shelf of
20 kg is sufficient.
When connecting electrical devices to the take-off
sockets of the resuscitation and intensive care
system VARIOTHERM, the nominal power indicated
beside the socket must not be exceeded.
Upgrade items, accessories or external devices
must be connected in a way that they are not placed
in the field of radiation of the radiant warmer.
It should be considered that when operating the
height adjustment facility all devices and
components connected with the resuscitation and
intensive care system are also be moved. Devices
and components, which are not fixed at the unit will
not be moved and therefore might be pulled off.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
26/39
Safety and alarm functions
Under-pad heating
Display/
Warning lamp
Alarm tone
Cause / Effect
Measure
(3.11) flashing
(3.6): LO
(3.7): bAt
No alarm tone
Battery capacity
not sufficient for power failure
alarm. Audible alarm not secured
for 10 minutes.
Replace battery (9V-E Block)
below the bassinet.
(3.11) lighting
permanently
Non resettable
alarm tone
Power failure alarm
Mains plug disconnected
inconsciously or any other
interruption in the power supply.
No heating, patient becomes
hypothermic.
Switch-off the under-pad
heating with button (3.4) and
make sure that the patient is
cared for in another way, or
place a foam pad minimum
2 cm thick or a woollen blanket
between patient and gel pad.
(3.12) lighting
No alarm tone
Temperature deviation > 1°C
Device is in heating-up state or
temperature selection was
adjusted by more than 1°C .
Watch the temperature.
(3.12) flashing
(3.7) flashing
Intermittent
alarm tone
Temperature deviation > 1°C
Temperature deviation of more
than 1°C for minimum 20 minutes.
Patient temperature is influenced
negatively.
Press alarm reset button (3.1)
and watch the temperature. If
this alarm is released
repeatedly, have the device
checked.
(3.13) lighting
Permenant alarm
tone
Device defective
or influenced by
external heating source. Patient
temperature may have increased.
Heating is cut-off by the safety
system. As a consequence the
patient will become hypothermic.
Switch-off the under-pad
heating with button (3.4) and
make sure that the patient is
cared for in another way, or
place a foam pad minimum
2 cm thick or a woollen blanket
between patient and gel pad.
(3.14) flashing
No alarm tone
Heating up state
After switching-on the device has
not yet reached the selected
temperature.
Wait until the warning lamp
extinguishes. If necessary,
accelerate the heating up
process by switching-on the
radiant warmer.
3.1 3.2 3.10 3.6 3.7 3.13 3.3 3.4
3.8 3.9 3.5 3.14 3.11 3.12
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
27/39
When one of the following errors is indicated in display (3.6) and (3.7), it is not possible to reset the
alarm and the device must be repaired. Switch-off the under-pad heating with button (3.4) and make sure
that the patient is cared for in another way, or place a foam pad minimum 2 cm thick or a woollen blanket
between patient and gel pad.
Display
Alarm tone
Error status
Permanent tone
Sensor short circuit
Sensor breakage
Measuring value error
E r r
0 0 3
Permanent tone
An error in the measuring sensor system
was stated during the system check
ESS P
Permanent tone
Sensor breakage or short circuit
E r r
X X X
Intermittent or
permanent tone
Instead of xxx an error code number is
indicated, which relates to an error on the
CPU board.
Switch-off the device and disconnect the
mains plug for 10 seconds. Then switch
the device on again and perform the
system check.
In case of repeated error a recalibration of
the device or an exchange of the CPU
board is necessary.
E r r P t
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
28/39
Radiant warmer
Display/Warning lamp
Alarm tone
Cause / Effect
Measure
(6.7) flashing
No alarm tone
Battery capacity
not sufficient for power failure
alarm. Audible alarm not secured
for 10 minutes.
Replace battery (9V-E
Block) at the rear bottom
side.
(6.7) lighting, remaining
displays are off
Non-resettable
permanent tone
Power failure
Mains plug disconnected
inconsciously or any other
interruption in the power supply.
No heating, patient becomes
hypothermic.
Switch-off the radiant
warmer with button (6.4)
and make sure that the
patient is cared for in
another way. Check the
fuses of the device.
(6.10) lighting
No alarm tone
Intensity selection above
10 mW/cm². 15-minutes alarm
and automatic heating capacity
reduction is activated.
Watch the patient's
temperature.
Intermittent alarm
tone 1 : 2
Radiation intensity
>10 mW/cm²
High intensity for more than
15 minutes (15-minutes alarm
and automatic heating capacity
reduction). In the long run
sensitive infants may become
dangerously hyperthermic.
Push button (6.4), device
proceeds heating with
high intensity selection.
Check the patient's
temperature and adjust
the intensity selection, if
necessary.
6.13 6.12b 6.4 6.3 6.2 6.1
6.12a 6.11 6.10 6.7 6.6 6.5
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
29/39
Display
Alarm tone
Cause / Effect
Measure
Intermittent alarm
tone 1 : 2
High intensity
The emitted radiation intensity is
higher than the selected intensity,
caused by accumulation of heat,
external heating source or device
failure. Heating is cut-off. Patient
temperature is influenced.
Reset the audible alarm
with button (6.4) and
watch the patient. If this
alarm is released
repeatedly within short
time, the device must be
taken out of operation
and checked.
No alarm tone
High intensity
The emitted radiation intensity is
higher than the selected intensity,
caused by an adjustment of the
selected intensity. Device cools
off to the new selected value.
Patient temperature is influenced.
None. After cooling-off
device proceeds
operating in normal
mode.
Intermittent alarm
tone 1 : 2
Low intensity
The emitted radiation intensity is
lower than the selected intensity.
The reason could be draught,
convection or a device failure.
Patient becomes hypothermic.
Reset audible alarm with
button (6.4) and watch
the patient. Watch bar
graph (6.12b) whether
radiation intensity will
drop further. If this is the
case, the device must be
taken out of operation
and checked.
No alarm tone
Low intensity
The emitted radiation intensity is
lower than the selected intensity.
Either the device is in the
heating-up state or a higher
intensity was selected (6.13). The
emitted intensity is possibly not
be sufficient to keep the patient
warm.
Watch the patient until
the selected intensity is
reached.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
30/39
Display
Alarm tone
Cause / Effect
Measure
Non-resettable
permanent alarm
tone
Sensor breakage
Sensor defective, interruption in
the sensor line, measuring
amplifier detuned or defective.
No heating. Patient becomes
hypothermic.
Switch-off the radiant
warmer with button (6.2)
and make sure that the
patient is cared for in
another way. Have the
device checked.
Non-resettable
permanent alarm
tone
Sensor short circuit
Sensor defective, short circuit in
the sensor line, measuring
amplifier detuned or defective,
device does not heat. Patient
becomes hypothermic.
Switch-off the radiant
warmer with button (6.2)
and make sure that the
patient is cared for in
another way. Have the
device checked.
Non-resettable
permanent alarm
tone
Safety cut-off
Device is overheating, patient
temperature may have increased.
Heating is cut-off by the safety
system. As a consequence the
patient will become hypothermic.
Switch-off the radiant
warmer with button (6.2)
and make sure that the
patient is cared for in
another way. Have the
device checked.
Non resettable
intermittent alarm
tone
1 : 1
Device failure
in the processor system EPROM
(software failure). Heating is cutoff, patient becomes
hypothermic.
Switch-off the radiant
warmer with button (6.2)
and make sure that the
patient is cared for in
another way. Perform
the extended functional
test (page 35). Have the
device checked and
repaired, if necessary.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
31/39
Display
Alarm tone
Cause / Effect
Measure
Non resettable
intermittent
alarm tone
1 : 1
Device failure
in the processor system
(Watchdog) Heating is cut off,
patient becomes hypothermic.
Switch-off the radiant
warmer with button (6.2)
and make sure that the
patient is cared for in
another way. Have the
device checked and
repaired, if necessary.
Non-resettable
permanent
alarm tone
Device failure
in the processor system
(Watchdog) Heating is cut off,
patient becomes hypothermic.
Switch-off the radiant
warmer with button (6.2)
and make sure that the
patient is cared for in
another way. Have the
device checked and
repaired, if necessary.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
32/39
Cleaning and Disinfection
The resuscitation and intensive care system VARIOTHERM should be cleaned and disinfected for every
new patient, however, at least once per week.
After use switch-off the under pad heating and the radiant warmer and wait until the residual heat displays
have extinguished. Disconnect the mains plug from the socket.
•
Remove nappies and tissues.
•
Disconnect all suction and patient circuit systems (if any).
•
Close oxygen cylinders etc. and empty liquid containers (if any).
•
Clean the device with a cloth slightly saturated with a cleaning agent and wipe it dry.
No liquid must enter into the top of the radiant warmer!
The ceramic heating elements of the radiant warmer must not be treated with cleaning agents or
disinfectants!
Never use inflammable disinfectants!
Do not use scouring cleaning agents. Use only disinfectants on the basis of aldehydes and quaternary
ammonium merges.
Unsuitable
are tincture of iodine 5 %, carbolic acid, spirit, ether, acetone and other
alcoholic agents as well as disinfectants on the basis of halogen-splitting merges, strong organic acids and
oxygen-splitting merges.
After disinfection let the device dry for at least 1 hour. Do not switch-on the radiant warmer in order to
accelerate the drying process.
Optionally to disinfection by spray or wiping, the device may also be gas-disinfected. After the disinfection it
is recommendable to leave the device in fresh air for some time after the disinfection so that the remaining
gas may escape.
A disinfection by ultraviolet light is not recommendable as Perspex and plastic components may be
damaged.
Reassemble all components of the device, check them for completeness and perform a functional test.
Waste disposal
Fluorescent tubes: Hazardous waste
Batteries: Hazardous waste
Gel pad: Domestic waste
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
33/39
Maintenance*
In order to verify the safe operation of the resuscitation and intensive care system VARIOTHERM, the
following checks should be performed by qualified persons in regular intervals:
•
Verification that the actual use is in conformance with the normal use
•
Visual examination of the general condition of the device
•
Function and secure latching of the wall system
•
Function and secure locking of the adjustment facilities (height-adjustment facility, tilting device and
swivel facility of the radiant warmer)
•
Possible damages at the device, mains cord or pad.
•
Function of the alarm systems
•
Function of the power failure alarm
•
Measurement of the electrical safety according to the local standards.
The batteries securing the power failure alarm must be changed by qualified persons once per year,
however, at the latest when the displays (3.6) and (3.7) of the under pad heating indicate Lo + bAt or when
the warning lamp (6.7) of the radiant warmer flashes during operation.
In order to guarantee the safe operation of the resuscitation and intensive care system, it should be subject
to regular preventive maintenance by authorized qualified persons. For normal operating conditions we
recommend yearly maintenance intervals whereas under unfavourable ambient condition and in case of
high duty use half-yearly intervals should be observed. The preventive maintenance includes the following
checks in addition to the ones mentioned above:
•
Check of: Interior wiring, connections, heating elements
•
Check of all parameters according to IEC 601-2, EN 60601-2-35 und EN-60601-2-21
•
Check of the safety cut-off at 10 mW/cm² and 30 mW/cm²
•
Calibration of the under-pad heating according to EN 60601-2-35
•
Calibration of the radiant warmer according to EN 60601-2-21
The maintenance must be performed according to our service instructions and with our calibrated
measuring devices.
Neglected maintenance will cause the loss of warranty claims.
We can only be held responsible for the safety features of this device, if maintenance, repairs or
modifications are carried out by authorized trained qualified persons by using original spare parts.
Devices respectively device components have to be cleaned and disinfected prior to each maintenance
measure or when they are sent out to our factory for repair.
The electronic control systems of both the under-pad heating and the radiant warmer recognize failures and
cut-off the heating in case of unsafe conditions. The safety and alarm functions are listed on pages 26 to 31.
The safety functions of the under-pad heating and the radiant warmer can be checked with the integrated
software as described on the following pages. Special measuring devices are not necessary. However, this
check does not give any indication as to the correct temperature calibration.
*
Inspection = Ascertainment of the actual state
Preventive maintenance = Measures to maintain the nominal state
Repair = Measures to restore the nominal state
Maintenance = Inspection, preventive maintenance, repair
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
34/39
System check of the under-pad heating
Warm-up the under-pad heating to a temperature between 35°C and 37°C, until warning lamp (3.12)
extinguishes.
Press button (3.3).
An alarm tone sounds and all displays light for 2 seconds. Both the selected and actual temperature display
indicate the value 88.8 an.
During these 2 seconds check the proper function of all displays and the alarm tone.
The selected temperature display (3.6) alternately indicates 37.0 and ChE, while the actual temperature
display must indicate a value of 37.0°C ± 0.1°C.
If the deviation is larger than ±±0.1°C, the control system is not calibrated correctly.
In the case of failure after the display and alarm test the displays (3.6) and (3.7) indicate an error code. The
selected temperature display (3.6) indicates ERR and the actual temperature display (3.7) indicates the
error number.
In that case a safe operation is no longer guaranteed and authorized qualified persons must check the
device.
When the system check is finished error-free the device returns to the normal operating mode after
5 seconds.
3.1 3.2 3.10 3.6 3.7 3.13 3.3
3.8 3.9 3.5 3.14 3.11 3.12
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
35/39
Extended functional test of the radiant warmer
For first operation and after a longer time of non-use the following Extended functional test should be
performed, which will take approx. 20 minutes.
In order to start the extended functional test, the device must be warmed-up to a value above 10 mW/cm².
Select an intensity of 12 mW/cm² with knob (6.13) and wait until this value is reached. The LED (6.12a) and
the bar graph 6.(12b) must indicate the same value.
Now switch-off the heating with button (6.2). The bar graph for actual intensity (6.12b) indicates the residual
heat of the heating elements. As long as residual heat is displayed, the extended functional test can be
started.
If during the following functional test the device should be required for immediate use, the process can be
interrupted by switching-on the heating with button (6.2). The device will then immediately change to normal
operation mode.
In order to start the functional test, push the alarm reset button (6.4) for approx. 3 seconds until an alarm
tone sounds. The test routine starts in the same way as when switching-on the radiant warmer in normal
operation mode. The alarm tone sounds and the displays (6.6) - (6.7) - (6.10) - (6.11) - (6.12) light for
2 seconds.
Then the displays will extinguish. The processor now checks the measuring systems of the device. The
LED's of display (6.12a) and bar graph (6.12b) run up the bar from 2 mW/cm² to 32 mW/cm² parallel to
each other and the pilot lamp (6.11) flashes. This procedure is repeated cyclically.
The pilot lamp for the safety cut-off beside the battery compartment lights and a permanent alarm tone
sounds.
Press button (6.4) until the permanent alarm tone extinguishes.
As a next step the processor proceeds with the test routine for checking the safety cut-off for high intensity
> 30 mW/cm² while the topmost spot of LED (6.12a) and the topmost field of bar graph (6.12b) are flashing
alternately.
6.13 6.12b 6.4 6.3 6.2 6.1
6.12a 6.11 6.10 6.7 6.6 6.5
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
36/39
Now a permanent alarm tone sounds, the pilot lamp for heating power (6.11) flashes and the pilot lamp for
the safety cut-off beside the battery compartment lights.
If this is the case, push the alarm reset button (6.4) until the permanent alarm tone extinguishes.
An intermittent alarm tone sounds. LED (6.12a) indicates the selected value and the spot for 10 mW/cm²
flashes. Now set the intensity knob (6.13) to 10 mW/cm².
As next step the device checks whether the safety cut-off for selected intensity up to 10 mW/cm² is
reactivated after a cooling period of 10 minutes. This function is indicated visually by alternate flashing of
values 10 mW/cm² in the selected intensity LED (6.12a) and 12 mW/cm² in the actual intensity bar graph
(6.12b).
After a period of 10 minutes a permanent alarm tone sounds and the pilot lamp for the safety cut-off beside
the battery compartment lights.
If this is the case, push the alarm silence button (6.4) until the permanent tone extinguishes.
Now the test routine is finished. If there are no deviations from the described process, the device is ready
for operation. If not, an authorized qualified person must check it.
If the extended functional test shall be repeated, wait until the device has completely cooled-off. Only then
the device should be switched-on again, in order to pre-warm it to 10 mW/cm² for a repeated extended
functional test.
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
37/39
Technical Data
Transport and storage
Temperature: 0°C to 70°C
Relative air humidity: 15 % to 95 %
Atmospheric pressure 900 to 1100 hPa
Ambient requirements
Temperature: 18°C to 30° C
Relative air humidity: 15 % to 95 %.
Atmospheric pressure: 900 to 1100 hPa
General Data
Complete device:
D
epth = 1140 mm
W
idth = 585 mm
H
eight = 1830 to 2130 mm
B
assinet Height = 850 to 1150 mm
Weight = 90 kg
Trolley:
Height-adjustment facility, operated by
foot pedals, at choice at the front or at
the side.
Range of adjustment: 300 mm
4 swivel castors Ø 125 mm,
anti-static, with kick-stop
2 bumpers 70 mm Ø
Bassinet:
Concave shape
Depth = 760 mm
Width = 480 mm
Patient level: 850 to 1150 mm
Tilting-up: 0 to 20°
Tilting-down: 0 to 15°
Pad: Poly gel, conductive
Wall assembly:
4 walls 170 mm high (3 fold-down)
2 safety walls, retractable
Frame assembly:
2 high-grade steel pipe Ø 40 mm
Ø
40
500
H
BH
W
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
38/39
Software version:
Under-pad heating: 5.0
Radiant warmer: Ce97V1.0b
Operating/performance data
General:
Power connection: ∼ 230 V / 50 Hz
Max. power input: 6,7 A / 1540 W
- for the radiant warmer: 4,0 A / 920 W
- for the under-pad heating: 0,7 A / 160W
- for additional devices: 2,0 A / 460 W
Take-off sockets: 3 pcs.- ~ 230 V according to VDE 0625/C13 – EN 60 320/C13
1 pcs.- ~ 230 V according to DIN 49464 – EN 50075 page 1
Under-pad heating:
Temperature selection: Basic range: 35°C to 37°C
Extended range: 30°C to 35°C and 37°C to 38,5°C
Increments of temperature selection: 0,1°C
Resolution of displays: 0,1°C
Selected temperature display: 30°C to 38,5°C
Actual temperature display: 30°C to 38,5°C
Residual heat display: down to 35°C, then device is switched-off automatically
Safety cut-off: at 40°C
Radiant warmer:
Distance to patient level: 800 mm
Mechanical arrangement: swiveling to either side
Focus of radiation: to the center of the bassinet (in any position)
Heating elements: Ceramic, 2 pcs. 400 W each
Range of wave length: 1500 to 6800 nm
Intensity selection: 2 to 22 mW/cm²
Max. selected intensity: 22 mW/cm²
Selected intensity display: LED
Increments of intensity selection: 2 mW/cm² per LED
Actual intensity display: Bar graph 2 to 30 mW/cm²
Resolution of actual intensity display: 2 mW/cm² per LED
Residual heat display: down to 2 mW/cm², then the device is switched-off automatically
Heating-up period from ambient
temperature to max. selected value: ca. 15 minutes
Medium heating-up speed: < 15 seconds per mW/cm²
Cooling speed: 3 mW/cm² per minute
15-minutes alarm and automatic
heating capacity reduction: After 15 minutes > 10 mW/cm²
Safety cut-off: 12 mW/cm² at intensity selection 2 to 10 mW/cm²
32 mW/cm² at intensity selection 12 mW/cm² to max.
Illumination: 2 fluorescent tubes 18 Watt each
Instructions for Use Neonatal Intensive Care System VARIOTHERM REA-KCE
D 2002_01.doc
39/39
Classification:
Protection class 1
Device type B
Classification according to MDD: IIb
Standards:
The device conforms to: EN 60601(edition 1996)
EN 60601-2-35, 1997-12
EN 60601-2-21, 1995-12 respectively amendment A1 1998-01
Registration:
EN ISO 9001 / EN 46001: Registration No. SY 2111759 01
Directive 93/42/EEC: Registration No. HD 2111760 01
UWV
UXV
0197
Loading...
