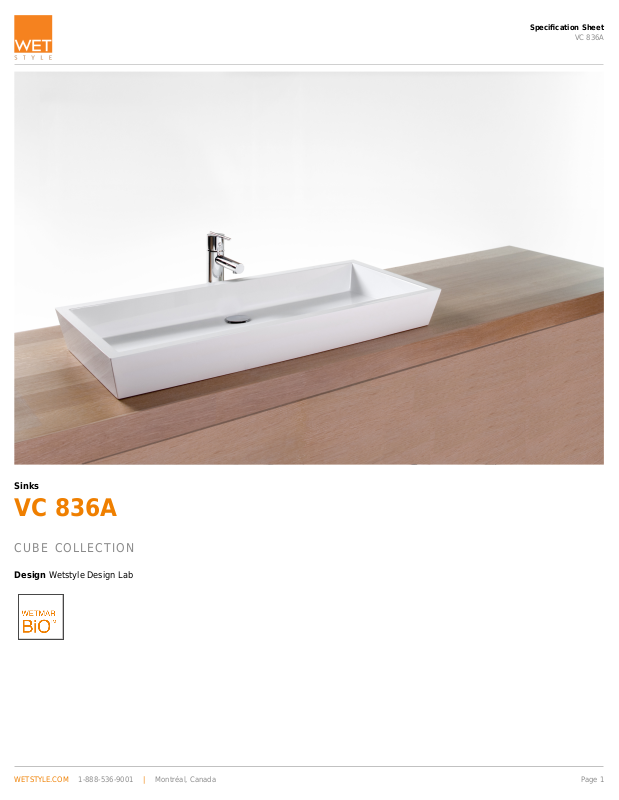

Page 1
Specification Sheet
VC 836A
Sinks
VC 836A
CUBE COLLECTION
Design Wetstyle Design Lab
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 1
Page 2
Specification Sheet
VC 836A
FEATURES
Handcrafted in Montreal, Canada
Installation type: above-counter
Available with or without overflow
Overflow trim finish options: polished chrome, brushed nickel, matte
black, satin brass or no metallic trim
TECHNICAL DETAILS
Width: 15"
Length: 36"
Height: 4.25"
Weight: 27 lbs / 12 kg
WETSTYLE cannot be held responsible for any technical errors and reserves the right to make revisions without notice. Approximate measurement. The manufacturer
accepts ¼" (6.35mm) variance.
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 2
Page 3
OPTIONS
Specification Sheet
VC 836A
Model
VC836A
Overflow
No Overflow
With Overflow - Brushed Nickel (#BN)
With Overflow - Matte Black (#MB)
With Overflow - No Trim (#NT)
With Overflow - Polished Chrome (#PC)
With Overflow - Satin Brass (#SB)
CODES/STANDARDS APPLICABLES
IAPMO-ANSI Z124.1
IAPMO-ANSI Z124.3
CSA B 45.0
CSA B 45.4
Mass Board Approved
WETMAR BiO Finish
White Matte (#MA)
White True High Gloss (#GA)
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 3
