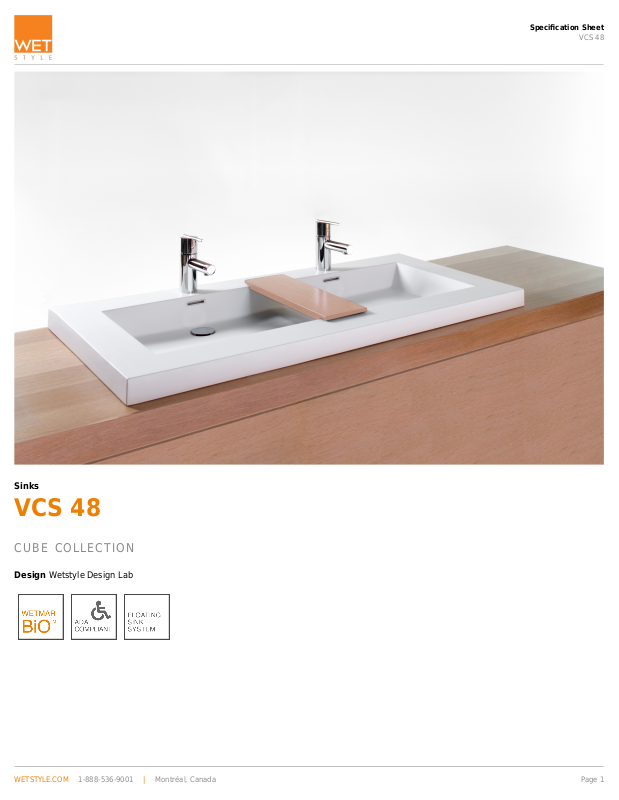

Page 1
Specification Sheet
VCS 48
Sinks
VCS 48
CUBE COLLECTION
Design Wetstyle Design Lab
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 1
Page 2
Specification Sheet
VCS 48
FEATURES
Handcrafted in Montreal, Canada
Oak bridge wenge shade included
Installation type: above-counter
Available with or without overflow
Overflow trim finish options: polished chrome, brushed nickel, matte
black, satin brass or no metallic trim
Faucet hole options: 1 hole (for mono faucet), 3 holes (for widespread
faucet) or no hole (for wall-mounted faucet)
TECHNICAL DETAILS
Width: 22"
Length: 48"
Height: 2"
Weight: 47 lbs / 21 kg
WETSTYLE cannot be held responsible for any technical errors and reserves the right to make revisions without notice. Approximate measurement. The manufacturer
accepts ¼" (6.35mm) variance.
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 2
Page 3
OPTIONS
Specification Sheet
VCS 48
Model
VCS48
Overflow
No Overflow
With Overflow - Brushed Nickel (#BN)
With Overflow - Matte Black (#MB)
With Overflow - No Trim (#NT)
With Overflow - Polished Chrome (#PC)
With Overflow - Satin Brass (#SB)
CODES/STANDARDS APPLICABLES
IAPMO-ANSI Z124.1
IAPMO-ANSI Z124.3
CSA B 45.0
CSA B 45.4
Mass Board Approved
WETMAR BiO Finish
White Matte (#MA)
White True High Gloss (#GA)
Faucet Hole Drilling
No Faucet Hole
One Hole per Drain for Mono Faucets (#1)
Three Holes per Drain for Widespread Faucets (#8)
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 3
Page 4
Specification Sheet
NOTES
IMPORTANT – FOR FLOATING SINK INSTALLATION: Bracket and/or decorative trim must be ordered at the same time as the lavatory.
WOOD BRIDGE: Oak bridge wenge shade; other shades can be ordered at an additional cost.
VCS 48
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 4
