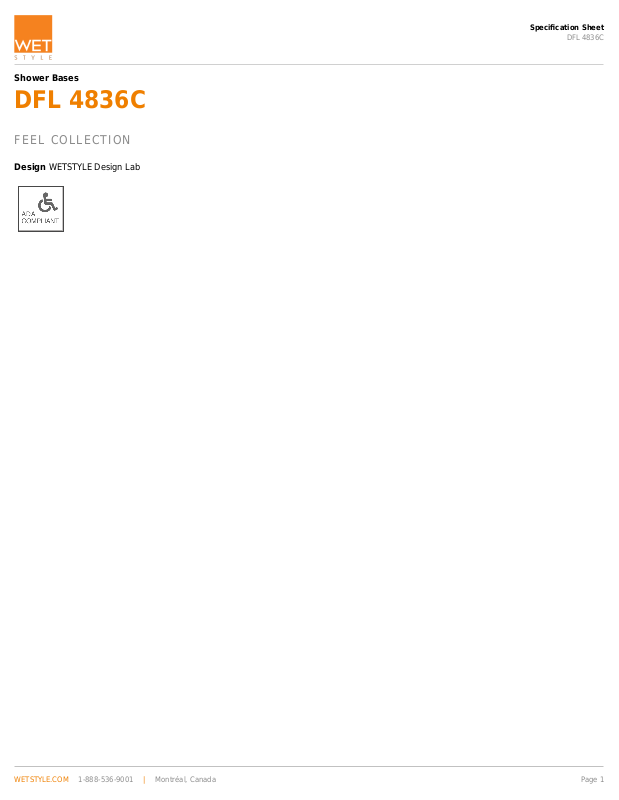

Page 1
Shower Bases
DFL 4836C
FEEL COLLECTION
Design WETSTYLE Design Lab
Specification Sheet
DFL 4836C
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 1
Page 2
Specification Sheet
DFL 4836C
FEATURES
Made of a high density stone composite
Drain cover supplied in matching texture and color
Anti-slip: the texture provides high anti-slip properties to the shower
base
Easy maintenance: antibacterial treatment certified by ISO-NPG-H
(high avoidance of hydrolysis) prevents corrosion of the material
Mass coloration; the material bears the same color throughout
Installation: above floor or recessed (flush with floor)
Cut-to-size: can be cut to fit odd-size bathrooms or to, for example, to
fit around a corner beam
One piece for reduced risk of water leaks: no seams, no joints, no grout
No floor waterproof membrane, no hot mopping, no slope construction
required
Deck wide enough to support glass walls or rolling/swinging doors
TECHNICAL DETAILS
Width: 36"
Length: 48"
Height: 1.25"
Weight: 117 lbs / 53 kg
WETSTYLE cannot be held responsible for any technical errors and reserves the right to make revisions without notice. Approximate measurement. The manufacturer
accepts ¼" (6.35mm) variance.
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 2
Page 3
OPTIONS
Specification Sheet
DFL 4836C
Model
DFL 4836C
Texture
Slate Black (#BS)
Slate White (#AS)
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 3
Page 4
Specification Sheet
DFL 4836C
NOTES
Included in each box: 1) Tile flanges – to be installed on site (refer to installation guide for more information), 2) Drain cover in matching
color and texture
Not included: Drain; any regular shower drain for 3¼ inches opening will fit
Optional cuts: For an additional charge, simple straight cuts can be done at the factory. Custom cuts (angles, corners, etc.) must be done on
site by installer. For factory-made cuts, you must fill out and submit “Optional cut order form” with your order
WETSTYLE.COM----1-888-536-9001----|----Montréal, Canada Page 4
