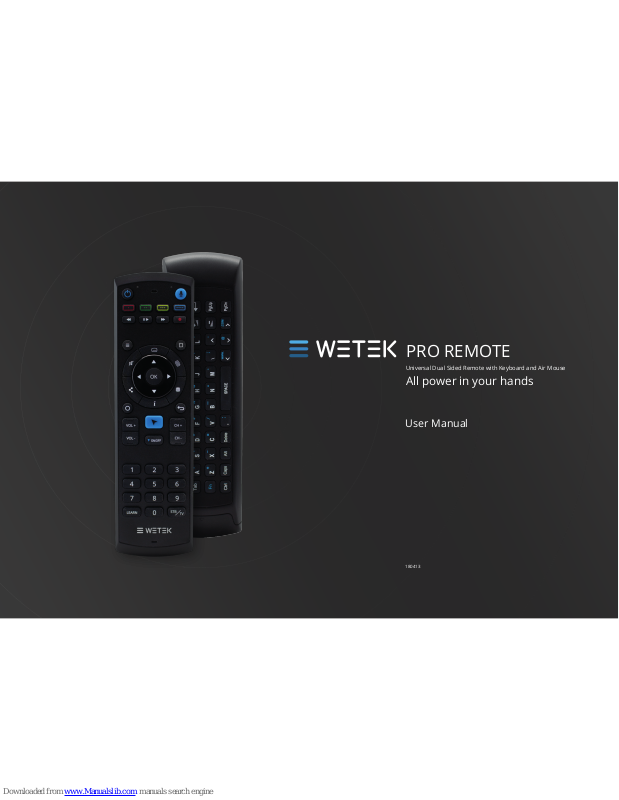

All power in your hands

Universal Dual Sided Remote with Keyboard and Air Mouse

PRO REMOTE

User Manual

TABLE OF CONTENTS

1. Overview

2. Cautions

3. Layout and Key Funtions

4. Pairing

5. Sleep

6. Air mouse

7. Charge

8. Learning

9. Specications

10. Other

QWERTY

Air mouse

3.5mm Audio

Jack

USB rechargeable

Two sides to rule them all. Take advantage of the innovative dual side design behind

WeTek Pro Remote. With a sleek back-to-back full QWERTY keyboard and complete

universal remote controller, you’ll be able to get fast access and focus on what’s

important: the content.

PRO REMOTE

II. Cautions

• After replacement of the battery, pair the remote in accordance with user

manual.

• If the unit does not operate after replacement of the battery, take the

battery out for 1 minute and reattempt pairing in accordance with the

user manual.

• If the remote controller is not being used for prolonged period of time, it

is recommendable to remove the battery from the unit.

• Do not dismantle or exert heat to the battery.

• Do not drop battery or exert extreme impact that may even cause the

case to be damaged.

• Do not immerse the battery in water.

• There is the danger of explosion if the battery is inserted reversely.

• Discard the used battery into a designated location.

• Do not use this device near water.

• Clean only with a dry cloth.

• Do not use it near any heat sources such as radiators, heat registers,

stoves or other apparatus (including ampliers) that produce heat.

• Only use accessories included in this package or recommended by the

manufacturer.

• Do not attempt to disassemble the unit. Do not put any foreign object in

this unit.

• Keep the unit away from ower vases, tubs, sinks, etc. If liquids are

spilled into the unit, serious damage could occur.

PRO REMOTE

III. Layout and Key Functions

LED Mode info

(Blue - WeTek, Green-TV)

LED Battery Charge Indicator

Power button

Function Keys

Mute / Unmute

Directional Keys

Info

Home

Volume up/down

On/O mouse

Numeric Pad

LEARN

Microphone

Playback controls

Recent apps

Subtitles

Teletext

Select

Recording Storage

Back

Channel next / previous

Mouse Click

Switch WeTek / TV mode

USB Port

3.5mm headphone jack

On/O RCU

QWERTY Keyboard side

VOL +

VOL -

CH +

CH -

456

7809

ON/OFF

. .. ... ....

A B

Alt

PgDn

PgUp

Delete

OFFON

PRO REMOTE

IV. Pairing

Please press and hold “Caps” button for 5 seconds. The LED will ash and

the remote will pair to USB Dongle. Once pairing is successful, the LED will

turn o. If remote fails to pair with the device, the remote will go to sleep

after 60 seconds.

Alt

Delete

Caps

Ctrl

Tab

Esc

V. Sleep

The Pro Remote will go to sleep if without operation within 10 seconds.

Simply press any key to wake up.

VI. Air mouse

• Turn on/o the air mouse functionality using the button on Pro Re-

mote.

• The LED on the side of your remote is on whenever the air mouse

functionality is on.

• The air mouse will go to sleep after 10 seconds of inactivity. Simply

press to resume the function.

• Place the Pro Remote on a surface such as a desk for 3 seconds for it

to re-center.

VII. Charge

The Pro Remote will go to sleep if without operation within 10 seconds.

Simply press any key to wake up.

The Pro Remote will demonstrate low battery by ashing the side LED once

every 5 seconds. Please recharge the remote at this point.

To recharge the battery:

1. Connect USB port on side of remote to a USB cable to charge

2. The LED on the side of the remote will turn while the remote is

charging.

The LED will turn o once the charge is completed.

VIII. Learning

1. Set your remote to TV function. The TV mode is indicated by the Green

LED on top of the remote.

2. Place WeTek Pro Remote and the origin remote with both IRs facing.

3. Long press the LEARN button until Green led stay on

4. Press the button on WeTek Pro Remote you wish to assign a new

function. The LED starts blinking.

5. Press the button on the origin remote that you wish to teach and the

LED will ash in a short burst.

6. Repeat step 3 and 4 until all keys are assigned

7. Press STB/TV button again to stop assigning new keys and start using

the remote.

PRO REMOTE

IX. Specications

Item Description

Model Pro Remote

Dimension 173×48×16 (mm)

Battery Lithium battery (included)

Nominal Voltage 3.7V

Typical Capacity 80 mAh, 2.14 Wh

Fly mouse function 3 axis G-sensor

USB rechargeable 1 meter USB cable for charger

Code Protocol IR / RF 2.4 G

Frequency Band 2.403GHz - 2.480GHz

Bandwidth 1M

Transmit power 5dB

Modulation GFSK

X. Other

Federal Communications Commission (FCC) Statement

• You are cautioned that changes or modications not expressly ap-

proved by the party responsible for compliance could void the user’s

authority to operate the equipment.

• This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC rules.

• These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

• This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

• However, there is no guarantee that interference will not occur in a

particular installation.

• If this equipment does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

. Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and receiver.

. Connect the equipment into an outlet on a circuit dierent

from that to which the receiver is connected

. Consult the dealer or an experienced radio/TV technician for

help.

• This device complies with Part 15 of the FCC Rules.

• An operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

PRO REMOTE

2) this device must accept any interference received, including interfer-

ence that may cause undesired operation of the device.

• Indoor use only

FCC Caution: Any changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equip-

ment.

FCC RF Radiation Exposure Statement: This equipment complies with FCC

radiation exposure limits set forth for an uncontrolled environment.

End users must follow the specic operating instructions for satisfying RF.

XI. WARRANTY

Find all Warranty & Return Terms regarding Pro Remote accessing

wetek.com/terms.

XII. FURTHER ASSISTANCE

This manual does not end here. To help you further improve your user

experience, visit wetek.com/support.

If you nd any problem, please give us the opportunity to address it before

returning this product. Most technical support questions can be answered

through our knowledge base or online support service.
