Westwind M320-10 User Manual

Service and Repair

Introduction

Westwind Air Bearings is the leading manufacturer of air bearing
spindles, which are used in the PCB drilling industry worldwide. Air
bearing spindles are precision engineered components, which require
careful maintenance and servicing to guarantee the best performance
throughout their long life. Your choice of service partner is important
to ensure the best performance from your Westwind spindles.

Choose Westwind for :-

 Worldwide service network
 Genuine parts from the original manufacturer
 Testing to original specification
 Engineers trained on Westwind products
 Highly experienced support

Westwind has a unique knowledge of the PCB drilling industry and
applications gained over 30 years of providing customised spindle
designs to meet OEM requirements.

GLOBAL REACH - LOCAL SUPPORT

100,000 PCB SPINDLES

Westwind's worldwide service network ensures that any spindle repair

work or routine servicing is carried out promptly and efficiently.

Authorised Service Centres

Westwind Air Bearings has demanding standards for spindle repair
and maintenance. Spindle repair companies which meet these
standards are given Authorised Service Centre status. Their
engineers are Westwind trained and they use Westwind approved
test equipment and procedures. Every repaired spindle must pass a
10-point test (see box) to the same specification as at original
manufacture. Westwind carry out regular audits, to ensure that
standards are maintained, and of course only genuine Westwind
parts are used.

10 point test

 Air flow
 Water flow
 End float / lift off
 Axial load (inner)
 Axial load (outer)
 Collet torque
 Taper runout
 Dynamic runout
 Motor check
 Vibration

An up to date list of Authorised Service Centres is always available
at our website www.westwind-airbearings.com.

Genuine Parts

The performance of Westwind spindles
can only be maintained if genuine
Westwind parts are used during service
and repair. The use of non-Westwind
components results in unacceptable
performance, and likely premature failure
of the spindle.

Westwind authorised service centres use
only genuine Westwind parts.

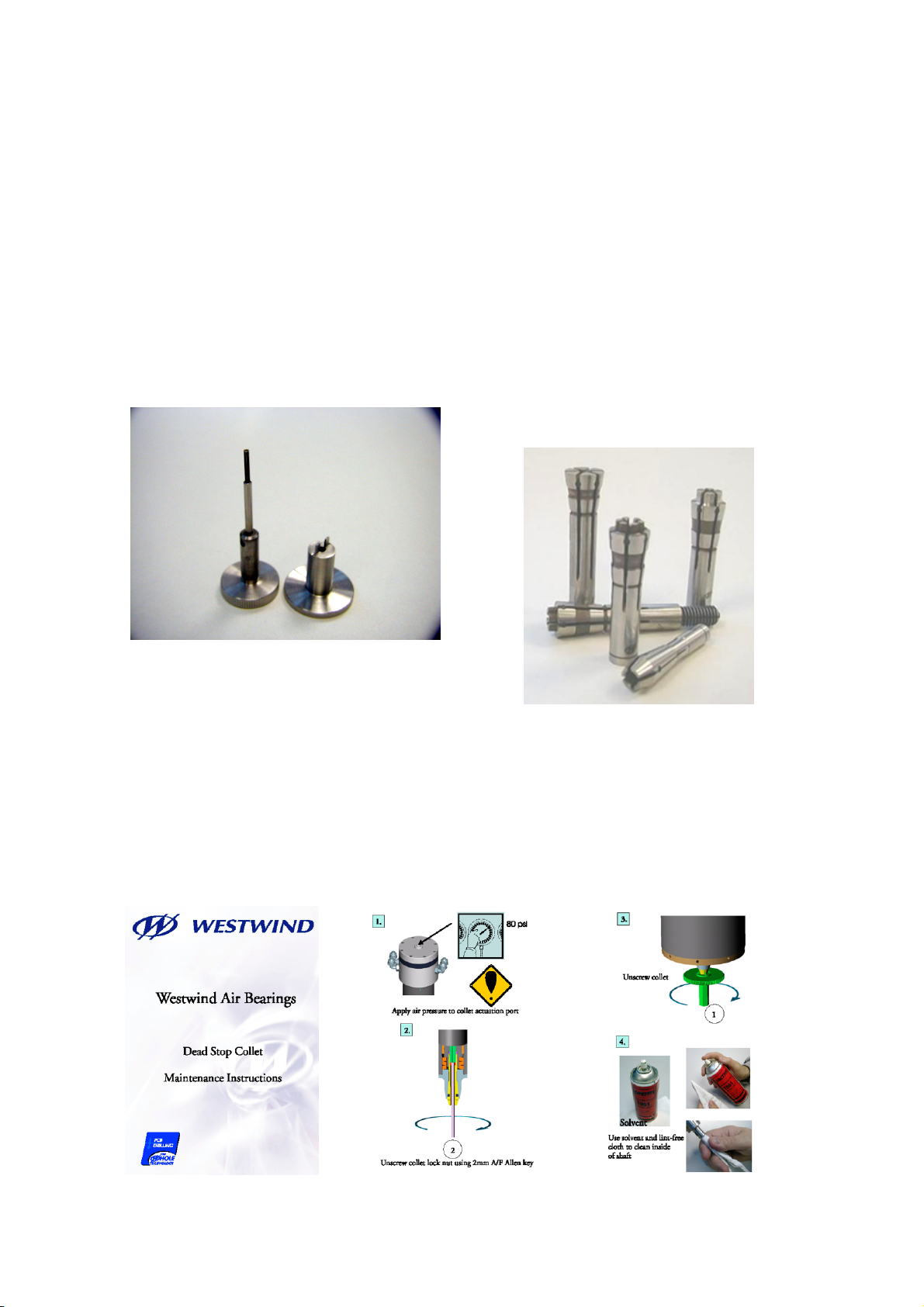

Collet kits

Collet maintenance kits are available for the main collet types. These
consist of a collet locking tool, specially designed to enable the collet
to be set correctly, and a suitable lubricant. Torque test kits are also
available, which contain full equipment and instructions for checking
the torque of a collet.

Available literature

Collet maintenance instructions are available for both dead stop and
positive lock type collets. These can be downloaded from our website

www.westwind-airbearings.com. Different language versions are

being added as they become available.

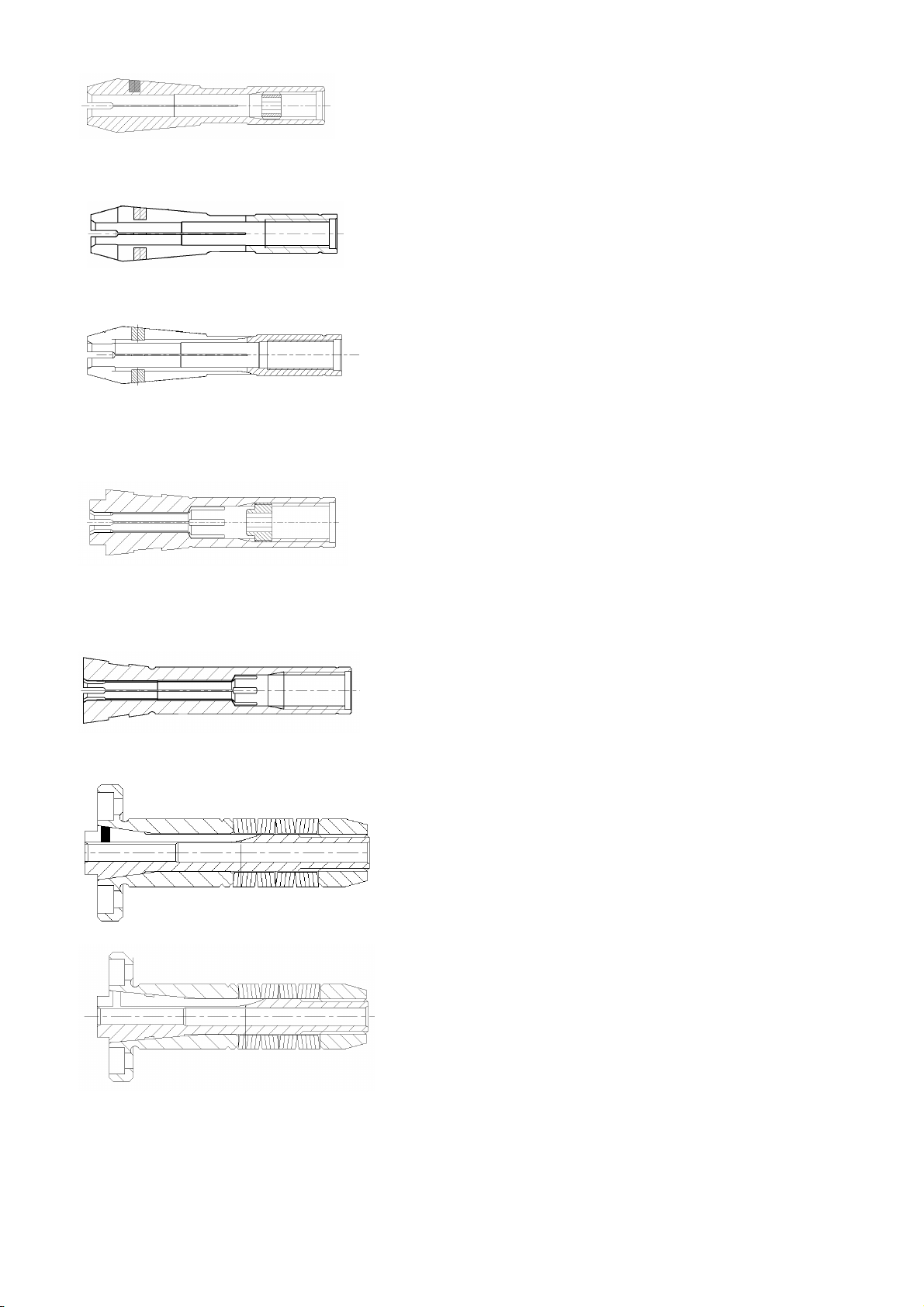

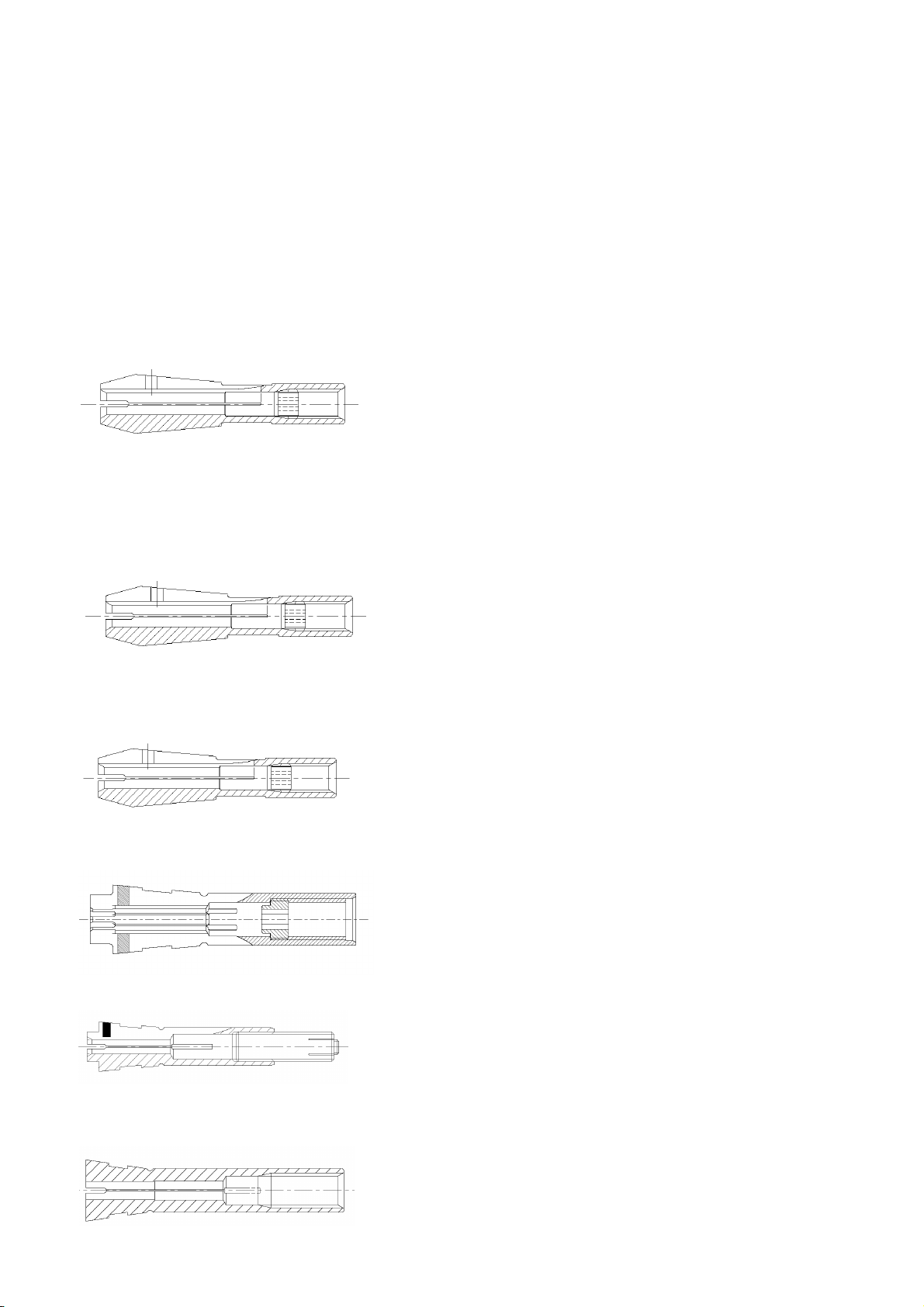

Collet list / correct kit part number

Westwind manufacture and supply spare collets, which are precision
matched to the spindles in our PCB range. Using genuine Westwind
collets in your spindles will enhance their performance and extend
their working life.

Collet : 17593
Type : 1/8" Positive lock
Used on : D1201-02,06,20,21,33;

D1263-03,04,06,07,09;
D1331-01,02,03,07,08,09,10,13,

17,19,20,21,24,27,28,38;

D1404-01;
D1502-01;
D1531-06,09;
D1686-01,02,03,04

Collet kit : 44475 (4 jaw positive lock)

Collet : 17809
Type : 1/8" Positive lock
Used on : D1199-03,04,05;

D1473-01,05

Collet kit : 44475 (4 jaw positive lock)

Collet : 17809/2
Type : 1/8" Positive lock
Used on : D1199-03,04,05;

D1473-01,05

Collet kit : 44475 (4 jaw positive lock)

Collet : 17508
Type : 1/8" Positive lock
Used on : D1251-03
Collet kit : 44429 (6 jaw positive lock)

Collet : 16194
Type : 1/8" Positive lock
Used on : M320-38,43,55
Collet kit : 44429 (6 jaw positive lock)

Collet : 34381
Type : 1/8" Positive lock
Used on : D1331-26,29,31
Collet kit : 44429 (6 jaw positive lock)

Collet : 37462
Type : 1/8" Dead stop
Used on : D1331-30,32,41,42,44;

D1531-08

Collet kit : 44428 (4 jaw dead stop)

Collet : 40374
Type : 1/8" Dead stop
Used on : D1686-10,11,12,15
Collet kit : 44428 (4 jaw dead stop)

Collet : 41844
Type : 1/8" Dead stop
Used on : D1199-06,10;

D1473-07

Collet kit : 44428 (4 jaw dead stop)

Collet : 16703
Type : 1/8" Dead stop
Used on : D1170-04;

D1303-01,02;
D1524-01,02,03,04,05;
M320-46,50,62, 63,64,65,66

Collet kit : 44430 (6 jaw dead stop)

Collet : 38730
Type : 1/8" Dead stop
Used on : D1331-36
Collet kit : 44430 (6 jaw dead stop)

Collet : 11257
Type : 1/8" Cartridge
Used on : D1519-01;

M320-01,03,05,07,10,11,16,17,
18,19,20,22,23,27,28,29,30,36,
47,52

Collet kit : Not applicable

Collet : 08085A1
Type : 1/8" Cartridge
Used on : M320-24
Collet kit : Not applicable

If you do not find the item you require in this list, please contact your
nearest Westwind Air Bearings office or Authorised Service Centre.

Torque test kits are available, please contact your nearest Westwind
Air Bearings office or Authorised Service Centre for details.
