Page 1

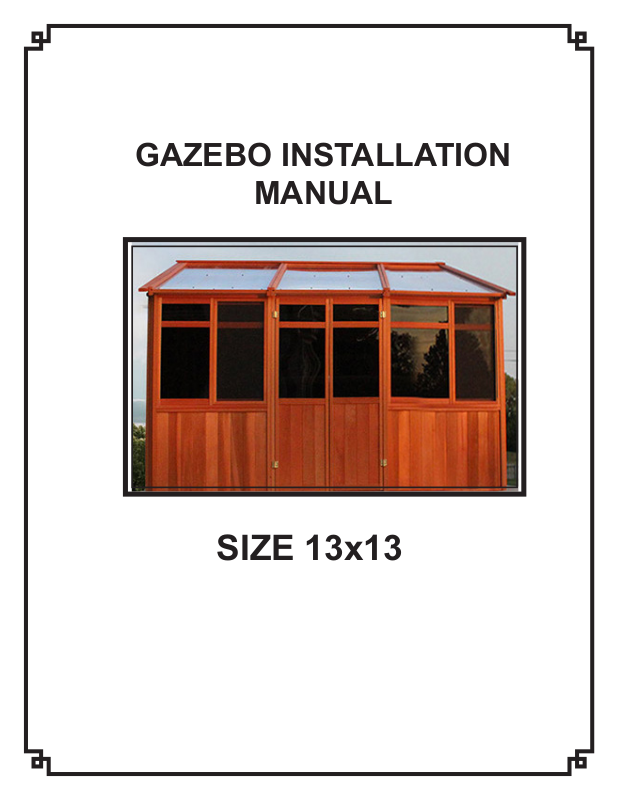

GAZEBO INSTALLATION
MANUAL
SIZE 13x13
~ 13x13 Gazebo ~
Page 2
PARTS LIST
ITEM# PART # DESCRIPTION QTY
1 WWRS-4884 Window Wall (Right Side) 48” ............................................... 6
2 WWLS-4884 Window Wall (Left Side) 48” .................................................. 5
3 DOOR-4884 Door 48” ................................................................................ 1
4 CRNR-0202 Corner 2”x2” .......................................................................... 4
5 BEAM-1317 Beam for 13x13 Gazebo (in 3 sections) ................................ 1
6 BCAP-1317 Beam Cap for 13x13 Gazebo (in 3 sections) ........................ 1
7 GABR-8700 Right Gable 87” ..................................................................... 2
8 GABL-8700 Left Gable 87” ....................................................................... 2
9 RPEN-4950 End Roof Panel 49.5” ............................................................ 4
10 RPMD-4800 Middle Roof Panel 48” ........................................................... 2
11 TRUS-0000 Truss ..................................................................................... 2
12 KNOB-0000 Door Knobs ........................................................................... 2
13 SCRW-0015 1.5” screws ........................................................................... 12
14 SCRW-0025 2.5” screws .......................................................................... 250
15 SCRW-0040 4” screws .............................................................................. 34
16 SBIT-0000 Robertson Screw Bit ............................................................. 1
17 SCNE-0000 Silicone Tube ......................................................................... 1
~ 13x13 Gazebo ~
Page 3

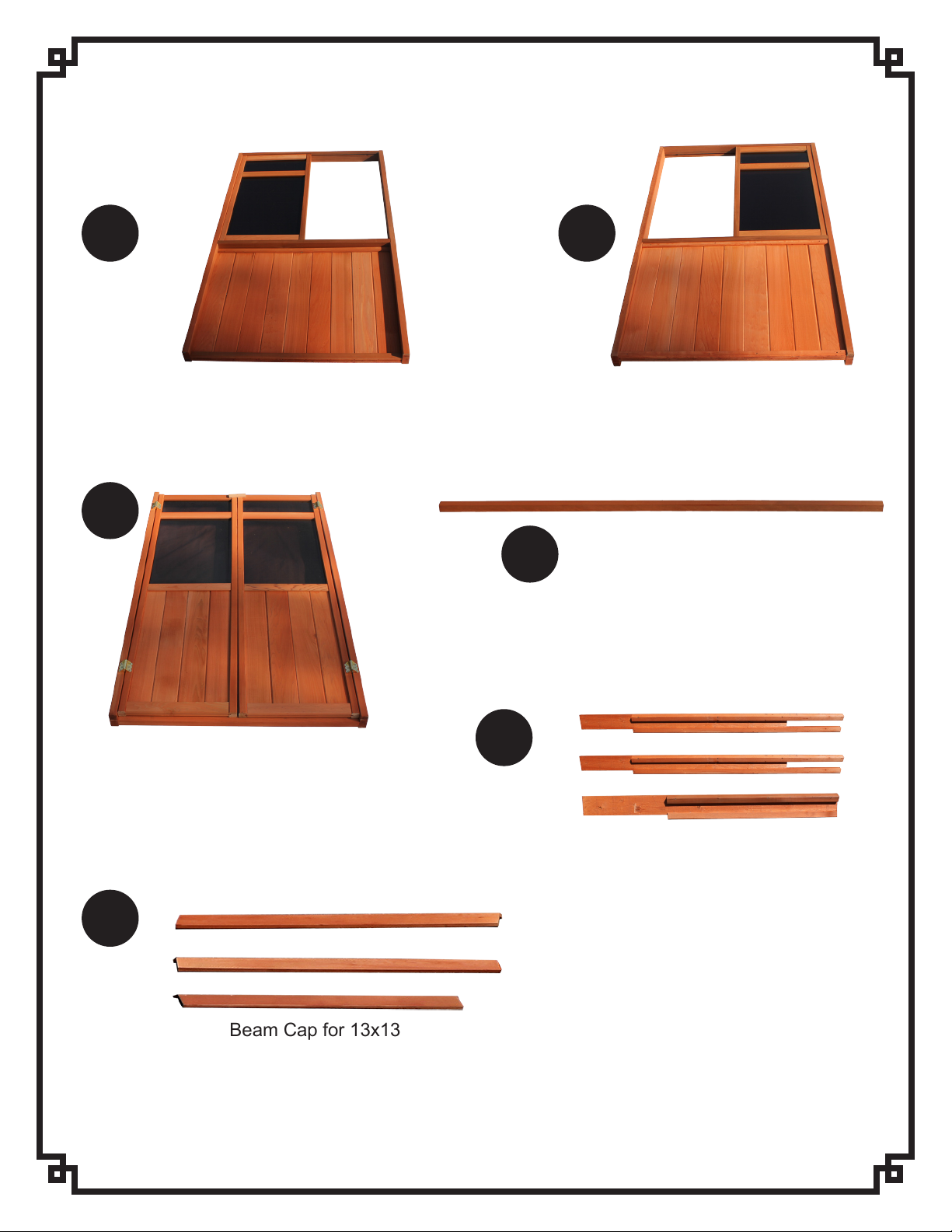

PARTS LIST
1 2
3
Window Wall
(Right Side)
Door 48”
48”
Window Wall
(Left Side)
48”
Corner 2”x2”
4
5
6
Beam for 13x13 Gazebo
(in 3 sections)
Beam Cap for 13x13
Gazebo (in 3 sections)
~ 13x13 Gazebo ~
Page 4

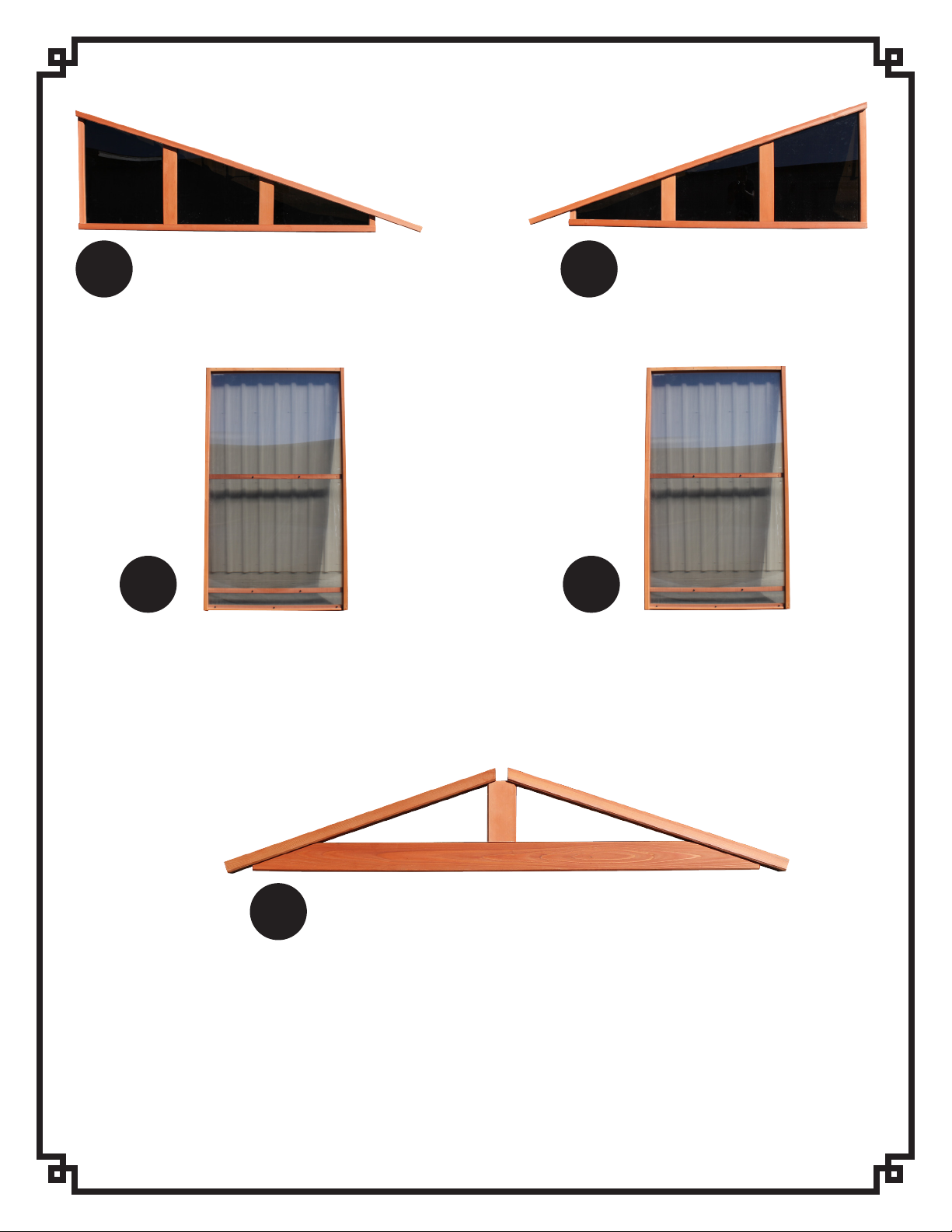

PARTS LIST
7 8
Right Gable 87”
9 10
End Roof Panel 49.5”
Left Gable 87”
Middle Roof Panel 48”
11
Truss
~ 13x13 Gazebo ~
Page 5

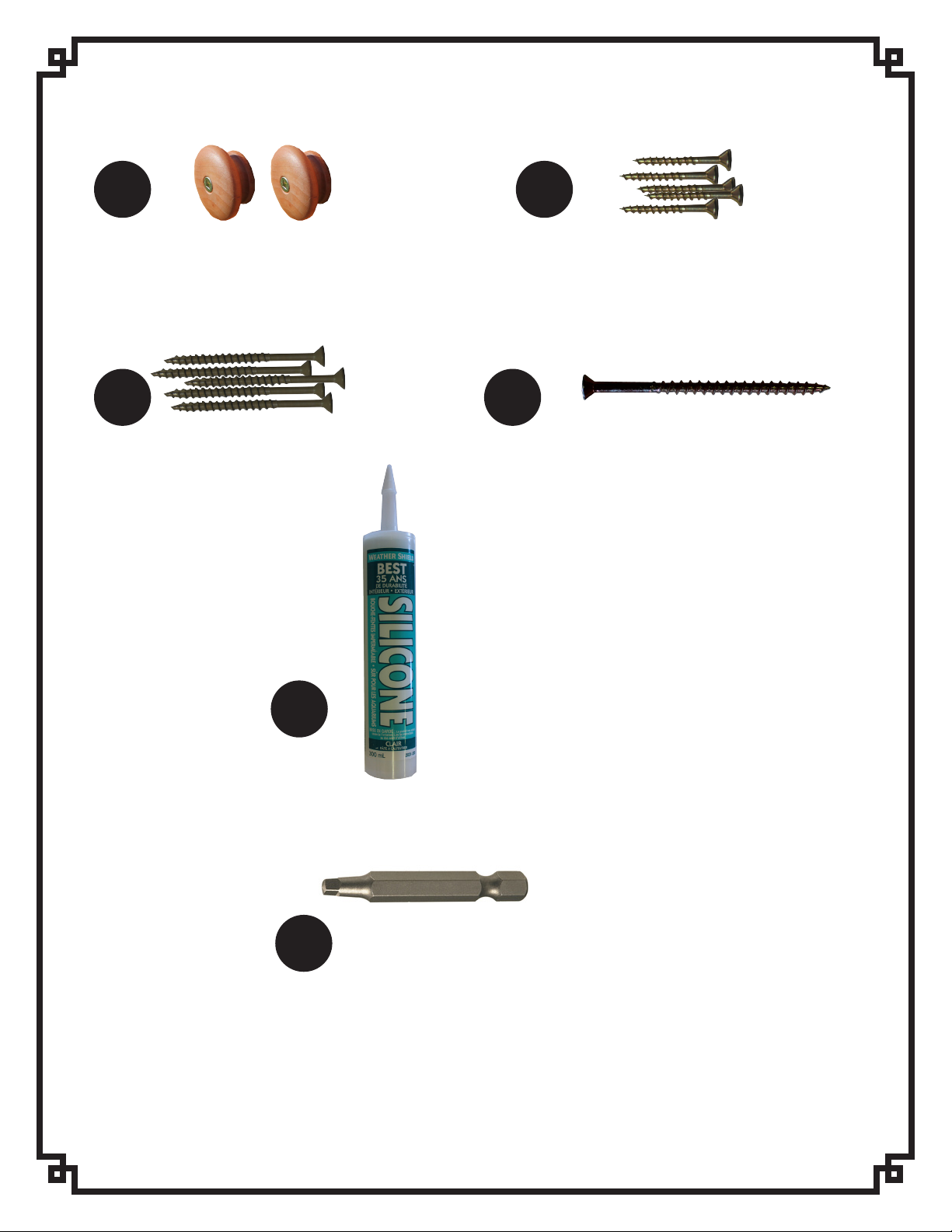

PARTS LIST
12
Door Knobs
14 15
2.5” screws
13
1.5” screws
4” screws
16
17
Silicone Tube
Robertson Screw
Bit
~ 13x13 Gazebo ~
Page 6
INSTALLATION PROCEDURE
IMPORTANT: Note: Please read the full instructions in entirety before starting
assembly of the gazebo. The assembly of this gazebo requires you to provide
a 6 foot step ladder, a cordless drill, caulking gun, and a minimum of 2 persons.

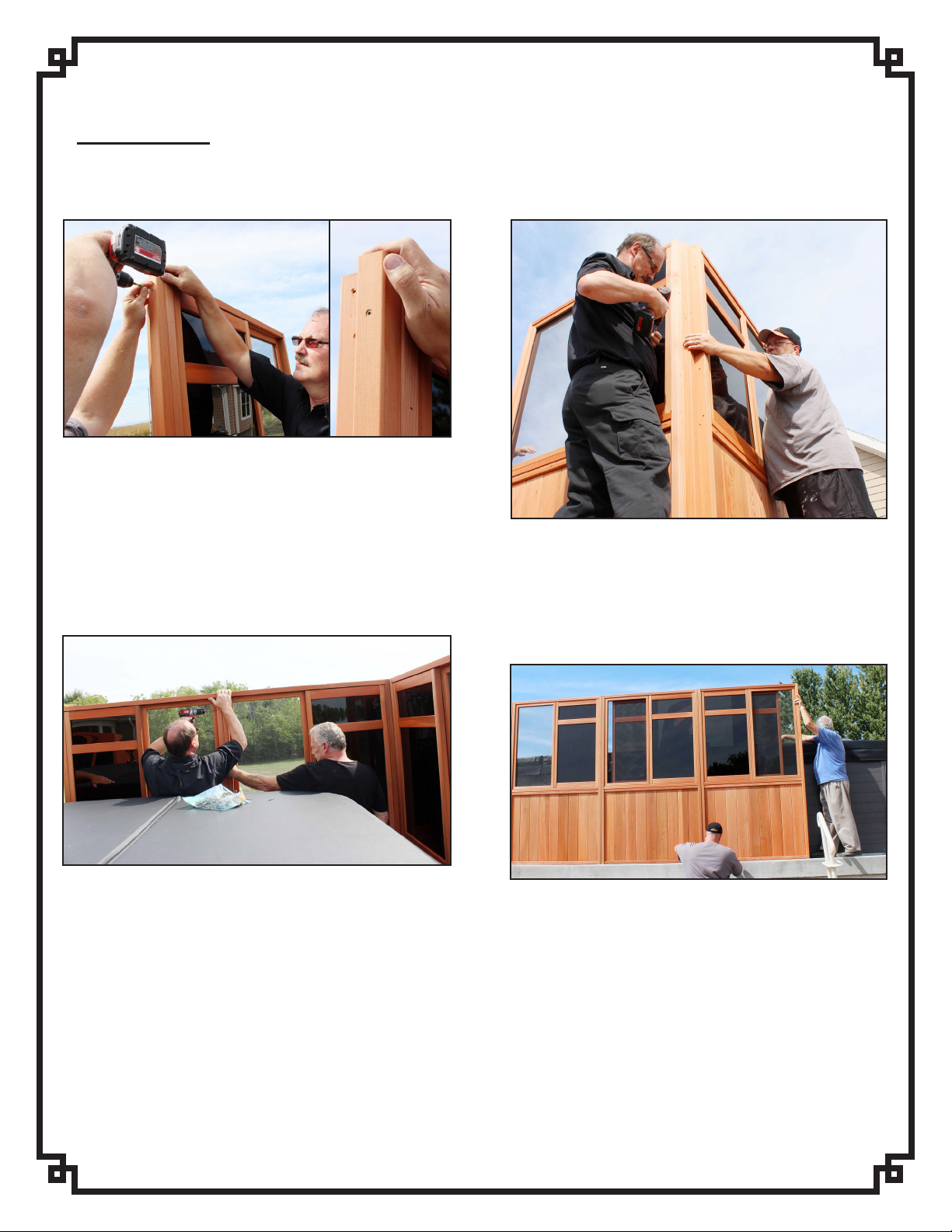

1. Ensure that the surface you will be installing the
enclosure on is at, smooth and level. Starting with a
Corner and Window Wall (48”) align them in an upright
position. The inside edge of the Window Wall (48”)
should be ush with the end of the Corner. Secure the
Corner to the Window Wall (48”) with four 2.5” screws.
3. Align another Window Wall (48”) next to the previous
Window Wall (48”) and secure with six 2.5” screws (more
specically, 2 screws side by side at the top; 2 screws side
by side adjacent to the bottom of the window opening; 2
screws one at the top and one at the bottom of the wood
2. Align a Window Wall (48”) at a 90 degree angle from
the rst Window Wall (48”) and secure the Corner to
the second Window Wall (48”) with four 2.5” screws.
4. Attach one more Window Wall (48”) to complete this
side of the gazebo. Secure each of the window walls
to one another as previously described with six 2.5”
screws.
skirt).
~ 13x13 Gazebo ~
Page 7
INSTALLATION PROCEDURE

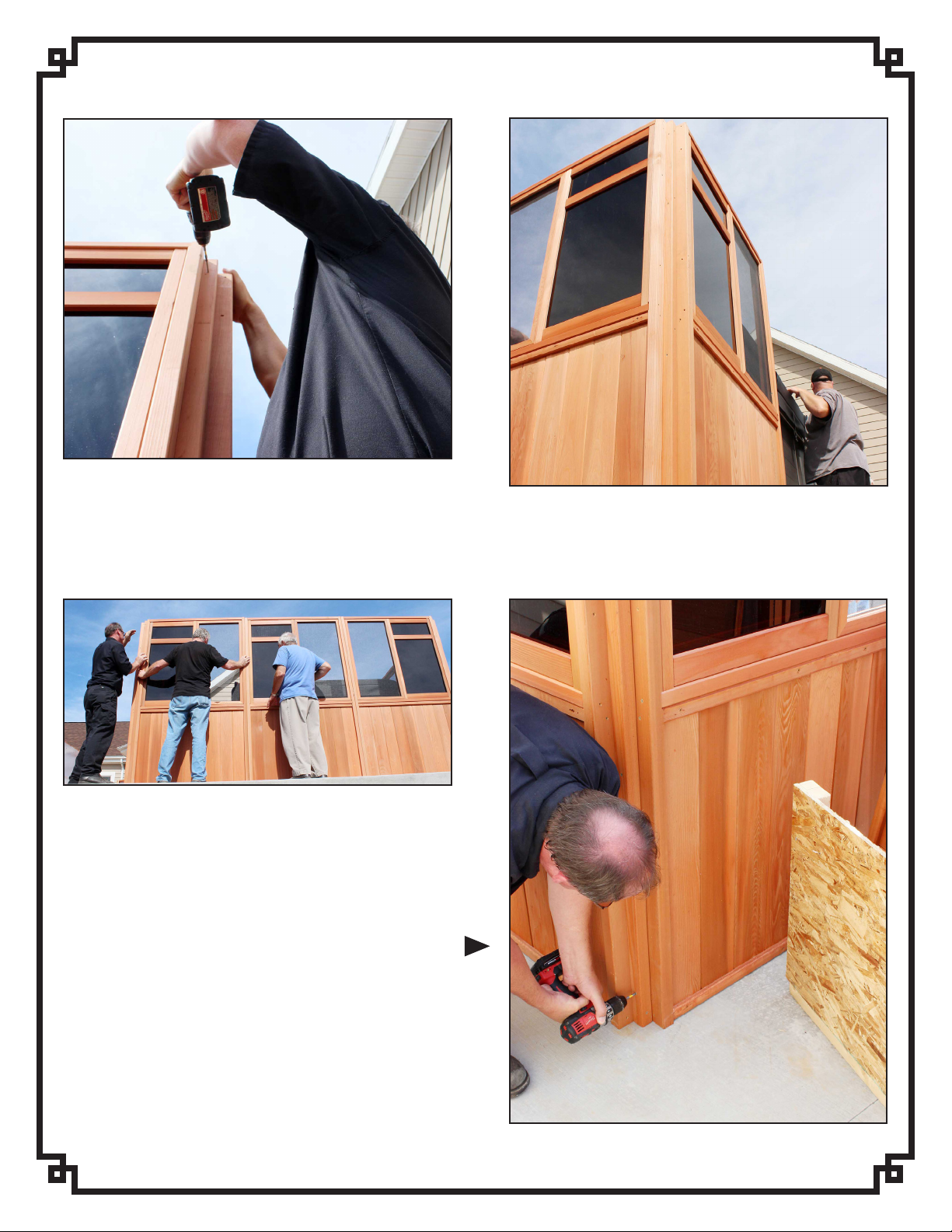

5. Align and secure a Corner to the previous Window
Wall (48”). Make sure the inside edge of the Window
Wall (48”) is ush with the end of the Corner. Secure the
Corner to the Window Wall (48”) with four 2.5” screws.
7. Align two more Window Walls (48”) one after the other
to complete this side of the gazebo. Secure each of the
window walls to one another as previously described with
six 2.5” screws.
8. Align and secure a Corner to the previous Window Wall
6. Align the next Window Wall (48”) at a 90 degree angle
from the previous Window Wall. Secure the Corner to
the Window Wall (48”) with four 2.5” screws.
(48”). Make sure the inside edge of the Window Wall
(48”) is ush with the end of the Corner. Secure the Corner
to the Window Wall (48”) with four 2.5” screws. Proceed to
align another Window Wall (48”) at a 90 degree angle from
the previous Window Wall (48”) and secure the Corner to this
Window Wall (48”) with four 2.5” screws.
~ 13x13 Gazebo ~
Page 8
INSTALLATION PROCEDURE

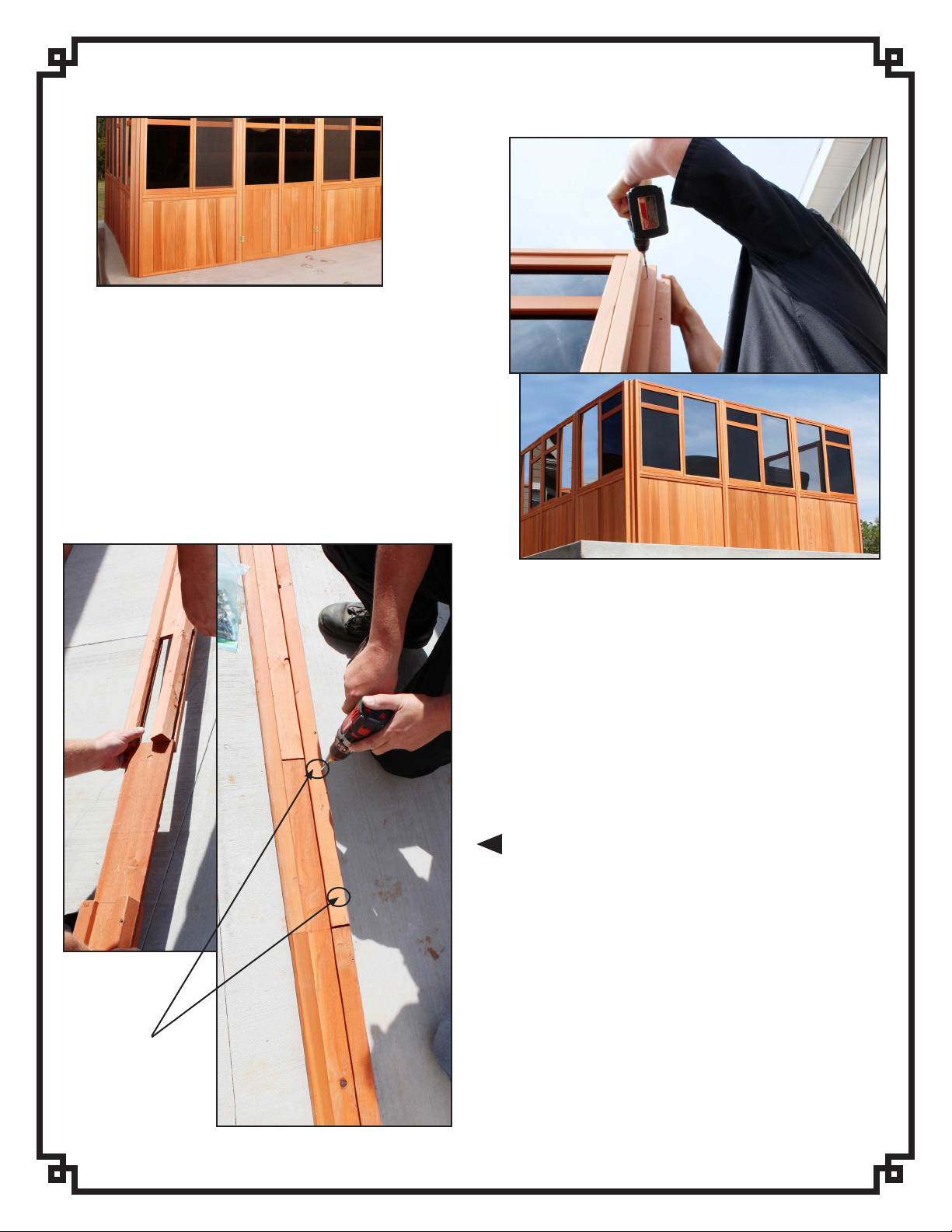

9. Align and attach a Door (48”) and one more Window
Wall (48”) to complete this side of the gazebo. Secure
each of the Window Walls to one another as previously
described with six 2.5” screws.
10. Align and secure a Corner to the previous Window
Wall (48”). Make sure the inside edge of the Window
Wall (48”) is ush with the end of the Corner. Secure the
Corner to the Window Wall (48”) with four 2.5” screws.
Attach two more Window Walls (48”) one after the
other to complete the nal side of the gazebo. Secure
each of the window walls to one another as previously
described with six 2.5” screws.
11. Now it is time to assemble the roof Beam. Lay all
3 sections of the Beam on a at surface. Insert one
end Beam section into the center Beam section. Secure
the sections together using two 2.5” screws as shown in
photo. Next insert the nal end Beam section into the center
Beam section. Secure in the same manner. Now you have
completed the assembly of all 3 sections of the Beam.
screw here
~ 13x13 Gazebo ~
Page 9
INSTALLATION PROCEDURE

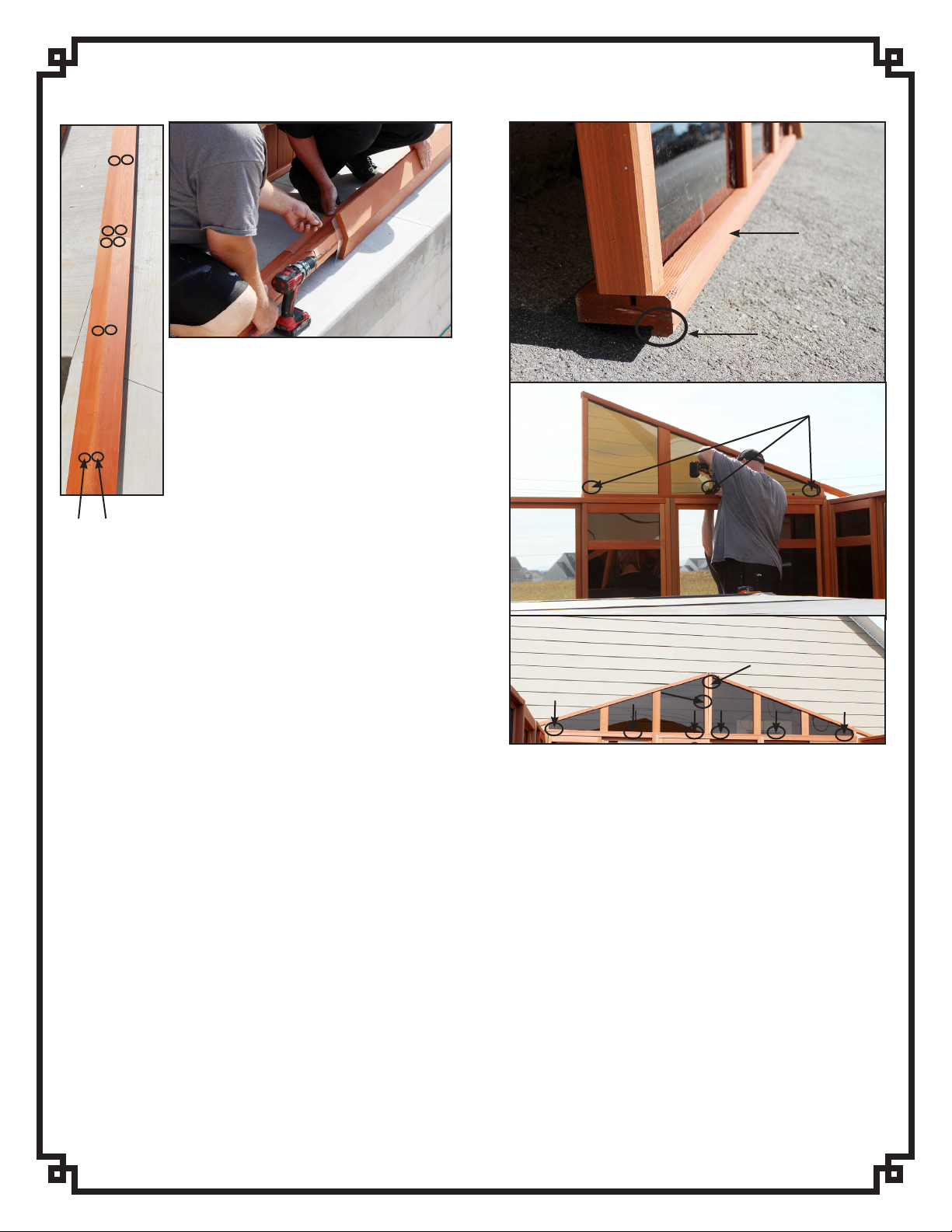

12. Now you will secure the Beam Cap
sections to the Beam. Please note
that the rst Beam Cap may be pre-
assembled to the rst end Beam section
at the factory. The Beam Cap will have a
4 inch overhang on the end of the Beam
outside
notch
screw here
screw here
section. Attach each Beam Cap section
to the corresponding length of the Beam
Section. Remember that the Beam Cap
should have a 4 inch overhang on both
ends of the Beam when completed. You
should use six 1.5” screws to secure
each Beam Cap section to each Beam
section.
screw here
13. Time to assemble the Gables. Identify the Right
Gable from the Left Gable. The notch side of the
bottom plate of the gable should face the outside (see
photo). Measure the center of the 12 foot side of the
gazebo and mark the center point on top of the wall.
Place the Right Gable on top of the wall with the end
lined up to the center mark. Secure the Right Gable
with three 2.5” screws as shown. Next, align the Left
Gable next to the Right Gable. Screw the two Gables
together using three 2.5” screws. Next, secure the Left
Gable to the top of the wall with three 2.5” screws. See
photo. Repeat the assembly of the other Gables at the
other end of the gazebo in the same manner.
~ 13x13 Gazebo ~
Page 10
INSTALLATION PROCEDURE
15.1
15.2

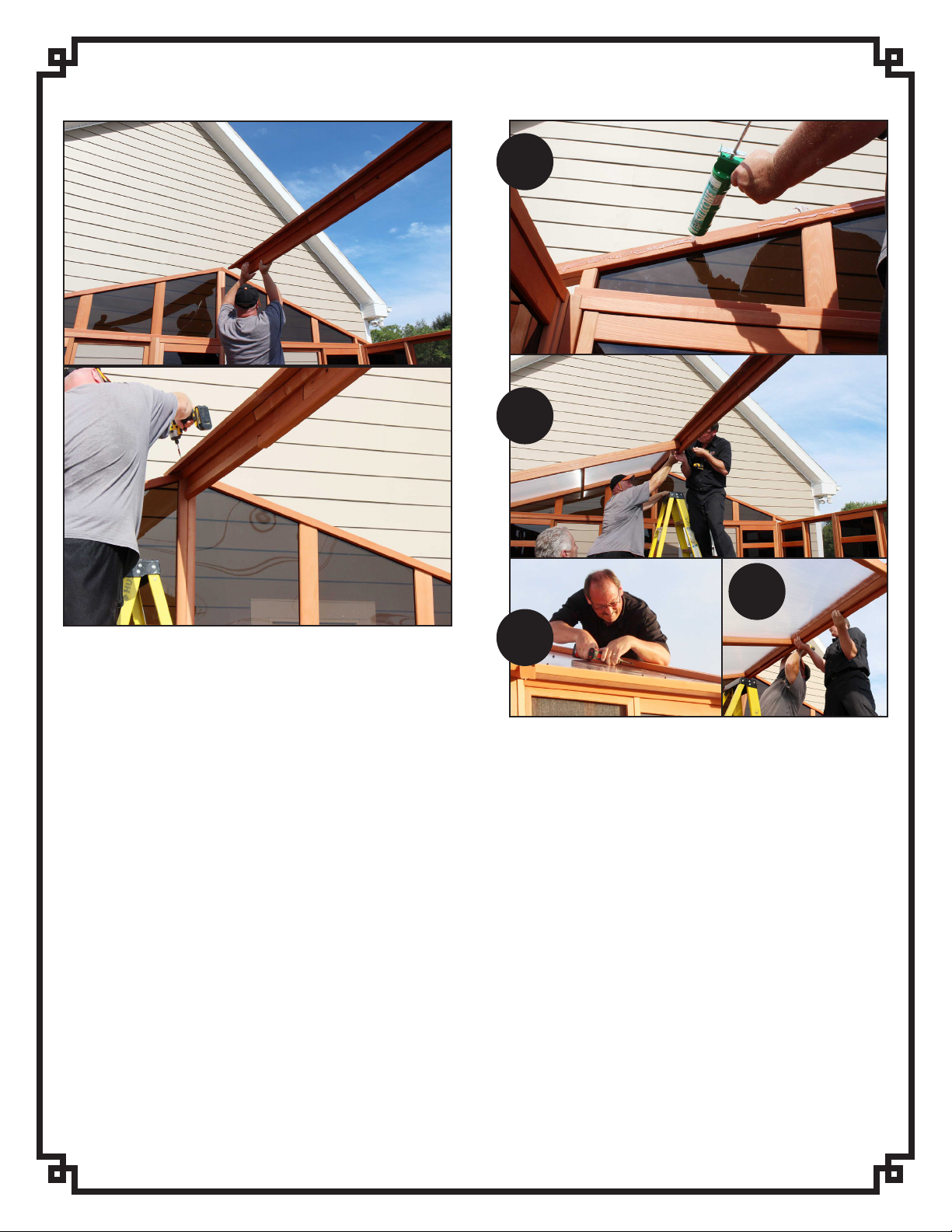

14. Lift the assembled Beam onto the center of the top of
the Gable ends. Screw down the Beam to the top of the
Gable at one end only for now using two 2.5” screws. For
now the other end of the Beam should be loose and not
attached to the other Gable. Please note that the Beam
will appear to sag slightly over the large distance and this
is normal at this point (the assembly of the roof panels to
the gazebo will subsequently square and strengthen the
entire building).
15.4
15.3
15. Time to install the rst two Roof Panels. Start by
caulking the top edge of one of the Gables (photo 15.1).
Place one 49.5” End Roof Panel against the caulked
Gable end and up to the Beam. Both connections
should be tight. Secure the End Roof Panel to the
Beam by screwing two 2.5” screws at each end from the
Beam side to the side 2x4s of the Roof Panel (photo.
15.2). Now screw the Roof Panel to the Gable end
on top side using three 2.5” screws (photo 15.3). Now
caulk the edge of the rst End Roof Panel and slide a
48” Middle Roof Panel next to it (photo 15.4). Screw the
Middle Roof Panel to the Beam in the same manner as
the previous Roof Panel.Now screw Middle Roof Panel
to the End Roof Panel using four 2.5” screws evenly
spaced.
~ 13x13 Gazebo ~
Page 11

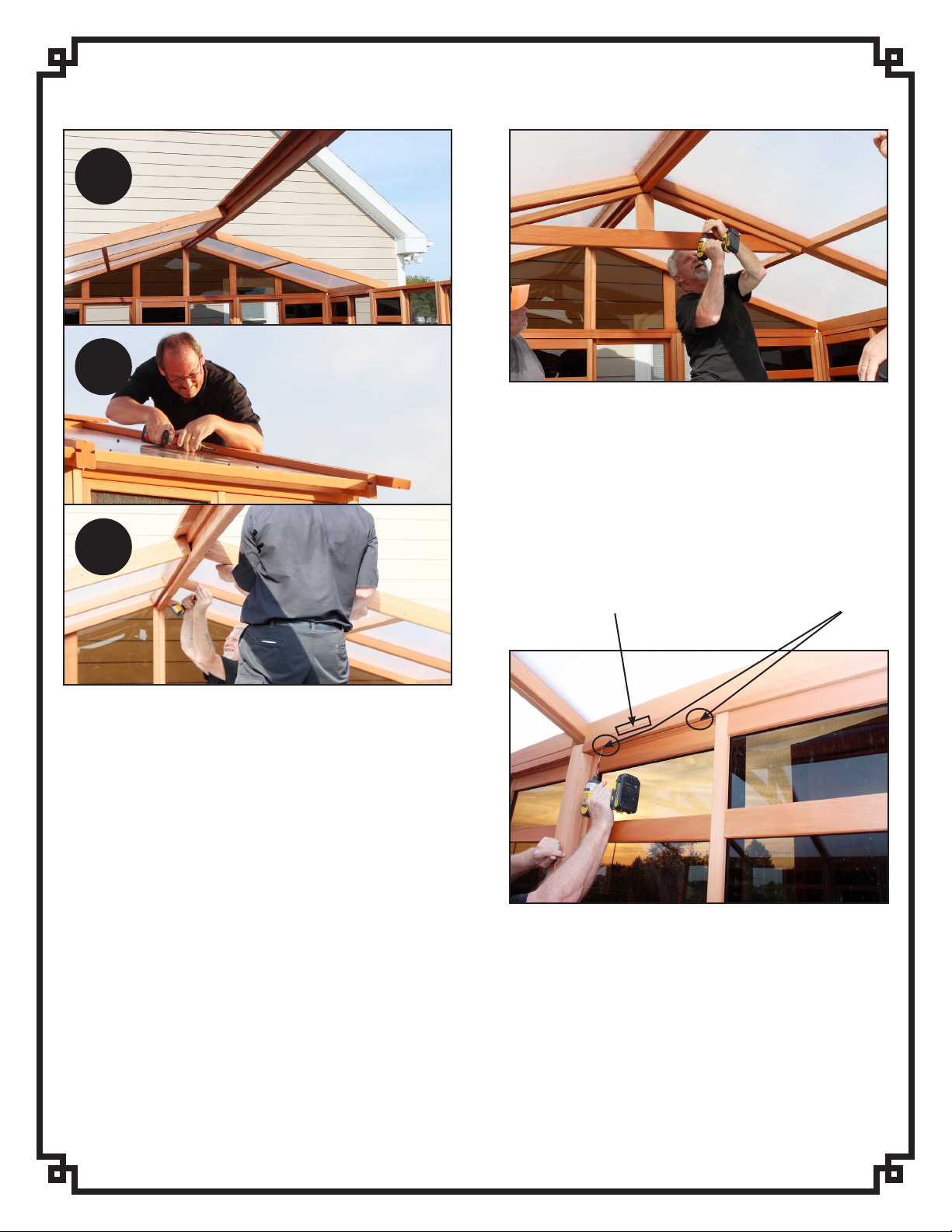

16.1
16.2
INSTALLATION PROCEDURE
17. Now install the rst Truss. Screw one side of the
Truss up to the Roof Panels using six 4” screws. Push
the Truss up tight to the Roof Panels and secure the
other side of the Truss with six 4” screws.
16.3
16. Time to install the third and fourth Roof Panels. Start
by caulking the top edge of the other Gable. Place one
49.5” End Roof Panel against the caulked Gable end
and up to the Beam. Both connections should be tight.
Secure the End Roof Panel to the Beam by screwing two
4” screws though the end of the Roof Panel into the Beam
(photo 16.1). Now screw the Roof Panel to the Gable
end on the top side using three 2.5” screws (photo 16.2).
Note you may need to shift the end gazebo walls in order
to make roof panels tight against the gable end. It is
important not to force the roong panels but rather shift
the wall section. Next, caulk the edge of the End Roof
Panel and slide a 48” Middle Roof Panel next to it (photo
screw here
ush
18. At this point fasten down the rst four roong panels
to the top of the walls with 2.5” screws. Screw upwards
from the groove at the top of wall into the roong panel.
Make sure the roong panel is ush with the inside of
the wall.
in groove
16.3). Screw the Middle Roof Panel to the Beam using
two 4” screws. Now screw the Middle Roof Panel to the
End Roof Panel using four 2.5” screws evenly spaced.
~ 13x13 Gazebo ~
Page 12

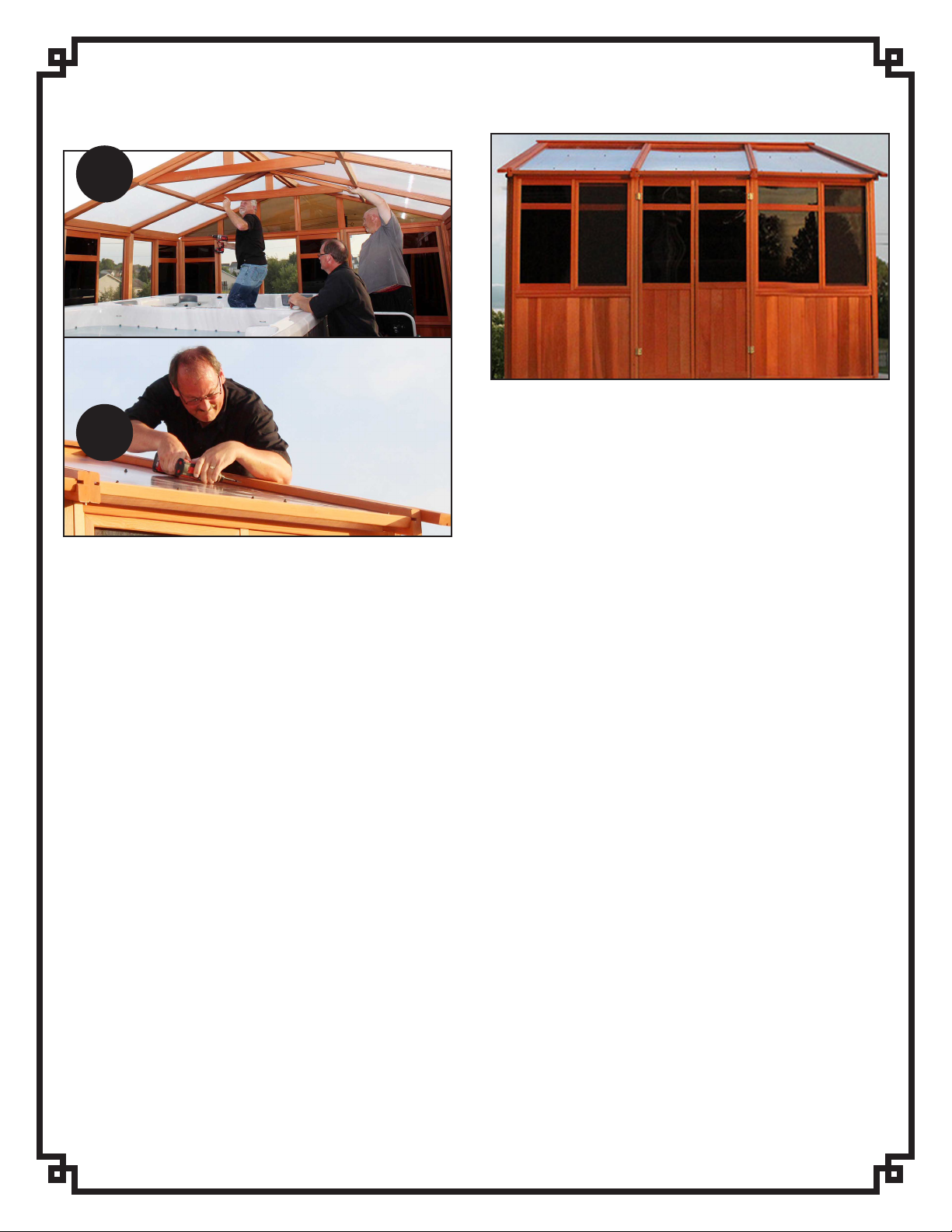

19.1
19.2
INSTALLATION PROCEDURE
20. Enjoy your gazebo.
19. Repeat the previous steps to install the remaining,
End Roof Panels and the second Truss. Please note
that the Middle Roof Panels are 48” and the End Roof
Panels are 49.5” and should not be mixed up. The End
Roof Panels go on last (photo 19.1). Please note if
the gazebo needs slight adjustment because the last
two End Roof Panels are not tight against the Gable End
you may simply adjust the end wall by unscrewing and
re-screwing the Corner 2”x2” and sliding the wall so the
Gable end is tight against the end Roong Panels (photo
19.2).
~ 13x13 Gazebo ~
