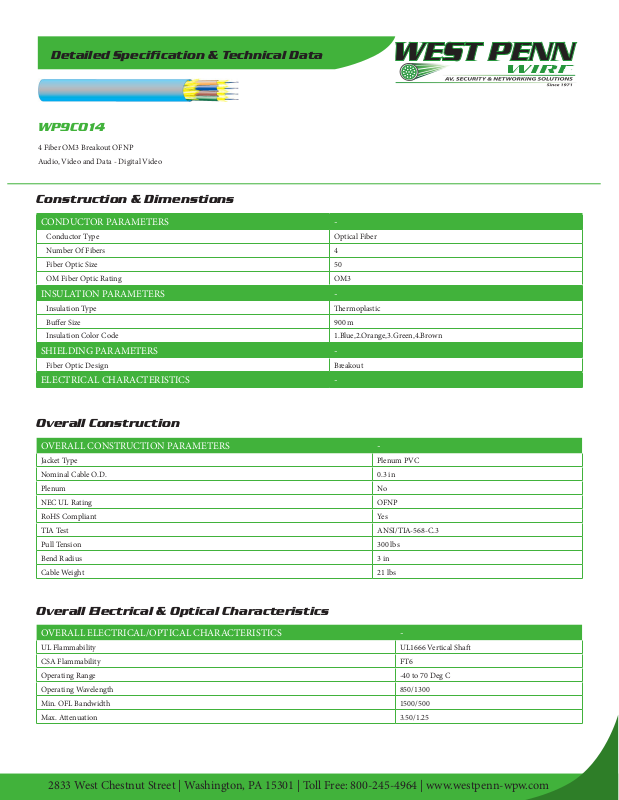

West Penn WP9C014 Specsheet
Detailed Specification & Technical Data
WP9C014
4 Fiber OM3 Breakout OFNP
Audio, Video and Data - Digital Video
Construction & Dimenstions
CONDUCTOR PARAMETERS -
Conductor Type Optical Fiber
Number Of Fibers 4
Fiber Optic Size 50
OM Fiber Optic Rating OM3
INSULATION PARAMETERS -
Insulation Type ermoplastic
Buer Size 900 m
Insulation Color Code 1.Blue,2.Orange,3.Green,4.Brown
SHIELDING PARAMETERS -
Fiber Optic Design Breakout
ELECTRICAL CHARACTERISTICS -
Overall Construction
OVERALL CONSTRUCTION PARAMETERS -
Jacket Type Plenum PVC
Nominal Cable O.D. 0.3 in
Plenum No
NEC UL Rating OFNP
RoHS Compliant Yes
TIA Test ANSI/TIA-568-C.3
Pull Tension 300 lbs
Bend Radius 3 in
Cable Weight 21 lbs
Overall Electrical & Optical Characteristics
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS -
UL Flammability UL1666 Vertical Sha
CSA Flammability FT6
Operating Range -40 to 70 Deg C
Operating Wavelength 850/1300
Min. OFL Bandwidth 1500/500
Max. Attenuation 3.50/1.25
2833 West Chestnut Street | Washington, PA 15301 | Toll Free: 800-245-4964 | www.westpenn-wpw.com
