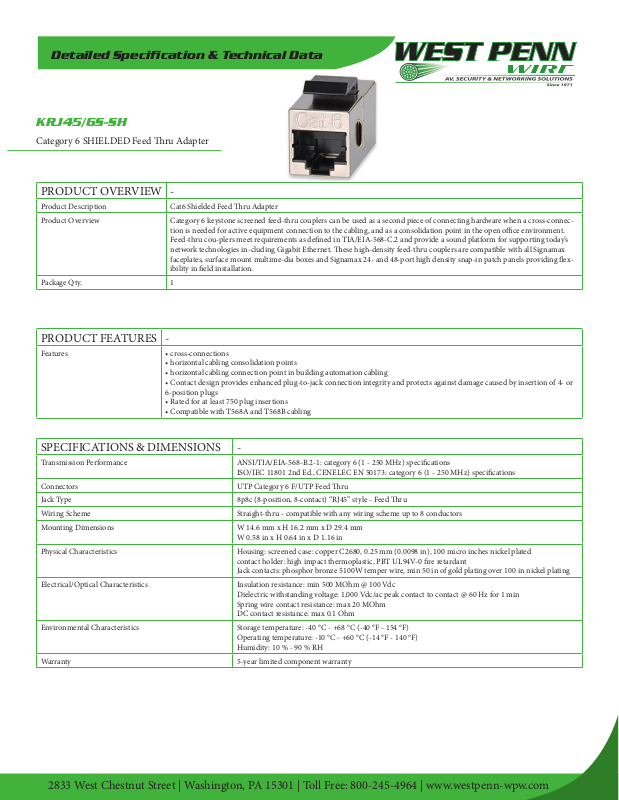

Detailed Specification & Technical Data
KRJ45/6S-SH
Category 6 SHIELDED Feed ru Adapter
PRODUCT OVERVIEW -
Product Description Cat6 Shielded Feed ru Adapter
Product Overview Category 6 keystone screened feed-thru couplers can be used as a second piece of connecting hardware when a cross-connec-
Package Qty. 1
tion is needed for active equipment connection to the cabling, and as a consolidation point in the open oce environment.
Feed-thru cou-plers meet requirements as dened in TIA/EIA-568-C.2 and provide a sound platform for supporting today’s
network technologies in-cluding Gigabit Ethernet. ese high-density feed-thru couplers are compatible with all Signamax
faceplates, surface mount multime-dia boxes and Signamax 24- and 48-port high density snap-in patch panels providing exibility in eld installation.
PRODUCT FEATURES -
Features • cross-connections
• horizontal cabling consolidation points
• horizontal cabling connection point in building automation cabling
• Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or
6-position plugs
• Rated for at least 750 plug insertions
• Compatible with T568A and T568B cabling
SPECIFICATIONS & DIMENSIONS -
Transmission Performance ANSI/TIA/EIA-568-B.2-1: category 6 (1 - 250 MHz) specications
Connectors UTP Category 6 F/UTP Feed ru
Jack Type 8p8c (8-position, 8-contact) “RJ45” style - Feed ru
Wiring Scheme Straight-thru - compatible with any wiring scheme up to 8 conductors
Mounting Dimensions W 14.6 mm x H 16.2 mm x D 29.4 mm
Physical Characteristics Housing: screened case: copper C2680, 0.25 mm (0.0098 in), 100 micro inches nickel plated
Electrical/Optical Characteristics Insulation resistance: min 500 MOhm @ 100 Vdc
Environmental Characteristics Storage temperature: -40 °C - +68 °C (-40 °F - 154 °F)
Warranty 5-year limited component warranty
ISO/IEC 11801 2nd Ed., CENELEC EN 50173: category 6 (1 - 250 MHz) specications
W 0.58 in x H 0.64 in x D 1.16 in
contact holder: high impact thermoplastic, PBT UL94V-0 re retardant
Jack contacts: phosphor bronze 5100W temper wire, min 50 in of gold plating over 100 in nickel plating
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 MOhm
DC contact resistance: max 0.1 Ohm
Operating temperature: -10 °C - +60 °C (-14 °F - 140 °F)
Humidity: 10 % - 90 % RH
