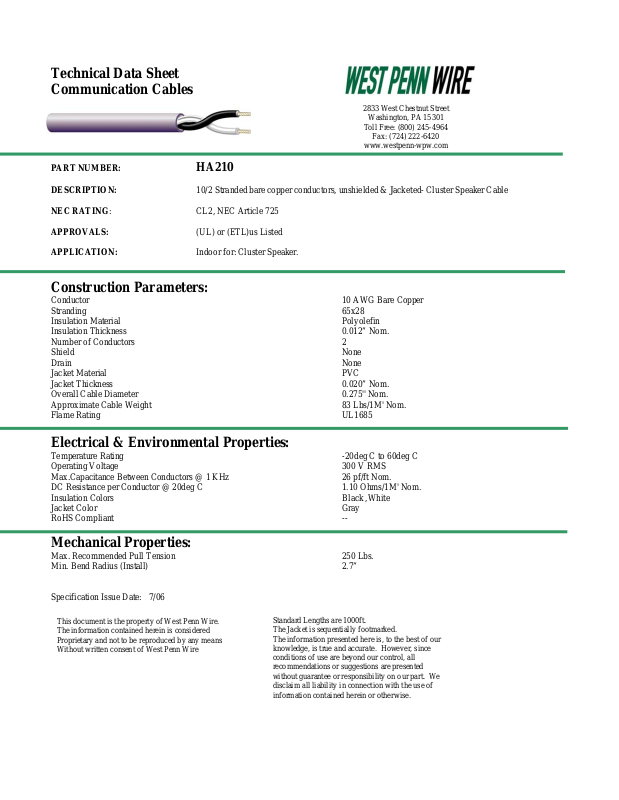

West Penn HA210 Data Sheet

Technical Data Sheet
Communication Cables

PART NUMBER:

DESCRIPTION: 10/2 Stranded bare copper conductors, unshielded & Jacketed- Cluster Speaker Cable

NEC RATING: CL2, NEC Article 725

APPROVALS: (UL) or (ETL)us Listed

APPLICATION: Indoor for: Cluster Speaker.

2833 West Chestnut Street

Washington, PA 15301

Toll Free: [phone]

Fax: [phone]

www.westpenn-wpw.com

HA210

Construction Parameters:

Conductor 10 AWG Bare Copper
Stranding 65x28
Insulation Material Polyolefin
Insulation Thickness 0.012” Nom.
Number of Conductors 2
Shield None
Drain None
Jacket Material PVC
Jacket Thickness 0.020” Nom.
Overall Cable Diameter 0.275'' Nom.
Approximate Cable Weight 83 Lbs/1M' Nom.
Flame Rating UL1685

Electrical & Environmental Properties:

Temperature Rating -20deg C to 60deg C
Operating Voltage 300 V RMS
Max.Capacitance Between Conductors @ 1 KHz 26 pf/ft Nom.
DC Resistance per Conductor @ 20deg C 1.10 Ohms/1M' Nom.
Insulation Colors Black ,White
Jacket Color Gray
RoHS Compliant --

Mechanical Properties:

Max. Recommended Pull Tension 250 Lbs.
Min. Bend Radius (Install) 2.7”

Specification Issue Date: 7/06

This document is the property of West Penn Wire.

.

The information contained herein is considered
Proprietary and not to be reproduced by any means
Without written consent of West Penn Wire

Standard Lengths are 1000ft.
The Jacket is sequentially footmarked.
