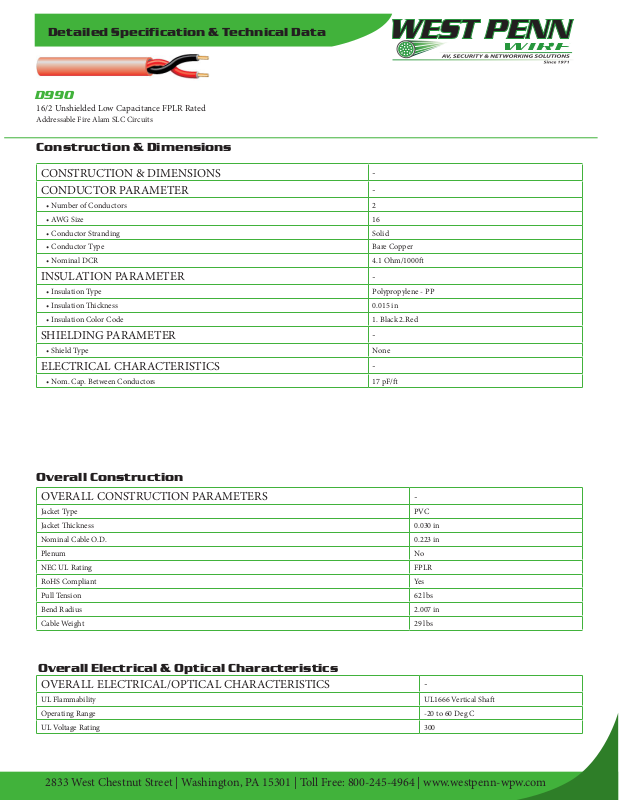

West Penn D990 Datasheet

Detailed Specification & Technical Data

D990

16/2 Unshielded Low Capacitance FPLR Rated

Addressable Fire Alam SLC Circuits

Construction & Dimensions

CONSTRUCTION & DIMENSIONS CONDUCTOR PARAMETER

• Number of Conductors 2

• AWG Size 16

• Conductor Stranding Solid

• Conductor Type Bare Copper

• Nominal DCR 4.1 Ohm/1000

INSULATION PARAMETER

• Insulation Type Polypropylene - PP

• Insulation ickness 0.015 in

• Insulation Color Code 1. Black 2.Red

SHIELDING PARAMETER

• Shield Type None

ELECTRICAL CHARACTERISTICS

• Nom. Cap. Between Conductors 17 pF/

Overall Construction

OVERALL CONSTRUCTION PARAMETERS

Jacket Type PVC

Jacket ickness 0.030 in

Nominal Cable O.D. 0.223 in

Plenum No

NEC UL Rating FPLR

RoHS Compliant Yes

Pull Tension 62 lbs

Bend Radius 2.007 in

Cable Weight 29 lbs

Overall Electrical & Optical Characteristics

OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS

UL Flammability UL1666 Vertical Sha

Operating Range -20 to 60 Deg C

UL Voltage Rating 300
