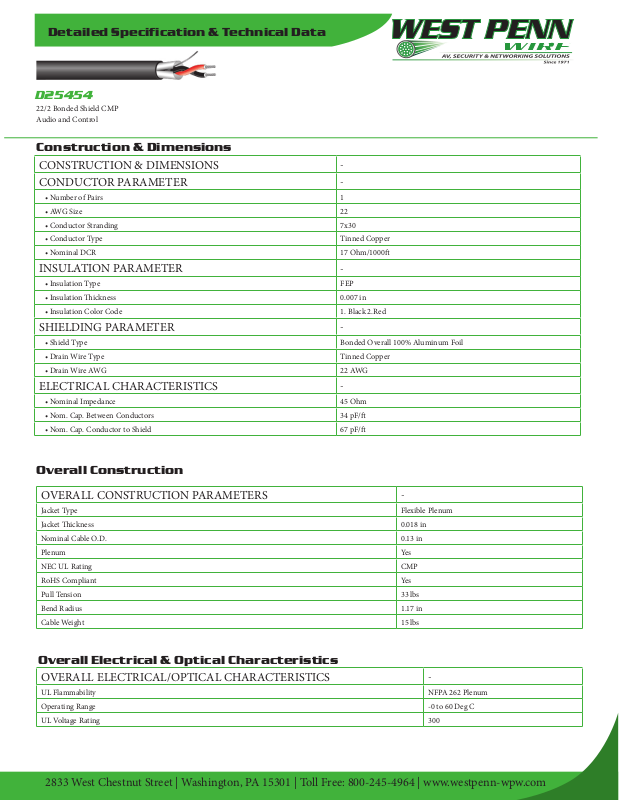

West Penn D25454 Data Sheet

Detailed Specification & Technical Data

D25454

22/2 Bonded Shield CMP Audio and Control

Construction & Dimensions

CONSTRUCTION & DIMENSIONS CONDUCTOR PARAMETER

• Number of Pairs 1

• AWG Size 22

• Conductor Stranding 7x30

• Conductor Type Tinned Copper

• Nominal DCR 17 Ohm/1000

INSULATION PARAMETER

• Insulation Type FEP

• Insulation ickness 0.007 in

• Insulation Color Code 1. Black 2.Red

SHIELDING PARAMETER

• Shield Type Bonded Overall 100% Aluminum Foil

• Drain Wire Type Tinned Copper

• Drain Wire AWG 22 AWG

ELECTRICAL CHARACTERISTICS

• Nominal Impedance 45 Ohm

• Nom. Cap. Between Conductors 34 pF/

• Nom. Cap. Conductor to Shield 67 pF/

Overall Construction

OVERALL CONSTRUCTION PARAMETERS

Jacket Type Flexible Plenum

Jacket ickness 0.018 in

Nominal Cable O.D. 0.13 in

Plenum Yes

NEC UL Rating CMP

RoHS Compliant Yes

Pull Tension 33 lbs

Bend Radius 1.17 in

Cable Weight 15 lbs

Overall Electrical & Optical Characteristics

OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS

UL Flammability NFPA 262 Plenum

Operating Range -0 to 60 Deg C

UL Voltage Rating 300
