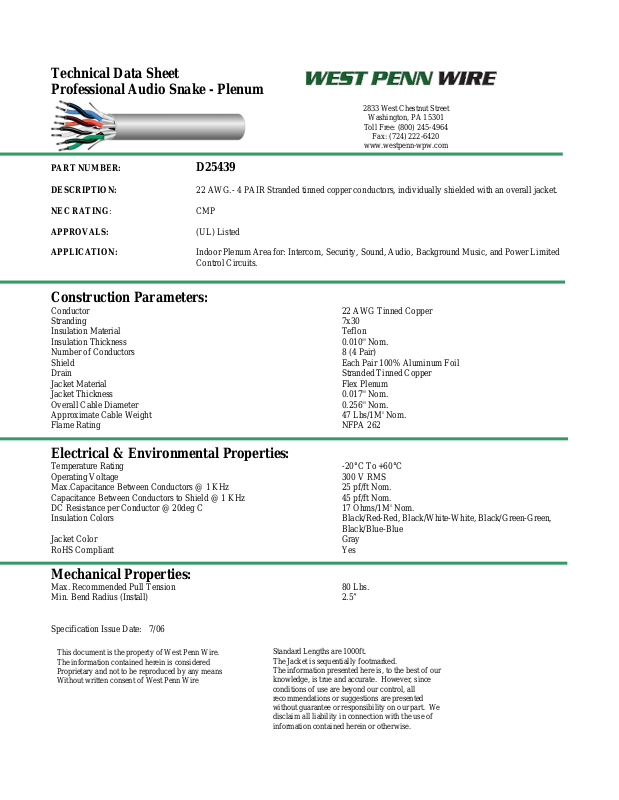

West Penn D25439 Specifications

Technical Data Sheet
Professional Audio Snake - Plenum

PART NUMBER:

DESCRIPTION: 22 AWG.- 4 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.

NEC RATING: CMP

APPROVALS: (UL) Listed

APPLICATION: Indoor Plenum Area for: Intercom, Security, Sound, Audio, Background Music, and Power Limited

D25439

Control Circuits.

2833 West Chestnut Street

Washington, PA 15301

Toll Free: [phone]

Fax: [phone]

www.westpenn-wpw.com

Construction Parameters:

Conductor 22 AWG Tinned Copper
Stranding 7x30
Insulation Material Teflon
Insulation Thickness 0.010'' Nom.
Number of Conductors 8 (4 Pair)
Shield Each Pair 100% Aluminum Foil
Drain Stranded Tinned Copper
Jacket Material Flex Plenum
Jacket Thickness 0.017'' Nom.
Overall Cable Diameter 0.256'' Nom.
Approximate Cable Weight 47 Lbs/1M' Nom.
Flame Rating NFPA 262

Electrical & Environmental Properties:

Temperature Rating -20°C To +60°C
Operating Voltage 300 V RMS
Max.Capacitance Between Conductors @ 1 KHz 25 pf/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz 45 pf/ft Nom.
DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
Insulation Colors Black/Red-Red, Black/White-White, Black/Green-Green,
Black/Blue-Blue
Jacket Color Gray
RoHS Compliant Yes

Mechanical Properties:

Max. Recommended Pull Tension 80 Lbs.
Min. Bend Radius (Install) 2.5”

Specification Issue Date: 7/06

This document is the property of West Penn Wire.

.

The information contained herein is considered
Proprietary and not to be reproduced by any means
Without written consent of West Penn Wire

Standard Lengths are 1000ft.
The Jacket is sequentially footmarked.
