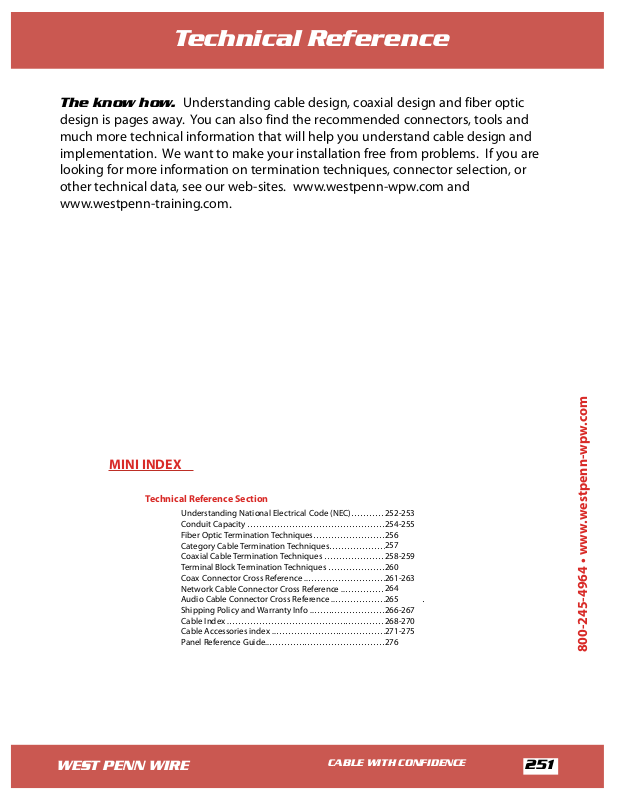

MINI INDEX
Te ch n ic a l R e fe re n ce S ec t io n
Understanding National Electrical Code (NEC)…………………
Conduit Capacity …………………………………………………
Fiber Optic Termination Techniques………………………………
Category Cable Termination Techniques………………………

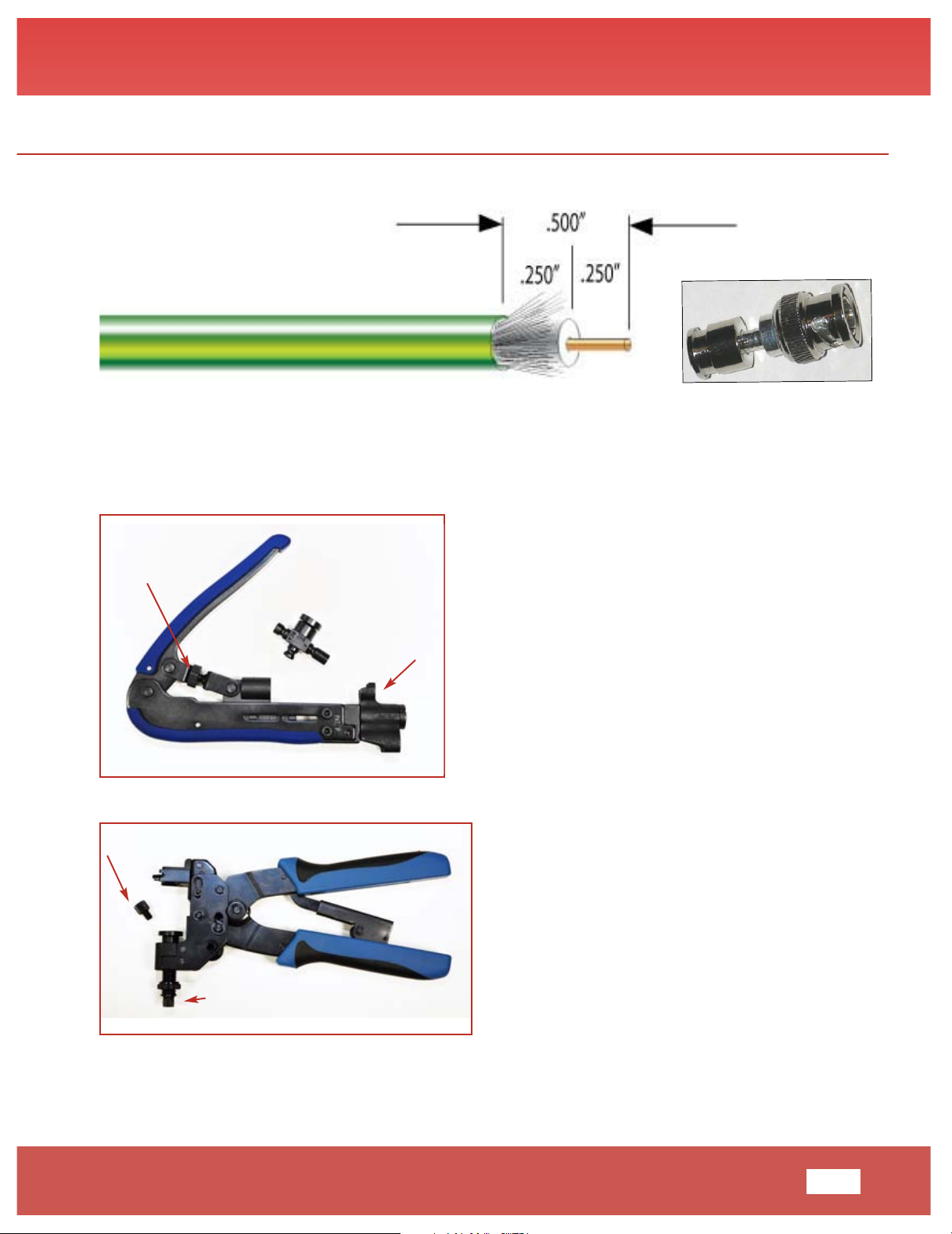

Coaxial Cable Termination Techniques …………………………

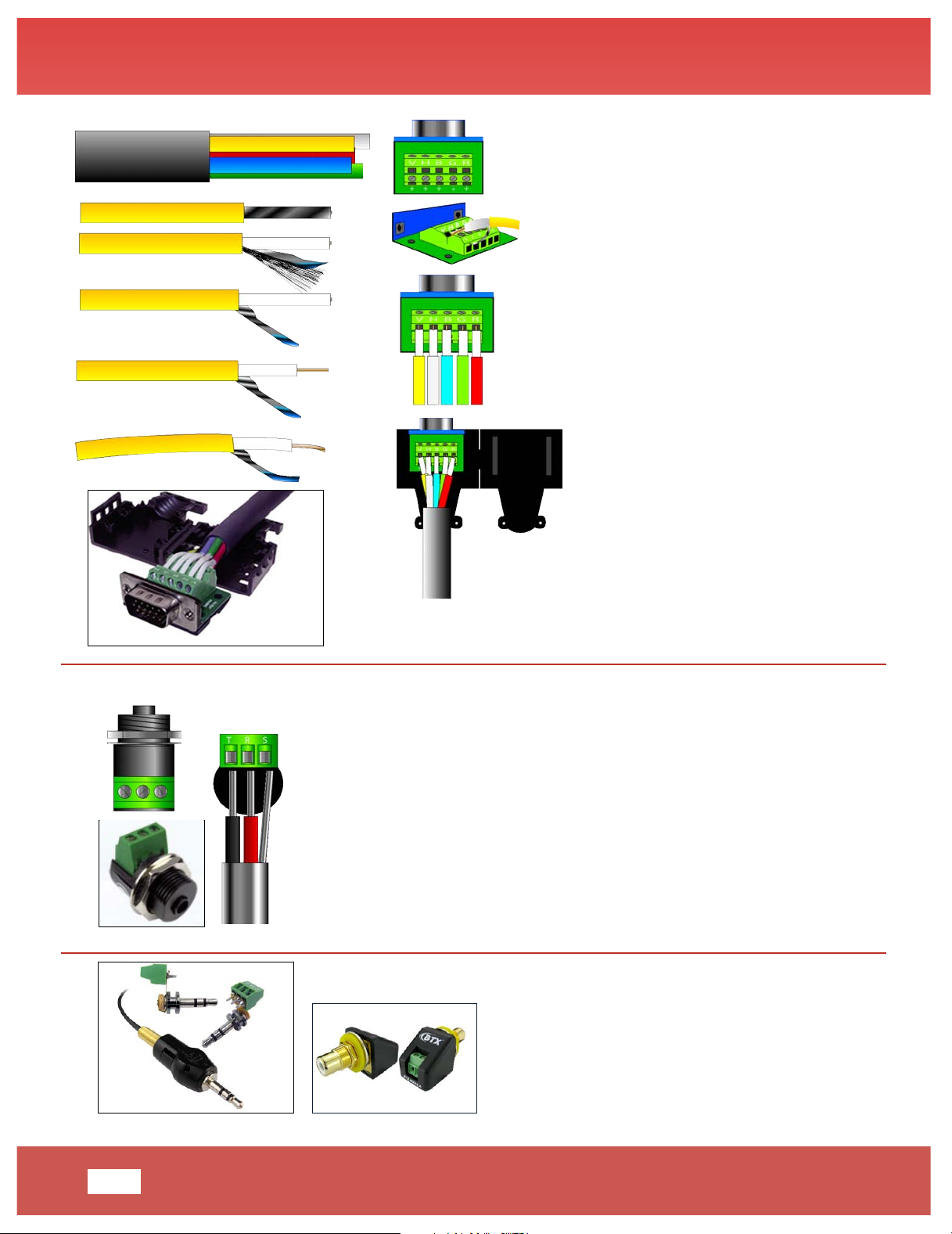

Terminal Block Termination Techniques ………………………
Coax Connector Cross Reference ..…………………………
Network Cable Connector Cross Reference ..………………

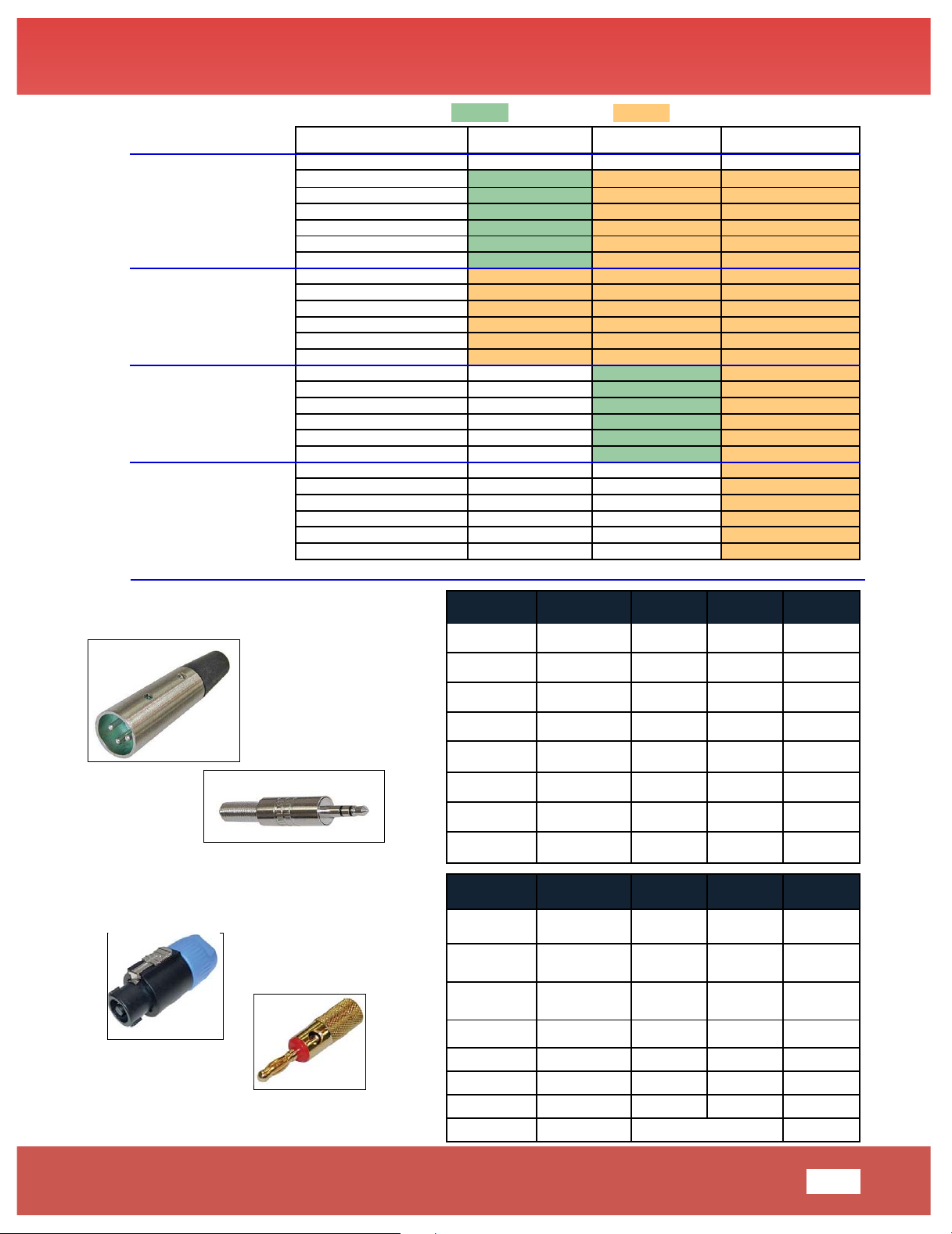

Audio Cable Connector Cross Reference ..…………………………
Shipping Policy and Warranty Info ..…………………………
Cable Index .……………………………………………………
Cable Accessories index ..…………………………………
Panel Reference Guide..…………………………………
252-253
254-255
256
257
258-259
260
261-263
264
265
266-267
268-270
271-275
276
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
The know how. Understanding cable design, coaxial design and fiber optic
design is pages away. You can also find the recommended connectors, tools and
much more technical information that will help you understand cable design and
implementation. We want to make your installation free from problems. If you are
looking for more information on termination techniques, connector selection, or
other technical data, see our web-sites. www.westpenn-wpw.com and
www.westpenn-training.com.
251
Page 2
Technical Reference
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
Understanding the National Electrical Code
The National Electrical Code (NEC) is a set of guidelines written to govern
the installation of wiring and equipment in commercial buildings and residential areas. These guidelines were developed to ensure the safety of
humans as well as property against fires and electrical hazards.
Understanding the National Electrical Code is important from the cable
manufacturer engineer and distributor, to the designer and installer.
Anyone involved in specifying cable to installation of cable should be
aware of the basics of the code.
In 1987, the National Electrical Code introduced some major changes that
had a major impact on the wire and cable industry. The code now has listing requirements for communication and power-limited circuit cable.
These requirements developed fire resistance levels for cable. The code
covers initiation of fire by electronic cable as well as flame spread characteristics of the cable.
Code Organization
The NEC code book is made up of nine chapters, with each chapter divided into separate articles pertaining to specific subjects. There are about
five articles that pertain to communication and power-limited cable. Each
article describes wire and cable construction, material use, cable markings, installation environments and applications.
Article Categories
There are four articles that cover communication, power-limited and
CATV wiring. There is another category that deals strictly with optical
fiber. The following is a list of those articles and the applications or systems they cover:
Article 725 - Class 1, Class 2, Class 3, Remote-control, Signaling and
Power-Limited circuits
Article 760 - Fire Protective Signaling Systems
Article 770 - Fiber Optic Systems
Article 800 - Communication Circuits
Article 820 - Community Antenna Television
Article Overviews
The NEC code can be somewhat confusing to the novice who has not
studied the code in depth. In most cases, within an article, a listing will
allow for a higher listed cable to be substituted for lower listed cable. Or
some listings from one article may be substituted for another article listing with possible restrictions. This section will briefly cover the basis of
the code to try to make things clearer for you. You should consult the NEC
book for exact specifications, wording, and accuracy of the code. This is
not in any way an exact excerpt from the code.
Article 725
Article 725 covers Class 1, Class 2, and Class 3 remote control and signaling cables as well as power-limited tray cable. Power-limited tray cable
can be used as a Class 3 or Class 2 cable. Cable listed multi-purpose, communications, or power-limited fire protective can be used for Class 2 and
Class 3 applications. A Class 3 listed cable can be used as a Class 2 cable.
Article 760
Article 760 covers power-limited fire protective cable. Cable listed as
power-limited fire protective cable can also be used as Class 2 and Class 3
cable. Cable listed as communications and Class 3 can be used as powerlimited fire protective cable with restrictions to conductor material and
type, gauge size and number of conductors.
Article 770
Article 770 covers fiber optic cable. This article covers three general types:
non-conductive, conductive, and composite. Non-conductive type refers
to cable containing no metallic members and no other electrically conductive materials. Conductive type refers to cable containing non-current
carrying conductive members such as metallic strength members, etc.
Composite type refers to cable containing optical fibers and current carrying electrical conductors. Composite types are classified according to the
type of electrical circuit that the metallic conductor is designed for.
Article 800
Article 800 covers multi-purpose and communication cable. Multi-purpose cable is the highest listing for a cable and can be used for communication, Class 2, Class 3, and power-limited fire protective cable.
Communication cable can be used for Class 2 and Class 3 cable and also
as a power-limited fire protective cable with restrictions.
Article 820
Article 820 covers community antenna television and RF cable. CATV
cable may be substituted with multi-purpose or communication listed
coaxial cable.
Designation and Environmental Areas
Not only does listing by circuit types have to be adhered to, but installation in various environments have to also be considered. The NEC has
designated four categories for various environments. These will be listed
from the highest to the lowest listing. A higher listing can be used as a
substitute for a lower listing.
Plenum - This listing is suitable for use in ducts, plenums, and other space
used for environmental air without conduit and has adequate fire-resistant and low-smoke producing characteristics. It can also be used for
applications below.
Riser - This listing is suitable for use in a vertical run, in a shaft or from
floor to floor, and has fire-resistant characteristics capable of preventing
the carrying of fire from floor to floor. It can also be used for applications
below.
General Purpose - This listing is suitable for general-purpose use, with the
exception of risers, ducts, plenums, and other space used for environmental air, and is resistant to the spread of fire. It can also be used for all applications below.
Restricted Applications - This listing is for limited use and is suitable for
use in dwellings and for use in raceways and is flame retardant. Restricted
use is limited to non-concealed spaces of 10 feet or less, fully enclosed in
conduit or raceway, or cable with diameters less than .25" for a residential
dwelling.
SPECIAL NOTES FOR COMMUNICATION CABLES:
* MULTI-CONDUCTOR CABLES WITH 24-16AWG CONDUCTORS CAN BE
RATED UL AND C(UL).
* MULTI-CONDUCTOR CABLES WITH 14-8AWG CONDUCTORS ARE
UL LISTED ONLY
* 10-8AWG SPEAKER CABLES ARE CL2 ONLY AND MUST INDICATE
AUDIO USE ONLY
252
Page 3
Technical Reference
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
National Electrical Code
Substitution Chart
The following chart explains the NEC cable hierarchy and will give you a
"picture" view of how this all fits together. The chart starts with the higher
listed cable at the top descending to the lower listed cable. Following the
arrows will allow you to find what listing can be substituted for others.
Also note restrictions in which case you will have to review the NEC code
in order to see if your cable is applicable.
Final Considerations
The National Electrical Code is widely accepted as the suggested regulations governing the proper installation of wire and cable in the United
States. The code is revised every three years to keep safety in the forefront
in wire and cable manufacturing and installation. Even though the code is
generally accepted, each state, county, city and municipality has the
option to adopt all of the code, part of the code, or develop one of its
own. The local inspectors have final authority of your installation.
Therefore, the NEC is a good reference when questions arise about the
proper techniques for a particular installation, but local authorities should
be contacted for verification.
When choosing cable for your installation there are four guidelines to follow to keep problems to a minimum:
1. The application and environment determines
which type of cable you can use and what
rating it should have. Make sure the cable
you’re installing meets the proper ratings for
your application.
2. If you will be substituting a cable with
another, you must have a cable that is rated
higher than what the code calls for. Check with your
local inspector as to what is allowed in your local area.
3. The NEC code is a general guideline that can
be adopted in whole or in part. Your local state, county,
city, or municipal approved code is what you must fol
low. Contact your local authorities for verification of the
code in your area.
4. The local inspector or fire marshal has the final authority
to approve or disapprove any installation of cable based
on the National Electric Code or on the local code.
If you remember these four guidelines, you should have fewer complications and headaches when installing cable in your area. Remember to
always work closely with your local authorities.
Understanding the National Electrical Code
253
Page 4
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Calculating Conduit Capacity
One Cable Type in Conduit
The following information is to provide you with a quick and easy reference
for conduit fill requirements. This information is to be used as a general
guideline. Each installation has different restrictions for installation environments and/or local codes to follow.
The Conduit Capacity Chart provided on the following page is for applications when only one type of cable is to be used in a conduit. For example, if
you know the diameter of the cable you will be installing, use the cable O.D.
column, and find the exact or next largest diameter cable O.D.. Follow this
row over to the number of cables you need to install in a conduit. Then follow this column to the top of the chart and read the conduit size required
for the number of cables you need to install.
Multiple Types of Cable in One Conduit
If you will be mixing various cable diameters in a conduit, then this overall
chart does not apply. You will have to use the following guidelines to calculate the conduit fill requirements.
To determine the conduit size required for a particular installation of cable
follow these steps:
1. Square the O.D. of each cable and total the results.
2. Multiply the total by .7854*. This is the total area of
the cables in square inches.
3. From the Permissible Area row on the Conduit
Capacity Chart shown on the following page, select
the conduit size with an area equal to or greater -
than the total area you calculated.
* See Important Notes and
Installation Suggestions
** Permissible Area to be occupied (sq. in.) is
based on the NEC standard of 40% fill, which applies
to three or more non-lead covered cable installed in the
same conduit.
Important Notes and
Installation Suggestions
• A single cable is permitted to occupy 53% and two cables
are limited to 31% conduit fill. For a single cable use .5927 in step 2, for two
cables use 1.1034, and three or more cables use .7854.
• This chart is based on the maximum number of cable per mitted in con-
duit under the National Electrical Code, and is calculated on the area of the
cable with 40% of the
conduit filled. For conduit runs of 50 to 100 feet, the installed number
should be reduced by 15%, or use the next larger size conduit. If more than
two 90 degree bends are to be used in the conduit run, or if the run is to be
over 100 feet in length, insert a pull box.
• An anti-friction agent is recommended in pulling
operations.
*CAUTION: Select an anti-friction agent which is suitable for the cable
jacket material. The electronic characteristics of unjacketed cable may
change due to the application of anti-friction agents.
*
COLD ENVIRONMENT PRECAUTION: Due to the nature of PVC
compounds to become non-pliable when stored or handled in
ambient temperatures of 32 degrees F or less, we recommend the
following:
"Prior to installation, condition the cable for at least 24 hours at
room temperature to provide the best flex properties for ease of
installation."
• Permissible area chart does not apply to metallic and nonmetallic surface raceways; consult the NEC for recommendations.
THE NATIONAL ELECTRICAL CODE FORBIDS
THE INSTALLATION OF COMMUNICATION CABLE
IN THE SAME CONDUIT AS POWER CABLE.
Pulling Tensions
Under the stress of approximately 15,000 lbs./sq. in. annealed copper will
begin to permanently stretch. The table below lists the absolute maximum
recommended pulling tensions for conductor sizes. For multiple conductor
cable, multiply the appropriate value by the total number of conductors.
These pulling tensions must be equally distributed among the
conductors.
THESE LIMITS MUST NEVER BE EXCEEDED
EVEN MOMENTARILY!
DON’T JERK THE CABLE!
The electronic characteristics of a cable may change due to excessive ten-
sion and crushing.
Max. Pulling
Tension
12 AWG
Gauge
77 lbs
14 AWG 48 lbs
24 AWG 4 lbs
22 AWG
20 AWG 12 lbs
18 AWG 19 lbs
16 AWG 30 lbs
7 lbs
254
Page 5
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Conduit Capacity Chart
Conduit Size 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4
EXAMPLES:
Example A.
Sample Cable:
227- .260” O.D.
Go down the Cable O.D. inch col-
umn. Find the number equal to
or greater than the cable O.D. Go
across to find the number of
cables in the appropriate conduit
size.
.269”- Closest .275”
13 in a 1
1/2
” Conduit.
Example B.
Three different Cables:
227 - .260” sqd. = .0676
D434 - .411” sqd. = .1689
6350 - .275” sqd. = .0756
+
.3169
x .7854
.2489
On the Permissible Area- equal to
or greater. The
closest area is .034
Use a 1” Conduit
Important Note: This conduit
capacity chart is to be used as a
general guideline. Because local
codes can vary from the NEC.
West Penn Wire cannot be held
responsible for this information
as it pertains to your installation.
Proper conduit fill is the sole
responsibility of the installer and
it is your responsibility to see that
your installation will pass local
codes.
I.D. Inches .622 .824 1.049 1.380 1.610 2.067 2.469 3.068 3.548 4.026
Permissible Area* 0.12 0.21 0.34 0.60 0.82 1.34 1.92 2.95 3.96 5.09
Cable O.D
Inch
Cable Area
sq. Inch
.100 .00785 15 27 44 76 103 171 298 450 588 751
.125 .01227 10 17 28 48 66 109 191 288 376 481
.150 .01767 7 12 19 34 46 76 132 200 261 334
.175 .02405 5 9 14 25 34 56 97 147 192 245
.200 .03142 4 6 11 19 26 42 74 112 147 188
.225 .03976 3 5 8 15 20 33 59 89 116 148
.250 .04909 2 4 7 12 16 27 47 72 94 120
.275 .0594 1 3 6 10 13 22 39 59 77 99
.300 .07069 1 3 5 8 11 19 33 50 65 83
.325 .08296 1 2 4 7 10 16 28 42 55 71
.350 .09621 1 1 3 6 8 14 24 36 48 61
.375 .011045 1 1 3 5 7 12 21 32 42 53
.400 .012566 1 1 2 4 6 10 18 28 36 47
.425 .14186 1 1 2 4 5 9 16 25 32 41
.450 .15904 1 1 1 3 5 8 14 22 29 37
.475 .17721 1 1 1 3 4 7 13 20 26 33
.500 .19635 1 1 1 3 4 7 12 18 23 30
.525 .21648 0 1 1 2 3 6 11 16 21 27
.550 .23758 0 1 1 2 3 5 10 15 19 25
.575 .25967 0 1 1 1 3 5 9 13 17 22
.600 .28274 0 1 1 1 3 4 8 12 16 21
.625 .3068 0 1 1 1 2 4 7 11 15 19
.650 .33183 0 1 1 1 2 4 7 10 14 17
.675 .35785 0 0 1 1 1 3 6 10 13 16
.700 .38484 0 0 1 1 1 3 6 9 12 15
.725 .41282 0 0 1 1 1 3 5 8 11 14
.750 .44179 0 0 1 1 1 3 5 8 10 13
.775 .47173 0 0 1 1 1 3 5 7 9 12
.800 .50265 0 0 1 1 1 2 4 7 9 11
.825 .53456 0 0 1 1 1 2 4 6 8 11
.850 .56745 0 0 1 1 1 2 4 6 8 10
.875 .60132 0 0 0 1 1 1 4 6 7 10
.900 .63617 0 0 0 1 1 1 3 5 7 9
.925 .67201 0 0 0 1 1 1 3 5 7 9
.950 .70882 0 0 0 1 1 1 3 5 6 8
.975 .74662 0 0 0 1 1 1 3 4 6 8
1.00 .7854 0 0 0 1 1 1 3 4 6 7
1.025 0.825 0 0 0 0 0 1 3 4 6 7
1.05 0.866 0 0 0 0 0 1 2 3 4 5
1.075 0.908 0 0 0 0 0 1 2 3 4 5
1.100 0.950 0 0 0 0 0 1 2 3 4 5
1.125 0.994 0 0 0 0 0 1 1 2 3 5
1.150 1.039 0 0 0 0 0 1 1 2 3 4
1.175 1.084 0 0 0 0 0 1 1 2 3 4
1.20 1.131 0 0 0 0 0 1 1 2 3 4
1.225 1.179 0 0 0 0 0 1 1 2 3 4
1.250 1.227 0 0 0 0 0 1 1 2 3 4
1.275 1.277 0 0 0 0 0 1 1 2 3 3
1.300 1.327 0 0 0 0 0 1 1 2 3 3
1.325 1.379 0 0 0 0 0 0 1 2 3 3
1.350 1.431 0 0 0 0 0 0 1 2 2 3
1.375 1.485 0 0 0 0 0 0 1 1 2 3
1.400 1.539 0 0 0 0 0 0 1 1 2 3
1.425 1.595 0 0 0 0 0 0 1 1 2 3
1.450 1.651 0 0 0 0 0 0 1 1 2 3
1.475 1.709 0 0 0 0 0 0 1 1 2 2
1.500 1.767 0 0 0 0 0 0 1 1 2 2
255
Page 6
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
ST Connectors - Straight Tip
These connectors are normally used in the Security Industry.
They would be used for connecting Fire Alarm Control
Panels - RS-485, Access Control Panels, CCTV Distribution.
ST connectors are similarly designed to match a BNC
Connector.
Kits Offered: Optimax - FI-3635
Brilliance - FI-4270
LC Connectors - Lucent Connector
These connector type is normally found in the broadcast
environment, and data networking.
They are SFF - Small Form Factor Connectors. SFF connectors are smaller in size for environments where space is a
premium.
Kits Offered: Brilliance FI-4270
Optimax FI-3635
SC Connectors - Square Connector
These connector type is normally found in the data networking environment.
SC connectors are similarly designed to match a RJ45 modular plug.
Kits Offered: Brilliance FI-4270
Optimax FI-3635
FI-4270
FI-3635
256
Page 7
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Plug Termination:
1. Strip off 2.00” of jacket
2. Straighten and align wires to T568B or T568A - Trim Pairs
3. Insert wires into connector body
4. Pull tight to ensure jacket is .250” inside connector body
5. Verify wire location and orientation
6. Insert 32-EZP connector into crimp tool- TL-EZRJ45
7. Verify connector is completely seated and cable is fully inserted
8. Squeeze handle of TL-EZRJ45
9. Remove excess wires
10. Check jacket strain relief
11. Check that contacts are all engaged
12. Check that contact dividers are not damaged
13. Check to see if both ends of the cable have been terminated
IDC
All Jacks have IDC- Insulation Displacement Connections.
These connections are made with a punch down tool.
The Punch down tool displaces the insulation while the individual
cable is being pressed between two metal clips.
The metal clips make contact with the conductor.

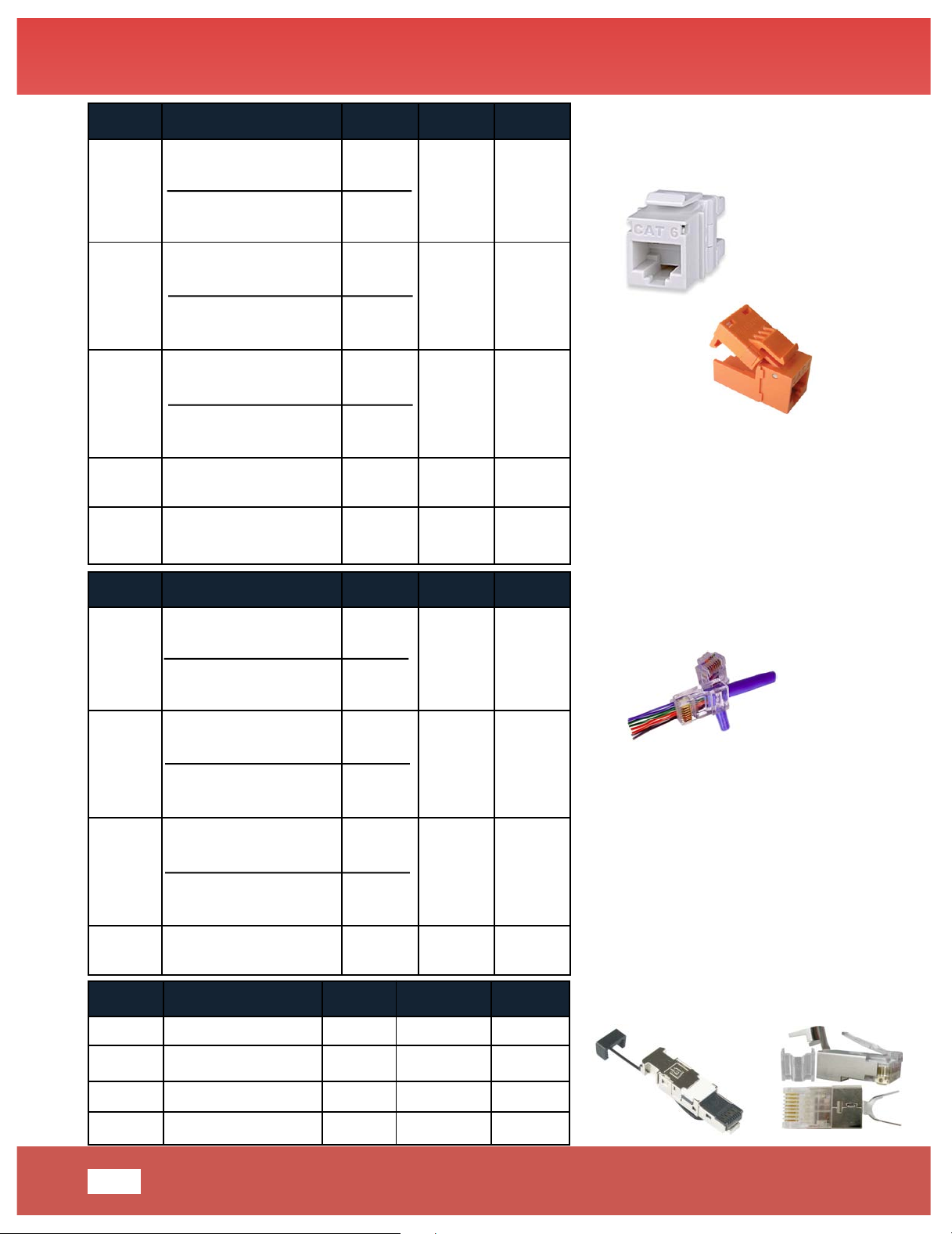

Terminating RJ45 Jacks
1. Strip cable .750”- 1.00”- Do not damage conductors
2. Fan out the individual Pairs. Do not untwist the
individual pairs more than .500”
3. Place each wire into appropriate IDC slot color code
• Choose between T568A or T568B
4. Punch down the individual wire - Do not punch down
more than twice.
5. Place Protector Hood over the punched down wires
Cross-Compatibility:
Category Cable Termination
257
Color alignment may change depending on the
connector type and manufacturer
TL-110/66
Page 8
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
BNC Crimp Connector Termination
Crimp Tool Die Sizes: inches
TL-104: .068, .213, .255
TL-105: .068, .178
TL-803: .065, .068, .178, .213, .255
TL-107: .068, .093, .213, .255, .311
TL-113: .102, .359, .406
TL-115: .068, .100, .324, .384
TL-119: .068, .110, .213, .255, .324
3 Pc. 75 Ohm BNC
258
Page 9
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Compression Connector Termination
Compression- Stripping Guide
Removable InsertBNC,”F”, RCA
Adjustable Screw
knob
Swivel
Head
TL-548G Lever Style Compression Tool
• Recommended for the Small Profile
(Window) Compression Connectors
• Accepts Miniature, RG59/U, RG6/U, and
RG11/U Cables
Adjustable
screw knob
”F” Insert
TL-SNSA Ratchet Style Compression Tool
• Will do both Longer and Smaller Profile
Compression Connectors
• Accepts Miniature, RG59/U, and RG6/U
Cables
CN-BNCP-RGB
259
Page 10
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
VGA - Terminal Block
Termination
1. Stip Jacket - 1.5”
2. Strip individual coax jacket .75”
3. Release spiral shield from the dielectric.
4.Twist shields to form a conductor
5. Stip .25” of the dielectric to expose the
center conductor.
6. Bend the coax to fit properly into the
connector body.
7. Unscrew terminal screws.
8. Feed Yellow coax into (V )Slot
Screw terminal tightly
9. Feed Yellow Shield into (GND)
Screw terminal tightly
10. Continue to place coaxial cables into
terminals.
11. Align coaxial cables straight in the
connector.
12. Slide the connector into the hood
(CN-MX915H).
13. Close hood lid until the hood snaps into
place.
14. Screw down the back hood onto cable
jacket.
Catalog No.
CN-MX15M Male
CN-MX15F Female
CN-HD15FST
1
2
3
4
5
6
7
8-9-10
11
12 - 13 - 14
3.5mm - Terminal Block
Termination - Panel Mount
1. Stip Jacket - .5” - Stip off the Foil Shield
2. Stip Individual primaries .25”
3. Unscrew terminal screws
4. Feed Black conductor into T -Tip
Screw terminal tightly.
5. Feed Red or White conductor into R - Ring
Screw terminal tightly.
6. Feed ground conductor into S - Sleeve
Screw terminal tightly.
Catalog No.
CN-MX35
1-2
3
4-5-6
Other Terminal Block
Connections:
1. 3.5mm Cable mount terminal block
2. RCA panel mount terminal block
3. DB9- RS-232 terminal block
4. S-Video cable mount terminal block
260
Page 11
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Note: ** Center Conductor blade must be removed before using
75 ohm: Dielectric
inside connector
body - Teflon
50 ohm: Dielectric
to the face of the
connector
Coaxial Connectors
Cable Part
No.
Connector
Type
Connector Part
No.
Crimp
Too l
Strip Tool
11 0 0
“F” CN-F11ALX TL-112 TL-124**
Comp. “F” CN-FS11V
TL-CCT-SS59/11
TL-PS11
111 0
“F” CN-F11ALX TL-112 TL-124**
Comp. “F” CN-FS11V
TL-CCT-SS59/11
TL-PS11
252815
252815E
3 Pc. BNC CN-BM53-30 TL-104 TL-7503
75Ω 3Pc. BNC CN-BM74-32 TL-104 TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSA or
TL-548G
TL-CSST
252825
75Ω 3Pc. BNC CN-BM74-18 TL-105 TL-825
Comp.
BNC
CN-BNCP-825
TL-SNSA or
TL-548G
TL-CSST
4-PIN MINI
DIN
CN-SVHS-M
253CRGB
255CRGB
252CSVHS
75Ω 3Pc. BNC CN-BM74-19
TL-105 or
TL-803
TL-825
Comp.
BNC
CN-BNCP-RGB
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCP-RGB
TL-SNSA or
TL-548G
TL-CSST
HD15 Term
Block Male
CN-MX15M
CN-MX915H
Hood
255CRGB
HD15 Term
Block Female
CN-MX15F
CN-MX915H
Hood
255CRGB
HD15
Solder Male
40-9515HDM
40-9709HS
Hood
255CRGB
HD15
Solder (F)
40-9515HDF
40-9709HS
Hood
255CRGB
256350
“F” CN-F56TFE TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-SNSST
75Ω 3Pc. BNC CN-BM73-4 107 TL-7503
Comp.
BNC
CN-BNC6MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA6MCV
TL-SNSA or
TL-548G
TL-CSST
256100
Compression
“F”
CN-F6MCV TL-SNSA TL-CSST
256300
Compression
“F”
CN-F6MCV TL-CPLRBC TL-CSST
25806
75Ω 3Pc. BNC CN-BM73-4 TL-107 TL-7503
Comp.
BNC
CN-BNC6MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA6MCV
TL-SNSA or
TL-548G
TL-CSST
25810
50Ω BNC CN-25810KBNC TL-115 TL-124
50Ω TNC CN-25810TNC TL-115 TL-124
50Ω “N” CN-NM53-25810 TL-115 TL-124
UHF CN-UM52-25810 TL-115 --
25811
Comp. BNC CN-CSBNC-11
TL-CCTSS59/11
TL-PS11
Comp. “F” CN-FS11PL
TL-CCTSS59/11
TL-PS11
Cable Part
No.
Connector
Type
Connector Part
No.
Crimp
Too l
Strip Tool
25812
3PC. BNC CN-BM53-25 TL-105 TL-7503
50Ω TNC CN-TM53-25812 TL-105 TL-7503
50Ω “N” CN-NM53-25812 TL-105 TL-7503
25815
25815E
PTZ25815
3PC. BNC CN-BM53-30 TL-104 TL-7502
75Ω 3Pc. BNC CN-BM74-32
TL-104 or
TL-803
TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA59MCV
TL-SNSA or
TL-548G
TL-CSST
25819
Comp. “F” CN-FCP-59
TL-SNSA or
TL-548G
TL-CSST
75Ω 3Pc. BNC CN-BM74-32
TL-104 or
TL-803
TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA59MCV
TL-SNSA or
TL-548G
TL-CSST
25821
“F” CN-F11TFE TL-115 TL-124**
Comp. “F” CN-FS11PL
TL-CSSTSS59/11
TL-PS11
25825
PTZ25825
75Ω 3Pc. BNC CN-BM74-18 TL-105 TL-825
Comp.
BNC
CN-BNCP-825
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCP-825
TL-SNSA or
TL-548G
TL-CSST
Female
BNC
CN-BF74-18 TL-105 TL-825
25841
“F” CN-F56ALM TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
25Q821
“F” CN-F11TFE TL-115 TL-124**
Comp. “F” CN-FS11PL TL-PS11
TL-CSST-SS59/11
25Q841
“F” CN-F56ALM TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
2806B
75Ω 3Pc. BNC CN-BM73-5 TL-107 TL-7503
Comp.
BNC
CN-BNC6MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA6MCV
TL-SNSA or
TL-548G
TL-CSST
261
Page 12
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Note: ** Center Conductor blade must be removed before using
Coaxial Connectors
Cable Part
No.
Connector
Type
Connector Part
No.
Crimp
Too l
Strip Tool
2815B
2815E
3PC. BNC CN-BM53-2 TL-104 TL-7503
75Ω 3Pc. BNC
CN-BM73-2
CN-BM74-32
TL-104 TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSAor
TL-548G
TL-CSST
3CRGB
75Ω 3Pc. BNC CN-BM74-19
TL-105 or
TL-803
TL-825
Comp.
BNC
CN-BNCP-RGB
TL-SNSA TL-CSST-RGB
Comp.
RCA
CN-RCP-RGB
TL-SNSA TL-CSST-RGB
4806
75Ω 3Pc. BNC CN-BM73-5 TL-107 TL-7503
4811
3PC. BNC CN-BM53-26 TL-113 TL-124**
4815
3PC. BNC CN-BM53-2 TL-104 TL-124
75Ω 3Pc. BNC CN-BM74-32 TL-104 TL-7503
5CRGB
75Ω 3Pc. BNC CN-BM74-19
TL-105 or
TL-803
TL-825
Comp.
BNC
CN-BNCP-RGB
TL-SNSA TL-CSST-RGB
Comp.
RCA
CN-RCP-RGB
TL-SNSA TL-CSST-RGB
HD15 Term
Block Male
CN-MX15M
CN-MX915H
Hood
HD15 Term
Block Female
CN-MX15F
CN-MX915H
Hood
HD15
Solder Male
40-9515HDM
40-9709HS
Hood
HD15
Solder (F)
40-9515HDF
40-9709HS
Hood
610 0
“F” CN-F56ALM TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
614 0
“F” CN-F56AQ TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
6300
6310
“F” CN-F56ALX TL-111 TL-7502
Comp. “F” CN-F6MCV TL-548G TL-CSST
6350
“F” CN-F56ALM TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
75Ω 3Pc. BNC CN-BM73-5 TL-107 TL-7503
Comp.
BNC
CN-BNC6MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA6MCV
TL-SNSA or
TL-548G
TL-CSST
Cable Part
No.
Connector
Type
Connector Part
No.
Crimp
Too l
Strip Tool
6CRGB2P
6CRGB4P
75Ω 3Pc. BNC CN-BM74-19
TL-105 or
TL-803
TL-825
Comp.
BNC
CN-BNCP-RGB
TL-SNSA TL-CSST-RGB
Comp.
RCA
CN-RCP-RGB
TL-SNSA TL-CSST-RGB
HD15 Term
Block Male
CN-MX15M
CN-MX915H
Hood
HD15 Term
Block Female
CN-MX15F
CN-MX915H
Hood
HD15
Solder Male
40-9515HDM
40-9709HS
Hood
HD15
Solder (F)
40-9515HDF
40-9709HS
Hood
806
75Ω 3Pc. BNC CN-BM73-5 TL-107 TL-7503
Comp.
BNC
CN-BNC6MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA6MCV
TL-SNSA or
TL-548G
TL-CSST
807
3PC. BNC CN-BM53-8X TL-119 --
50Ω TNC CN-TM53-807 TL-119 --
“N” Type CN-NM53-8X TL-119 --
UHFType CN-UM52-807 TL-119 --
810
810 F
3PC. BNC CN-25810KBNC TL-115 TL-124
50Ω TNC CN25810KTNC - -
“N” Type CN-NM53/110 - -
UHFType CN-UM52-810 - -
811
3PC. BNC CN-BM53-26 TL-113 TL-124
Comp.
BNC
CN-CSBNC-11 TL-CSBNC11 TL-PS11
812
3PC. BNC CN-BM53-13 TL-104 TL-7503
50Ω TNC CN-TM53-1
“N” Type
CN-NM53-812
UHFType CN-PL259-1
813
3PC. BNC CN-BM53-13 TL-104 TL-7503
50Ω TNC CN-TM53-1
“N” Type
CN-NM53-812
UHFType CN-PL259-1
815
815 E
PTZ815
3PC. BNC CN-BM53-2 TL-104 TL-7503
75Ω 3Pc. BNC CN-BM74-32
TL-104 or
TL-803
TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA59MCV
TL-SNSA or
TL-548G
TL-CSST
262
Page 13
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
SPECIALTY CABLES:
SPECIALTY CABLES:
PAN TILT ZOOM CABLE:
PTZ815 - SEE 815 CABLE
PTZ25815- SEE 25815 CABLE
HOMENETWORKING COMPOSITE CABLES:
•HN5161 • HN5162 • HN5261 • HN5262 • HN5262F
SEE HQ841 CABLE
MEDIA CONTROL CABLE: (ELAN) E1854
SEE 815 CABLE
AV COMPOSITE CABLES
LSAV and LS25AV - SEE 825
Coaxial Connectors
Cable Part
No.
Connector
Type
Connector Part
No.
Crimp
Too l
Strip Tool
819
“F” CN-F59ALM TL-111 TL-7502
Comp. “F” CN-FCP-59 TL-SNSA TL-CSST
75Ω 3Pc. BNC CN-BM74-32 TL-104 TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA59MCV
TL-SNSA or
TL-548G
TL-CSST
821
“F” CN-F11ALX TL-112 TL-124**
Comp. “F” CN-FS11V
TL-CCTSS59/11
TL-PS11
825
825182
45825
2825
75Ω 3Pc. BNC CN-BM74-18 TL-105
TL-825 or
TL-KLEIN
Comp.
BNC
CN-BNCP-825
TL-SNSA or
TL-548G
TL-CSST or
TL-KLEIN
Comp.
RCA
CN-RCP-825
TL-SNSA or
TL-548G
TL-CSST or
TL-KLEIN
Female
BNC
CN-BF74-18 TL-105
TL-CSST or
TL-KLEIN
841
“F” CN-F56ALM TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
AQC28 06
AQC80 6
75Ω 3Pc. BNC CN-BM73-5 TL-107 TL-7503
Comp.
BNC
CN-BNC6MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA6MCV
TL-SNSA or
TL-548G
TL-CSST
AQC815
AQC819
3PC. BNC CN-BM53-2 TL-104 TL-7502
75Ω 3Pc. BNC CN-BM74-32
TL-104 or
TL-803
TL-7503
Comp.
BNC
CN-BNC59MCV
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCA59MCV
TL-SNSA or
TL-548G
TL-CSST
AQC841
“F” CN-F56AQ TL-111 TL-7502
Comp. “F” CN-F6MCV TL-SNSA TL-CSST
HD825
HD25825
75Ω 3Pc. BNC CN-BM74-18 TL-105 TL-825
Comp.
BNC
CN-BNCP-825
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCP-825
TL-SNSA or
TL-548G
TL-CSST
Female
BNC
CN-BF74-18 TL-105 TL-825
HQ841
HQ841R
Q841
“F” CN-F56ALX TL-111 TL-7502
Comp. “F” CN-F6MCV TL-548G TL-CSST
Q821
Q821F
Comp. “F” CN-FS11V
TL-CCTSS59/11
TL-PS11
Cable Part
No.
Connector
Type
Connector Part
No.
Crimp
Too l
Strip Tool
WP258265
75Ω 3Pc. BNC CN-BM74-19 TL-105 TL-825
Comp.
BNC
CN-CSBNC-26
TL-SNSA or
TL-548G
TL-CSST-RGB
Comp.
RCA
CN-CSRCA-26
TL-SNSA or
TL-548G
TL-CSST-RGB
HD15 Term
Block Male
CN-MX15M
CN-MX915H
Hood
HD15 Term
Block Female
CN-MX15F
CN-MX915H
Hood
HD15
Solder Male
40-9515HDM
40-9709HS
Hood
HD15
Solder (F)
40-9515HDF
40-9709HS
Hood
WP258255
75Ω 3Pc. BNC CN-BM74-18 TL-105
TL-825 or
TL-KLEIN
Comp.
BNC
CN-BNCP-825
TL-SNSA or
TL-548G
TL-CSST
Comp.
RCA
CN-RCP-825
TL-SNSA or
TL-548G
TL-CSST
263
Page 14
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Cable Part
No.
RJ45
Jack
Punchdown
Too l
Modular
Plug
Crimp
Too l
4245
KJS458MT-C5E-xx
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
CN-705-xx - Tool less
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-EZP
32-1900-xx
Boots
TL-EZRJ45
254245
KJS458MT-C5E-xx
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
CN-705-xx - Tool less
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-EZP
32-1900-xx
Boots
TL-EZRJ45
M58762
KJS458MT-C5E-xx
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
CN-705-xx - Tool less
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-EZP
32-1900-xx
Boots
TL-EZRJ45
M57562
M57561
KJS458MT-C5E-xx
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-EZP
32-1900-xx
Boots
TL-EZRJ45
M58145
M58144
M58186
M58196
KJS458-C5E-xx
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-EZSTP
32-1900-xx
Boots
TL-EZRJ45
Cable Part
No.
RJ45
Jack
Punchdown
Too l
Modular
Plug
Crimp
Too l
4246
AX101320 (WH), AX101321 (BK),
AX101323 (RD), AX101324 (YE)
AX101326 (BL)
CN-706-xx - Tool less
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-6EZP TL-EZRJ45
254246
AX101320 (WH), AX101321 (BK),
AX101323 (RD), AX101324 (YE)
AX101326 (BL)
CN-706-xx - Tool less
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-6EZP TL-EZRJ45
M58772
AX101320 (WH), AX101321 (BK),
AX101323 (RD), AX101324 (YE)
AX101326 (BL)
CN-706-xx - Tool less
xx- Colors
WH,BK,BL,GY,GN,OR,RD,YE
TL-3650
or
TRJ45P
32-6EZP TL-EZRJ45
M57622
AX101320 (WH), AX101321 (BK),
AX101323 (RD), AX101324 (YE)
AX101326 (BL)
TL-3650
or
TRJ45P
32-6EZP TL-EZRJ45
Cable Part
No.
RJ45
Jack
Punchdown
Too l
Modular
Plug
Crimp
Too l
M58163
KJS458TL-C6C - Tool less CN-111S90H34 TL-EZRJ45
M58183
KJS458TL-C6C - Tool less CN-111S90H34 TL-EZRJ45
M58900
KJS458TL-C6A - Tool less CN-1401405012
M58892
KJS458TL-C6A - Tool less CN-1401405012
Category 5E Connectors
Category 6 Connectors
Category 6 & Cat6A F/UTP
Connectors
264
Cat 6 F/UTP
Cat 6A F/UTP
Page 15
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Cable Part No.
3 Pin XLR
Plug
3 Pin XLR
Jack
3.5mm
Plug
1/4”
Plug TRS
772 91
44-A3M
CN-NC3MX
44-A3F
CN-NC3FX
CN-NYS231 CN-NP3C
D25291
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
CN-NYS231 CN-NP3C
(x)454
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
CN-NYS231 CN-NP3C
D25454
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
CN-NYS231 CN-NP3C
455
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
CN-NYS231 CN-NP3C
DA2401
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
DA2524 01
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
452
44-A3M
CN-NC3MX
44-A3M
CN-NC3MX
CN-NYS231 CN-NP3C
Cable Part No.
Speakon
Cable Mount
Banana
Plugs -Black
Banana
Plugs -Red
225
25225B
CN-NL4FX 19-1240 19-1239
226
25226B
CN-NL4FX 19-1240 19-1239
227
25227B
CN-NL4FX 19-1240 19-1239
HA225
CN-NL4FX 19-1240 19-1239
HA226
CN-NL4FX 19-1240 19-1239
HA227
CN-NL4FX 19-1240 19-1239
HA210
CN-NL4FX 19-1240 19-1239
C208
CN-NL4FX CN-8PX-24B

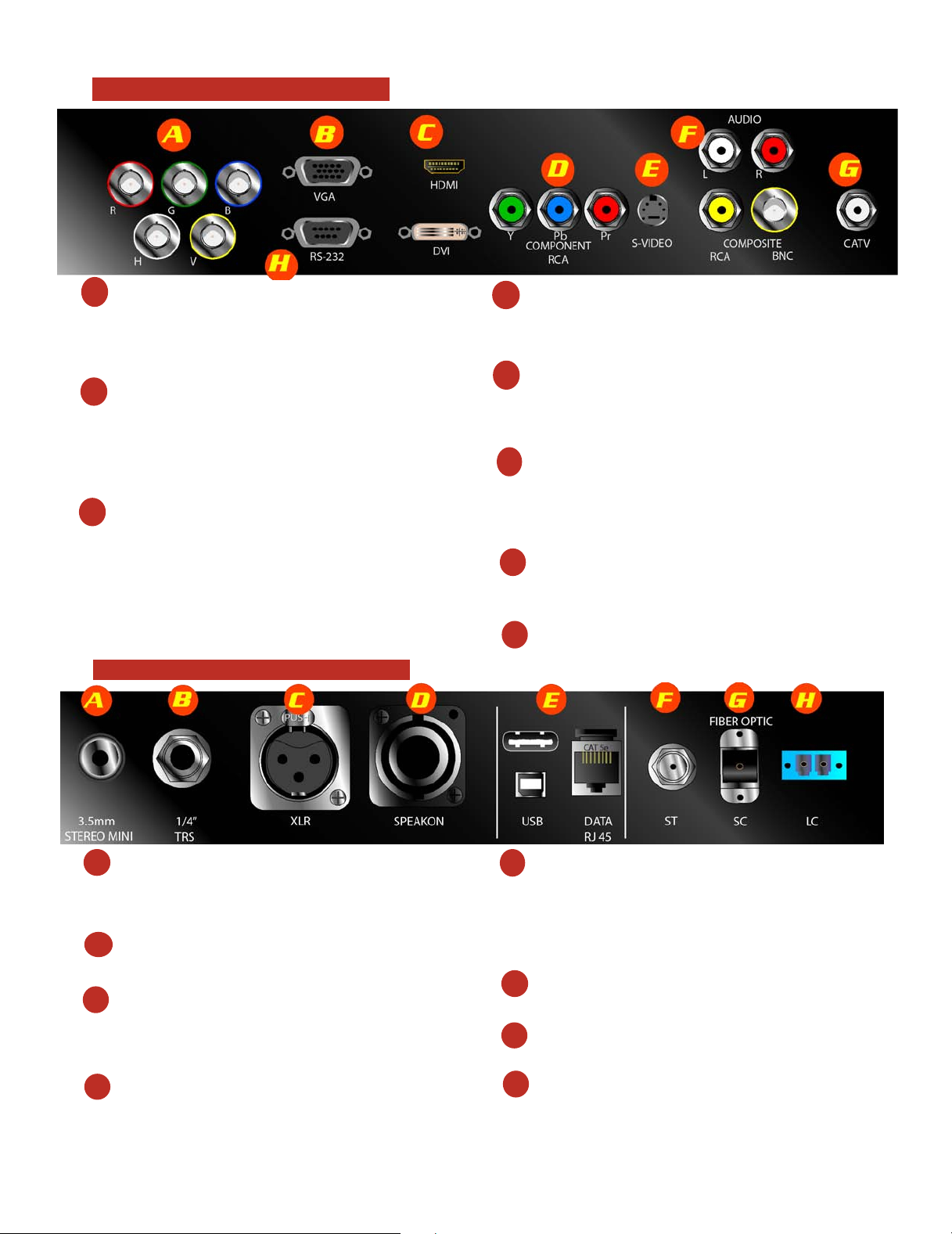

Line Level Audio
Connectors
Speaker Level Audio
Connectors
265
UTP and F/UTP Selection
UTP and F/UTP Category 5E Category 6 Category 6A
Test Freq. MHz 100 200 100 250 100 500
Insertion Loss max. 22.0 -- 19.8 32.8 19.0 45.3
NEXT min. 35.3 -- 44.3 38.3 44.3 33.8
PS-NEXT min. 32.3 -- 42.3 36.3 42.3 31.8
PS-ACR min. 10.3 -- 22.5 3.5 24.8 10.8
PS-ELFEXT min. 20.8 -- 24.8 16.8 62.5 52.0
Return Loss min. 20.1 -- 20.1 17.3 20.0 15.2
Insertion Loss max. 22.0 -- 19.8 32.8 19.0 45.3
NEXT min. 35.3 -- 44.3 38.3 44.3 33.8
PS-NEXT min. 32.3 -- 42.3 36.3 42.3 31.8
PS-ACR min. 10.3 -- 22.5 3.5 24.8 10.8
PS-ELFEXT min. 20.8 -- 24.8 16.8 62.5 52.0
Return Loss min. 20.1 -- 20.1 17.3 20.0 15.2
Insertion Loss max. 19.8 32.8 19.0 45.3
NEXT min. 44.3 38.3 44.3 33.8
PS-NEXT min. 42.3 36.3 42.3 31.8
PS-ACR min. 22.5 3.5 24.8 10.8
PS-ELFEXT min. 24.8 16.8 62.5 52.0
Return Loss min. 20.1 17.3 20.0 15.2
Insertion Loss max. 19.0 45.3
NEXT min. 44.3 33.8
PS-NEXT min. 42.3 31.8
PS-ACR min. 24.8 10.8
PS-ELFEXT min. 62.5 52.0
Return Loss min. 20.0 15.2
10 Base T
100 Base T
155 Mbps ATM
TIA/EIA 568 c.2 Full Duplex
Ethernet Specs. 1G Base T
500MHz Broadband Video
10G Base T
MAX TEST FREQUENCY: 200 MHZ 550 MHZ 750 MHZ
TIA 568-C.2
CATEGORY 6A FULL 100 meters
Recommended Exceeds Recommended
Page 16
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Shipping Policy and Return Policy
Shipping Policy (Wire and Cable)- Freight Allowance: Shipments totaling $750.00, ($3000.00 Distributors) or more
will be Freight Prepaid via negotiated overland truck only in the continental U.S. (excluding Alaska and Hawaii**). All
other shipments will be freight collect with no freight allowance. NO C.O.D. shipments. Air shipments only with written authorization. Accessorial Charges (Inside delivery, Call before delivery, Lift gate, Construction site, Limited
access, Residential deliveries, Reconsignment, or Re-delivery, and High cost service delivery areas) are not included
in Pre-paid Shipments.
**West Penn Wire will pay for standard shipments to Hawaii or Alaska when the order size meets and/or exceeds
$5,000. This does not include partial shipments at the request of the customer.
Odd Length Spools - Random lengths other than standard packages may be available with an additional 15% discount. We reserve the right to ship up to 10% of total order on odd length spools.
Cancelled orders - Subject to a minimum $100.00 service fee.
Standard Terms - Net 30 days, subject to additional terms as stated on reverse side of invoice.
Take advantage of our Quick Pay discount!
1.5% 15 days, net 30
Shipping Policy (Racks/Cabinets)West Penn wire will provide estimated freight charges and will not be liable for charges due to problems that may
occur in transit or upon delivery or not known at the time of the initial quote (accessorial charges). All shipments
leaving WPW-Belden are FOB origin.
Sales Return Policy
Request to Return Material
Customers wishing to return material to West Penn Wire are required to obtain a “Return Material Authorization”
(RMA) number prior to the material being returned. RMA numbers are issued in numerical sequence and expire 90
days from the date of issuance.
All material must be returned in original unopened West Penn Wire packaging. Returned material will only be
accepted if received within six months of the original invoice date.
The issued RMA will provide instructions as to where and how the material is to be returned.
No return authorizations will be issued for discontinued items, warehouse clearance items, special made lengths,
non-catalog items, and fiber.
Returns Due to WPW Error
If a return is necessary due to an error by West Penn Wire the customer will be reimbursed through trade credits for
the material returned and any freight originally paid by the customer. The RMA will provide instructions as to where
and how the material is to be returned. If the material is not returned pursuant to the provided instructions, the customer will be responsible for all freight charges incurred.
Returns Due to Customer Decision
If a return is requested by the customer due to any reason other than a WPW error, the customer will be responsible
for the pro rata share of the original outbound freight if prepaid by WPW and the return freight. Returns will also be
subject to the following restocking charges if received in conformity with the return policy:
* 25% restock charge if there is no replacement order.
* 10% restock charge if there is an equal dollar amount replacement order.
* No restock charge if there is a replacement order that is twice the dollar amount of the original order.
All Content is subject to Change: Consult West Penn Wire
266
Page 17
800-245-4964 • www.westpenn-wpw.com
Technical Reference
WEST PENN WIRE
CABLE WITH CONFIDENCE
Limited Product Warranty - West Penn Wire
I. Limited Product Warranty
The following warranty is exclusive and in lieu of all other warranties, whether express or implied, or statutory,
including, but not by way of limitation, any warranty of merchantability or fitness for any particular purpose.
West Penn Wire (WPW) warrants that the Products are, at the time of delivery to Buyer, free of material and work-
manship defects, provided that no warranty is made with respect to:
(a) any Product which has been repaired or altered in such a way, in WPW’s judgment, as to affect the
Product adversely;
(b) any Product which has, in WPW’s judgment, been subject to negligence, accident or improper storage;
(c) any Product which has not been installed, operated and maintained in accordance with normal practice
and in conformity with recommendations and published specifications of WPW.
At its option, WPW shall repair, replace or refund the purchase price of any non-conforming Products for a period
of ten (10) years from the date of shipment of the Products to Buyer, and such obligation shall be the full extent of
WPW’s liability. WPW’s liability with respect to any material not of WPW’s manufacture shall be limited to the liability
assumed by the vendor(s) of such material. Repairs to, alteration of, or work done on Products warranted by WPW
but without WPW’s prior written authorization shall void WPW’s warranty on the Products.
Upon discovery of a defect, Buyer shall notify WPW in writing within 30 days of discovery of the defect of any
claim whatsoever that Buyer may have with respect to any Products delivered hereunder, and failure to give such
notice within the specified time shall constitute an unqualified acceptance and waiver of all claims with respect to
the Products. Upon receipt of notice from Buyer of non-conforming Products, WPW may inspect such Products at
Buyer’s location or require that they be returned to WPW F.O.B. WPW’s designated location.
II. Exclusivity of Remedy; Limitation of Liability
The remedies provided for in the preceding paragraph shall constitute the sole recourse of Buyer against WPW
for breach of any of WPW’s obligations under this Agreement, whether the claim is made in tort or in contract,
including claims based on warranty, negligence, strict liability, fraud, misrepresentation, or otherwise.
In no event shall WPW be liable for special, indirect, incidental, consequential or punitive damages (regardless of
the form of action, whether in contract or in tort, including negligence), nor for lost profits, nor shall WPW’s liability
for any claims or damage arising out of or connected with this Agreement or the manufacture, sale, delivery or use
of the Products exceed the purchase price of the Products.
Racks/Cabinets/Enclosure Warranty:
Limited Warranty
West Penn Wire- Belden warrants that, for a period of one (1) year following the date of delivery to the original customer, the products it offers for sale in the catalog are free from defects in material and workmanship. The foregoing warranty is subject to the terms, limitations and conditions set forth below.
Components Not Manufactured by West Penn Wire -Belden
Electrical components, air conditioners, fan assemblies, blower units and other components not manufactured by
WPW, but installed in our products, are excluded from this warranty. Only such warranty that may be offered to
WPW's customers by the manufacturer of such item(s) shall apply, subject to the terms, limitations and conditions
thereof
267
SignaMax Product Warranty: 25 years - www.signamax.com
If it's part of the link - the lifeline that keeps your networks running - then it's covered by the Signamax 25-Year
Connectivity/Cabling System Limited Warranty. From our patch panels and 110 cross connect systems to our outlet
products - to the cable that links it all together - our warranty program gives you the assurance that you need in the
world of constant changing network technology. For system warranty, please contact SignaMax. 800-446-2377.
All Content is subject to Change: Consult West Penn Wire
Page 18
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
1100 210
1110 210
1975 66
1991 66
1995 66
210454 143
220 2
221 2,79
222 2
224 2,79,156
225 2,156
226 2,156
227 2,156
230 3
231 3
232 3
234 3
235 3
236 3
238 3
240 4
241 4,79
242 4
244 4,79,157
245 4, 157
246 4, 157
248 4, 157
25186B 28,75
25188B 28,75
252CSVHS 118
25210 162
25221B 26,79
25222B 26
25224B 26,79,156
25225B 26,156
25226B 26,156
25227B 26,156
25231B 27
25232B 28
25234B 28
25235B 28
25236B 29
25240B 27
25241B 27
25242B 28
25244B 28,79,157
25245B 28,157
25246B 29,157
25248B 28,157
25270B 27,75
25271B 27,75
25272B 27,75
25273B 27,75
25274B 27,75
252815 87
252815E 87
252825 118
25290B 30
25291B 30
25292B 30
25293B 30
25294B 30
25295B 30
25296B 30
253CRGB 114
25300B 31
25301B 31
25302B 32
25303B 32
253186B 32,78
253188B 32,78
253241B 31
253244B 32
253270B 31,78
253271B 31,78
253272B 31,78
253274B 31,78
25352B 33,168
25355B 33,168
25357B 33,168
25358B 33,168
25359B 33,168
25372B 33,168
253855B 31,78
254245 94,128,170,174
254246 130,176
25440B 34
25441B 34
255CRGB 103
25510B 36
256100 207
256300 207
256350 124
25751B 29,161
25752B 29,161
25753B 29,161
25806 89
25810 216
25811 90
25812 216
25815 87
25815E 87
25819 120,124
25821 211
25825 84
25841 209
25855B 27,75
25Q821 211
25Q841 209
270 5,73
271 5,73
272 5,73
274 5,73
280 7,74
2806B 88
281 7,74
2815B 86
2815E 86
282 7,74
283 7,74
284 7,74
285 7,74
290 11
291 11
292 11
293 11
294 11
295 11
296 11
3CRGB 114
300 12
301 12
3011 9
302 12
3021 10,77
303 12
3241 8
3244 10
3245 10
3262 9,77
3263 9,77
3264 9,77
3265 9,77
3270 8,76
3271 8,76
3272 8,76
3274 8,76
3280 10
3281 10,71
3282 10,71
3283 10,71
351 13,167
352 13,167
355 13,167
356 13,167
357 13,167
358 13,167
359 13,167
360 13,167
3651 19
3652 19
3653 19
3654 19
369 13,167
373 24
3751 20
3752 20
3753 20
3855 8,76
420 21
422 21
4245 94,128,170,174
4246 130,176
450 14
451 14
452 14
CAT NO. PAGE CAT NO. PAGE
CAT NO. PAGE CAT NO. PAGE
CABLE INDEX
268
Page 19
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
454 - (X)454 15,142
455 15,142
45825 84
4806 89
4811 90
4815 85
5CRGB 102
5000FZ 67
5020FM 69
5020UM 70
5022FM 69
5022UM 70
5100FM 69
5100FZ 67
5100UZ 68
5120FM 69
5120FZ 67
5120UM 70
5120UZ 68
5122FM 69
5122UM 70
5200FM 69
5200FZ 67
5200UZ 68
5220FM 69
5220FZ 67
5220UM 70
5220UZ 68
5222FM 69
5222FZ 67
5222UM 70
5300FM 69
5302FM 69
5320FM 69
5320UM 70
5322FM 69
5322UM 70
6CRGB2P 102
6CRGB4P 102
60164B 55
603164B 59
60700B 55
60975B 59
CAT NO. PAGE CAT NO. PAGE
CAT NO. PAGE CAT NO. PAGE
60977B 59
60980B 55
60982B 55
60990B 59
60990BS 58
60991B 55
60991BS 56
60992B 59
60992BS 60
60993B 55
60993BS 56
60994B 59
60994BS 60
60995B 55
60995BS 56
6100 206
6140 207
6300 208
6310 208
6325 89
6350 124
651 16
652 16
653 16
663 6
700 54
751 17,161
752 17,161
77291 144
77292 144
77293 144
77294 144
77350 18,36
77510 144
806 88
807 216
810 216
810F 216
811 90
812 216
813 216
815 85
815E 85
819 120,124
821 210
825 84
825182 84
841 206
855 5,73
970 66
971 66
972 66
975 58
977 58
980 54
982 54
990 54
990S 56
991 58
992 54
993 58
994 54
994S 56
995 58
995S 60
998 54
998S 56
999 58
999S 60
AC1822 72
AC251822B 72
AC251822B3P 72
AQ224 49,57,159
AQ225 49,57,159
AQ226 49,57,159
AQ227 49,57,159
AQ244 49,57,159
AQ245 49,57,159
AQ246 49,57,159
AQ293 50,61,148
AQ294 50,61,148
AQ295 50,61,148
AQ296 50,61,148
AQ3244 50,61
AQ3245 50,61
AQC188 46,82
AQC224 46,82,158
AQC225 46,57,82,158
AQC226 46,48,57
AQC240 46
AQC2806 48,88
AQC290 45,148
AQC291 45,148
AQC292 45,148
AQC293 45,148
AQC294 48,61
AQC295 48,61
AQC3186 45,81
AQC3274 45,81
AQC3283 45,81
AQC351 44,169
AQC352 44,169
AQC355 44,169
AQC357 44,169
AQC358 44,169
AQC359 44,169
AQC369 44,169
AQC373 44,169
AQC422 47
AQC424 47
AQC430 47,149
AQC432 47,149
AQC434 47,149
AQC439 47,149
AQC806 48,88
AQC815 48,85
AQC819 48
AQC841 48,207
C205 163
C206 163
C207 163
C208 162
C210 162
C2415 37
C2425 37
CC2418 91
CC2416 91
CC252418 91
CC252416 91
D2401 188
D2402 188
D2404 188
D252401 190
D252402 190
CABLE INDEX
269
Page 20
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
D25291 145
D25292 145
D25293 145
D25294 145
D25350 18,36
D253651 191
D253652 191
D25420 189
D25430 147
D25431 147
D25432 147
D25439 147
D25454 143
D254851 80,193
D254852 80,193
D25510 147
D3651 188
D3652 188
D3653 188
D420 189
D430 22,146
D431 22,146
D432 22,146
D433 22,146
D434 22,146
D436 22,146
D438 22,146
D439 22,146
D440 23
D441 23
D442 23
D4851 80,192
D4852 80,192
D4853 192
D4854 192
D60975 63
D60990 63
D975 62
D980 62
D990 62
D991 62
D995 62
DA2401 150
DA2402 150
DA2406 150
DA252401 151
DA252402 151
DA252406 151
E1854 37
HA1624 42,164,221
HA210 160,220
HA225 160,220
HA226 160,220
HA227 160,220
HA245 160,221
HA246 160,221
HD25825 120,124
HD825 120,124
HN5161 222
HN5261 222
HN5262 222
HN5262F 222
HQ841 208
LL5122 64
LL5122SH 65
LL5142 64
LL5142SH 65
LL5144 64
LL5162 64
LL5162SH 65
LL5164 64
LL5164SH 65
LL5182 64
LL5182SH 65
LL5184 64
LL5184SH 65
LSAV 39,120
LS25AV 39,120
LS1822 72
LS251822 72
M57561 94,128,170,174
M57562 94,128,170,174
M57622 176
M58144 128,174
M58145 128,174
M58163 128,174
M58183 128,174
M58186 128,174
M58196 128,174
M58762 94,128,170,174
M58772 176
M58813 41,110,184
M58814 41,110,184
M58854 41,110,184
M58900 130,176
M58892 130,176
M9C006 38,197
M9C014 38,197
M9X039 196
M9X042 196
M9X043 196
M9X043T 198
M9X045 196
M9X045T 198
M9X048 196
M9X048T 198
M9X150 199
M9X152 199
M9X155 199
M9X172 200
M9X175 200
M9X611T 198
PTZ815 92
PTZ25815 93
Q821 210
Q821F 210
Q841 208
TC2975 52
TC2991 52
TC2995 52
WP128P 42,164
WP258255 103
WP258265 103
WP37123 40
WP37125 40
WP37127 40
WP37129 40
WP54980 172
WP54982 172
WP54983 172
WP55211 180
WP55212 180
WP55216 180
WP55253 173
WP55254 173
WP55700 180
WP55826 173
WP56801 180
WP56126 180
WP56129 180
WP56128 180
WP58141 181
WP58142 181
WP58527 181
(X) 454 15,142
CAT NO. PAGE CAT NO. PAGE
CAT NO. PAGE CAT NO. PAGE
CABLE INDEX
270
Page 21
800-245-4964 • www.westpenn-wpw.com
WEST PENN WIRE
CABLE WITH CONFIDENCE
CAT NO. PAGE
CAT NO. PAGE
CAT NO. PAGE
CABLE ACCESSORIES INDEX
065-1100 204
065-1110 204
065-1174 204
065-1120 204
065-1100FS 204
065-1110FS 204
065-1174FS 204
065-1120FS 204
065-11DINNMT 204
065-1000 204
065-1010 204
065-1050ST 204
065-1050SC 204
065-1050SM 204
065-1052ST 204
065-1052SC 204
065-1052SM 204
12458H-C5E 129, 175
12458M-C5E 129, 175, 236
12458M-C6C 133, 179, 236
12458MD-C5E 129, 175, 236
12458MD-C6C 133, 179, 236
12458MH-C5E 232
12458MH-C6C 133, 179, 236
19-1201 152
19-1202 152
19-1207 152
19-1239 165
19-1240 165
19-1268 152
24458A-C5E 232
24458A-C6A 133, 179, 236
24458A-C6C 133, 179, 236
24458MD-C5E 129, 175, 236
24458MD-C6A 133, 179, 236
24458MD-C6C 133, 179, 236
24458S-C5E 129, 175, 236
24458S-C6A 133, 179
24458S-C6C 232
25-7290 152
32-6EZP 111, 131
32-EZP 94, 111, 128, 174
32-EZSTP 128, 174
32-1900-xx 177
3M-2501 203
3M-2529 203
40-9515HDM 105
40-9515HDS 105
40-9709HS 105
44-A3F 152
44-A3M 152
48458A-C5E 236
48458A-C6A 133, 179, 236
48458A-C6C 133, 179, 236
48458HD-C5E 129, 175, 234
48458HD-C6A 133, 179, 236
48458HD-C6C 133, 179, 236
48458MD-C5E 129, 175, 236
48458MD-C6A 133, 179, 236
48458MD-C6C 133, 179, 236
48458S-C6A 133, 179, 236
8911-0100 241
9010-1912 243
9010-1924 243
9011-0918 242
9011-1918-16 243
9012-1918 242
9012-1918-16 242
9013-1924 242
9015-1909 242
9318-0150 244
9318-0200 244
9318-0300 244
9318-0500 244
9318-0512 244
9318-0513 244
9318-0550 244
9318-0560 244
9321-0100 244
9411-1602 244
9412-0801 244
9413-0601 244
9414-0602 244
9415-1601 244
9415-1603 244
9415-1610 244
9415-1614 244
9415-2002 244
9416-0803 244
9416-0804 244
9416-1005 244
9416-2002 244
9416-2005 244
9416-2006 244
9420-1905 243
9420-1906 243
9510-1901 242
9511-1902 242
9512-1901 242
9512-1902 242
9512-1902-FR 242
9512-1903 242
9513-1902 242
9910-0100 242
9911-0200 242
9912-0300 242
9913-0400 242
AS-WC06M 204,233
AS-WC06G 204,233
AS-WC06S 204,233
AS-WC12M 204,233
AS-WC12G 204,233
AS-WC12S 204,233
AS-WL12M 204,233
AS-WL12G 204,233
AS-WL12S 204,233
AS-WL24M 204,233
AS-WL24G 204,233
AS-WL24S 204,233
AS-WT06M 204,233
AS-WT06S 204,233
AS-WT12M 204,233
AS-WT12S 204,233
AX101309 94, 129, 175
AX101310 94, 129, 175
AX101311 94, 129, 175
AX101312 94, 129, 175
AX101313 94, 129, 175
AX101314 94, 129, 175
AX101315 94, 129, 175
AX101318 131, 177
AX101319 131, 177
AX101320 131, 177
AX101321 131, 177
AX101323 131, 177
AX101324 131, 177
AX101325 131, 177
AX101326 131, 177
BHR6194 232
BHRR194 232
BHRR234 232
C5EC-114CC-XX 129, 175
C6AS-314GY-XXFB 133, 178
C6C-114CC-XXFB 133, 178
C6CS-314GY-XXFB 132, 178
CMK-110RCAB 185
CMK-110RCAG 185
CAT NO. PAGE
CMK-110RCAR 185
CMK-110RCAW 185
CMK-110RCAY 185
CMK-110SVHS 185
CMK-BA 185
CMK-BL 185
CMK-BNC75 185
CMK-F3 185
CMK-LC 185
CMK-RA 185
CMK-RCAB 185
CMK-RCAG 185
CMK-RCAR 185
CMK-RCAW 185
CMK-RCAY 185
CMK-SC 185
CMK-ST 185
CMP-175-A 133, 175, 179, 242
CMP-175-AD 133, 175, 179, 242
CMP-350-A 133, 175, 179,242
CMP-350-AD 133, 175, 179, 242
CN-071D3.5-XX 185
CN-071DSPK-XX 185
CN-111S90H34 131, 177
CN-1401405012 131, 177
CN-1RUSPK12 166, 235
CN-1RUSPK12TB 166, 235
CN-1RUSPK16 166, 235
CN-1RUSPK16TB 166, 235
CN-1RUXLRF12 154, 235
271
Page 22
CN-1RUXLRF12TB 154, 235
CN-1RUXLRF6 154, 235
CN-1RUXLRF6TB 154, 235
CN-1RUXLRM12 154, 235
CN-1RUXLRM12TB 154, 235
CN-1RUXLRM6 154, 235
CN-1RUXLRM6TB 235
CN-255CRGB-xx 107
CN-25810KBNC 217
CN-25810TNC 217
CN-25VGAAVA-xx 108
CN-2RUXLRF24 154, 235
CN-2RUXLRF24TB 154, 235
CN-2RUXLRM24 154, 235
CN-2RUXLRM24TB 154, 235
CN-342B-xx 153
CN-35FFSP 153
CN-3CRGB-xx 115
CN-40HDMI-xx 137
CN-454SM-xx 153
CN-50VB10 97
CN-5CRGB-xx 107
CN-F6MCV 212
CN-705xx 94, 129, 175
CN-706xx 131, 177
CN-7B25825**-xx 95
CN-7B815BK-xx 95
CN-7B819BK-xx 126
CN-7B825**-xx 95
CN-8006589 100
CN-8006667 100
CN-807BMNM-xx 218
CN-807BMTM-xx 218
CN-807NMNM-xx 218
CN-807TMNM-xx 218
CN-807TMTM-xx 218
CN-807UMUM-xx 218
CN-810BMNM-xx 218
CN-810NMNM-xx 218
CN-812BMTM-xx 218
CN-812TMTM-xx 218
CN-812UMUM-xx 218
CN-ADP-ST 99
CN-ADP-ST75 99
CN-ADP101 212
CN-ADP102 212
CN-ADP103 100
CN-ADP106 100
CN-ADP205 217
CN-ADP207 217
CN-ADP500 99, 217
CN-ADP501 100
CN-ADP503 99
CN-ADP504 99, 217
CN-ADP505 99
CN-ADP506 99
CN-ADP511 99
CN-ADP512 99, 217
CN-ADP515 100
CN-ADP516 99
CN-ADP523 99
CN-ADP559 99
CN-ADP6BNK 98, 214, 233
CN-ADP703 99
CN-ADP705 99
CN-ADP721 99
CN-ADP755 99
CN-ADP805 217
CN-ADP807 99, 217
CN-ADPBISO 98, 233
CN-ADPBMTF 215
CN-ADPBNC 98, 233
CN-ADPBNCE 98, 233
CN-ADPBNFF 217
CN-ADPBNFM 217
CN-ADPBNMM 217
CN-ADPBTFF 217
CN-ADPBTFM 217
CN-ADPBTMM 217
CN-ADPF81 214, 233
CN-ADPF81E 214, 233
CN-ADPNMTF 217
CN-ADPNNJJ 217
CN-ADPNNJJT 217
CN-ADPNNPP 217
CN-ADPNTFF 217
CN-ADPNTFM 217
CN-ADPNTMM 217
CN-ADPTTJJ 217
CN-ADPTTJJT 217
CN-ADPTTPP 217
CN-AH16PRJ45BNC 97, 236
CN-AH32PRJ45BNC 97, 236
CN-A2R-1-SFP 250
CN-BF74-18 95
CN-BM53-25 217
CN-BM53-8X 217
CN-BM73-3 95
CN-BM73-4 95
CN-BM73-5 95
CN-BM74-18 95
CN-BM74-19 95
CN-BM74-32 95
CN-BNCE-16 98
CN-BNCE-32 98
CN-BNCE-48 98
CN-BNCIL-16 98, 235
CN-BNCIL-32 98, 235
CN-BNCIL-48 98, 235
CN-BNCJ 97
CN-BNCJKS 97
CN-BNCL-16 98
CN-BNCL-32 98
CN-BNCL-48 98
CN-BNC59MCV 95, 105
CN-BNC6MCV 95, 105
CN-BNCP-825 95, 105, 109
CN-BNCP-RGB 95, 105, 115,
CN-BNRCIL-16 235
CN-BNRCIL-32 235
CN-BPX-24B 165
CN-CATVF 214
CN-CATVRCAKS 214
CN-CSBNC-11 95
CN-CSBNC-25 95,105
CN-CSBNC-26 105,115
CN-CSBNC-59 95, 105
CN-CSBNC-6 95, 105
CN-CSF-6 212
CN-CSRCA-25 106
CN-CSRCA-26 106, 115
CN-CSRCA-59 106
CN-CSRCA-6 106
CN-DB15BNCHD 106
CN-DB1BNCHD 106
CN-DB59BNCHD 106
CN-DB6BNCHD 106
CN-DW28 238
CN-DW28AVHD 238
CN-DW28L 238
CN-DW28RGBHD 238
CN-E08DM-DF-XX 139
CN-E08DM-DM-SXX 139
CN-E08DM-DM-XX 139
CN-E11HDMI-FF 139
CN-E11HDMI-FFP 139
CN-E11HF-DM 139
CN-E11HM-DF 139
CN-E3.5MM-xx 153
CN-E3BNC-xx 115
CN-E3RCA-xx 115
CN-EQL-FF-B 127
CN-EQL-FF-FA-B 127
CN-ERCA-AVxx 121
CN-EVGA-xx 107
CN-EZ01A-xx 109,248
CN-EZ01B-xx 117,246
CN-EZ01C-xx 127,249
CN-EZ02A-xx 109,248
CN-EZ02B-xx 117,246
CN-EZ02C-xx 127,249
CN-EZ3BNC-FP 117,246
CN-EZ3BNC-xx 117,246
CN-EZ4RCA-FP 117,246
CN-EZ4RCA-xx 117,246
CN-EZ5BNC-FP 117,246
CN-EZ5BNC-xx 117,246
CN-EZ5RCA-FP 117,246
CN-EZ5RCA-xx 117,246
CN-EZD14A-FP 109,248
CN-EZD14B-FP 117,119,122,246
CN-EZD19-FP 127,249
CN-EZDVID-FP 127,249
CN-EZDVID-xx 127,249
CN-EZDVID35-FP 127,249
CN-EZHD15-FP 109,248
CN-EZHD15-xx 109,248
CN-EZHD1535-FP 109,248
CN-EZHD1535M-xx 109,248
CN-EZHDMI-FP 127,249
CN-EZHDMI-xx 127,249
CN-EZMD4-FP 119,122,246
CN-EZMD4-xx 119,246
CN-EZMD4-xx 122,246
CN-EZRGB-FP 117,246
CN-EZRGB-xx 117,246
CN-EZRWY-FP 122,246
CN-EZRWY-xx 122,246
CN-EZSTP-EG 177
CN-F11ALX 212
CN-F11TFE 212
CN-F56ALM 212
CN-F56ALX 212
CN-F56AQ 212
CN-F56TFE 212
CN-F59T 212
WEST PENN WIRE
CABLE WITH CONFIDENCE
CAT NO. PAGE
CAT NO. PAGE CAT NO. PAGE CAT NO. PAGE
800-245-4964 • www.westpenn-wpw.com
CABLE ACCESSORIES INDEX
272
Page 23
WEST PENN WIRE
CABLE WITH CONFIDENCE
CABLE ACCESSORIES INDEX
CN-F59TFE/WP 212
CN-F6MCV
212
CN-F71 212
CN-F81 212
CN-F81NW 212
CN-FCP-59 212
CN-FCP-825 212
CN-FS11PL 212
CN-FS11V 212
CN-FS59BNCPL4 95, 105
CN-FS59RCAPL4 106
CN-FS6BNCPL2 95
CN-FS6PL2 212
CN-FS6RCAPL2 106
CN-FSCR 105
CN-H16PRJ45 97, 236
CN-H16PRJ45BNC 97, 236
CN-H16STRJ45 97, 236
CN-HD15FF 105
CN-HD15FST 105
CN-HD25825**-xx 126
CN-HDMI-DVI-xx 137
CN-HDVGAAP-xx 108
CN-IW38Rxx 106
CN-MD4FFN 119
CN-MDP8 165
CN-MDPM-DVIF 140
CN-MDPM-HDMI 140
CN-MDPM-VGAF 140
CN-MT-75 99
CN-MTL 97
CN-MTL2 97
CN-MUHF-1 217
CN-MUHF-807 217
CN-MX15F 105
CN-MX15M 105
CN-MX35 153
CN-MX35M 152
CN-MX915H 105, 194
CN-MX9F 105, 194
CN-MX9M 105, 194
CN-MXRCA 106
CN-NC3FDL1 153
CN-NC3FDLB 153
CN-NC3FDLBAG 153
CN-NC3FDS1B 153
CN-NC3FX 152
CN-NC3FXB 152
CN-NC3FXBAG 152
CN-NC3MDS1B 153
CN-NC3MX 152
CN-NC3MXB 152
CN-NC3MXBAG 152
CN-NL4FC 165
CN-NL4FX 165
CN-NL4FX2 165
CN-NL4FX4 165
CN-NL4FX5 165
CN-NL4FX9 165
CN-NL4MMX 165
CN-NL4MP 165
CN-NL4MPST 165
CN-NM53-25810 217
CN-NM53-25812 217
CN-NM53-812 217
CN-NM53-8X 217
CN-NM53/110 217
CN-NP2C 152
CN-NP2CBAG 152
CN-NP2X 152
CN-NP2XB 152
CN-NP2XBAG 152
CN-NP3C 152
CN-NP3CBAG 152
CN-NP3X 152
CN-NP3XB 152
CN-NP3XBAG 152
CN-NYS230 153
CN-NYS231 152
CN-NYS231B 152
CN-NYS373-xx 152
CN-PL-103F 154, 240
CN-PL-103M 154, 240
CN-PL-103STF 154, 240
CN-PL-203F 154, 240
CN-PL-203M 154, 240
CN-PL259-1 217
CN-R013EQLFA-B 135
CN-R013EQLFF-B 135
CN-R013EQLMF-01 127, 135
CN-R013EXT-C6 136
CN-R013EXT-C6JP 136
CN-R013EXT-C6JR 136
CN-R013EXT-C6JT 136
CN-R013EXT-C6RX 136
CN-R013EXT-C6TX 136
CN-R014EXT-VAIR 136
CN-R014SPL-102 134
CN-R014SPL-104 134
CN-R014SWT-201 134
CN-R014SWT-201 134
CN-R01EXT-HSL 135
CN-R01EXT-HSLRX 135
CN-R01EXTHSL-JP 135
CN-R01EXTL-RX-F 135
CN-R01EXTL-RX-J 135
CN-R01SPLL-102 134
CN-R01SPLL-104 134
CN-R01TEXT-TR 135
CN-R02EXT-35FP 111, 183
CN-R02EXT-C5E 111, 183
CN-R02EXT-C5E35 111, 183
CN-R02EXT-FP 111, 183
CN-R02EXT-PA 139
CN-R02SPL-102 111, 183
CN-R02SPL-PNL 139
CN-R02TEXT-35JP 111, 183
CN-R02TEXT-JP 111, 183
CN-R02TEXT-RS 111, 183
CN-R02TEXT-RSFP 111, 183
CN-R03EXT3BNC 116
CN-R03EXT3BNCFP 116
CN-R03EXT3BNCX 116
CN-R03EXT4RCA 116
CN-R03EXT4RCAFP 116
CN-R03EXT4RCAX 116
CN-R03EXTRGB 116
CN-R03EXTRGB-FP 116
CN-R03EXTRGBX 116
CN-R03EXTRWY 121
CN-R03EXTRWY-JP 121
CN-R03EXTRWYX 121
CN-R042EXT-C5E 140
CN-R042HUB-104 140
CN-R042HUB-104A 140
CN-R05EXT-4FB 204
CN-R05EXT-TR 138
CN-R05EXT-TRRX 138
CN-R05EXTDSL-HP 138
CN-R05EXTDSL-RX 138
CN-R05EXTDSL-TX 138
CN-R05EXTLHP-JP 138
CN-R05EXTLRX-JP 138
CN-R05EXTLTX-JP 138
CN-R05SPL-102 138
CN-R05SPL-104 138
CN-R06CVTDVI 140
CN-R06CVTHDMI 140
CN-R06CVTHDMI-xx 140
CN-R06CVTVGA 140
CN-R06CVTVGA-xx 140
CN-R09IPAD4IN1 140
CN-R09EXTIP-HSL 140
CNR09EXTIPVGA35 140
CN-RCAIL-16 235
CN-RCAIL-32 235
CN-RCAIL-48 235
CN-RCAMTL 121
CN-RCARJ45 121
CN-RCATL 121
CN-RCA59-MCV 106
CN-RCA6-MCV 106
CN-RCP-825 106
CN-RCP-RGB 106, 115
CN-RJ45 97
CN-RJ45PT 97
CN-RR 105
CN-SB12-xx 165
CN-SB14-xx 165
CN-SB16-xx 165
CN-SHRDVI-xxm 139
CN-SHRHD-DV-xxm 137
CN-SHRHDMI-xxm 137
CN-SM3.5F 152
CN-SMTSM-xx 153
CN-SS12-xx 165
CN-SS14-xx 165
CN-SS16-xx 165
CN-SS1GSPK 166, 240
CN-SS2GSPK 166, 240
CN-STPT2 97
CN-SVHS-M 119
CN-TCS415PST 119
CN-TL 97
CN-TM53-1 217
CN-TM53-25812 217
CN-TM53-807 217
CN-U04DB9-3 140
CN-UM52-25810 217
CN-UM52-807 217
CN-UM52-810 217
CN-VACP-2-SFP 250
CN-VACPK-2-DFP 250
CN-VACP-1-SFP 250
CN-VACPK-1-DFP 250
CN-VACP-1-XX 250
CAT NO. PAGE CAT NO. PAGE
CAT NO. PAGE CAT NO. PAGE
273
Page 24
CN-VR-1-SFP 250
CN-VGAAVA-xx 108,250
CN-VGAMM-xx 108,250
CN-XPXJ-xx 153
CN-XPXJDIG-xx 153
CN-xx2G2HA3R 239
CN-xx2G2HAT3R 239
CN-xx2GCL1 239
CN-xx2GCL1TB 239
CN-xx2GCL2 239
CN-xx2GCL2TB 239
CN-xx2GCL3 239
CN-xx2GCL3TB 239
CN-xx2GCL4 239
CN-xx2GCL4TB 239
CN-xx2GCL7 239
CN-xx2GCL7TB 239
CN-xx2GHAT3RSA 239
CN-xxHD2R 237
CN-xxHD3.5 237
CN-xxHD3R 237
CN-xxHD3R3.5 237
CN-xxHD3RS3.5 237
CN-xxHDAD 238
CN-xxHDAH 238
CN-xxHDS 237
CN-xxHDTB2R 237
CN-xxHDTB3.5 237
CN-xxHDTB3.5T 238
CN-xxHDTB3R 237
CN-xxHDTB3R3.5 237
CN-xxHDTB3R3.5T 108, 238
CN-xxHDTB3RS3.5 237
CN-xxHDTBAD 238
CN-xxHDTBAH 238
CN-xxHDTBS 237
CN-xxHDTBV 238
CN-xxHDV 238
CN-xxV3.5 237
CN-xxV3.5TB 237
CN255CRGBHDFxx 107
CN255CRGBHDMxx 107
CN255CRGHDFMxx 108
CN255CRGHDMMxx 108
CN255CRGKBHMxx 113
CN255CRGKHMFxx 113
CN255CRGKHMXxx 113
CN255CRGKHTBxx 113
CN258263RCAxx 115
CN5CRGKBHMxx 112
CN5CRGKHMFxx 112
CN5CRGKHMXxx 112
CN5CRGKHTBxx 112
CN7BHD825**xx 126
CND2404DB9-xx 194
CND2404FF9-xx 194
CND2404MF9-xx 194
CND25430RASxx 153
CNHD25825**Rxx 121
CNHD825**RCAxx 121
CNLS25AVRCAxx 121
DGF-12 186
DGF-MB 186
DKF-12 184
DKF-6 184
DKF-8 184
DKFL-12 184
DKFL-6 184
DLF6-XX 179
DSKF-12 184
DSKF-6 184
DTB252825- xx 119
DTB252CSVHS-xx 119
DTB2825-xx 119
DTBK252CSVHSxx 119
DTD252825-xx 119
DTD252CSVHS- xx 119
DTDE-(Length) 119
FI-0028 202
FI-0029 202
FI-0850 204
FI-1074 202
FI-1075 202
FI-1076 202
FI-1077 202
FI-1100 203
FI-1101 203
FI-1300 203
FI-1550 203
FI-1791 202
FI-1792 202
FI-1793 202
FI-1794 202
FI-19202 203
FI-1981 202
FI-1982 202
FI-1983 202
FI-1984 202
FI-3634 202
FI-3635 202
FI-3641 202
FI-4240 202
FI-4241 202
FI-4242 202
FI-4243 202
FI-4244 202
FI-4245 202
FI-4246 202
FI-4247 202
FI-4248 202
FI-4249 202
FI-4250 202
FI-4251 202
FI-4270 202
FI-5000 204
FI-6211 203
FI-6212 203
FI-6311 203
FI-8102 203
FI-8200 203
FI-8300 203
FI-8400 203
FI-8400APC 203
FI-8513 206
FI-8521 203
FI-8829 202
FI-8832 202
FI-8835 202
FI-8837 202
FI-9699 203
FI-ADPBNK 204, 229
FI-ADP6LCL 204
FI-ADP6S/MSTL 204, 233
FI-ADP6SCE 204, 233
FI-ADP6SCL 204, 233
FI-ADP6SMSTL 204, 233
FI-ADP6STE 204, 233
FI-ADP6STL 204, 233
FI-DLCFF 203
FI-FT900 203
FI-RM24 98, 204, 214
FI-RM48 98, 204, 214
FI-RM72 98, 204, 214
FI-RME24STL 204
FI-RME48STL 204
FI-SCLFF 203
FI-SPTRME 203
FI-WM100 98, 204, 233
FI-WM12 98, 204, 233
FI-WM24 98, 204, 233
FI-WM48 98, 204, 233
FI-WME06STL 98, 204
FI-WME12STL 98, 204
FI-X001-xx 201
FI-X001-xxLC 201
FI-X001-xxLC/SC 201
FI-X001-xxSC 201
FI-X001-xxST/SC 201
FI-X002-xx 201
FI-X002-xxLC 201
FI-X002-xxLC/SC 201
FI-X002-xxSC 201
FI-X002-xxST/SC 201
FI08513 204
GHS-2 213
GHS-4 213
GHS-8 213
HWB-175 133, 175, 179, 242
HWB-350 133, 175, 179, 242
HWB-525 133, 175, 179, 242
KJMT-8600 175
KJS458TL-C5E 128, 175
KJS458MT-C5E-xx 94, 128, 175
KJS458MT-C6A-xx 177
KJS458TL-C6A 131, 177
KJS458TL-C6C 131, 177
KRJ45/5S 94, 128, 175
KRJ45/6S 177
KRJ45/6S-SH 177
PP-W1U1 204,233
PP-W2U1 204,233
PP-W4U1 204,233
PP-WM1S 204,233
PP-WM2S 204,233
PP-WM4S 204,233
RMD2 242
RMD3 242
RMD4 242
RMD5 242
SCM-1BNC 186
SCM-1BNC-A 186
SCM-1F 186
SCM-1F-A 186
SCM-1LC 186
SCM-1LC-C 186
SCM-1RCA-W 186
WEST PENN WIRE
CABLE WITH CONFIDENCE
800-245-4964 • www.westpenn-wpw.com
CABLE ACCESSORIES INDEX
CAT NO. PAGE
CAT NO. PAGE
CAT NO. PAGE
CAT NO. PAGE
274
Page 25
WEST PENN WIRE
CABLE WITH CONFIDENCE
CABLE ACCESSORIES INDEX
SCM-1RCA-W-A 186
SCM-1VGA 186
SCM-1VGATB 186
SCM-2BNC 186
SCM-2BNC-A 186
SCM-2F 186
SCM-2F-A 186
SCM-2LC 186
SCM-2LC-C 186
SCM-2RBA 186
SCM-2RBA-A 186
SCM-2RCA-WR 186
SCM-2RCA-WR-A 186
SCM-2SC 186
SCM-2SC-C 186
SCM-2ST 186
SCM-2ST-C 186
SCM-3RCA-RGB 186
SCM-3RCA-WRY 186
SCM-3RCARGBA 186
SCM-3RCAWRYA 186
SCM145-C5E 186
SCM145-C6C 186
SCM245-C5E 186
SCM245-C6C 186
SPL-648 179
SGF-06 186
SKF-1 184
SKF-2 184
SKF-3 184
SKF-4 184
SKF-6 184
SKFL-1 184
SKFL-2 184
SKFL-3 184
SKFL-4 184
SKFL-6 184
SMB-350 133, 175
SSKF-1 184
SSKF-2 184
SSKF-3 184
SSKF-4 184
SSKF-6 184
SSKFL-1 184
SSKFL-2 184
SSKFL-3 184
SSKFL-4 184
SSKFL-6 184
TL-104 96
TL-105 96
TL-107 96
TL-110/66 175
TL-111 213
TL-112 213
TL-113 96
TL-115 96, 213
TL-119 96, 213
TL-133 213
TL-1933A 96
TL-3650 175
TL-4006 96
TL-548G 96, 213
TL-59-6 213
TL-7502 213
TL-7503 96
TL-803 96
TL-825 96
TL-8808 213
TL-CCT-SS59/11 213
TL-CSBNC-11 96
TL-CSST 96, 213
TL-EZRJ45 94, 111,128, 174
TL-KLEIN 96
TL-PS11 96, 213
TL-SNS11 213
TL-SNSA 96, 213
TRJ45P 175
WP-4236CC-XX 132, 178
WP-66CC-XX 128, 175
WPCR-8419 98, 232
WPDR-4819 98, 232
WPDR-7219 98, 232
WPDR-8419 98, 232
XBS-11-0011 243
XBX-18-0011 243
XCT V12 243
XCT V18 243
XCT V24 243
XDP - SERIES 229
XDR-4819 232
XDR-7201 232
XDR-7219 232
XDR-8401 232
XDR-8403 232
XDR-8419 232
XDR-8419-310 232
XDR-8419-310W 232
XDR-8419-312 232
CAT NO. PAGE
CAT NO. PAGE
275
XDR-8419-312W 232
XDR-8423-310 232
XDR-8423-310W 232
XDR-8423-312 232
XDR-8423-312W 232
XME - SERIES 224
XMEBK01 243
XMEEG01 243
XMEFVC 243
XMER 226
XMERSB 243
XMESVC 243
XMEW22 242
XMFCTM 243
XSL - SERIES 230
XST - SERIES 228
XWM-2401 234
XWM-2406-GD-3 234
XWM-2406-SD-3 234
XWM-2420-GD-3 234
XWM-2420-SD-3 234
XWM-2424-GD-3 234
XWM-2424-SD-3 234
XWM-3601 234
XWM-3606-GD-3 234
XWM-3606-SD-3 234
XWM-3620-GD-3 234
XWM-3620-SD-3 234
XWM-3624-GD-3 234
XWM-3624-SD-3 234
XWM-4801 234
XWM-4806-GD-3 234
XWM-4806-SD-3 234
XWM-4820-GD-3 234
XWM-4820-SD-3 234
Page 26
A. RGB/HV- Red, Green, Blue, Horizontal and Vertical Sync
Application: Connection between video scalers and PC’s
to plasma screens or other video output devices
• Bulk Cable pgs- 102-104 • Cable Assemblies- pgs 107-108
• 75Ω BNC Connectors - pg.105 • Install Kits- pgs. 112-113
• Wall plates - pgs. 135-137
B. VGA (Video Graphics Array) - High Density 15 pin - HD15 inputs.
Application: Connection between PC’s to plasma screen
or projectors.
• Bulk Cable pgs- 102-104 • Cable Assemblies- pgs 107-108
• VGA Connectors - pg.105 • Install Kits- pgs. 112-113
• Wall plates - pgs. 135-137
• Digital Signage VGA Products over Nanoskew- pg. 110-111
C. HDMI- High Definition Multimedia Interface
Application: Connection for HDTV, Digital Audio, and
IR communication between AV equipment.
• Cable Assemblies/ Extender over Cat5E/6- pg. 134-137
DVI- Digital Visual Interface
Application: Connection for HDTV, and other Digial Video
• Cable Assemblies/ Extender over Cat5E/6- pg. 138-139
Displayport pg. 140
USB pg. 140
. Component Video- RCA or BNC - Y, Pb, Pr
Application: Consumer Analog Television for
resolutions up to 1080i.
• Bulk Cable pgs- 114 • Cable Assemblies- pgs 115
• RCA Connectors - pg.115
S-Video- SVHS- Super Video
Application: Y/C - Separation of Luminance/Chrominance for better
quality video signals
• Bulk Cable pgs- 118 • Cable Assemblies- pgs 119
• 4 Pin Mini Connectors - pg.119
Composite Video - BNC or RCA
Application: Standard video signalling. All video signals travel
within one coaxial cable.
• Bulk Cable pgs- 120 • Cable Assemblies- pgs 102
• RCA Connectors - pg.111 • 75Ω BNC Connectors - Pg.105
• Wall plates - pgs. 135-137
CATV- Cable Antenna Television
Application: CATV/MATV, Broadband signals
• Bulk Cable pgs- 204-209 • “F” Connectors - pg. 210
• Installation Tools - pg. 211
RS-232 - Control/ Serial DATA:
• Bulk Cable pgs-188-191 • dB9 Connectors - pg. 192
A. 3.5mm- Mini Phone Jack
Application: Audio from computer to output - line level
Small sized
• Bulk Cable pgs- 142-151 • Cable Assemblies- pgs 153
• 3.5mm Connectors - pg.152-153
B. 1/4”- Phone Jack
Application: Microphone inputs
• Bulk Cable pgs- 142-151 • 1/4” Connectors - pg.152-153
C. XLR- 3 Pin - Cannon “X” Series- L-Latched- R- Rubber
Most common audio connector used in professional, commercial,
and music applications
Application: Line level balanced audio signalling.
• Bulk Cable pgs- 142-151 • XLR Connectors - pg.152-153
D. Speakon- Loadspeaker
Application: Connection between amplifier and loadspeaker
Long wearing, locking connector
• Bulk Cable pgs- 156-164 • Speakon Connectors - pg.165
• Cable Assemblies- pg.165
E. RJ45- Data Connector- Registered Jack - 8 pin
Application: Data connections
Category 5E: pg.174-175
Category 6: pg. 176-179
Category 6A: pg. 176-179
USB - A and B - Connect Computer Devices and Smartboards
• Over Cat5E Extender - pg. 140
F. ST- Fiber optic connector- Bayonet Style- Straight Tip
Application: Fiber Optic Connections
G. SC- Fiber optic connector- Subscriber connector- Push Pull Style
Application: Fiber Optic Connections
H. LC- Fiber Optic Connector- Local connector - Small formed factor
Application: Fiber Optic Connections
• Bulk Cable pgs. 194-197 • Cable Assemblies- pg. 198
• Connectors/ Kits - pg.200
• Install Tools - pgs. 201 • Testing Equipment - pg. 202
VIDEO
AUDIO AND DATA
A
B
C
D
E
F
G
A
B
C
D
E
F
G
H
H
276
Loading...
