RF Coaxial Cables

RF 50Ω Coaxial cables are designed and intended to carry power and voltage. 50Ω is a compomise in the impedance of the cable to allow these functions to be performed.

50Ω cables can range in their impedance from 47Ω to 52Ω. There is not an ideal impedance, but 50Ω has been set for a performance benchmark.

There are many 50Ω applications:

• RF - Radio

• Low Power

• Emergency Antenna

• Repeater/Translator

• Television

• Low Power

• Repeater/Translator

• STL - Studio Transmitter Link

• Microwave Links

• RPU - Remote Program Units

West Penn Wire offers a line of RG8/U, RG8x/U, and RG58/U - 50Ω coaxial cables. Also included are 50Ω BNC, TNC, N and UHF Connectors, Adapters, and Cable

Assemblies.

WEST PENN WIRE

CABLE WITH CONFIDENCE

215

TNC - Threaded Neill-Concelman - Threaded Version of a BNC (Bayonet Style). A TNC can be either 50Ω or 75Ω Impedance, but most applications will call for a 50Ω Impedance. The TNC has great performance at microwave frequencies.

“N” Type - Neill Connector - Threaded RF connector. The “N” Type connector is used for microwave frequencies.

UHF and/or Mini UHF - Threaded RF connector. The UHF connector is used widely in band radio frequencies.

800-245-4964 • www.westpenn-wpw.com

RF Coaxial Cables

RG58/U Type……………………………………… RG8/U Type …………………………… RG8x/U Type……………………………………

RF ACCESSORIES

TNC, N Type, and UHF Connectors …………… RF Adapters ……………………………… RF Assemblies …………………………

216 216 216

217 217 218

RF Transmission 50 Ohm Coaxial

RG58/U - RG58A/U - RG8/U - RG8x/U Type

Applications:

• RF Transmission

• Broadcast Transmission

• Wireless Communication Standard spool size 1000ft.

Catalog

No.

NEC

Type

Conductor

Type &

Nom. D.C.R

Insulation

Type & Thick-

ness

Shielding

% Coverage

Jacket Type Nom.

O.D.

Nom.

Capacitance

Nom.

Imp.

Jacket

Color

812

RG58A/U

Type

20 (19x32)

Tinned Cop-

per

8.8 Ω/M’

Gas Injected

PE† .116

Tinned

Copper

Braid

95%

PVC .195 25 pf/ft 78% 50Ω Black

813

RG-58/U

Type

20 (Solid)

Tinned Cop-

per

10.1 Ω/M’

Gas Injected

PE†

.116

Tinned Copper

Braid

95%

PVC .195 26 pf/ft 78% 50Ω Black

25812

RG-58/U

Type

Plenum

CMCMP

20 (19x32)

Tinned Cop-

per

8.8 Ω/M’

Foam

FEP

.102

Tinned Copper

Braid

95%

Flex

Plenum .158 25 pf/ft 82% 50Ω Ivory

810

RG-8/U Type

12 (7x20)

Bare Copper

1.9 Ω/M’

Gas Injected

PE†

.280

Bare

Copper

Braid

95%

PVC .405 26 pf/ft 80% 50Ω Black

25810

RG-8/U Type

Plenum

CMCMP

12 (7x20)

Bare Copper

1.9 Ω/M’

Foam

FEP

.280

Bare

Copper

Braid

95%

Copolymer .352 25 pf/ft 80% 50Ω Natural

810F

RG-8/U Type

Flexible

12 (7x20)

Bare Copper

1.9 Ω/M’

Gas Injected

PE†

.285

Bonded Bifoil

100%

Tinned

Copper

Braid 90%

Poly-

urethane

.405 26 pf/ft 80% 50Ω Black

See connector listings

807

RG-8X/U

Type

Flexible

16 (19x29)

Bare Copper

4.3 Ω/M’

Gas Injected

PE†

.155

Bare

Copper

Braid

95%

PVC .242 25 pf/ft 82% 50Ω Black

Inches

RF Coaxial Cables

CAT. NO. 1 MHz 10 MHz 50 MHz 100 MHz 200 MHz 400 MHz 900 MHz 1 GHz

4 GHz

812

.5 1.3 3.2 4.6 6.8 10.1 16.7 18.2

813

.6 1.5 3.5 4.8 6.9 10.2 16.8 18.3

25812

.5 1.3 3.2 4.6 6.8 10.1 16.7 18.2

810

.2 .6 1.3 2.0 2.8 4.0 6.8 7.3 22.3

25810

.2 .6 1.3 2.0 2.8 4.0 6.7 7.2 22.2

810F

.2 .6 1.3 2.0 2.8 4.0 6.8 7.3 22.3

807

.3 .9 2.1 3.1 4.5 6.6 10.7

Electrical Specifications: Attenuation (db/100ft)

800-245-4964 • www.westpenn-wpw.com

WEST PENN WIRE

CABLE WITH CONFIDENCE

See connector listings

216

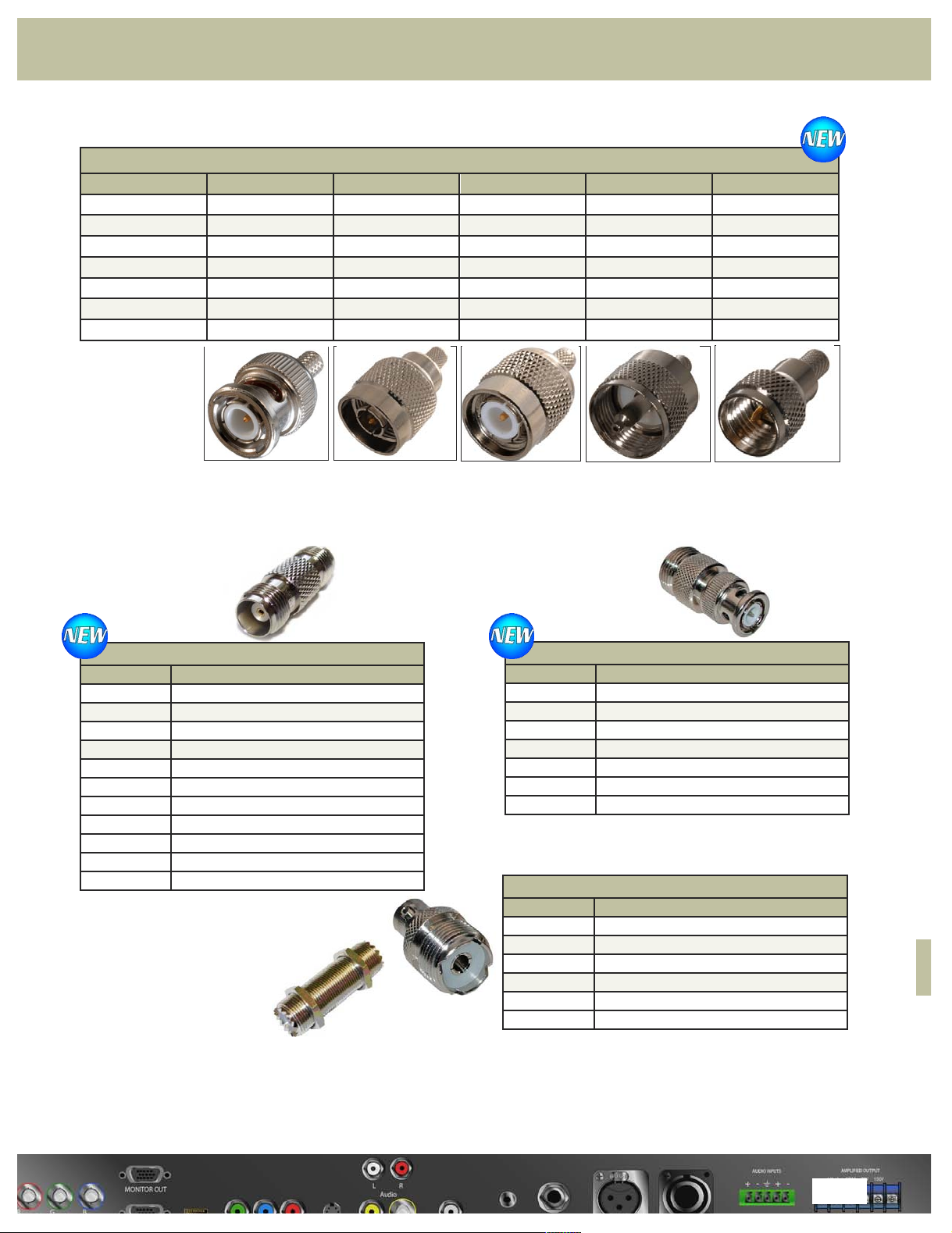

RF Connectors

RF Coaxial Connectors/Adapters

WEST PENN WIRE

CABLE WITH CONFIDENCE

Adapters

Straight Plug Male Connectors

Catalog No. 50Ω BNC 50Ω TNC 50Ω “N” Type UHF Type Mini UHF Type

812 CN-BM53-13 CN-TM53-1 CN-NM53-812 CN-PL259-1 CN-MUHF-1

25812 CN-BM53-25 CN-TM53-25812 CN-NM53-25812

813 CN-BM53-13 CN-TM53-1 CN-NM53-812 CN-PL259-1 CN-MUHF-1

810 CN-BM53-8 CN25810KTNC CN-NM53/110 CN-UM52-810

25810 CN25810KBNC CN25810KTNC CN-NM53-25810 CN-UM52-25810

810F CN25810KBNC CN25810KTNC CN-NM53/110 CN-UM52-810

807 CN-BM53-8X CN-TM53-807 CN-NM53-8X CN-UM52-807 CN-MUHF-807

TNC Adapters

Catalog No. Description

CN-ADPTTJJ TNC Jack to TNC Jack

CN-ADPTTPP TNC Plug to TNC Plug

CN-ADPTTJJT TNC Jack Tee Adapter

CN-ADPBTFF BNC Female to TNC Female

CN-ADPBTMM BNC Male to TNC Male

CN-ADPBTFM BNC Female to TNC Male CN-ADPBMTF BNC Male to TNC Female CN-ADPNTFF N Female to TNC Female

CN-ADPNTMM N Male to TNC Male

CN-ADPNTFM N Female to TNC Male CN-ADPNMTF N Male to TNC Female

“N” Type Adapters

Catalog No. Description

CN-ADPNNJJ N Jack to N Jack

CN-ADPNNPP N Plug to N Plug

CN-ADPNNJJT N Jack Tee Adapter

CN-ADPBNFF BNC Female to “N” Female

CN-ADPBNMM BNC Male to “N” Male

CN-ADPBNFM BNC Female to “N” Male

CN-ADP807 BNC M to “N” F

UHF Adapters

Catalog No. Description

CN-ADP205 UHF RA Male to Female CN-ADP207 Inline UHF ( F to F) CN-ADP805 UHF Male to “N” Female CN-ADP512 BNC M to UHF F CN-ADP500 BNC F to UHF M CN-ADP504 BNC F to UHF F

217

800-245-4964 • www.westpenn-wpw.com

RF Coaxial Assemblies

WEST PENN WIRE

CABLE WITH CONFIDENCE

TNC Assemblies
