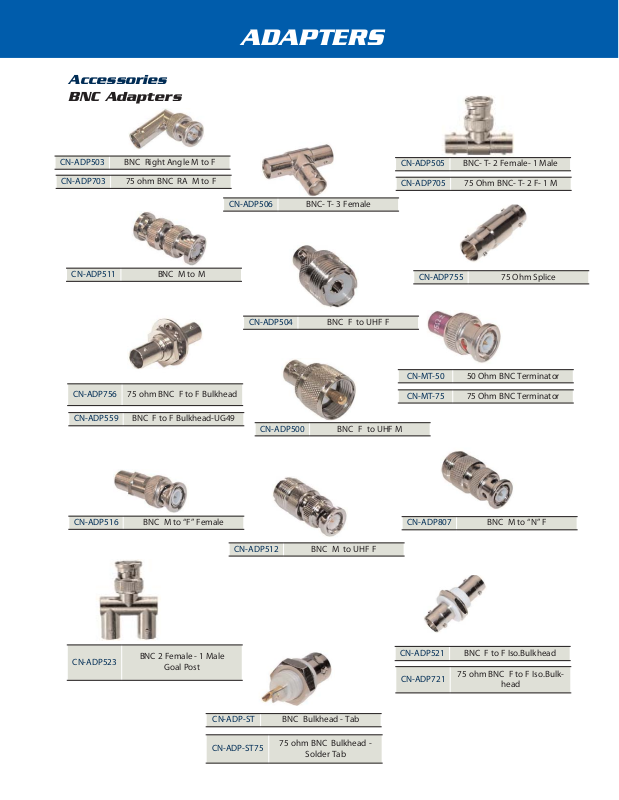

ADAPTERS
CN-ADP503 BNC Right Angle M to F
CN-ADP506 BNC- T- 3 Female
CN-ADP505 BNC- T- 2 Female- 1 Male
CN-ADP703 75 ohm BNC RA M to F
CN-ADP705 75 Ohm BNC- T- 2 F- 1 M
CN-ADP511 BNC M to M
CN-ADP521 BNC F to F Iso.Bulkhead
CN-ADP559 BNC F to F Bulkhead-UG49
CN-ADP721
75 ohm BNC F to F Iso.Bulk-
head
CN-ADP755 75 Ohm Splice
CN-ADP756 75 ohm BNC F to F Bulkhead
CN-ADP-ST BNC Bulkhead - Tab
CN-ADP-ST75
75 ohm BNC Bulkhead -
Solder Tab
CN-MT-50 50 Ohm BNC Terminator
CN-MT-75 75 Ohm BNC Terminator
Accessories
BNC Adapters
CN-ADP516 BNC M to “F” Female
CN-ADP500 BNC F to UHF M
CN-ADP504 BNC F to UHF F
CN-ADP512 BNC M to UHF F
CN-ADP807 BNC M to “N” F
CN-ADP523
BNC 2 Female - 1 Male
Goal Post
Page 2
Accessories
RCA Adapters
CN-ADP501 BNC F to RCA M
CN-ADP515 BNC M to RCA F
CN-ADP103 RCA M to “F” Female
CN-ADP106 RCA F to “F” Male
Accessories
UHF Adaptors
CN-ADP205 UHF RA Male to Female
CN-ADP207 Inline UHF ( F to F)
CN-ADP805 UHF Male to “N” Female
HD15 Terminal Block Connectors
Catalog No. Description
CN-HD15FST HD15(F) Terminal Block
CN-MX15F
PREMIUM HD15(F) Terminal Block
CN-MX15M
PREMIUM HD15(M) Terminal Block
CN-MX9F PREMIUM DB9 (F) Terminal Block RS-232
CN-MX9M
PREMIUM DB9 (M) Terminal Block- RS-232
CN-MX915H Hood for PREMIUM Terminal Blocks
CN-HD15FF HD15 Feed Thru
Video Connectors
HD15- VGA And DB9
CN-MX15M
With Hood
CN-MX915H
CN-HD15FST
CN-HD15FF
Panel Mount RCA Connectors
Catalog No. Description
CN-342B-XX Panel Mount RCA Feed Thru Connectors xx: RD,YE,WH
CN-MXRCA Panel Mount RCA Terminal Block Connectors
CN-IW38Rxx Colored Rings: xx- BL, GN, RD, WH, YE
SVHS Connectors
Catalog No. Description
CN-MD4FFN 4 PIN MINI DIN SVHS Panel Mt. feed Thru
CN-TCS415PST SVHS Female to Terminal Block Panel Mt.
S-Video Adapter Panel Mount
RCA Adapter Panel Mount
CN-MD4FFN
ADAPTERS
Page 3
HDMI Products
HDMI Adapters and Accessories
HDMI AND DVI ADAPTERS
Catalog No. Description
CN-E11HDMI-FF HDMI F-F ADAPTER
CN-E11HDMI-FFP HDMI F-F ADAPTER PANEL MOUNT
CN-E11HF-DM HDMI F - DVI M ADAPTER
CN-E11HM-DF HDMI M - DVI F ADAPTER
CN-R02SPL-PNL
1RU RACK MOUNT PANEL - 3 SLOTS - USED WITH
CASCADE PRODUCTS
CN-R02EXT-PA POWER ADAPTER
Panel Mount Connectors
Catalog No. Description
CN-342B-xx RCA- xx: YE, WH or RD
CN-35FFSP 3.5mm Panel Mount
CN-MX35 3.5mm Terminal Block
CN-HD15FST HD15 Term. Block
CN-TCS415PST Female SVHS to Terminal Block
CN-NC3FDLB XLR Panel Mt. Black- Gold Contact
CN-NC3FDLBAG XLR Panel Mt. Black- Nickel Contact
CN-NC3FDL1 XLR Panel Mt. Nickel-Nickel Contact
CN-NC3FDS1B XLR Panel Mt. Solderless Female
CN-NC3MDS1B XLR Panel Mt. Solderless Male
CN-NL4MPST
Speakon Panel Mt. 4 Pole- D-size
Screw terminal
CN-NYS230 1/4” TRS- Panel Mount
Audio/Video Connectors
A/V Connectors - Panel Mount
CN-HD15FST
CN-MX35
CN-35FFSP
CN-342B-YE CN-MD4FFN
CN-TCS415PST
CN-NC3FD-L-BAG
CN-NL4MPST
CN-NC3FS1B
CN-NYS230
ADAPTERS
Page 4
Fiber Optic Cable
Splice and Adaptors
Splicing Tools and Splice
Catalog No. Description
3M-2501 3M Mechanical Splice Tool
3M-2529 3M Splice
FI-8400 Universal 3M Splice Tray Enclosure
FI-SPTRME West Penn Wire Splice Tray for Wall Mount Enclosures
Panel Mount Adapters
FI-8102 Adapter- ST to ST MultiMode or Single-Mode
FI-8200 Adapter- ST to ST Single-Mode
FI-8300 Adapter- SC to SC MultiMode or Single-Mode
FI-8400APC SC Adapter- APC Polished - Green
FI-8521 FC/APC Adapter
FI-19202 SC to ST Adapter MultiMode
FI-SCLFF LC to SC Adapter
FI-DLCFF Duplex LC/LC Adapter
ADAPTERS
