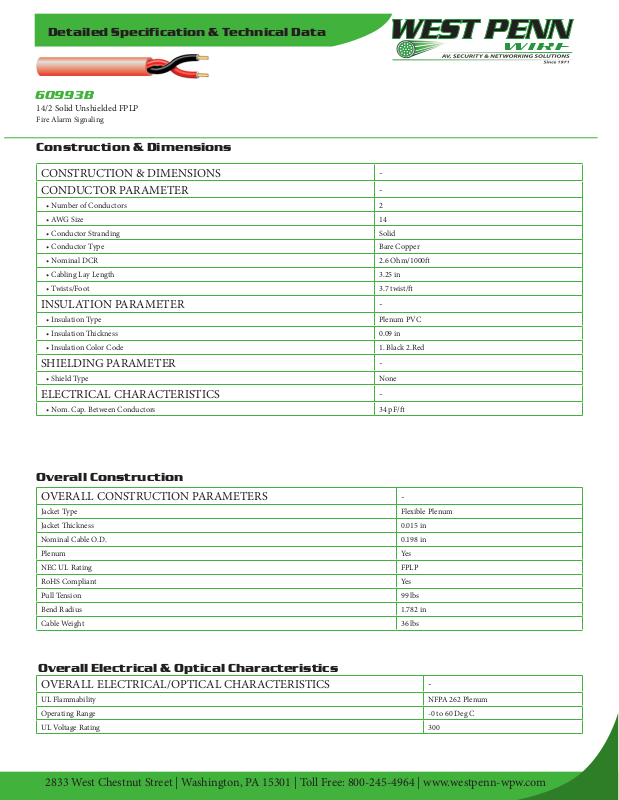

West Penn 60993BBK0500, 60993BBK1000, 60993BBL0500, 60993BGN0500, 60993BGN1000 Specsheet
...
Detailed Specification & Technical Data
60993B
14/2 Solid Unshielded FPLP
Fire Alarm Signaling
Construction & Dimensions
CONSTRUCTION & DIMENSIONS |
- |
CONDUCTOR PARAMETER |
- |
• Number of Conductors |
2 |
• AWG Size |
14 |
• Conductor Stranding |
Solid |
• Conductor Type |
Bare Copper |
• Nominal DCR |
2.6 Ohm/1000ft |
• Cabling Lay Length |
3.25 in |
• Twists/Foot |
3.7 twist/ft |
INSULATION PARAMETER |
- |
• Insulation Type |
Plenum PVC |
• Insulation Thickness |
0.09 in |
• Insulation Color Code |
1. Black 2.Red |
SHIELDING PARAMETER |
- |
• Shield Type |
None |
ELECTRICAL CHARACTERISTICS |
- |
• Nom. Cap. Between Conductors |
34 pF/ft |
Overall Construction
OVERALL CONSTRUCTION PARAMETERS |
- |
|
Jacket Type |
Flexible Plenum |
|
Jacket Thickness |
0.015 in |
|
Nominal Cable O.D. |
0.198 in |
|
Plenum |
Yes |
|
NEC UL Rating |
FPLP |
|
RoHS Compliant |
Yes |
|
Pull Tension |
99 lbs |
|
Bend Radius |
1.782 in |
|
Cable Weight |
36 lbs |
|
Overall Electrical & Optical Characteristics |
|
|
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS |
|
- |
UL Flammability |
|
NFPA 262 Plenum |
Operating Range |
|
-0 to 60 Deg C |
UL Voltage Rating |
|
300 |
