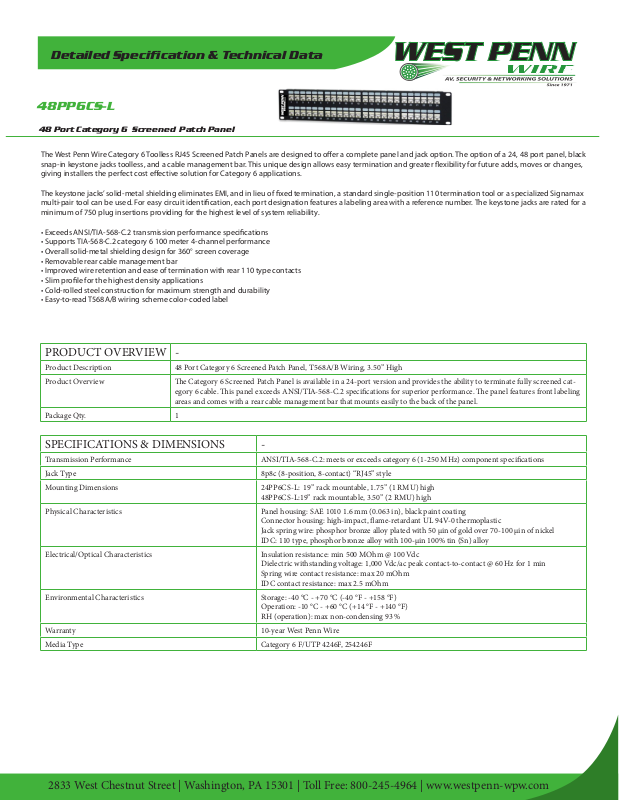

West Penn 48PP6CS-L Specsheet
Detailed Specification & Technical Data
48PP6CS-L
48 Port Category 6 Screened Patch Panel
The West Penn Wire Category 6 Toolless RJ45 Screened Patch Panels are designed to oer a complete panel and jack option. The option of a 24, 48 port panel, black
snap-in keystone jacks toolless, and a cable management bar. This unique design allows easy termination and greater exibility for future adds, moves or changes,
giving installers the perfect cost eective solution for Category 6 applications.
The keystone jacks’ solid-metal shielding eliminates EMI, and in lieu of xed termination, a standard single-position 110 termination tool or a specialized Signamax
multi-pair tool can be used. For easy circuit identication, each port designation features a labeling area with a reference number. The keystone jacks are rated for a
minimum of 750 plug insertions providing for the highest level of system reliability.
• Exceeds ANSI/TIA-568-C.2 transmission performance specications
• Supports TIA-568-C.2 category 6 100 meter 4-channel performance
• Overall solid-metal shielding design for 360° screen coverage
• Removable rear cable management bar
• Improved wire retention and ease of termination with rear 110 type contacts
• Slim prole for the highest density applications
• Cold-rolled steel construction for maximum strength and durability
• Easy-to-read T568A/B wiring scheme color-coded label
PRODUCT OVERVIEW -
Product Description 48 Port Category 6 Screened Patch Panel, T568A/B Wiring, 3.50” High
Product Overview e Category 6 Screened Patch Panel is available in a 24-port version and provides the ability to terminate fully screened cat-
Package Qty. 1
egory 6 cable. is panel exceeds ANSI/TIA-568-C.2 specications for superior performance. e panel features front labeling
areas and comes with a rear cable management bar that mounts easily to the back of the panel.
SPECIFICATIONS & DIMENSIONS -
Transmission Performance ANSI/TIA-568-C.2: meets or exceeds category 6 (1-250 MHz) component specications
Jack Type 8p8c (8-position, 8-contact) “RJ45” style
Mounting Dimensions 24PP6CS-L: 19” rack mountable, 1.75” (1 RMU) high
Physical Characteristics Panel housing: SAE 1010 1.6 mm (0.063 in), black paint coating
Electrical/Optical Characteristics Insulation resistance: min 500 MOhm @ 100 Vdc
Environmental Characteristics Storage: -40 °C - +70 °C (-40 °F - +158 °F)
Warranty 10-year West Penn Wire
Media Type Category 6 F/UTP 4246F, 254246F
48PP6CS-L:19” rack mountable, 3.50” (2 RMU) high
Connector housing: high-impact, ame-retardant UL 94V-0 thermoplastic
Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100-μin 100% tin (Sn) alloy
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 mOhm
IDC contact resistance: max 2.5 mOhm
Operation: -10 °C - +60 °C (+14 °F - +140 °F)
RH (operation): max non-condensing 93 %
2833 West Chestnut Street | Washington, PA 15301 | Toll Free: 800-245-4964 | www.westpenn-wpw.com
