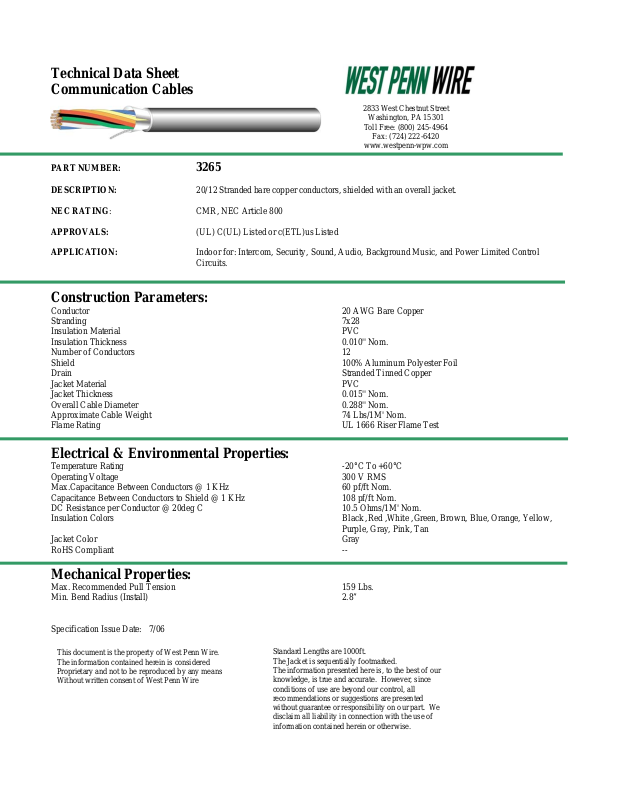

West Penn 3265 Data Sheet

Technical Data Sheet
Communication Cables

PART NUMBER:

DESCRIPTION: 20/12 Stranded bare copper conductors, shielded with an overall jacket.

NEC RATING: CMR, NEC Article 800

APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed

APPLICATION: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control

3265

Circuits.

2833 West Chestnut Street

Washington, PA 15301

Toll Free: [phone]

Fax: [phone]

www.westpenn-wpw.com

Construction Parameters:

Conductor 20 AWG Bare Copper
Stranding 7x28
Insulation Material PVC
Insulation Thickness 0.010'' Nom.
Number of Conductors 12
Shield 100% Aluminum Polyester Foil
Drain Stranded Tinned Copper
Jacket Material PVC
Jacket Thickness 0.015'' Nom.
Overall Cable Diameter 0.288'' Nom.
Approximate Cable Weight 74 Lbs/1M' Nom.
Flame Rating UL 1666 Riser Flame Test

Electrical & Environmental Properties:

Temperature Rating -20°C To +60°C
Operating Voltage 300 V RMS
Max.Capacitance Between Conductors @ 1 KHz 60 pf/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz 108 pf/ft Nom.
DC Resistance per Conductor @ 20deg C 10.5 Ohms/1M' Nom.
Insulation Colors Black ,Red ,White ,Green, Brown, Blue, Orange, Yellow,
Purple, Gray, Pink, Tan
Jacket Color Gray
RoHS Compliant --

Mechanical Properties:

Max. Recommended Pull Tension 159 Lbs.
Min. Bend Radius (Install) 2.8”

Specification Issue Date: 7/06

This document is the property of West Penn Wire.

.

The information contained herein is considered
Proprietary and not to be reproduced by any means
Without written consent of West Penn Wire

Standard Lengths are 1000ft.
The Jacket is sequentially footmarked.
The information presented here is, to the best of our
knowledge, is true and accurate. However, since
conditions of use are beyond our control, all
recommendations or suggestions are presented
without guarantee or responsibility on our part. We
disclaim all liability in connection with the use of
information contained herein or otherwise.
