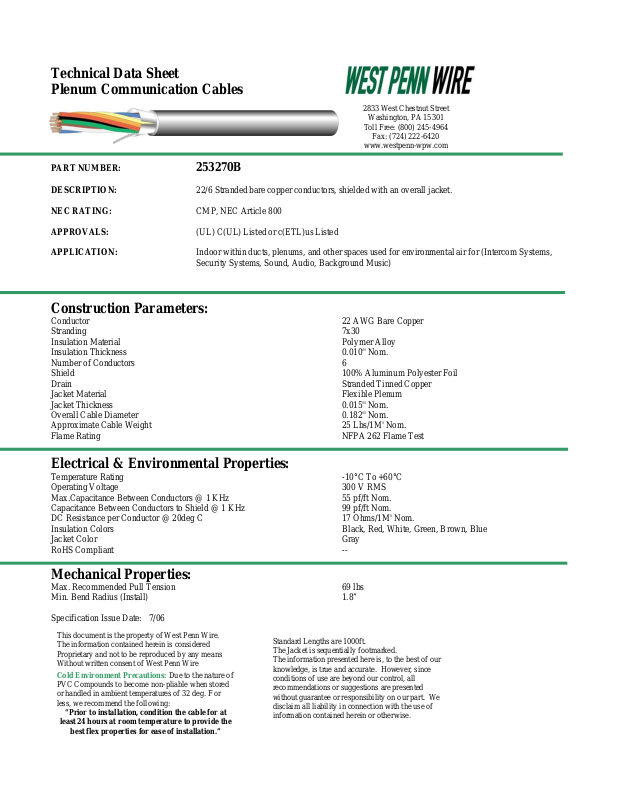

West Penn 253270B Data Sheet

Technical Data Sheet
Plenum Communication Cables

PART NUMBER:

DESCRIPTION: 22/6 Stranded bare copper conductors, shielded with an overall jacket.

NEC RATING: CMP, NEC Article 800

APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed

APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems,

253270B

Security Systems, Sound, Audio, Background Music)

2833 West Chestnut Street

Washington, PA 15301

Toll Free: [phone]

Fax: [phone]

www.westpenn-wpw.com

Construction Parameters:

Conductor 22 AWG Bare Copper
Stranding 7x30
Insulation Material Polymer Alloy
Insulation Thickness 0.010'' Nom.
Number of Conductors 6
Shield 100% Aluminum Polyester Foil
Drain Stranded Tinned Copper
Jacket Material Flexible Plenum
Jacket Thickness 0.015'' Nom.
Overall Cable Diameter 0.182'' Nom.
Approximate Cable Weight 25 Lbs/1M' Nom.
Flame Rating NFPA 262 Flame Test

Electrical & Environmental Properties:

Temperature Rating -10°C To +60°C
Operating Voltage 300 V RMS
Max.Capacitance Between Conductors @ 1 KHz 55 pf/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz 99 pf/ft Nom.
DC Resistance per Conductor @ 20deg C 17 Ohms/1M' Nom.
Insulation Colors Black, Red, White, Green, Brown, Blue
Jacket Color Gray
RoHS Compliant --

Mechanical Properties:

Max. Recommended Pull Tension 69 lbs
Min. Bend Radius (Install) 1.8”

Specification Issue Date: 7/06

This document is the property of West Penn Wire.
The information contained herein is considered

.

Proprietary and not to be reproduced by any means
Without written consent of West Penn Wire

Cold Environment Precautions: Due to the nature of

PVC Compounds to become non-pliable when stored
or handled in ambient temperatures of 32 deg. F or
less, we recommend the following:

“Prior to installation, condition the cable for at

least 24 hours at room temperature to provide the

best flex properties for ease of installation.”

Standard Lengths are 1000ft.
The Jacket is sequentially footmarked.
The information presented here is, to the best of our
knowledge, is true and accurate. However, since
conditions of use are beyond our control, all
recommendations or suggestions are presented
without guarantee or responsibility on our part. We
disclaim all liability in connection with the use of
information contained herein or otherwise.
