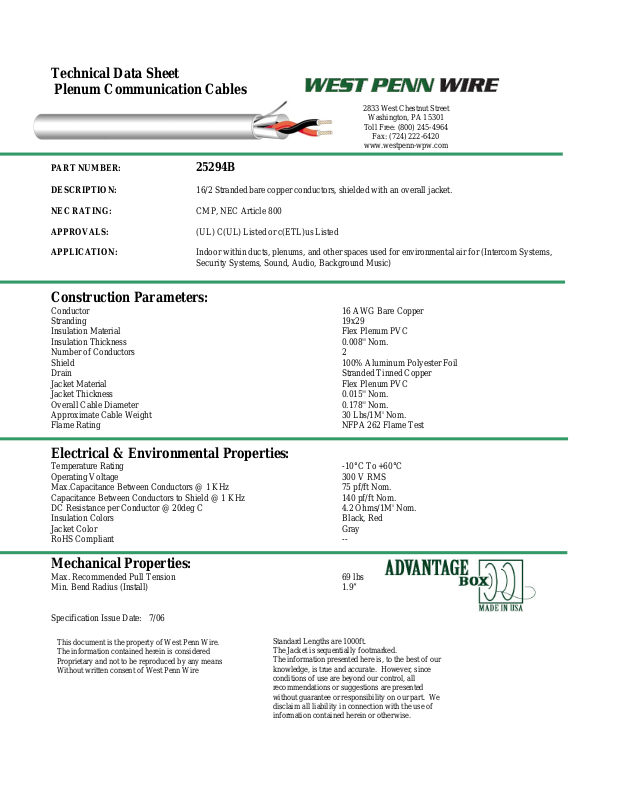

West Penn 25294B Specifications

Technical Data Sheet
Plenum Communication Cables

PART NUMBER:

DESCRIPTION: 16/2 Stranded bare copper conductors, shielded with an overall jacket.

NEC RATING: CMP, NEC Article 800

APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed

APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems,

25294B

Security Systems, Sound, Audio, Background Music)

2833 West Chestnut Street

Washington, PA 15301

Toll Free: [phone]

Fax: [phone]

www.westpenn-wpw.com

Construction Parameters:

Conductor 16 AWG Bare Copper
Stranding 19x29
Insulation Material Flex Plenum PVC
Insulation Thickness 0.008'' Nom.
Number of Conductors 2
Shield 100% Aluminum Polyester Foil
Drain Stranded Tinned Copper
Jacket Material Flex Plenum PVC
Jacket Thickness 0.015'' Nom.
Overall Cable Diameter 0.178'' Nom.
Approximate Cable Weight 30 Lbs/1M' Nom.
Flame Rating NFPA 262 Flame Test

Electrical & Environmental Properties:

Temperature Rating -10°C To +60°C
Operating Voltage 300 V RMS
Max.Capacitance Between Conductors @ 1 KHz 75 pf/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz 140 pf/ft Nom.
DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
Insulation Colors Black, Red
Jacket Color Gray
RoHS Compliant --

Mechanical Properties:

Max. Recommended Pull Tension 69 lbs
Min. Bend Radius (Install) 1.9”

Specification Issue Date: 7/06

This document is the property of West Penn Wire.

.

The information contained herein is considered
Proprietary and not to be reproduced by any means
Without written consent of West Penn Wire

Standard Lengths are 1000ft.
The Jacket is sequentially footmarked.
The information presented here is, to the best of our
knowledge, is true and accurate. However, since
conditions of use are beyond our control, all
recommendations or suggestions are presented
without guarantee or responsibility on our part. We
disclaim all liability in connection with the use of
information contained herein or otherwise.
