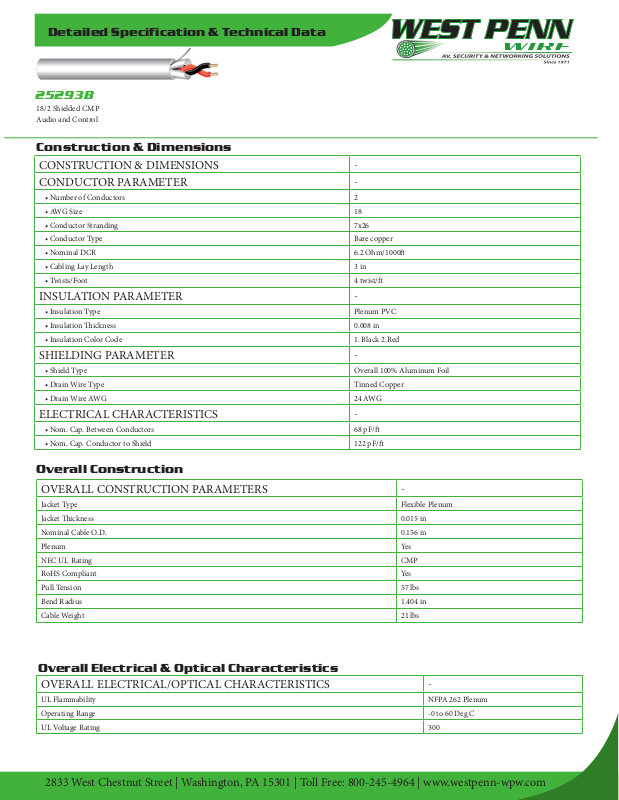

West Penn 25293B Datasheet
Detailed Specification & Technical Data
25293B
18/2 Shielded CMP
Audio and Control
Construction & Dimensions
CONSTRUCTION & DIMENSIONS
CONDUCTOR PARAMETER
• Number of Conductors 2
• AWG Size 18
• Conductor Stranding 7x26
• Conductor Type Bare copper
• Nominal DCR 6.2 Ohm/1000
• Cabling Lay Length 3 in
• Twists/Foot 4 twist/
INSULATION PARAMETER
• Insulation Type Plenum PVC
• Insulation ickness 0.008 in
• Insulation Color Code 1. Black 2.Red
SHIELDING PARAMETER
• Shield Type Overall 100% Aluminum Foil
• Drain Wire Type Tinned Copper
• Drain Wire AWG 24 AWG
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors 68 pF/
• Nom. Cap. Conductor to Shield 122 pF/
-
-
-
-
-
Overall Construction
OVERALL CONSTRUCTION PARAMETERS
Jacket Type Flexible Plenum
Jacket ickness 0.015 in
Nominal Cable O.D. 0.156 in
Plenum Yes
NEC UL Rating CMP
RoHS Compliant Yes
Pull Tension 57 lbs
Bend Radius 1.404 in
Cable Weight 21 lbs
-
Overall Electrical & Optical Characteristics
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability NFPA 262 Plenum
Operating Range -0 to 60 Deg C
UL Voltage Rating 300
-
2833 West Chestnut Street | Washington, PA 15301 | Toll Free: 800-245-4964 | www.westpenn-wpw.com
Detailed Specification & Technical Data
25293B
18/2 Shielded CMP
Audio and Control
Related Products
RELATED PRODUCTS
Non Plenum Number 293
Aquaseal Number AQC293
Aquaseal Direct Burial Number AQ293
3 Pin XLR Male CN-NC3MX
3 Pin XLR Female CN-NC3FX
3.5mm Stereo Mini CN-NYS231
-
