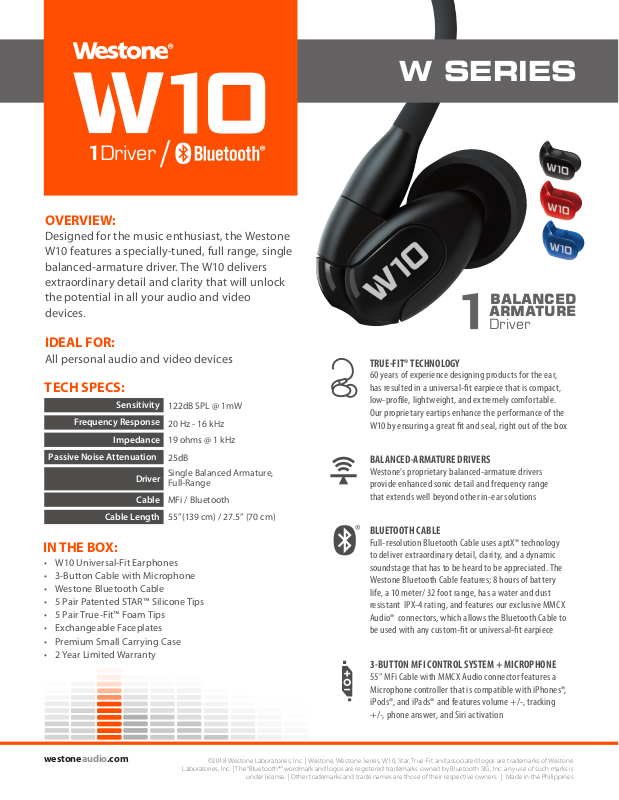

Westone W10 User Manual
®
W SERIES
Driver
®
OVERVIEW:
Designed for the music enthusiast, the Westone
W10 features a specially-tuned, full range, single
balanced-armature driver. The W10 delivers
extraordinary detail and clarity that will unlock
the potential in all your audio and video
devices
.
IDEAL FOR:
All personal audio and video devices
T ECH SPECS:
Sensitivity
Frequency Response
Impedance
Passive Noise Attenuation
Driver
Cable
Cable Length
122dB SPL @ 1mW
20 Hz - 16 kHz
19 ohms @ 1 kHz
25dB
Single Balanced Armature,
Full-Range
MFi / Bluetooth
55” (139 cm) / 27.5” (70 cm)
IN THE BOX:
• W10 Universal-Fit Earphones
• 3-Button Cable with Microphone
• Westone Bluetooth Cable
• 5 Pair Patented STAR™ Silicone Tips
• 5 Pair True-Fit™ Foam Tips
• Exchangeable Faceplates
• Premium Small Carrying Case
• 2 Year Limited Warranty
BALANCED
ARMATURE
Driver
TRUE-FIT® TECHNOLOGY
60 years of experience designing products for the ear,
has resulted in a universal-t earpiece that is compact,
low-prole, lightweight, and extremely comfortable.
Our proprietary eartips enhance the performance of the
W10 by ensuring a great t and seal, right out of the box
BALANCED-ARMATURE DRIVERS
Westone’s proprietary balanced-armature drivers
provide enhanced sonic detail and frequency range
that extends well beyond other in-ear solutions
BLUETOOTH CABLE
Full-resolution Bluetooth Cable uses aptX® technology
to deliver extraordinary detail, clarity, and a dynamic
soundstage that has to be heard to be appreciated. The
Westone Bluetooth Cable features; 8 hours of battery
life, a 10 meter/ 32 foot range, has a water and dust
resistant IPX-4 rating, and features our exclusive MMCX
Audio® connectors, which allows the Bluetooth Cable to
be used with any custom-t or universal-t earpiece
3-BUTTON MFI CONTROL SYSTEM + MICROPHONE
55” MFi Cable with MMCX Audio connector features a
Microphone controller that is compatible with iPhones®,
iPods®, and iPads® and features volume +/-, tracking
+/-, phone answer, and Siri activation
westoneaudio.com
©2018 Westone Laboratories, Inc. | Westone, Westone Series, W10, Star, True-Fit and associated logos are trademarks of Westone
Laboratories, Inc. | The “Bluetooth®” wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. any use of such marks is
under license. | Other trademarks and trade names are those of their respective owners. | Made in the Philippines
