Westinghouse WHE6874SA, WHE7074SA Product Manual

USER MANUAL

Locate the labe l

on the inside of your fridge

Easy register with your smartphone

1. Photograph the camera icon, including th e 4 dots( ).

2. Then text it to 0488 446 622

(Australia only)

Photograph the

camera icon, including the 4 dots ( )

Text image to 0488 446 622

(Australia only )

00000000000

WHE6874, WHE7074

REFRIGERATION

CONGRATULATIONS

CONTENTS

Installation ………………………………………..…………...

Installing Door Handles ……………………………….

Food Storage Guide ………………..…………………..

Care and Cleaning ……………………….……………….

Dear Customer,

Congratulations and thank you for choosing our refrigerator. We are sure you will find your new refrigerator a pleasure to use. Before you use the relevant sections of this manual, which provides a description of your refrigerator and its functions.

To avoid the risks that are always present when you use an electric appliance, it is important that the refrigerator is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the refrigerator, please check it is not damaged. If in doubt, do not use the refrigerator but contact your local customer care Centre.

The symbols you will see in this booklet have these meanings:

Important safety instructions ………………….… 3

Features at a Glance ……………………….…….……. 4

Connecting Water Supply …………………………. 8

Controls ………………………………………………….……... 10

Automatic Ice & Water Dispenser ….………... 14

Storage Features ……………………………………….... 16

Changing the Filter ……………………………………… 20

Troubleshooting …………………………..……………... 24

Warranty ……………………………………………………….. 27

WARNING

This symbol indicates information concerning your personal safety.

CAUTION

This symbol indicates information on how to avoid damaging the refrigerator

IMPORTANT

This symbol indicates tips and information about use of the refrigerator

ENVIRONMENT

This symbol indicates tips and information about economical and ecological use of the refrigerator

Conditions of use

This refrigerator is designed and intended to be used in normal domestic applications only.

Record model and serial number here:

Model number: .......................................................................

Serial number: .........................................................................

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Note: You must read these warnings carefully before installing or using the refrigerator. If you need assistance, contact your customer care centre. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

• The plug must be accessible when the appliance is in position.

• Never try to repair the refrigerator yourself, only use a qualified or authorized service person for repairs.

• Never put the appliance in a location that is too cold or is unprotected, for example in a garage or on a veranda. The ambient should be above 10°C.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• It is essential the power point is properly earthed to ground. Consult a qualified electrician if you are unsure.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Unplug the refrigerator before cleaning or moving it to avoid electric shock.

• Never unplug the refrigerator by pulling the electrical cord as this may damage it. Grip the plug firmly and pull straight out.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Don’t use a steam cleaner. If live components come into contact with condensing steam, they may short-circuit or cause an electric shock.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. If pressurised aerosol containers bear the word ‘flammable’ and/or a small flame symbol, do not store them inside any refrigerator or freezer. If you do so you may cause an explosion.

WARNING

R600a refrigerant warning

This a Avoid safety hazards by carefully installing, handling, servicing and disposing of this appliance.

• Ensure that the tubing of the refrigerant circuit

• Leaking refrigerant may cause eye injuries or

• The room for installing appliance must be at

• If you are unsure of the refrigerant check the

• It is hazardous for anyone other than an

• Keep ventilation openings in the appliance

• Do

pliance contains flammable R600a refrigerant.

is not damaged during transportation and installation.

ignite.

least 1m3 refrigerant in the appliance can be found on the rating plate inside the appliance.

rating plate inside the refrigerator compartment.

Authorised Service Person to service this appliance. In Queensland Australia the Authorisation Service Person MUST hold a Gas

Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.

enclosure or in the built-in structure, clear obstruction.

not

to those recommended by the manufacturer.

per 8g of refrigerant. The amount of

use

mechanical devices or other means

celerate

the defrosting process, other than

• Do not damage the refrigerant circuit. This

appliance contains insulation formed with flammable blowing gases. Avoid safety hazards by carefully disposing of this appliance.

• If you wish to discard this refrigerator, please contact your local authorities and ask for the correct method of disposal.

• When you dispose of your old refrigerators and freezers, remove any doors. Children can suffocate if they get trapped inside.

FEATURES AT A GLANCE

Left Snack Zone compartment

28 7 18

Ice Maker

Air distributor - Multiflow

Deodoriser

Water filter

Flip up glass shelf

Slide/fold glass shelf

Left Spillsafe™ glass shelf

Right Spillsafe™ glass shelf

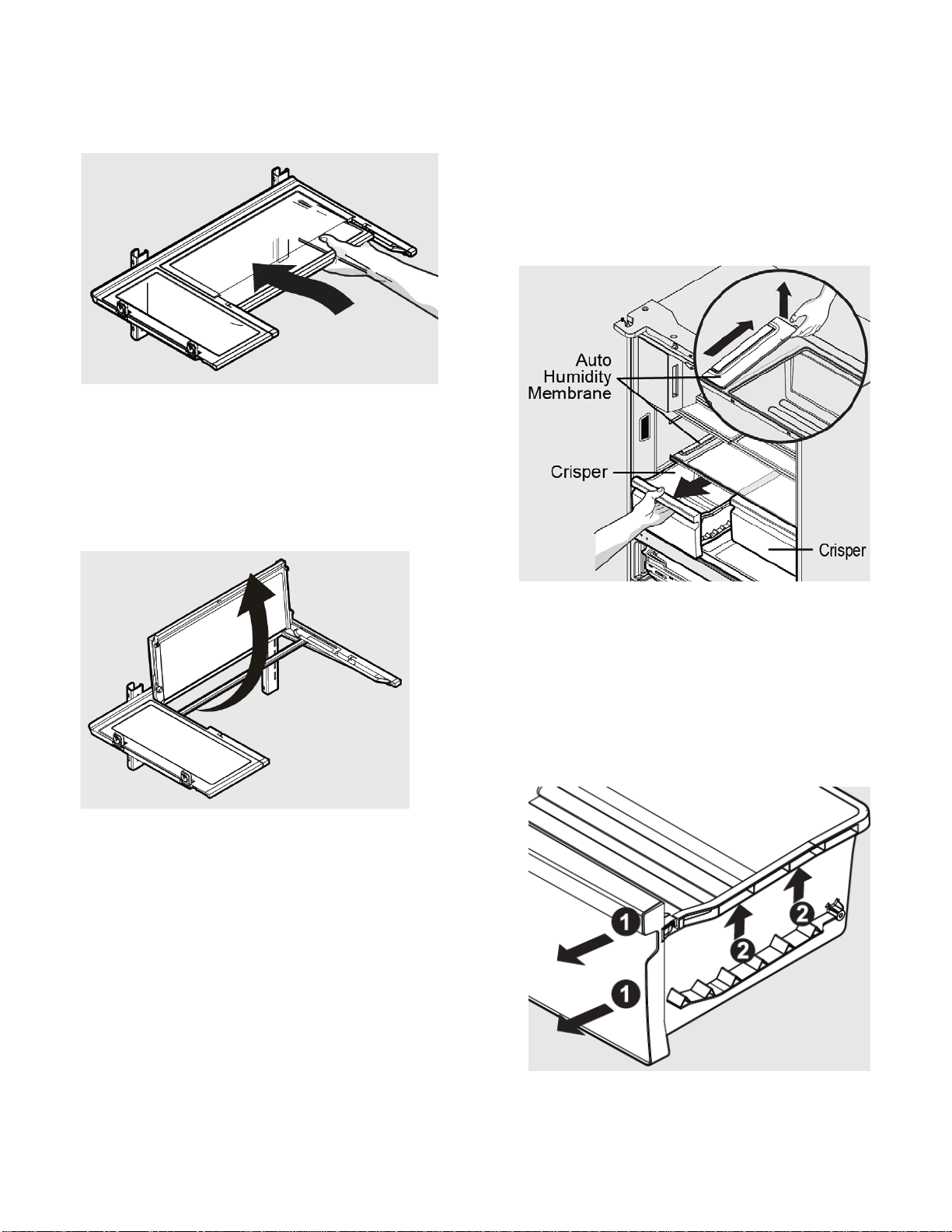

Crisper shelf cover

FreshSeal™ crisper

Right Snack Zone Compartment

Egg Tray

Upper fixed door bin

Left fixed door bin

FlexStorTM dairy bin

FlexStorTM 1/3 bin

FlexStorTM 2/3 bin

Expandable bin

Bottle storage bin

Adjustable left hinge

Adjustable right hinge

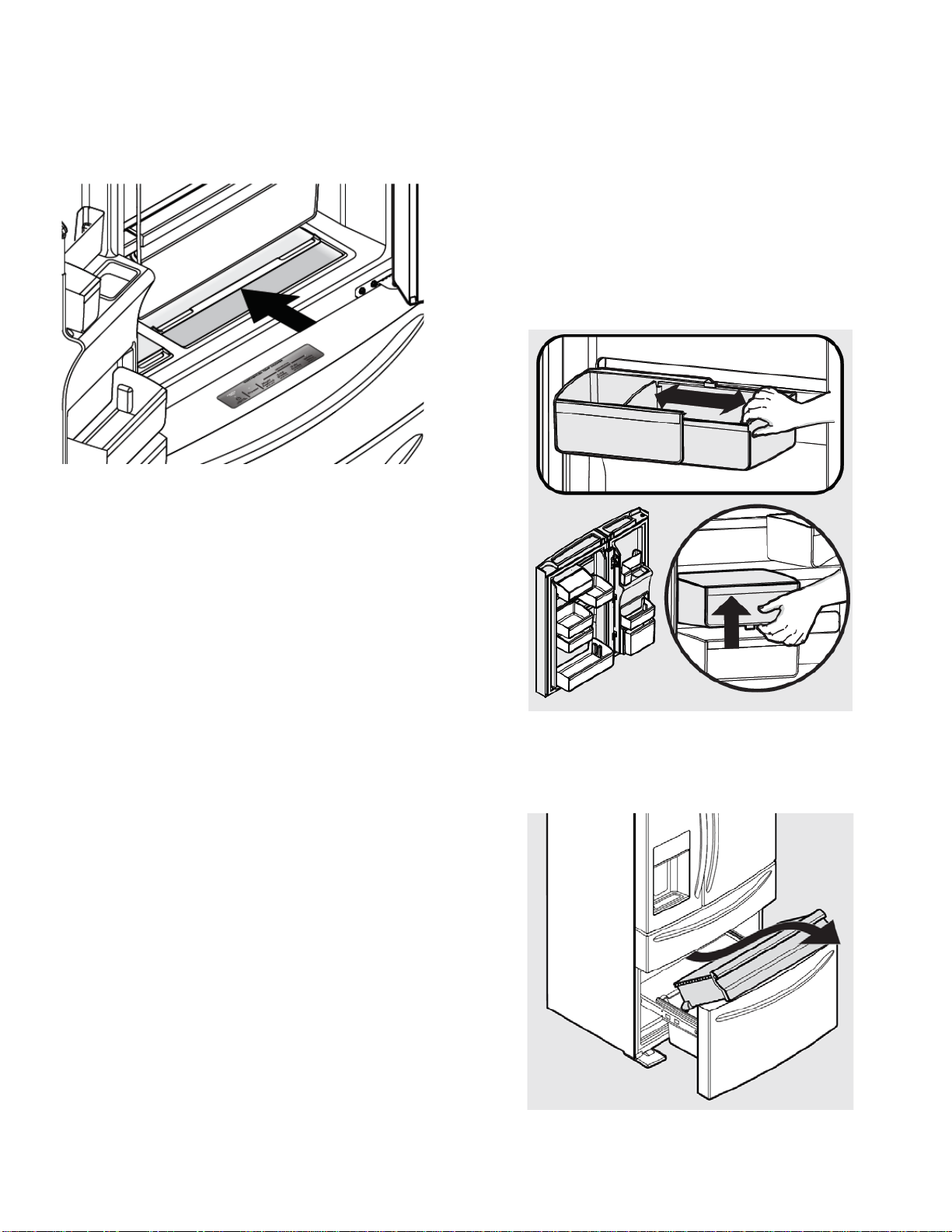

FlexSpace™ drawer

FlexSpace™ drawer divider

Upper freezer drawer

Lower freezer basket

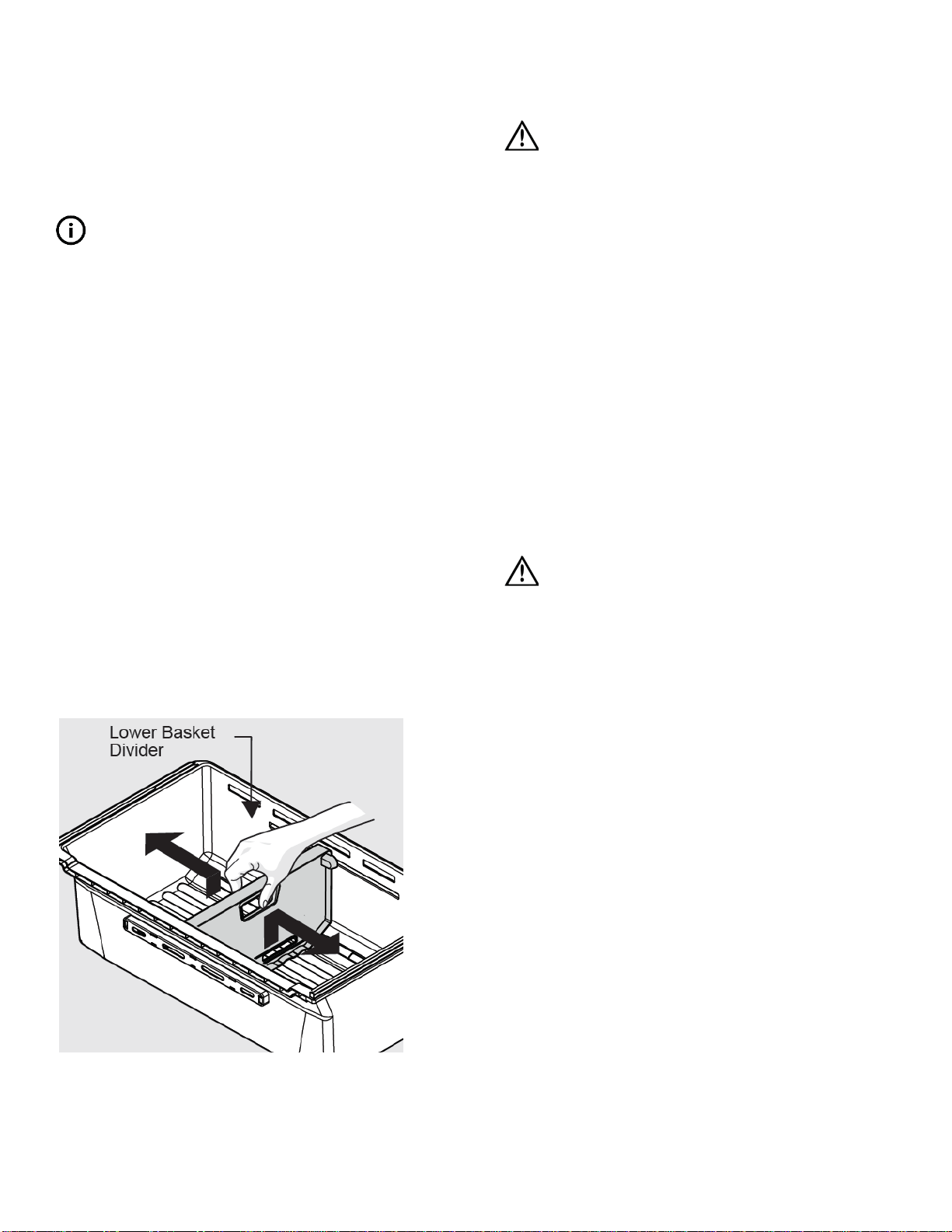

Lower freezer basket divider

Refrigerator Door Handle

FlexSpace™ drawer handle

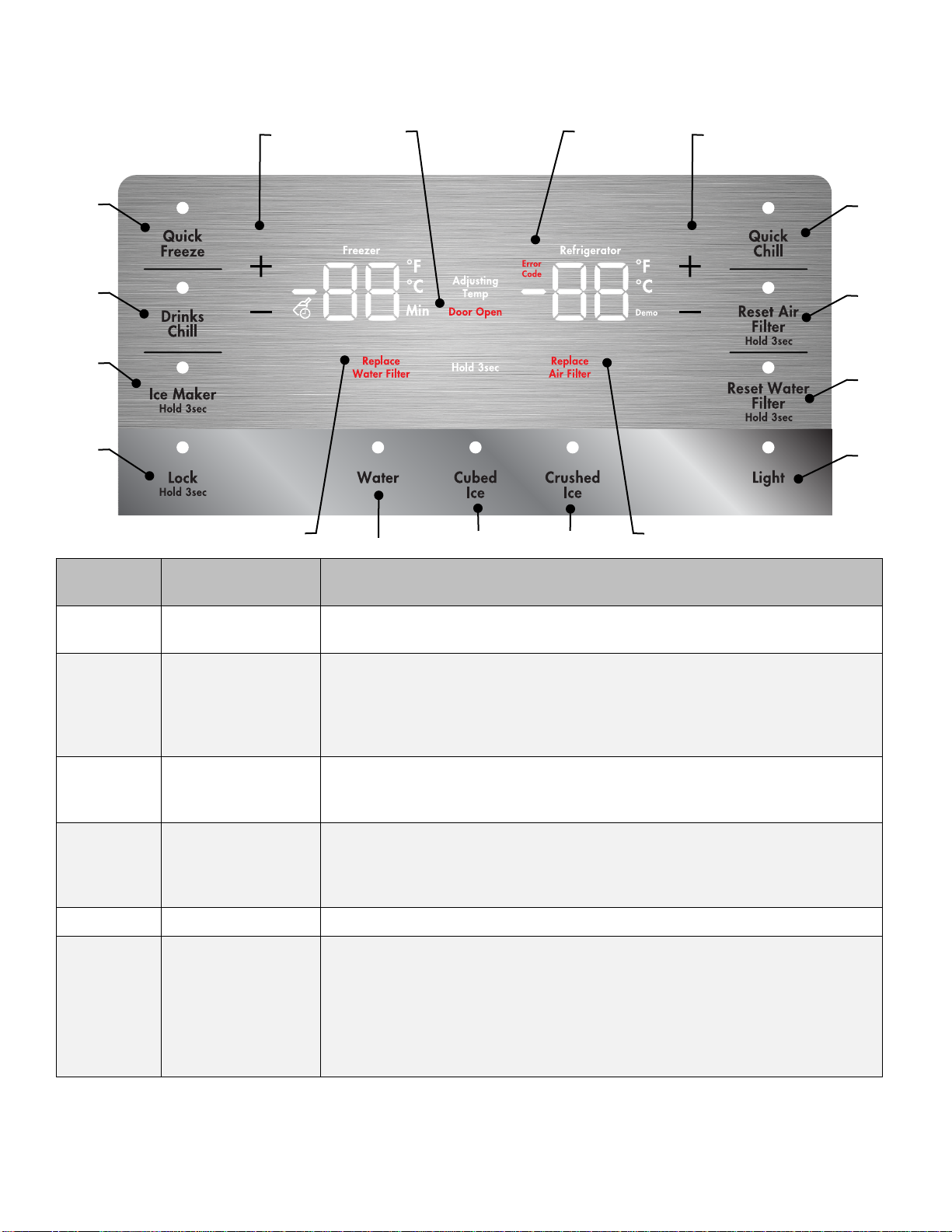

Refrigerator/Freezer control panel

Water and Ice Dispenser Trigger

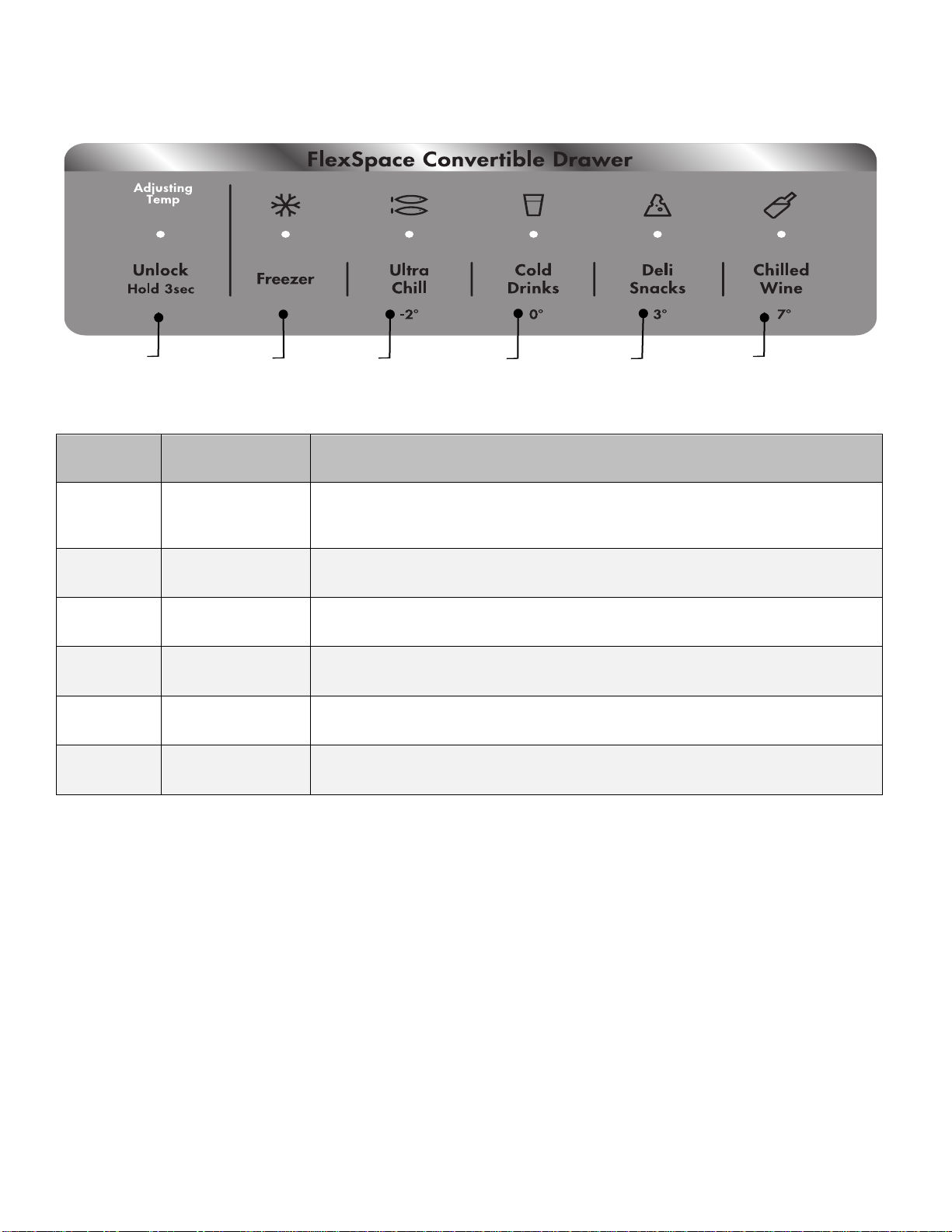

FlexSpaceTM drawer control panel

INSTALLING YOUR NEW APPLIANCE

Unpacking

ENVIRONMENT

Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.

Important – check for any damages or marks. If you find the refrigerator is damaged or marked, you must report it within 7 days should you wish to claim for damage/marks under the manufacturers warranty. This does not affect your statutory rights.

Clean your refrigerator thoroughly following the instructions in the “Cleaning” section and wipe off any dust that has accumulated during shipping.

Locating the refrigerator

CAUTION

When positioned in a corner area, spacing of

right side at least 260 mm and left side at least 355 mm on the hinge side will allow the

doors to open enough to enable the removal of bins and shelves.

260 mm

355 mm

Front face of bench

aligned to front corner

edge of cabinet.

Note: Doors are designed to sit proud of cabinetry (not flush). The clearances shown above are the recommended minimum clearances.

Automatic aerosol systems (such as insect control) should not be located adjacent to the product as the spray may cause long term damage to the external plastics of the appliance.

Do not put the refrigerator in a location that is too cold or is unprotected, for example in a garage or on a veranda. The ambient temperature should be above 10°C.

Put the refrigerator in a dry place avoiding areas of high moisture or humidity.

Ensure the

refrigerator is located on an even

surface.

Adequate ventilation around your refrigerator

The diagram below shows the recommended airspace to allow for ventilation of your refrigerator.

Installing your refrigerator

Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

913

1782

749

RECOMMENDED

CLEARANCES

35 mm

25 mm

Note: If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so

10 mm

the door can be opened wider.

Door opening

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.

CAUTION

LED lighting

Your appliance is fitted with long life LED lighting. In the unlikely event the LED lights should fail, then the LED lights should be serviced by the service agent, to avoid a safety hazard. Refer to the warranty page for contact details.

Cabinet Leveling & Refrigerator Door Alignment (if necessary)

Guidelines for final positioning of your refrigerator:

• All four corners of the cabinet must rest firmly on the floor.

• The front should be slightly elevated to ensure that doors close and seal properly.

• Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1. Slightly open freezer drawer if the toe grill is installed. Lift the toe grille and gently pull forward.

2. Make initial cabinet adjustments by using the front roller height adjusting screws. Use a 3/8 inch socket wrench to turn the adjustment screws (1 per side).

To raise: turn adjustment screw clockwise.

To make final door height adjustments:

1. Open freezer drawer to make lower hinge visible.

2. Insert 6mm Allen wrench into the shaft of the lower hinge.

3. Adjust the height by turning clockwise or counterclockwise. Turning clockwise will lower the door. Turning counterclockwise will raise the door. Default setting is to the lowest height when you receive your appliance.

To lower: turn adjustment screw counter clockwise.

3. Ensure both doors are bind-free with their seals touching the cabinet on all four sides and that cabinet is stable.

4. After unit is leveled, lower anti-tip leg using a 3/8 inch socket wrench until it firmly contacts the floor.

Flipper Mullion

INSTALLING DOOR HANDLES

CAUTION

Door Handle Mounting Instructions

Adjust Flipper Mullion for proper connection with the mullion guide by ensuring the flipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.

Wear gloves and safety goggles. Use extreme

CAUTION when installing these handles.

1. Remove handles from carton and any other protective packaging.

2. Position refrigerator handle end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3. While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.

4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the first door.

5. Position freezer/FlexSpaceTM Convertible Drawer handle end caps over left and right preinstalled shoulder bolts (A) that are fastened to the door, ensuring the holes for the set screws are facing down.

6. While holding handle firmly against door, loosely tighten right Allen set screw (B) with supplied Allen wrench until there is no gap between handle and door.

7. Still holding the handle firmly to the door, firmly tighten left Allen set screw (B) with supplied Allen wrench.

8. Return to the right Allen set screw (B) and firmly tighten with supplied Allen wrench.

Note: All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to doors/drawer with no gaps. Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was incorrectly installed. If this happens, tighten the set screws on the handles.

Mounting Refrigerator Handles

CONNECTING THE WATER SUPPLY

WARNING

IMPORTANT

Before Installing the Water Supply Line, You Will Need

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

To Avoid Property Damage:

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

Mounting Freezer/FlexSpaceTM Convertible Drawer Handle

• Chemicals from

a malfunctioning water softener can damage the ice maker. If your home has a water softening system, ensure the softener is maintained and working properly.

Ensure that your water supply line connections comply with all local plumbing codes.

• Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips

screwdriver

• The water dispenser and automatic ice maker

require a drinkable water supply with a pressure range of between 206kPa and 689kPa (30PSI and 100PSI).

• A water supply to suit a ½” tap fitting is required adjacent to the refrigerator. It is recommended that a licensed plumber install a new water supply outlet nearer to the appliance should the tubing supplied not be long enough. It is not recommended that the tubing be extended as this could adversely affect the flow of water to the ice maker or water dispenser.

WARNING

Connect to potable water supply only. If using tank or bore water it is recommended to also use an external filter (not supplied).

The new hose-sets supplied with

the appliances must be used and old hose-sets should not be reused.

WARNING

Never connect the appliance to a hot water supply.

Do not use with water that is microbiologically unsafe or

with water of unknown quality without

adequate disinfection.

To Connect Water Supply Line to Ice Maker Inlet Valve

Installation kit supplied with Refrigerator:

- Adapter ½ to ¼ inch to connect the water

Figure

supply outlet to the water supply line.

- Water supply line ¼ inch with 3 meters in

length.

- ¼ inch connector to connect the water

supply line to the refrigerator tube.

Note: Expect the first ice harvest within first 24 hours of unit operation. To prevent any issues concerning ice production, please ensure that all water lines are primed. See “Priming the water supply system “in the “AUTOMATIC ICE & WATER DISPENSER” section.

Adapter to connect

Remove the cap from the inlet tube

connector to connect the water supply line to the refrigerator tube

¼ inch water valve plastic tube

the water supply outlet to the supply line.

Figure 2

water

1. Disconnect the refrigerator from the power source.

2. Attach the adapter (item A above) to the water line, connect the water supply line (item B) to the adapter (item A) while holding the other end of the water supply line in a bucket or sink

Turn on the water supply to eliminate air and clean the water supply line. Turn off the water supply.

3. Remove the plastic protector from the refrigerator tube and connect the water supply line (item B) to the refrigerator tube using the connector (item C) as shown in fig. Make sure the tubes are inserted completely into the connections.

4. Wrap excess water supply line behind refrigerator so that it does not vibrate with refrigerator operation. Do not twist the pipe.

5. Turn on the water supply, check that there are no leaks in the connections.

6. Reconnect the refrigerator to the power source.

7. The Ice Maker is factory-switched, within 24

hours your refrigerator will have produced ice, discard the first production.

IMPORTANT

Your refrigerator’s water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.

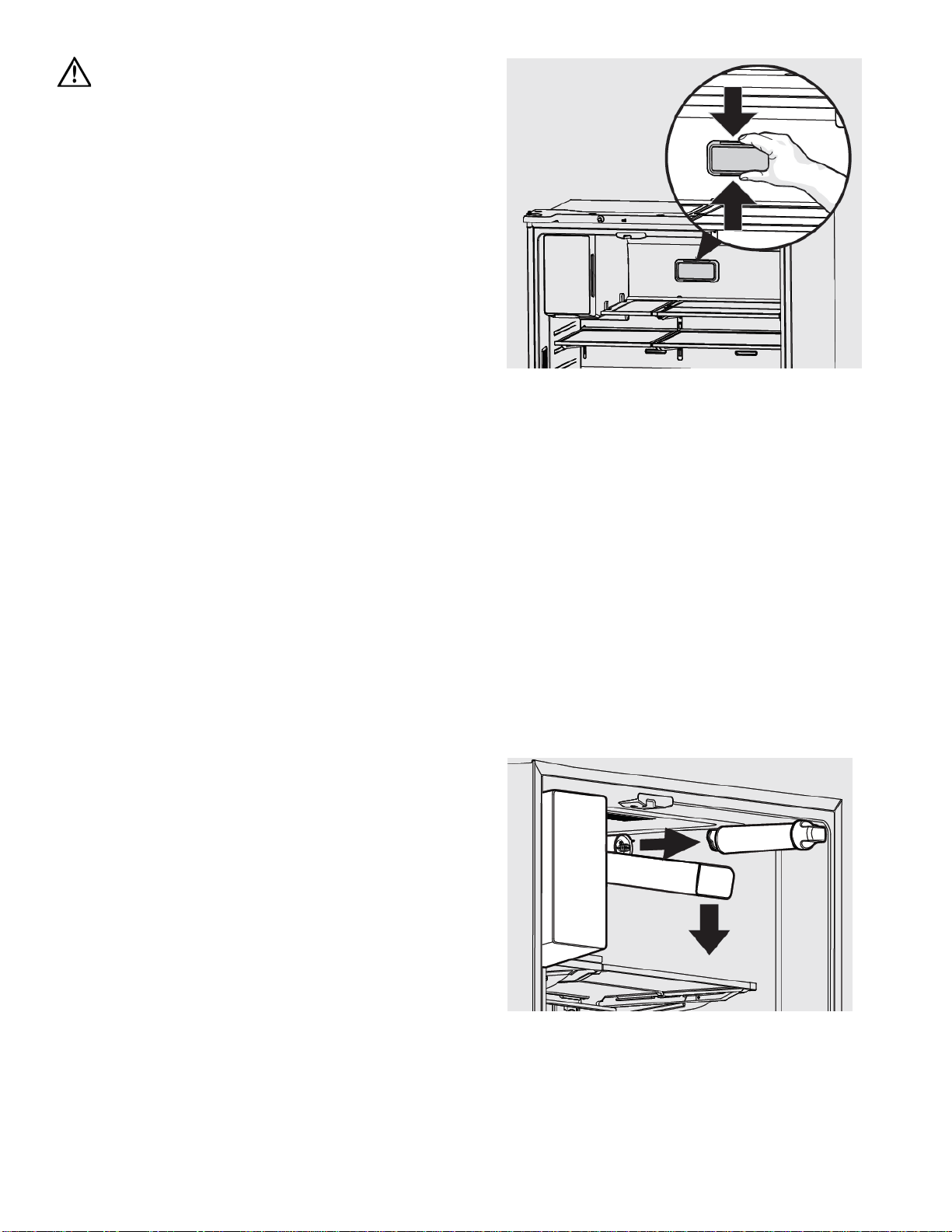

Water Filter

The water filter should not be used on water that is micro biologically unsafe or with water of unknown quality. The service life of the filter may be reduced in water supplies that contain an excess of particles or other impurities. Reduced flow rate is an indication that a new filter is required. Failure to replace the filter when required can affect the function of the ice maker. Service calls caused by a failure to replace the filter are not covered by warranty. Replacement water filters are available from Electrolux Home Products Spare Parts Centres and can be posted to you for your convenience (refer to spare parts contact numbers on the warranty page).
