Westinghouse Q6SE Technical Literature

Page 1

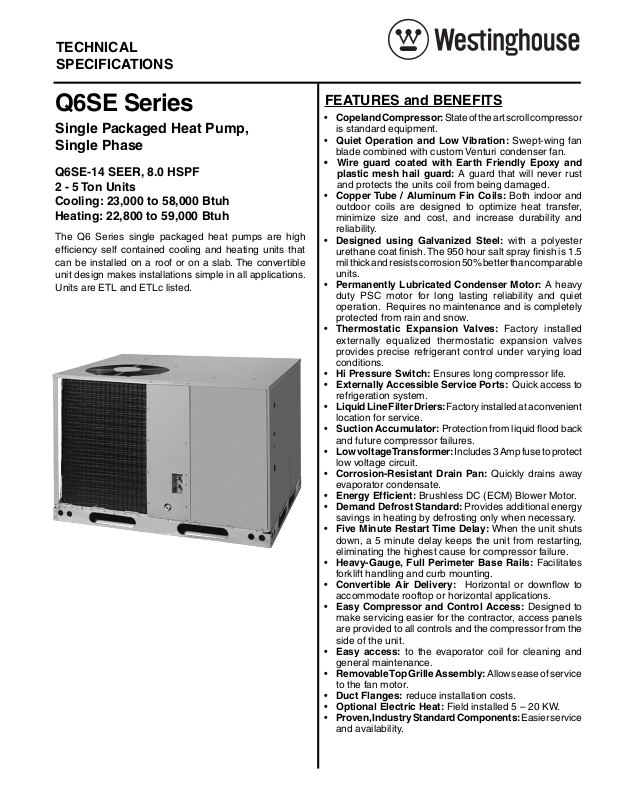

TECHNICAL SPECIFICATIONS

Q6SE Series

Single Packaged Heat Pump, Single Phase

Q6SE-14 SEER, 8.0 HSPF 2 - 5 Ton Units Cooling: 23,000 to 58,000 Btuh Heating: 22,800 to 59,000 Btuh

The Q6 Series single packaged heat pumps are high efﬁciency self contained cooling and heating units that can be installed on a roof or on a slab. The convertible unit design makes installations simple in all applications. Units are ETL and ETLc listed.

FEATURES and BENEFITS

• Copeland Compressor: State of the art scroll compressor is standard equipment.

• Quiet Operation and Low Vibration: Swept-wing fan blade combined with custom Venturi condenser fan.

• Wire guard coated with Earth Friendly Epoxy and

plastic mesh hail guard: A guard that will never rust

and protects the units coil from being damaged.

• Copper Tube / Aluminum Fin Coils: Both indoor and outdoor coils are designed to optimize heat transfer, minimize size and cost, and increase durability and reliability.

• Designed using Galvanized Steel: with a polyester urethane coat ﬁnish. The 950 hour salt spray ﬁnish is 1.5 mil thick and resists corrosion 50% better than comparable units.

• Permanently Lubricated Condenser Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow.

• Thermostatic Expansion Valves: Factory installed externally equalized thermostatic expansion valves provides precise refrigerant control under varying load conditions.

• Hi Pressure Switch: Ensures long compressor life.

• Externally Accessible Service Ports: Quick access to

refrigeration system.

• Liquid Line Filter Driers: Factory installed at a convenient location for service.

• Suction Accumulator: Protection from liquid ﬂood back and future compressor failures.

• Low voltage Transformer: Includes 3 Amp fuse to protect low voltage circuit.

• Corrosion-Resistant Drain Pan: Quickly drains away evaporator condensate.

• Energy Efﬁcient: Brushless DC (ECM) Blower Motor.

• Demand Defrost Standard: Provides additional energy

savings in heating by defrosting only when necessary.

• Five Minute Restart Time Delay: When the unit shuts down, a 5 minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure.

• Heavy-Gauge, Full Perimeter Base Rails: Facilitates forklift handling and curb mounting.

• Convertible Air Delivery: Horizontal or downﬂow to accommodate rooftop or horizontal applications.

• Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit.

• Easy access: to the evaporator coil for cleaning and general maintenance.

• Removable Top Grille Assembly: Allows ease of service to the fan motor.

• Duct Flanges: reduce installation costs.

• Optional Electric Heat: Field installed 5 – 20 KW.

• Proven, Industry Standard Components: Easier service

and availability.

Page 2

24.9

13.5

13.3

13.5

47.5

.75 NPT Female Drain Connector

DOWNFLOW

SUPPLY DUCT

OPENING

DOWNFLOW

RETURN DUCT

OPENING

23.5

Heat Pump Packaged Unit

MODEL IDENTIFICATION CODE

Q 6 S E - X 24 K

Series

Square Duct

E = 14 SEER

R-410A

TXV

DIMENSIONS (in inches)

Electrical Code

K = 208/230-60-1

Nominal Capacity

x 1000 Btu

Model

Number

Q6SE

Unit

Weight

(lbs)

Shipping

Weight

(lbs)

X24 440 453 28.0 25.5 39.0 35.3

X30 450 463 28.0 26.0 39.0 35.3

X36 460 473 28.0 25.5 39.0 35.3

X42 560 573 29.5 26.0 43.0 39.3

Top View

Center of Gravity

A B

Height (in inches)

with base rails without base rails

X48 570 583 29.5 26.0 43.0 39.3

X60 580 593 29.5 26.0 43.0 39.3

Page 3

DIMENSIONS (Continued)

1.25 dia. Power Entry

1.75 dia. Power Entry (Capped)

0.88 dia. Control Wiring Entry

23.6

27.2

30.0

1.8

4.00

5.0

SUPPLY

14.7

13.5

11.75 22.75

16.0

Side View

13.45

55.8

RETURN

16.0

4.0

CONDENSING

COIL

13.5

Back (Duct) View

Page 4

SPECIFICATIONS

Q6SE

Model Number

Performance

Capacity-Heating BTUH 22,000 26,800 33,200 42,000 45,500 59,000

Efﬁciency-HSPF 8.0 8.0 8.0 8.0 8.0 8.0

Capacity-Cooling BTUH 23,000 28,000 34,800 42,000 48,000 58,500

Efﬁciency-Seer 14.0 14.0 14.0 14.0 14.0 14.0

EER (Btuh/watt) 11.0 11.0 11.0 11.0 11.0 11.0

Electric Rating-60 Hz

Phase 1 1 1 1 1 1

Operating Voltage Range 187-253 187-253 187-253 187-253 187-253 187-253

Min. Circuit Ampacity 22.7 24.4 28.5 32.9 37.2 43.5

Field Wire Size - AWG 10 10 10 8 8 6

Total Unit - Amps 19.1 20.5 23.9 27.4 31.2 36.2

Compressor Data

Volts 208-230 208-230 208-230 208-230 208-230 208-230

Rated Load Amps 14.3 15.7 18.6 22.1 24.3 29.3

Lock Rotor Amps 58.3 73 79 109 117 134

X24 X30 X36 X42 X48 X60

Indoor Blower

Type Fixed Torque Fixed Torque Fixed Torque Fixed Torque Fixed Torque Fixed Torque

Motor HP 1/2 1/2 1/2 1/2 3/4 3/4

Motor - Amps 3.8 3.8 3.8 3.8 5.4 5.4

Outdoor Fan

Motor - HP / RPM 1/5 - 825 1/5 - 825 1/4 - 1100 1/4 - 1100 1/4 - 1100 1/4 - 1100

Motor - Amps 1.0 1.0 1.46 1.46 1.46 1.46

Fan Diameter / CFM 20 / 3600 20 / 3600 24 / 3800 20 / 3800 24 / 3800 24 / 4000

R-410A Charge - Oz 128 126.4 115 232 272 243

Net Weight lbs. 440 450 460 560 570 580

Shipping Weight lbs. 453 463 473 573 583 593

Sound Rating

73 73 78 78 78

Page 5

Rec, Wire

Multiple Supply Circuit Option

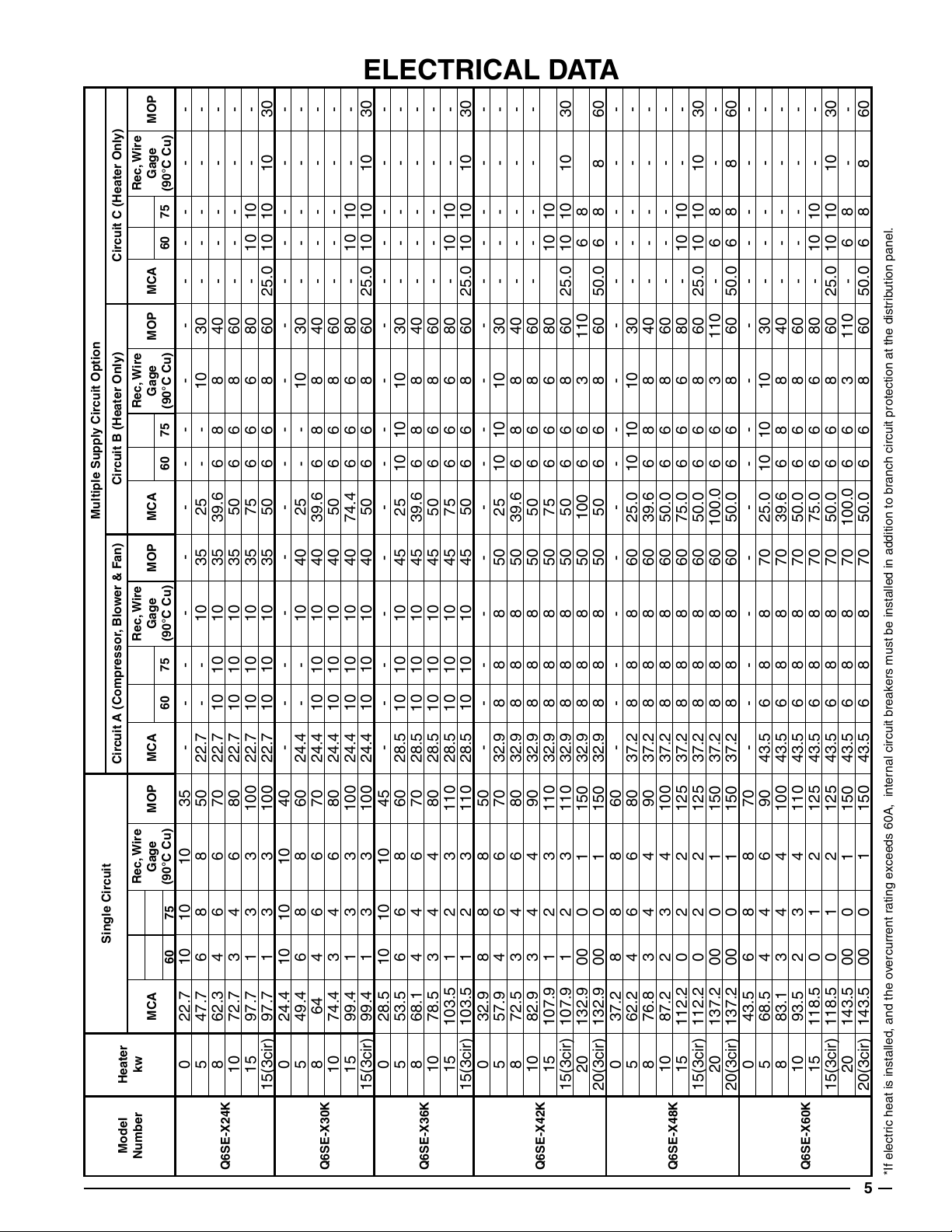

ELECTRICAL DATA

MOP

Gage

(90°C Cu)

MOP MCA

Gage

(90°C Cu)

Single Circuit

MOP MCA

Gage

Rec, Wire

(90°C Cu)

60 75 60 75 60 75

Circuit A (Compressor, Blower & Fan) Circuit B (Heater Only) Circuit C (Heater Only)

MOP MCA

Gage

Rec, Wire

MCA

(90°C Cu)

60 75

22.7 10 10 10 35 - - - - - - - - - - - - - - -

72.7 3 4 6 80 22.7 10 10 10 35 50 6 6 8 60 - - - - -

24.4 10 10 10 40 - - - - - - - - - - - - - - -

74.4 3 4 6 80 24.4 10 10 10 40 50 6 6 8 60 - - - - -

28.5 10 10 10 45 - - - - - - - - - - - - - - -

78.5 3 4 4 80 28.5 10 10 10 45 50 6 6 8 60 - - - - -

103.5 1 2 3 110 28.5 10 10 10 45 50 6 6 8 60 25.0 10 10 10 30

32.9 8 8 8 50 - - - - - - - - - - - - - - -

107.9 1 2 3 110 32.9 8 8 8 50 50 6 6 8 60 25.0 10 10 10 30

37.2 8 8 8 60 - - - - - - - - - - - - - - -

112.2 0 2 2 125 37.2 8 8 8 60 75.0 6 6 6 80 - 10 10 - -

100 43.5 6 8 8 70 39.6 6 8 8 40 - - - - -

43.5 6 8 8 70 - - - - - - - - - - - - - - -

118.5 0 1 2 125 43.5 6 8 8 70 75.0 6 6 6 80 - 10 10 - -

Heater

Model

Number

5 47.7 6 8 8 50 22.7 - - 10 35 25 - - 10 30 - - - - -

8 62.3 4 6 6 70 22.7 10 10 10 35 39.6 6 8 8 40 - - - - -

15 97.7 1 3 3 100 22.7 10 10 10 35 75 6 6 6 80 - 10 10 - -

15(3cir) 97.7 1 3 3 100 22.7 10 10 10 35 50 6 6 8 60 25.0 10 10 10 30

Q6SE-X24K

8 64 4 6 6 70 24.4 10 10 10 40 39.6 6 8 8 40 - - - - -

5 49.4 6 8 8 60 24.4 - - 10 40 25 - - 10 30 - - - - -

Q6SE-X30K

5 68.5 4 4 6 90 43.5 6 8 8 70 25.0 10 10 10 30 - - - - -

5 62.2 4 6 6 80 37.2 8 8 8 60 25.0 10 10 10 30 - - - - -

5 53.5 6 6 8 60 28.5 10 10 10 45 25 10 10 10 30 - - - - -

8 68.1 4 4 6 70 28.5 10 10 10 45 39.6 6 8 8 40 - - - - -

15 99.4 1 3 3 100 24.4 10 10 10 40 74.4 6 6 6 80 - 10 10 - -

15(3cir) 99.4 1 3 3 100 24.4 10 10 10 40 50 6 6 8 60 25.0 10 10 10 30

Q6SE-X36K

15 103.5 1 2 3 110 28.5 10 10 10 45 75 6 6 6 80 - 10 10 - -

15(3cir)

5 57.9 4 6 6 70 32.9 8 8 8 50 25 10 10 10 30 - - - - -

8 72.5 3 4 6 80 32.9 8 8 8 50 39.6 6 8 8 40 - - - - -

10 82.9 3 4 4 90 32.9 8 8 8 50 50 6 6 8 60 - - - - -

15 107.9 1 2 3 110 32.9 8 8 8 50 75 6 6 6 80 10 10

20 132.9 00 0 1 150 32.9 8 8 8 50 100 6 6 3 110 6 8

15(3cir)

20(3cir) 132.9 00 0 1 150 32.9 8 8 8 50 50 6 6 8 60 50.0 6 8 8 60

Q6SE-X42K

8 76.8 3 4 4 90 37.2 8 8 8 60 39.6 6 8 8 40 - - - - -

10 87.2 2 3 4 100 37.2 8 8 8 60 50.0 6 6 8 60 - - - - -

Q6SE-X48K

15(3cir) 112.2 0 2 2 125 37.2 8 8 8 60 50.0 6 6 8 60 25.0 10 10 10 30

20 137.2 00 0 1 150 37.2 8 8 8 60 100.0 6 6 3 110 - 6 8 - -

20(3cir) 137.2 00 0 1 150 37.2 8 8 8 60 50.0 6 6 8 60 50.0 6 8 8 60

8 83.1 3 4 4

10 93.5 2 3 4 110 43.5 6 8 8 70 50.0 6 6 8 60 - - - - -

Q6SE-X60K

15(3cir) 118.5 0 1 2 125 43.5 6 8 8 70 50.0 6 6 8 60 25.0 10 10 10 30

20 143.5 00 0 1 150 43.5 6 8 8 70 100.0 6 6 3 110 - 6 8 - -

20(3cir) 143.5 00 0 1 150 43.5 6 8 8 70 50.0 6 6 8 60 50.0 6 8 8 60

*If electric heat is installed, and the overcurrent rating exceeds 60A, internal circuit breakers must be installed in addition to branch circuit protection at the distribution panel.

Page 6

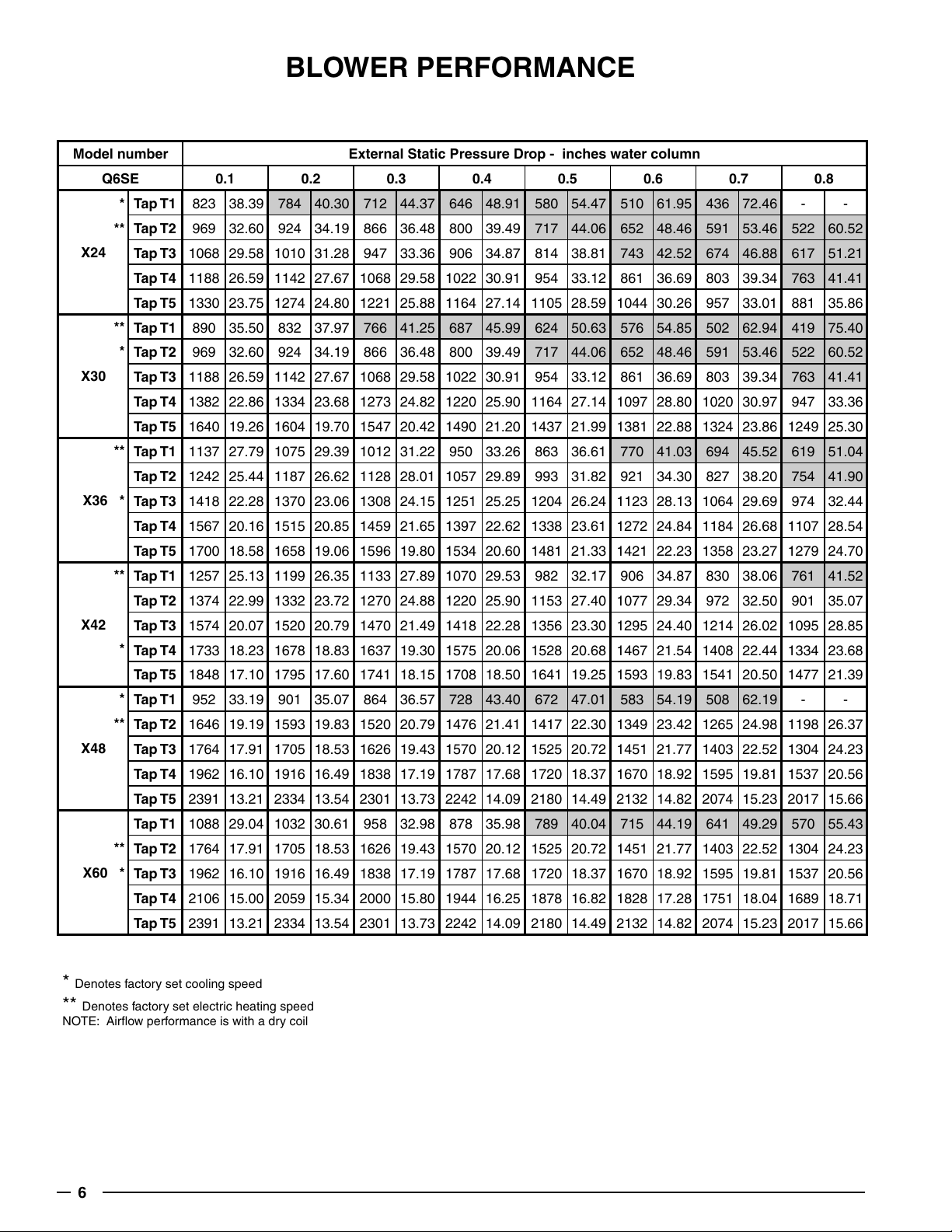

BLOWER PERFORMANCE

Model number External Static Pressure Drop - inches water column

Q6SE 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

* Tap T1 823 38.39 784 40.30 712 44.37 646 48.91 580 54.47 510 61.95 436 72.46 - -

** Tap T2 969 32.60 924 34.19 866 36.48 800 39.49 717 44.06 652 48.46 591 53.46 522 60.52

X24

X30

X36 *

X42

X48

X60 *

Tap T3 1068 29.58 1010 31.28 947 33.36 906 34.87 814 38.81 743 42.52 674 46.88 617 51.21

Tap T4 1188 26.59 1142 27.67 1068 29.58 1022 30.91 954 33.12 861 36.69 803 39.34 763 41.41

Tap T5 1330 23.75 1274 24.80 1221 25.88 1164 27.14 1105 28.59 1044 30.26 957 33.01 881 35.86

Tap T1 890 35.50 832 37.97 766 41.25 687 45.99 624 50.63 576 54.85 502 62.94 419 75.40

Tap T2 969 32.60 924 34.19 866 36.48 800 39.49 717 44.06 652 48.46 591 53.46 522 60.52

Tap T3 1188 26.59 1142 27.67 1068 29.58 1022 30.91 954 33.12 861 36.69 803 39.34 763 41.41

Tap T4 1382 22.86 1334 23.68 1273 24.82 1220 25.90 1164 27.14 1097 28.80 1020 30.97 947 33.36

Tap T5 1640 19.26 1604 19.70 1547 20.42 1490 21.20 1437 21.99 1381 22.88 1324 23.86 1249 25.30

Tap T1 1137 27.79 1075 29.39 1012 31.22 950 33.26 863 36.61 770 41.03 694 45.52 619 51.04

Tap T2 1242 25.44 1187 26.62 1128 28.01 1057 29.89 993 31.82 921 34.30 827 38.20 754 41.90

Tap T3 1418 22.28 1370 23.06 1308 24.15 1251 25.25 1204 26.24 1123 28.13 1064 29.69 974 32.44

Tap T4 1567 20.16 1515 20.85 1459 21.65 1397 22.62 1338 23.61 1272 24.84 1184 26.68 1107 28.54

Tap T5 1700 18.58 1658 19.06 1596 19.80 1534 20.60 1481 21.33 1421 22.23 1358 23.27 1279 24.70

Tap T1 1257 25.13 1199 26.35 1133 27.89 1070 29.53 982 32.17 906 34.87 830 38.06 761 41.52

Tap T2 1374 22.99 1332 23.72 1270 24.88 1220 25.90 1153 27.40 1077 29.34 972 32.50 901 35.07

Tap T3 1574 20.07 1520 20.79 1470 21.49 1418 22.28 1356 23.30 1295 24.40 1214 26.02 1095 28.85

Tap T4 1733 18.23 1678 18.83 1637 19.30 1575 20.06 1528 20.68 1467 21.54 1408 22.44 1334 23.68

Tap T5 1848 17.10 1795 17.60 1741 18.15 1708 18.50 1641 19.25 1593 19.83 1541 20.50 1477 21.39

Tap T1 952 33.19 901 35.07 864 36.57 728 43.40 672 47.01 583 54.19 508 62.19 - -

Tap T2 1646 19.19 1593 19.83 1520 20.79 1476 21.41 1417 22.30 1349 23.42 1265 24.98 1198 26.37

Tap T3

Tap T4 1962 16.10 1916 16.49 1838 17.19 1787 17.68 1720 18.37 1670 18.92 1595 19.81 1537 20.56

Tap T5 2391 13.21 2334 13.54 2301 13.73 2242 14.09 2180 14.49 2132 14.82 2074 15.23 2017 15.66

Tap T1 1088 29.04 1032 30.61 958 32.98 878 35.98 789 40.04 715 44.19 641 49.29 570 55.43

Tap T2 1764 17.91 1705 18.53 1626 19.43 1570 20.12 1525 20.72 1451 21.77 1403 22.52 1304 24.23

Tap T3 1962 16.10 1916 16.49 1838 17.19 1787 17.68 1720 18.37 1670 18.92 1595 19.81 1537 20.56

Tap T4 2106 15.00 2059 15.34 2000 15.80 1944 16.25 1878 16.82 1828 17.28 1751 18.04 1689 18.71

Tap T5 2391 13.21 2334 13.54 2301 13.73 2242 14.09 2180 14.49 2132 14.82 2074 15.23 2017 15.66

1764 17.91 1705 18.53 1626 19.43 1570 20.12 1525 20.72 1451 21.77 1403 22.52 1304 24.23

* Denotes factory set cooling speed ** Denotes factory set electric heating speed

NOTE: Airﬂow performance is with a dry coil

Page 7

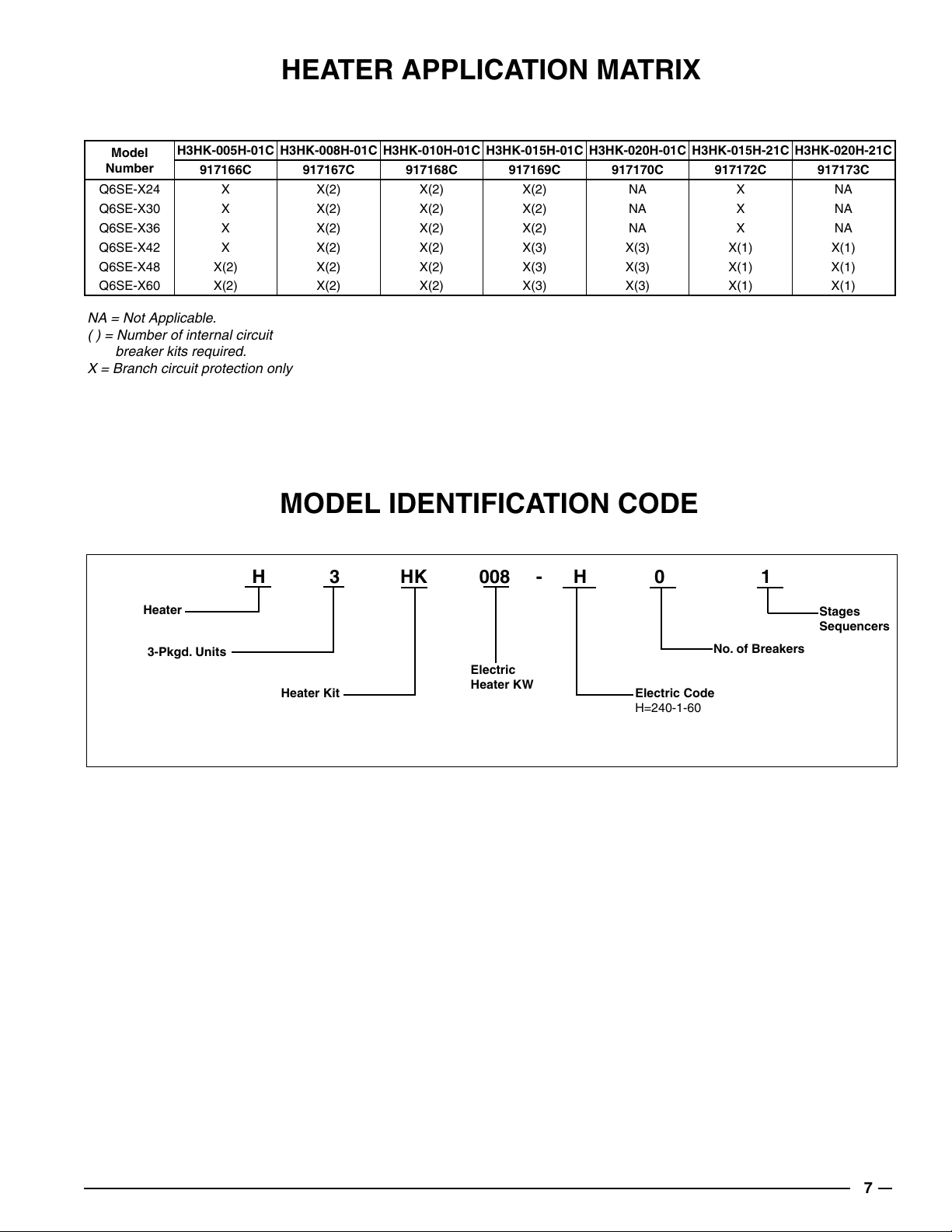

HEATER APPLICATION MATRIX

Model

Number

Q6SE-X24 X X(2) X(2) X(2) NA X NA

Q6SE-X30 X X(2) X(2) X(2) NA X NA

Q6SE-X36 X X(2) X(2) X(2) NA X NA

Q6SE-X42 X X(2) X(2) X(3) X(3) X(1) X(1)

Q6SE-X48 X(2) X(2) X(2) X(3) X(3) X(1) X(1)

Q6SE-X60 X(2) X(2) X(2) X(3) X(3) X(1) X(1)

NA = Not Applicable. ( ) = Number of internal circuit

breaker kits required.

X = Branch circuit protection only

H3HK-005H-01C H3HK-008H-01C H3HK-010H-01C H3HK-015H-01C H3HK-020H-01C H3HK-015H-21C H3HK-020H-21C

917166C 917167C 917168C 917169C 917170C 917172C 917173C

MODEL IDENTIFICATION CODE

H 3 HK 008 - H 0 1

Heater

3-Pkgd. Units

Heater Kit

Electric Heater KW

Stages Sequencers

No. of Breakers

Electric Code

H=240-1-60

Page 8

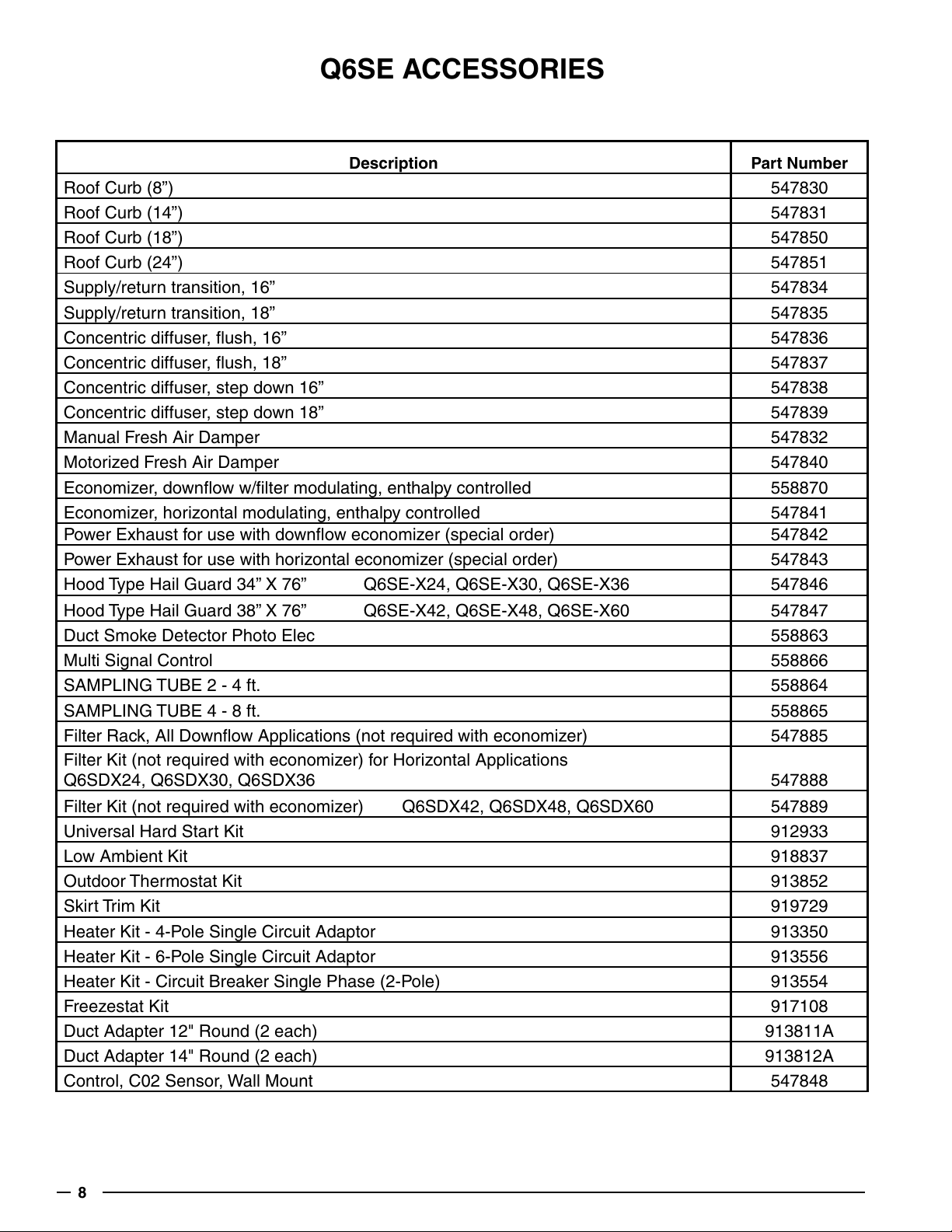

Q6SE ACCESSORIES

Description Part Number

Roof Curb (8”) 547830 Roof Curb (14”) 547831 Roof Curb (18”) 547850 Roof Curb (24”) 547851 Supply/return transition, 16” 547834 Supply/return transition, 18” 547835 Concentric diffuser, ﬂush, 16” 547836 Concentric diffuser, ﬂush, 18” 547837 Concentric diffuser, step down 16” 547838 Concentric diffuser, step down 18” 547839 Manual Fresh Air Damper 547832 Motorized Fresh Air Damper 547840 Economizer, downﬂow w/ﬁlter modulating, enthalpy controlled 558870 Economizer, horizontal modulating, enthalpy controlled 547841

Power Exhaust for use with downﬂow economizer (special order) 547842 Power Exhaust for use with horizontal economizer (special order) 547843 Hood Type Hail Guard 34” X 76” Q6SE-X24, Q6SE-X30, Q6SE-X36 547846

Hood Type Hail Guard 38” X 76” Q6SE-X42, Q6SE-X48, Q6SE-X60 547847 Duct Smoke Detector Photo Elec 558863 Multi Signal Control 558866 SAMPLING TUBE 2 - 4 ft. 558864 SAMPLING TUBE 4 - 8 ft. 558865 Filter Rack, All Downﬂow Applications (not required with economizer) 547885 Filter Kit (not required with economizer) for Horizontal Applications

Q6SDX24, Q6SDX30, Q6SDX36 547888

Filter Kit (not required with economizer) Q6SDX42, Q6SDX48, Q6SDX60 547889 Universal Hard Start Kit 912933 Low Ambient Kit 918837 Outdoor Thermostat Kit 913852 Skirt Trim Kit 919729 Heater Kit - 4-Pole Single Circuit Adaptor 913350 Heater Kit - 6-Pole Single Circuit Adaptor 913556 Heater Kit - Circuit Breaker Single Phase (2-Pole) 913554 Freezestat Kit 917108 Duct Adapter 12" Round (2 each) 913811A Duct Adapter 14" Round (2 each) 913812A Control, C02 Sensor, Wall Mount 547848

Page 9

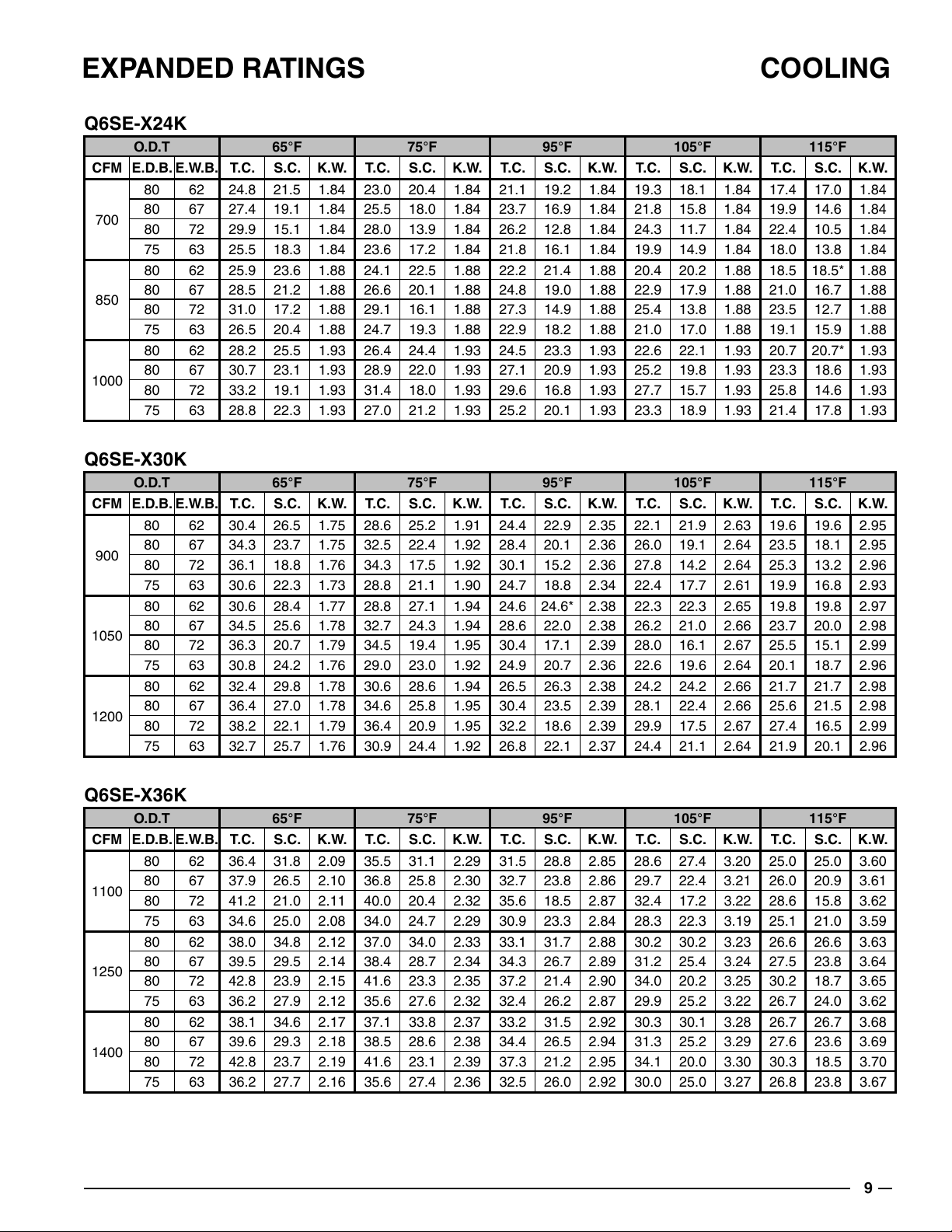

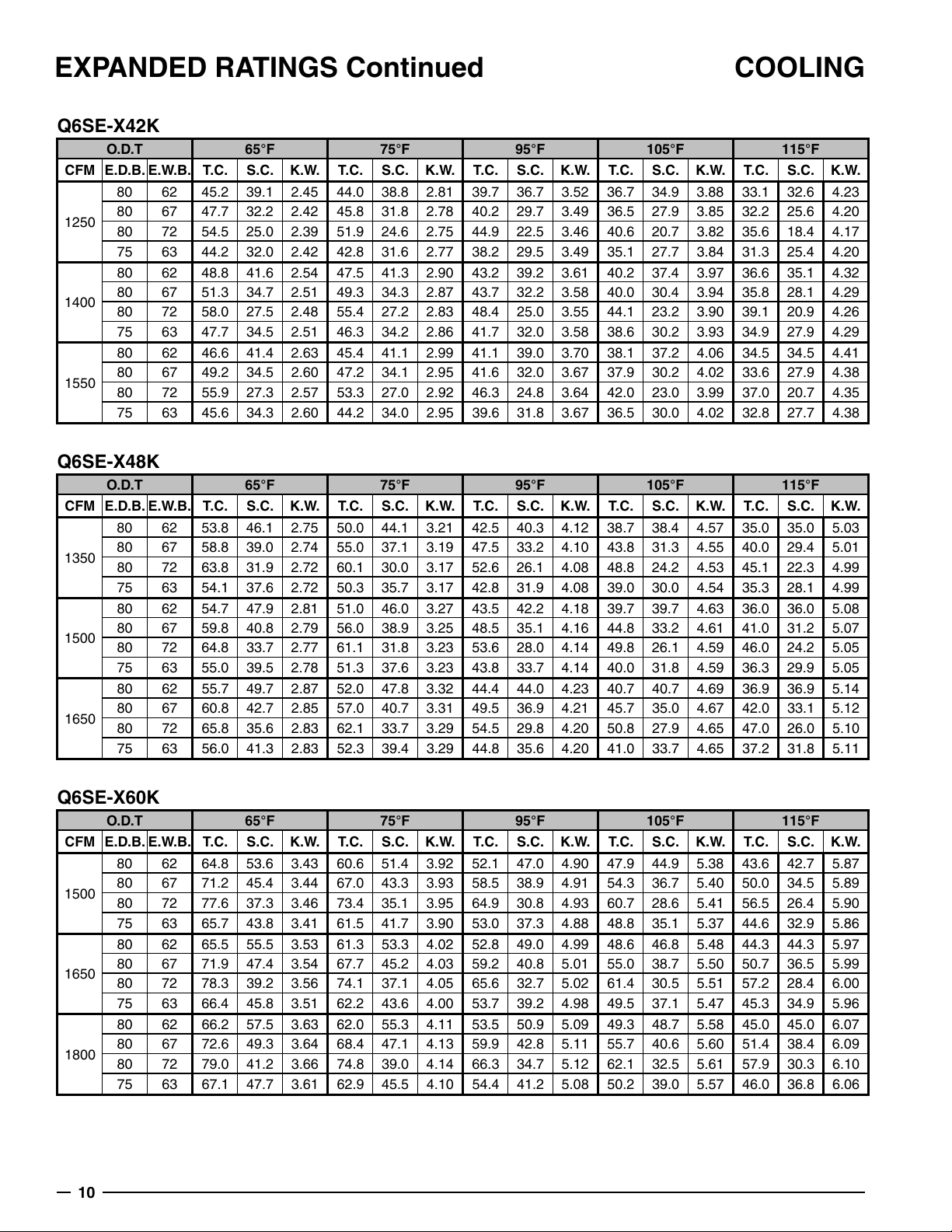

EXPANDED RATINGS COOLING

Q6SE-X24K

O.D.T 65°F 75°F 95°F 105°F 115°F

CFM E.D.B. E.W.B. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W.

80 62 24.8 21.5 1.84 23.0 20.4 1.84 21.1 19.2 1.84 19.3 18.1 1.84 17.4 17.0 1.84

700

850

1000

Q6SE-X30K

CFM E.D.B. E.W.B. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W.

900

1050

1200

80 67 27.4 19.1 1.84 25.5 18.0 1.84 23.7 16.9 1.84 21.8 15.8 1.84 19.9 14.6 1.84 80 72 29.9 15.1 1.84 28.0 13.9 1.84 26.2 12.8 1.84 24.3 11.7 1.84 22.4 10.5 1.84 75 63 25.5 18.3 1.84 23.6 17.2 1.84 21.8 16.1 1.84 19.9 14.9 1.84 18.0 13.8 1.84

80 62 25.9 23.6 1.88 24.1 22.5 1.88 22.2 21.4 1.88 20.4 20.2 1.88 18.5 18.5* 1.88 80 67 28.5 21.2 1.88 26.6 20.1 1.88 24.8 19.0 1.88 22.9 17.9 1.88 21.0 16.7 1.88 80 72 31.0 17.2 1.88 29.1 16.1 1.88 27.3 14.9 1.88 25.4 13.8 1.88 23.5 12.7 1.88 75 63 26.5 20.4 1.88 24.7 19.3 1.88 22.9 18.2 1.88 21.0 17.0 1.88 19.1 15.9 1.88

80 62 28.2 25.5 1.93 26.4 24.4 1.93 24.5 23.3 1.93 22.6 22.1 1.93 20.7 20.7* 1.93 80 67 30.7 23.1 1.93 28.9 22.0 1.93 27.1 20.9 1.93 25.2 19.8 1.93 23.3 18.6 1.93 80 72 33.2 19.1 1.93 31.4 18.0 1.93 29.6 16.8 1.93 27.7 15.7 1.93 25.8 14.6 1.93 75 63 28.8 22.3 1.93 27.0 21.2 1.93 25.2 20.1 1.93 23.3 18.9 1.93 21.4 17.8 1.93

O.D.T 65°F 75°F 95°F 105°F 115°F

80 62 30.4 26.5 1.75 28.6 25.2 1.91 24.4 22.9 2.35 22.1 21.9 2.63 19.6 19.6 2.95 80 67 34.3 23.7 1.75 32.5 22.4 1.92 28.4 20.1 2.36 26.0 19.1 2.64 23.5 18.1 2.95 80 72 36.1 18.8 1.76 34.3 17.5 1.92 30.1 15.2 2.36 27.8 14.2 2.64 25.3 13.2 2.96 75 63 30.6 22.3 1.73 28.8 21.1 1.90 24.7 18.8 2.34 22.4 17.7 2.61 19.9 16.8 2.93

80 62 30.6 28.4 1.77 28.8 27.1 1.94 24.6 24.6* 2.38 22.3 22.3 2.65 19.8 19.8 2.97 80 67 34.5 25.6 1.78 32.7 24.3 1.94 28.6 22.0 2.38 26.2 21.0 2.66 23.7 20.0 2.98 80 72 36.3 20.7 1.79 34.5 19.4 1.95 30.4 17.1 2.39 28.0 16.1 2.67 25.5 15.1 2.99 75 63 30.8 24.2 1.76 29.0 23.0 1.92 24.9 20.7 2.36 22.6 19.6 2.64 20.1 18.7 2.96

80 62 32.4 29.8 1.78 30.6 28.6 1.94 26.5 26.3 2.38 24.2 24.2 2.66 21.7 21.7 2.98 80 67 36.4 27.0 1.78 34.6 25.8 1.95 30.4 23.5 2.39 28.1 22.4 2.66 25.6 21.5 2.98

80 72 38.2 22.1 1.79 36.4 20.9 1.95 32.2 18.6 2.39 29.9 17.5 2.67 27.4 16.5 2.99 75 63 32.7 25.7 1.76 30.9 24.4 1.92 26.8 22.1 2.37 24.4 21.1 2.64 21.9 20.1 2.96

Q6SE-X36K

O.D.T 65°F 75°F 95°F 105°F 115°F

CFM E.D.B. E.W.B. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W.

80 62 36.4 31.8 2.09 35.5 31.1 2.29 31.5 28.8 2.85 28.6 27.4 3.20 25.0 25.0 3.60

1100

1250

1400

80 67 37.9 26.5 2.10 36.8 25.8 2.30 32.7 23.8 2.86 29.7 22.4 3.21 26.0 20.9 3.61 80 72 41.2 21.0 2.11 40.0 20.4 2.32 35.6 18.5 2.87 32.4 17.2 3.22 28.6 15.8 3.62 75 63 34.6 25.0 2.08 34.0 24.7 2.29 30.9 23.3 2.84 28.3 22.3 3.19 25.1 21.0 3.59

80 62 38.0 34.8 2.12 37.0 34.0 2.33 33.1 31.7 2.88 30.2 30.2 3.23 26.6 26.6 3.63 80 67 39.5 29.5 2.14 38.4 28.7 2.34 34.3 26.7 2.89 31.2 25.4 3.24 27.5 23.8 3.64 80 72 42.8 23.9 2.15 41.6 23.3 2.35 37.2 21.4 2.90 34.0 20.2 3.25 30.2 18.7 3.65 75 63 36.2 27.9 2.12 35.6 27.6 2.32 32.4 26.2 2.87 29.9 25.2 3.22 26.7 24.0 3.62

80 62 38.1 34.6 2.17 37.1 33.8 2.37 33.2 31.5 2.92 30.3 30.1 3.28 26.7 26.7 3.68

80 67 39.6 29.3 2.18 38.5 28.6 2.38 34.4 26.5 2.94 31.3 25.2 3.29 27.6 23.6 3.69 80 72 42.8 23.7 2.19 41.6 23.1 2.39 37.3 21.2 2.95 34.1 20.0 3.30 30.3 18.5 3.70 75 63 36.2 27.7 2.16 35.6 27.4 2.36 32.5 26.0 2.92 30.0 25.0 3.27 26.8 23.8 3.67

Page 10

EXPANDED RATINGS Continued COOLING

Q6SE-X42K

O.D.T 65°F 75°F 95°F 105°F 115°F

CFM E.D.B. E.W.B. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W.

80 62 45.2 39.1 2.45 44.0 38.8 2.81 39.7 36.7 3.52 36.7 34.9 3.88 33.1 32.6 4.23

1250

1400

1550

Q6SE-X48K

CFM E.D.B. E.W.B. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W.

1350

1500

1650

80 67 47.7 32.2 2.42 45.8 31.8 2.78 40.2 29.7 3.49 36.5 27.9 3.85 32.2 25.6 4.20 80 72 54.5 25.0 2.39 51.9 24.6 2.75 44.9 22.5 3.46 40.6 20.7 3.82 35.6 18.4 4.17 75 63 44.2 32.0 2.42 42.8 31.6 2.77 38.2 29.5 3.49 35.1 27.7 3.84 31.3 25.4 4.20

80 62 48.8 41.6 2.54 47.5 41.3 2.90 43.2 39.2 3.61 40.2 37.4 3.97 36.6 35.1 4.32 80 67 51.3 34.7 2.51 49.3 34.3 2.87 43.7 32.2 3.58 40.0 30.4 3.94 35.8 28.1 4.29

80 72 58.0 27.5 2.48 55.4 27.2 2.83 48.4 25.0 3.55 44.1 23.2 3.90 39.1 20.9 4.26 75 63 47.7 34.5 2.51 46.3 34.2 2.86 41.7 32.0 3.58 38.6 30.2 3.93 34.9 27.9 4.29

80 62 46.6 41.4 2.63 45.4 41.1 2.99 41.1 39.0 3.70 38.1 37.2 4.06 34.5 34.5 4.41 80 67 49.2 34.5 2.60 47.2 34.1 2.95 41.6 32.0 3.67 37.9 30.2 4.02 33.6 27.9 4.38 80 72 55.9 27.3 2.57 53.3 27.0 2.92 46.3 24.8 3.64 42.0 23.0 3.99 37.0 20.7 4.35 75 63 45.6 34.3 2.60 44.2 34.0 2.95 39.6 31.8 3.67 36.5 30.0 4.02 32.8 27.7 4.38

O.D.T 65°F 75°F 95°F 105°F 115°F

80 62 53.8 46.1 2.75 50.0 44.1 3.21 42.5 40.3 4.12 38.7 38.4 4.57 35.0 35.0 5.03 80 67 58.8 39.0 2.74 55.0 37.1 3.19 47.5 33.2 4.10 43.8 31.3 4.55 40.0 29.4 5.01 80 72 63.8 31.9 2.72 60.1 30.0 3.17 52.6 26.1 4.08 48.8 24.2 4.53 45.1 22.3 4.99 75 63 54.1 37.6 2.72 50.3 35.7 3.17 42.8 31.9 4.08 39.0 30.0 4.54 35.3 28.1 4.99

80 62 54.7 47.9 2.81 51.0 46.0 3.27 43.5 42.2 4.18 39.7 39.7 4.63 36.0 36.0 5.08 80 67 59.8 40.8 2.79 56.0 38.9 3.25 48.5 35.1 4.16 44.8 33.2 4.61 41.0 31.2 5.07

80 72 64.8 33.7 2.77 61.1 31.8 3.23 53.6 28.0 4.14 49.8 26.1 4.59 46.0 24.2 5.05 75 63 55.0 39.5 2.78 51.3 37.6 3.23 43.8 33.7 4.14 40.0 31.8 4.59 36.3 29.9 5.05

80 62 55.7 49.7 2.87 52.0 47.8 3.32 44.4 44.0 4.23 40.7 40.7 4.69 36.9 36.9 5.14 80 67 60.8 42.7 2.85 57.0 40.7 3.31 49.5 36.9 4.21 45.7 35.0 4.67 42.0 33.1 5.12 80 72 65.8 35.6 2.83 62.1 33.7 3.29 54.5 29.8 4.20 50.8 27.9 4.65 47.0 26.0 5.10 75 63 56.0 41.3 2.83 52.3 39.4 3.29 44.8 35.6 4.20 41.0 33.7 4.65 37.2 31.8 5.11

Q6SE-X60K

O.D.T 65°F 75°F 95°F 105°F 115°F

CFM E.D.B. E.W.B. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W. T.C. S.C. K.W.

80 62 64.8 53.6 3.43 60.6 51.4 3.92 52.1 47.0 4.90 47.9 44.9 5.38 43.6 42.7 5.87

1500

1650

1800

80 67 71.2 45.4 3.44 67.0 43.3 3.93 58.5 38.9 4.91 54.3 36.7 5.40 50.0 34.5 5.89 80 72 77.6 37.3 3.46 73.4 35.1 3.95 64.9 30.8 4.93 60.7 28.6 5.41 56.5 26.4 5.90 75 63 65.7 43.8 3.41 61.5 41.7 3.90 53.0 37.3 4.88 48.8 35.1 5.37 44.6 32.9 5.86

80 62 65.5 55.5 3.53 61.3 53.3 4.02 52.8 49.0 4.99 48.6 46.8 5.48 44.3 44.3 5.97 80 67 71.9 47.4 3.54 67.7 45.2 4.03 59.2 40.8 5.01 55.0 38.7 5.50 50.7 36.5 5.99

80 72 78.3 39.2 3.56 74.1 37.1 4.05 65.6 32.7 5.02 61.4 30.5 5.51 57.2 28.4 6.00 75 63 66.4 45.8 3.51 62.2 43.6 4.00 53.7 39.2 4.98 49.5 37.1 5.47 45.3 34.9 5.96

80 62 66.2 57.5 3.63 62.0 55.3 4.11 53.5 50.9 5.09 49.3 48.7 5.58 45.0 45.0 6.07 80 67 72.6 49.3 3.64 68.4 47.1 4.13 59.9 42.8 5.11 55.7 40.6 5.60 51.4 38.4 6.09 80 72 79.0 41.2 3.66 74.8 39.0 4.14 66.3 34.7 5.12 62.1 32.5 5.61 57.9 30.3 6.10 75 63 67.1 47.7 3.61 62.9 45.5 4.10 54.4 41.2 5.08 50.2 39.0 5.57 46.0 36.8 6.06

Page 11

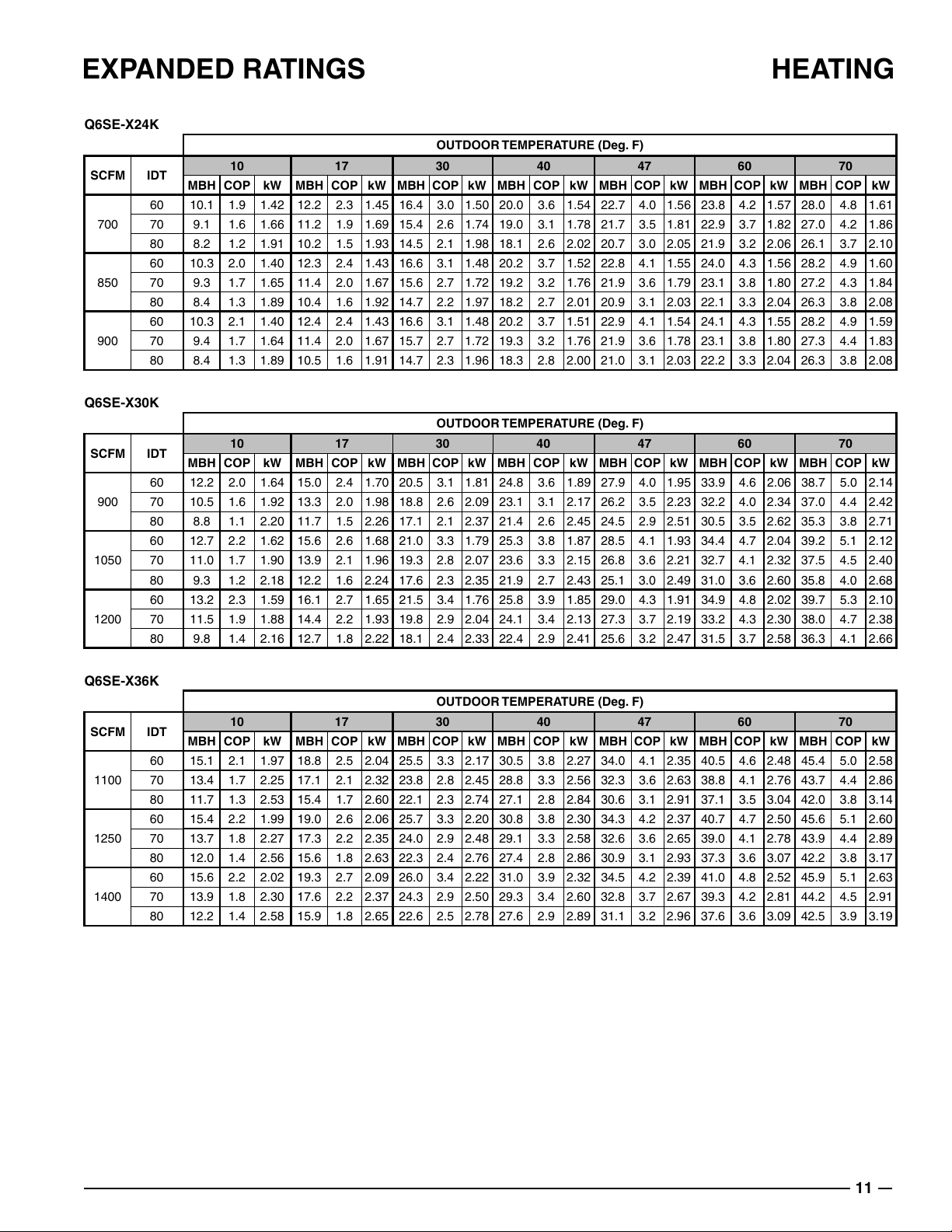

EXPANDED RATINGS HEATING

Q6SE-X24K

OUTDOOR TEMPERATURE (Deg. F)

SCFM IDT

700

850

900

Q6SE-X30K

SCFM IDT

900

1050

1200

60 10.1 1.9 1.42 12.2 2.3 1.45 16.4 3.0 1.50 20.0 3.6 1.54 22.7 4.0 1.56 23.8 4.2 1.57 28.0 4.8 1.61

70 9.1 1.6 1.66 11.2 1.9 1.69 15.4 2.6 1.74 19.0 3.1 1.78 21.7 3.5 1.81 22.9 3.7 1.82 27.0 4.2 1.86

80 8.2 1.2 1.91 10.2 1.5 1.93 14.5 2.1 1.98 18.1 2.6 2.02 20.7 3.0 2.05 21.9 3.2 2.06 26.1 3.7 2.10

60 10.3 2.0 1.40 12.3 2.4 1.43 16.6 3.1 1.48 20.2 3.7 1.52 22.8 4.1 1.55 24.0 4.3 1.56 28.2 4.9 1.60

70 9.3 1.7 1.65 11.4 2.0 1.67 15.6 2.7 1.72 19.2 3.2 1.76 21.9 3.6 1.79 23.1 3.8 1.80 27.2 4.3 1.84

80 8.4 1.3 1.89 10.4 1.6 1.92 14.7 2.2 1.97 18.2 2.7 2.01 20.9 3.1 2.03 22.1 3.3 2.04 26.3 3.8 2.08

60 10.3 2.1 1.40 12.4 2.4 1.43 16.6 3.1 1.48 20.2 3.7 1.51 22.9 4.1 1.54 24.1 4.3 1.55 28.2 4.9 1.59

70 9.4 1.7 1.64 11.4 2.0 1.67 15.7 2.7 1.72 19.3 3.2 1.76 21.9 3.6 1.78 23.1 3.8 1.80 27.3 4.4 1.83

80 8.4 1.3 1.89 10.5 1.6 1.91 14.7 2.3 1.96 18.3 2.8 2.00 21.0 3.1 2.03 22.2 3.3 2.04 26.3 3.8 2.08

60 12.2 2.0 1.64 15.0 2.4 1.70 20.5 3.1 1.81 24.8 3.6 1.89 27.9 4.0 1.95 33.9 4.6 2.06 38.7 5.0 2.14

70 10.5 1.6 1.92 13.3 2.0 1.98 18.8 2.6 2.09 23.1 3.1 2.17 26.2 3.5 2.23 32.2 4.0 2.34 37.0 4.4 2.42

80 8.8 1.1 2.20 11.7 1.5 2.26 17.1 2.1 2.37 21.4 2.6 2.45 24.5 2.9 2.51 30.5 3.5 2.62 35.3 3.8 2.71

60 12.7 2.2 1.62 15.6 2.6 1.68 21.0 3.3 1.79 25.3 3.8 1.87 28.5 4.1 1.93 34.4 4.7 2.04 39.2 5.1 2.12

70 11.0 1.7 1.90 13.9 2.1 1.96 19.3 2.8 2.07 23.6 3.3 2.15 26.8 3.6 2.21 32.7 4.1 2.32 37.5 4.5 2.40

80 9.3 1.2 2.18 12.2 1.6 2.24 17.6 2.3 2.35 21.9 2.7 2.43 25.1 3.0 2.49 31.0 3.6 2.60 35.8 4.0 2.68

60 13.2 2.3 1.59 16.1 2.7 1.65 21.5 3.4 1.76 25.8 3.9 1.85 29.0 4.3 1.91 34.9 4.8 2.02 39.7 5.3 2.10

70 11.5 1.9 1.88 14.4 2.2 1.93 19.8 2.9 2.04 24.1 3.4 2.13 27.3 3.7 2.19 33.2 4.3 2.30 38.0 4.7 2.38

80 9.8 1.4 2.16 12.7 1.8 2.22 18.1 2.4 2.33 22.4 2.9 2.41 25.6 3.2 2.47 31.5 3.7 2.58 36.3 4.1 2.66

10 17 30 40 47 60 70

MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW

OUTDOOR TEMPERATURE (Deg. F)

10 17 30 40 47 60 70

MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW

Q6SE-X36K

SCFM IDT

1100

1250

1400

OUTDOOR TEMPERATURE (Deg. F)

10 17 30 40 47 60 70

MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW

60 15.1 2.1 1.97 18.8 2.5 2.04 25.5 3.3 2.17 30.5 3.8 2.27 34.0 4.1 2.35 40.5 4.6 2.48 45.4 5.0 2.58

70 13.4 1.7 2.25 17.1 2.1 2.32 23.8 2.8 2.45 28.8 3.3 2.56 32.3 3.6 2.63 38.8 4.1 2.76 43.7 4.4 2.86

80 11.7 1.3 2.53 15.4 1.7 2.60 22.1 2.3 2.74 27.1 2.8 2.84 30.6 3.1 2.91 37.1 3.5 3.04 42.0 3.8 3.14

60 15.4 2.2 1.99 19.0 2.6 2.06 25.7 3.3 2.20 30.8 3.8 2.30 34.3 4.2 2.37 40.7 4.7 2.50 45.6 5.1 2.60

70 13.7 1.8 2.27 17.3 2.2 2.35 24.0 2.9 2.48 29.1 3.3 2.58 32.6 3.6 2.65 39.0 4.1 2.78 43.9 4.4 2.89

80 12.0 1.4 2.56 15.6 1.8 2.63 22.3 2.4 2.76 27.4 2.8 2.86 30.9 3.1 2.93 37.3 3.6 3.07 42.2 3.8 3.17

60 15.6 2.2 2.02 19.3 2.7 2.09 26.0 3.4 2.22 31.0 3.9 2.32 34.5 4.2 2.39 41.0 4.8 2.52 45.9 5.1 2.63

70 13.9 1.8 2.30 17.6 2.2 2.37 24.3 2.9 2.50 29.3 3.4 2.60 32.8 3.7 2.67 39.3 4.2 2.81 44.2 4.5 2.91

80 12.2 1.4 2.58 15.9 1.8 2.65 22.6 2.5 2.78 27.6 2.9 2.89 31.1 3.2 2.96 37.6 3.6 3.09 42.5 3.9 3.19

Page 12

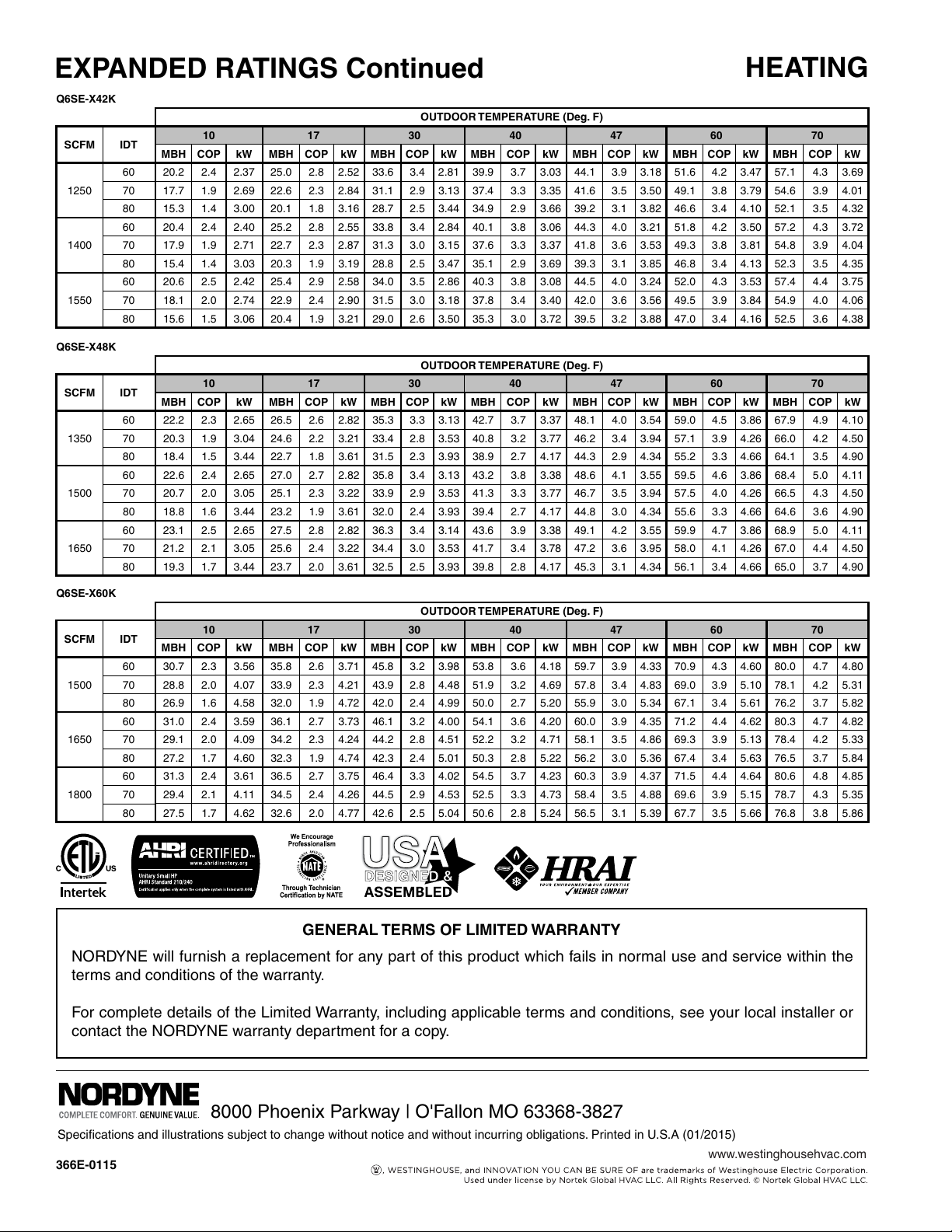

EXPANDED RATINGS Continued

Q6SE-X42K

OUTDOOR TEMPERATURE (Deg. F)

SCFM IDT

1250

1400

1550

Q6SE-X48K

SCFM IDT

1350

1500

1650

60 20.2 2.4 2.37 25.0 2.8 2.52 33.6 3.4 2.81 39.9 3.7 3.03 44.1 3.9 3.18 51.6 4.2 3.47 57.1 4.3 3.69

70 17.7 1.9 2.69 22.6 2.3 2.84 31.1 2.9 3.13 37.4 3.3 3.35 41.6 3.5 3.50 49.1 3.8 3.79 54.6 3.9 4.01

80 15.3 1.4 3.00 20.1 1.8 3.16 28.7 2.5 3.44 34.9 2.9 3.66 39.2 3.1 3.82 46.6 3.4 4.10 52.1 3.5 4.32

60 20.4 2.4 2.40 25.2 2.8 2.55 33.8 3.4 2.84 40.1 3.8 3.06 44.3 4.0 3.21 51.8 4.2 3.50 57.2 4.3 3.72

70 17.9 1.9 2.71 22.7 2.3 2.87 31.3 3.0 3.15 37.6 3.3 3.37 41.8 3.6 3.53 49.3 3.8 3.81 54.8 3.9 4.04

80 15.4 1.4 3.03 20.3 1.9 3.19 28.8 2.5 3.47 35.1 2.9 3.69 39.3 3.1 3.85 46.8 3.4 4.13 52.3 3.5 4.35

60 20.6 2.5 2.42 25.4 2.9 2.58 34.0 3.5 2.86 40.3 3.8 3.08 44.5 4.0 3.24 52.0 4.3 3.53 57.4 4.4 3.75

70 18.1 2.0 2.74 22.9 2.4 2.90 31.5 3.0 3.18 37.8 3.4 3.40 42.0 3.6 3.56 49.5 3.9 3.84 54.9 4.0 4.06

80 15.6 1.5 3.06 20.4 1.9 3.21 29.0 2.6 3.50 35.3 3.0 3.72 39.5 3.2 3.88 47.0 3.4 4.16 52.5 3.6 4.38

60 22.2 2.3 2.65 26.5 2.6 2.82 35.3 3.3 3.13 42.7 3.7 3.37 48.1 4.0 3.54 59.0 4.5 3.86 67.9 4.9 4.10

70 20.3 1.9 3.04 24.6 2.2 3.21 33.4 2.8 3.53 40.8 3.2 3.77 46.2 3.4 3.94 57.1 3.9 4.26 66.0 4.2 4.50

80 18.4 1.5 3.44 22.7 1.8 3.61 31.5 2.3 3.93 38.9 2.7 4.17 44.3 2.9 4.34 55.2 3.3 4.66 64.1 3.5 4.90

60 22.6 2.4 2.65 27.0 2.7 2.82 35.8 3.4 3.13 43.2 3.8 3.38 48.6 4.1 3.55 59.5 4.6 3.86 68.4 5.0 4.11

70 20.7 2.0 3.05 25.1 2.3 3.22 33.9 2.9 3.53 41.3 3.3 3.77 46.7 3.5 3.94 57.5 4.0 4.26 66.5 4.3 4.50

80 18.8 1.6 3.44 23.2 1.9 3.61 32.0 2.4 3.93 39.4 2.7 4.17 44.8 3.0 4.34 55.6 3.3 4.66 64.6 3.6 4.90

60 23.1 2.5 2.65 27.5 2.8 2.82 36.3 3.4 3.14 43.6 3.9 3.38 49.1 4.2 3.55 59.9 4.7 3.86 68.9 5.0 4.11

70 21.2 2.1 3.05 25.6 2.4 3.22 34.4 3.0 3.53 41.7 3.4 3.78 47.2 3.6 3.95 58.0 4.1 4.26 67.0 4.4 4.50

80 19.3 1.7 3.44 23.7 2.0 3.61 32.5 2.5 3.93 39.8 2.8 4.17 45.3 3.1 4.34 56.1 3.4 4.66 65.0 3.7 4.90

10 17 30 40 47 60 70

MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW

OUTDOOR TEMPERATURE (Deg. F)

10 17 30 40 47 60 70

MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW

HEATING

Q6SE-X60K

OUTDOOR TEMPERATURE (Deg. F)

SCFM IDT

60 30.7 2.3 3.56 35.8 2.6 3.71 45.8 3.2 3.98 53.8 3.6 4.18 59.7 3.9 4.33 70.9 4.3 4.60 80.0 4.7 4.80

1500

1650

1800

70 28.8 2.0 4.07 33.9 2.3 4.21 43.9 2.8 4.48 51.9 3.2 4.69 57.8 3.4 4.83 69.0 3.9 5.10 78.1 4.2 5.31

80 26.9 1.6 4.58 32.0 1.9 4.72 42.0 2.4 4.99 50.0 2.7 5.20 55.9 3.0 5.34 67.1 3.4 5.61 76.2 3.7 5.82

60 31.0 2.4 3.59 36.1 2.7 3.73 46.1 3.2 4.00 54.1 3.6 4.20 60.0 3.9 4.35 71.2 4.4 4.62 80.3 4.7 4.82

70 29.1 2.0 4.09 34.2 2.3 4.24 44.2 2.8 4.51 52.2 3.2 4.71 58.1 3.5 4.86 69.3 3.9 5.13 78.4 4.2 5.33

80 27.2 1.7 4.60 32.3 1.9 4.74 42.3 2.4 5.01 50.3 2.8 5.22 56.2 3.0 5.36 67.4 3.4 5.63 76.5 3.7 5.84

60 31.3 2.4 3.61 36.5 2.7 3.75 46.4 3.3 4.02 54.5 3.7 4.23 60.3 3.9 4.37 71.5 4.4 4.64 80.6 4.8 4.85

70 29.4 2.1 4.11 34.5 2.4 4.26 44.5 2.9 4.53 52.5 3.3 4.73 58.4 3.5 4.88 69.6 3.9 5.15 78.7 4.3 5.35

80 27.5 1.7 4.62 32.6 2.0 4.77 42.6 2.5 5.04 50.6 2.8 5.24 56.5 3.1 5.39 67.7 3.5 5.66 76.8 3.8 5.86

10 17 30 40 47 60 70

MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW MBH COP kW

GENERAL TERMS OF LIMITED WARRANTY

NORDYNE will furnish a replacement for any part of this product which fails in normal use and service within the terms and conditions of the warranty.

For complete details of the Limited Warranty, including applicable terms and conditions, see your local installer or contact the NORDYNE warranty department for a copy.

8000 Phoenix Parkway | O'Fallon MO 63368-3827

Speciﬁcations and illustrations subject to change without notice and without incurring obligations. Printed in U.S.A (01/2015)

366E-0115

www.westinghousehvac.com
