Digital Inverter Generators

Instruction Manual

iGen1200 iGen2200 iGen2500 iGen4500

Page 2

DISCLAIMERS:

All instructions, illustrations and speciﬁcations in this manual are based on the latest information available at the time of publishing. The illustrations used in this manual are intended as representative reference views only. Moreover, because of our continuous product improvement policy, we may modify information, illustrations or speciﬁcations to explain or exemplify a product, service or maintenance improvement. We reserve the right to make any change at any time without notice. Your generator may differ slightly from the models pictured, including optional accessories.

No part of this publication may be reproduced or used in any form by any means – graphic, electronic or mechanical, including photocopying, recording, taping or information storage and retrieval systems – without the written permission of MWE Investments, LLC.

Page 3

CONGRATULATIONS ON PURCHASING A WESTINGHOUSE DIGITAL INVERTER GENERATOR

Thank you for purchasing a Westinghouse portable generator. It is a high-quality power product that will provide many years of safe and reliable service if properly operated and maintained.

DANGER

This manual contains important instructions for operating the generator. For your safety and that of others, be sure to read this manual thoroughly before operating the generator. Failure to properly follow all instructions and precautions could cause you or others to be seriously hurt or killed. This manual should be considered a permanent part of the generator and should remain with it if resold.

For Your Records:

Date of Purchase: Generator Model Number:

Purchased From: Generator Serial Number:

Purchase Receipt: Please retain your tax invoice or purchase receipt to ensure warranty coverage.

Page 4

CONTENTS

SAFETY ..................................................................................................................................................................... 6

SAFETY DEFINITIONS ....................................................................................................................................... 6

SAFETY SYMBOL DEFINITIONS ....................................................................................................................... 6

GENERAL SAFETY RULES ................................................................................................................................ 7

SAFETY LABELS ................................................................................................................................................ 9

UNPACKING ........................................................................................................................................................... 10

UNPACKING THE GENERATOR ......................................................................................................................10

ACCESSORIES ................................................................................................................................................. 10

FEATURES .............................................................................................................................................................. 11

MAIN GENERATOR COMPONENTS iGen1200 ...............................................................................................11

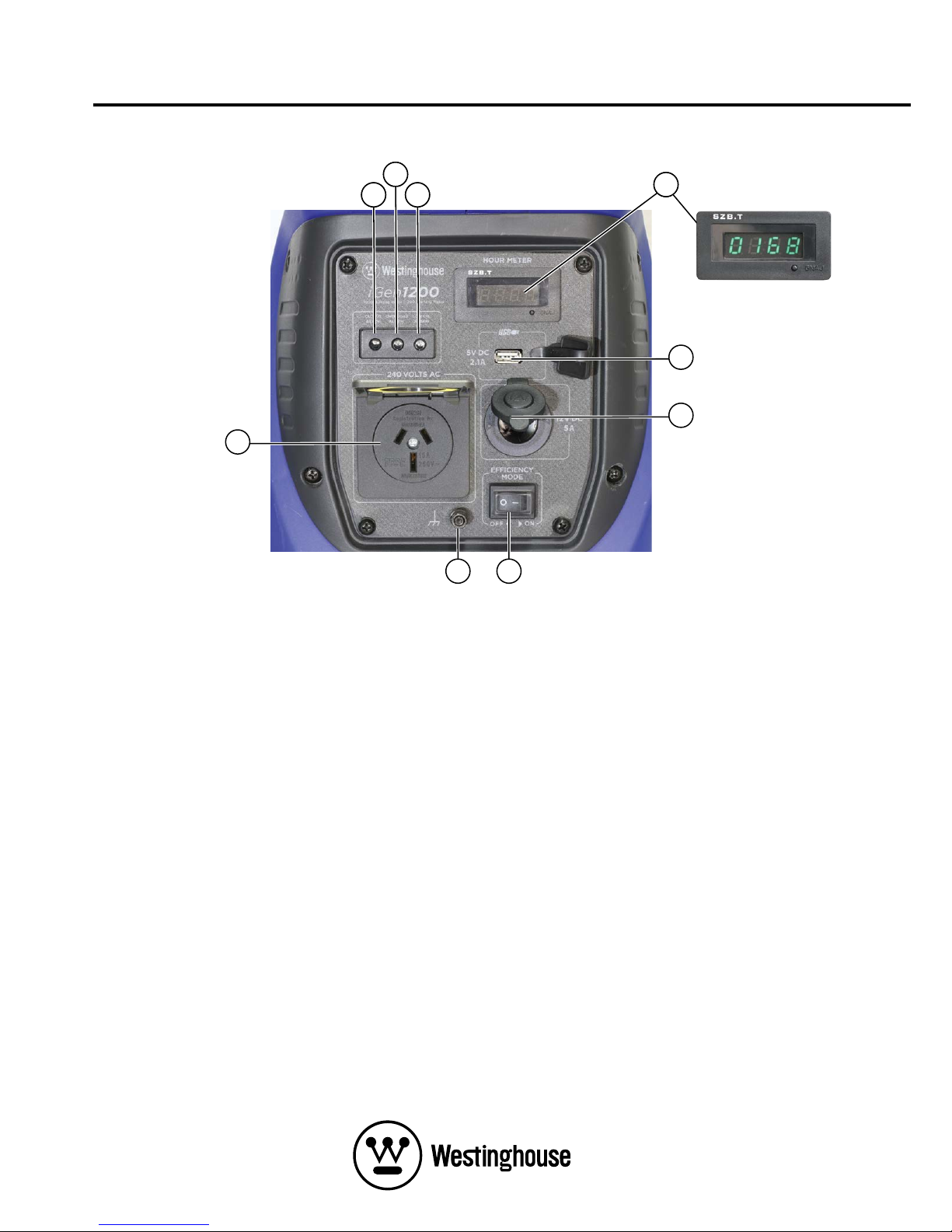

CONTROL PANEL FEATURES iGen1200 ........................................................................................................12

MAIN GENERATOR COMPONENTS iGen2200 & 2500 ..................................................................................13

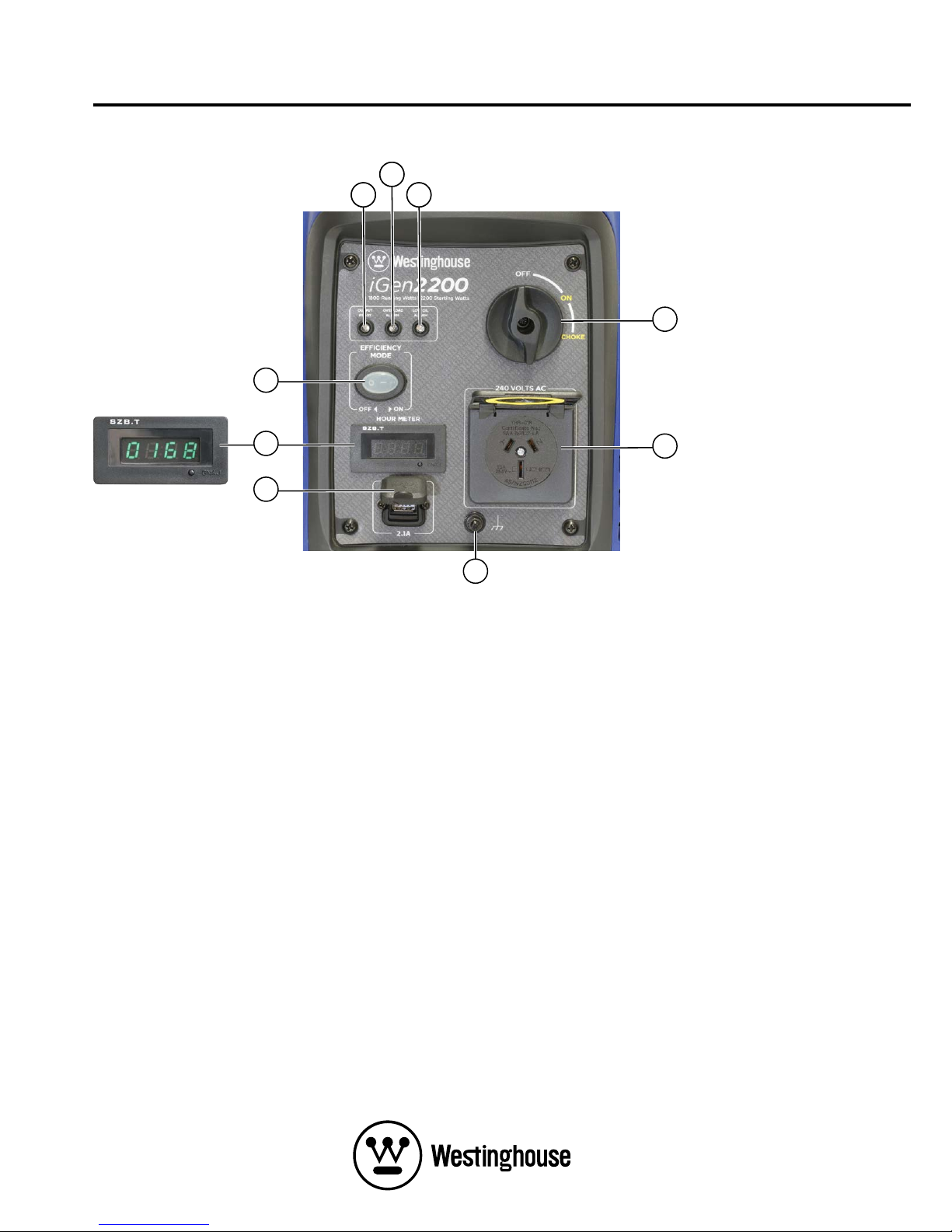

CONTROL PANEL FEATURES iGen2200 & 2500 ............................................................................................14

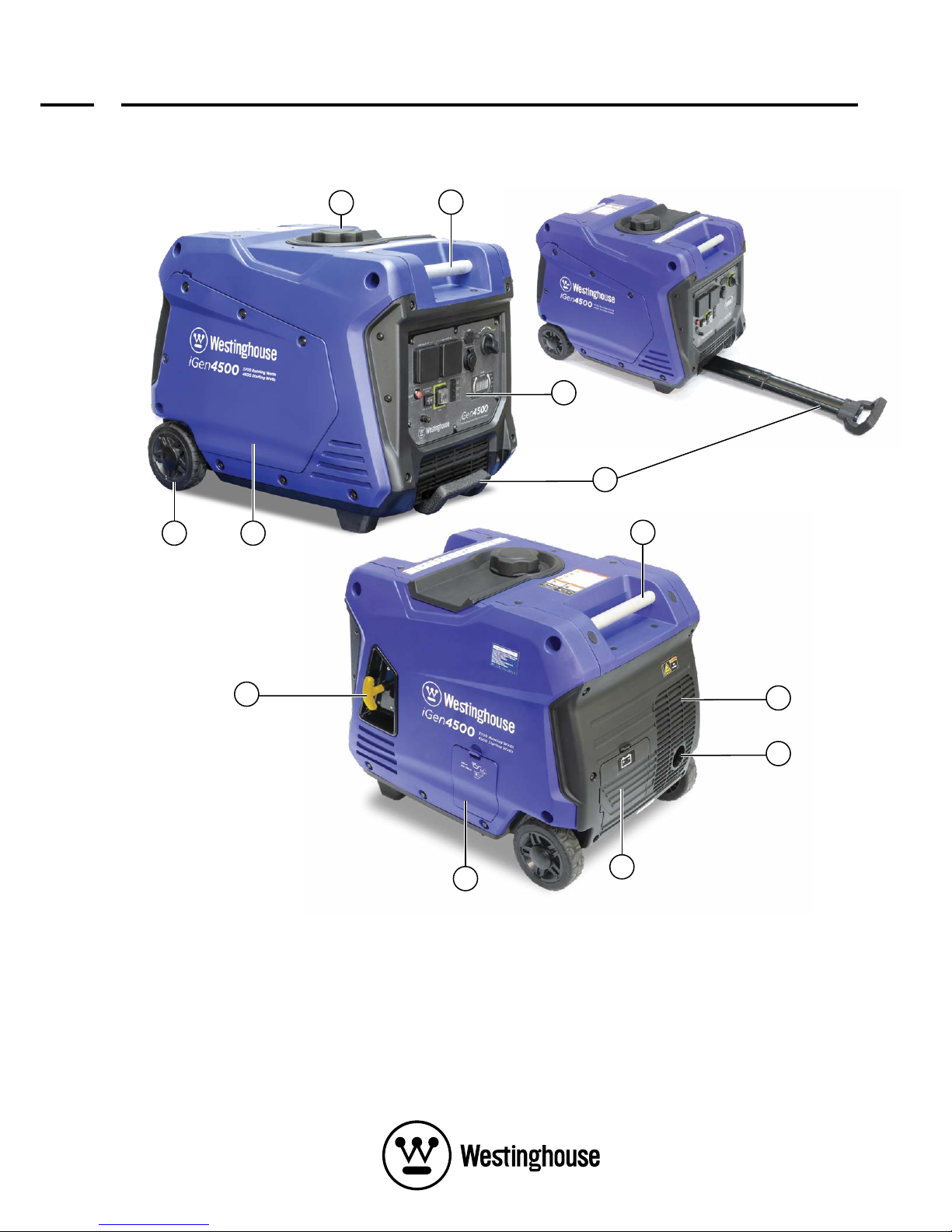

MAIN GENERATOR COMPONENTS iGen4500 ...............................................................................................15

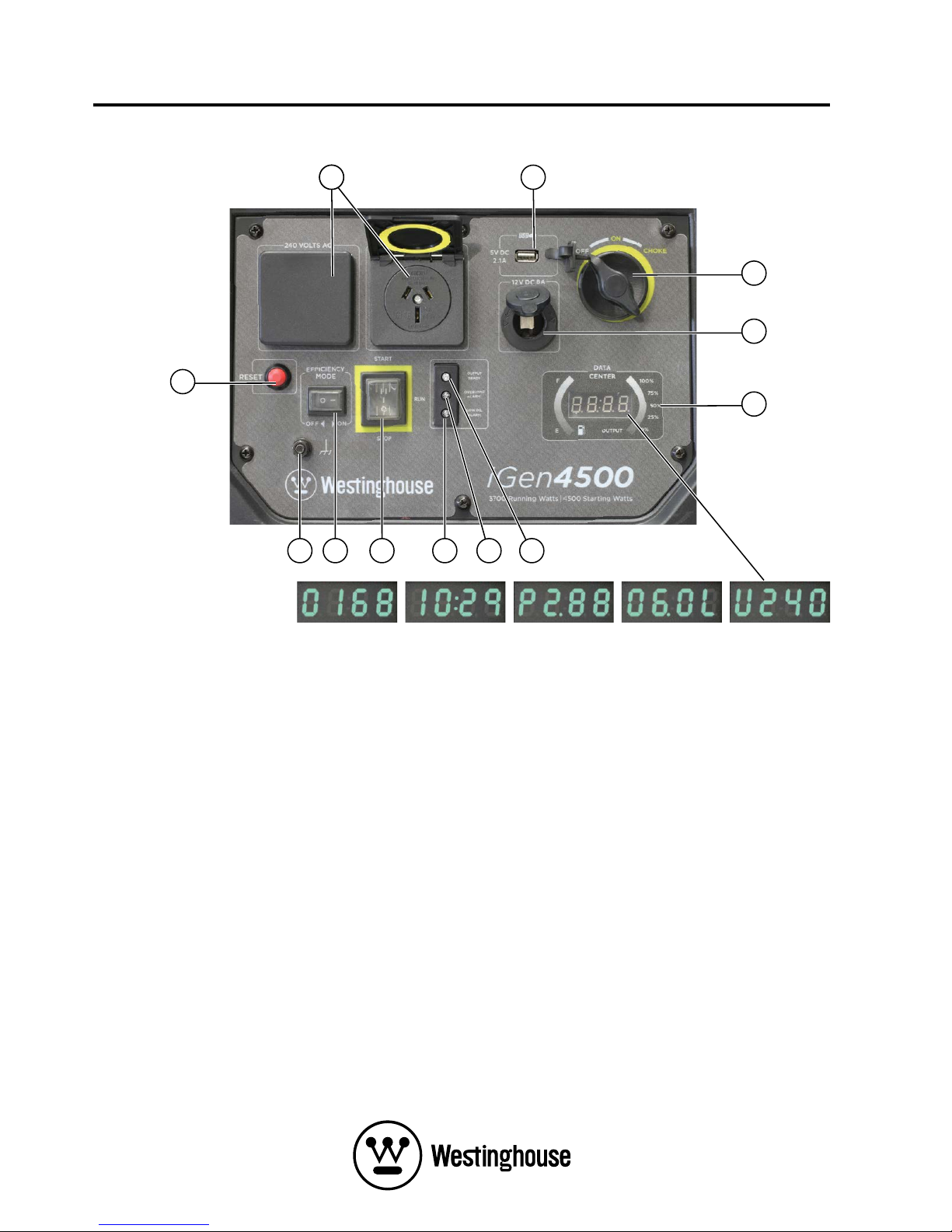

CONTROL PANEL FEATURES iGen4500 ........................................................................................................16

OPERATION ...........................................................................................................................................................18

CONNECTING THE BATTERY iGen4500 .........................................................................................................18

BEFORE STARTING THE GENERATOR .......................................................................................................... 19

CHECKING OR ADDING ENGINE OIL AND FUEL ..........................................................................................20

Checking and Adding Engine Oil .............................................................................................................. 20

Checking and Adding Fuel ........................................................................................................................ 20

STARTING THE GENERATOR .......................................................................................................................... 21

iGen1200 Starting ...................................................................................................................................... 21

iGen2200 & 2500 Starting ..........................................................................................................................22

iGen4500 Electric Starting ........................................................................................................................23

iGen4500 Manual Starting ......................................................................................................................... 23

ECO THROTTLE CONTROL ............................................................................................................................23

OVERLOAD RESET .......................................................................................................................................... 24

STOPPING THE GENERATOR .........................................................................................................................24

Normal Operation ......................................................................................................................................24

During an Emergency ................................................................................................................................ 24

APPLICATION AND DUTY CYCLE ...................................................................................................................24

AMBIENT CONDITIONS ................................................................................................................................... 24

CONNECTING ELECTRICAL LOADS ..............................................................................................................25

240-Volt AC Loads .....................................................................................................................................25

12-Volt DC Accessory Loads ....................................................................................................................25

5-Volt DC USB Loads ................................................................................................................................25

Power Output and Demand ......................................................................................................................25

240-VOLT AC EXTENSION CORDS .................................................................................................................26

Page 5

CONTENTS

12 VOLT BATTERY CHARGING .......................................................................................................................27

Battery Charging by Direct Connection ...................................................................................................27

Battery Charging by a Mains-Powered Charger ......................................................................................27

TRANSPORTING THE GENERATOR ............................................................................................................... 28

MAINTENANCE ...................................................................................................................................................... 29

MAINTENANCE PRECAUTIONS .....................................................................................................................29

Maintenance Schedule .............................................................................................................................. 29

ENGINE OIL MAINTENANCE ........................................................................................................................... 30

Engine Oil Speciﬁcation ............................................................................................................................ 30

Checking Engine Oil .................................................................................................................................. 30

Adding Engine Oil ...................................................................................................................................... 31

Changing Engine Oil .................................................................................................................................. 31

AIR FILTER MAINTENANCE ............................................................................................................................32

Cleaning the Air Filter ............................................................................................................................... 32

FUEL STRAINER MAINTENANCE ...................................................................................................................33

SPARK PLUG MAINTENANCE ........................................................................................................................34

SPARK ARRESTER MAINTENANCE ...............................................................................................................36

CLEANING THE GENERATOR .........................................................................................................................37

12 VOLT BATTERY MAINTENANCE iGEN4500 ............................................................................................... 37

Charging the Battery .................................................................................................................................37

Replacing the Battery ................................................................................................................................ 38

DRAINING THE FUEL .......................................................................................................................................38

LONG-TERM STORAGE ..................................................................................................................................39

Storage Procedure for 1 – 3 Months ........................................................................................................39

Storage Procedure for Greater than 3 Months .........................................................................................39

Removal from Storage ..............................................................................................................................40

DISMANTLING AND DISPOSAL ...................................................................................................................... 40

TROUBLESHOOTING ............................................................................................................................................ 41

SPECIFICATIONS ................................................................................................................................................... 45

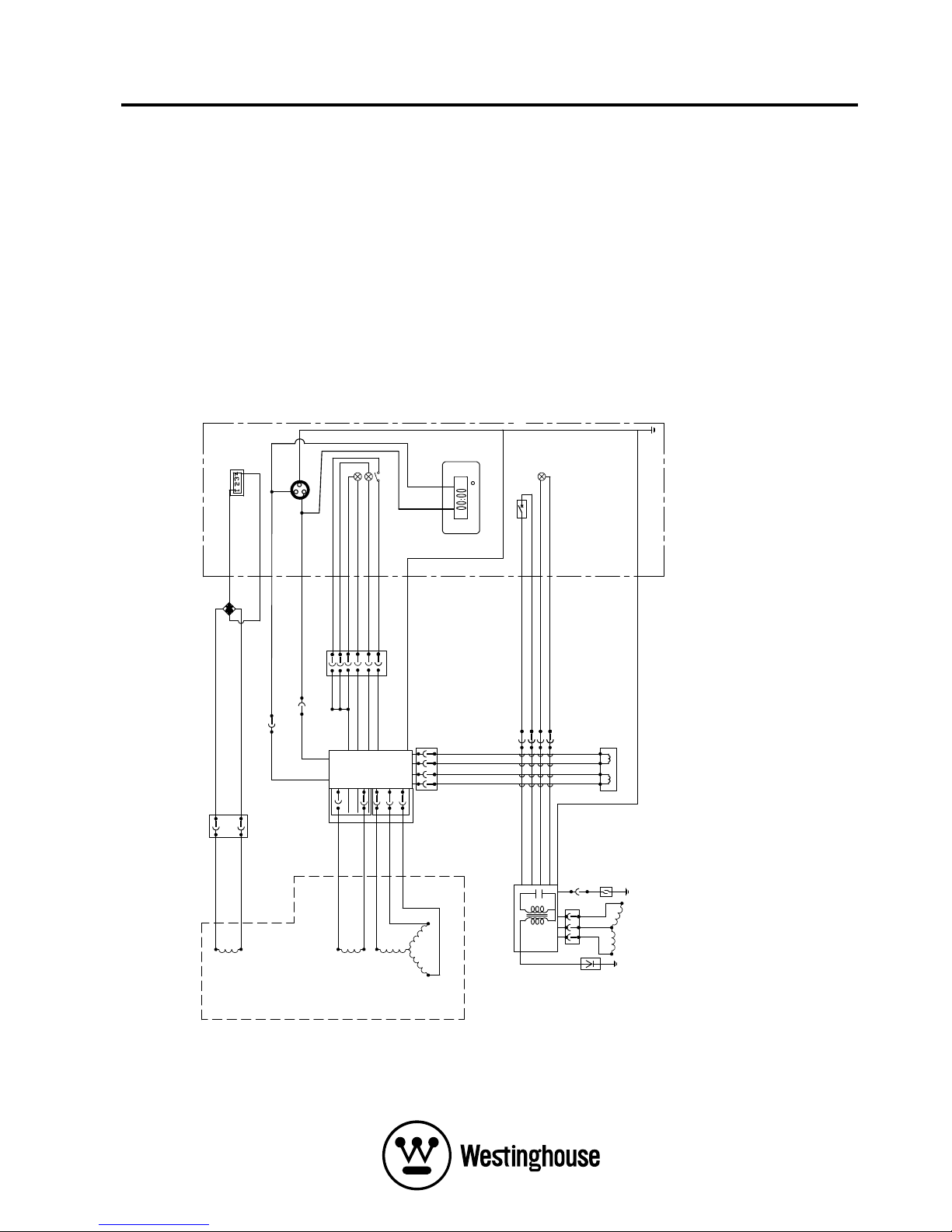

WIRING DIAGRAMS ..............................................................................................................................................46

WARRANTY ............................................................................................................................................................49

WARRANTY AGAINST DEFECTS ....................................................................................................................49

Proof of Purchase .....................................................................................................................................49

Warranty Conditions .................................................................................................................................49

Page 6

SAFETY

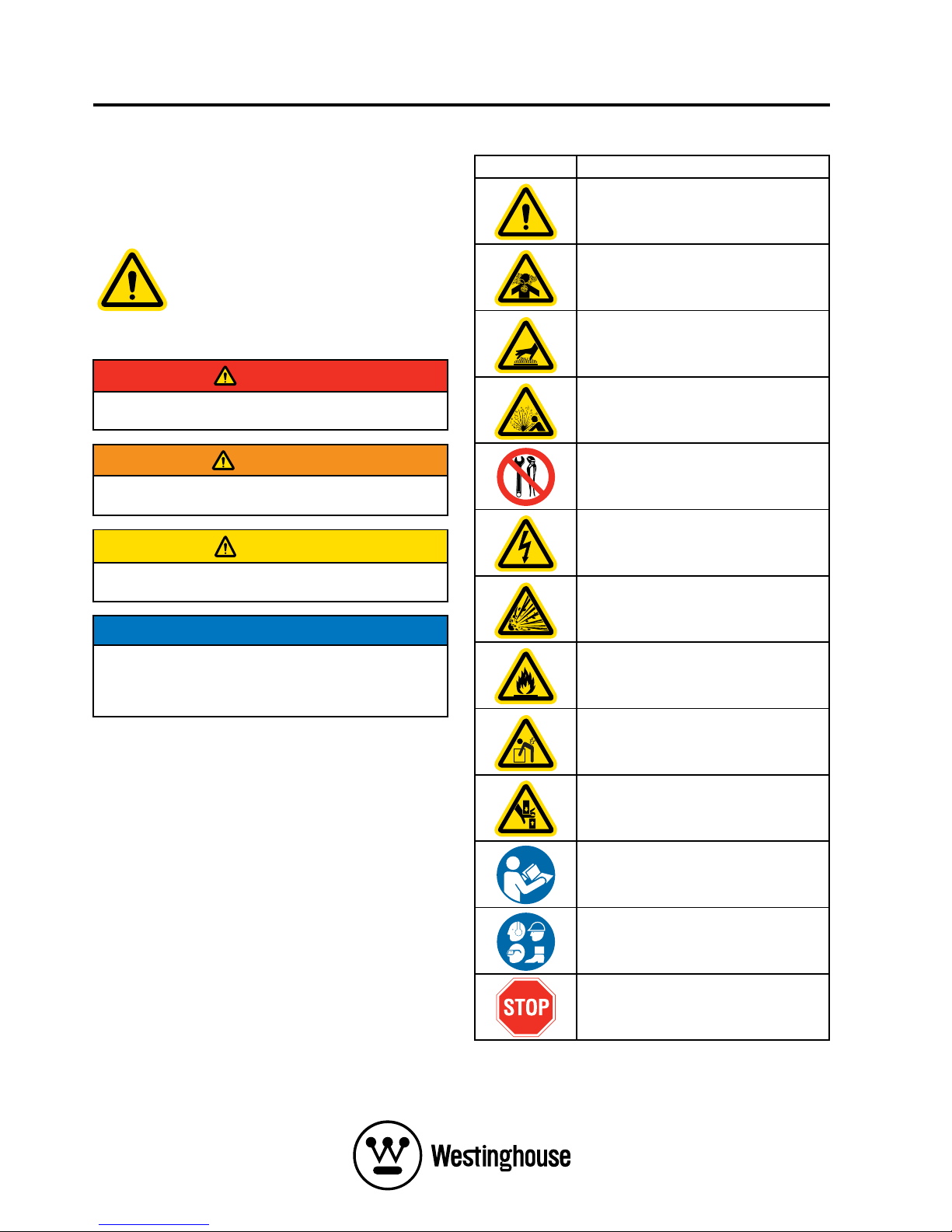

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION and NOTICE are used throughout this manual to highlight important information. Be certain that the meanings of these alerts are known to all who work on or near the equipment.

This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alert symbol.

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which, if not avoided, could cause damage to the generator, personal property or the environment, or cause the equipment to operate improperly.

NOTE: Indicates a procedure, practice or condition that should be followed in order for the generator to function in the manner intended.

SAFETY SYMBOL DEFINITIONS

Symbol Description

Safety Alert Symbol

Asphyxiation Hazard

Burn Hazard

Burst / Pressure Hazard

Don’t Leave Tools Around

Electrical Shock Hazard

Explosion Hazard

Fire Hazard

Lifting Hazard

Pinch-Point Hazard

Read Manufacturer’s Instructions

Wear Personal Protective Equipment (PPE)

Read Safety Messages Before Proceeding

Page 7

SAFETY

GENERAL SAFETY RULES

DANGER

Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical system.

Never operate the generator in an enclosed area. Engine exhaust contains carbon monoxide. Only operate the generator outside and away from windows, doors and vents.

WARNING

Voltage produced by the generator could result in death or serious injury.

• Never operate the generator in rain or a ﬂoodplain unless proper precautions are taken to avoid being subject to rain or ﬂood.

• Never use worn or damaged extension cords.

• Always have a licensed electrician connect the generator to any ﬁxed electrical installation.

• Never touch an operating generator if the generator is wet or if you have wet hands.

• Never operate the generator in highly conductive areas such as around metal decking or steel works.

• Always use earthed extension cords. Always use three-wire or doubleinsulated power tools.

• Never touch live terminals or bare wires while the generator is operating.

• Keep animals and children away from the generator at all times.

WARNING

Petrol fuel liquid and vapours are extremely ﬂammable and explosive under certain conditions.

• Always refuel the generator outdoors, in a well-ventilated area.

• Never remove the fuel cap while the engine is running.

• Never refuel the generator while the engine is running. Always turn engine off and allow the generator to cool before refuelling.

• Only ﬁll fuel tank with unleaded petrol.

• Keep away from sparks, open ﬂames or other forms of ignition such as matches, cigarettes, CB radios and mobile phones when refuelling.

• Never overﬁll the fuel tank. Leave room for fuel to expand. Overﬁlling the fuel tank can result in a sudden overﬂow of fuel and result in spilled fuel coming in contact with hot surfaces. Spilled fuel can ignite. If fuel is spilled on the generator, wipe it up immediately and dispose of rags properly. Allow area of spilled fuel to dry before operating the generator.

• Wear eye protection while refuelling.

• Never use fuel as a cleaning agent.

• Store any fuel containers in a wellventilated area, away from any combustibles or source of ignition.

• Check for fuel leaks after refuelling. Never operate the engine if a fuel leak is discovered.

• Equip the operating area with a Class ABE or BE portable ﬁre extinguisher.

Page 8

SAFETY

WARNING

Never operate the generator if: powered items overheat; electrical output drops; there are sparks, ﬂames or smoke coming from the generator; or if the receptacles are damaged.

Never attempt to connect more than one generator to the same electrical device, extension cord or ﬁxed electrical installation.

Never use the generator to power medical support equipment.

Always remove any tools or other service equipment used during maintenance before operating the generator.

WARNING

Do not operate in a hazardous location, e.g. where there may be a risk of explosion of fumes, leaking fuel or explosive dusts.

Do not operate in a conﬁned area where exhaust gases, smoke or fumes could reach dangerous concentrations.

Do not refuel while engine is running.

WARNING

You must take reasonable care for the health and safety both of yourself and any others who may be affected by your actions. You must understand and follow all of the safety rules and working instructions described herein. You must also use your own good judgement and common sense.

NOTICE

Never modify the generator. Never operate the generator if it vibrates at high

levels, if the engine speed changes greatly or if the engine misﬁres often.

Always disconnect electric tools or appliances from the generator before starting.

Page 9

SAFETY

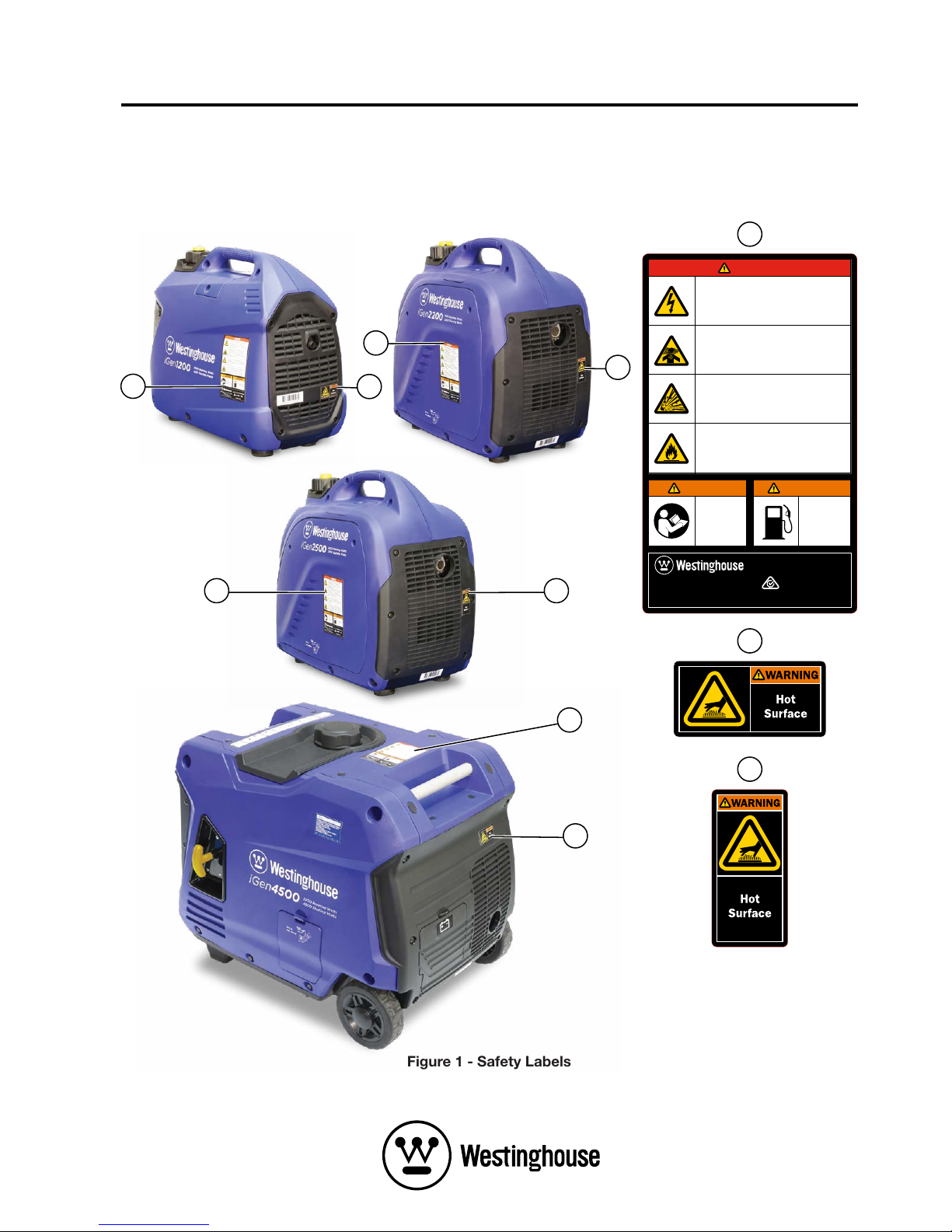

Figure 1 - Safety Labels

SAFETY LABELS

The safety labels have speciﬁc positions and must be replaced if they are unreadable, damaged or missing.

DANGER

WARNING

The electrical output of this generator is potentially lethal. It should not be connected to a ﬁxed electrical installation except by an appropriately licensed person.

Engine exhaust contains poisonous carbon monoxide. Do not operate the generator in a conﬁned space. Use it only outside and far away from windows, doors and vents.

Petrol is highly ﬂammable. Keep it away from sparks, ﬂames and other sources of ignition. Do not refuel the generator while engine is running.

Do not operate the generator in a hazardous location where ﬂammable or explosive liquids, gases or dusts may be present.

Read Instruction Manual

Unleaded Petrol Only

Westinghouse Portable Power

777 Manor Park Drive

Columbus 43228 Ohio USA

Made in PRC

N15626 IP23

www.westinghouse.net.au

WARNING

Page 10

UNPACKING

UNPACKING THE GENERATOR

Always have assistance when lifting the generator. The generator is heavy; lifting it could cause bodily harm.

Avoid cutting on or near staples to prevent personal injury.

1. Carefully cut the packing tape on top of the carton.

2. Fold back top ﬂaps to reveal the upper packing tray.

3. Remove and save the instruction manual, oil bottle, oil funnel and spark plug socket wrench.

4. Remove and discard the upper packing tray.

5. Unfold the top of the plastic bag enclosing the generator.

6. iGen1200, 2200 & 2500: Lift the generator out of the plastic bag and carton.

iGen4500: Carefully cut the vertical corners of

the carton to access the generator.

7. Recycle or dispose of the packaging materials properly.

ACCESSORIES

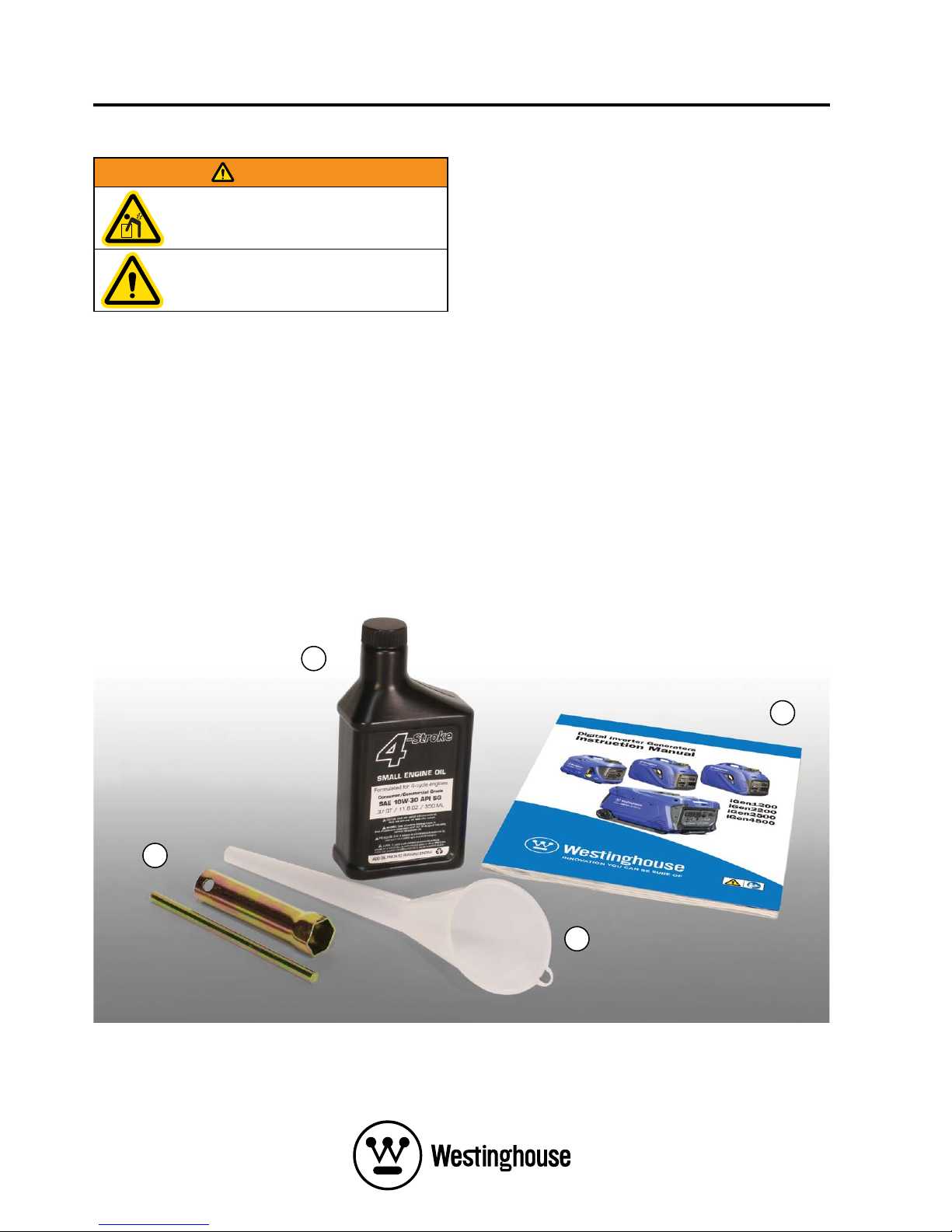

Check the accessories against those shown in Figure 2. If any parts are missing, please contact your local Westinghouse dealer.

A – Bottle of SAE 10W-30 Engine Oil (250 ml for iGen1200, 350 ml for iGen2200 & 2500, and 600 ml for iGen4500)

B – Oil Funnel

C – Spark Plug Socket Wrench

D – Instruction Manual

Figure 2 - Accessories

WARNING

Page 11

FEATURES

MAIN GENERATOR COMPONENTS iGen1200

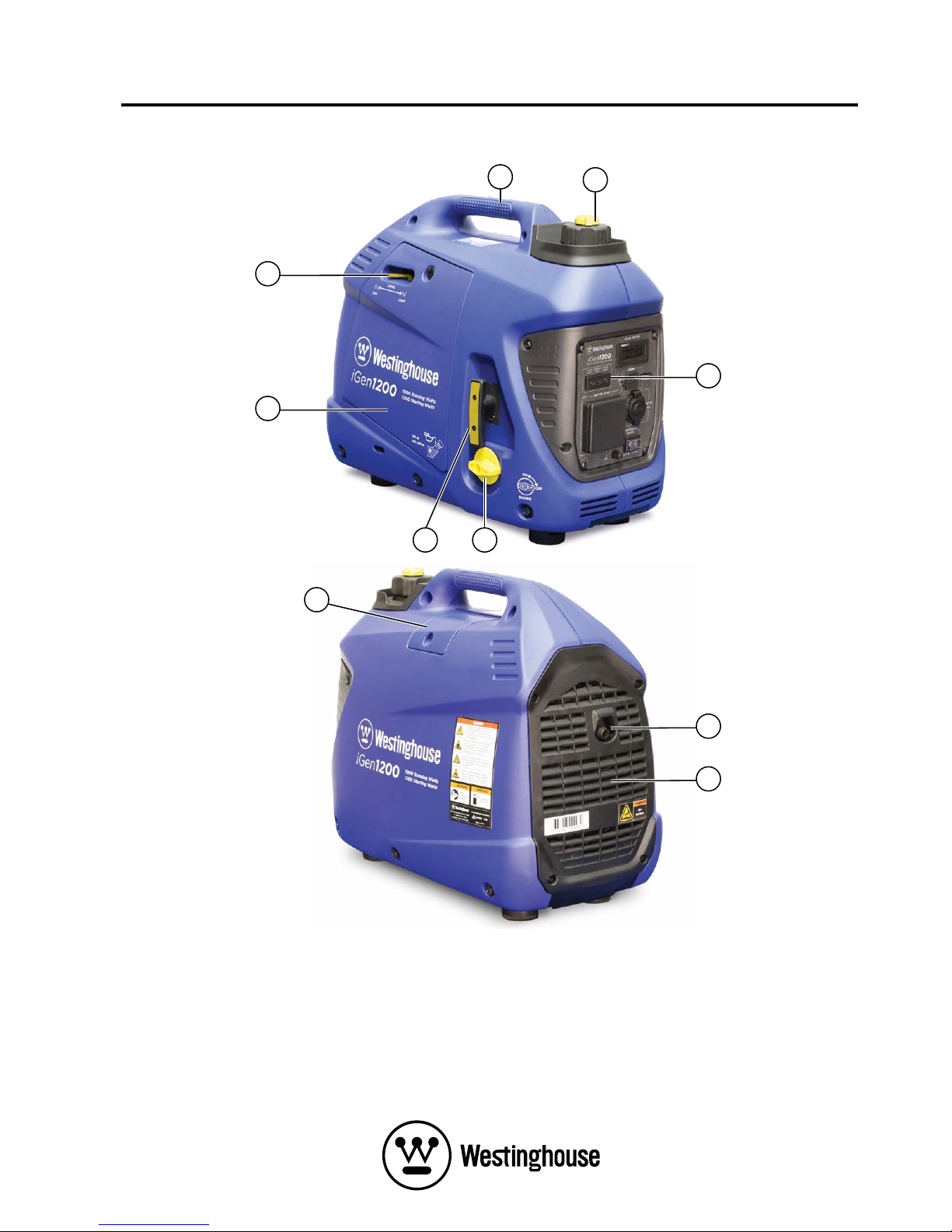

Figure 3 - iGen1200 Main Generator Components

- Engine Access Cover

- Choke Lever

- Spark Plug Access Cover

- Exhaust Pipe

- Mufer Access Cover

6 7 8 9

- Carry Handle

- Fuel Cap and Vent

- Control Panel

- Engine and Fuel Control Switch

- Recoil Starter Handle

1 2 3 4 5

5 4

Page 12

FEATURES

1. Output Indicator: The green status light will

illuminate whenever the engine is running and there’s AC output available from the generator.

2. Overload Alarm: The red warning light will

illuminate if the generator’s AC output is overloaded or short-circuited. A brief small overload may be tolerated, but the connected load should be reduced. An extended large overload or short circuit will trip the overload protection feature and disconnect the generator’s AC output even though the engine is still running. Stop the engine and then re-start it to restore AC output.

3. Low Oil Alarm: The red warning light will

illuminate and the engine will automatically shut down if the oil level becomes too low. Add oil to the correct level before re-starting the engine.

4. Hour Meter: Continuously displays the cumulative

running hours whenever the generator is operating.

5. 5-Volt DC, 2.1-Amp USB Outlet: Suitable for

charging electronic devices such as phones, tablets and computers with a power demand not exceeding 10 Watts.

6. 12-Volt DC Accessory Socket: Can be used for 12-Volt DC powered devices up to a maximum demand of 60 Watts (i.e. 5 Amps).

7. ECO Throttle Switch: Move the switch to the ON position when powering small resistive loads such as a computer or electric light; the engine speed will automatically be kept to a minimum, thereby reducing fuel consumption and noise. Select the OFF position when powering large inductive loads such as an air conditioner or electric pump; the engine speed will be kept higher for maximum electrical starting power.

8. Frame Terminal: The frame terminal can be used by a licensed electrician to earth the generator if necessary.

9. 240-Volt AC, 15-Amp Outlet: The outlet is capable of delivering the generator’s peak output of 1,200 Watts (i.e. 5 Amps at 240 Volts).

Figure 4 - iGen1200 Control Panel Features

CONTROL PANEL FEATURES iGen1200

Run Time (hours)

Page 13

FEATURESFEATURES

MAIN GENERATOR COMPONENTS iGen2200 & 2500

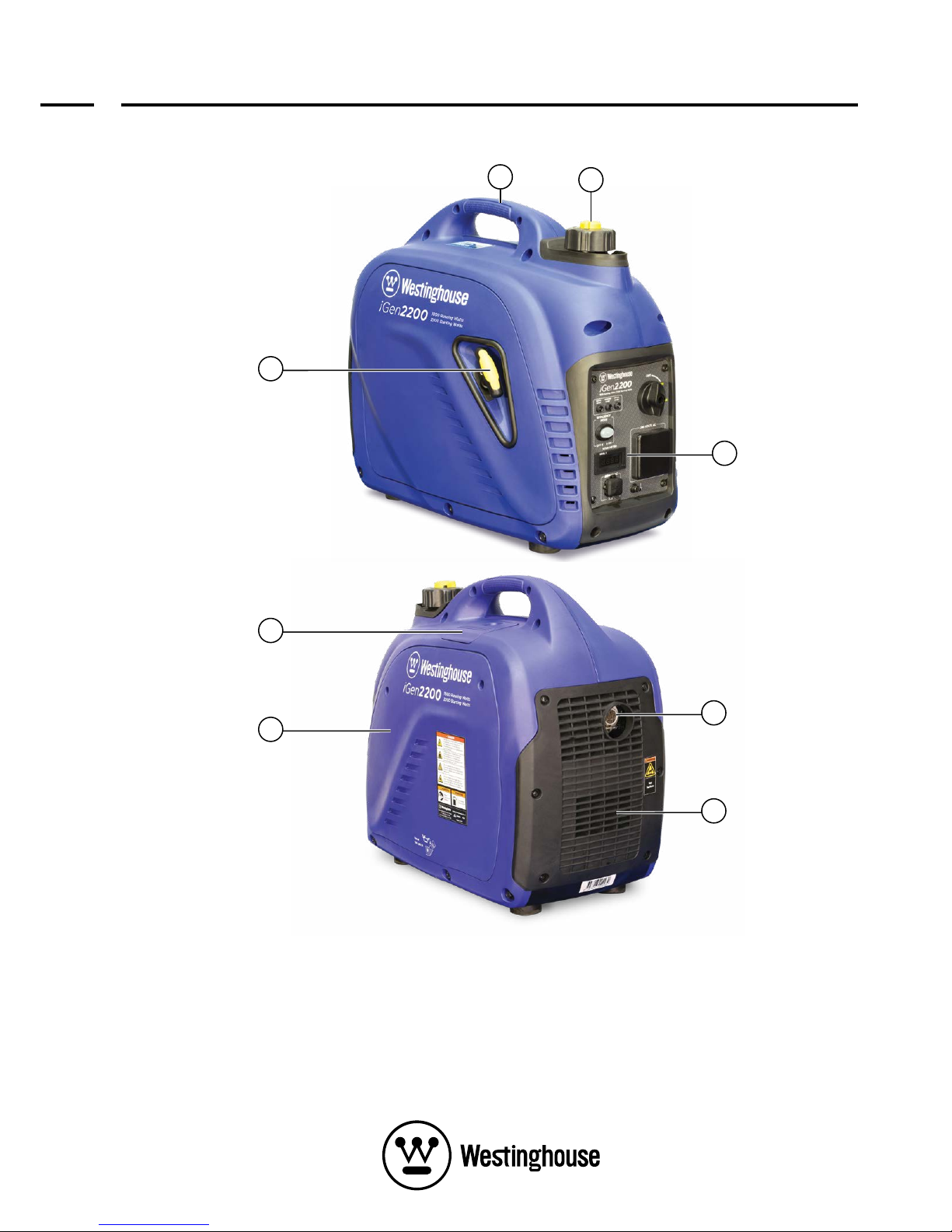

Figure 5 - iGen2200 & 2500 Main Generator Components

- Spark Plug Access Cover

- Exhaust Pipe with Spark Arrester

- Mufer Access Cover

- Engine Access Cover

5 6 7 8

- Carry Handle

- Fuel Cap and Vent

- Control Panel

- Recoil Starter Handle

1 2 3 4

Page 14

FEATURES

1. Output Indicator: The green status light will

illuminate whenever the engine is running and there’s AC output available from the generator.

2. Overload Alarm: The red warning light will

3. Low Oil Alarm: The red warning light will

illuminate and the engine will automatically shut down if the oil level becomes too low. Add oil to the correct level before re-starting the engine.

4. Engine, Fuel and Choke Control Switch: Turn

the knob to the CHOKE position before starting the generator if its engine is cold. Select the ON position to re-start or run the generator when its engine is warm. Turning the knob to the OFF position stops the generator and cuts off the engine’s fuel supply.

5. 240-Volt AC, 15-Amp Outlet: The outlet is capable of delivering the generator’s peak output of 2,200 Watts (iGen2200) or 2,500 Watts (iGen2500).

6. Frame Terminal: The frame terminal can be used by a licensed electrician to earth the generator if necessary.

7. 5-Volt DC, 2.1-Amp USB Outlet: Suitable for charging electronic devices such as phones, tablets and computers with a power demand not exceeding 10 Watts.

8. Hour Meter: Continuously displays the cumulative running hours whenever the generator is operating.

9. ECO Throttle Switch: Move the switch to the ON position when powering small resistive loads such as a computer or electric light; the engine speed will automatically be kept to a minimum, thereby reducing fuel consumption and noise. Select the OFF position when powering large inductive loads such as an air conditioner or electric pump; the engine speed will be kept higher for maximum electrical starting power.

Figure 6 - iGen2200 & 2500 Control Panel Features

CONTROL PANEL FEATURES iGen2200 & 2500

Run Time (hours)

Page 15

FEATURESFEATURES

MAIN GENERATOR COMPONENTS iGen4500

Figure 5 - iGen4500 Main Generator Components

- Rear Carry Handle

- Mufer Access Cover

- Exhaust Pipe with Spark Arrester

- Battery Access Cover

- Oil Access Cover

- Recoil Starter Handle

7 8

9 10 11 12

- Fuel Cap

- Front Carry Handle

- Control Panel

- Extendable Handle

- Wheel

- Engine Access Cover

1 2 3 4 5 6

5 6

Page 16

FEATURES

Run Time to

Empty (hours)

Output Power

(kW)

Fuel Level

(litres)

Output Voltage

(Volts)

Cumulative

Run Time (hours)

1. 240-Volt AC, 15-Amp Outlets: Each outlet is capable of delivering the generator’s peak output of 4,500 Watts (i.e. 18.8 Amps at 240 Volts) intermittently. Continuous supply from a single outlet should not exceed 3,600 Watts (i.e. 15 Amps at 240 Volts).

2. 5-Volt DC, 2.1-Amp USB Outlet: Suitable for charging electronic devices such as phones, tablets and computers with a power demand not exceeding 10 Watts.

3. Fuel and Choke Control Switch: Turn the knob to the CHOKE position before starting the generator if its engine is cold. Select the ON position to re-start or run the generator when its engine is warm. Turn to the OFF position after stopping the engine with the engine control switch for routine shut down. Or select the OFF position and allow the engine to run out of fuel prior to long-term shut down.

4. 12-Volt DC Accessory Socket: Can be used for 12-Volt DC powered devices up to a maximum demand of 100 Watts (i.e. 8 Amps).

5. Data Center: The alphanumeric LED display shows the cumulative run time, run time to empty at current load, output power, fuel level and output voltage in a repeating cycle. The curved LED graphic displays on the left and right-hand sides show the fuel level and output power, respectively.

6. Output Indicator: The green status light will illuminate whenever the engine is running and there’s AC output available from the generator.

7. Overload Alarm: The red warning light will illuminate if the generator’s AC output is overloaded or short-circuited. A brief small overload may be tolerated, but the connected load should be reduced. An extended large overload or short circuit will trip the overload protection feature and disconnect the generator’s AC output even though the engine is still running. Reduce the connected load or rectify the electrical fault before pressing the generator reset button to restore AC output.

Figure 8 - iGen4500 Control Panel Features

CONTROL PANEL FEATURES iGen4500

7 6911 10

Page 17

FEATURES

8. Low Oil Alarm: The red warning light will illuminate and the engine will automatically shut down if the oil level becomes too low. Add oil to the correct level before re-starting the engine.

9. Engine Control Switch: When the switch is momentarily depressed and held in the START position, the electric starter motor engages and starts the engine. Once the engine starts, release the switch and it will automatically return to the RUN position. Once started, the switch will remain in the RUN position. To stop the engine, move the switch to the STOP position.

10. ECO Throttle Switch: Move the switch to the ON position when powering small resistive loads such as a computer or electric light; the engine speed will automatically be kept to a minimum, thereby reducing fuel consumption and noise. Select the OFF position when powering large inductive loads such as an air conditioner or electric pump; the engine speed will be kept higher for maximum electrical starting power.

11. Frame Terminal: The frame terminal can be used by a licensed electrician to earth the generator if necessary.

12. Generator Reset Button: Press and hold down this button to reset the generator’s electrical output when safe to do so after reducing the applied load or rectifying the electrical fault that has caused an overload trip.

Page 18

OPERATION

CONNECTING THE BATTERY iGen4500

WARNING

To avoid electric shock:

• ALWAYS connect the positive (+) battery cable (red boot) ﬁrst when connecting battery cables.

• ALWAYS disconnect the negative (-) battery cable (black boot) ﬁrst when disconnecting battery cables.

• NEVER connect the negative (-) battery cable (black boot) to the positive (+) terminal on the battery.

• NEVER connect the positive (+) battery cable (red boot) to the negative (-) terminal on the battery.

• NEVER touch both battery terminals simultaneously.

• NEVER place a tool or other metal object across both battery terminals.

• NEVER place a tool or other metal object between either of the battery terminals and any part of the generator.

• ALWAYS use insulated or nonconducting tools when installing the battery.

NOTE: The generator comes equipped with the

positive battery cable (red boot) already attached.

Tools required – Flat blade screwdriver and 10 mm

spanner.

1. Remove the battery access cover (see Figure 7).

2. Pull down on the battery strap clip and unhook it from the mounting base (see Figure 9).

3. Lift the battery up, withdraw it bottom-ﬁrst through the battery access port and then stand it up vertically in its normal orientation (see Figure 10).

4. Verify the positive (+) battery cable (red boot) is securely tightened to the positive (+) battery terminal. Ensure boot is properly ﬁtted over battery terminal.

5. Carefully remove the protective wrapping around the lug of the negative (-) battery cable (black boot).

6. Remove the temporary cable tie on the negative (-) cable and then route the cable towards the negative (-) battery terminal.

7. Pull back the black boot and securely attach the negative (-) battery cable (black boot) to the negative (-) battery terminal as shown in Figure 11. Replace the black boot so it protects the cable lug and battery terminal.

8. Insert the battery top-ﬁrst through the battery access port and stand it up vertically on its mounting base.

9. Check that the battery is positioned correctly and that the battery cables are not kinked or pinched.

10. Pass the battery strap under the negative (-) battery cable and centrally over the top of the battery. Then pull down on the battery strap clip and hook it onto the mounting base.

11. Replace the battery access cover.

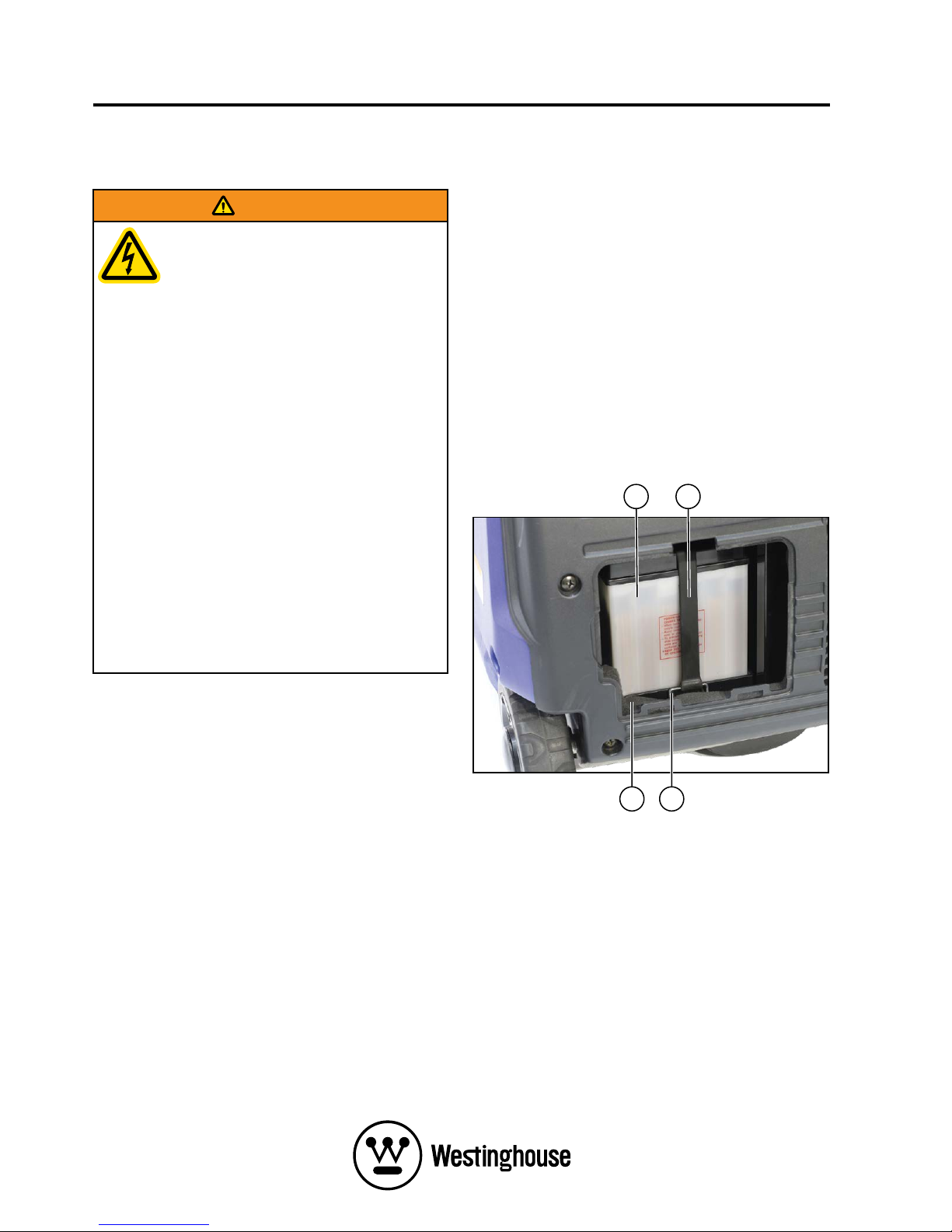

Figure 9 – Battery Mounting Inside Generator

- Battery

- Battery Strap

- Battery Strap Clip

- Battery Mounting Base

1 2 3 4

Page 19

OPERATION

BEFORE STARTING THE GENERATOR

Location Selection – Before starting the generator, avoid exhaust and location hazards by verifying that:

• You have selected a location to operate the generator that is outdoors and well ventilated.

• You have selected a location with a level and solid surface on which to place the generator.

• You have selected a location that is at least 1.8 m away from any building, other equipment or combustible material.

• If the generator is located close to a building, it is not located near any windows, doors or vents.

WARNING

Always operate the generator on a level surface. Placing the generator on a non-level surface can cause the generator to tip over, causing fuel and oil to spill. Spilt fuel can ignite if it comes into contact with an ignition source such as a very hot surface.

NOTICE

Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could:

• Block cooling vents

• Block air intake system

NOTICE

Ensure that the generator is always kept horizontal during handling, operation, storage and transport. Flipping the generator over onto its side, end or top will damage it.

DANGER

Using a generator indoors can kill you in minutes. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

The output of this generating set is potentially lethal. The set should not

be connected to a xed electrical

installation except by an appropriately licensed person.

Never use inside a home or garage, even if doors and windows are open.

Only use outside and far away from windows, doors and vents.

1 - Positive (+) Battery Cable (Red)

2 - Negative (-) Battery Cable (Black)

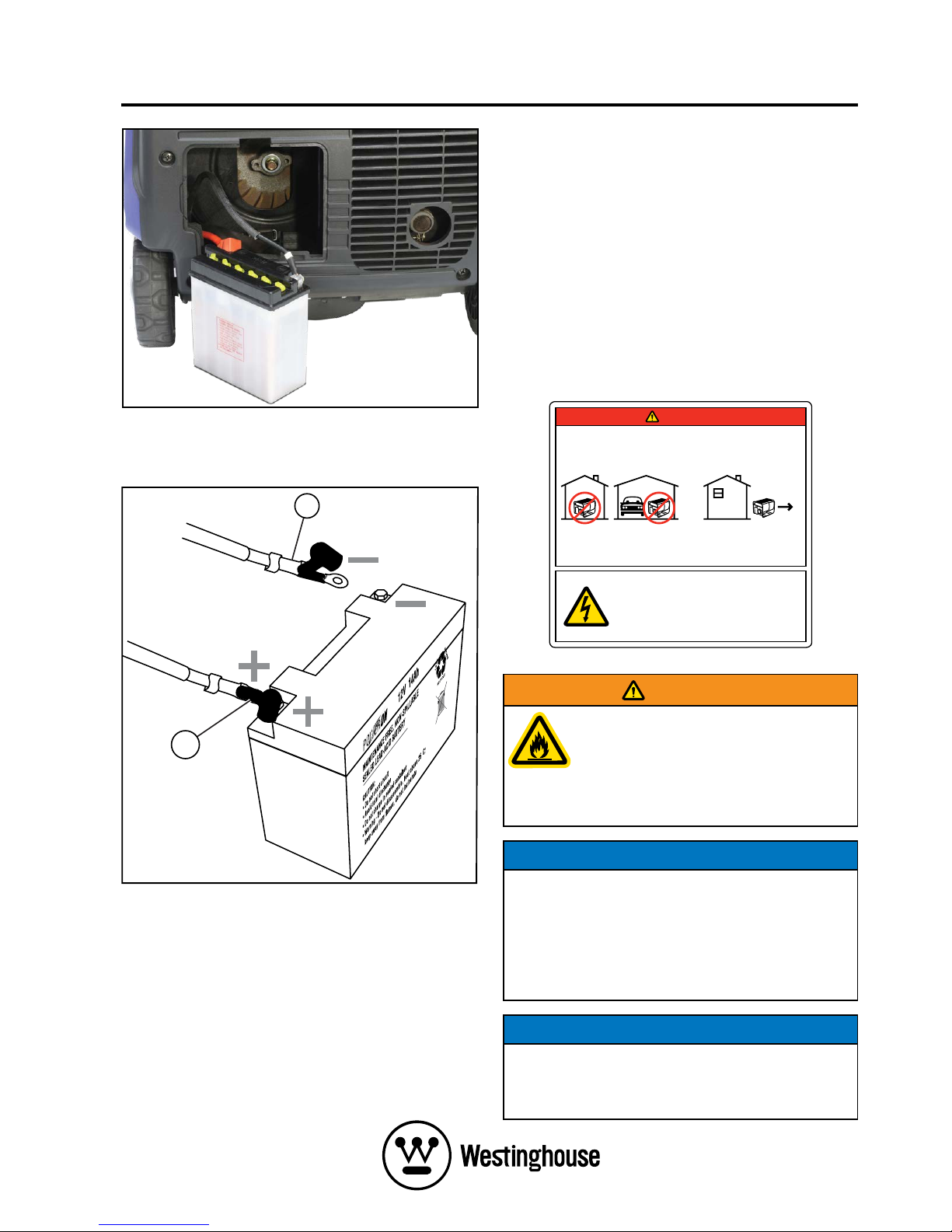

Figure 10 – Battery Removed from Generator for Connection

Figure 11 – Attaching the Negative (-) Battery Cable (Black) to the Negative (-) Battery Terminal

Page 20

OPERATION

Weather – Never operate your generator outdoors during rain, snow or any combination of weather conditions that could lead to moisture collecting on, in or around the generator.

Dry Surface – Always operate the generator on a dry surface free of any moisture.

No Connected Loads – Make sure the generator has no connected loads before starting it. To ensure there are no connected loads, unplug any electrical cords or devices from the 240-Volt AC, 12-Volt DC accessory and 5-Volt DC USB receptacles on the control panel

NOTICE

Starting the generator with loads already connected to it could result in damage to any device being powered by the generator during the brief start-up period.

Earthing the Generator – The generator’s equipotential bonding system including the frame terminal on the control panel should not be connected to the general mass of earth through a separate earth electrode. For more information, refer to AS/NZS 3010:2005 Electrical Installations – Generating Sets or consult a licensed electrician.

WARNING

Be sure the generator is properly installed to reduce the possibility of electric shock. Any connection to an electrical installation such as in a building, for example, must be carried out by a licensed electrician.

CHECKING OR ADDING ENGINE OIL AND FUEL

DANGER

Filling the fuel tank with fuel while the generator is running can cause fuel to spill and come in contact with hot surfaces that can ignite the fuel.

Before starting the generator, always check the engine oil and fuel levels.

After starting the generator, it is not safe to add fuel to the fuel tank or engine oil to the engine while the engine is running or immediately after stopping while the engine and mufﬂer are still hot.

Checking and Adding Engine Oil

WARNING

Internal pressure can build up in the engine crankcase while the engine is running. Removing the oil ﬁll plug while the engine is hot can cause hot oil to spray out of the crankcase and cause severe skin burns. Allow engine oil to cool for several minutes before removing the oil ﬁll plug.

The generator as shipped does not contain oil in the engine. You must add engine oil before starting the generator for the ﬁrst time. See Checking Engine Oil on page 30 and Adding Engine Oil on page 31 for instructions on checking engine oil level and the procedure for adding engine oil.

NOTICE

The generator does not contain engine oil as shipped. Attempting to start the engine before adding engine oil can permanently damage internal engine components.

Checking and Adding Fuel

WARNING

Never refuel the generator while the engine is running.

Always turn the engine off and allow the generator to cool before refuelling.

With the generator switched off and stationary on a horizontal surface, check the fuel level in the tank visually by removing the fuel cap. It is good practice to always ﬁll the fuel tank before operating the generator.

Required Fuel – Use only unleaded petrol with an octane rating not less than 91 and ethanol content not greater than 10%. Where possible it is preferable to use regular unleaded petrol without ethanol.

Filling the Fuel Tank – Follow the steps below to ﬁll the fuel tank:

1. Stop the generator, if running.

2. Allow the generator to cool down until the mufﬂer access cover is cool to the touch.

3. Move the generator to a ﬂat surface.

4. Clean area around the fuel cap.

5. Turn the fuel cap vent clockwise to the ON position (not applicable to the iGen4500).

Page 21

OPERATION

6. Remove the fuel cap by unscrewing it anticlockwise.

7. Slowly add fuel into the fuel tank. Be careful not to overﬁll the tank. The fuel level should NOT be higher than the red ring inside the fuel strainer (see Figure 12).

8. Replace the fuel cap by screwing it on clockwise and turn the fuel cap vent anti-clockwise to the OFF position (if equipped).

CAUTION

Avoid prolonged skin contact with fuel. Avoid prolonged inhalation of fuel vapours.

NOTICE

Do not overﬁll the fuel tank. Spilt fuel may damage some plastic parts.

STARTING THE GENERATOR

Before attempting to start the generator, verify the following:

• The engine is ﬁlled with engine oil (see Checking

Engine Oil on page 30).

• The generator is situated in a proper location

(see Location Selection on page 19).

• The generator is on a dry surface (see Weather

and Dry Surface on page 20).

• All loads are disconnected from the generator

(see No Connected Loads on page 20).

DANGER

Never operate the generator in an enclosed area. Engine exhaust contains carbon monoxide. Only operate the generator outside and away from windows, doors and vents.

NOTICE

The generator is equipped with a low oil shutdown switch. If the oil level becomes too low, the engine will shut down automatically and cannot be restarted until the oil is ﬁlled to the proper level.

Be sure the engine has the proper oil level before using. Failure to verify that the engine has the proper oil level could result in severe engine damage or shorten the engine life.

Disconnect all loads from the generator before starting. Failure to verify all loads are disconnected prior to starting the generator could result in damage to the connected electrical devices.

iGen1200 Starting

The primary touch points that the user needs to interact with when starting the generator are identiﬁed with yellow coloured markings.

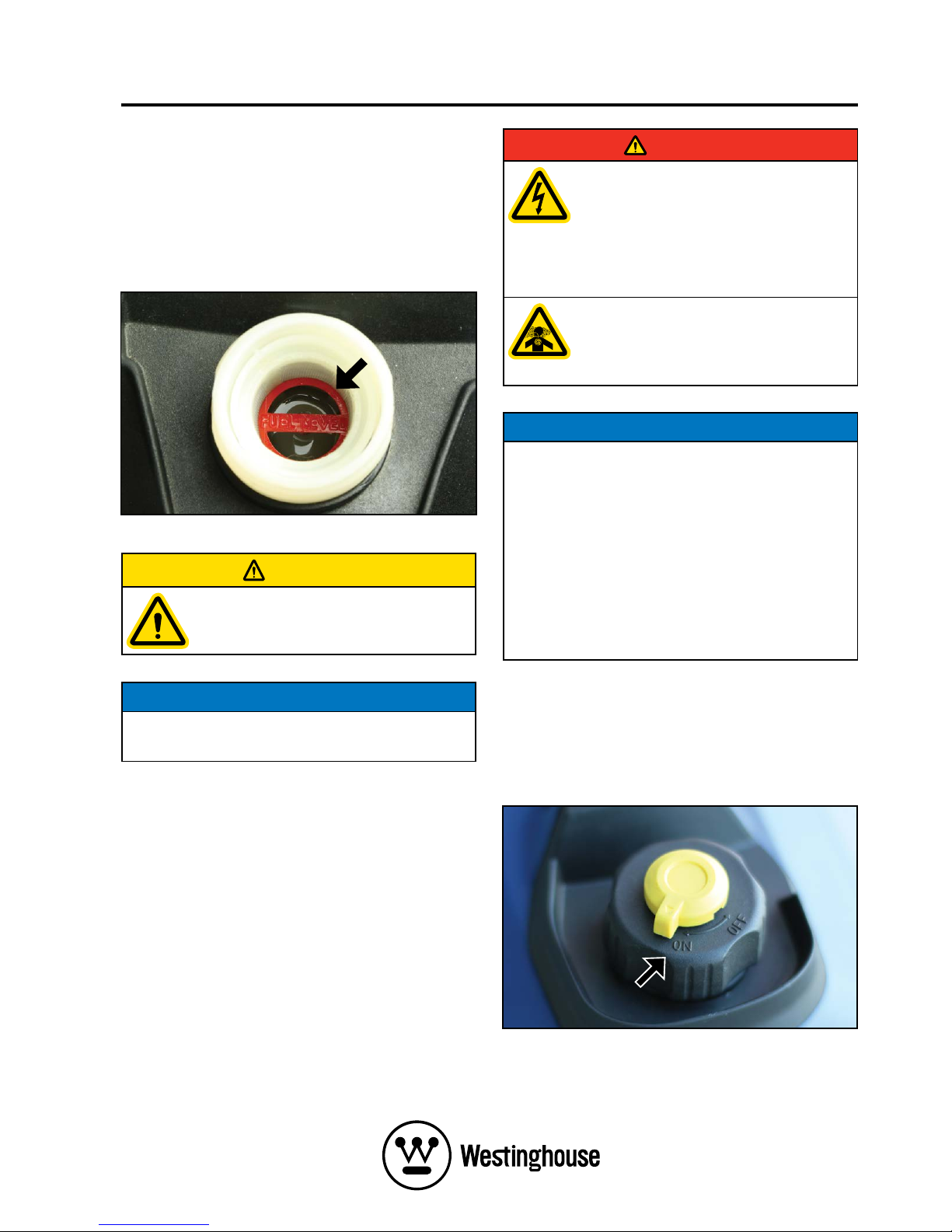

1. Turn the fuel cap vent to the ON position (see Figure 13).

Figure 12 – Maximum Fuel Fill Level

Figure 13 – Fuel Cap Vent in the ON Position

Page 22

OPERATION

2. Turn the engine and fuel control switch anticlockwise to the ON position (see Figure 14).

3. Move the choke lever rightwards to the START position if starting a cold engine (see Figure 15). To re-start a warm engine, leave the choke lever pushed left to the RUN position.

4. Whilst holding the generator down with one hand, ﬁrmly grasp the recoil starter handle with your other hand and pull it slowly until you feel increased resistance. At this point, pull it briskly up and away from the generator (see Figure 16). Do not allow the starter handle to snap back against the engine, but instead return it gently to prevent starter damage. Do not allow the starter cord to rub against other parts of the generator.

5. As the engine starts running and warms up, gradually move the choke lever leftwards to the RUN position.

6. Connect electrical cords or devices into the 240Volt AC, 12-Volt DC accessory or 5-Volt DC USB outlets, as required.

iGen2200 & 2500 Starting

1. Turn the fuel cap vent to the ON position (see Figure 13).

2. Turn the engine, fuel and choke control switch clockwise to the CHOKE position if starting a cold engine (see Figure 17). To re-start a warm engine, turn the knob to the ON position.

3 Whilst holding the generator down with one

hand, ﬁrmly grasp the recoil starter handle with your other hand and pull it slowly until you feel increased resistance. At this point, pull it briskly up and away from the generator (see Figure 16). Do not allow the starter handle to snap back against the engine, but instead return it gently to prevent starter damage. Do not allow the starter cord to rub against other parts of the generator.

4. As the engine starts running and warms up, turn the engine, fuel and choke control switch anticlockwise to the ON position.

5. Connect electrical cords or devices into the 240-Volt AC, 12-Volt DC accessory or 5-Volt DC USB outlets, as required.

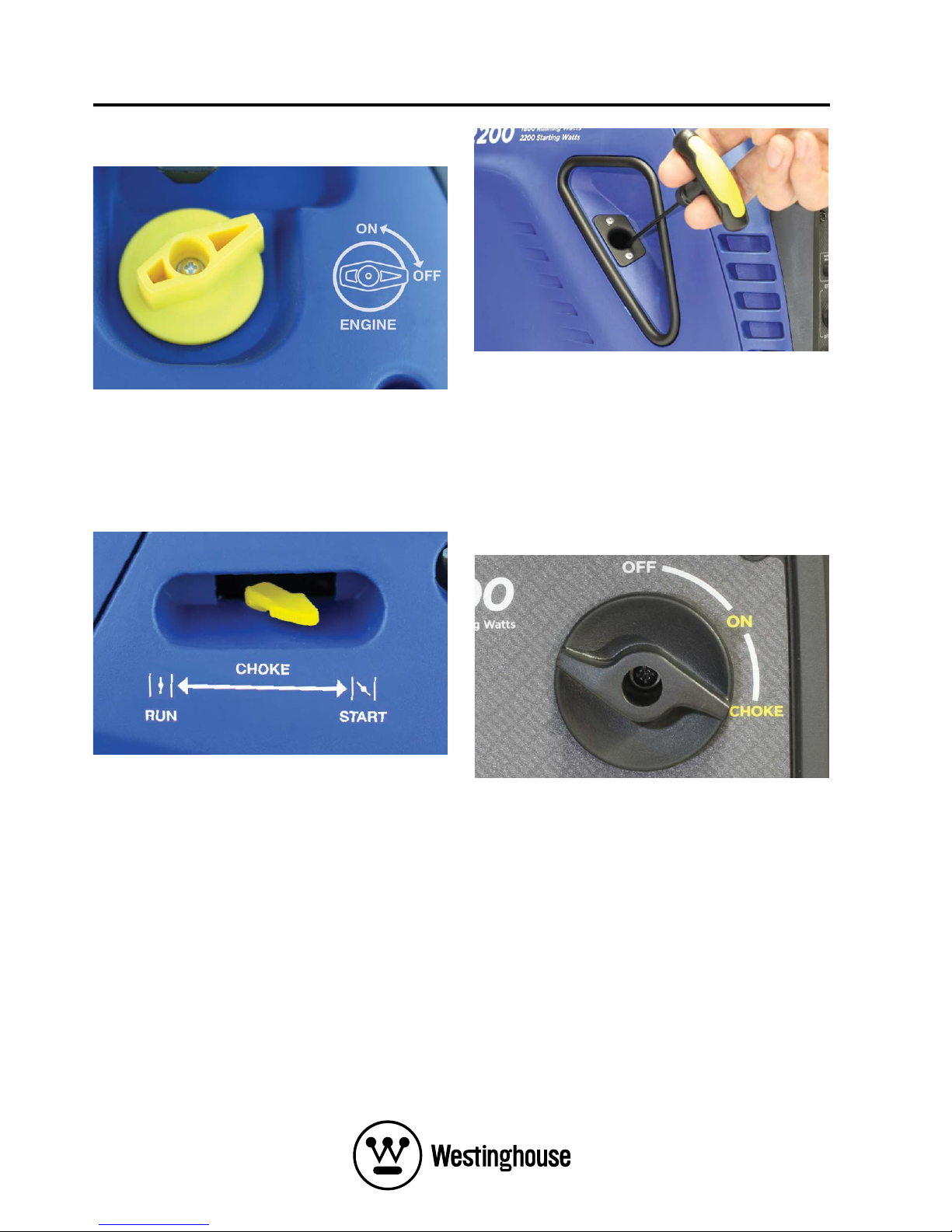

Figure 14 – Engine and Fuel Control Switch in the ON Position

Figure 15 – Choke Lever in the START Position

Figure 16 – Recoil Starter Handle Operation

Figure 17 – Engine, Fuel and Choke Control Switch in the CHOKE Position

Page 23

OPERATION

iGen4500 Electric Starting

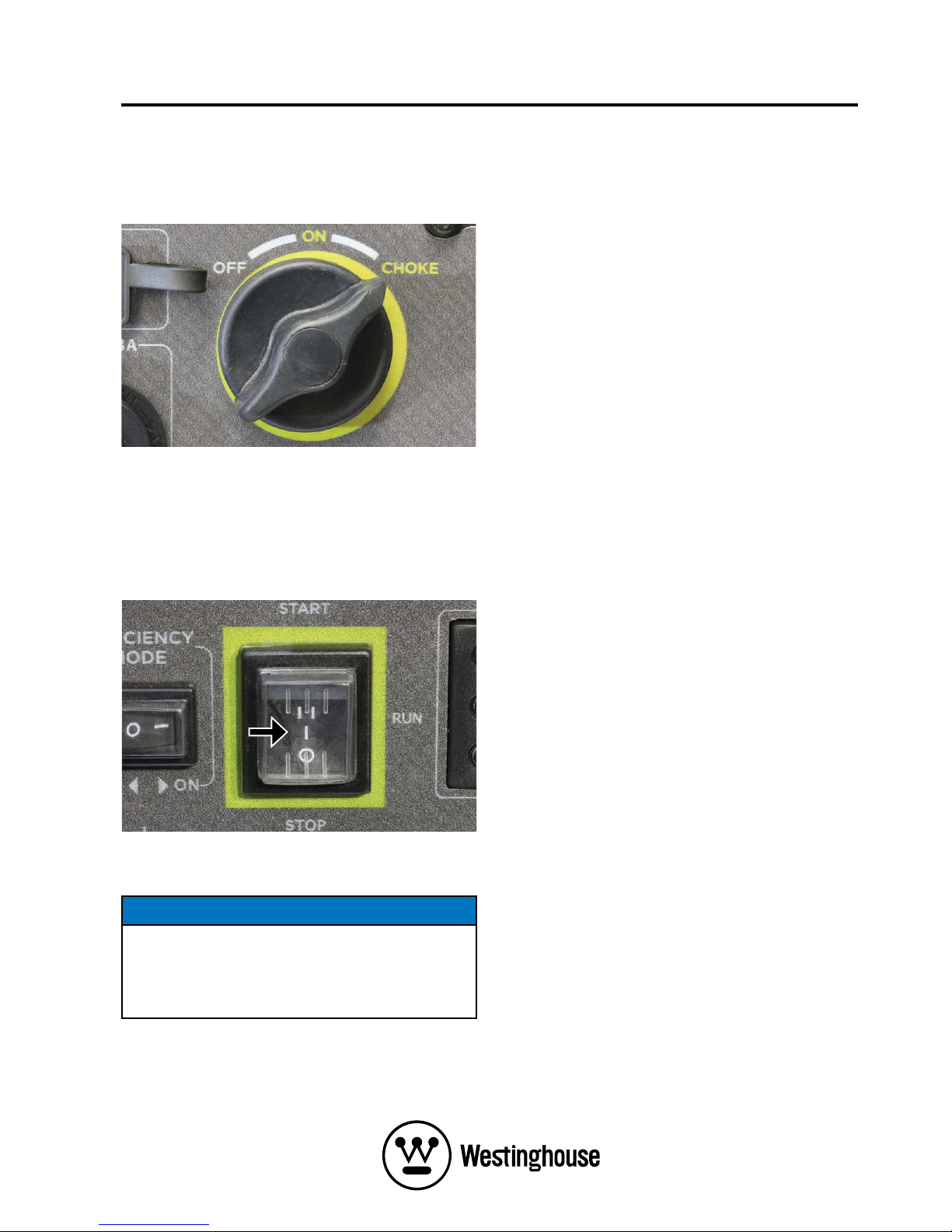

1. Turn the fuel and choke control switch clockwise to the CHOKE position if starting a cold engine (see Figure 18). To re-start a warm engine, turn the knob to the ON position.

2. Push and hold the engine control switch in the START position until the engine starts. Once the engine starts, release the engine control switch; the switch will automatically move into the central RUN position (see Figure 19).

NOTICE

Failure to release the engine control switch once the engine starts can result in damage to the generator.

Never push the engine control switch to the START position while the engine is running; this can damage the generator.

NOTE: If the engine fails to start after 5 seconds,

release the engine control switch. Let the generator rest for 15 seconds and then repeat Step 2. If the cranking speed drops after each unsuccessful attempt, the battery may not be adequately charged; manually start the generator as instructed on page below.

NOTE: The electric start generator is equipped

with a battery charging feature. Once the engine is running, a small charge is supplied to the battery via the battery cables that will slowly recharge the battery.

3. As the engine starts running and warms up, turn the fuel and choke control switch anti-clockwise to the ON position.

4. Connect electrical cords or devices into the 240-Volt AC, 12-Volt DC accessory or 5-Volt DC USB outlets, as required.

iGen4500 Manual Starting

1. Turn the fuel and choke control switch clockwise to the CHOKE position if starting a cold engine (see Figure 18). To re-start a warm engine, turn the knob to the ON position.

2. Push the engine control switch to the central RUN position (see Figure 19).

3. Firmly grasp the recoil starter handle with your hand and pull it slowly until you feel increased resistance. At this point, pull it briskly up and away from the generator (see Figure 16). Do not allow the starter handle to snap back against the engine, but instead return it gently to prevent starter damage. Do not allow the starter cord to rub against other parts of the generator.

4. As the engine starts running and warms up, turn the fuel and choke control switch anti-clockwise to the ON position.

5. Connect electrical cords or devices into the 240- Volt AC, 12-Volt DC accessory or 5-Volt DC USB outlets, as required.

ECO THROTTLE CONTROL

The generator is equipped with ECO Throttle Control to minimise fuel consumption. In ECO mode, the generator senses the electrical load demand and adjusts the engine speed and power output to match it; if there is no electrical load connected, the engine speed drops down to idle. ECO mode should only be used once the generator has reached normal operating temperature after running for at least ﬁve minutes. When starting large inductive loads such as an air conditioner or pump, ECO mode should be switched off so that the engine speed will be kept higher for maximum electrical starting power availability.

Figure 18 – Fuel and Choke Control Switch in the CHOKE Position

Figure 19 – Engine Control Switch in the RUN Position

Page 24

OPERATION

To activate ECO mode, move the ECO throttle switch to the ON position (see Figure 20).

To deactivate ECO mode, move the ECO throttle switch to the OFF position.

OVERLOAD RESET

An electrical overload or short circuit will trip the overload protection system by disconnecting the generator’s AC output even though the engine is still running. If this occurs, the overload alarm light will be illuminated red and the output indicator light will be off. The AC output can be restored as follows:

1. Turn off and unplug any electrical devices or cords from the 240-Volt AC, 12-Volt DC accessory and 5-Volt DC USB receptacles on the control panel.

2. iGen1200, 2200 & 2500: Stop and re-start the generator.

iGen4500: Press the generator reset button

on the control panel until the overload alarm light goes off and the output indicator light is illuminated green.

3. Check that the intended electrical running and starting loads do not exceed the generator’s capacity or have a licensed electrician rectify any fault causing a short circuit in the load.

4. Reconnect any electrical devices or cords to the receptacles on the control panel and then turn on the electrical loads as required.

STOPPING THE GENERATOR

Normal Operation

During normal operation, use the following steps to stop the generator:

1. Unplug any electrical cords or devices from the 240-Volt AC, 12-Volt DC accessory and 5-Volt DC USB receptacles on the control panel.

2. Allow the generator to run unloaded for at least one minute to cool and stabilise the engine and alternator temperatures.

3. iGen1200: Turn the engine and fuel control switch clockwise to the OFF position.

iGen2200 & 2500: Turn the engine, fuel and choke

control switch anti-clockwise to the OFF position.

iGen4500: Push the engine control switch to the

STOP position and then turn the fuel and choke control switch to the OFF position.

4. Turn the fuel cap vent anti-clockwise to the OFF position (if equipped).

During an Emergency

If there is an emergency and the generator must be stopped quickly, follow the procedure in Step 3 above with haste.

APPLICATION AND DUTY CYCLE

All models within this range of Westinghouse generators are portable, air-cooled, petrolengine driven, self-contained units designed for independent supply of electrical power. They are ideal as a backup power supply in the event of mains power failure or as a remote area power supply for use when camping, caravanning or working out in the ﬁeld.

For most common applications, users can connect a Westinghouse generator to power electrical devices by detachable plug and socket-outlet connection as described in this manual.

Westinghouse generators can also be connected to a ﬁxed electrical installation such as in a house or business premises, for example, by a licensed electrician.

AMBIENT CONDITIONS

The generator is designed to operate within the following range of ambient conditions:

• Temperature: -5 to +40°C

• Altitude: Up to 1,000 m

Where possible, the generator should be operated in the shade to prevent additional heat load due to solar radiation.

The engine’s power output will decrease by approximately 3.5% for each 300 m increase in altitude above sea level. This is normal for sparkignition engines and is attributable to the decrease in atmospheric pressure (and thus the available air for combustion) as altitude increases.

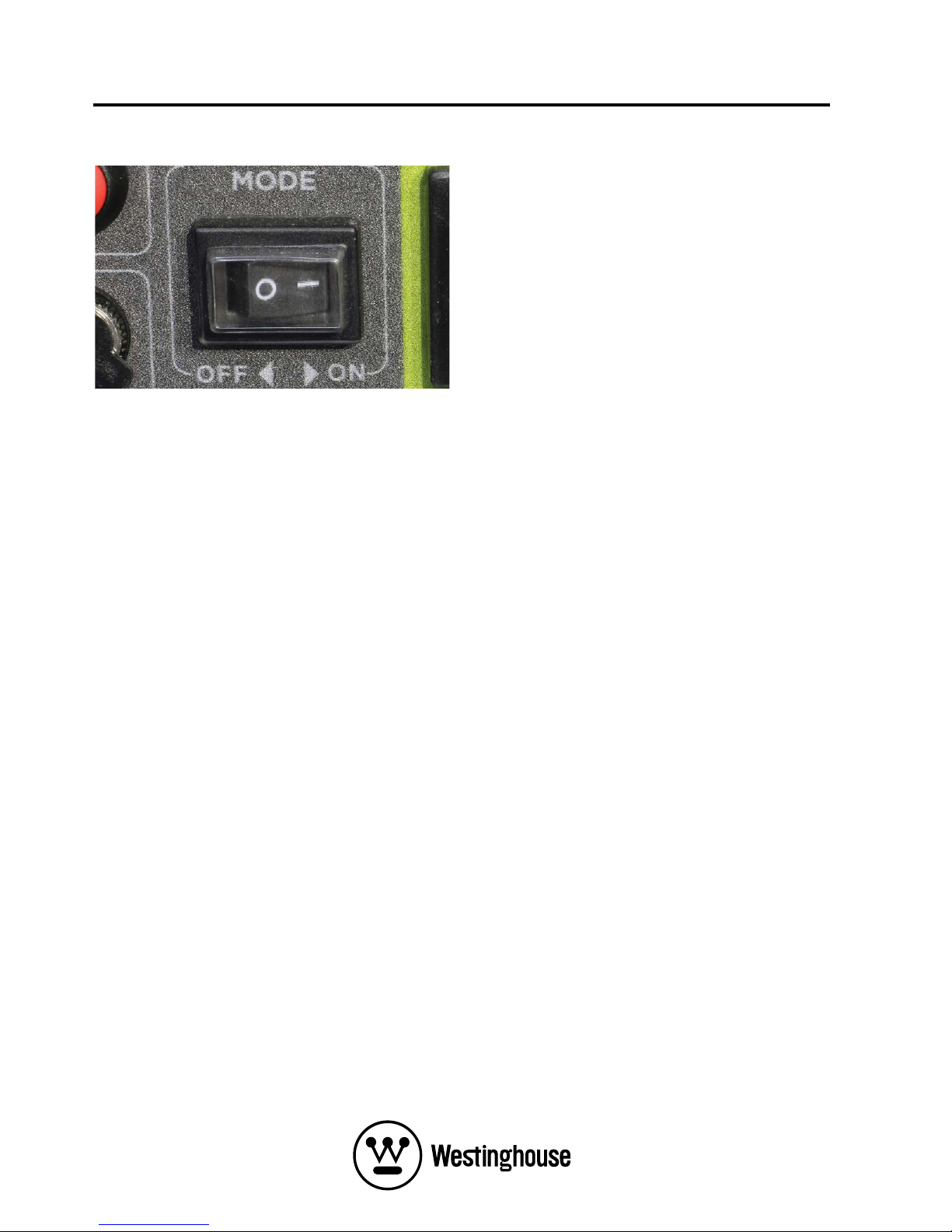

Figure 20 – ECO Throttle Switch in the ON Position

Page 25

OPERATION

CONNECTING ELECTRICAL LOADS

The generator can be used to power (a) 240-Volt AC, 50 Hz, single phase, (b) 12-Volt DC accessory or (c) 5-Volt DC USB electrical devices.

240-Volt AC Loads

240-Volt AC devices can be connected either directly or via electrical extension cords into the 240-Volt AC outlet(s) on the generator’s control panel. Lift up the spring-loaded weather resistant cover on each outlet for access to connect the electrical device or cord.

240-Volt AC devices may be ﬁtted with either a three-pin 15 Ampere (typically abbreviated “15 Amp” or “15 A”) plug or a three-pin 10 Ampere (“10 Amp” or “10 A”) plug as shown in Figure 21. Certain double-insulated devices may be ﬁtted with a twopin 10 A plug that doesn’t have an earth pin (which is the longer, vertical pin).

NOTICE

DO NOT connect any 240-Volt AC device that is ﬁtted with a three-pin 20 A plug. This can overload the generator.

See 240-Volt AC Extension Cords on page 26 for detailed instructions concerning their selection and use.

12-Volt DC Accessory Loads (iGen1200 & 4500)

12-Volt DC devices can be connected either directly or via an electrical extension cord not exceeding

3.5 m in length into the 12-Volt DC outlet on the generator’s control panel. Pull out the weather resistant stopper on the outlet for access to connect the electrical accessory or cord, and re-insert it after use.

12-Volt DC devices or extension cords must be ﬁtted with a cigarette lighter plug for connection to the generator as shown in Figure 22.

WARNING

Never insert an automotive cigarette lighter into the 12-Volt DC outlet. The heated lighter may ignite the fuel causing an explosion or ﬁre.

5-Volt DC USB Loads

5-Volt DC USB devices can be connected either directly or via an electrical extension cord not exceeding 2 m in length into the 5-Volt DC USB outlet on the generator’s control panel. Pull out the weather resistant stopper on the outlet for access to connect the USB device or cord, and re-insert it after use.

5-Volt DC USB devices or extension cords must be ﬁtted with a standard Type “A” USB male plug for connection to the generator as shown in Figure 23.

The USB receptacle on the generator’s control panel supplies electrical power only for charging and not any form of electronic communication, data or signal.

Power Output and Demand

There are two limits to the amount of electric power that the generator can usefully provide: (a) its total 240-Volt AC, 12-Volt DC or 5-Volt DC electric power generating capacity or power output and (b) the electric current or power output capacity of each individual 240-Volt AC, 12-Volt DC or 5-Volt DC outlet.

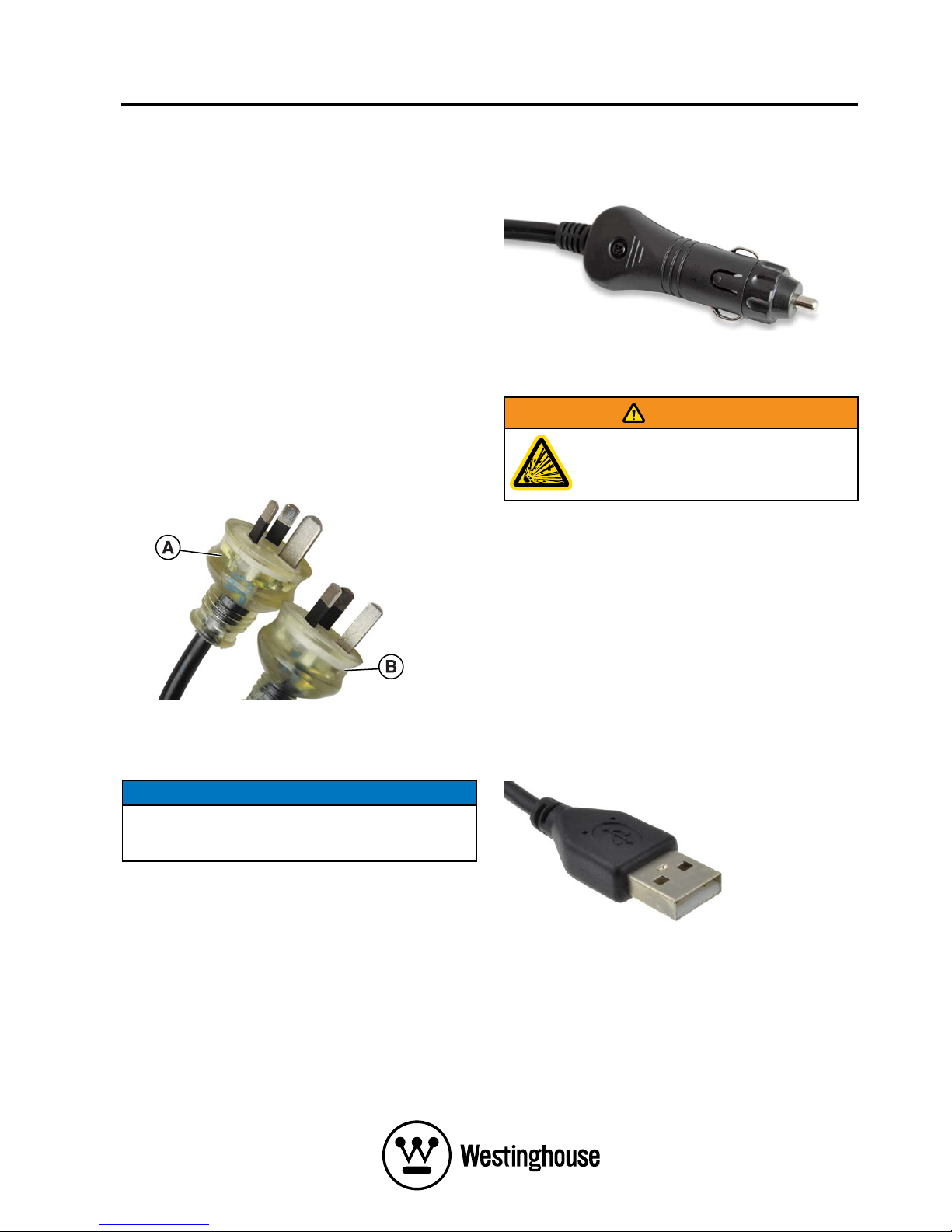

Figure 22 – 12-Volt DC Cigarette Lighter Plug

A - 15 Ampere B - 10 Ampere

Figure 21 – 240-Volt AC Three-Pin Plugs

Figure 23 - Type “A” USB Male Plug

Page 26

OPERATION

The generator’s total power output measured in Watts is listed in the Speciﬁcations (see page 45). Two 240-Volt AC power outputs are speciﬁed for the generator, namely the running power and the starting power. The 12-Volt DC and 5-Volt DC power outputs are also speciﬁed.

NOTICE

DO NOT overload the generator’s 240-Volt AC, 12-Volt DC or 5-Volt DC circuits beyond their rated capacities. This can result in damage to the generator or to the connected devices.

The generator should not be run completely unloaded for extended periods otherwise the engine may be damaged. It is recommended that the generator should always be operated with at least one-third of its rated 240-Volt AC power output.

240-Volt AC devices have two different electric power demands that must be taken into consideration, namely the running power and the starting power. Both are measured in Watts (typically abbreviated as “W”).

The steady state continuous load is the running power demand and this is often marked on the device near its model number or serial number. Sometimes the device might only be marked with its voltage (i.e. 240 Volt or 240 V) and current draw (e.g. 6 Ampere or 6 Amp or 6 A), in which case the running power demand in Watts can be obtained by multiplying the voltage times the current, e.g. 240 V × 6 A = 1,440 W.

Simple resistive 240-Volt AC devices such as incandescent bulbs, toasters, heaters, etc. have no extra power demand when starting, and so their starting power demands are the same as their running power demands.

More complex 240-Volt AC devices containing inductive or capacitive elements such as electric motors have a momentary extra power demand when starting, which can be up to seven times the running power demand or more. Manufacturers of such devices rarely publish this starting power demand and so it’s often necessary to estimate it.

A rule of thumb for devices ﬁtted with an electric motor is to apply a starting power multiplier of

1.2 for small hand-held or portable devices and a value of 3.5 for larger stationary devices. For example, a 900 W angle grinder can be assumed to have a starting power demand of at least 1.2 × 900 W, which equals 1,080 W. Similarly, a 1,650 W air compressor can be assumed to have a starting power demand of at least 3.5 × 1,650 W, which equals 5,775 W.

To prevent overloading of the generator’s 240-Volt AC system:

1. Add up the running power demand of all the

240-Volt AC devices that will be connected to the generator at one time. This total must not be greater than the generator’s speciﬁed running power output.

2. Add up the running power demand again, but for

the largest motor-driven device use the value of its starting power demand instead of its running power demand. This total must not be greater than the generator’s speciﬁed starting power output.

3. The total running power demand of all the

devices that will be connected to any one of the generator’s outlets must not exceed the generator’s speciﬁed running power output or 3,600 W, whichever is the lesser.

The above guidelines serve as approximations only of determining the running and starting power demands of 240-Volt AC devices. If in doubt, always err on the conservative side to avoid overloading the generator. In the absence of any power demand information whatsoever, one can assume that any device ﬁtted with a standard domestic 10 A plug has a maximum running power demand of 2,400 W (i.e. 240 V x 10 A = 2,400 W). Similarly, a device ﬁtted with a heavy duty 15 A plug can be assumed to have a maximum running power demand of 3,600 W (i.e. 240 V x 15 A = 3,600 W). And then apply the appropriate multiplying factor for starting power demand if the device has an electric motor.

240-VOLT AC EXTENSION CORDS

Wherever possible, it is recommended to connect 240-Volt AC devices directly to the generator’s 240Volt AC outlet(s). This ensures that the device is supplied with the best quality electricity.

In those instances where it’s not practicable or safe to directly plug an electrical device into the generator, the use of an electrical extension cord is necessary.

1. Use only the shortest possible extension

cord for the task. Voltage drop increases proportionately with the length of an extension cord and may result in damage to the powered device.

2. Use only a single extension cord and not

multiple cords joined together. This will minimize voltage drop and prevent any hazard or inconvenience arising from the joint(s) becoming disconnected.

3. Use only extra heavy duty 15 A extension cords

made from 3-core cable of at least 1.5 mm2 conductor size and ﬁtted with 15 A plugs and sockets (see Figure 21). A 15 A plug cannot be inserted into a standard domestic 10 A socket.

Page 27

OPERATION

4. Extension cords with conductor size of 1.5 mm

or 2.5 mm2 should not exceed 25 m or 40 m in length, respectively, for general use in accordance with AS/NZS 3199:2007.

NOTICE

DO NOT use extension cords with only 2-pin (active and neutral) plugs and sockets. These extension cords lack the earth connection that is provided by a 3-pin plug and socket joined with a 3-core cable; the vertical pin is the earth connection.

5. DO NOT use extension cords with any visible signs of damage to the plug, socket or cable.

6. DO NOT use extension cords that are rolled up or knotted as they may overheat.

12 VOLT BATTERY CHARGING

Depending on the model, there are either one or two methods by which the generator can be used to charge an external 12 Volt battery:

A. iGen1200 & 4500: By direct connection to the

generator’s 12-Volt DC electrical outlet; or

B. iGen1200, 2200, 2500 & 4500: By using a mains-

powered 12 Volt battery charger connected to one of the generator’s 240-Volt AC outlets.

DANGER

Wet cell batteries produce explosive hydrogen gas while charging. If ignited, the hydrogen gas mixture can explode the battery and cause serious injury or blindness. Only charge a battery in a well-ventilated area away from any sources of ignition such as sparks, open ﬂames, matches, cigarettes, CB radios and mobile phones.

The electrolyte ﬂuid inside a battery contains highly corrosive sulphuric acid, which upon contact with the skin or eyes can cause severe burns or blindness. Always wear protective glasses and clothing – including gloves – when working on a battery. Any electrolyte spill should be thoroughly ﬂushed clean with water.

Battery Charging by Direct Connection (iGen1200 & 4500)

This method is NOT RECOMMENDED and should only be used in an emergency. The generator’s 12Volt DC electrical output is unregulated and may damage the battery due to overcharging.

Tools required – 12 V DC, 10 A minimum battery charging cable with cigarette lighter plug for connection to the generator and alligator clips (both positive and negative) for connection to the battery.

1. Prepare the battery for charging if it is a usermaintainable type by removing the vent caps and adding demineralized or distilled water until the electrolyte level is just above the internal battery plates. This may not be possible with a maintenance-free battery.

2. Connect the positive (+) alligator clip (red) to the positive (+) terminal on the battery.

3. Connect the negative (-) alligator clip (black) to the negative (-) terminal on the battery.

4. Start the generator.

5. Insert the cigarette lighter plug into the generator’s 12-Volt DC accessory socket. The battery is now charging. Keep the battery as far away as possible from the generator due to the explosive gas hazard.

6. Monitor the battery; stop charging if the battery gets hot to the touch and the electrolyte boils violently.

7. Variables such as battery size and initial state of charge make it impossible to deﬁnitively recommend the charging period. Some batteries have a state of charge indicator that can be visually checked. Otherwise a voltmeter or hydrometer is necessary to accurately determine the battery’s condition. A fully charged battery will have an open circuit voltage of at least 12.6 V and an electrolyte speciﬁc gravity of at least 1.265. In the absence of any state of charge tools, stop the charging after approximately three hours and check whether the battery is capable of powering the required application, e.g. to start a car’s engine.

8. Remove the cigarette lighter plug from the generator’s 12-Volt DC accessory socket.

9. Stop the generator unless it’s being used to power some other 240-Volt AC device(s).

10. Disconnect the negative (-) alligator clip (black) from the negative (-) terminal on the battery.

11. Disconnect the positive (+) alligator clip (red) from the positive (+) terminal on the battery.

12. Re-ﬁt the battery’s vent caps, if applicable. The battery can now be used.

Battery Charging by a Mains-Powered Charger (iGen1200, 2200, 2500 & 4500)

This method is RECOMMENDED. Using a proper mains-powered 12 Volt battery charger will ensure that the battery is optimally charged and without risk of damage due to overcharging.

Page 28

OPERATION

Tools required – 240-Volt AC powered 12 V DC battery charger.

2. Connect the battery charger’s positive (+) alligator clip or terminal clamp (red) to the positive (+) terminal on the battery.

3. Connect the battery charger’s negative (-) alligator clip or terminal clamp (black) to the negative (-) terminal on the battery.

4. Start the generator.

5. Make any necessary pre-charging adjustments or settings on the battery charger in accordance with its operating instructions.

6. Insert the battery charger’s power supply plug into one of the generator’s 240-Volt AC outlet sockets and then switch the battery charger ON. The battery is now charging. Keep the battery as far away as possible from the generator due to the explosive gas hazard.

7. Monitor the battery; stop charging if the battery gets hot to the touch and the electrolyte boils violently.

8. Monitor the battery charger in accordance with its operating instructions and switch it off when indicated to do so.

9. Switch the battery charger OFF and unplug its power supply cord from the generator.

10. Stop the generator unless it’s being used to power some other 240-Volt AC device(s).

11. Disconnect the battery charger’s negative (-) alligator clip or terminal clamp (black) from the negative (-) terminal on the battery.

12. Disconnect the battery charger’s positive (+) alligator clip or terminal clamp (red) from the positive (+) terminal on the battery.

13. Re-ﬁt the battery’s vent caps, if applicable. The battery is now charged and ready for use.

TRANSPORTING THE GENERATOR

The generator should be stopped and both the fuel control switch and fuel cap vent should be turned to the OFF position before transporting the generator. Keep the unit level during transport to minimise the possibility of fuel leakage or, if practicable, drain out the fuel prior to transport as described in Draining the Fuel on page 38.

If the generator has been operating, allow the unit to cool down before loading it onto the transport vehicle.

The iGen4500’s wheels are only intended for ease of moving the generator around by hand. The wheels are not suitable for towing the generator either on or off-road.

Use only the generator’s ﬁxed handle(s) for lifting the unit or attaching any load restraints such as ropes or tie-down straps. Do not attempt to lift or secure the generator by holding onto any of its other components.

The iGen4500 is also equipped with an extendable handle. To deploy it, push on the locking button and pull on the handle until it’s fully extended (see Figure

24). To stow it, push on the locking button and push on the handle until it’s fully retracted. Only extend or retract the handle while the generator is stationary and resting on a horizontal surface.

The extendable handle is intended for ease of wheeling the generator around by hand (see Figure

25). Do not use the extendable handle to lift the generator entirely off the ground, tow it or up-end it.

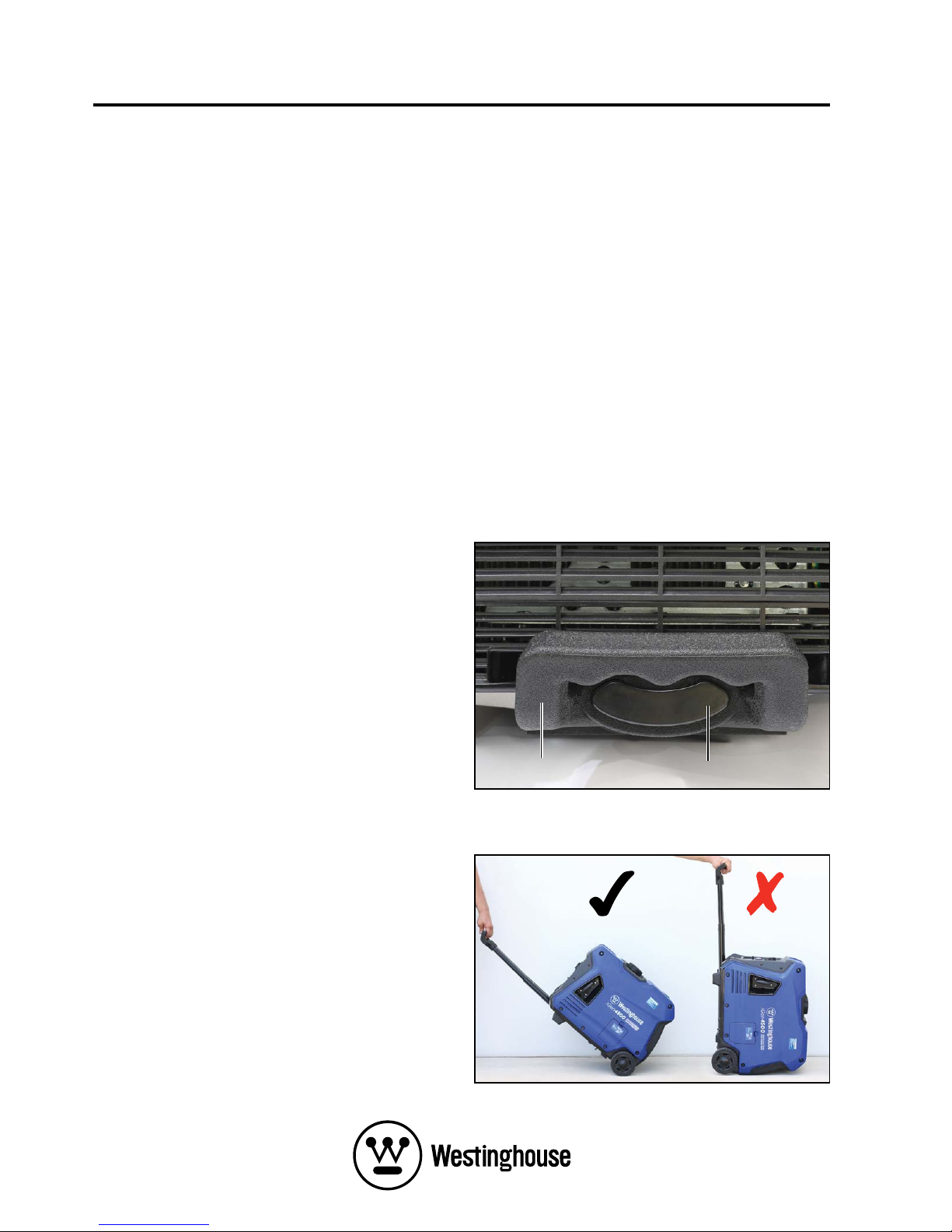

Figure 24 - iGen4500 Extendable Handle

Figure 25 - iGen4500 Handling

Handle Grip

Locking Button

Page 29

MAINTENANCE

MAINTENANCE PRECAUTIONS

WARNING

Avoid accidentally starting the generator during maintenance by removing the spark plug boot from the spark plug.

Allow hot components to cool to the touch prior to performing any maintenance procedure.

Internal pressure can build in the engine crankcase while the engine is running. Removing the oil ﬁll plug while the engine is hot can cause hot oil to spray out of the crankcase and cause severe skin burns. Allow engine oil to cool for several minutes before removing the oil ﬁll plug.

Always perform maintenance in a well-ventilated area. Fuel and fuel vapours are extremely ﬂammable and can ignite under certain conditions.

CAUTION

Avoid skin contact with engine oil or fuel. Prolonged skin contact with engine oil or fuel can be harmful. Frequent and prolonged contact with engine oil may cause skin cancer. Take protective measures and wear protective clothing and equipment. Wash all exposed skin with soap and water.

Maintenance Schedule

WARNING

Failure to perform periodic maintenance or not following maintenance procedures can cause the generator to malfunction and could result in death or serious injury.

NOTICE

Periodic maintenance intervals vary depending on generator operating conditions. Operating the generator under severe conditions, such as sustained high-load, high-temperature, or unusually wet or dusty environments, will require more frequent periodic maintenance. The intervals listed in the maintenance schedule should be treated only as a general minimum guideline. Use only genuine Westinghouse spare parts or others as speciﬁed herein. Non-genuine spare parts may be of inferior quality and cause damage to the generator.

Following the maintenance schedule is essential to keep the generator in good operating condition. Table 1 provides a summary of routine inspection procedures and simple maintenance tasks that can be performed by someone with mechanical proﬁciency using commonly available hand tools. Alternatively, an authorised Westinghouse service dealer can carry out this work for a fee.

Table 1: Basic Maintenance Schedule - Owner Performed

Maintenance

Item

Before Every

Use

After First 20

Hours or First

Month *

After 50 Hours

or Every

3 Months *

After 100

Hours or Every

6 Months *

After 250 Hours or

Every Year *

Engine Oil Check / Add Change – Change –

Air Filter Check / Clean – Clean ^ – –

Spark Plug – – – Check / Clean Replace

Fuel Strainer – – – Clean –

Spark Arrester

– – – Clean –

Exterior Surfaces Check / Clean – – – –

* Whichever occurs ﬁrst. ^ Service more frequently if operating in dusty conditions. # N/A for iGen1200.

Page 30

MAINTENANCE

ENGINE OIL MAINTENANCE

Engine Oil Speciﬁcation

Use premium quality 4-stroke engine oil with an API Service Classiﬁcation of at least SF. A SAE multigrade viscosity of 10W-30 is suitable for use in ambient temperatures of up to 40°C. For temperatures above 40°C, a multigrade viscosity of 15W-40 is recommended.

NEVER use 2-stroke engine oil either directly in the engine or mixed with the fuel.

Mineral based, semi-synthetic or fully synthetic oils may be used, but different types of oils should not be mixed together. The engine oil supplied originally with the generator is a mineral type with SAE 10W-30 viscosity.

Checking Engine Oil

NOTICE

Always maintain proper engine oil level. Failure to maintain proper engine oil level can damage the engine. Always use the speciﬁed engine oil. Failure to use the speciﬁed engine oil can damage the engine.

Tools required - iGen1200, 2200 & 2500: Phillips head screwdriver. iGen4500: None.

Engine oil level should be checked before every use.

1. Always operate or maintain the generator on a ﬂat surface.

2. Stop engine if running.

3. Let engine sit and cool for several minutes (allow crankcase pressure to equalize).

4. iGen1200: Remove the engine access cover (see Figure 26).

iGen2200 & 2500: Remove the engine access cover (see Figure 27).

iGen4500: Remove the oil access cover (see Figure 28).

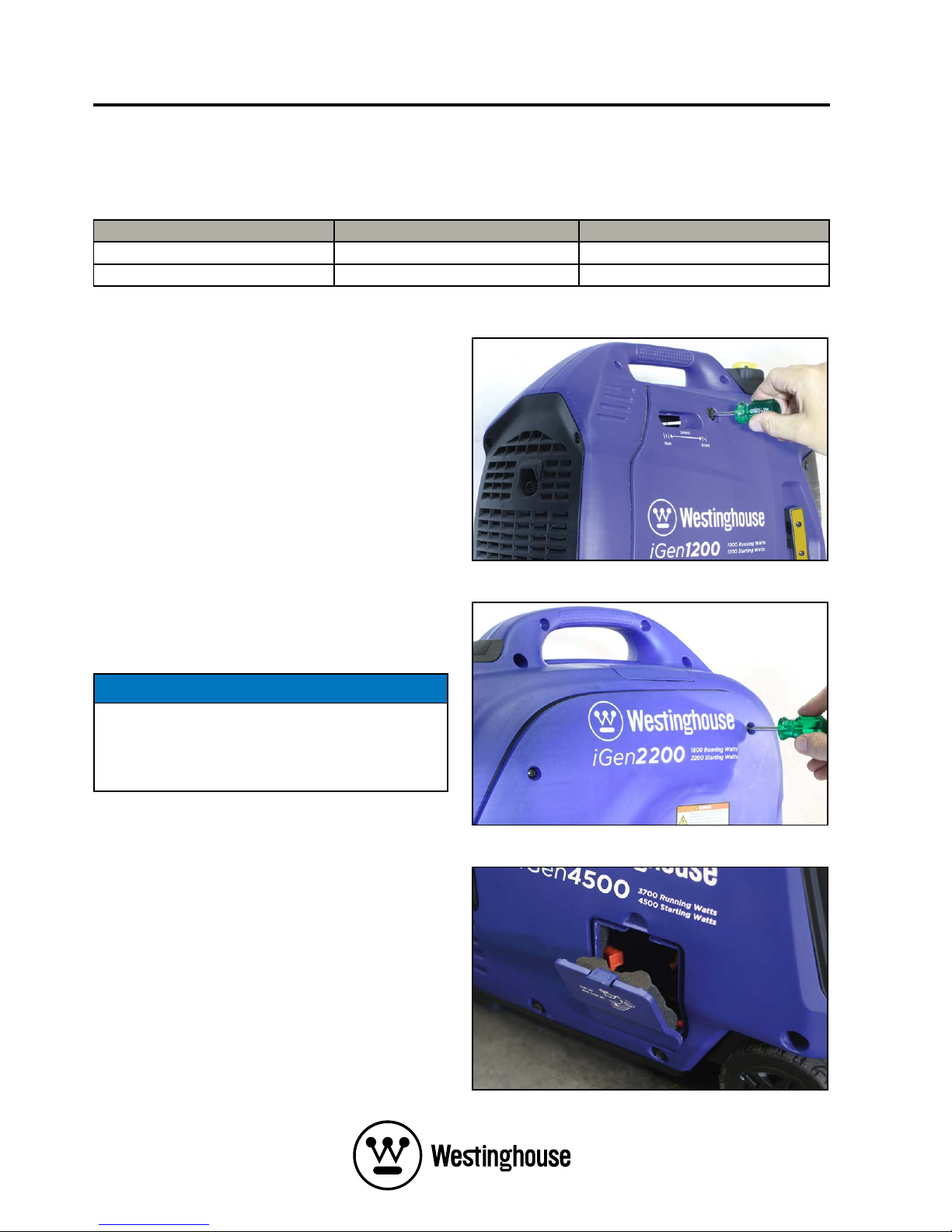

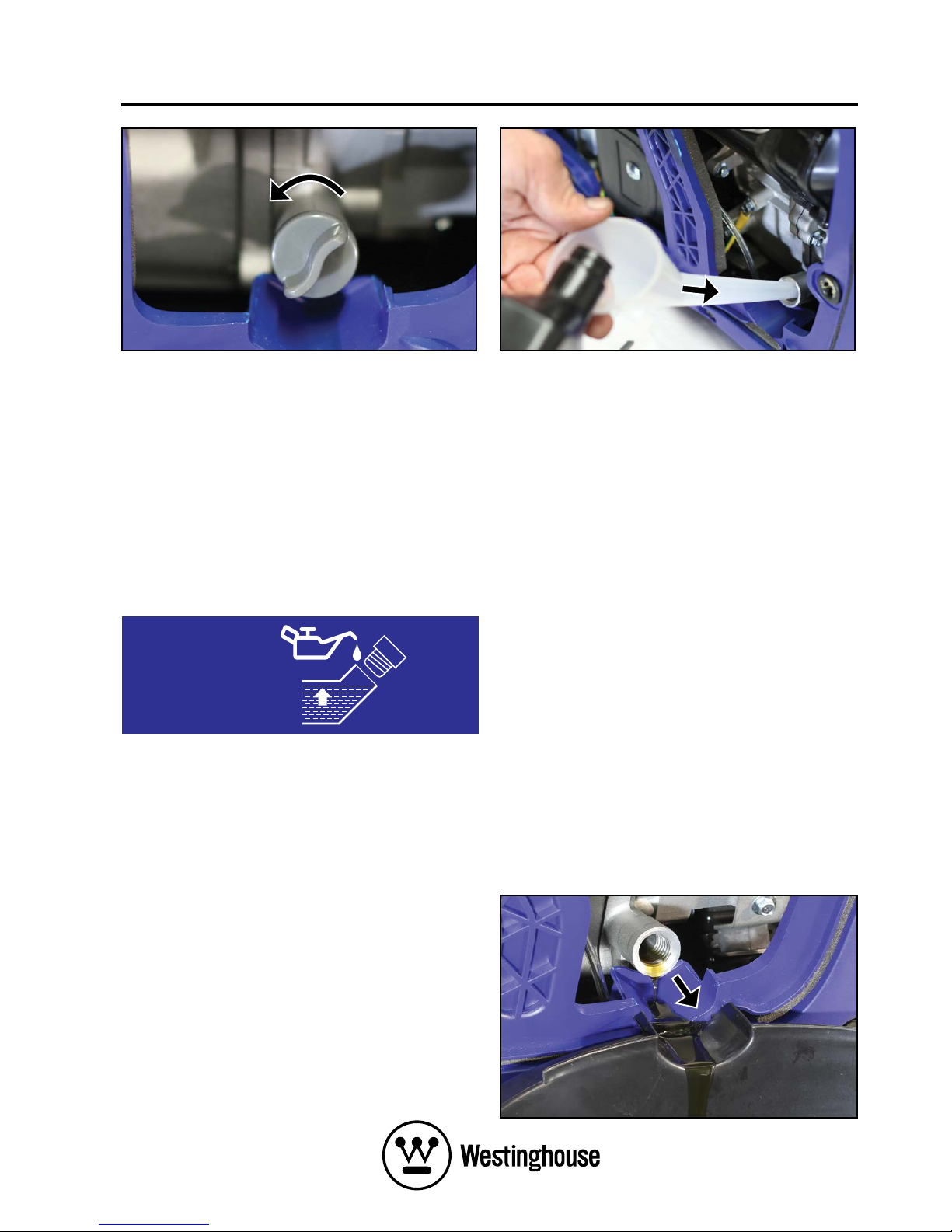

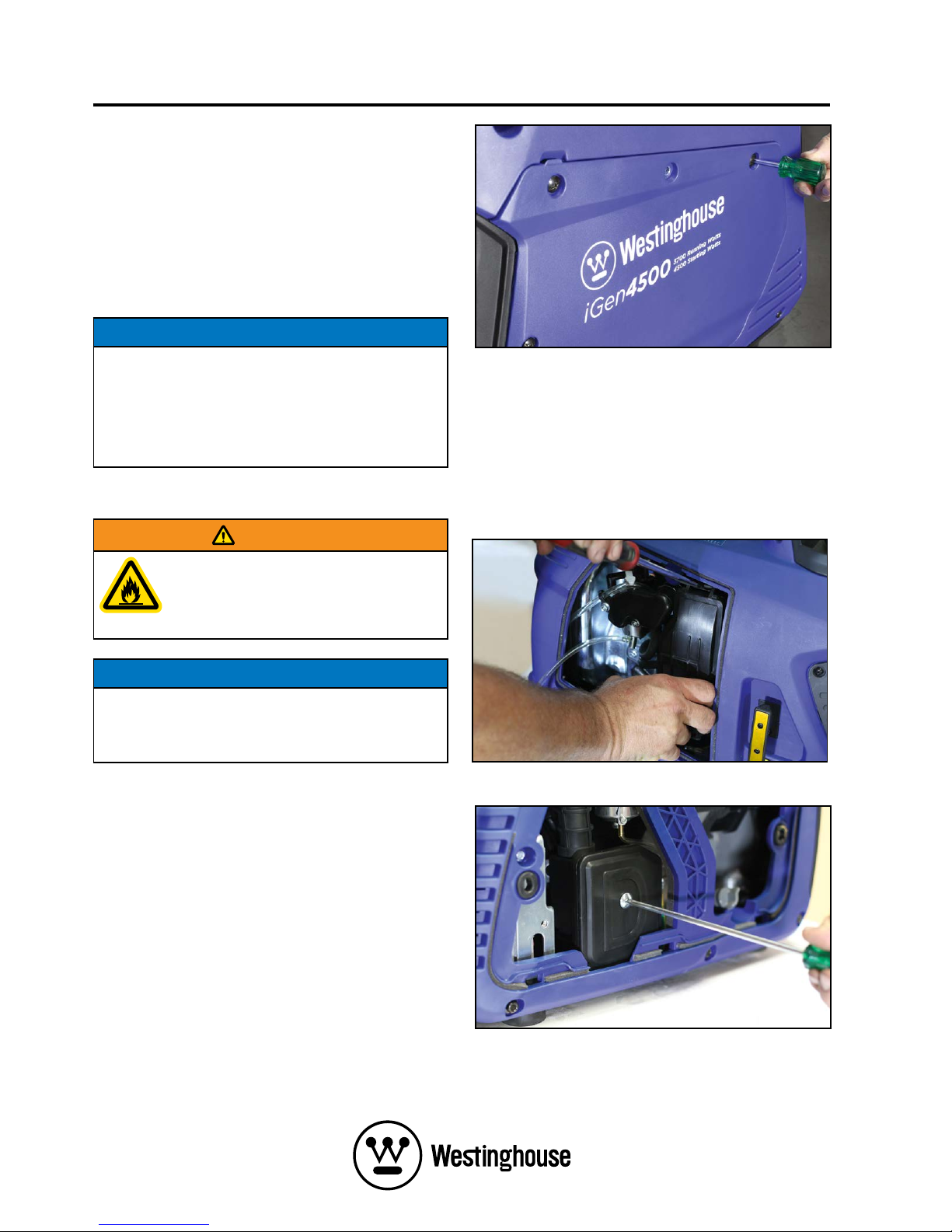

Figure 28 - iGen4500 Removing the Oil Access Cover

Table 2: Advanced Maintenance Schedule - Authorised Westinghouse Service Dealer Performed

Maintenance Item After 250 Hours or Every Year * After 500 Hours or Every 2 Years *

Valve Clearance Check / Adjust –

Combustion Chamber – Clean

* Whichever occurs ﬁrst.

Table 2 lists the more complicated maintenance tasks that are best performed by a qualiﬁed mechanic using specialised tools. It is recommended to engage an authorised Westinghouse service dealer to carry out this work.

Figure 26 - iGen1200 Removing the Engine Access Cover

Figure 27 - iGen2200 & 2500 Removing the Engine Access Cover

Page 31

MAINTENANCE

5. Remove oil ﬁll plug by unscrewing it anticlockwise (see Figure 29).

6. Check oil level:

• Acceptable Oil Level – Oil surface is at

the bottom lip of the oil ﬁll plug opening (see Figure 30).

• Low Oil Level – Oil surface is below the

bottom lip of the oil ﬁll plug opening. Add oil as required.

• Too High Oil Level - Oil ﬂows out when the oil

ﬁll plug is removed. Allow the excess oil to drain out into a waste oil container.

Adding Engine Oil

Tools required - iGen1200, 2200 & 2500: Phillips head screwdriver. iGen4500: None.

1. Always operate or maintain the generator on a ﬂat surface.

2. Stop the engine, if running.

3. Let engine cool down for several minutes allowing crankcase pressure to equalise.

4. Remove the engine access cover or oil access cover (see Figure 26, 27 or 28, as applicable).

5. Thoroughly clean around the oil ﬁll plug.

6. Remove oil ﬁll plug.

7. Select the proper engine oil as described in Engine Oil Speciﬁcation on page 30.

8. Using the supplied oil funnel, slowly add engine oil to the engine as shown in Figure 31. Check the oil level periodically to avoid overﬁlling.

9. Continue to add oil until the oil is at the correct level. See Checking Engine Oil on page 30. A simple visual guide is to observe the oil level relative to the bottom lip of the oil ﬁller neck in the engine (into which the oil ﬁll plug is screwed). If the oil reaches the bottom lip, then it’s at the high level. If the oil is above the bottom lip and ﬂows out of the hole, then it’s too full and the excess must be drained out.

10. Reinstall the oil ﬁll plug and engine or oil access

cover.

Changing Engine Oil

Tools required - iGen1200, 2200 & 2500: Phillips head screwdriver and oil drain pan or oil extractor vacuum pump. iGen4500: Oil drain pan or oil extractor vacuum pump.

1. Stop the engine, if running.

2. Let engine cool down for several minutes allowing crankcase pressure to equalise.

3. Remove the engine access cover or oil access cover (see Figure 26, 27 or 28, as applicable).

4. Place oil pan or other suitable container under the oil ﬁll plug.

5. With a damp rag, thoroughly clean around the oil ﬁll plug.

6. Remove the oil ﬁll plug. Once removed, place the oil ﬁll plug on a clean surface.

Figure 29 - Removing the Oil Fill Plug

Figure 30 – Checking Oil Level

SAE 10W-30

Figure 31 – Adding Engine Oil

Figure 32 – Draining the Engine Oil

Page 32

MAINTENANCE

7. Tilt the generator over to drain oil into a waste oil pan or container (see Figure 32).

8. Allow oil to drain completely.

9. Fill crankcase with new oil following the steps outlined in Adding Engine Oil.

10. Re-install the oil ﬁll plug and engine or oil access cover.

An alternate and superior method for draining is to use an oil extractor vacuum pump to remove the used oil via the oil ﬁll plug hole.

NOTICE

Never dispose of used engine oil by dumping the oil into a sewer, on the ground, or into groundwater or waterways. Always be environmentally responsible. Follow the guidelines of the government agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

AIR FILTER MAINTENANCE

WARNING

Never use fuel or other ﬂammable solvents to clean the air ﬁlter. Use only household detergent and warm water or alternatively a non-ﬂammable solvent.

NOTICE

Do not operate the generator without an air ﬁlter element or with a damaged air ﬁlter element. This will allow dirt to enter the engine and cause accelerated wear.

Cleaning the Air Filter

Tools required - iGen1200, 2200 & 2500: Phillips head screwdriver. iGen4500: Phillips head screwdriver and 10 mm socket wrench.

The air ﬁlter must be cleaned after every 50 hours of use or 3 months (frequency should be increased if generator is operated in a dusty environment).

1. Turn off the generator and let it cool for several minutes if it’s been running.

2. Move the generator to a ﬂat, level surface.

3. Remove the engine access cover (see Figure 26, 27 or 33, as applicable).

4. iGen1200: Remove the air ﬁlter cover by pressing down on the locking tab and tipping the cover forwards (see Figure 34). Clean the air ﬁlter cover with a rag and place it aside.

iGen2200 & 2500: Remove the air ﬁlter cover by

undoing the central ﬁxing screw (see Figure 35) to release the cover. Clean the air ﬁlter cover with a rag and place it aside.

Figure 33 - iGen4500 Removing the Engine Access Cover

Figure 34 - iGen1200 Removing the Air Filter Cover

Figure 35 - iGen2200 & 2500 Removing the Air Filter Cover

Page 33

MAINTENANCE

iGen4500: Remove the air ﬁlter cover by turning

the twistlocks anti-clockwise and tipping the cover forwards (see Figure 36). Clean the air ﬁlter cover with a rag and place it aside.

5. Remove the foam air ﬁlter element while taking care to note its shape and orientation (see Figure 37). The air ﬁlter element must be reinstalled later in the same position.

6. Wash the air ﬁlter element in a solution of household detergent and warm water or alternatively in non-ﬂammable solvent. Slowly squeeze the foam in the liquid for a thorough cleaning action. Then remove the foam and squeeze out the liquid.

NOTICE

NEVER twist or tear the air ﬁlter element during cleaning or drying. Apply only a slow and ﬁrm squeezing action.

7. Rinse the air ﬁlter element by immersing it in fresh water and applying a slow squeezing action.

NOTICE

Never dispose of the used cleaning solution or solvent by dumping it into a sewer, on the ground, into groundwater or into a waterway. Always be environmentally responsible. Follow the guidelines of the governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

8. Dry the air ﬁlter element by repeatedly applying a slow ﬁrm squeezing action.

9. Coat the air ﬁlter element in clean engine oil and then thoroughly squeeze out the excess liquid.

10. Re-install the air ﬁlter element inside the air ﬁlter housing while taking care to ensure that the element is correctly positioned.

11. Re-install the air ﬁlter and engine access covers.

FUEL STRAINER MAINTENANCE

Check and clean the fuel strainer after every 100 hours of use or 6 months. It is recommended that this maintenance task also be performed each time when ﬁlling with fuel from any source other than directly from a service station bowser.

1. Stop the generator, if running.

2. Allow the generator to cool down until the mufﬂer access cover is cool to the touch.

3. Remove the generator to a ﬂat surface.

4. Clean area around the fuel cap.

5. Turn the fuel cap vent to the ON position, if equipped.

6. Remove the fuel cap and set it aside on a clean surface.

7. Remove the fuel strainer by hand from inside the ﬁller hole on top of the fuel tank (see Figure 38) taking care not to tear or otherwise damage the ﬁne mesh screen. Keep the fuel strainer vertical so that any trapped liquid or solids do not spill onto the generator.

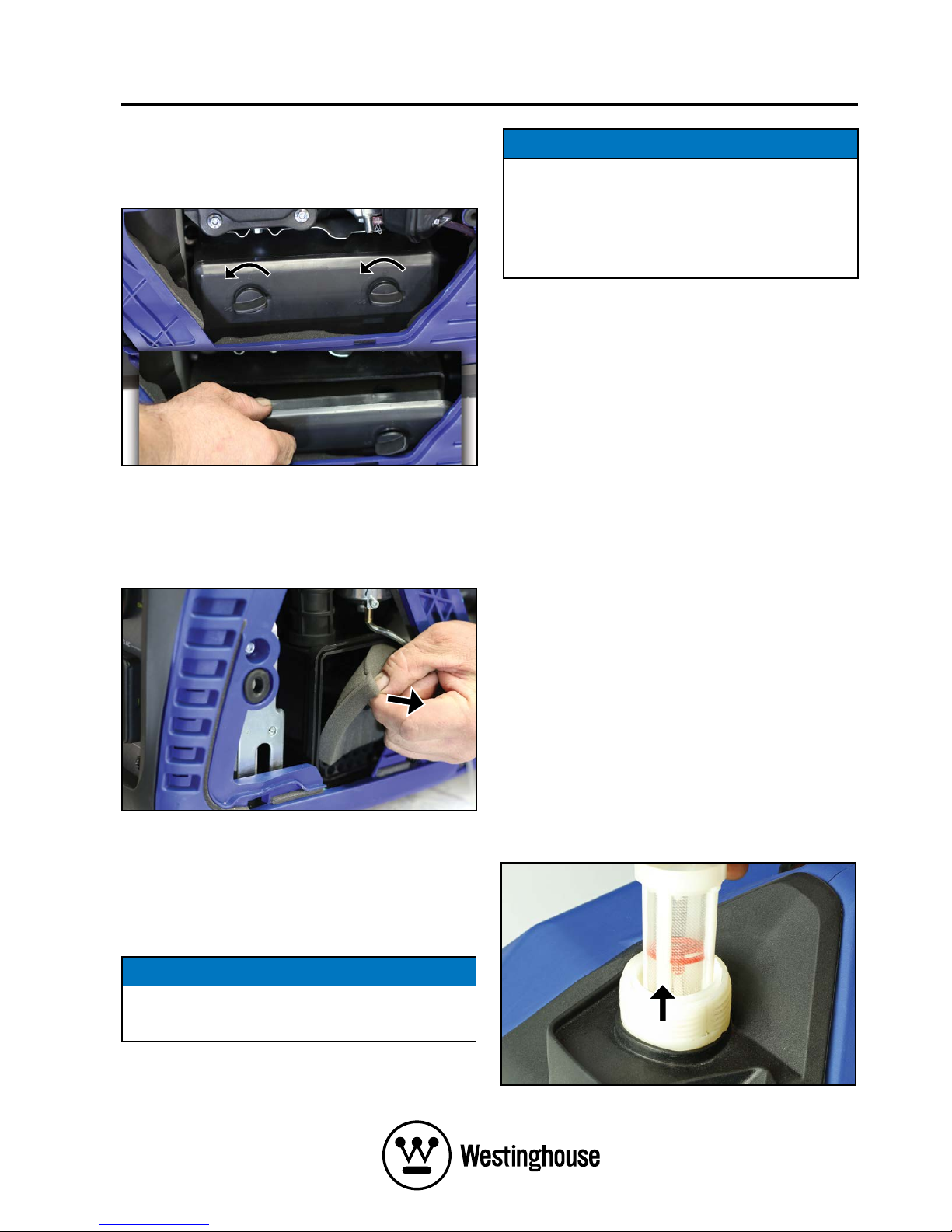

Figure 37 – Removing the Air Filter Element

Figure 36 - iGen4500 Removing the Air Filter Cover

Figure 38 – Removing the Fuel Strainer

Page 34

MAINTENANCE

8. Pour the contents of the fuel strainer into a suitable waste receptacle. Low pressure compressed air can be used if necessary for blowing onto the outside of the strainer mesh to remove any trapped ﬁne grit.

NOTICE

Never dispose of fuel or fuel contaminants by dumping either of them into a sewer, on the ground, or into groundwater or waterways. Always be environmentally responsible. Follow the guidelines of the government agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

9. Re-install the fuel strainer by hand inside the ﬁller hole on top of the fuel tank (see Figure 39). Make sure it is fully inserted into the opening.

10.

10. Re-install the fuel cap.

SPARK PLUG MAINTENANCE

Tools required – Phillips head screwdriver (iGen1200 & 4500), 10 mm socket wrench (iGen4500), spark plug socket wrench, spark plug gap tool or feeler gauge, and wire brush.

The spark plug should be checked and cleaned after every 100 hours of use or 6 months and then replaced after 250 hours of use or every year.

1. Stop the generator and let it cool for several minutes if it’s been running.

2. Move the generator to a ﬂat, level surface.

3. iGen1200: Loosen the locking screw on the spark plug access cover and then slide open and remove the cover (see Figure 40).

iGen2200 & 2500: Slide open and remove the

spark plug access cover (see Figure 41).

iGen4500: Remove the engine access cover

(see Figure 33).

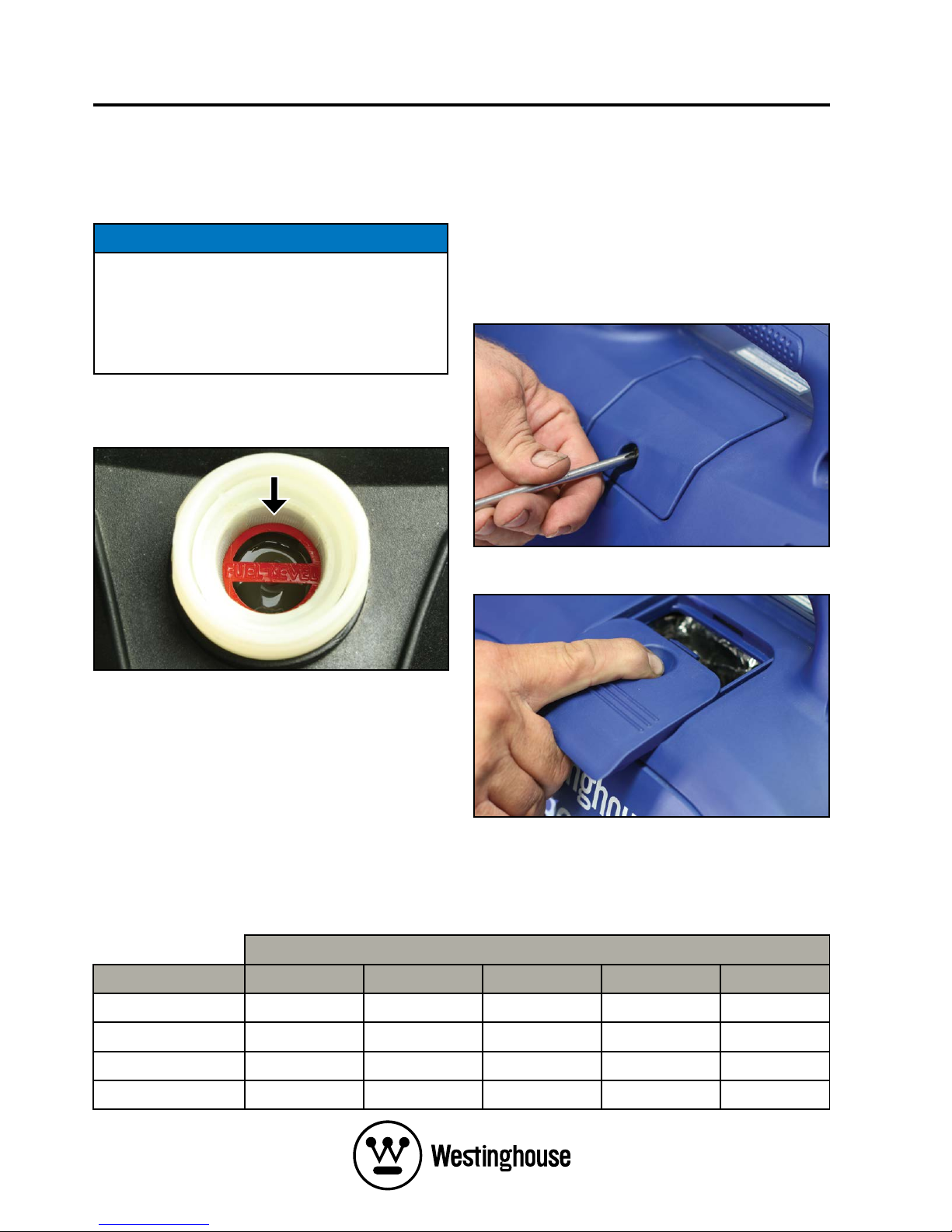

Table 3: Replacement Spark Plugs

Spark Plug Make and Model

Generator Model Torch Bosch Champion Denso NGK

iGen1200 A5RTC - RZ11Y U16FSR-U CR5HSA

iGen2200 E6RTC WR7BC+ - W20FPR-U BPR6HS

iGen2500 E6RTC WR7BC+ - W20FPR-U BPR6HS

iGen4500 F7RTC WR5DC+ RN7Y W22EPR-U BPR7ES

Figure 41 - iGen2200 & 2500 Removing the Spark Plug Access Cover

Figure 40 - iGen1200 Removing the Spark Plug Access Cover

Figure 39 – Re-installing the Fuel Strainer

Page 35

MAINTENANCE

4. Remove the spark plug boot by ﬁrmly pulling it up and away from the engine (see Figure 42).

NOTICE

Never apply any side load or move the spark plug laterally when removing the spark plug. Applying a side load or moving the spark plug laterally may crack and damage the spark plug insulator.

5. Clean area around the spark plug.

6. Use a spark plug socket wrench to remove the spark plug from the cylinder head by unscrewing it anti-clockwise (see Figure 43).

7. Place a clean rag over the opening created by the removal of the spark plug to make sure no dirt can get into the combustion chamber.

8. Inspect the spark plug for:

• Cracked or chipped insulator; replace the

spark plug.

• Excessive wear of the electrodes; replace the

spark plug.

• Excessive carbon or oil fouling of the

electrodes; clean the electrodes with a wire brush or replace the spark plug.

• Spark plug gap of 0.7 mm or 0.028 inch (see Figure 44); after cleaning with a wire brush, check using a spark plug gap tool or feeler gauge and adjust by carefully bending the ground electrode. Always check the gap of a new spark plug before installing it.

When replacing the spark plug, use only the speciﬁed part as listed in Table 3.

NOTICE

Use only the recommended spark plug (Torch brand) or equivalent. The use of a nonrecommended spark plug can damage the engine.

A - Gap B - Ground Electrode C - Gasket D - Insulator

E - Terminal F - Thread G - Centre Electrode

9. Install the spark plug by following the steps outlined below:

a - Carefully insert the spark plug back into the

cylinder head. Hand screw the spark plug clockwise until it bottoms out (seats).

b - Use a spark plug socket wrench to ﬁnish

tightening the spark plug. If re-installing a used spark plug, tighten approximately 1/8 to 1/4 of a turn after the spark plug seats. If installing a new spark plug, tighten approximately 1/4 to 1/2 a turn after the spark plug seats. The tightening torque should not exceed 12 Nm (9 lb-ft) for the iGen1200 or 17 Nm (13 lb-ft) for the iGen2200, 2500 & 4500.

c - Replace the spark plug boot, making sure

the boot fully engages onto the spark plug’s terminal.

10. Re-install the spark plug access cover.

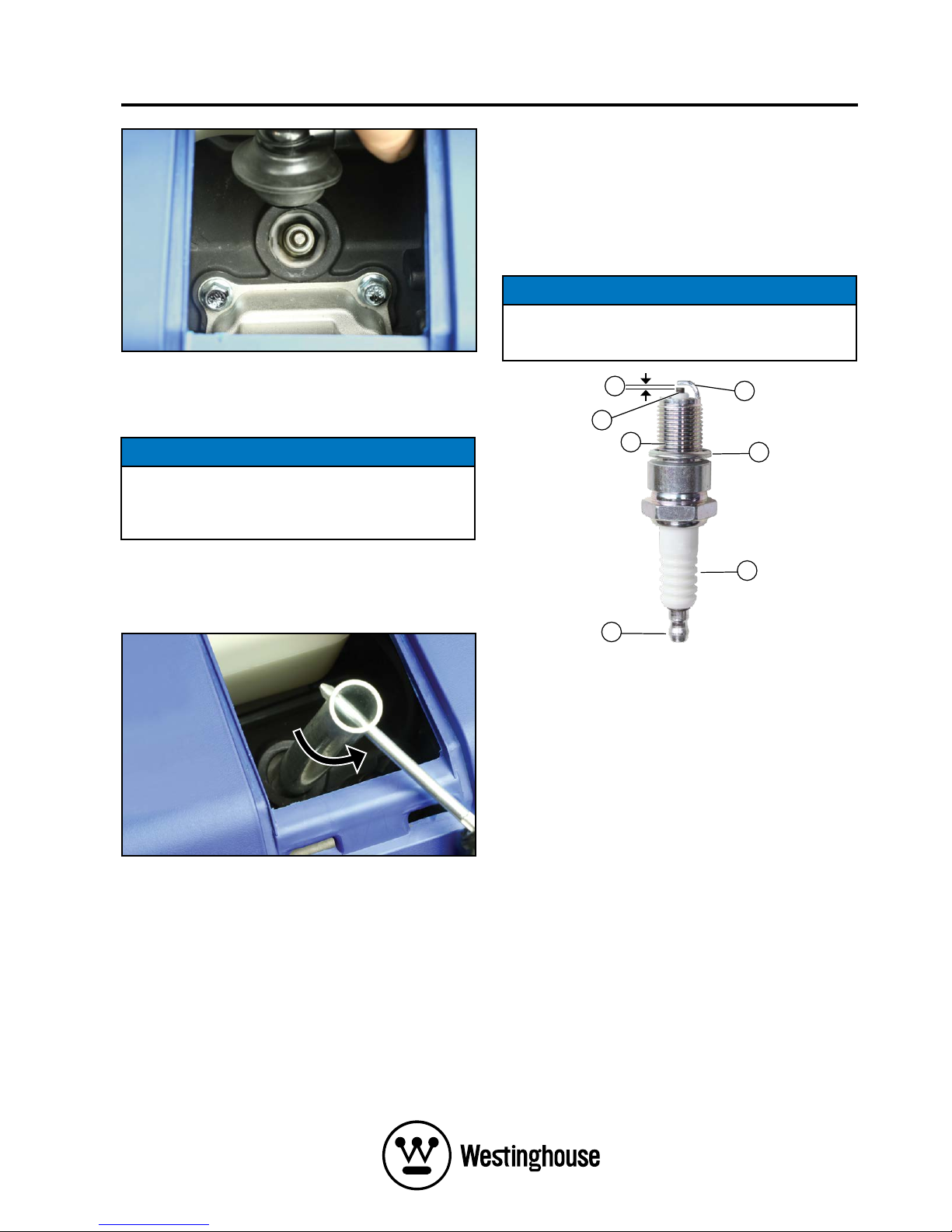

Figure 44 – Spark Plug

Figure 42 – Removing the Spark Plug Boot

Figure 43 – Removing the Spark Plug

Page 36

MAINTENANCE

SPARK ARRESTER MAINTENANCE

Tools required – iGen2200 & 2500: Phillips head screwdriver and wire brush. iGen4500: Phillips head screwdriver, 10 mm socket wrench and wire brush.

Check and clean the spark arrester after every 100 hours of use or 6 months.

1. Stop the generator and let it cool for several minutes if it’s been running.

2. Move the generator to a ﬂat, level surface.

3. iGen2200 & 2500: Remove the mufﬂer access cover by undoing the six screws afﬁxing it to the generator casing (see Figure 45). Clean the cover and especially its vent holes with a rag or brush and then place it aside.

iGen4500: Remove the engine access cover (see

Figure 33) and then the mufﬂer access cover (see Figure 46).

4. Loosen the spark arrester band clamp and slide it off the spark arrester collar (see Figure 47).

5. Loosen the locking screw and pull the spark arrester collar and screen off the mufﬂer exhaust pipe (see Figure 48).

6. Use a wire brush to remove any exhaust deposits that may have collected on the spark arrester screen.

7. If the spark arrester screen shows signs of wear such as rips, tears or large openings, it should be replaced.

8. Re-install the spark arrester components in the following order:

a - Insert the spark arrester screen into its

collar and then slide this assembly onto the mufﬂer exhaust pipe. Take care to align one of the slots in the collar with the locking screw. Push the collar on ﬁrmly to ensure that the screen is well seated and tighten the locking screw.

b - Place the spark arrester band clamp over

the collar with the gap in the band clamp aligned with the collar locking screw. Then tighten the adjusting screw on the band clamp.

9. iGen2200 & 2500: Re-install the mufﬂer access cover.

iGen4500: Re-install the mufﬂer access cover

and then the engine access cover.

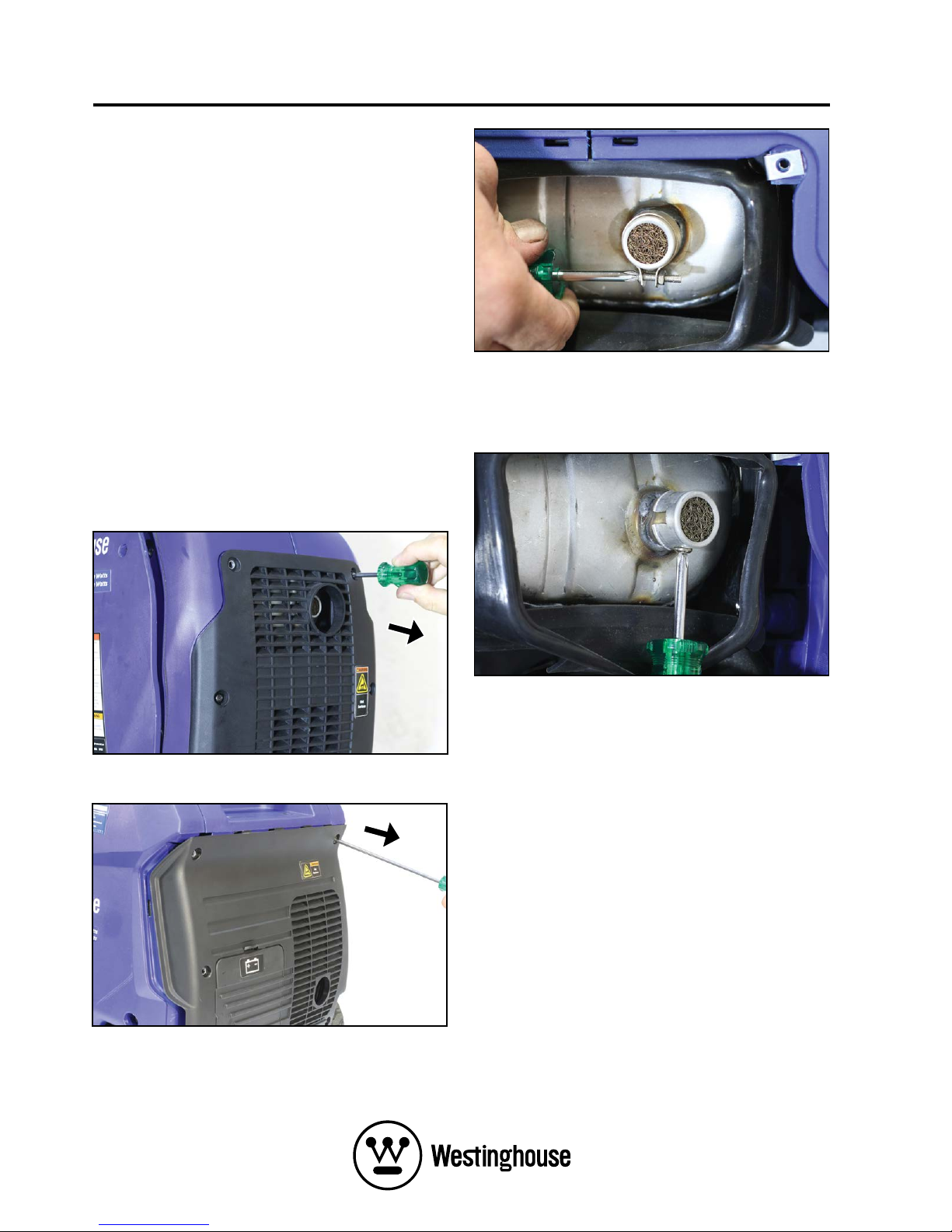

Figure 45 – iGen2200 & 2500 Removing the Mufﬂer Access Cover

Figure 47 – Removing the Spark Arrester Band Clamp

Figure 46 – iGen4500 Removing the Mufﬂer Access Cover

Figure 48 - Removing the Spark Arrester Collar and Screen

Page 37

MAINTENANCE

CLEANING THE GENERATOR

The generator should be kept clean and dry at all times to ensure its reliable and safe operation. This must be checked each time before using the generator.

Use a damp cloth which has been soaked in a mixture of household detergent and warm water and then wrung out to remove excess liquid. Wipe the exterior surfaces of the generator clean and then repeat with a damp cloth which has been rinsed in clean water and wrung out. Finish by wiping off all moisture with a dry cloth. Do not use abrasive or solvent cleaners.

A soft, non-metallic bristle brush or a vacuum cleaner may be used to loosen and remove any built-up dirt, mud or other debris. Low pressure compressed air may also be used to blow off any dirt or dust.

Make sure all of the ventilation grilles are clean of any dirt or other debris otherwise the generator may overheat and be damaged.

NOTICE

NEVER use a water hose or pressure washer to clean the generator. Water may enter the fuel or electric systems and damage the generator. The risk of electric shock is also possible.

12 VOLT BATTERY MAINTENANCE iGen4500

The generator’s 12 Volt battery is a sealed-for-life type that requires no regular maintenance. It is automatically charged whenever the generator is running.

The battery will self-discharge slowly when not in use and after some time it may have insufﬁcient charge to start the generator; in such an event, the generator can be started manually

DANGER

Charging the Battery

When the generator is not in use, its 12 Volt battery can be charged using a mains-powered 12 Volt battery charger.

Tools required – Flat blade screwdriver, 10 mm spanner and mains-powered 12 Volt battery charger.

1. Ensure the generator is stopped and the engine control switch is in the STOP position.

2. Allow the generator to cool down if it has been running.

WARNING

NEVER touch both battery terminals simultaneously.

NEVER place a tool or other metal object across both battery terminals.

NEVER place a tool or other metal object between either of the battery terminals and any part of the generator.

3. Remove the battery from the generator taking care not to touch the battery terminals against the generator’s frame or any other metal surface (see Connecting the Battery on page 18). Keep the battery upright at all times.

4. Disconnect the negative (-) battery cable (black boot) from the negative (-) terminal on the battery.

5. Disconnect the positive (+) battery cable (red boot) from the positive (+) terminal on the battery.

Page 38

MAINTENANCE

6. Move the battery to a well-ventilated work bench or other suitable location adjacent to the battery charger.

7. Charge the battery in accordance with the battery charger’s instructions.

8. When the battery has ﬁnished charging, disconnect it from the battery charger and then re-install it on the generator (see Connecting the Battery on page 18).

Replacing the Battery

The procedure for replacing the generator’s 12 Volt battery with a new one is essentially the same as that described in the preceding section, except a new battery should be re-installed at Step 8 instead of the old one.

DRAINING THE FUEL

Occasionally it may be necessary to drain all of the fuel out of the generator. For example, to remove contaminated or stale fuel or to prepare the generator for transport or storage.

Tools required – Flat blade screwdriver (iGen1200 &

4500), Phillips head screwdriver (iGen2200 & 2500),

fuel siphon hand pump and fuel storage container.

1. Turn the fuel cap vent to the ON position (iGen1200, 2200 & 2500).

2. Remove the fuel cap.

3. Clean the fuel strainer (see Fuel Strainer Maintenance on page 33), but do not re-install it.

4. Pour or siphon the contents of the fuel tank into a fuel storage container (see Figure 49).

5. Remove the engine access cover (see Figure 26, 27 or 33, as applicable).

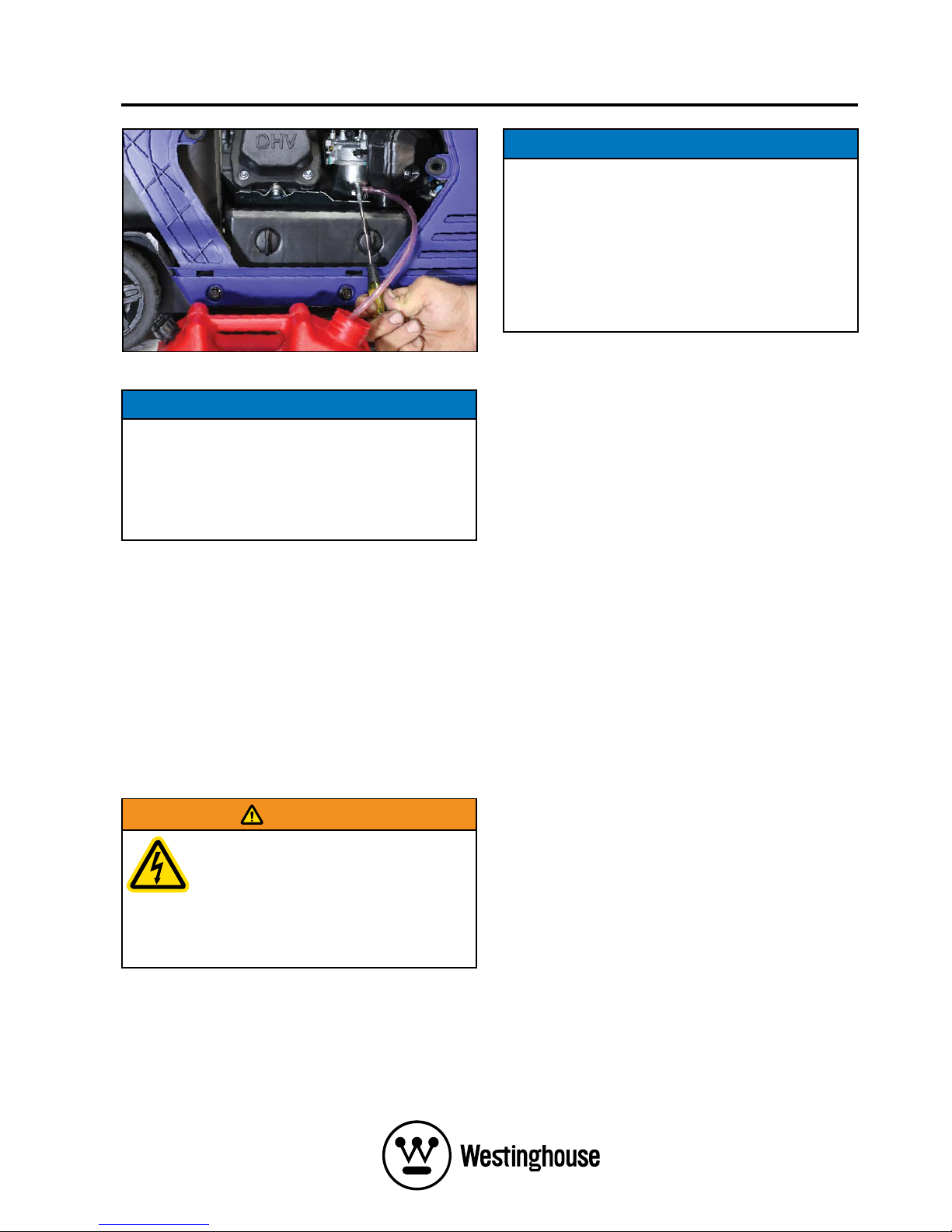

6. Locate the fuel drain hose connected to the bottom of the carburettor ﬂoat bowl. Take note of the hose’s stowed position routed downwards and then gently pull the loose end of the hose out of the generator casing.

7. Position the fuel storage container to collect the remaining fuel discharged from the drain hose.

8. Turn the fuel control switch to the ON position.

9. Use the screwdriver to loosen the fuel drain screw and then carefully drain the fuel out (see Figure 50, 51 or 52, as applicable). Take care to wipe up any spills immediately.

10. When all of the fuel has been drained out, tighten the fuel drain screw. Move the storage container and any fuel soaked rags away from the generator. It is preferable to consume the fuel in another engine-powered device straight away or dispose of it properly rather than storing it for a long time with fuel stabiliser for later re-use.

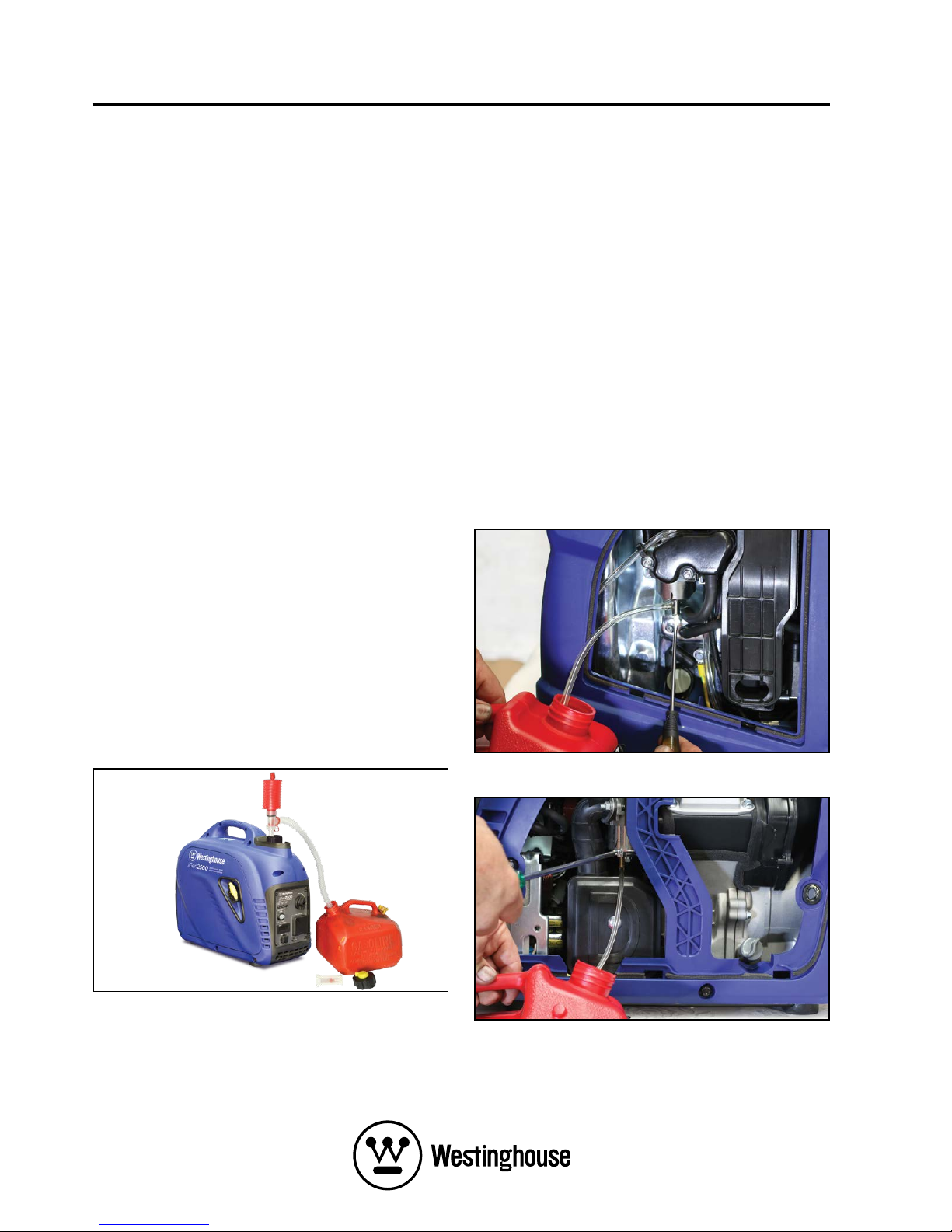

Figure 50 – iGen1200 Draining the Carburettor

Figure 51 – iGen2200 & 2500 Draining the Carburettor

Figure 49 – Emptying the Fuel Tank

Page 39

MAINTENANCE

NOTICE

Never dispose of fuel or fuel contaminants by dumping either of them into a sewer, on the ground, or into groundwater or waterways. Always be environmentally responsible. Follow the guidelines of the governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

11. Turn the fuel control switch to the OFF position.

12. Re-stow the fuel drain hose back to its original position routed downwards within the generator casing. Take care to ensure that the hose is correctly routed and not touching any potentially hot components.

13. Re-install the engine access cover.

14. Re-install the fuel strainer.

15. Re-install the fuel cap.

16. Turn the fuel cap vent to the OFF position (iGen1200, 2200 & 2500).

LONG-TERM STORAGE

WARNING

Never store a generator with fuel in the tank indoors or in a poorly ventilated area where the fumes can come into contact with an ignition source such as: a pilot light of a stove, water heater, clothes dryer or any other gas appliance; or a spark from an electric appliance.

NOTICE

Fuel stored for as little as 30 days can go bad, causing gum, varnish and corrosive build-up in fuel lines, fuel passages and the engine. This corrosive build-up restricts the ﬂow of fuel, preventing an engine from starting after a prolonged period of storage.

The most commonly experienced faults with portable generators are directly attributable to stale fuel. Such faults are not covered by the generator’s warranty.

The generator should be run at least once per month for 30 minutes under no less than one-third load. If this is not possible, the generator should be prepared for long-term storage as described hereunder.

Proper care should be taken to prepare the generator for any long-term storage. This will protect the generator’s function and appearance, and will make it easier to start when next required.

Storage Procedure for 1 – 3 Months

1. Clean the generator as outlined in Cleaning the Generator on page 37.

2. Add a proprietary fuel stabiliser to the fuel tank and then add fresh fuel up to the tank’s maximum capacity (see checking and Adding Fuel on page 20). Follow the manufacturer’s recommendation for correct amount of stabiliser to add.

3. Start the generator and run it for 10 minutes to ensure that treated fuel is distributed throughout the engine’s fuel system.

4. Stop the generator (see Stopping the Generator on page 24).

5. Turn the fuel control switch to the OFF position if not already done in Step 4.

6. Turn the fuel cap vent to the OFF position.

7. Allow the unit to cool down and then move it to a clean, dry place for storage.

Storage Procedure for Greater than 3 Months

1. Clean the generator as outlined in Cleaning the Generator on page 37.

2. Drain the fuel (see Draining the Fuel on page 38).

3. Start the generator, if possible, and run the engine without load until it stops when the last remnants of fuel have been used. (See Starting the Generator on page 21 and Stopping the Generator on page 24).

4. Change the engine oil (see Changing Engine oil on page 31).

Figure 52 – iGen4500 Draining the Carburettor

Page 40

MAINTENANCE

5. Remove the spark plug (see Spark Plug Maintenance on page 34) and pour a tablespoon of clean engine oil into the spark plug opening. While placing a clean rag over the spark plug opening, slowly pull the recoil starter handle to rotate the engine several times. This will distribute the oil and protect the cylinder wall from corrosion during storage.

6. Re-install the spark plug (see Spark Plug Maintenance on page 34).

7. Slowly pull the recoil starter handle until resistance is felt, at which point the piston is coming up on its compression stroke and both the intake and exhaust valves are closed. Storing the engine in this position will help to prevent internal corrosion.

8. Move the unit to a clean, dry place for storage.

Removal from Storage

Follow the normal procedures for pre-operation checks and starting (see Before Starting the Generator on page 19).

Use only fresh fuel to re-ﬁll the tank, if necessary, rather than re-using any old fuel.

If oil was inserted into the cylinder prior to storage, the exhaust may smoke for a short while after starting the generator; this is normal and will cease within a minute or so of running time.

DISMANTLING AND DISPOSAL

There is no requirement for the generator to be dismantled during normal operation other than for major repair / overhaul or prior to ﬁnal disposal at the end of its service life.

Dismantling should only be carried out by a mechanically proﬁcient person with access to proper tools or alternatively by your authorised Westinghouse service dealer for a fee.

Before dismantling:

1. Stop the generator (see Stopping the Generator on page 24).

2. Drain the engine oil (see Changing Engine Oil on page 31).

3. Drain the fuel (see Draining the Fuel on page 38).

NOTICE

Do not pollute the environment by improper or illegal disposal of the waste ﬂuids. Dispose of these hazardous items only at an authorised waste collection / recycling facility.

Do not pollute the environment by improper or illegal disposal of the generator either as a whole or in parts. Take the unwanted unit or components to your local recycling centre instead. The generator is made almost entirely of metal that can be recycled.

Page 41

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine will not start or starts and runs rough.

1. Low oil level. 1. Check oil level and add oil if necessary.

2. Generator is out of fuel. 2. Check fuel level and add fuel if necessary.

3. Fuel is stale or contaminated with water or other foreign substance.

3. Drain fuel and reﬁll with fresh fuel.

4. Electrical load connected to generator.

4. Unplug any electrical cords or devices from the 240-Volt AC receptacles.

5. Fuel cap vent is in the OFF position.

5. Move fuel cap vent to the ON position.

6. Fuel control switch is in the OFF position.

6. Move fuel control switch to the ON or CHOKE position.

7. Engine control switch is in the STOP position (iGen4500).

7. Push engine control switch into the RUN position (iGen4500).

8. Engine is not choked (if cold).

8. Move choke control to the START or CHOKE position.

9. Engine is over choked (if hot).

9. Move choke control to either midway between the START and RUN positions or fully to the RUN or ON position.

10. Spark plug boot is not properly connected onto spark plug terminal.

10. Push spark plug boot ﬁrmly onto spark plug.

11. Spark plug is dirty or faulty. 11. Clean or replace spark plug.

12. Air ﬁlter is dirty or blocked. 12. Check air ﬁlter element and clean if necessary.

13. Spark arrester is dirty or blocked.

13. Check spark arrester and clean if necessary.

14. If above possible causes are checked and eliminated, generator may be faulty.

14. Take generator to an authorised Westinghouse service dealer.

Before attempting to service or troubleshoot the generator, the owner or service technician must ﬁrst read and understand this instruction manual and comply with all safety instructions. Failure to follow all instructions may result in conditions leading to voiding of the product warranty, serious personal injury, property damage or even death.

WARNING

Page 42

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Electric starter will not crank engine fast enough or at all (iGen4500).

1. Electrical load connected to generator.

1. Unplug any electrical cords or devices from the 240Volt AC receptacles.

2. Flat battery. 2. Start engine manually or recharge battery using an external battery charger.

3. Faulty battery. 3. Replace battery.

4. If above possible causes

are checked and eliminated, generator may be faulty.

4. Take generator to an authorized Westinghouse service dealer.

Engine is running, but no 240-Volt AC output is available.

1. If output indicator light is green, 240-Volt AC output should be available.

1. Check connected electrical cord(s) or appliance(s) as described below.

2. Connected electrical cord or appliance plug is not properly inserted into 240Volt AC outlet socket.

2. Check connected electrical cord or appliance plug is fully inserted into 240-Volt AC outlet socket.

3. Connected electrical cord or appliance is faulty.

3. Connect known functioning appliance directly into generator’s 240-Volt AC outlet socket to verify electrical output.

4. If output indicator light is not illuminated, there is no 240Volt AC output available. In such case:

• If overload alarm light is not illuminated, generator may be faulty.

• If overload alarm light is red, there is an overload or short circuit in the connected 240Volt AC load.

• Disconnect all electrical cords and devices from generator and press the generator reset button (iGen4500 only). If unresolved, stop and re-start engine with ECO throttle switch in the OFF position. If still unresolved, take generator to an authorised Westinghouse service dealer.

• Disconnect all electrical cords and devices from generator and press the generator reset button (iGen4500 only). If unresolved, stop and restart engine with ECO throttle switch in the OFF position. Reconnect and test run 240-Volt AC loads individually; any single cord or device that trips overload alarm is either faulty or too great a load for the generator. Any faulty device must not be used further until checked and approved by a licensed electrician. Check running and starting power demands of total connected electrical load versus generator’s rating.

5. If above possible causes are checked and eliminated, generator may be faulty.

5. Take generator to an authorised Westinghouse service dealer.

Page 43

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine is running, but no 5 or 12-Volt DC output is available.

1. Connected electrical cord or appliance plug is not properly inserted into the DC outlet socket.

1. Check connected electrical cord or appliance plug is fully inserted into the DC outlet socket.

2. Connected electrical cord or appliance is faulty.

2. Connect known functioning appliance directly into generator’s 12-Volt DC outlet socket to verify electrical output.

3. Overload or short circuit in the connected DC load

3. Disconnect all electrical cords and devices from generator. Re-start engine with ECO throttle switch in the OFF position. Check that the DC device(s) do not overload the generator’s rated DC output(s). Check that the DC device(s) are not faulty, e.g. short circuit. Damage caused to the generator by excessive or faulty DC loads is not covered by warranty.

4. If above possible causes are checked and eliminated, generator may be faulty.

4. Take generator to an authorised Westinghouse service dealer.

Engine stops during operation.

1. Generator is out of fuel. 1. Check fuel level and add fuel if necessary.

2. Fuel is contaminated with water or other foreign substance.

2. Drain fuel and reﬁll with fresh fuel.

3. Fuel cap vent is in the OFF position.

3. Move fuel cap vent to the ON position.

4. Fuel control switch is in the OFF position.

4. Move fuel control switch to the ON position.

5. Low oil level. 5. Check oil level and add oil if necessary.

6. Spark plug boot is not properly connected onto spark plug terminal.

6. Push spark plug boot ﬁrmly onto spark plug.

7. Overload or short circuit in the connected 240-Volt AC load.

7. Disconnect all electrical cords and devices from generator. Re-start generator with ECO throttle switch in the OFF position and then re-connect electrical loads individually if possible. If only single load, check running and starting power demands versus generator’s AC output rating.

8. If above possible causes are checked and eliminated, generator may be faulty.

8. Take generator to an authorised Westinghouse service dealer.

Page 44

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine runs erratically or does not hold steady speed.

1. Power demand of connected 240-Volt AC load may be varying.

1. Engine speed varies when electrical load changes; this is normal operation. It is most noticeable when ECO throttle switch is in the ON position. No fault.

2. If output indicator and overload alarm are both illuminated, there is an overload in the connected 240-Volt AC load.

2. Switch off or unplug connected 240-Volt AC device(s) to reduce electrical power demand.

3. Engine is not warm enough. 3. Disconnect all electrical cords and appliances from generator. Allow engine to run for at least 2 minutes after the choke control has been moved to the RUN or ON position before reconnecting electrical loads.

4. Choke control is in the

START or CHOKE position and engine is already warm or hot.

4. Move choke control to the RUN or ON position.

5. Fuel is stale or

contaminated.

5. Drain fuel and reﬁll with fresh fuel.

6. Air ﬁlter is dirty or blocked. 6. Check air ﬁlter element and clean if necessary.

7. If above possible causes

are checked and eliminated, generator may be faulty.

7. Take generator to an authorised Westinghouse service dealer.

Page 45

SPECIFICATIONS

PARAMETER iGen1200 iGen2200 iGen2500 iGen4500

ENGINE

Type 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled

Displacement (cm3) 54 79 98 224

Max. Speed (rpm) 5,200 5,300 5,500 3,600

Rated Power (kW / hp) 1.3 / 1.8 2.2 / 3.0 2.5 / 3.4 5.4 / 7.3

Oil Capacity (mL) 250 350 350 600

Low Oil Shutdown Yes Yes Yes Yes

Spark Plug Torch A5RTC Torch E6RTC Torch E6RTC Torch F7RTC

Fuel Unleaded Petrol

Fuel Tank Capacity (L) 2.8 4.3 4.3 13.5

Fuel Gauge No No No Ye s

Starting Method Recoil Recoil Recoil Electric

Battery Included N/A N/A N/A Yes

Hour Meter Yes Yes Yes Yes

240 V AC

ELECTRICAL

Voltage (V) 240 240 240 240

Frequency (Hz) 50 50 50 50

No. of Phases 1 1 1 1

Running Power (W) 1,000 1,800 2,200 3,700

Starting Power (W) 1,200 2,200 2,500 4,500

Max. Output @ 1.0 PF (kVA) 1.2 2.2 2.5 4.5

Max. Running Current @ 1.0 PF 4.2 7.5 9.2 15.4

Max. Starting Current @ 1.0 PF 5 9.2 10.4 18.8

Voltage & Waveform Control Digital Inverter, Pure Sine Wave Output

Receptacle(s) 1 x 15 A, IP44 1 x 15 A, IP44 1 x 15 A, IP44 2 x 15 A, IP44

Overload Protection Electronic

Alternator Brushless, Permanent Magnet

Output Power Meter No No No Yes

12 V DC

ELECTRICAL

Voltage (V) 12 N/A N/A 12

Maximum Current (A) 5 N/A N/A 8

Maximum Power (W) 60 N/A N/A 100

Receptacle 1 x 5 A, IP44 N/A N/A 1 x 8 A, IP44

5 V DC

ELECTRICAL

Voltage (V) 5 5 5 5

Maximum Current (A) 2.1 2.1 2.1 2.1

Maximum Power (W) 10 10 10 10

Receptacle USB Type A, IP44

DIMENSIONS

& WEIGHT

Length (mm) 463 500 500 650

Width (mm) 262 285 285 480

Height (mm) 395 450 450 520

Weight - Dry (kg) 15 21 21.5 49.5

Weight - Wet (kg) 17 24.5 25 60

Page 46

WIRING DIAGRAMS

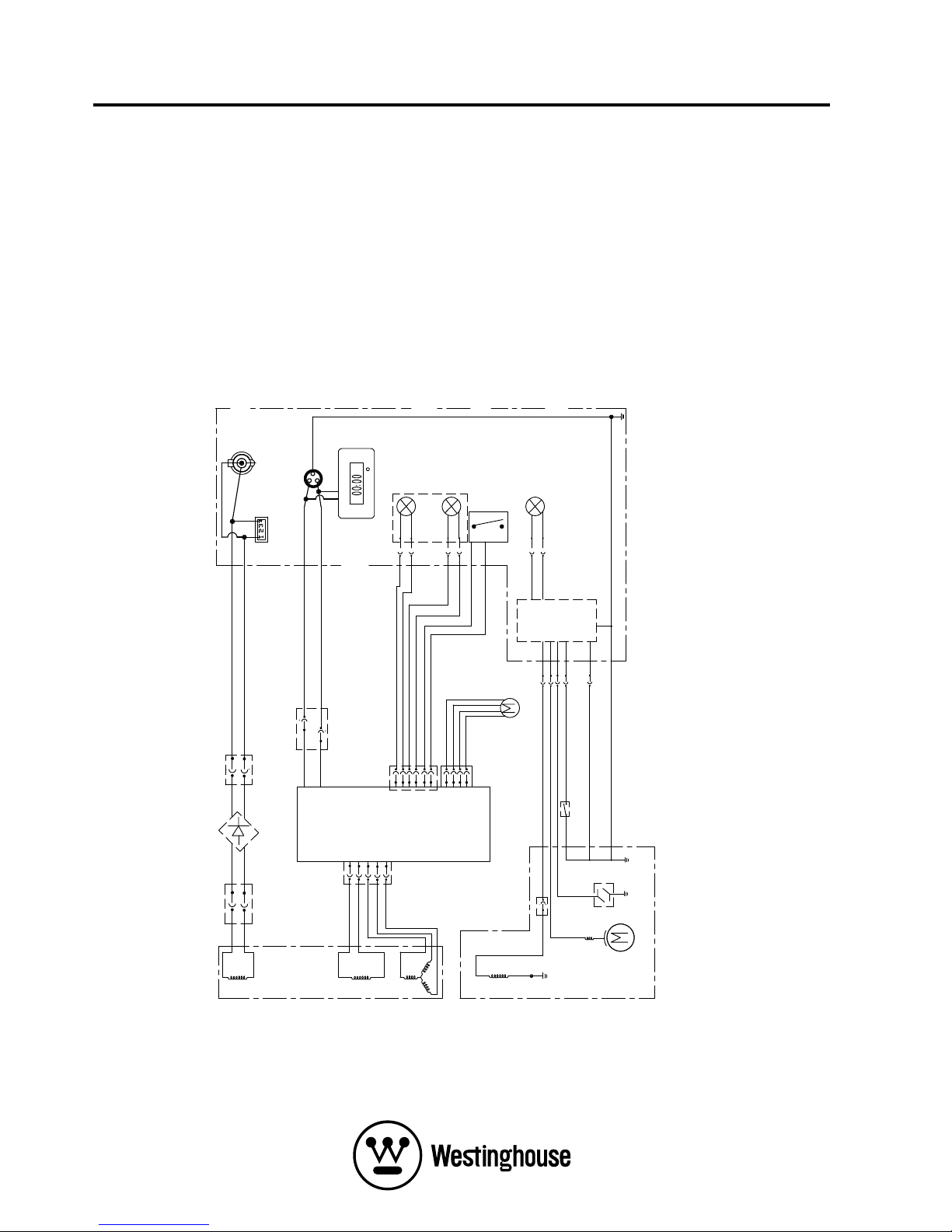

iGen1200 WIRING DIAGRAM

BlBuGrRBr

Black

Blue

Green

Red

Brown

WYP

White

Yellow

Pink

Br/R

Y/G

Bl/W

Bl/R

Brown/Red

Yellow/Green

Black/White

Black/Red

DC Coil

Main Coil

Sub Coil

Ignition Coil

Oil Level Sensor

Trigger

Engine Switch

Spark Plug

Stepping Motor

Inverter

Ignition Device

DC Rectifier

5V DC USB Socket

12V DC Accessory Socket

AC Socket

Hour Meter

Output Indicator Light

Overload Indicator Light

Low Oil Indicator Light

Efficiency Switch

Y/G

Bl/W

Bl/R

Br/R

Page 47

WIRING DIAGRAMS

iGen2200 & 2500 WIRING DIAGRAM

DC Rectifier

5V DC USB Socket

AC Socket

Efficiency Switch

Hour Meter

Overload Indicator Light

Output Indicator Light

Engine Switch

Low Oil Indicator Light

Inverter

Ignition Device

Oil Level Sensor

Ignition Coil

DC Coil

Sub Coil

Main Coil

Spark Plug

Stepping Motor

BlBuGrRBr

Black

Blue

Green

Red

Brown

WYO

White

Yellow

Orange

R/W

Y/G

Red/White

Yellow/Green

R/W

Y/G

Page 48

WIRING DIAGRAMS

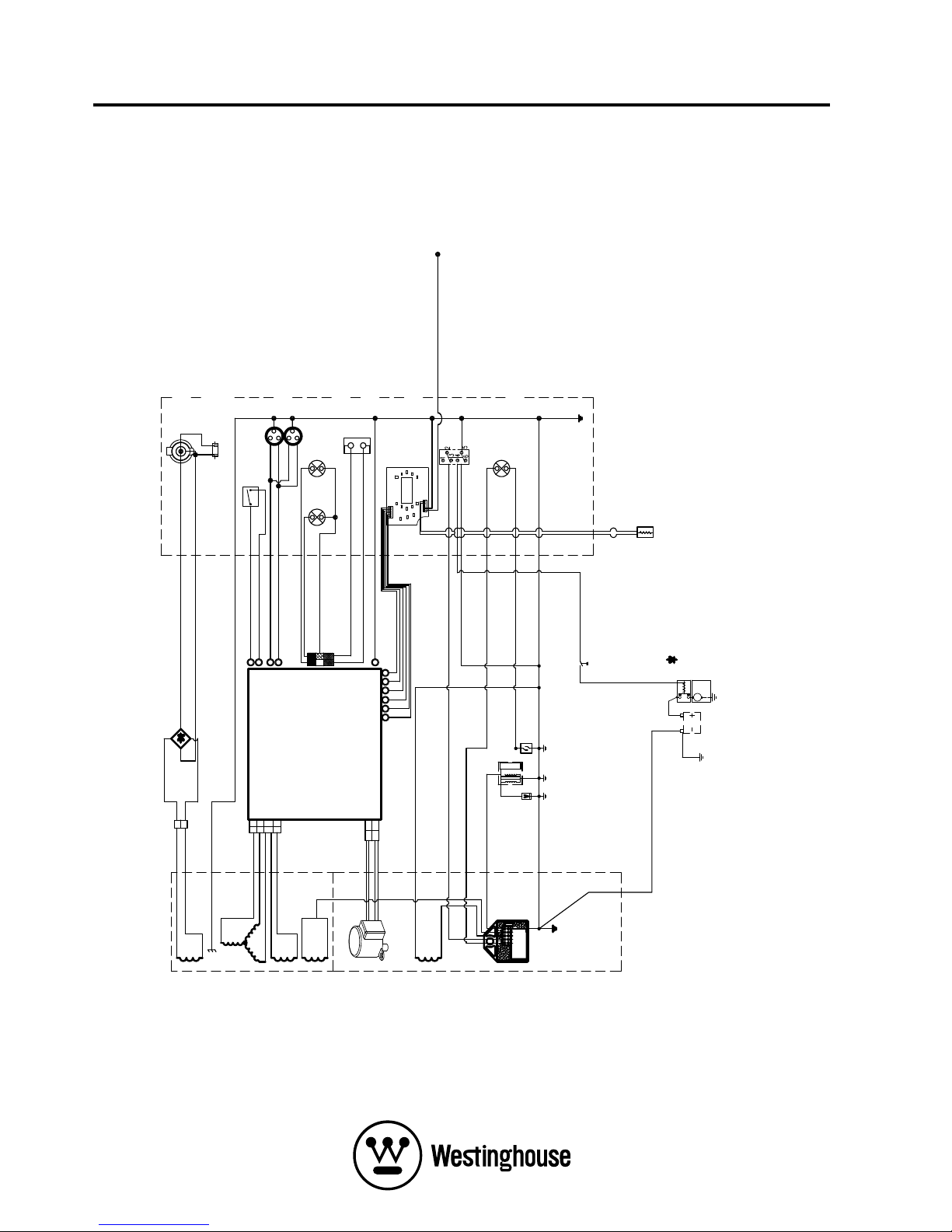

iGen4500 WIRING DIAGRAM

45791 0

DC Coil

Main Coil

Sub Coil

Supply Coil

Stepping Motor

TCI Magneto

TCI Unit

Oil Level Sensor

TCI Ignition

Spark Plug

Battery

Electric Start

Ground

Overload Indicator Light

Low Oil Indicator Light

AC Sockets

AC Reset

5V DC USB Socket

12V DC Accessory Socket

Output Indicator Light

Efficiency Switch

Engine Switch

Data

Center

DC Rectifier

Inverter

BlBuGrRBr

Black

Blue

Green

Red

Brown

WYPOGy

White

Yellow

Pink

Orange

Grey

Br/R

Y/G

Bl/W

Brown/Red

Yellow/Green

Black/White

Fuel Level Sensor

Br/R

Y/G

Bl/W

Y/G

Starter Motor

Page 49

WARRANTY

WARRANTY AGAINST DEFECTS

Proof of Purchase

It is recommended that you keep a copy of the original tax invoice together with this manual.

Warrantor

Name: Glenco Air & Power Pty Ltd

(ABN 21101370085)

Address: 21 Resource Street,

Parkinson, QLD, 4115, Australia

Phone: (07) 3386 9999

Fax: (07) 3386 9988

Email: [email protected]

Web: www.glencoairpower.com.au

Warranty Conditions

Glenco Air & Power Pty Ltd (the “Company”) warrants that its Westinghouse portable electric generators (the “Goods”) shall be free from defects in material and workmanship for a period of two years (2) years or ﬁve hundred (500) operating hours, whichever occurs ﬁrst, from the date of original sale (hereinafter the “Warranty Period”) in normal domestic applications such as personal, residential household or recreational use.

A Warranty Period of one (1) year or ﬁve hundred (500) operating hours, whichever occurs ﬁrst, shall apply in commercial applications such as income producing, rental or other business-related use. Goods sold to a Consumer with an Australian Business Number shall be deemed as being used in a commercial application.

The Warranty Period is continuous from the date of original sale and does not restart upon the repair or replacement of the Goods or any part thereof.

Upon return – transportation charges prepaid by the Consumer – to the Company’s or its nominated dealer’s premises within the Warranty Period, the Company shall repair or replace, at its option, any Goods which it determines to contain defective material or workmanship, and shall return said Goods to the Consumer free-on-board (FOB) at the Company’s or agent’s premises. The repair or replacement work will be scheduled and performed according to the Company’s normal work ﬂow and availability of replacement parts.

The Company shall not be obligated, however, to repair or replace Goods which have been: repaired by others; abused; improperly installed, operated,

maintained, repaired, transported or stored; not serviced to schedule using genuine spare parts; altered or otherwise misused or damaged in any way.

The Company shall not be responsible for any diagnosis, communication, dismantling, packing, handling, freight, and reassembly or reinstallation charges.

Freight damage, pre-delivery service, normal operating adjustments, preventative maintenance service, consumable items, cosmetic damage, corrosion, erosion, normal wear and tear, performance, merchantability, and ﬁtness for a particular purpose are not covered under this Warranty. Consumable items include batteries, ﬁlters, fuel, lubricants and spark plugs.

The Company shall not be liable for any repairs, replacements, or adjustments to the Goods or any costs of labour performed by the Consumer or others without the Company’s prior written approval.

To the extent permissible by law and notwithstanding any other clause in these Warranty Conditions, the Company excludes all liability whatsoever to the Consumer arising out of or in any way connected with a contract for any consequential or indirect losses of any kind howsoever arising and whether caused by breach of statute, breach of contract, negligence or other tort.

The Company’s liability will be limited to, in the case of products, the replacement of the products, the supply of equivalent products or the payment of the cost of replacing the products or of acquiring equivalent products or, in the case of services, the supply of the services again or the payment of the cost of having the services supplied again. The choice of remedy will be at the discretion of the Company and the Consumer acknowledges that this limitation of liability is fair and reasonable.

This Warranty is available only to the original Consumer bearing the original tax invoice from the Company or one of its authorised dealers as proof of purchase. Goods purchased from any other party such as a private seller, auction house, eBay seller, etc. are not covered by this Warranty.

Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail to be of acceptable quality and the failure does not amount to a major failure.

Page 50

NOTES

Page 51

NOTES

Page 52

Westinghouse Portable Power

777 Manor Park Drive Columbus OH 43228 USA www.westinghouse.net.au

© 2018 All rights reserved. Content may change without notice. , Westinghouse, and INNOVATION YOU CAN BE SURE OF are trademarks of the Westinghouse Electric Corporation used under license by MWE Investments, LLC. All rights reserved.

February 2018
