Westinghouse EFG750X-A Installation Manual

Page 1
GB
Instruction Manual
Page 2
Dear Customer,
If you follow the recommendations con­tained in this Instruction Manual, your appliance will give you constant high per for man ce and will remain effi cient for many years to come.
RECOMMENDATIONS AND SUGGESTIONS 3
CHARACTERISTICS 4
INSTALLATION 5
USE 7
MAINTENANCE 8
GB
Page 3
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fi xed to the inside of the hood.
• For Class 1 guarantees adequate earthing.
Connect the extractor to the exhaust fl ue through a pipe of mini-
mum diameter 120 mm. The route of the fl ue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying com­bustion fumes (boilers, fi replaces, etc.).
• If the extractor is used in conjunction with non-electrical applian­ces (e.g. gas burning appliances), a suffi cient degree of aeration must be guaranteed in the room in order to prevent the backfl ow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
USE
a
appliances, check that the domestic power supply
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben designed.
• Never leave high naked fl ames under the hood when it is in ope­ration.
• Adjust the fl ame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: ove­rheated oil can burst into fl ames.
• The hood should not be used by children or persons not instructed in its correct use.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specifi ed time period.
• Clean the hood using a damp cloth and a neutral liquid deter­gent.
GB
650mm.min.
Page 4
CHARACTERISTICS
9

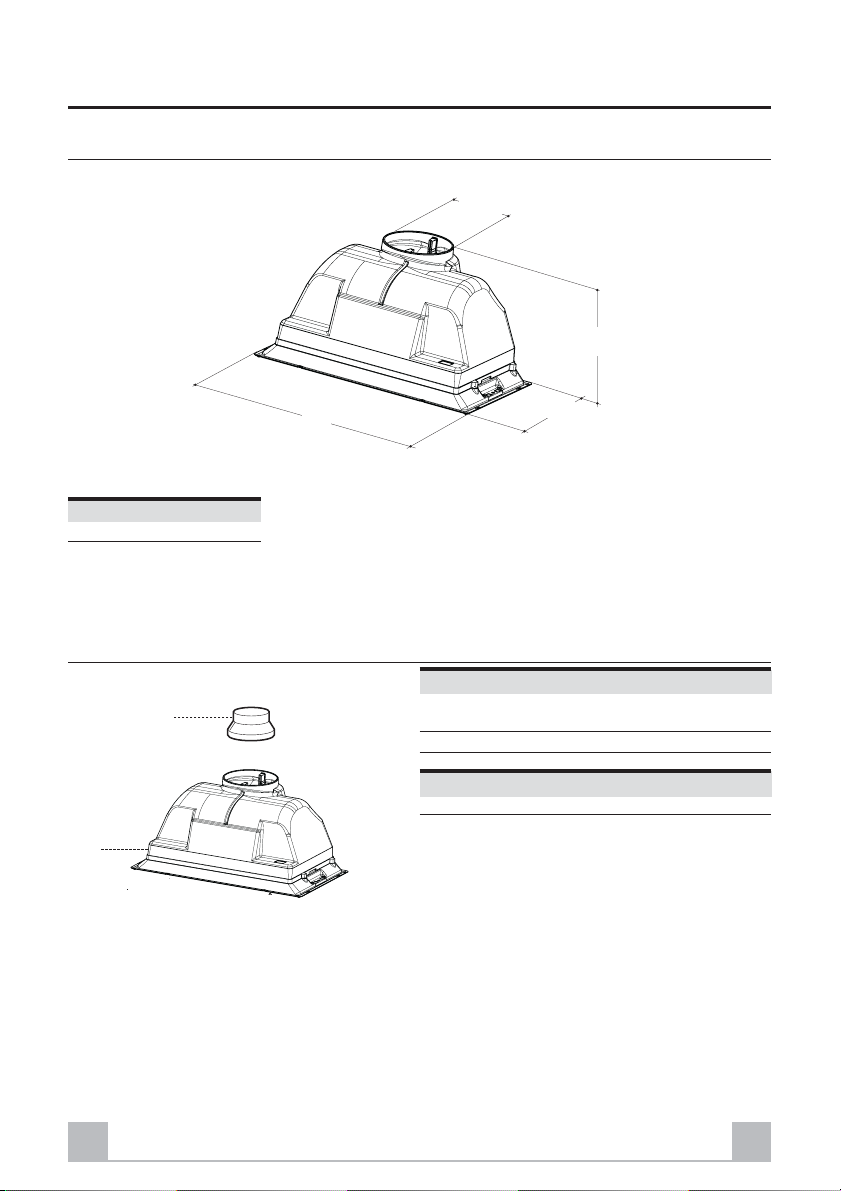

Dimensions
ø150
260
Hood Type 52 70
L1 522 702
1
12f
L
Components
284
Ref. Q.ty Product Components 1 1 Hood Body, complete with: Controls, Light,
Filters
9 1 Reducer Flange ø 150-120 mm
Q.ty Documentation 1 Instruction Manual
GB
Page 5
INSTALLATION

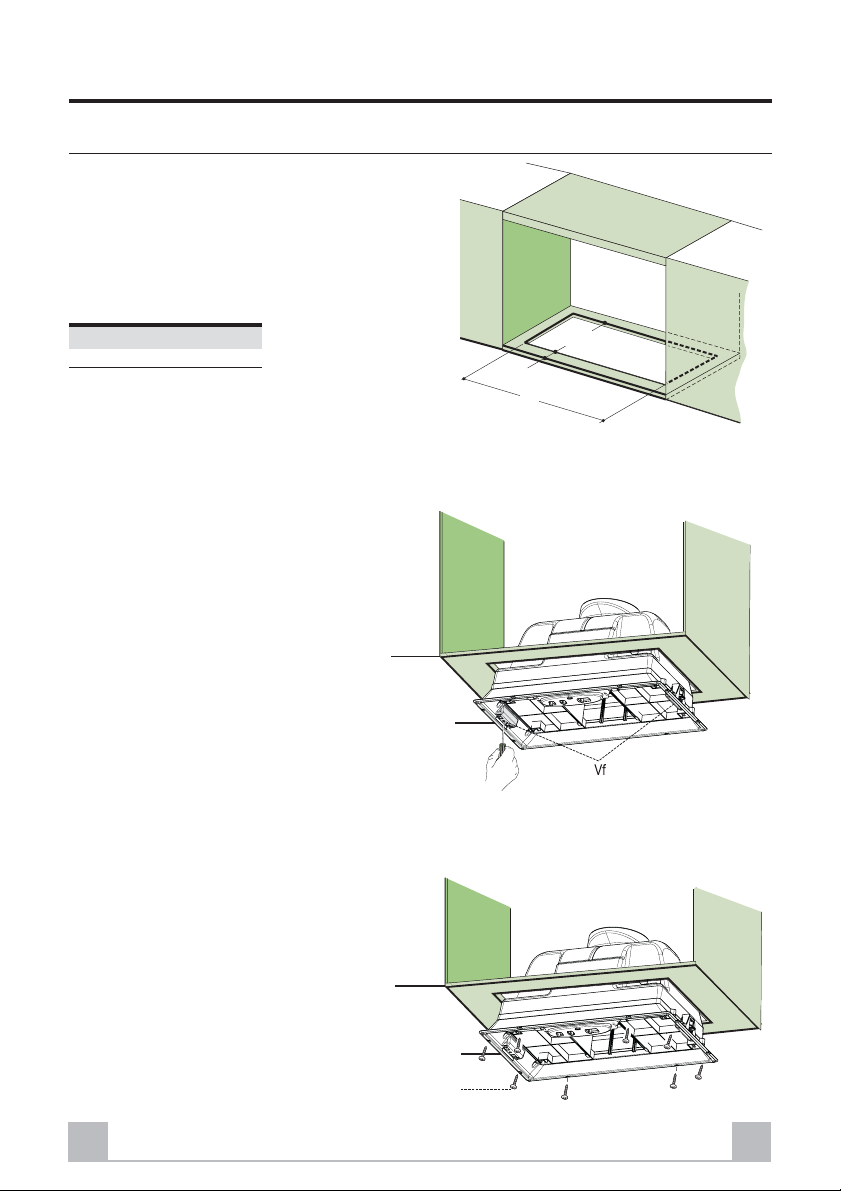

Drilling the Support surface and Fitting the Hood
Make a rectangular opening on the base of the hanging unit, leaving a minimum of 13 mm from the outer edges.
Hood Type 52 70
L1 497 677
SNAP-ON FITTING
For hoods with snap-on side supports only, set up for a support panel thickness of between 15 mm and 30 mm.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath the hood.
SCREW FITTING
For hoods without snap-on side supports only.
• Fix the hood to the hanging unit using the screws 12f (3.5x16 self-threading) provided.
259
13
L1
GB
12f
Page 6
Connections

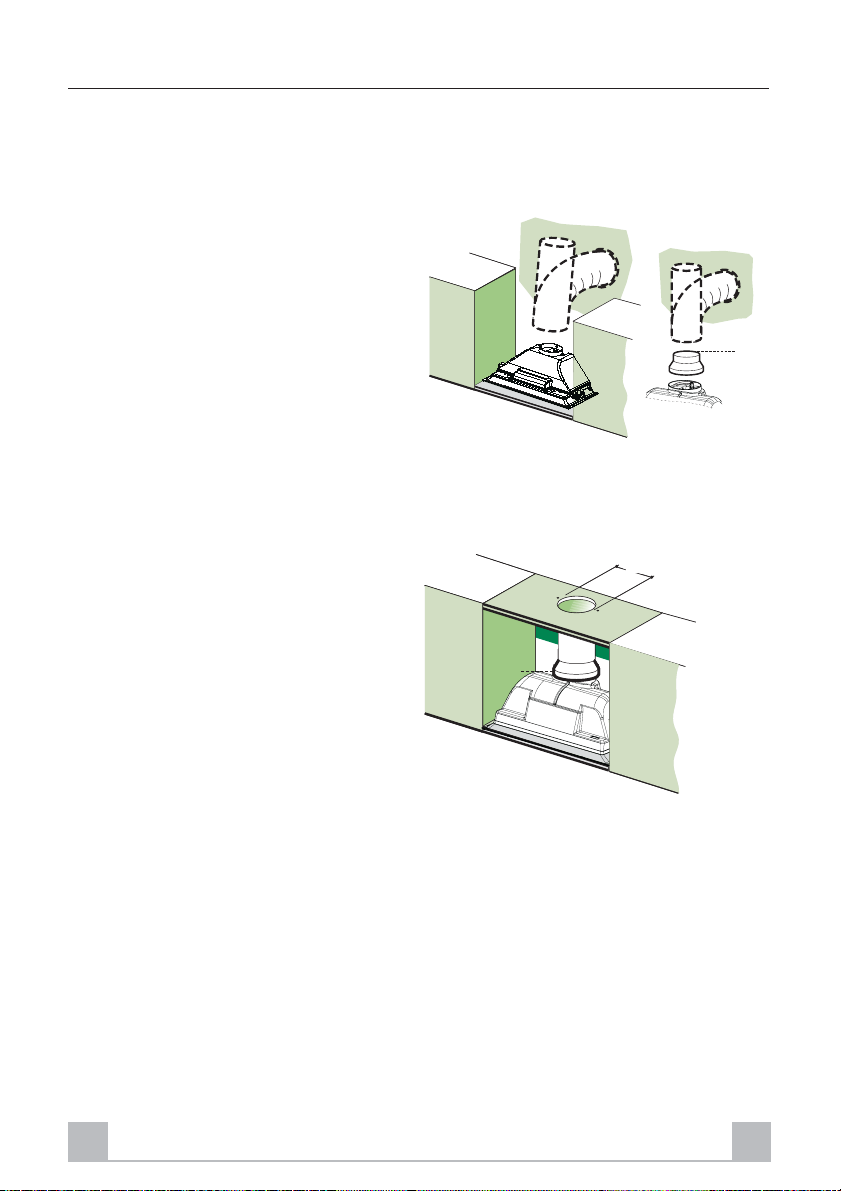

DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney using either a fl exible or rigid pipe ø 120 or 150 mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust con­nection insert the reducer fl ange 9 on the hood body outlet.
• Fix the pipe in position using suffi cient pipe clamps (not supplied).
• Remove any activated charcoal fi lters.
ø 150
ø 120
9
RECIRCULATION VERSION AIR OUTLET
• Cut a hole ø 120 mm in the wall unit over the hood.
• Insert the reducer fl ange 9 on the hood body outlet.
• Connect the hood body outlet to the top part of the wall unit using a rigid or fl exible pipe ø 120 mm, to be selected by the installer.
• Fix the pipe in position using suffi cient pipe clamps (not supplied).
• Ensure that the activated charcoal fi lters have been inserted.
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• When opening the sliding carriage for the fi rst time after installing the hood, pull it out briskly until it clicks.
9
9
120
125
9
GB
Page 7
USE
Control Panel

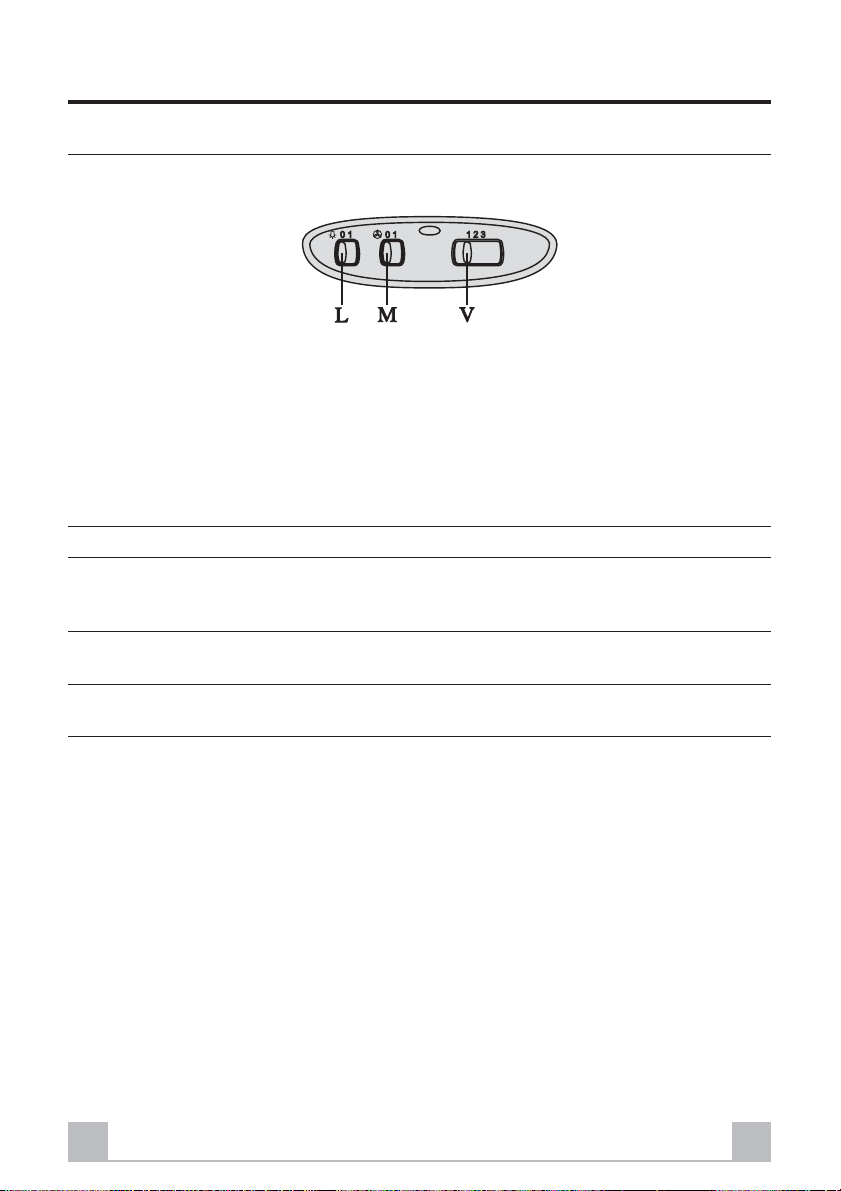

L Light Switches the lighting system on and off
M Motor Switches the extractor motor on and off
V Speed Sets the operating speed of the extractor:
1.Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2.Medium speed, suitable for most operating conditions given the optimum
treated air fl ow/noise level ratio.
3.Maximum speed, used for eliminating the highest cooking vapour emission,
including long periods
GB
Page 8
MAINTENANCE

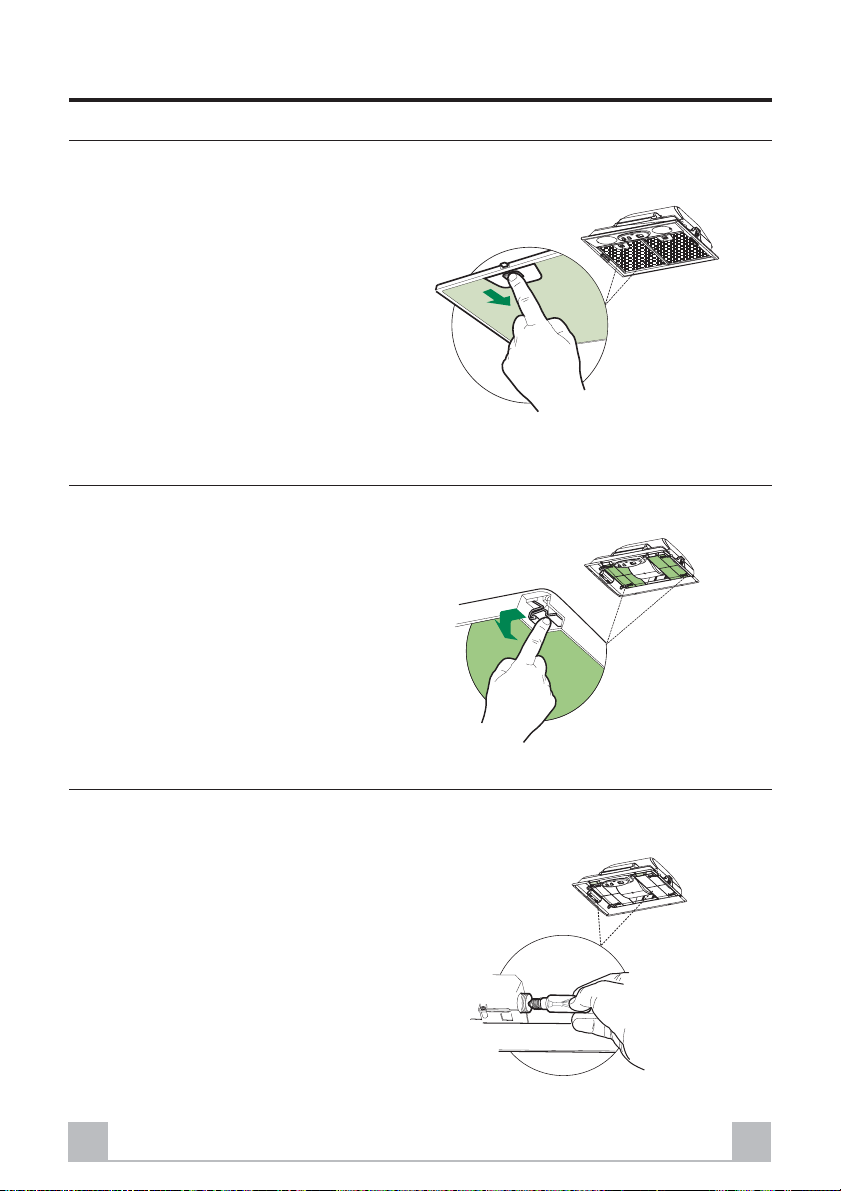

Grease fi lters
CLEANING METAL SELF-SUPPORTING GREASE FILTERS
• The fi lters must be cleaned every two months of operation, or more frequently with heavy usage, and can be washed in a dishwasher.
• Remove the fi lters one at a time, after disconnecting the relative fastening elements.
• Wash the fi lters, taking care not to bend them. Allow them to dry before refi t­ting.
• When refi tting the fi lters, make sure that the handle is visible on the outside.
Odour fi lters (Recirculation version)
REPLACING ACTIVATED CHARCOAL FILTERS
• These fi lters are not washable and can­not be regenerated, and must be repla­ced approximately every four months of operation, or more frequently with heavy usage.
• Remove the grease fi lters.
• Remove the saturated activated carbon fi lters by releasing the fi xing hooks.
• Fit the new fi lters by hooking them into their seating
• Replace the grease fi lters.
LIGHT REPLACEMENT
40 W incandescent light
• Remove the metal grease fi lters, or open the fi lter retaining grill
• Unscrews the bulbs and replace them with new ones having the same characteristi­cs.
• Replace the metal grease fi lters, or close the fi lter retaining grill.
GB
Lighting
Page 9
Dir. 89/336/CEE
73/23/CEE 93/68/CEE
