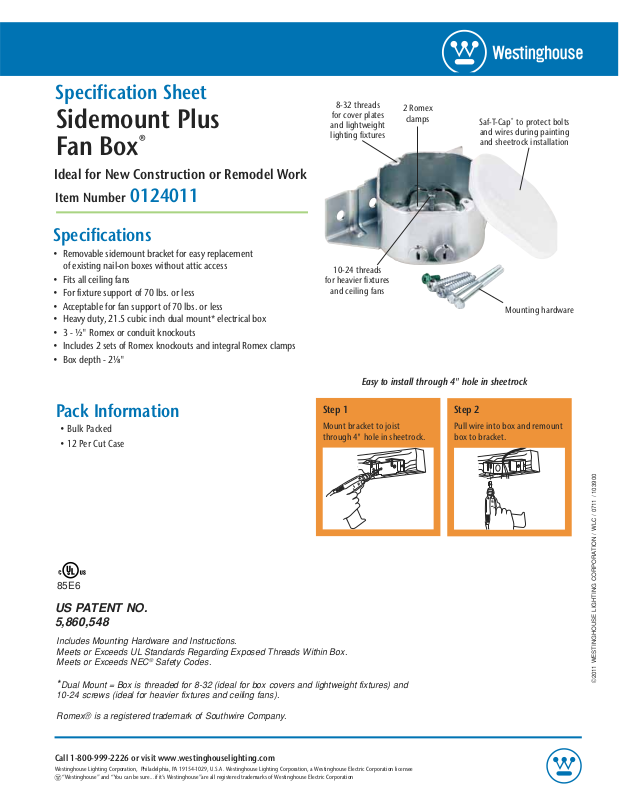

Specification Sheet
Sidemount Plus
Fan Box
Ideal for New Construction or Remodel Work
Item Number 0124011
Specifications
• Removable sidemount bracket for easy replacement
of existing nail-on boxes without attic access
• Fits all ceiling fans
• For fixture support of 70 lbs. or less
• Acceptable for fan support of 70 lbs. or less
• Heavy duty, 21.5 cubic inch dual mount* electrical box
• 3 - ½" Romex or conduit knockouts
• Includes 2 sets of Romex knockouts and integral Romex clamps
• Box depth - 2⅛"
®
8-32 threads
for cover plates
and lightweight
lighting fixtures
10-24 threads
for heavier fixtures
and ceiling fans
Easy to install through 4" hole in sheetrock
2 Romex
clamps
Saf-T-Cap® to protect bolts
and wires during painting
and sheetrock installation
Mounting hardware
Pack Information
• Bulk Packed
• 12 Per Cut Case
85e6
Step 1
Mount bracket to joist
through 4" hole in sheetrock.
US PATENT NO.
5,860,548
Includes Mounting Hardware and Instructions.
Meets or Exceeds UL Standards Regarding Exposed Threads Within Box.
Meets or Exceeds NEC® Safety Codes.
*Dual Mount = Box is threaded for 8-32 (ideal for box covers and lightweight fixtures) and
10-24 screws (ideal for heavier fixtures and ceiling fans).
Step 2
Pull wire into box and remount
box to bracket.
