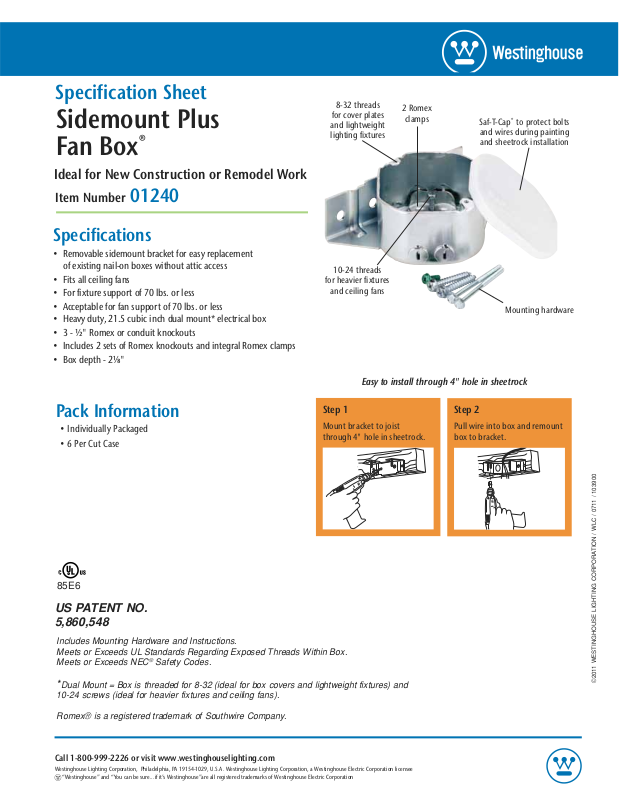

Westinghouse 0124000 Specification

Specification Sheet

Sidemount Plus

®

Fan Box

Ideal for New Construction or Remodel Work

Item Number 01240

Specifications

• Removable sidemount bracket for easy replacement
of existing nail-on boxes without attic access

• Fits all ceiling fans

• For fixture support of 70 lbs. or less

• Acceptable for fan support of 70 lbs. or less

• Heavy duty, 21.5 cubic inch dual mount* electrical box

• 3 - ½" Romex or conduit knockouts

• Includes 2 sets of Romex knockouts and integral Romex clamps

• Box depth - 2⅛"

8-32 threads

for cover plates

and lightweight
lighting fixtures

10-24 threads

for heavier fixtures

and ceiling fans

Easy to install through 4" hole in sheetrock

2 Romex

clamps

Saf-T-Cap® to protect bolts
and wires during painting

and sheetrock installation

Mounting hardware

Pack Information

• Individually Packaged

• 6 Per Cut Case

85e6

Step 1

Mount bracket to joist

through 4" hole in sheetrock.

US PATENT NO.
5,860,548

Includes Mounting Hardware and Instructions.
Meets or Exceeds UL Standards Regarding Exposed Threads Within Box.
Meets or Exceeds NEC® Safety Codes.

*Dual Mount = Box is threaded for 8-32 (ideal for box covers and lightweight fixtures) and

10-24 screws (ideal for heavier fixtures and ceiling fans).

Step 2

Pull wire into box and remount
box to bracket.

©2011 Westinghouse Lighting Corporation / WLC / 0711 / 103900

Romex® is a registered trademark of Southwire Company.
