Design and specifications are subject to change without notice.
SAFETY PRECAUTIONS
f
EXPLANATION OF SYMBOLS
This symbol is intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in the literature
accompanying the appliance.
This symbol is intended to alert the user to the presence o
unprotected “dangerous voltage” within the product’s enclosure that
may be strong enough to cause a risk of electric shock persons.
CAUTION
THIS PRODUCT IS MULTIPLE RATED VOLTAGES (110V AND 220V).
SEE INSTALLATION INSTRUCTIONS BEFORE CONNECTING TO THE SUPPLY
THIS PRODUCT BEARS LITHIUM BATTERY.
RISK OF EXPLOSION IF THE BETTERY ON THE MAIN MOARD IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
THIS EQUIPMENT IS INDOOR USE AND ALL THE COMMUNICATION WIRINGS ARE LIMITED TO INSIDE OF THE
BUILDING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
Table of Contents
1. Features .......................................................................................................................................................................... 8
2. Name, Function and Connection..................................................................................................................................... 9
2-1. Front View........................................................................................................................................................... 9
4-2. LIVE .................................................................................................................................................................. 17
4-2-2. Channel Info ......................................................................................................................................... 17
4-3. RECORD .......................................................................................................................................................... 19
4-4. SYSTEM ........................................................................................................................................................... 30
4-4-4. DATE FORMAT .................................................................................................................................... 31
4-4-5. CURRENT DATE.................................................................................................................................. 32
4-4-6. CURRENT TIME................................................................................................................................... 33
4-4-7. GMT AREA ........................................................................................................................................... 33

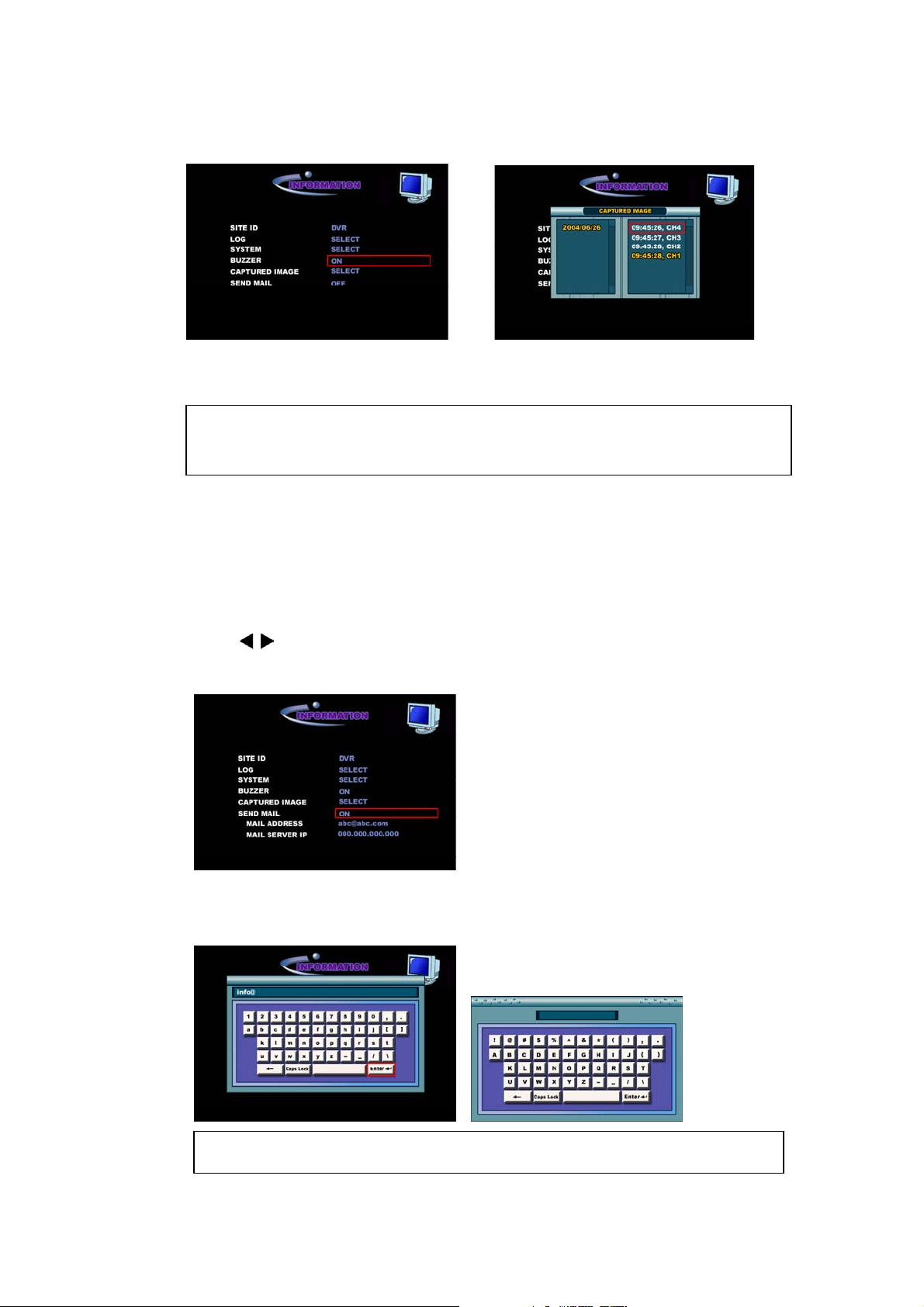

4-5. INFO .................................................................................................................................................................36

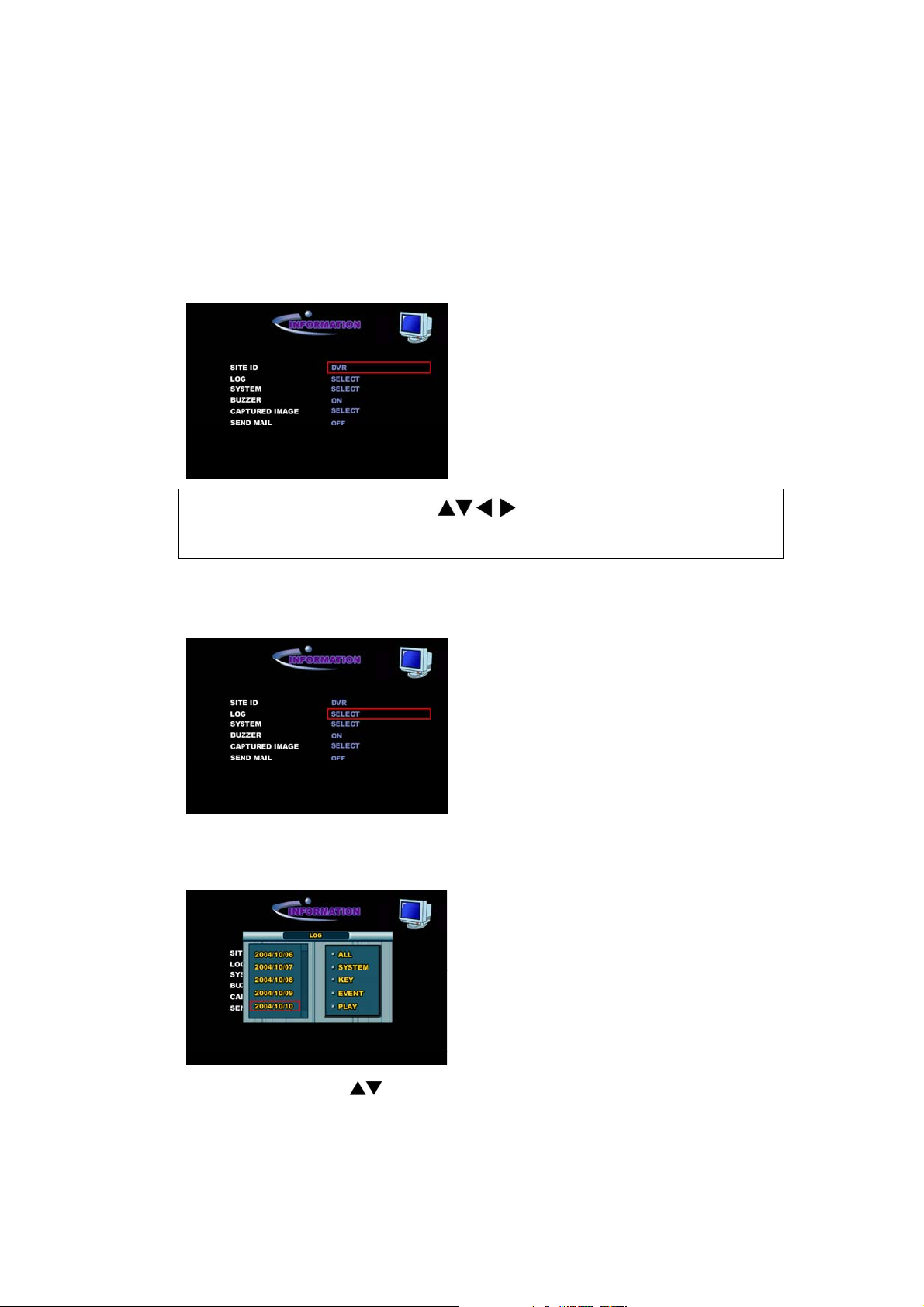

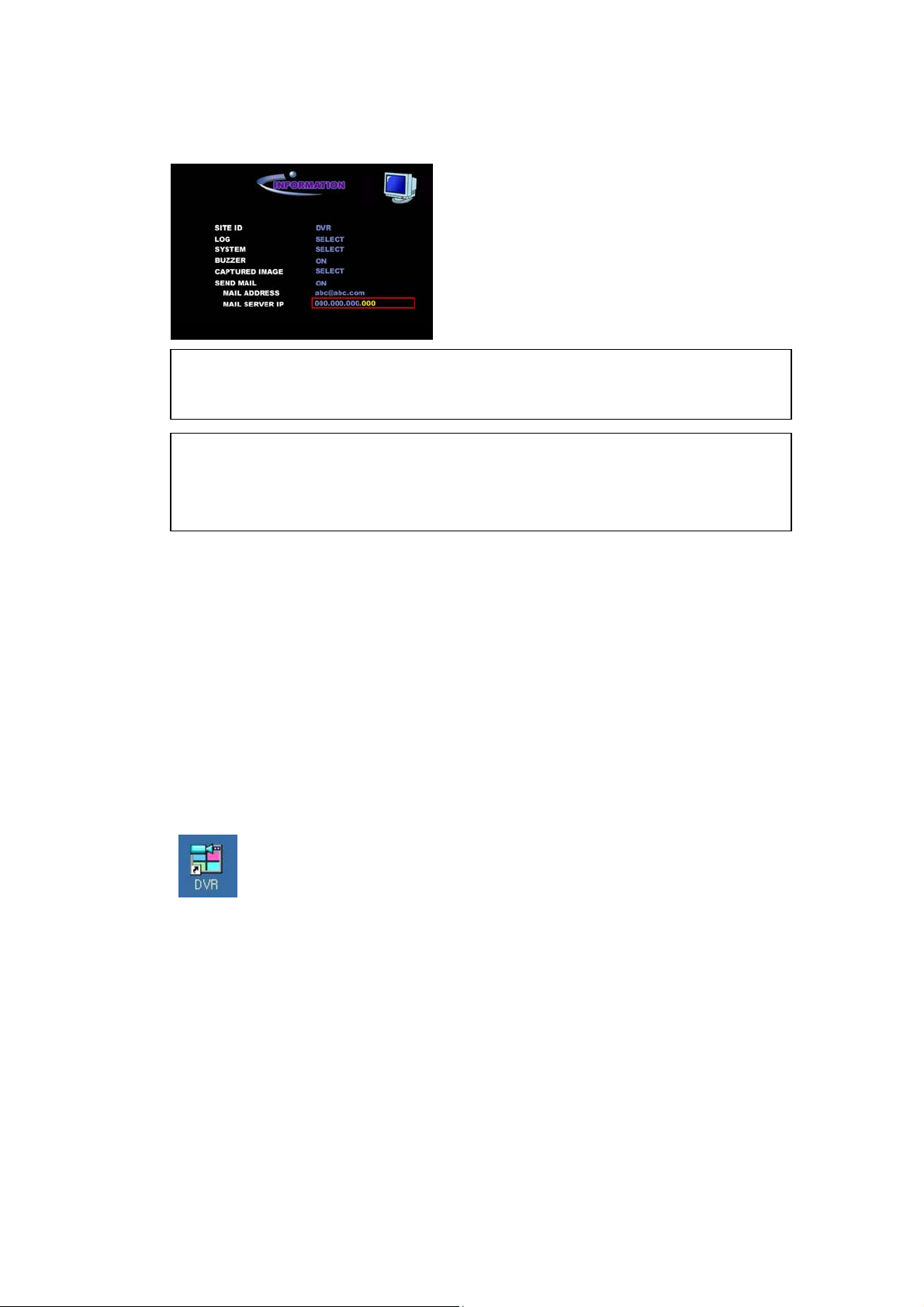

4-5-1. SITE ID ................................................................................................................................................. 36
4-5-3. SYSTEM ............................................................................................................................................... 37
5-1. Power ON/OFF ................................................................................................................................................. 45
5-1-1. Power ON ............................................................................................................................................. 45
5-1-2. Power OFF ...........................................................................................................................................45
5-2. LIVE Display .....................................................................................................................................................45
5-2-2. Individual Full Screen Setup................................................................................................................. 46
5-2-3. Auto Channel Rotation.......................................................................................................................... 46
5-3-1. OSD ICON on LIVE Screen.................................................................................................................. 46
5-3-2. Show/Hide OSD ICON on LIVE Screen ............................................................................................... 47
5-4. LED Information ................................................................................................................................................ 47
5-7. Still Image Capturing, Viewing, and Backup ..................................................................................................... 51
5-7-1. Capturing Still Image ............................................................................................................................ 51
5-11. Motion Detection Region Setup ...................................................................................................................... 57
5-11-1. Region Setup ...................................................................................................................................... 57
5-11-2. Deleting Region .................................................................................................................................. 59
5-15. Video back up in CD (Available only in model with CD-RW) .......................................................................... 62
5-15-1. Back up in CD..................................................................................................................................... 62
5-15-2. Playback Data in CD........................................................................................................................... 63
7-1. NETWORK CLIENT S/W Main Features .......................................................................................................... 67
7-2. Computer System Requirements......................................................................................................................67

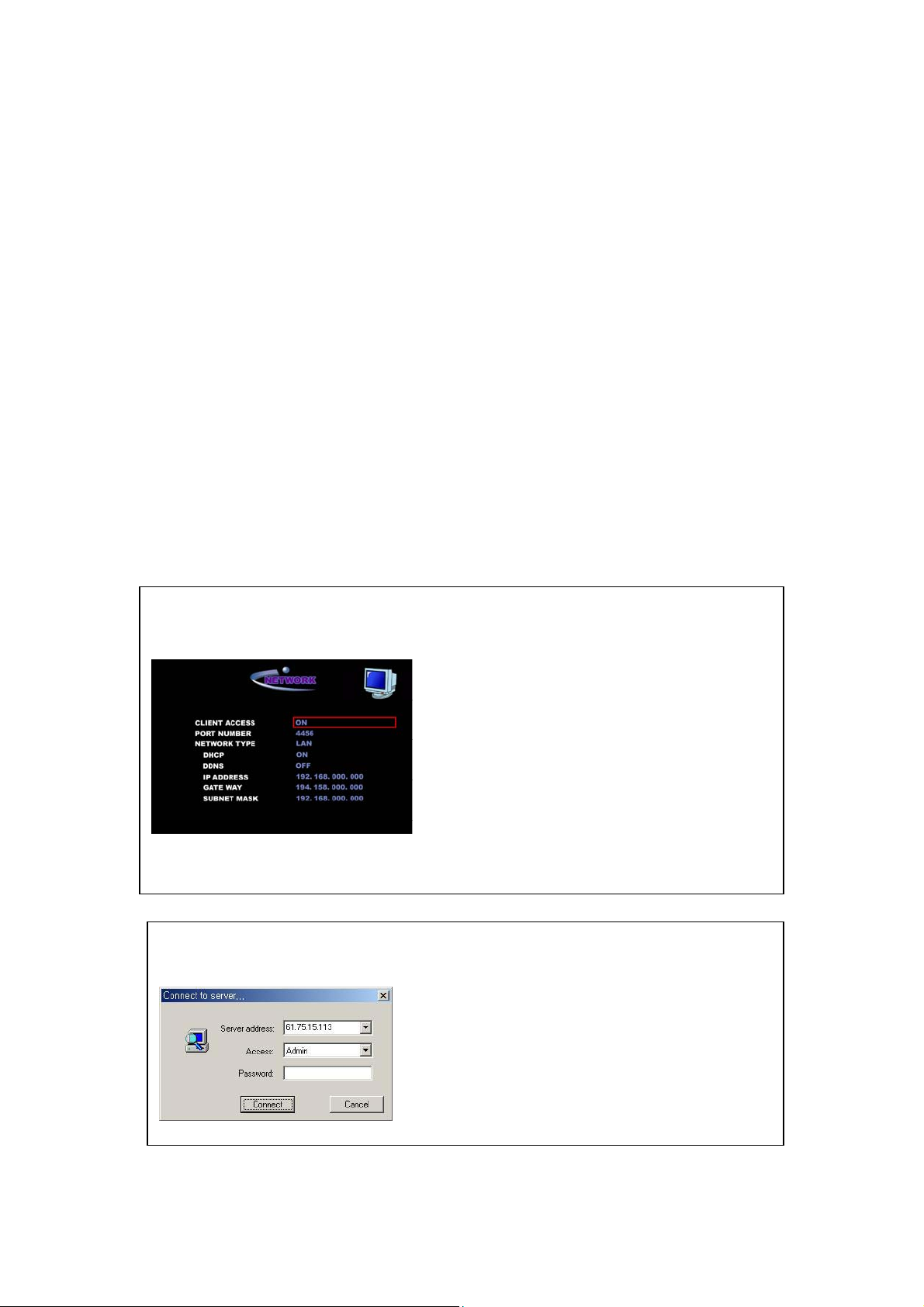

7-3. Network Setup in DVR ...................................................................................................................................... 67
7-3-2. For LAN Users ...................................................................................................................................... 68
7-3-3. For LAN –DHCP Users......................................................................................................................... 68
7-3-4. For ADSL (Dynamic IP address) Users ................................................................................................69
7-4. NETWORK CLIENT S/W Installation and Start Up........................................................................................... 70

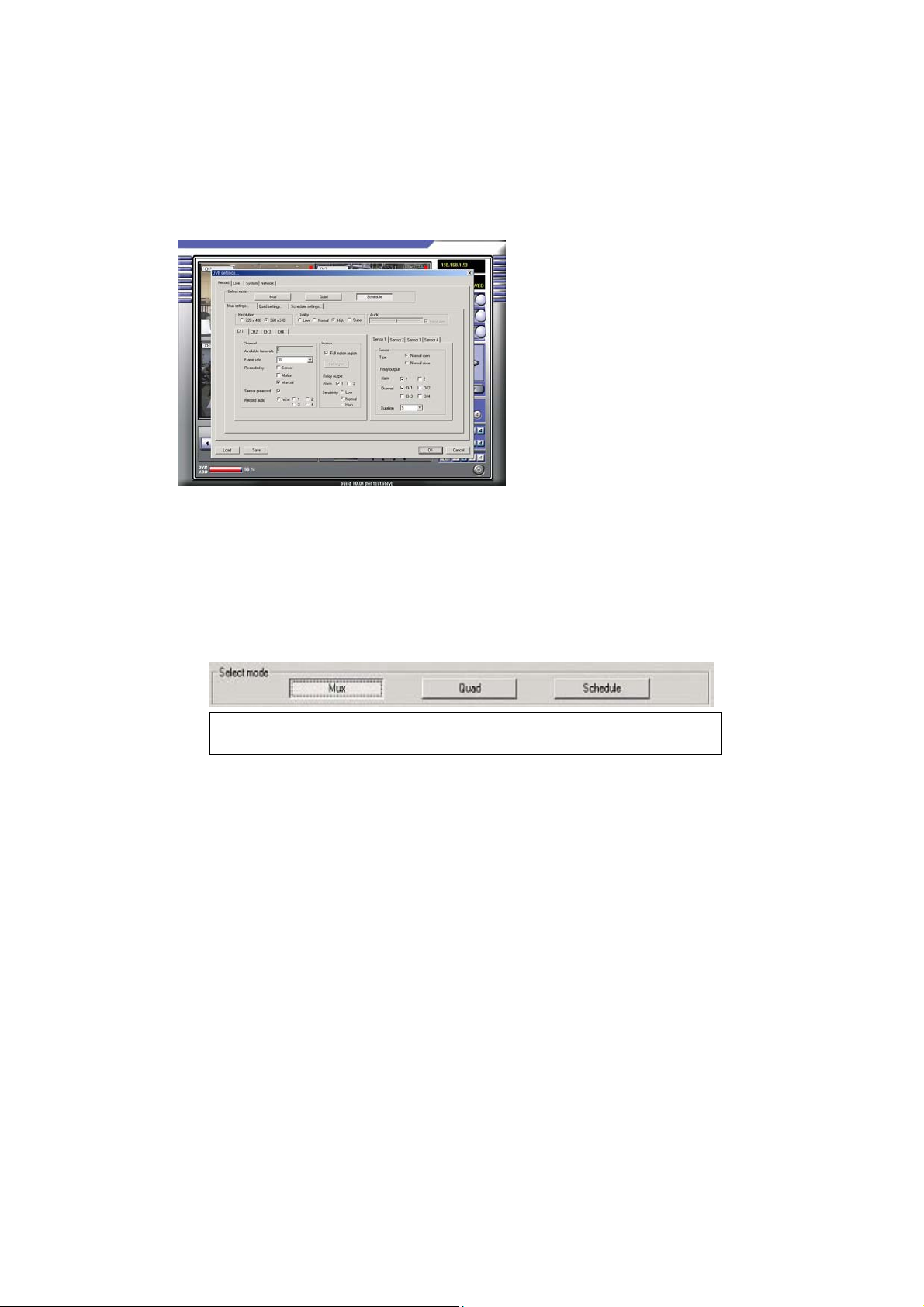

7-6-1. RECORD .............................................................................................................................................. 73
7-6-2. LIVE ...................................................................................................................................................... 76
7-6-3. SYSTEM ............................................................................................................................................... 76
7-7-1. Buttons in Search menu .......................................................................................................................79

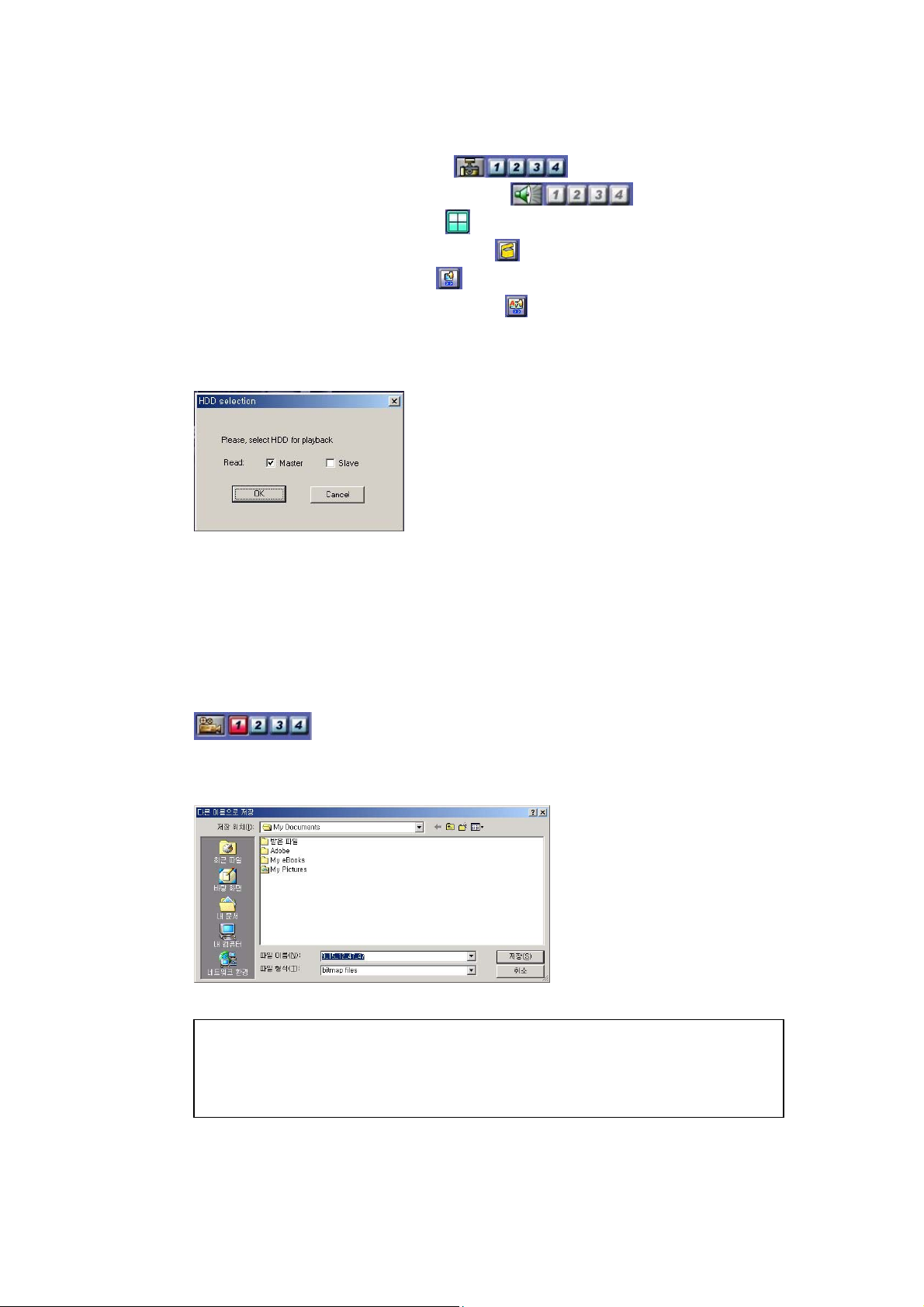

7-7-2. Search when DVR has two HDD .......................................................................................................... 80
7-8. BACK UP .......................................................................................................................................................... 80
7-8-1. Video BACKUP during LIVE DISPLAY................................................................................................. 80
7-8-2. STILL IMAGE capture during LIVE DISPLAY....................................................................................... 81
7-8-3 Video BACKUP during Playback ........................................................................................................... 81
7-8-4. STILL IMAGE capture during Playback ................................................................................................ 81

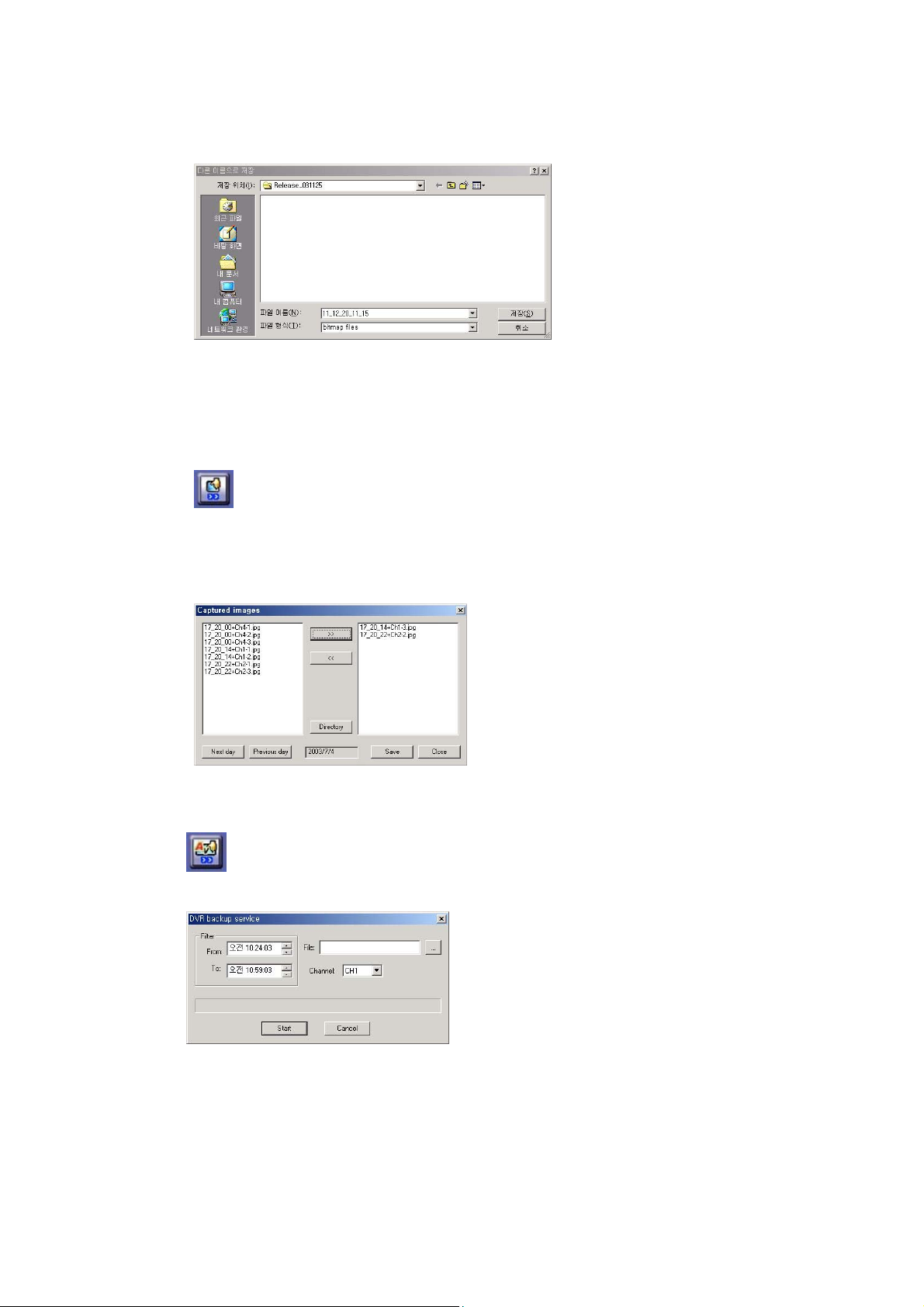

7-8-5. Downloading Still Images from DVR..................................................................................................... 82
7-8-6. BACKUP through Time Setting............................................................................................................. 82
7-8-7. Converting <nsf> CD backup format to <avi> format ...........................................................................83

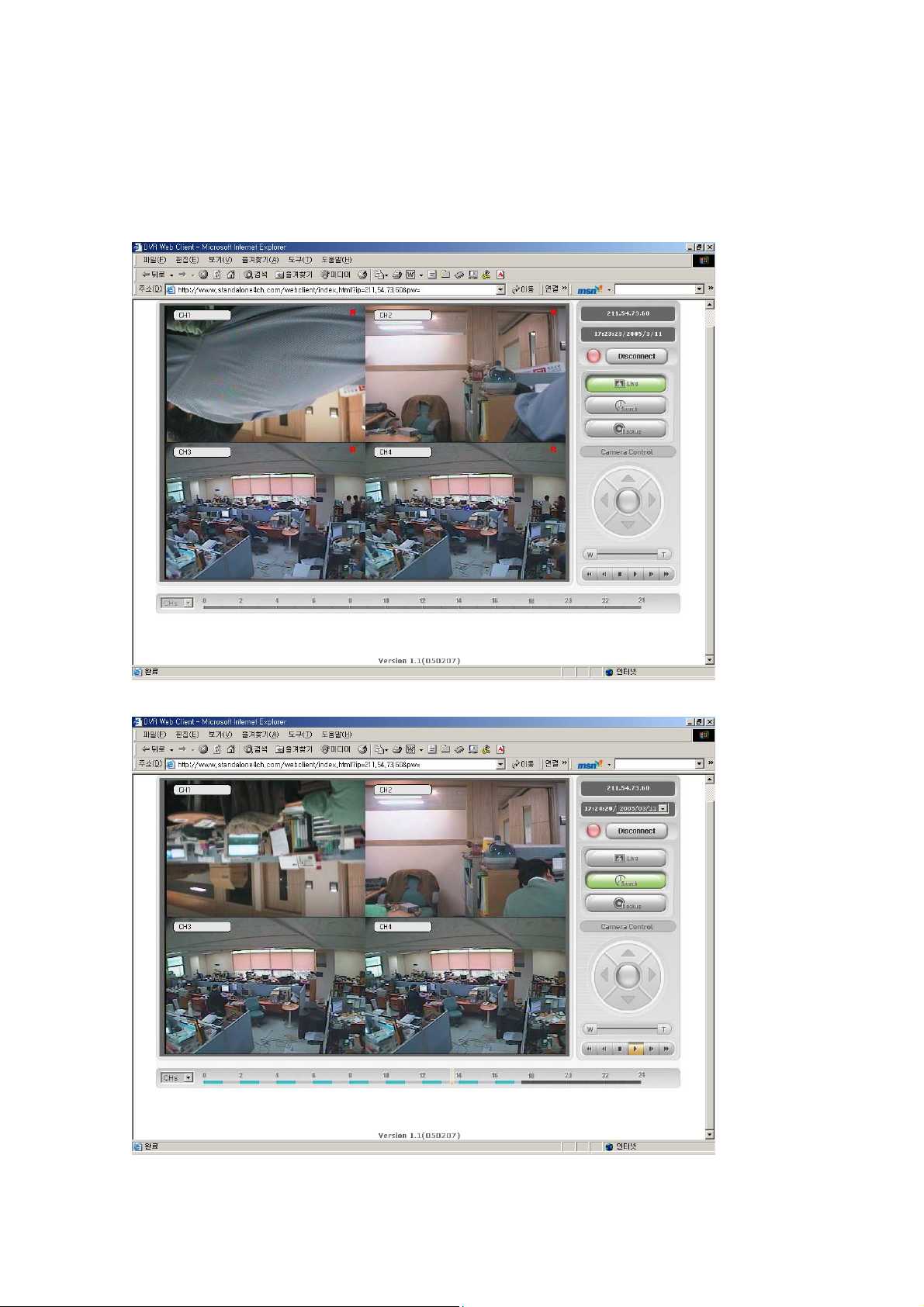

8. Networking by Web Browser......................................................................................................................................... 84

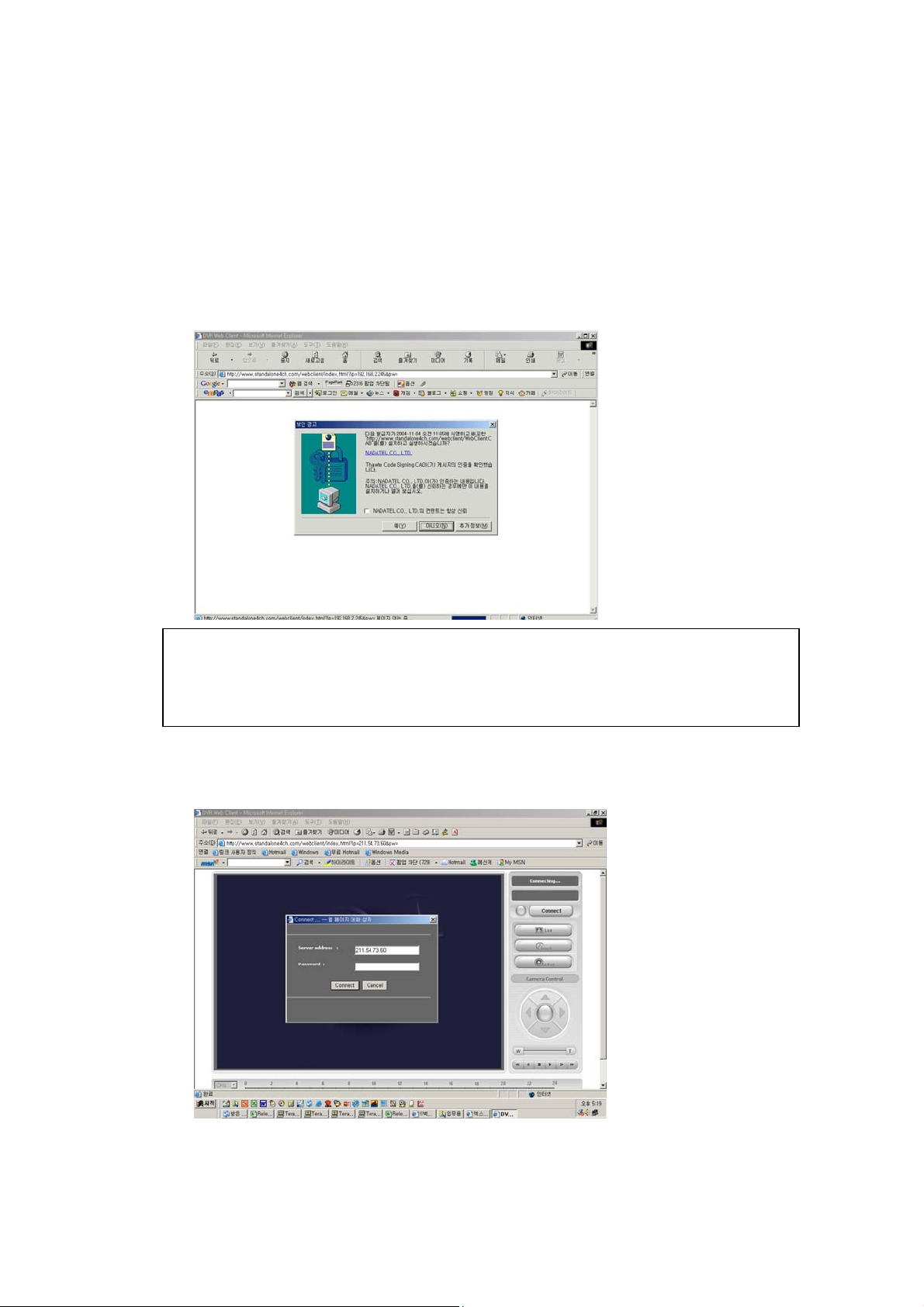

8-1. Download Web Brower Viewer and Connection ............................................................................................... 84
8-2. Main Features ................................................................................................................................................... 85
8-2-1. LIVE ...................................................................................................................................................... 85
9. Networking by DDNS (Dynamic Domain Name Server) ...............................................................................................86
10. Playback of local HDD in Network Client S/W ............................................................................................................87
The authorized expert must install DVR. When connecting a camera, audio, or sensor cables
DVR should be turned off first.
Please be aware that the company is not responsible for the damages caused from using
unauthorized goods and not following the instructions from the manual.
The company is also not responsible for the errors caused after the user has opened up DVR
for an arbitrary fix or the user has removed Warranty seal.
7
1. Features
4 channels real-time video display and 4 channels real-time video recording
TRIPLEX – Simultaneous record, playback and network transfer
Individual channel recording and playback with different frame rate
High-quality live and playback resolution
High-quality images with MPEG-2 video compression
Network features: Remote searching or playback, remote live-monitoring, remote
settings change, remote camera control, and remote upgrade
Network via LAN (DHCP), ADSL (Dynamic and Static IP address)
4 channels audio recording
Various recording triggers: Motion detection, manual recording button, sensor, and
schedule
Search menu geared with graphic user interface, which provides fast, simple, and
detailed information
User-friendly setup menu with graphic user interface
Easy to schedule a complicated weekly recording plan
Convenient search menu that displays recording status
The OSD icons on screen provide various helpful and well-explained information
Up-to-date motion-detection that offers 4 area-setup for each channel
USB ports for JPEG data backup and software upgrade using USB flash memory stick
Still image capture and review as JPEG format
Internal Pan/Tilt/Zoom/Focus controller
Easy operating with the buttons on the front and the remote controller
User verification by password certification
Video loss detection
Web-viewer
CD-RW (Option): Backup, S/W upgrade
8
2. Name, Function and Connection
2-1. Front View
A. PLAYBACK BUTTONS
REW, REW JUMP/STEP, PLAY/PAUSE, JUMP/STEP, and FF buttons are used for
playing recorded videos.
B. POWER
Press this button to power on/off DVR. A red light appears when the power of DVR is
turned on.
C. CAPTURE
Press this button to save a captured still-image during playback as a JPEG file.
D. RECORD
Press this button to start/stop manual recording. A red light appears during the
recording.

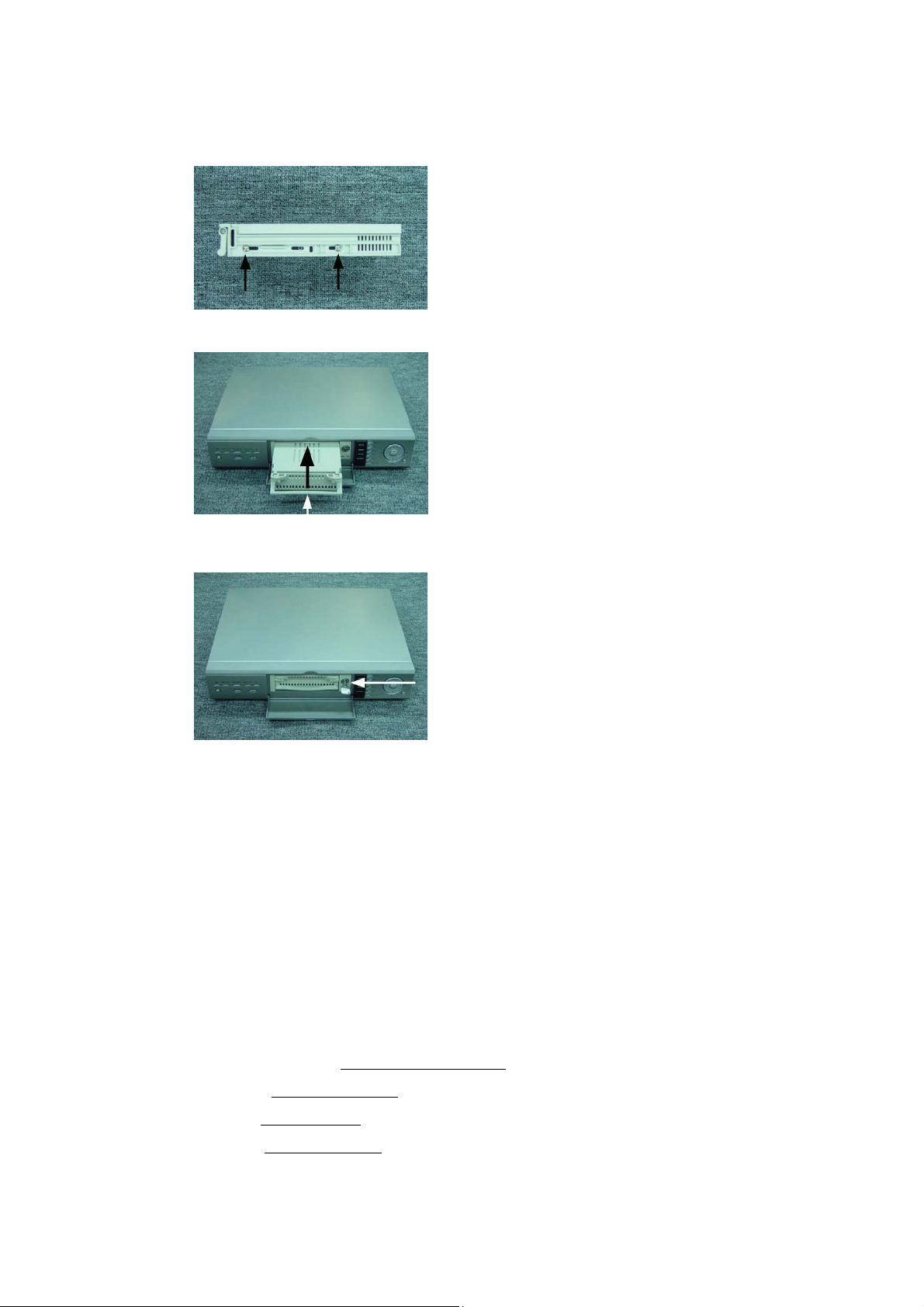

E. REMOVABLE HDD RACK
Removable HDD rack to install default hard disk drive
F. NETWORK LED
A red light appears when the network client is connected to DVR.
G. RECORD LED
A red light appears during DVR is recording.
9
H. SENSOR LED
A red light appears when sensor perceives event.
I. MOTION LED
A red light appears when DVR detects motion.
J. IR RECEIVER
Remote Controller signal receiver

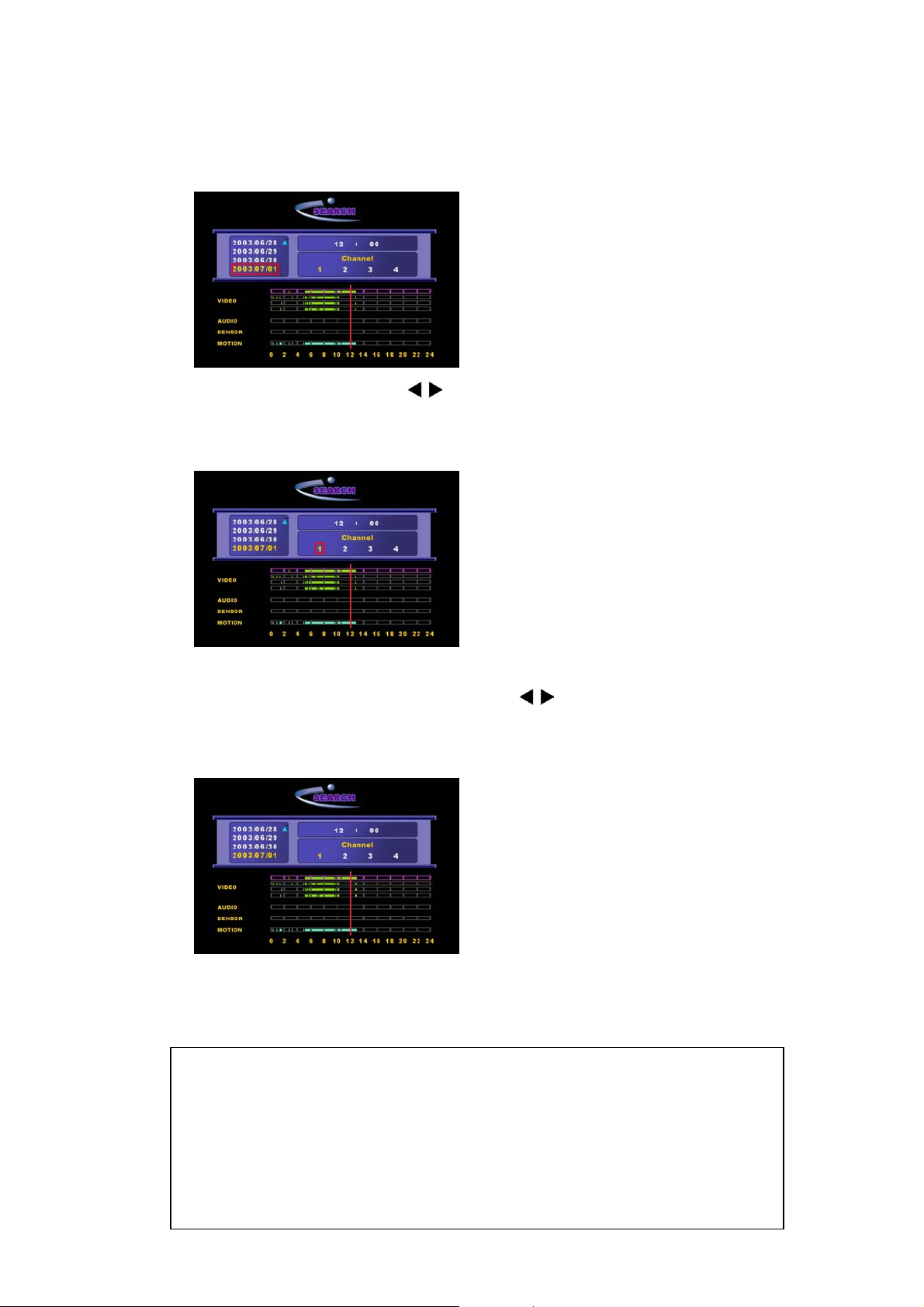

K. SEARCH
Press this button to begin searching the recorded video.
L. SETUP
Press this button to begin changing DVR setup.
M. LOCK
Press this button to lock/unlock the buttons of DVR.

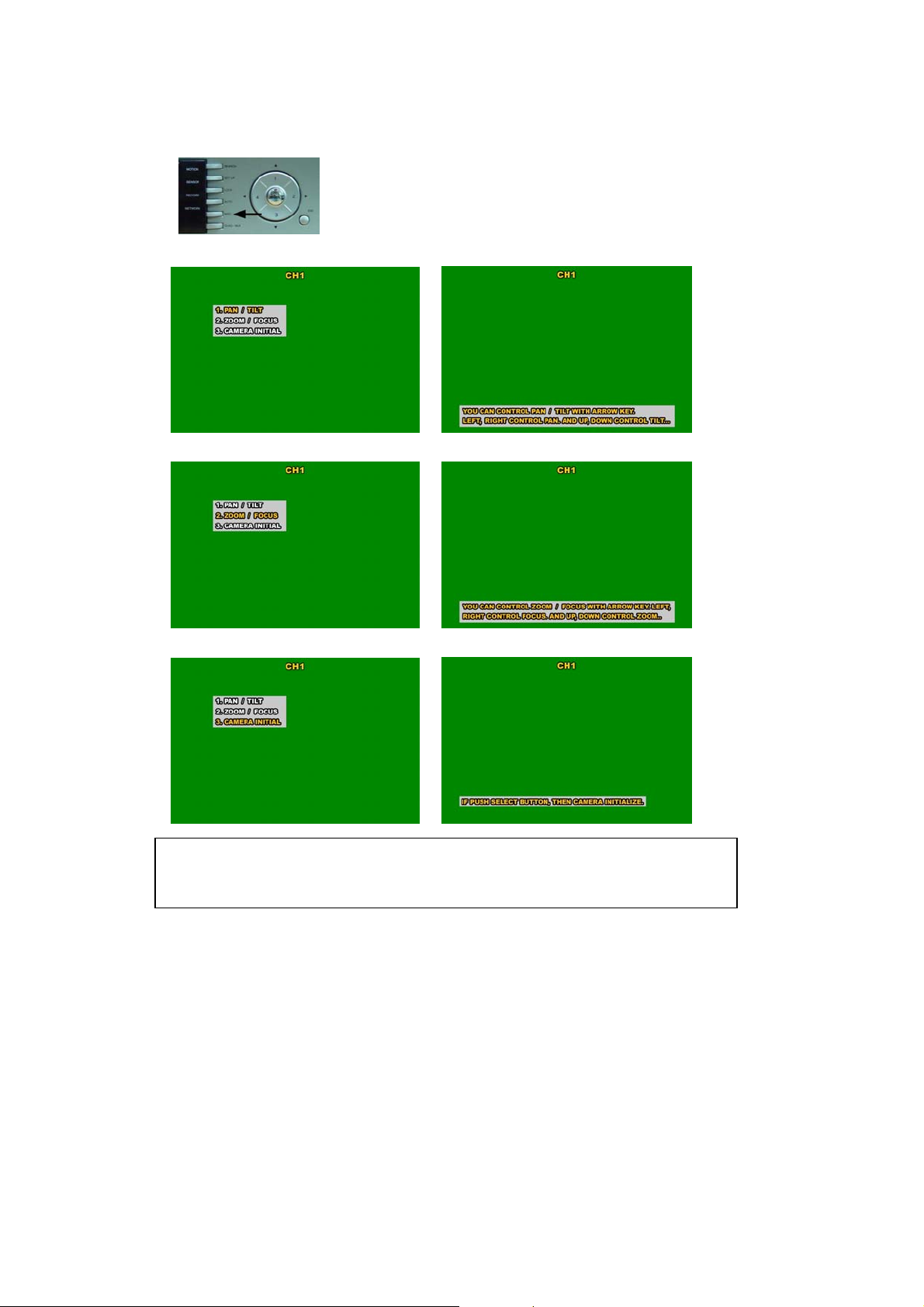

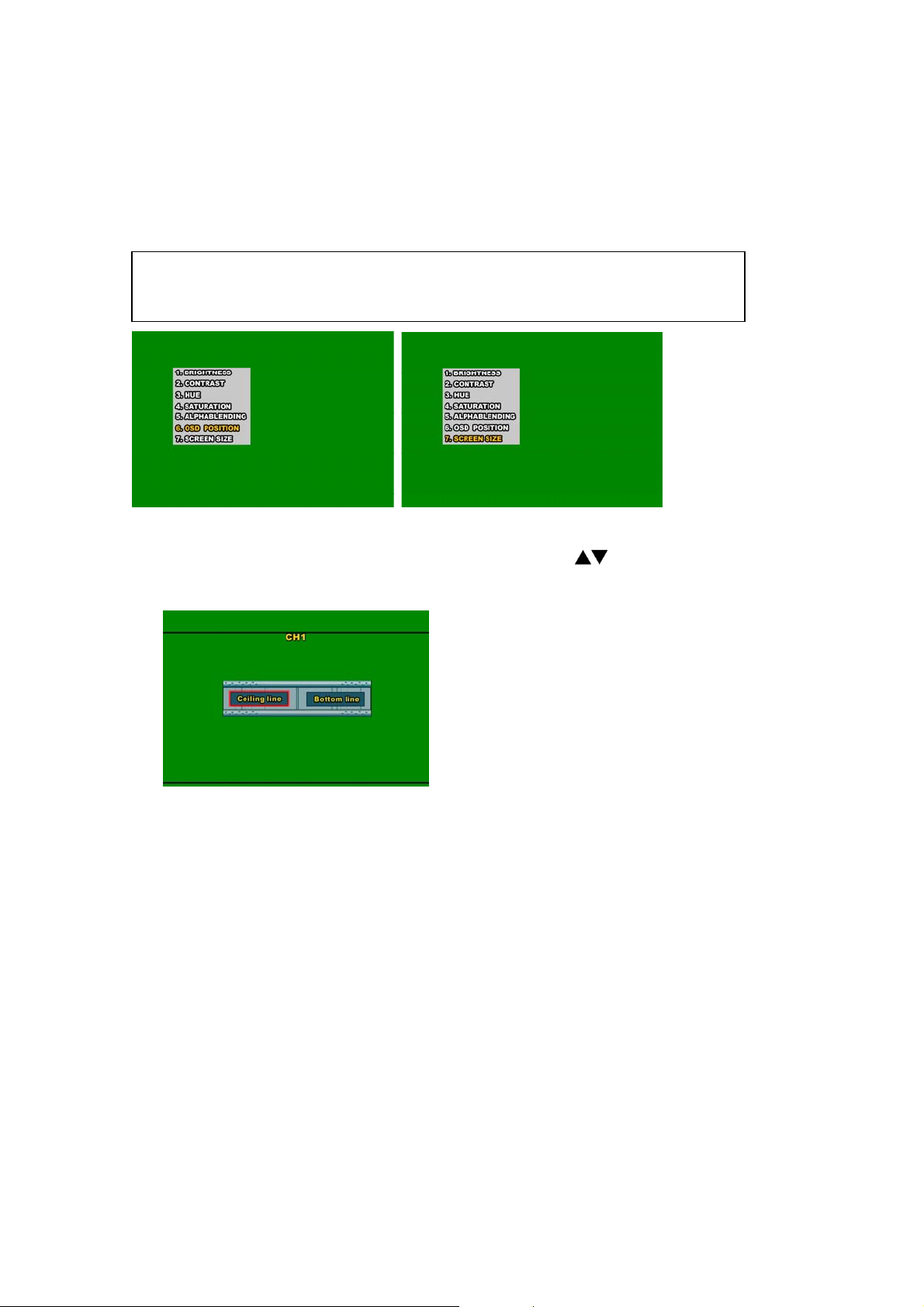

N. MISC
Press this button once to show or hide the status icons on live screen and playback
screen,
Press twice to move to “1.Brightness 2.Contrast 3.Alphablending 4.OSD Position”
adjustment menu of each channel,
Press triple to move to “1.Pan/Tilt 2.Zoom/Focus 3.Camera Initial” control menu of
each channel.
O. AUTO
Press this button to activates/deactivates channel rotating function during full screen
display of single channel.
P. QUAD/MUX
To switch the display from 1-channel video to 4-channels video in live display, and vice
versa.
Q. DIRECTION / “SEL” BUTTON
These can be used as arrow keys and number key.
buttons are used as 1,
2, 3, and 4, respectively.
button: Used to change possible values in Setup menu
button: Used to move items in Setup menu
“SEL” button in the middle is used for various purposes.
“SEL” button: Used to enter each sub menu. Also used to select number values.
R. ESC
Press this button to go back to the previous menu
10
2-2. Remote Control
11
2-3. Rear View
A. CAMERA INPUT
BNC Input Connectors for camera
B. LOOPBACK OUTPUT
BNC Loop-back Output Connectors for cameras
C. AUDIO IN
RCA Audio Input Terminals
D. AUDIO OUT
RCA Audio Output Terminal
E. VIDEO OUT
BNC Monitor Out Connector
F. S-VHS
S-VHS Monitor Out Connector
G. RS-232C
Connector for DVR Control and Upgrade

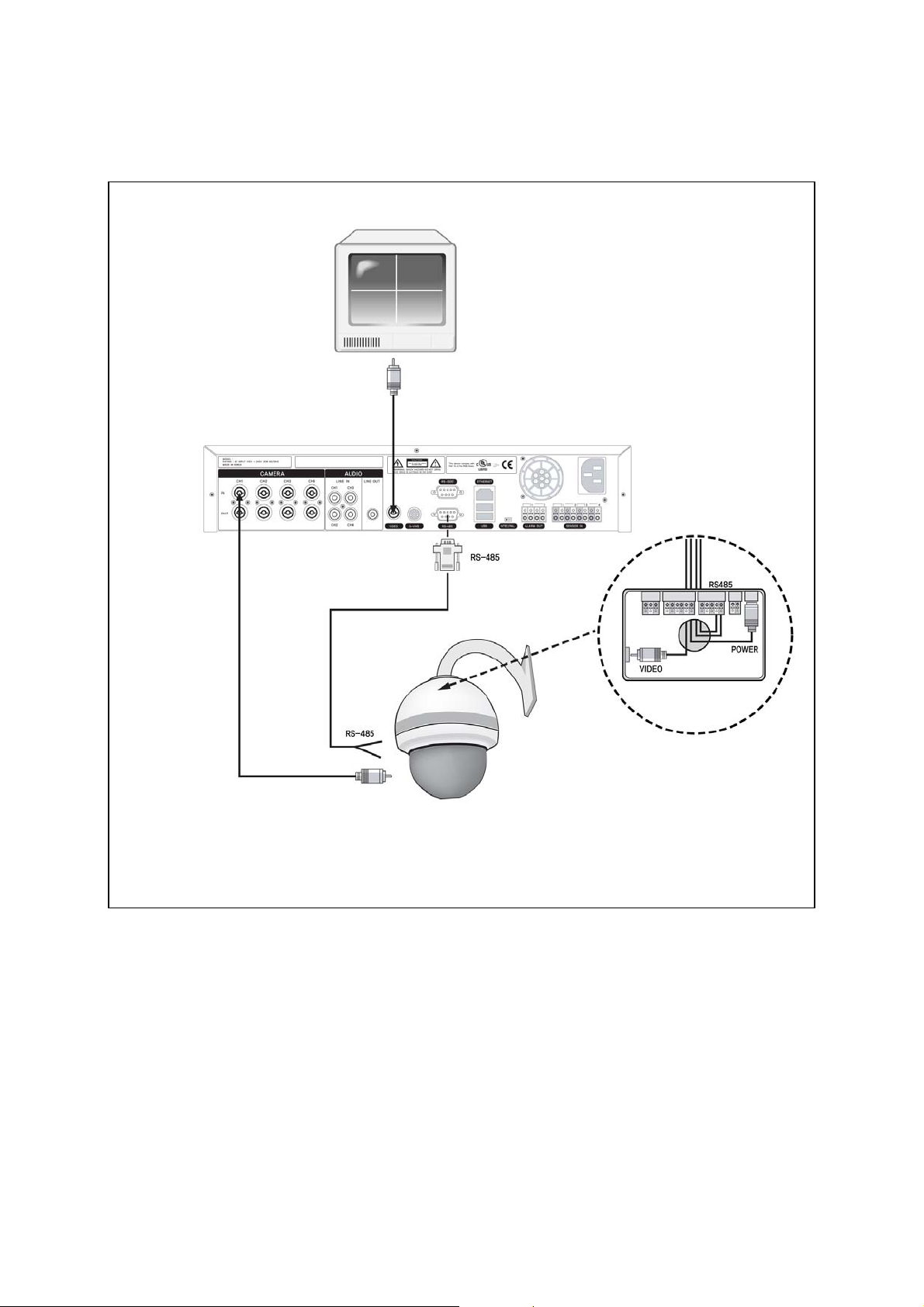

H. RS-485
Camera Control
I. USB PORT
J. NTSC/PAL SWITCH
K. ALARM OUT
L. POWER FAN
M. SENSOR IN (Power input: DC 10~12V)
N. POWER IN
O. 10 BASE T ETHERNET
Connector for Network Connection
12
2-4. Specification
VIDEO
RECORD
ARCHIVING
MULTI TASK TRIPLEX Record, playback and transfer
CONTROL UNIT IR Type Remote Control and Front key pads
HDD AVAILABLE CAPACITY 40, 60, 80, 120, 160, 200, 250GB
PHYSICAL
INPUT 4 composite BNC (NTSC/PAL) – 1.0Vp-p
OUTPUT
INPUT 4 Line In (RCA) AUDIO
OUTPUT 1 Line Out (RCA)
INPUT 4 (Power input: DC 10~12V) ALARM
OUTPUT 2
COMPRESSION MPEG-2
VIDEO FORMAT NTSC PAL
RESOLUTION 360x240, 720x480 360x288, 720x576
QUAD MODE 120fps/4CH(360x240/CH) 100fps/4CH(360x288/CH)
MUX MODE 120fps/4CH(360x240/CH)
FRAME SIZE 2~3KB(360x240),
STILL IMAGE CAPTURE 720x480/360X240 (JPEG) 720x576/360X288 (JPEG)
MODE Manual, Motion, Sensor, Motion & Sensor
METHOD By Resolution, fps & Quality
MOTION DETECTION 4 Areas setup per channel
CONSOLE 1 RS-232C (9pin male DSUB connector) SERIAL PORT
CAMERA CONTROL 1 RS-485 (9pin male DSUB connector)
TCP/IP (LAN INTERFACE) 1 10-base T Ethernet NETWORK
FUNCTIONS Live, Search, Setup, Backup, P/T/Z/F
STILL IMAGE BACKUP 2 USB1.1 for USB Flash memory stick BACKUP
VIDEO BACKUP CD-RW (Option)
DIMENSIONS (W x L x H) 38cm x 30cm x8.5cm
NET WEIGHT 5.5Kgs (without HDD)
PACKAGE WEIGHT 7.2Kgs (with HDD)
POWER SOURCE AC115/230V, 50-60HZ ELECTRICAL
POWER CONSUMPTION 30W (approximately)
