Industrial Ethernet
3-port Switch
INSTALLATION MANUAL
6642-2201
www.westermo.com
SD-300
Series
©
Westermo Teleindustri AB • 2003 • REV.A
Galvanic
Isolation
Transient
Protection
Balanced
Transmission
CE
Approved
2 6642-2201
2
Contents
1. Description .................................................................................................................................................................................................... 3
2. Safety ........................................................................................................................................................................................................................ 4
3. Approvals .......................................................................................................................................................................................................... 4
3.1 Declaration of Conformity ................................................................................................................................................... 5
4. Specification ................................................................................................................................................................................................ 6
5. Maintenance ................................................................................................................................................................................................ 7
6. Installation ...................................................................................................................................................................................................... 7
6.1 Mounting / Removal ....................................................................................................................................................................... 7
6.2 Connections ............................................................................................................................................................................................. 8
6.3 DIP Switch Settings ................................................................................................................................................................... 10
6.4 LED indicators .................................................................................................................................................................................. 12
36642-2201
3
1. Description
The SD-300 is a serie of Industrial Ethernet 3-port switches.
Several variations are available ranging from a version with three RJ-45 TX (copper) ports
to versions having two FX (fibre) and one TX port.
All TX ports support auto-negotiation, but DIP-switches also allow speed and duplex
configuration of any individual TX port.
The SD-300 series has been designed to meet high industrial specifications, providing
very high dependability in harsh environmental conditions.
Features:
• Flexible mix of TX (copper) and FX (fibre) interfaces
• TX chassies individually isolated
• Wide DC Power Range 18–48 VDC
• LED indicators for Power, Speed, Duplex, Link and Traffic.
• 35 mm DIN rail mounting
Example of applications are:
• 3-port switch
• Fibre repeater, with service port
• Fibre to copper converter
• Singlemode to Multimode fiber converter
4 6642-2201
4
3. Approvals
Conformity with the Directive 89/336/EEC (Electromagnetic compatibility)
has been assessed by application of standards EN 61000-6-2 (industrial immunity)
and EN 61000-6-3 (residental emission).
2. Safety
General:
Before using this unit, read this manual completely and gather all information on
the unit. Make sure that you understand it fully. Check that your application does
not exceed the safe operating specifications for this unit.
Before installation, maintenance or modification work:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).
Prevent access to hazardous voltages by disconnecting the unit from AC/DC
mains supply and all other electrical connections.
Installation:
This unit should only be installed by qualified personnel.
This unit should only be installed in a “restricted access area”, for example
a lockable cabinet where access is restricted to service personnel only.
This unit is intended for permanent connection to the AC/DC mains supply.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the AC/DC mains supply. Ensure compliance
to national installation regulations.
Units with the rated voltage exceeding 42.4 V peak or 60 VDC, are defined as
class I equipment with a protective earthing conductor terminal.
Units with the rated voltage up to 42.4 V peak or 60 VDC, are defined as class III
equipment and shall be separated from hazardous voltage by double or reinforced
insulation.
This unit uses convection cooling.To avoid obstructing the air flow around the
unit, follow the spacing recommendations (see Installation section).
!
!
!
56642-2201
5
3.1 Declaration of Conformity
Westermo Teleindustri AB
Declaration of conformity
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
herewith declares that the product(s)
Type of product Model Art no Installation manual
DIN-rail ethernet 3-port switch SD-3xx 3642-00xx 6642-22xx
is in conformity with the following EC directive(s).
No Title
89/336/EEG Electromagnetic Compatibility (EMC-directive)
73/23/EEG Low Voltage Directive (LVD)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-2 Immunity for industrial environments 2 (2001)
EN 61000-6-3 Emission standard for residential, commercial and
light industrial environments
1 (2001)
EN 60950 Safety of information technology equipment 6 (2000)
The last two digits of the year in which the CE marking was affixed: 03
Hans Levin
Technical Manager
6
th
February 2004
Org.nr/
6 6642-2201
6
4. Specification
SD-330 SD-321-SM-LC15 SD-321-MM-SC2 SD-312-2MM-SC2
Rated voltage 18–48 VDC, polarity independent
Operating voltage 16.2–57.6 VDC
Rated current @18 VDC power input
150 mA 250 mA 300 mA 400 mA
Rated frequency DC
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm
2
(AWG 24-12)
Power interface
Ethernet TX Interface
Electrical specification IEEE std 802.3. 2000 Edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto.
Duplex Full or half, manual or auto.
Connection RJ-45, shielded.
Circuit type TNV-1
Transmission range 100 m
Ethernet FX Interface
Optical specification IEEE std 802.3. 2000 Edition,
Multi or singlemode, 1300 nm.
Data rate 100 Mbit/s.
Duplex Full.
Connection SC – Multimode, LC – Singlemode
Transmission range 2 km – Multimode, 15 km – Singlemode
Mechanics
Dimension (W x H x D) 55 x 100 x 128 mm
Weight <0.35 kg
Mounting DIN-rail
Degree of protection IP 20 (IEC 529)
Isolation between interfaces
Power Interface to all other Interfaces 4.2 kVDC, 3 kV RMS @ 50 Hz and 60s duration
TX signal Interface to all other 2.1 kVDC, 1.5 kV RMS @ 50 Hz and 60s duration
TX chassie Interface to all other 1.5 kVDC, 1 kV RMS @ 50 Hz and 60s duration
Climatic
Temperature, operating +5 to +55°C
Temperature,
storage and transportation –25 to +70°C
Relative humidity, operating 5 to 95% (non-condensing)
Relative humidity,
storage and transportation 5 to 95% (condensation allowed outside packaging)
Configuration
Auto configured (auto-negotiation) or manually setting of speed and duplex of individual
TX port, by DIP-switches.
76642-2201
7
5. Maintenance
No maintenance is required, as long as the unit is used as intended
within the specified conditions.
6. Installation
6.1 Mounting / Removal
Before mounting or removing the unit:
Prevent damage to internal electronics from electrostatic
discharges (ESD) by discharging your body to a grounding
point (e.g. use of wrist strap).
Prevent access to hazardous voltages by disconnecting the
unit from AC/DC mains supply and all other electrical
connections.
Mounting
This unit should be mounted on 35 mm DIN-rail which is horizontally mounted on a wall
or cabinet backplate.
This unit uses convection cooling.To avoid obstructing
the airflow around the unit,
use the following spacing rules. Recommended spacing
25 mm (1.0 inch) above/below and 10 mm (0.4 inches)
left/right the unit.
Snap on mounting, see figure
Removal
Press down the black support at the back of the unit using a screwdriver, see figure.
10 mm *
(0.4 inches)
25 mm
25 mm
* Spacing (left/right) recommended
for full operating temperature range
!
CLICK!
8 6642-2201
8
6.2 Connections
Power screw terminal
Network
Fibre connection
Network
RJ-45 connection
Available models:
… SD-330 100Base-TX: 3ports
… SD-321 100Base-TX: 2ports 100Base-FX: 1port
… SD-312 100Base-TX: 1port 100Base-FX: 2ports
Contact Westermo for availible specifications on FX ports.
96642-2201
9

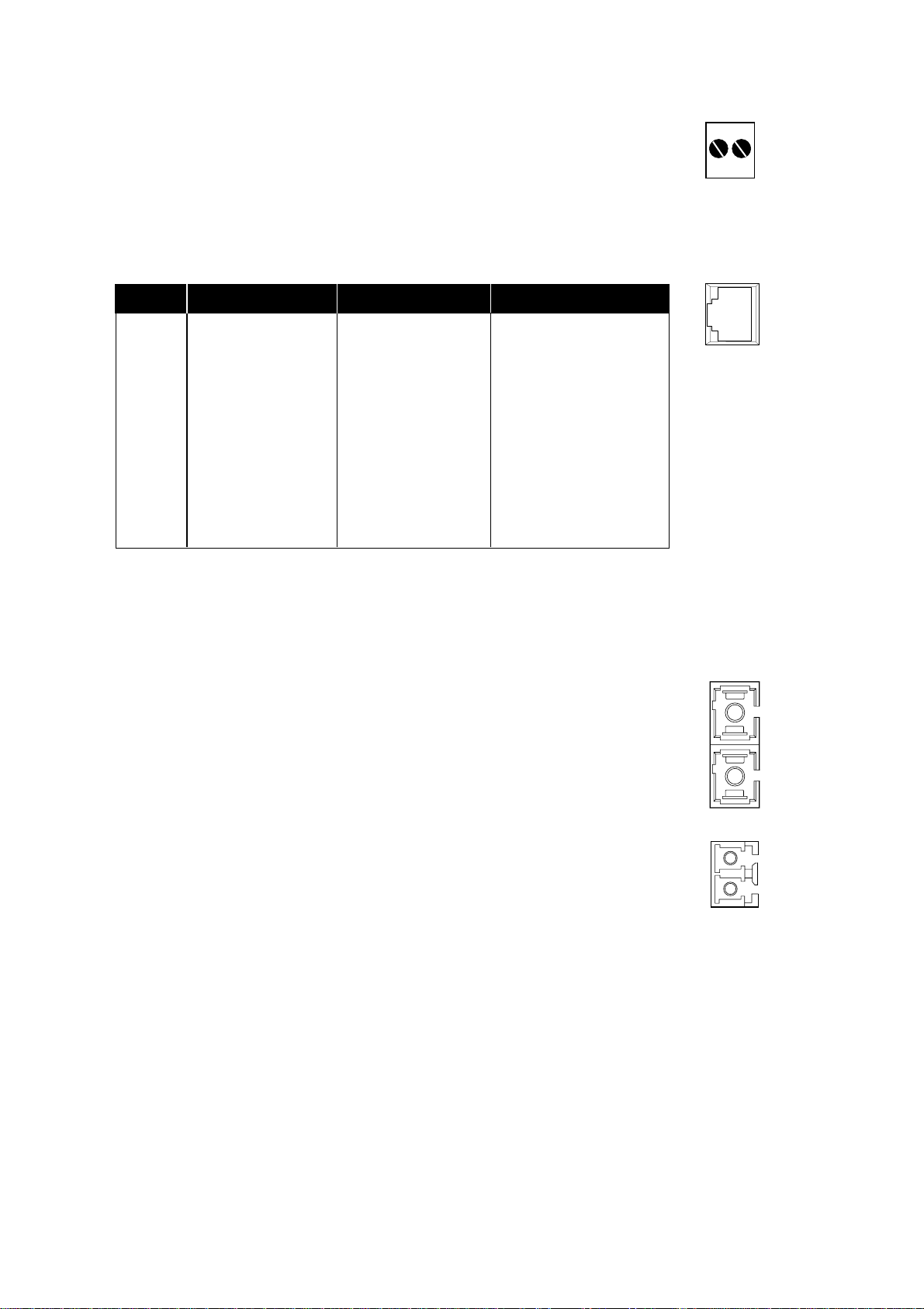

6.2.1 Power
18–48 VDC must be connected to the unit.
The power input is polarity independent, even if ± marked.
6.2.3 FX SC Multimode (optional)
Ethernet FX connection.
1300 nm multimode fiber tranceiver with SC-connector.
The dust protection plug shall be mounted when no fibre is connected.
6.2.2 TX
Ethernet TX connection (RJ-45 connector),
Media Dependent Interface-Crossover (MDI-X).
Contact Signal Name Direction* Description/Remark
1 TD In Transmitted Data
2 TD In Transmitted Data
3 RD Out Recevived Data
4
5
6 RD Out Recevided Data
7
8
Chassie HF-connected
* Direction relative SD-300.
CAT 5 cable is recommended.
Unshielded (UTP) or shielded (STP) connector might be used.
1
2
3
4
5
6
7
8
6.2.4. FX LC Singlemode (optional)
Ethernet FX connection.
1300 nm singlemode fiber transceiver with LC-connector.
The dust protection plug shall be mounted when no fibre is connected.
–+
12
10 6642-2201
10
6.3 DIP switch settings
DIP-switches are accessable under the lid on top of the unit. DIP-switches are
used to configure the modem.
Warning!
Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap), before the
lid on top/front of the modem is removed.
Warning! Do not open connected equipment.
Prevent access to hazardous voltages by disconnecting the unit from AC/DC
mains supply and all other electrical connections.
NOTE
When configuration via DIP-switches,the settings of DIP-switches configure the unit only
after a reboot (power off/on).
!
!
116642-2201
11
Individual Auto Negotiation disable
Disable or enable auto-negotiation
Enable will override any S2 settings
S1
A-N enabled for all TX-ports.
Factory default.
Individual Port Speed
10 Mbit/s or 100 Mbit/s
ON
12345678
S2
100 Mbit/s set for every
TX-port.
Factory default.
ON
12345678
S2
TX-port 1x and 2x set to
10 Mbit/s, port 3x set to
100 Mbit/s. Requires A-N
disabled.
Individual Port Duplex*
Half or full
ON
12345678
S2
Full duplex set for every
TX-port.
Factory default.
ON
12345678
S2
TX-port 1x and 3x set to
half duplex, port 2x set to
full duplex. Requires A-N
disabled.
S2:1–8 S1:1–4
ON
1234
S1
A-N disabled for TX-port 1x
and 3x. Setting of S2 will be
valid for port 1x and 3x.
ON
1234
The DIP-switch settings are ignored for FX ports.
* If the connected device does not support A-N, the DIP switch selection will be used.
E.g. manually select Half Duplex when an Westermo ED-10/11/12/20 is connected.
12 6642-2201
12
6.4 LED indicators
At power on the PWR immediatly lits and the other leds will run through a led test
sequence.
In the test sequence every led flashes twice, starting with SPD and ending with LINK
leds.
Indicators (LED) Power (PWR)
Link (LINK) of every port
Speed (SPD) and duplex (DPX) of TX ports
LED Status Indication of
PWR OFF No internal power (external power not connected)
ON Power OK
OFF Data in = 1, Mark,VTD < -3V.
ON Data in = 0, Space,VTD > +3V.
LINK OFF No Ethernet link
Cable not connected
ON Good Ethernet link
Flash Ethernet data is transmitted or received, traffic indication
SPD OFF 10 Mbit/s
(TX only) ON 100 Mbit/s
DPX OFF Half duplex
(TX only) ON ON Full duplex
136642-2201
13
OWN COMMENTS
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
T04-0054 • 6662-2201 04.02 Mälartryck AB, Eskilstuna, Sweden
Application example
Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden
Phone +46 16 42 80 00 Fax +46 16 42 80 01
E-mail: info@westermo.se
Westermo Web site: www.westermo.com
Westermo Teleindustri AB have distributors in several
countries, contact us for further information.
Westermo Data Communications Ltd
Unit 14 Talisman Business Centre • Duncan Road
Park Gate, Southampton • SO31 7GA
Phone: +44(0)1489 580 585 • Fax.:+44(0)1489 580586
E-Mail: sales@westermo.co.uk
Westermo Data Communications GmbH
Goethestraße 67, 68753 Waghäusel
Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9
E-Mail: info@westermo.de
Westermo Data Communications S.A.R.L.
9 Chemin de Chilly 91160 CHAMPLAN
Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01
E-mail : infos@westermo.fr
Subsidiaries
Loading...
