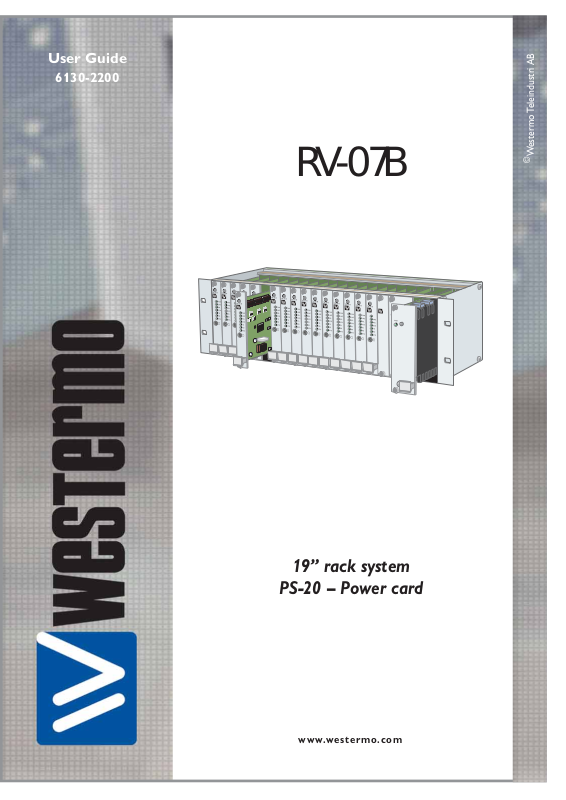

User Guide
6130-2200
RV-07B
©
Westermo Teleindustri AB
19” rack system
PS-20 – Power card
www.westermo.com
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
2
6130-2200
Safety
!
!
Before installation:
Read this manual completely and gather all information on the unit. Make sure that
you understand it fully. Check that your application does not exceed the safe operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Cooling section).
Before mounting, using or removing this unit:
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit. Hazardous voltage may occur within this
unit when connected to power supply.
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water-
proof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo dis-
tributor office or Westermo Tech support.
Fibre connectors are supplied with plugs to avoid contamination inside the optical port.
As long as no optical fibre is mounted on the connector, e.g. for storage, service or
transportation, should the plug be applied.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
6130-2200
3
Agency approvals and standards compliance
Type
Approval / Compliance
Agency/ W-mo
Approved
Safety
W-mo EN 60950-1, IT equipment
Type tests and environmental conditions
Electromagnetic Compatibility
Phenomena Test Description Test levels
Dielectric strength EN 60950 Signal port to other
isolated ports
Power port to other
isolated ports
Power port to other
isolated ports with
rated power <60 V)
Environmental
Temperature Operating –40 to +70ºC
Storage & Transport –40 to +70ºC
Humidity Operating 5 to 95% relative humidity
2 kVrms 50 Hz 1 min
3 kVrms 50 Hz 1 min
2 kVrms 50 Hz 1 min
500 Vrms 50 Hz 1 min for GND
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Reliability predicton
(MTBF)
Service life Operating 10 year
Packaging
Dimension W x H x D 485 x 135 x 180 mm
Weight 2,05 Kg
Degree of protection IEC 529 Enclosure IP 20
Cooling Convection
Mounting 19” Rack
MIL C217F2 Operating 378900 h @ 25ºC
4
6130-2200
Declaration of Conformity
g
Westermo Teleindustri AB
Declaration of conformity
The manufacturer
Herewith declares that the product(s)
Type of product Model Art no
Rack RV-07B 3130-3010
is in conformity with the following EC directive(s).
No Short name
2006/95 EC Low Voltage Directive – LVD
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 60950 Safety of information technology equipment 6 (2006)
Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
The last two digits of the year in which the CE marking was affixed: 08
Pierre Öberg
R&D Manager
14th October 2008
Postadress/Postal addres s
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
Or
Tel. Telefax Postgiro Bankgiro Corp. identity n umber Registered office
.nr/
6130-2200
5
Description
The RV-07B is a 19" rack which can hold up to 16 Westermo TR-36B modems as well
as two PS-20 power supplies. The modem is designed to harsh industrial standards in
applications where a number of modems are required in the same location. The rack has
passed extensive approvals testing by both Westermo and external test houses, showing
the rack can operate in environments with a high level of electromagnetic interference.
Using the RV-07B and TR-36B allows a number of modems to be connected to a backplane thus eliminating unnecessary wiring and also saving space.
The modems slide into the chassis from the front and connect to the backplane that
provides all the connectors for the RS-422/485, RS-232, PSTN and Leased Line interfaces.
The RV-07B can be fully powered by either one or two Westermo PS-20 power supplies.
With two power supplies, redundant supply is possible. In case of a power failure, the
second power supply activates and an alarm signal can be set up through the built-in fault
relay.
The RV-07B rack is designed for use with the Westermo TR-36B modem, which is an analogue V.34 PSTN and Leased Line modem supporting modulation data rates up to 33.6
Kbit/s. For more information, please refer to the TR-36B documentation.
… Holds up to 16 TR-36B modems
… RS-232, RS-422 / RS-485 interface
… 2- and 4-wire Leased Line
… Industrial environment transient protection on all interfaces
… Tri-Galvanic isolation (interface/line/supply)
… Redundant power supply and fault relay
6
6130-2200
Interface specifications
Connector P3
Power RV-07B, External DC Power
Rated voltage Depending on which card inserted in the slot.
Operating voltage Depending on which card inserted in the slot.
Rated frequency Depending on which card inserted in the slot.
Power consumption Depending on which card inserted in the slot.
Polarity Polarity dependent
Redundant power input No
Isolation to All other ports 2 kVrms 50 Hz 1 min (GND excluded)
GND 500 kVrms 50 Hz 1 min
Connection Detachable screw terminal
2
Connector size 0.2 – 2.5 mm
Shielded cable Not required
(AWG 24 – 12)
Connector P3 populated with 16 TR-36B modems
Power TR-36B*
Rated voltage 12 to 48 VDC
Operating voltage 10 to 60 VDC
Rated current 2,0 A @ 12VDC
1,0 A @ 24VDC
0,64 A @ 48VDC
Rated frequency DC
Power consumption 35 W
Startup current 3,6 Apeak
Polarity Polarity dependent
* Maximum wire length to external power supply < 10.
External supply current capability for proper startup.
To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m
boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this port. This earth-
ing point should have a low impedance connection to the conductive enclosure of the apparatus cabinet, or
similar, where the unit is built-in. This conductive enclosure should be connected to the earthing system of an
installation and may be directly connected to the protective earth.
6130-2200
7
Connector X3,X4
Relay Alarm indication
Isolation to Power port 3kV
Signal ports 2kV
rms 50 Hz 1 min
rms 50 Hz 1 min
Connection Screw connector
Connector size 0.2 – 2.5 mm
2
(AWG 24 – 12)
Connector P1,P2
Power RV-07B, External AC Power
Rated voltage Depending on witch power card in use
Operating voltage Depending on witch power card in use
Rated current Depending on witch power card in use
Rated frequency Depending on witch power card in use
Inrush current, I2t Depending on witch power card in use
Startup current 1) Depending on witch power card in use
Polarity Depending on witch power card in use
Redundant power input Depending on witch power card in use
Isolation to All other ports 3 kVrms 50 Hz 1 min
Connection Detachable screw terminal
2
Connector size 0.2 – 2.5 mm
Shielded cable Not required
(AWG 24 – 12)
RV-07B populated with 16 TR-36B modems
and supplied with two PS-20 HV power cards
Power RV-07B, External 230 V
Rated voltage 100-240 VAC
Operating voltage 90-254 VAC
Rated current 470 mA @ 90 VAC
425 mA @ 100 VAC
310 mA @ 240 VAC
290 mA @ 254 VAC
Rated frequency AC
Polarity No polarity protection, an AC-product
Redundant power input Yes
Isolation to All other ports 3 kVrms 50 Hz 1 min
Connection Detachable screw terminal
2
Connector size 0.2 – 2.5 mm
Shielded cable Not required
LED indicators
(AWG 24 – 12)
LED RV-07B Status Description
+24V (green led) OFF 24 volt is not present
ON 24 volt is present
8
6130-2200
RV-07B with TR-36B
RS-422/485*
Electrical specification EIA RS-485
2-wire or 4-wire twisted pair
Data rate 300 bit/s to 115.2 kbit/s
Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits,
9-12 bits
Protocol Transparent
Retiming Yes
Turn around time <10 μs (half duplex)
Circuit type TNV-1
Transmission range ≤ 1200 m, depending on data rate and cable type (EIA RS-485)
Settings 120 Ω termination and failsafe biasing 680 Ω
Protection Installation Fault Tolerant (up to ±60 V)
Isolation to
Power port 3kV
PSTN line 2kV
Leased line 2kV
RS-232 2kV
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
Connection Screw connector
Connector size 0.2 – 2.5 mm
2
(AWG 24 – 12)
Shielded cable Not required
RS-232*
Electrical specification EIA RS-232
Data rate 300 bit/s to 115.2 kbit/s
Data format 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits,
9-12 bits
Protocol Transparent
Retiming Yes
Circuit type SELV
Transmission range Cable length <15 m
Isolation to
Power port 3kV
PSTN line 2kV
Leased line 2kV
RS-422/485 2kV
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
Connection 9-pin D-sub female (DCE)
Shielded cable Not required
Conductive housing Isolated to all other circuits
Miscellaneous Do not connect RS-232 and RS-422/485 simultaneously
* To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m
boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this port. This earth-
ing point should have a low impedance connection to the conductive enclosure of the apparatus cabinet, or
similar, where the unit is built-in. This conductive enclosure should be connected to the earthing system of an
installation and may be directly connected to the protective earth.
6130-2200
9
4
3
2
1
4
3
2
1
2
1
L
N
L
N
LED indicator
Protective earth
* Direction relative this unit.
10
Fault relay
see page 7
3-pos
Power
1 In Protective earth PE
2 In AC: Neutral, DC: –Voltage N
3 In AC: Line, DC: + Voltage L
Direction* Description
Product
marking
6130-2200
9-pos
D-sub
Direction* Description
1 Out Data Carrier Detect (DCD)
2 Out Received Data (RD)
3 In Transmitted Data (TD)
4 In Data Terminal Ready (DTR)
5 – Signal Ground (SG)
6 Out Data Set Ready (DSR)
7 In Request To Send (RTS)
8 Out Clear To Send (CTS)
9 Out Ring Indicator (RI)
9-pos
RS-422/485/
PSTN/
Direction* Description
Leased line
1 In R+ (EIA RS-485 A’) R+
2 In R– (EIA RS-485 B’) R–
Product
marking
3 In/Out T+ (EIA RS-485 A) T/R+
4 In/Out T– (EIA RS-485 B) T/R–
5 – Not used NC
6 In/Out PSTN /LL 4-wire transmit/ LL 2-wire Receive/transmit –
7 In/Out PSTN /LL 4-wire transmit/ LL 2-wire Receive/transmit –
8 In/Out LL 4-wire Receive/ LL 2-wire Receive/transmit at LL
PSTN backup
9 In/Out LL 4-wire Receive/ LL 2-wire Receive/transmit at LL
PSTN backup
2-pos
External
Direction* Description Product marking
1 In Common voltage COM
2 In + Voltage +V
–
–
* Direction relative this unit.
6130-2200
11
Public Switched Telephone Network (PSTN)
Electrical specification Public Switched Telephone Network
Data rate 300 bit/s to 33.6 kbit/s
Protocol B103, B212, V21, V22, V22B, V23C, V32, V32B, V34
Circuit type TNV-3
Isolation to
Power port 3kV
PSTN line 2kV
Leased line 2kV
RS-422/485 2kV
RS-232 2kV
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
Connection Screw connector
2
Connector size 0.2 – 2.5 mm
(AWG 24 – 12)
Shielded cable Not required
Leased Line (LL)
Electrical specification 2- or 4-wire Leased Line
Data rate 300 bit/s to 33.6 kbit/s
Protocol B103, B212, V21, V22, V22B, V23C, V32, V32B, V34
Transmission range
PSTN 30 dB
Leased Line max 40 dB
Protection Installation Fault Tolerant (up to ±60 V)
Isolation to
Power port 3kV
PSTN line 2kV
RS-422/485 2kV
RS-232 2kV
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
rms 50 Hz 1 min
Connection Screw connector
Connector size 0.2 – 2.5 mm
2
(AWG 24 – 12)
Shielded cable Not required
Fault relay*
Relay Direction Description Product marking
1 In/Out Signal 1
2 In/Out Normally closed 2
3 In/Out Normally open 3
4 Not in use 4
* The switch is incorporated with a user configurable fault contact (STAT pins) that enables network and switch
faults to be highlighted, see below.
The fault contact is a potential free, normally closed solid-state component and therefore requires power to
control the device. As standard the fault contact will always highlight Power Supply Failure.
12
6130-2200
Description
PS-20 – Power card
The PS-20 is a 90-254 VAC power supply designed to power the RV-07 and the RV-07B
racks. The power supply is designed to harsh industrial standards in applications where
a number of modems are required in the same location. The rack has passed extensive
approvals testing by both Westermo and external test houses, showing the rack can
operate in environments with a high level of electromagnetic interference.
… Industrial environment transient protection
… Tri-Galvanic isolation
Redundant power supply
…
Interface specifications
Power PS-20 HV
Rated voltage 100 to 240 VAC
Operating voltage 90 to 254 VAC
Mains/line current at 90VAC 1,6A
Output current 0 to +50ºC 4,2A
70ºC 3,2A
Rated frequency 50 – 60 Hz
Start-up current at 230VAC < 20A
Polarity Polarity independent
Connection RV-07B
PS-20 HV is intended to be insert into RV-07B.
Location of LED's
LED PS-20 HV Status Description
PWR (green led) OFF PS-20 HV has no power
ON PS-20 HV has power
6130-2200
13
Type tests and environmental conditions
Electromagnetic Compatibility
Phenomena Test Description Test levels
CE EN 50082-1 Emission
EN 55011 Emission Class B
CE EN 61000-6-2 Immunity Class 3
EN 61000-4-2 Immunity
EN 61000-4-3 Immunity
EN 61000-4-4 Immunity
EN 61000-4-5 Immunity
EN 61000-4-6 Immunity
EN 61000-4-11 Immunity
CE EN 60950 Safety Protection Class 1
UL1950
High voltage test EN 60950 Input-output 4,3 kV DC
Input-PE 2,2 kV DC
Output-PE 0,7 kV DC
UL 1950 E 153809
Environmental
Temperature Operating 0 to +70ºC
Storage & Transport -20 to +85ºC
Climatic test IEC 68-2-38
Reliability prediction (MTBF) Operating
At full load
Service life Operating 10 year
Shock and Vibration EN 60068-2-6 Acceleration 2g
Power supply
Maintenance-free
Packaging
Dimension W x H x D 30 x 100 x 160 mm
Weight 0,55 kg
Degree of protection IEC 529 Enclosure IP 20
Cooling Convection
270000h
(5V-220000h)
Ye s
Mounting RV-07B 19”Rack
14
6130-2200
Mounting /Removal
Before mounting or removing the unit:
This unit has one separate protective earthing terminal (marked with “symbol”), while
the unit is provided with two mains supply connectors. The grounding terminal of these
mains supply connectors is a functional earthing point only Prevent access to hazardous
voltages by disconnecting the unit from AC/DC mains supplies and all other electrical
connections. A protective earthing conductor should be connected to the protective
earthing terminal and have a cross-sectional area of at least 1.5 mm
internal electronics from electrostatic discharges (ESD) by discharging your body to a
grounding point (e.g. use of
wrist strap).
Mounting
This unit should be horizontally mounted with screws
in the holes located in the
left and right hand brackets on
the unit.
2
. Prevent damage to
Connect the protective earthing conductor to the protective earthing terminal,
before connection of any AC/DC mains supply or other electrical connections.
As this unit uses convection cooling, it is important to avoid obstructions that prevent
normal vertical airflow through the unit. For this reason a clearance of 1U below and
2U above the unit is recommended. These clearance distances should be increased if
heat from another unit is likely to cause an undesirable rise in temperature. Under no
circumstances should the air temperature around the unit exceed 15 degrees C above
the operating temperature of any modem installed in it. The unit should be installed in a
cabinet that has suitable fans and filters so that good airflow is maintained without the
ingress of dirt or dust.
Removal
Disconnect all AC/DC mains supplies and other electrical connections before the removal of protective earthing conductor from the protective earthing terminal.
Note:
• Always add modems from one end in the rack.
• To ensure proper galvanic connection between front panels, do not leave empty
slots between modems.
6130-2200
15
Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden
Phone +46 16 42 80 00 Fax +46 16 42 80 01
E-mail: info@westermo.se
Westermo Web site: www.westermo.com
Subsidiaries
Westermo Data Communications AB
Svalgången 1
SE-724 81 Västerås
Phone: +46 (0)16 42 80 00 • Fax: +46 (0)21 35 18 50
info.sverige@westermo.se
Westermo Data Communications Ltd
Talisman Business Centre • Duncan Road
Park Gate, Southampton • SO31 7GA
Phone: +44(0)1489 580-585 • Fax.:+44(0)1489 580586
E-Mail: sales@westermo.co.uk
Westermo Data Communications GmbH
Goethestraße 67, 68753 Waghäusel
Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9
E-Mail: info@westermo.de
Westermo Teleindustri AB have distributors in several countries, contact us for further information.
Westermo Data Communications S.A.R.L.
9 Chemin de Chilly 91160 CHAMPLAN
Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01
E-mail : infos@westermo.fr
Westermo Data Communications Pte Ltd
2 Soon Wing Road #08-05
Soon Wing Industrial Building
Singapore 347893
Phone +65 6743 9801 • Fax +65 6745 0670
sales@westermo.com.sg
REV.C 6130-2200 2008.12 Mälartryck AB, Eskilstuna, Sweden
Loading...
