Page 1
REV. A 6623-2280 2018-03 Westermo Teleindustri AB, Sweden
RT-370
User
Guide
Page 2
RT-370 User Guide
Page 2 (34)
Version History
Version Date Comments
A 2018-03 First version
License and copyright for included Free/Libre Open Source Software
This product includes software developed by third parties, including Free/Libre Open Source Software (FLOSS).
The specific license terms and copyright associated with the software are included in each software package
respectively. Please visit the product homepage for more information.
Upon request, the applicable source code will be provided. A nominal fee may be charged to cover shipping and
media. Please direct any source code request to your normal sales or support channel.
Page 3
RT-370 User Guide
Page 3 (34)
Table of Contents
1 Foreword ......................................................................................................................................................... 5
1.1 References ................................................................................................................................................ 5
1.2 Abbreviations and Terms........................................................................................................................... 5
2 RT-370 Introduction ........................................................................................................................................ 6
2.1 Supported Product Versions, Variants and SW ........................................................................................ 7
2.2 Important Safety Notes .............................................................................................................................. 7
2.3 Delivery Content ........................................................................................................................................ 8
2.4 Installation Countries ................................................................................................................................. 8
2.5 Regulatory Notices .................................................................................................................................... 9
2.5.1 United States (FCC) ........................................................................................................................... 9
2.5.2 Canada (IC) ........................................................................................................................................ 9
2.5.3 Certified Antennas for FCC and IC .................................................................................................. 10
2.6 Output power limitations .......................................................................................................................... 10
2.7 RT-370 Identification and Version Information ........................................................................................ 11
3 Technical Features ....................................................................................................................................... 13
4 Installation ..................................................................................................................................................... 13
4.1 Installation Procedure, Overview ............................................................................................................. 13
4.2 Dimensions for Fixing Points ................................................................................................................... 14
4.2.1 Mechanical Overview ....................................................................................................................... 14
4.2.2 Mechanical Integration, Fixing Points and Connector Positions ...................................................... 16
4.3 Considerations When Mounting the Device ............................................................................................ 17
4.3.1 Typical Power Consumption ............................................................................................................. 17
4.3.2 Temperature Alarms ......................................................................................................................... 17
4.3.3 General Installation Considerations ................................................................................................. 17
4.3.4 Outdoor Installation with Sun Load .................................................................................................. 17
4.3.5 Ambient Operating Temperature Range .......................................................................................... 17
4.3.6 Installations at Very High Temperatures .......................................................................................... 18
4.4 Connecting the System Grounding ......................................................................................................... 20
4.5 Connecting the RF Antenna Interfaces ................................................................................................... 21
4.5.1 RF Antenna Interface Operation Modes .......................................................................................... 21
4.5.2 Monitoring Antenna RF Connector ................................................................................................... 22
4.5.3 Communication Antenna RF Connectors ......................................................................................... 23
4.6 Connecting the Fiber Optical Cable ........................................................................................................ 24
4.7 Connecting the AC Power Feed .............................................................................................................. 25
4.7.1 Power Consumption Examples ........................................................................................................ 27
5 Outdoor Radio Access Point Configuration and Use ............................................................................... 29
5.1 LED Indicators During Power Up Sequence ........................................................................................... 29
5.2 Connecting the service Ethernet ............................................................................................................. 29
5.2.1 Service Ethernet Port Features ........................................................................................................ 30
5.3 RT-370 Factory Reset Interface, Process for Factory Reset .................................................................. 31
5.3.1 Factory Reset Adapter Specification ................................................................................................ 31
5.3.2 Factory Reset Proced ur e ................................................................................................................. 32
6 Maintenance .................................................................................................................................................. 33
6.1 Cleaning– Resistance to Chemicals ........................................................................................................ 33
6.2 Troubleshooting Based on Functional Behavior ..................................................................................... 34
6.3 Repair Work ............................................................................................................................................. 34
6.3.1 Product Exchange ............................................................................................................................ 34
Page 4
RT-370 User Guide
Page 4 (34)
Figures and Tables
Figure 1 RT-370 .......................................................................................................................................................... 6
Figure 2 RT-370 Block diagram .................................................................................................................................. 6
Figure 3 Product identification label position ............................................................................................................ 11
Figure 4 Product identification label example ........................................................................................................... 11
Figure 5 Product label exam ple ................................................................................................................................ 12
Figure 6 RT-370 Mechanical overview ..................................................................................................................... 14
Figure 7 RT-370 connectors ..................................................................................................................................... 16
Figure 8 Installation with blocked airflow shall be avoided ....................................................................................... 18
Figure 9 Installation with free airflow – good installation .......................................................................................... 18
Figure 10 Improved heat transfer based on fixing plate ........................................................................................... 19
Figure 11 The grounding screw ................................................................................................................................ 20
Figure 12 Monitoring antenna interf ac e .................................................................................................................... 22
Figure 13 Communication antenna interfaces .......................................................................................................... 23
Figure 14 Fiber optic ETH interface .......................................................................................................................... 24
Figure 15 AC interface .............................................................................................................................................. 25
Figure 16 Power, operation, failure and FO Ethernet interface LEDs ...................................................................... 29
Figure 17 Service 1000Base-TX interface................................................................................................................ 30
Figure 18 Factory reset plug X-coded ...................................................................................................................... 31
Table 1 Supported product versions, variants and SW .............................................................................................. 7
Table 2 Important safety notes ................................................................................................................................... 7
Table 3 Delivery content ............................................................................................................................................. 8
Table 4 Installation countries ...................................................................................................................................... 8
Table 5: FCC and IC certified antennas ................................................................................................................... 10
Table 6: Output power limitations ............................................................................................................................. 10
Table 7 Product identification ................................................................................................................................... 11
Table 8 Product label information ............................................................................................................................. 12
Table 9 Installation procedure .................................................................................................................................. 13
Table 10 Dimensions and weight ............................................................................................................................. 15
Table 11 Fixing points and connector positions ....................................................................................................... 16
Table 12 Installation procedure, fixing the protective earth ...................................................................................... 20
Table 13 Pinning: RF antenna connector ................................................................................................................. 21
Table 14 RF Antenna interface operation ................................................................................................................ 21
Table 15 Pinning: Fiber optic ETH connector ........................................................................................................... 24
Table 16 Fiber optic ETH specification ..................................................................................................................... 24
Table 17 Installation procedure, installing fiber optical cable ................................................................................... 24
Table 18 Pinning: AC Mains Connector ................................................................................................................... 25
Table 19 Installation Procedure, Installing AC Cable ............................................................................................... 25
Table 20 Power feed specification ............................................................................................................................ 26
Table 21: 2.4 GHz power consumption with 100 VAC ............................................................................................. 27
Table 22: 2.4 GHz power consumption with 230 VAC ............................................................................................. 27
Table 23: 5 GHz power consumption with 100 VAC ................................................................................................ 28
Table 24: 5 GHz power consumption with 230 VAC ................................................................................................ 28
Table 25 Service 1000Base-TX Connector .............................................................................................................. 30
Table 26 4.6.1 Ethernet port features ....................................................................................................................... 30
Table 27 Factory reset procedure ............................................................................................................................ 32
Table 28 Exchange flow ........................................................................................................................................... 34
Page 5
RT-370 User Guide
Page 5 (34)
1 Foreword
This document describes the Installation procedure of the RT-370 device.
1.1 References
No. Title
[1] Software Management Guide
[2] RT-370 Datasheet
1.2 Abbreviations and Ter m s
Abbreviation Description
AP Access Point
BSSID Basic Service Set ID
EMC Electro Magnetic Compatibility
ETH Ethernet
FAI First Article Inspection
FO Fiber Optic
GW Gateway
HTTP Hyper Text Transfer Protocol
IC Industry Canad a
ID Identification
IP Internet Protocol
LED Light Emitting Diode
MAC Media Access Control
MMI Man-Machine Interface
ODC-2 Fiber Optical Outdoor Connector from Huber & Suhner (H&S)
OD RAP Outdoor Radio Access Point
PE Protective Earth
RSSI Receive Signal Strength Indicator
RX Receive
SN Serial Number
SNMP Simple Network Management Protocol
STA Station
TRE Trackside Radio Equipment
TX Transmit
WLAN Wireless Local Area Network
Page 6
RT-370 User Guide
Page 6 (34)
2 RT-370 Introduction
The RT-370 is a wireless communication product, developed for demanding industrial and railway applications.
It is a radio device operating at 2.4 and 5 GHz WLAN bands, and can be configured as Access Point.
The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and
maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local
LED status indicators, and through SNMP/WebGUI.

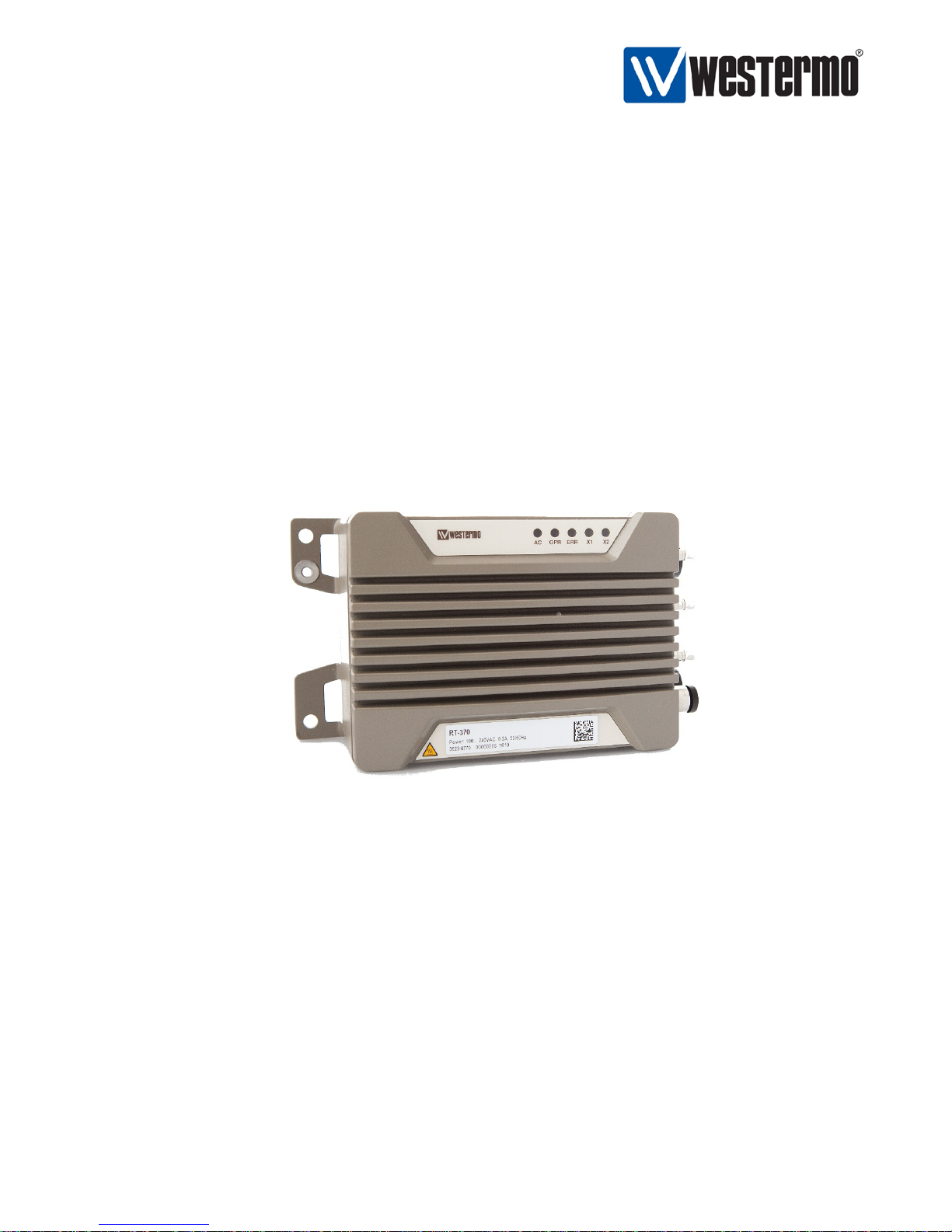

Figure 1 RT-370

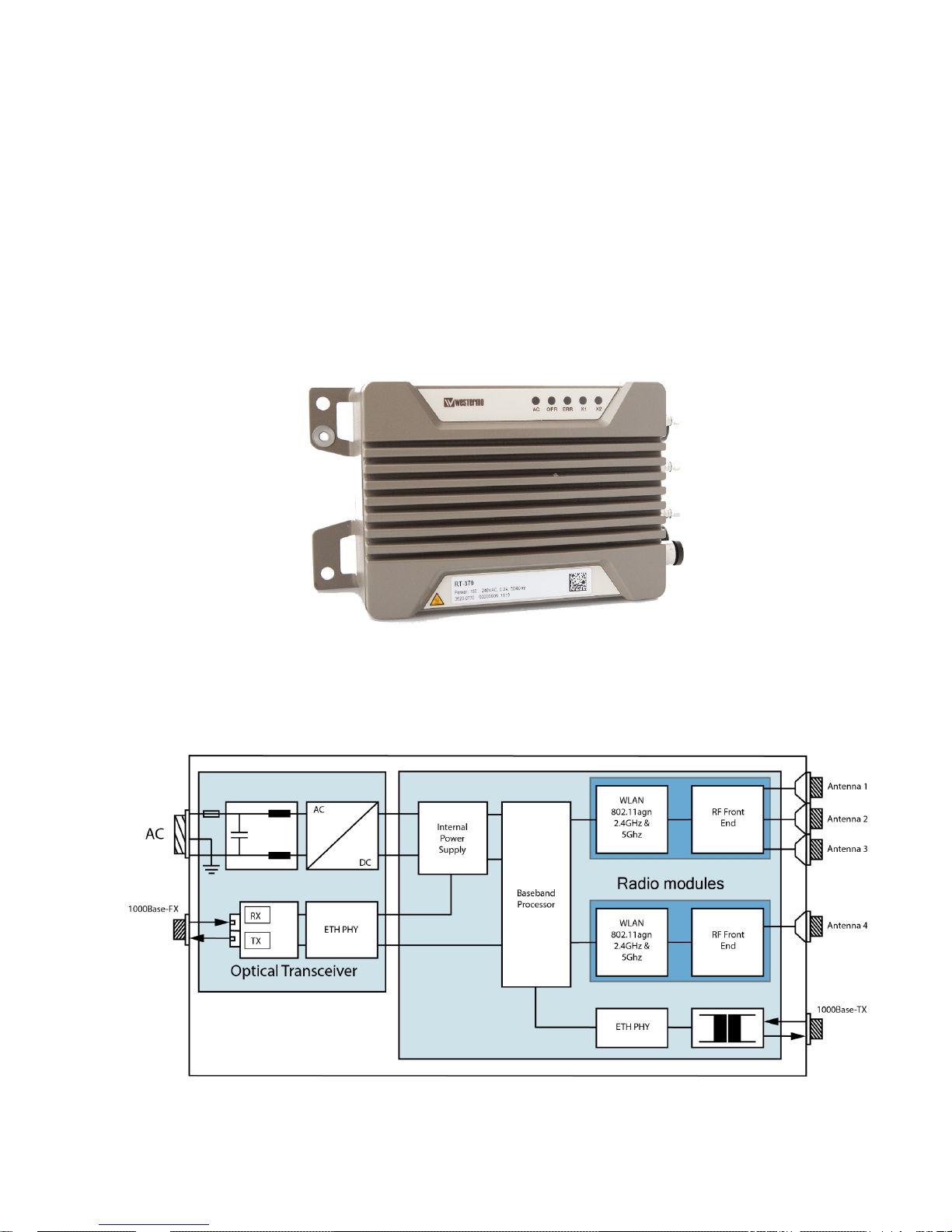

The RT-370 functional block diagram is shown in Figure 2.
Figure 2 RT-370 Block diagram
Page 7
RT-370 User Guide
Page 7 (34)
2.1 Supported Product Vers ions, Variants and SW
Supported product versions, variants and SW:
Specification Value Notes
Product Versions/ Variants RT-370
Software Version V6.6 and higher
Table 1 Supported product versions, variants and SW
2.2 Important Safet y Notes
Notice
The optical fast Ethernet interface of this device uses a class 1 laser product. It complies with EN
60825-1 and FDA 21 CFR 1040.10 and 1040.11
The laser is eye-safe under all operating conditions.
Danger!
Do not use damaged equipment and/or accessories such as damaged power cord.
Danger!
Never try to open the device. There are no serviceable parts inside! By trying to open the device you
will be exposed to a risk of death or injury.
Warning!
Product warranty gets void and any liability will be disclaimed when opening the device.
Warning!
Read this user guide carefully before mounting, installing and operating the device.
Warning!
Never unplug equipment from the electrical outlet by holding the cord only, always disconnect the
cable by applying force directly to the plug.
Warning!
Do not operate the device in any other environmental conditions than it is designed for.
Table 2 Important safety notes
Page 8
RT-370 User Guide
Page 8 (34)
2.3 Delivery Content
The delivery consists of following main components:
Description Number of Parts Notes
RT-370 1
Connector Dust Cap 6
Temporary protection of connectors:
- 1 plastic cap for FO connector
- 1 plastic cap for ETH connector
- 4 plastic caps for antenna connectors
Table 3 Delivery content
2.4 Installation Countries
Installation country regulatory limits and operating parameters are controlled by Software Country Code
parameter.
This product supports:
Country Code Operating Frequency Ranges Notes
Europe (EU) 2412 … 2472 MHz and
5180 … 5320 MHz,
5500 … 5700 MHz
Operation according to ETSI limitations
For detailed specification, refer to document [1]
United States
(USA)
2412 … 2472 MHz and
5180 … 5320 MHz,
5500 … 5700 MHz
5725 … 5850 MHz
Operation according to FCC limitations
For detailed specification, refer to document [1]
Canada (CANADA) 2412 … 2472 MHz and
5180 … 5320 MHz,
5500 … 5700 MHz
5725 … 5850 MHz
Operation according to IC limitations
For detailed specification, refer to document [1]
Table 4 Installation countries
Note: Further Software releases might support additional country codes, for up-to-date country code specification
refer to document [1]
Page 9
RT-370 User Guide
Page 9 (34)
2.5 Regulatory Notices
Caution!
Any changes or modifications shall be approved by the party responsible for compliance. If not, users could void
the user's authority to operate the equipment.
Country code and antenna gain needs to be set properly for correct functionality in the installed country.
2.5.1 United States (FCC)
The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(i.) this device may not cause harmful interference and (ii.) this device must accept any interference received,
including interference that may cause undesired operation.
Contains FCC ID: 2AEJD-103902-DT50RF
RF Exposure requirements:
To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more
should be maintained between the antenna of this device and persons during operation. To ensure compliance,
operations at closer distances than this are not recommended.
Antennas:
The device can operate with the antennas listed in 2.5.3.
2.5.2 Canada (IC)
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence.L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage.
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
IC Certification Number of the implemented WLAN communication module: 9301A-103902DT50
Antennas:
The device can operate with the antennas listed in 2.5.3.
Page 10
RT-370 User Guide
Page 10 (34)
2.5.3 Certified Antennas for FCC and IC
The following antennas can be used with the device (the antenna type ID has to be set to the right value):
Type Part number Manufacturer Gain Chains Antenna
Type ID
Dipole F51-N Tekfun 2 GHz: 4.5 dBi max
5 GHz: 7 dBi max
1, 2, 3 04
Patch SPA 2400/75/8/0/V Huber & Suhner 2 GHz: 7.5 dBi max 1, 2, 3 05
Patch SPA-5600/40/14/0/V_2 Huber & Suhner 5 GHz: 14 dBi max 1, 2 06
Patch SPA-5600/65/9/0/ MIMO Huber & Suhner 5 GHz: 9 dBi max 1, 2, 3 07
Shark SPA-5600/45/12/10/V Huber & Suhner 5 GHz: 12 dBi max 1, 2 08
Table 5: FCC and IC certified antennas
2.6 Output power limitations
The RT-370 has following output power limitations for ambient temperatures from -40°C to +70°C .
Active antennas Max. output power
1 22 dBm per chain
2 22 dBm per chain
3 22 dBm per chain
Table 6: Output power limitations
Page 11
RT-370 User Guide
Page 11 (34)
2.7 RT-370 Identification and Version Information
Product identification infor mation is available at the product label. The produc t la bel is fixed to the device.

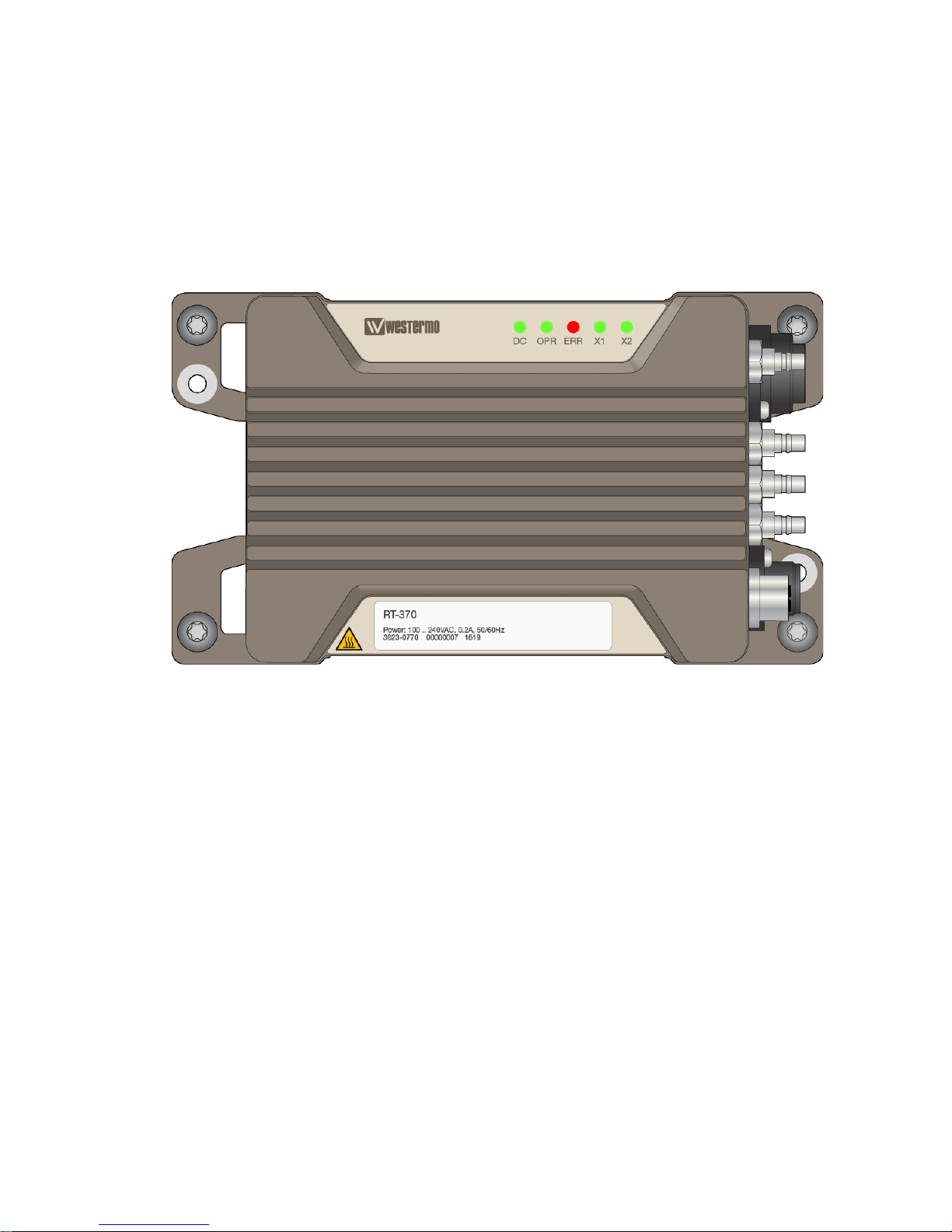

Figure 3 Product identification label position

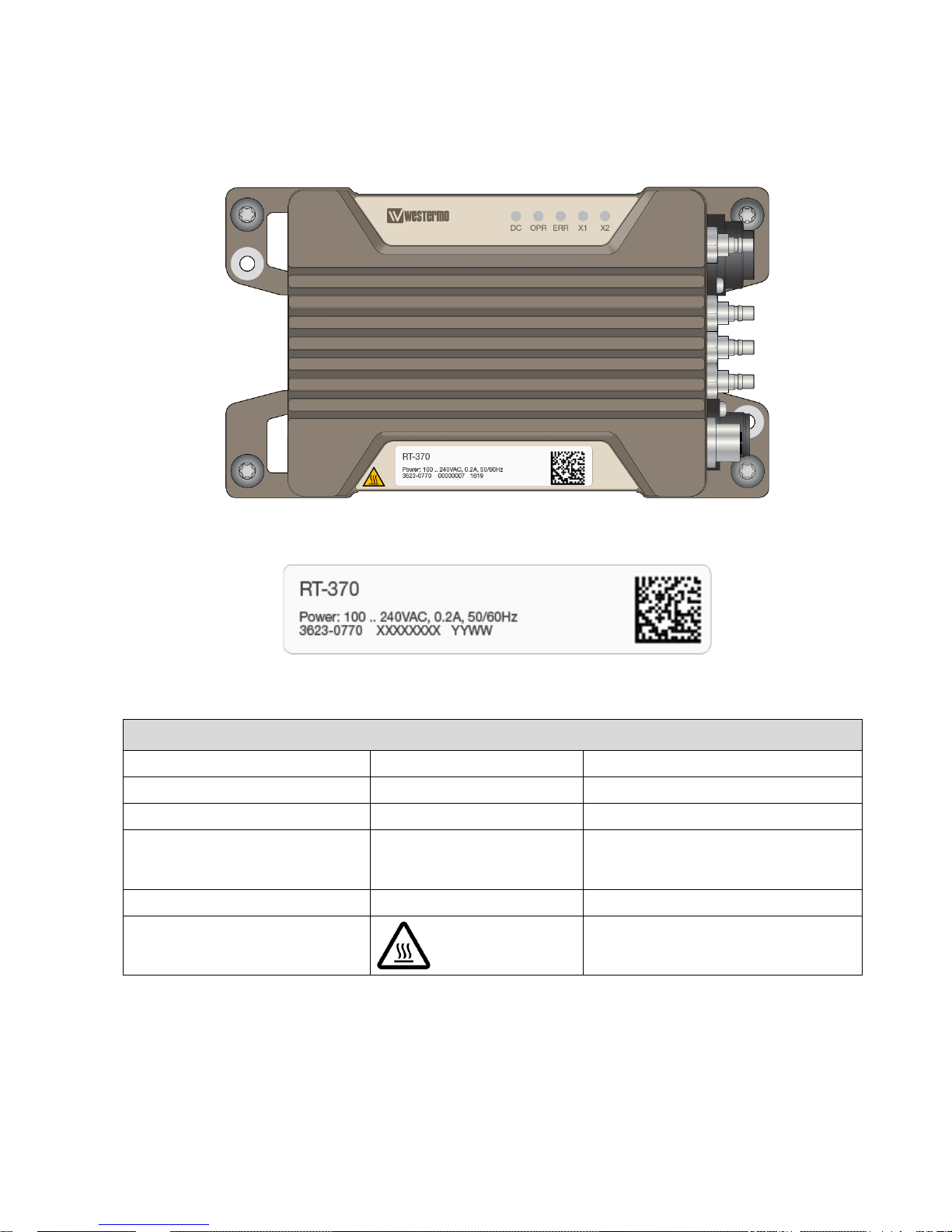

Figure 4 Product identification label example
Specification Value Notes
Product Name RT-370
Part Number 3623-0770
SN XXXXXXXX
Internal serial number
Manufacturing Date YYWW
The date format is:
YY = manufacturing year
WW = manufacturing week
BAR CODE SN information
Data matrix
Hot surfaces
Surface temperature can be above 60°C
Table 7 Product identification
Page 12
RT-370 User Guide
Page 12 (34)

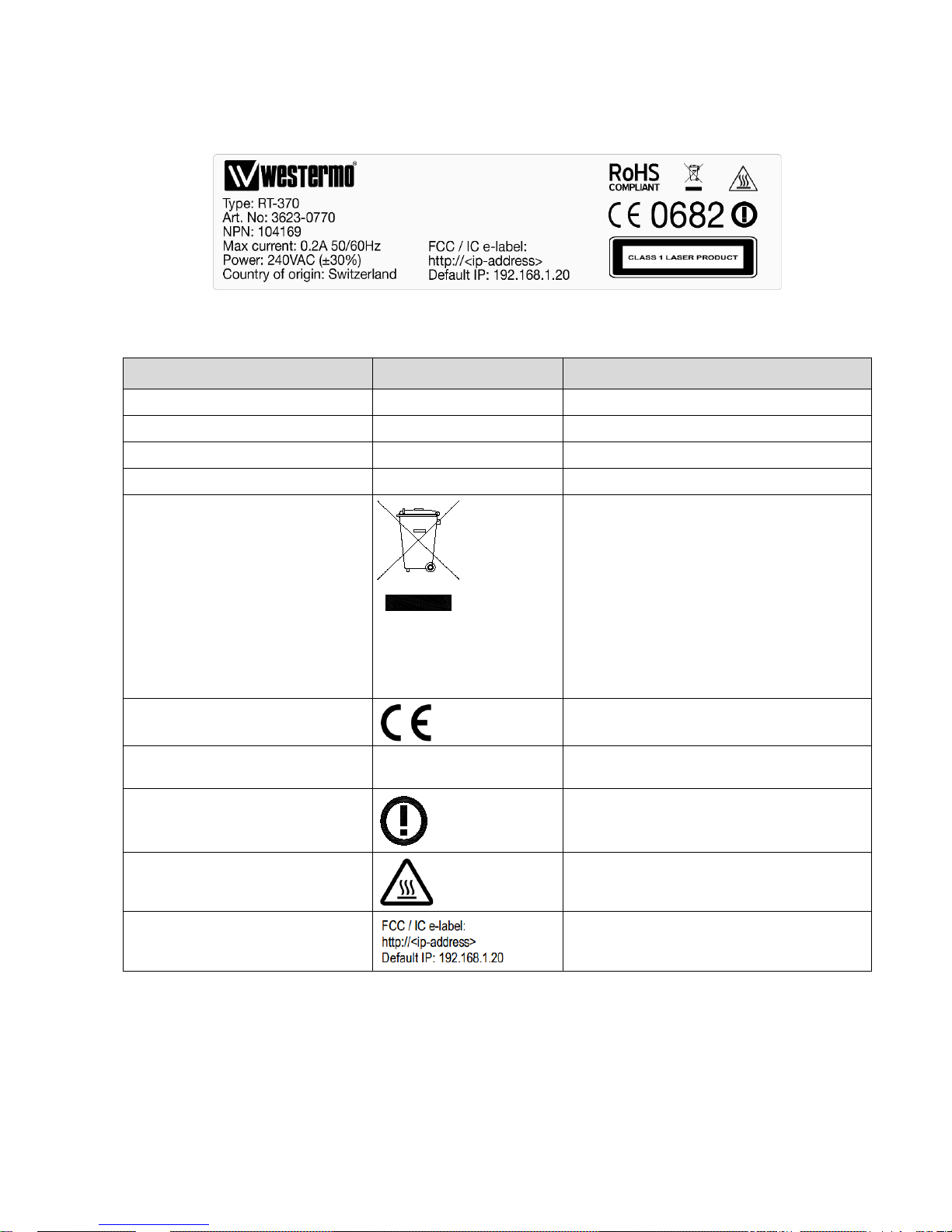

At the rear side of the product further product specific information is printed to a second label.
Figure 5 Product label example
Specification Value Notes
Product Name RT-370
Part Number 3623-0770
Max current 0.2 A
Information on input current
Power
Information on input power feed
WEEE
This symbol, found on the product indicates
that this product should not be treated as
household waste when disposing of it.
Instead it must be handled over to an
applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed correctly,
you will help prevent potential negative
consequences to the environment and human
health, which could be otherwise be caused
by inappropriate disposal of this product.
CE
CE mark
Notified body 0682
Identification number of the notified body
Cetecom ICT Services GmbH Germany
R&TTE directive
Class 2 radio equipment for which restrictions
apply to putting into service.
Hot surfaces
Surface temperature can be above 60°C.
FCC / IC e-label
Link to the FCC / IC e-label
Table 8 Product label information
Page 13
RT-370 User Guide
Page 13 (34)
3 Technical Features
Technical features are described in the ref erenc e document [2].
4 Installation
4.1 Installatio n Procedure, Overview
Order of Installation Step Description
1. Fixing The product is fixed in operating environment, ensuring that the environment
complies with the installation environment constrains. See chapter 4.2
2. System Grounding The system grounding is ensured and verified based on customer installation.
See chapter 4.4
3. Antennas The antenna interfaces are installed based on customer requirements. See
chapter 4.5
4. Ethernet The Ethernet data interface is installed. See chapter 4.6
5. Power Feed Power feed cable is connected (the power may be already activated in the cable),
the power supply is switched on and verify that the LED indicators shows correct
power up procedure. See chapter 0
6. Configuration The configuration process is described in reference document [1] chapter:
Configuration.
Table 9 Installation procedure
Page 14
RT-370 User Guide
Page 14 (34)
4.2 Dimensions for Fixing Poi nt s
4.2.1 Mechanical Overview

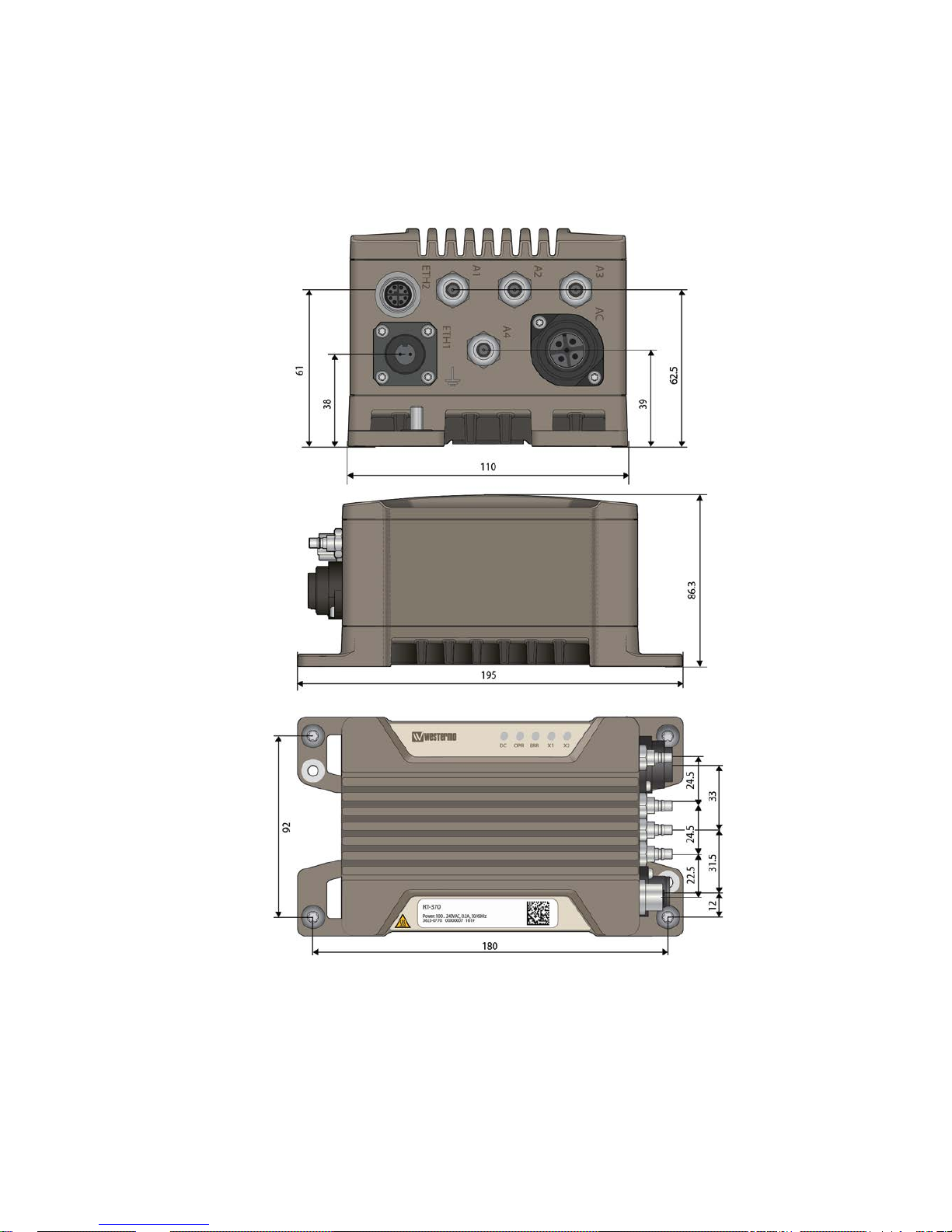

Figure 6 RT-370 Mechanical overview
Page 15
RT-370 User Guide
Page 15 (34)
Parameter Value Notes
Maximum dimensions
195 x 110 x 86.3 mm Without cables
Maximum dimensions, with cables
but not including antennas
App 320 x 110 x 87 mm Space needed for installation
Clearance
300 mm For cabling
Location of the fixing points
In each corner With four M6 screws
Color
RAL 7006, beige grey Powder coating
Protection
IP66
Weight
1.75 kg
Table 10 Dimensions and weight
Page 16
RT-370 User Guide
Page 16 (34)
4.2.2 Mechanical Integration, Fixing Points and Connector Positions
The product must be fixed with the four fixing points located at the corners of the product. M6 screws shall be
used for the fixation of the product. The screws shall be tightened with min. 3.0Nm (fixing screw ISO 898/1, quality
class 8.8).
NOTICE: All four specified fixing points must be used for fixing. The fixing surface should be flat to have all fixing
points connected to the surface.
The product has a membrane vent at the bottom of the product for equalizing pressure changes.
NOTICE: The vent does not require any maintenance. Any manipulations at the vent are not allowed.
Specification Value
Fixing holes
positions
Fixing holes without threads, for 6 mm screws: four pieces of slot holes, see: Figure 6
0 mm, 92 mm 180 mm, 92 mm
0 mm, 0 mm 180 mm, 0 mm
RT-370 fixing
screws
M6 screws/ 6 mm screw, screw length to be selected by installer based on installation
environment and device weight
Clearance Slot holes require a clearance of min. 10 mm at the long side of the RT-370 for correct
installation and removal. Clearance for heat transfer is to be considered separately.
Connector
positions

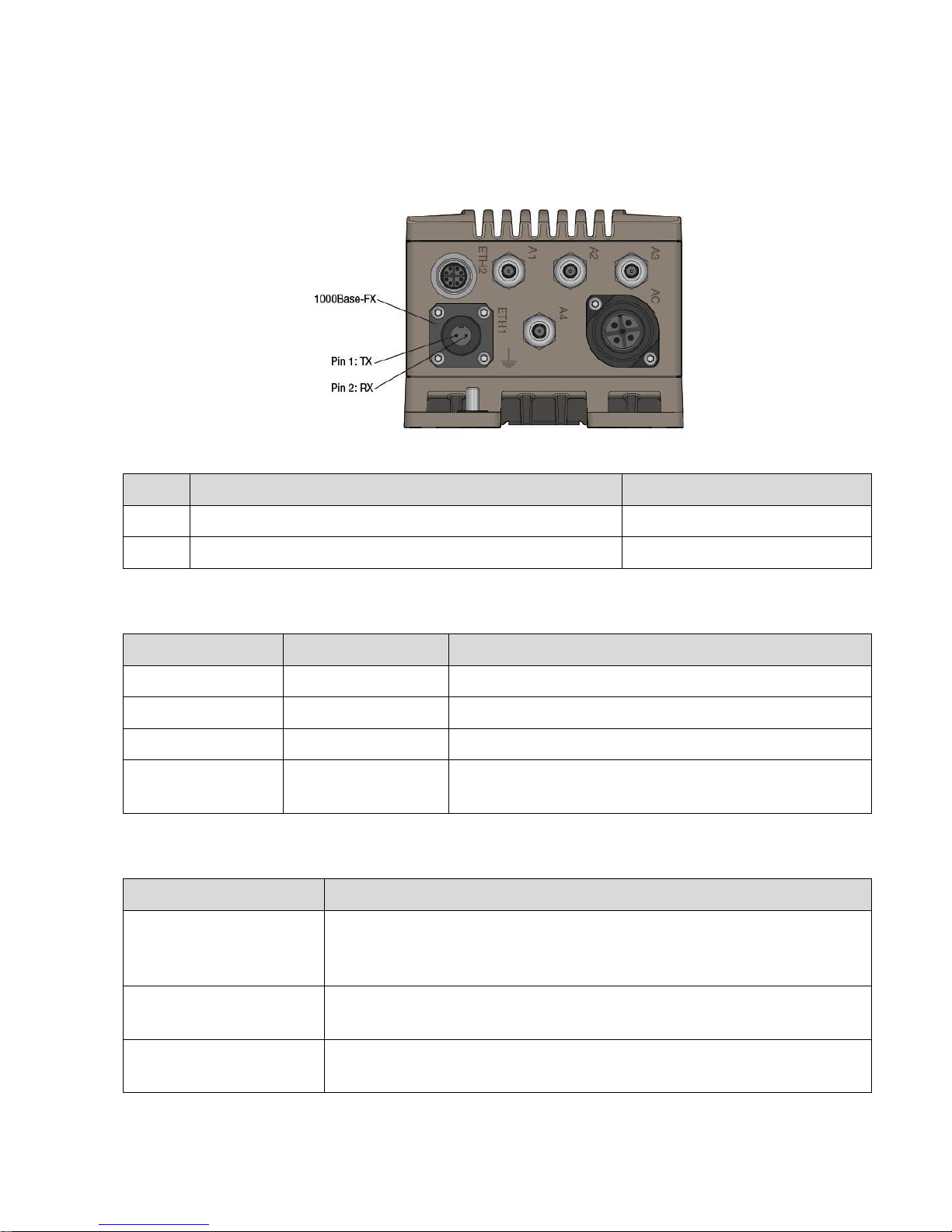

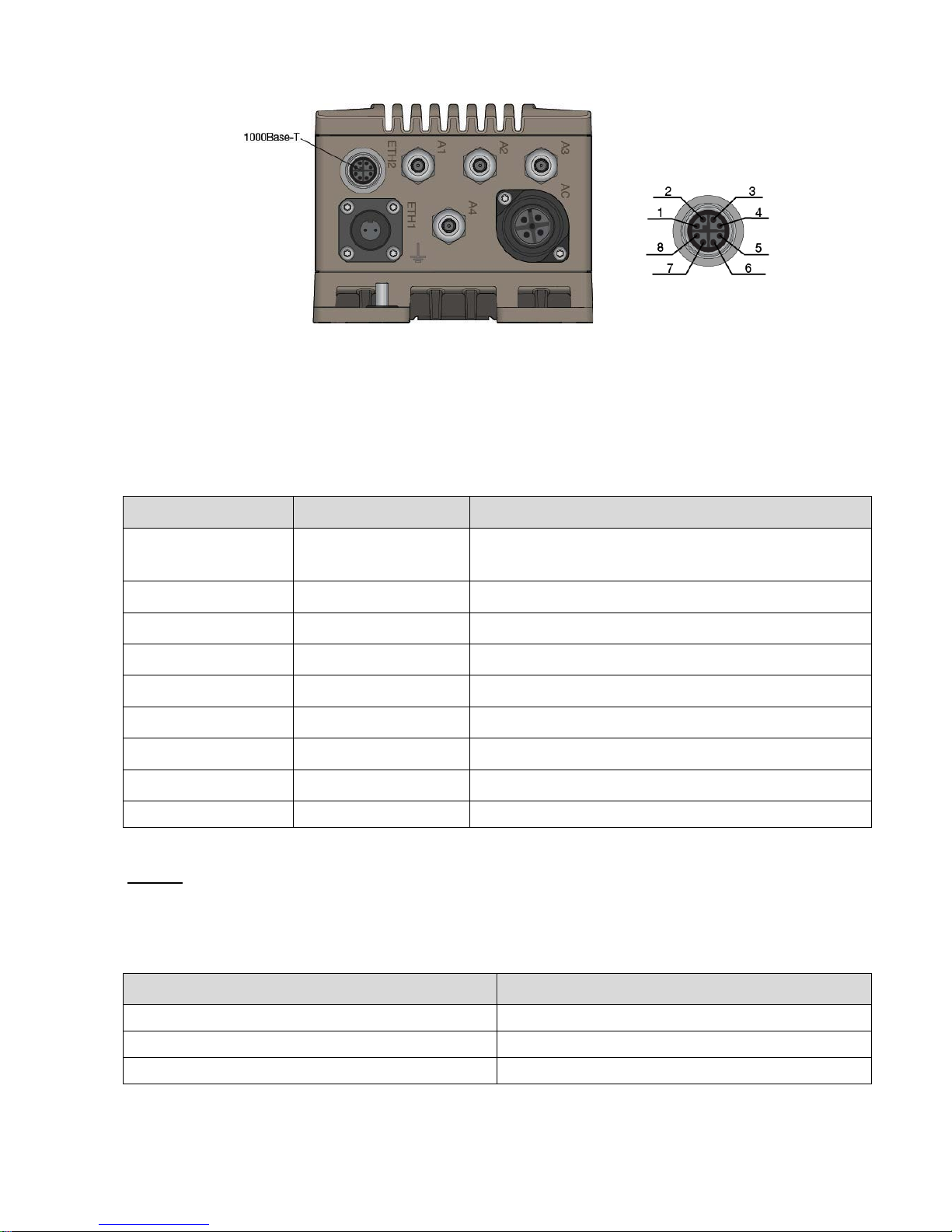

AC POWER Antenna 1 Antenna 2 Antenna 3 100Base-FX FO
ETH
100Base-TX
ETH
See
Figure 7
Figure 15
See
Figure 7
Figure 13
See
Figure 7
Figure 13
See
Figure 7
Figure 12
See
Figure 7
Figure 14
See
Figure 7
Figure 17
Grounding See Table 12
Table 11 Fixing points and connector positions

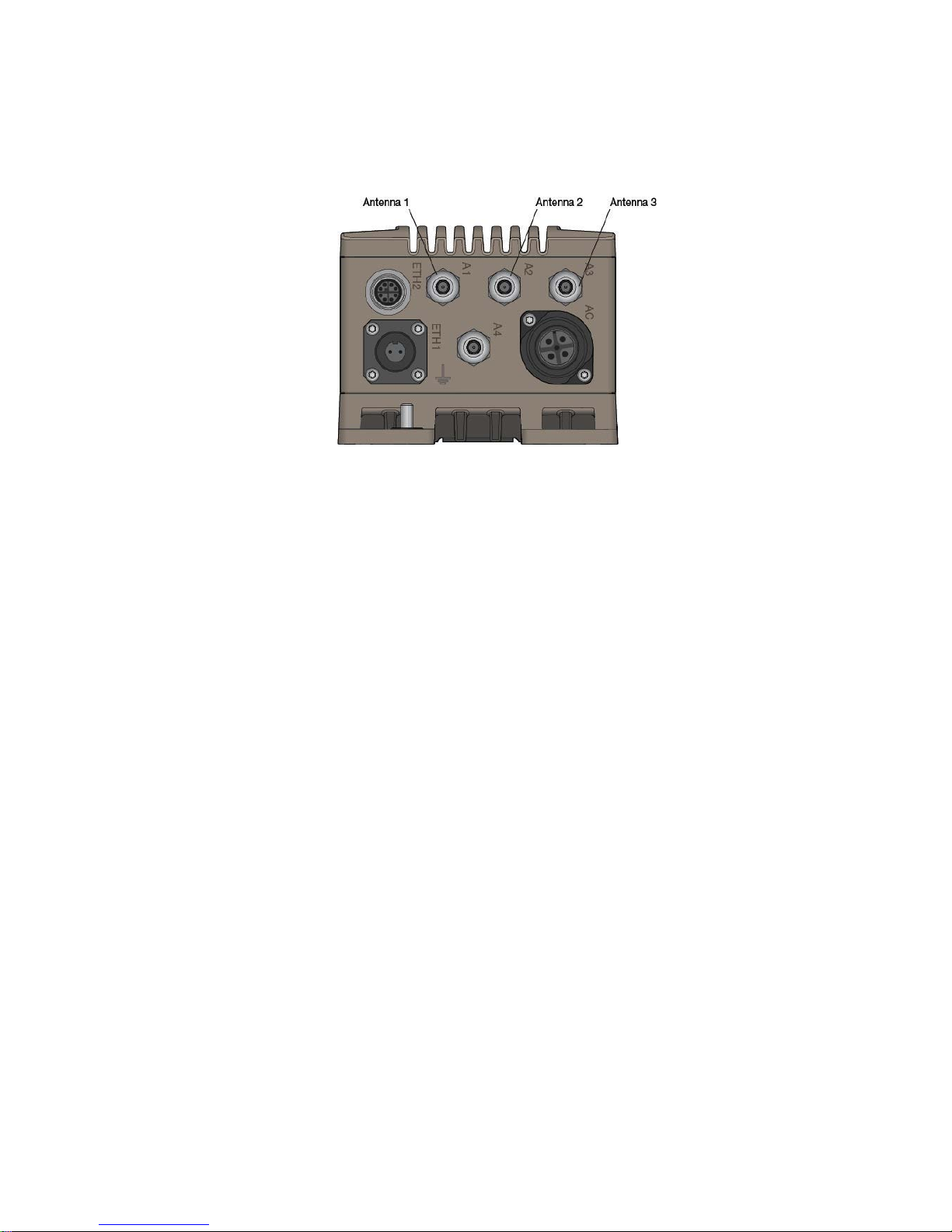

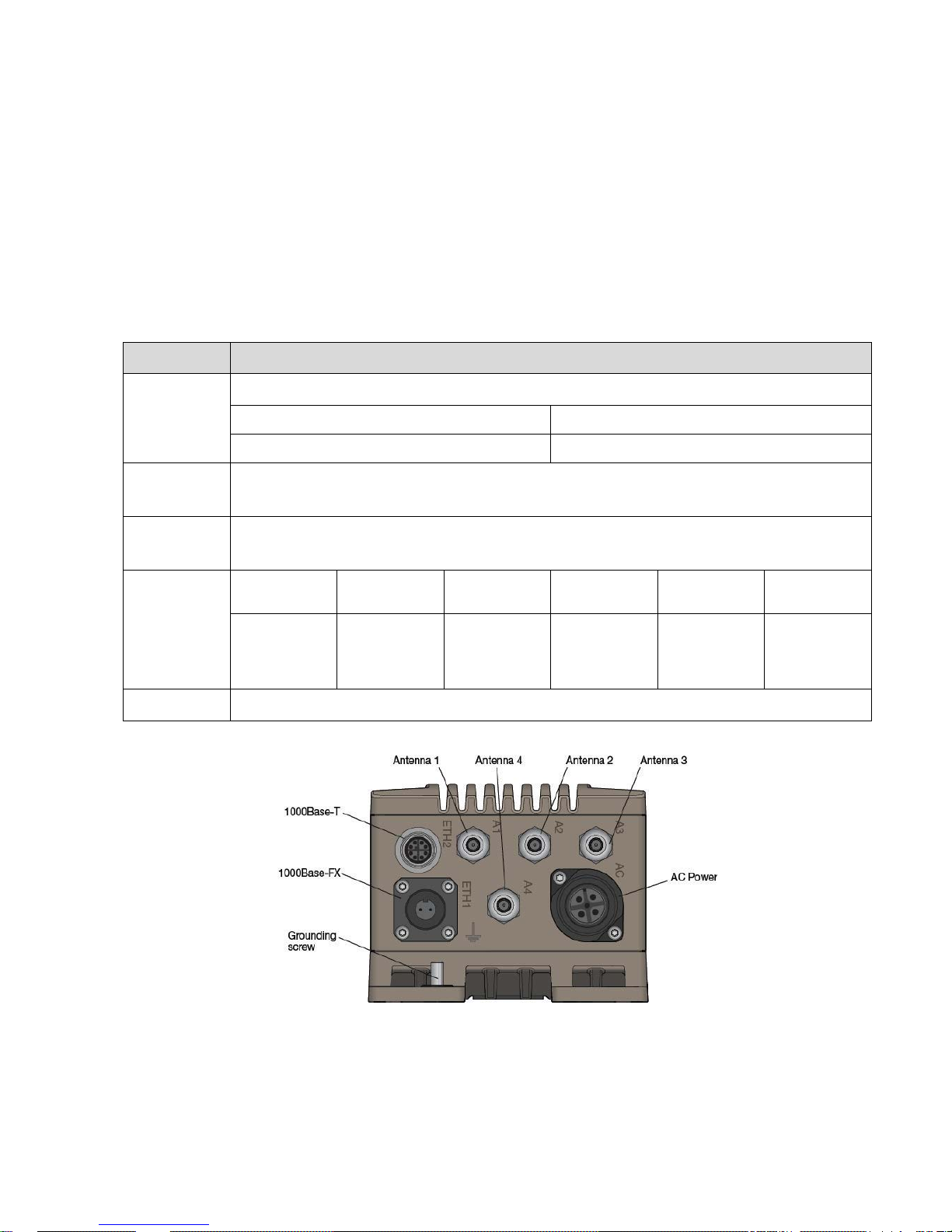

Figure 7 RT-370 connectors
Page 17
RT-370 User Guide
Page 17 (34)
4.3 Considerations When Mounting the Device
4.3.1 Typical Power Consumption
• For normal operation the power consumption is app. 10 W
• The power consumption for standby operation (sending beacons, no associated client) is app. 8.5 W
4.3.2 Temperature Alarms
The product has integrated temperature sensors for monitoring the internal device temperature. The limits for the
sensors are set so, that operation without alarm is ensured for ambient temperatures as specified assuming
correct installation.
4.3.3 General Installation Considerations
When planning an installation at least the following points shall be considered:
• Indoor: protecting for dust (to ensure heat dissipation), vandalism, animals (rats, birds etc)
• Outdoor: protecting for sun (to optimize ambient temperature range), dust, dirt, vandalism etc.
4.3.4 Outdoor Installation with Sun Load
For installation at places where the product would be exposed to direct sunshine, user must take care that the
ambient temperature range is ensured under the sun load conditions. Direct sun load is heating the product and
therefore limiting the max ambient temperature (assumed temperature rise due to 1000 W/m2 sun load: 15°C).
There are temperature alarms built in the product alarming for too high temperatures. For more details see SW
User Guide.
A protective housing with the goal to block the sunshine could be implemented to protect the product from sun
load. The protective housing still needs to ensure air circulation around the product.
4.3.5 Ambient Operating Temperature Range
The RT-370 includes a vent allowing controlled air exchange due to temperature changes. Humidity is blocked by
the vent.
To ensure correct operation over the whole specified temperature range, certain aspects need to be considered.
The limits are defined for installations with free air flow in installation environment.
It shall be noted that in real environment:
• Limited air flow is rising the device temperature and may lower the upper limit of the operating temperature
range
• Conducted heat exchange through metal surfaces at the product fixing point is improving the device heat
transfer and improving the operating conditions
• Temperature is dependent on operation parameters, like RF output power, amount of traffic
• RT-370 has internal temperature sensors that will issue alarms for too high or too low temperature. The
operating conditions shall be ensured so that the normal operation does not cause temperature alarms. Any
Page 18
RT-370 User Guide
Page 18 (34)
temperature alarms shall be immediately rectified. See reference document [1] for detailed specification of the
temperature sensors alarms.
• The internal temperature alarms are adjusted so that the device supports the operating ambient temperatures
for the nominal application scenario, i.e. considering typical power consumption of 7 W
• In real environment the power consumption will be slightly lower due to the fact that there are not always trains
associated in the AP, typical real installation power consumption is in range 7..9 Watts
4.3.6 Installations at Very High Temperatures
For installations, where the product is operated close to its maximum specified ambient temperature (+55°C
<TAmbient < +70°C), it must be ensured that the natural convection is not blocked by objects nearby.

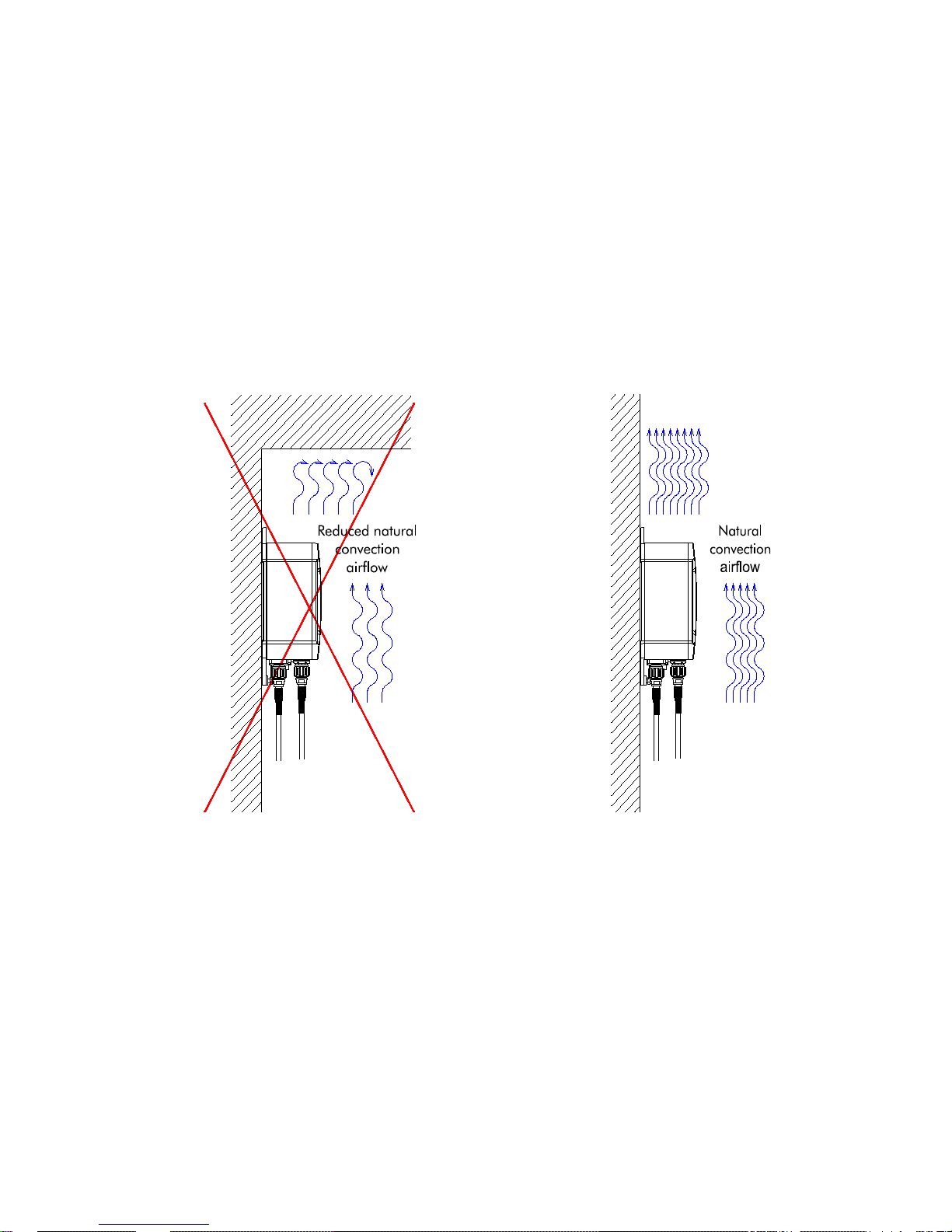

Figure 8 Installation with blocked airflow shall be
avoided
Figure 9 Installation with free airflow – good
installation
Page 19
RT-370 User Guide
Page 19 (34)

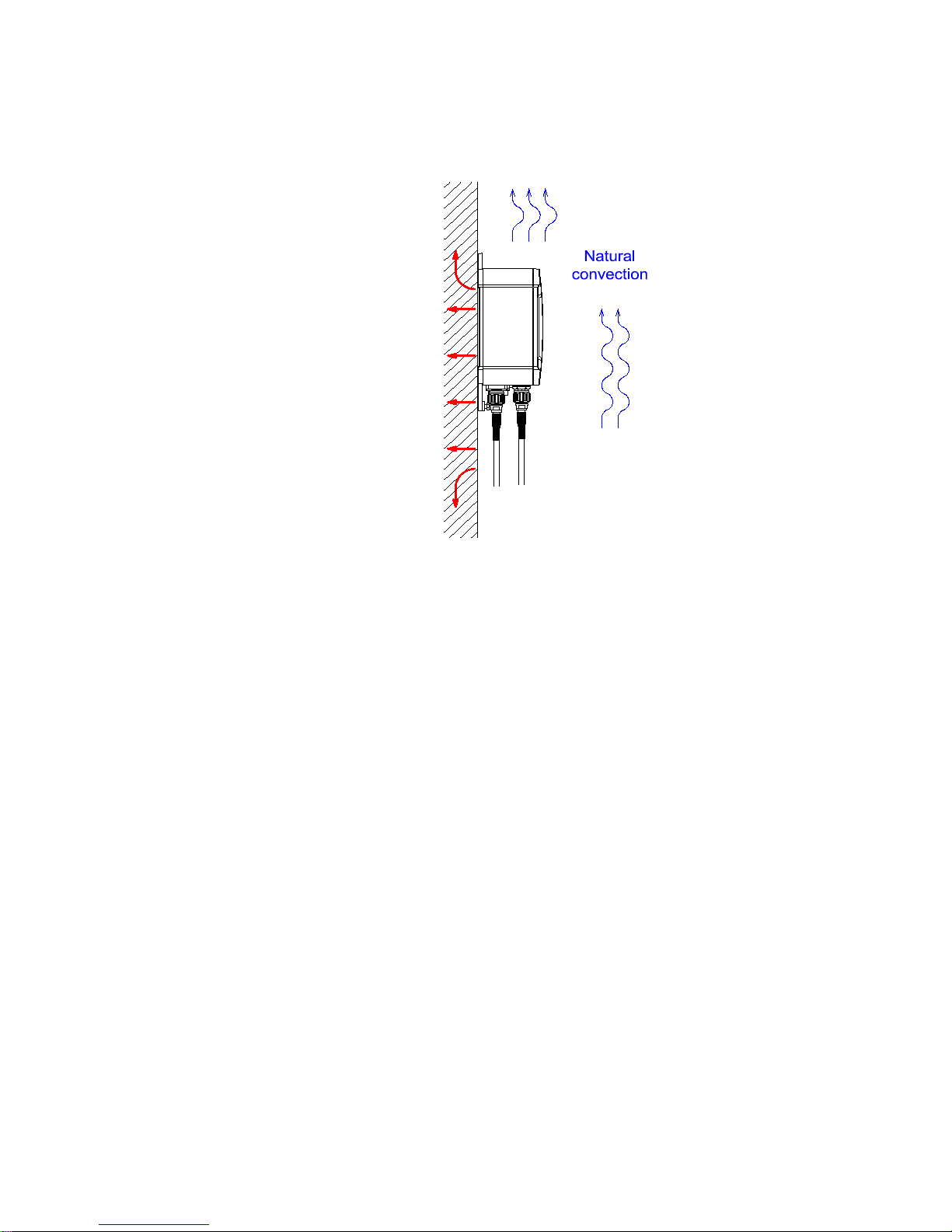

When operating at ambient temperatures above app. +60C it is recommended to mount the product to a metallic
base plate to improve the heat dissipation. The base plate increases the surface to spread the heat.
Figure 10 Improved heat transfer based on fixing plate
Page 20
RT-370 User Guide
Page 20 (34)
4.4 Connecting the System Grounding
In the RT-370 construction, the housing is connected to the protective earth, signal ground. The RF antenna
interfaces are referenced to the GND. The 1000BASE-TX Ethernet data interface is isolated.
There are two protective earth connection points, one at the AC connector and a second one at the grounding
screw at the housing.

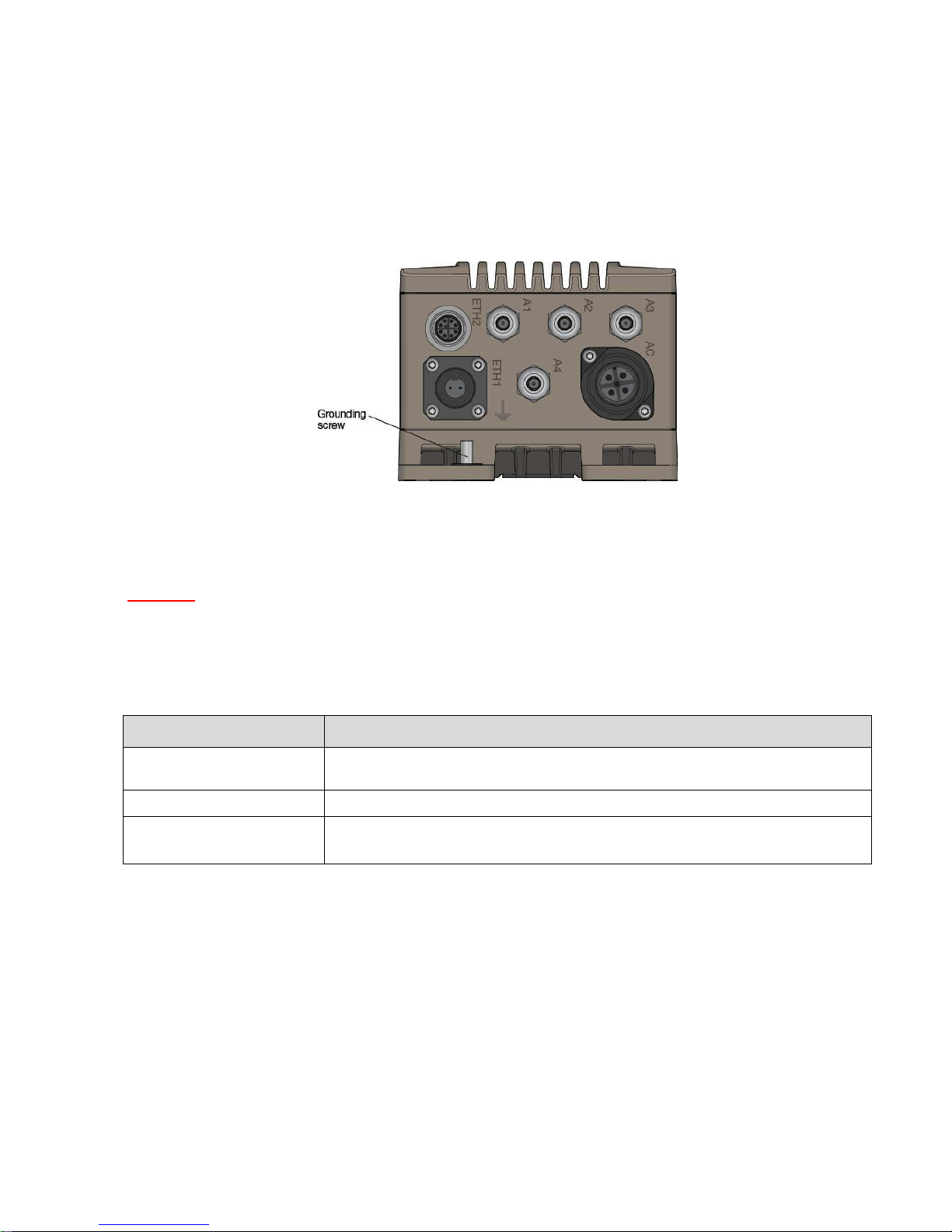

Figure 11 The grounding screw
Important: For a safe operation and proper p rotection against lightning, both protective earth contacts of
RT-370 must be connected to system ground. The grounding must be done always as a first step before
connecting any other external interfaces to the product
For the grounding at the M5 stud, a wire with a cross section of at least 6.0 mm2 shall be used.
Order of Installation Step Description
1. Open screw M5 nut must be opened until terminal of the protective earth can be placed at its
place
2. Install the wire The grounding wire is set below the rip-lock washer
3. Fix the nut Tighten the nut for safe operation and good reliable grounding.
The tightening torque shall be 2.0 Nm.
Table 12 Installation procedure, fixing the protective earth
Page 21
RT-370 User Guide
Page 21 (34)
4.5 Connecting the RF Antenna Inte rf aces

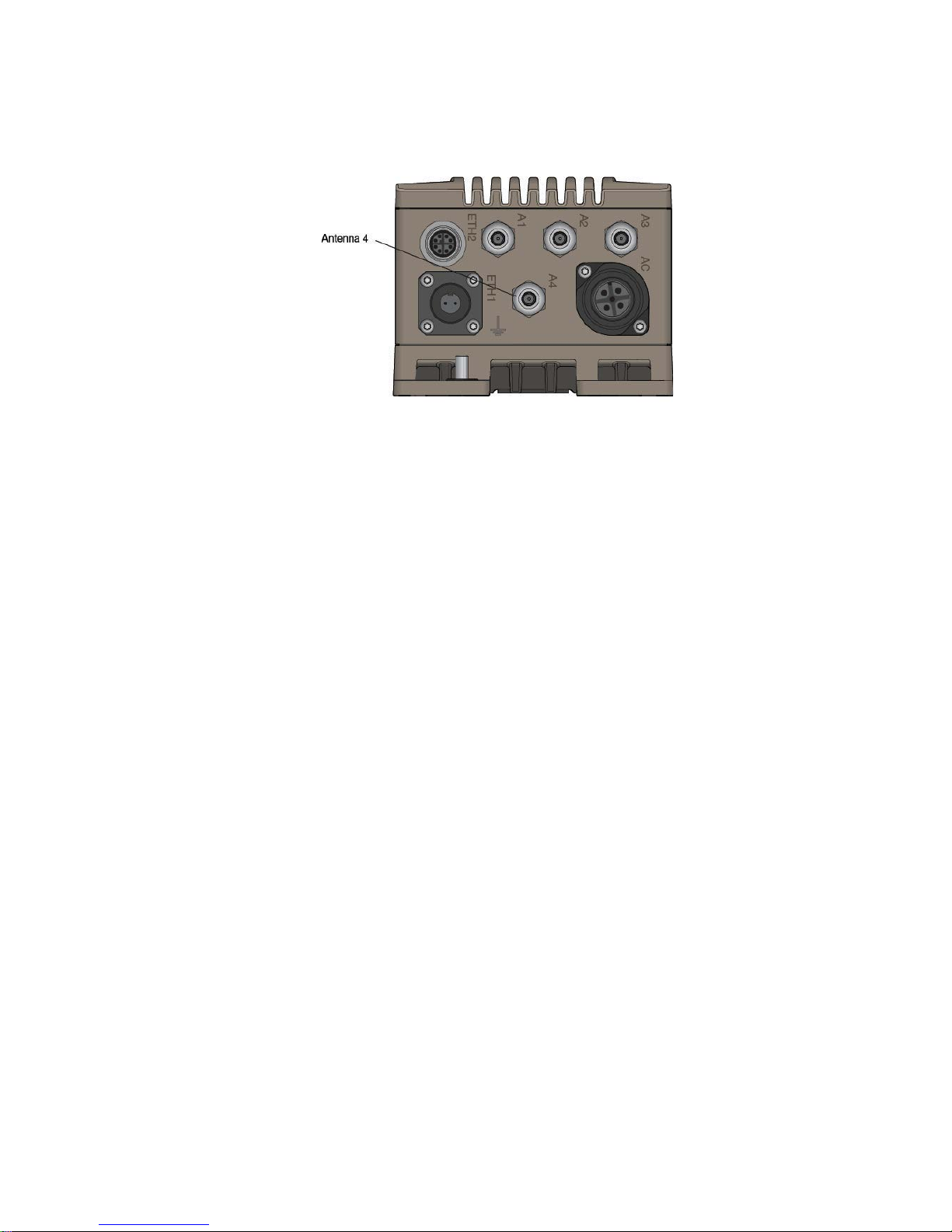

The antenna connectors are identified with the text markings A1 (Antenna 1), A2 (Antenna 2), A3 (Antenna 3) and
A4 (Antenna 4). The product is delivered with temporary protecting caps that are removed for antenna cable
installation.
The antenna interfaces are protected against lightning with special protection devices. To ensure correct operation
of these devices it is important, that the earth grounding contact is connected to protective earth as described in
chapter 4.4 with a short cable.
The antennas might be fixed in antenna connectors directly or using antenna cables fixed to the antenna
connectors. The connectors should be secured to correct torque (typically 100Ncm, check connector manufacturer
data), specially for assemblies in vibrating environments.
Pin Signal Name, Function Notes
1 Center pin: RF signal Connector Type: N50 – Female
2 Connector body: RF ground
Table 13 Pinning: RF antenna connector
4.5.1 RF Antenna Interface Operation Modes
RT-370 has four antenna interfaces. The antenna interfaces are operating independently of each other.
Antenna Function Operation Notes
A1 Antenna 1 is used for both transmitting
and receiving
The antenna A1 shall be used.
A2 Antenna 2 is used for both transmitting
and receiving
The antenna A2 can be enabled or disabled.
A3 Antenna 3 is used for both transmitting
and receiving
The antenna A3 can be enabled or disabled.
A4 Antenna 4 is used for receiving The antenna A4 can be enabled or disabled.
Table 14 RF Antenna interface operation
NOTICE: If only one of the communication antennas is used, the antenna port A1 MUST be used.
NOTICE: If one of the antennas is NOT used, the unused antenna conductors MUST be terminated with 50 ohm
termination.
NOTICE: The antenna interfaces are protected against lightning with special protection devices. To ensure correct
operation of these devices it is important, that the earth grounding contact is connected to protective earth as
described in chapter
4.4.
Page 22
RT-370 User Guide
Page 22 (34)
4.5.2 Monitoring Antenna RF Connector
The antenna A4 is the antenna port used for monitoring of the RF spectrum. Connect the monitoring antenna to
A4 port.
Figure 12 Monitoring antenna interface
Page 23
RT-370 User Guide
Page 23 (34)
4.5.3 Communication Antenna RF Connectors
The antenna interfaces A1, A2 and A3 are the antenna ports used for the communication link. Connect the
antennas to those ports.
Figure 13 Communication antenna interfaces
NOTICE: If only one of the communication antennas is used, the antenna port A1 MUST be used. Otherwise the
device is not operating correctly.
NOTICE: If one of the antennas is NOT used, the unused antenna connectors MUST be terminated with 50 ohm
termination.
Page 24
RT-370 User Guide
Page 24 (34)
4.6 Connecting the Fiber O pti c al Ca ble
The fiber optical Ethernet interface is a 1310nm single mode optical interface. The optical connector is an ODC-2
type.
Figure 14 Fiber optic ETH interface
Pin Signal Name, Function Notes
1 TX (transmitting) Connector Type: H&S ODC-2
2 RX (receiving)
Table 15 Pinning: Fiber optic ETH connector
Parameter Value Notes
Wavelength
1310 nm
Transmit Power
-9.5 dBm … -3 dBm
Receiver Sensitivity
-20 dBm or better
Receiver Saturation
-3 dBm
Optical attenuators need to be added to the installation if the
optical level is above this limit
Table 16 Fiber optic ETH specification
Order of Installation Step Description
1. Remove dust cap
Remove the temporary plastic dust cap installed at the ODC-2 plug. Do not remove
the dust cap before installing the cable. The dust cap is used for transportation
phase only, and shall be correctly disposed by installation person.
2. Clean connector
The optical interface and the fiber optic cable may need to be cleaned with
isopropyl alcohol and a cleaning tissue.
3. Install the cable
Install the fiber optic cable to the connector. Use correct torque (typically 100 Ncm,
check connector manufacturer data).
Table 17 Installation procedure, installing fiber optical cable
Page 25
RT-370 User Guide
Page 25 (34)
4.7 Connecting the AC Power Feed
The power feed is connected to the AC power feed connector.
NOTICE: The installation of the AC power must be done by trained professionals. It must be ensured that there is
no power applied to the AC wires during the installation work.
The Protective Earth must be connected before connecting the power feeds.
NOTICE: When installing the product, it must be ensured that direct access to the AC plug is always possible and
that the user is able to disconnect the AC plug to remove power from the device.

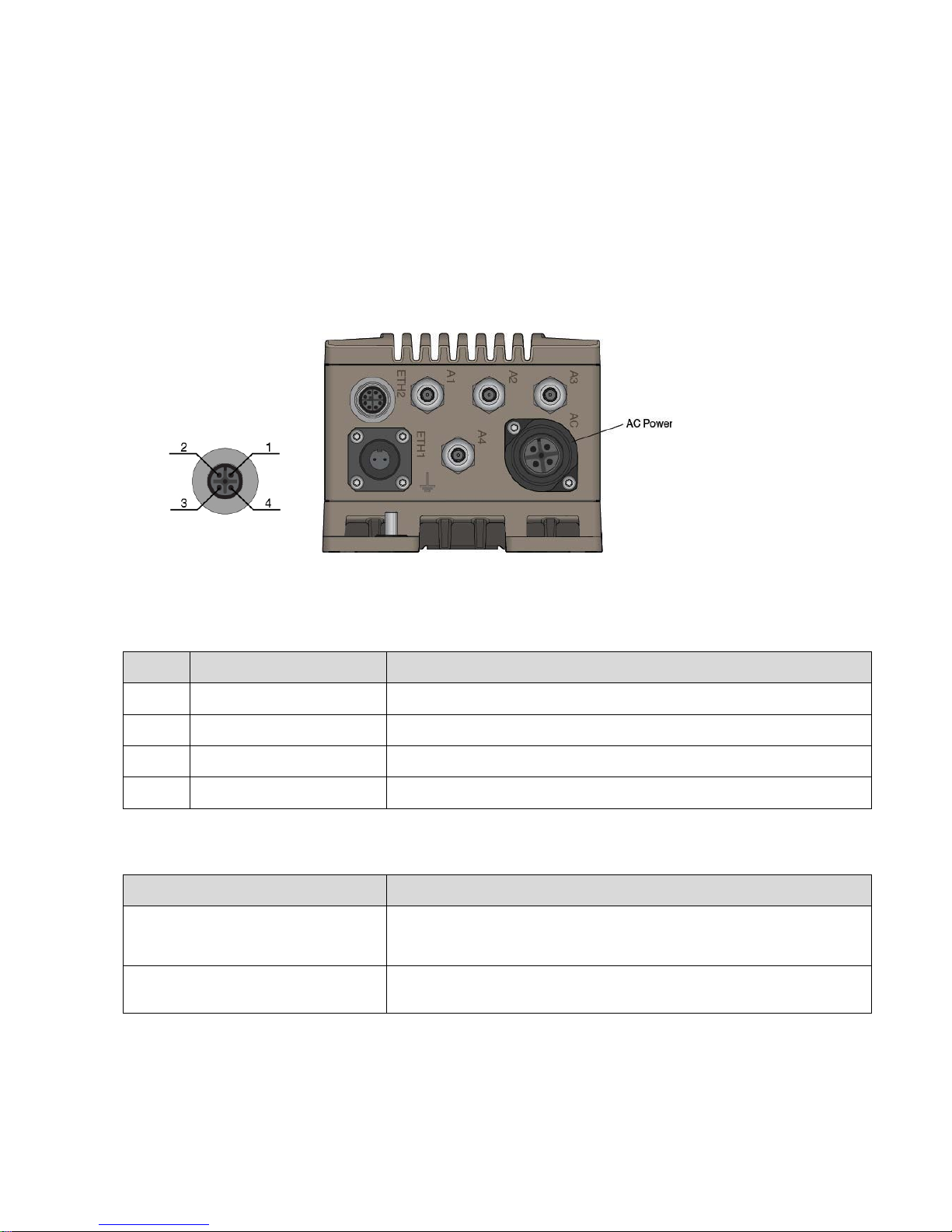

Figure 15 AC interface
Pin Signal Name, Function Notes
1 AC Phase Connector Type: Binder 693 male socket 3+PE
2 AC Neutral
3 -
4 Pro t ect i v e Ea rt h
Table 18 Pinning: AC Mains Connector
Order of Installation Step Description
1. Assembly of Binder connector Assemble cable connector according pin out given above.
Use ferrules and follow instructions of system integrator for reliable
operation.
2. Install the cable Install cable to the AC plug
Use appr. 1.0 Nm tightening torque.
Table 19 Installation Procedure, Installing AC Cable
Page 26
RT-370 User Guide
Page 26 (34)
Parameter Value Notes
Nominal voltage range 100 V…240 V, 50/60 Hz
Min/max voltage range 90..264 VAC Guaranteed min/max operating voltage range
Power consumption App. 8.5 W / 18.5 VA
App. 10 W / 20.0 VA
Idle load
Full load
Peak value of inrush
current
34 A at 240 V Inrush current shall be considered when e.g. selecting an
external circuit breaker.
The system integrator has to ensure that the devices are
selected correctly.
Duration and peak value of typical inrush currents are
shown in the plot in the Annex
Selecting external
power connector and
power cable diameter
6…9.5 mm External connector Binder 99-4222-00-04 shall be used for
ensuring IP66
10…12 mm External connector Binder 99-4222-14-04 shall be used for
ensuring IP66
Allowed wire cross
section
0.5 – 2.5 mm²
Fuse To comply with EN 60950 the AC interface has a built in
fuse. The fuse is not user replaceable! In case the fuse is
broken the complete produ c t must be sent to manufacturer
for repair. The user is not allowed to open the device. By
trying to open the device the user will be possessed to a
risk of death of injury.
Table 20 Power feed specification
Page 27
RT-370 User Guide
Page 27 (34)
4.7.1 Power Consumption Examples
The power consumption is dependent on the operational parameters, like RF output power, amount of routed
traffic and the RX duty cycle.
Test case Antennas TX duty
cycle
TX output Amb.
Temp.
Avg. Power 100 VAC
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
-40°C
P = 7.35 W/ 12.25 VA
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
+70°C
P = 8.07 W/ 15.60 VA
2.4 GHz TX50 SISO, -40
1x1
50%
1 x 22 dBm
-40°C
P = 8.08 W/ 13.55 VA
2.4 GHz TX50 SISO +70
1x1
50%
1 x 22 dBm
+70°C
P = 8.75 W/ 17.13 VA
2.4 GHz TX50 2x2 MIMO -40
2x2
50%
2 x 22 dBm
-40°C
P = 9.08 W/ 15.39 VA
2.4 GHz TX50 2x2 MIMO +70
2x2
50%
2 x 22 dBm
+70°C
P = 9.80 W/ 19.30 VA
2.4 GHz TX50 3x3 MIMO -40
3x3
50%
3 x 22 dBm
-40°C
P = 10.08 W/ 17.23 VA
2.4 GHz TX50 3x3 MIMO +70
3x3
50%
3 x 22 dBm
+70°C
P = 10.85 W/ 21.47 VA
2.4 GHz TX90 SISO, -40
1x1
90%
1 x 22 dBm
-40°C
P = 8.97 W/ 15.17 VA
2.4 GHz TX90 SISO +70
1x1
90%
1 x 22 dBm
+70°C
P = 9.63 W/ 19.00 VA
2.4 GHz TX90 2x2 MIMO -40
2x2
90%
2 x 22 dBm
-40°C
P = 10.91 W/ 18.06 VA
2.4 GHz TX90 2x2 MIMO +70
2x2
90%
2 x 22 dBm
+70°C
P = 11.49 W/ 22.07 VA
2.4 GHz TX90 3x3 MIMO -40
3x3
90%
3 x 22 dBm
-40°C
P = 12.85 W/ 20.95 VA
2.4 GHz TX90 3x3 MIMO +70
3x3
90%
3 x 22 dBm
+70°C
P = 13.35 W/ 25.14 VA
Table 21: 2.4 GHz power consumption with 100 VAC
Test case Antennas TX duty
cycle
TX output Amb.
Temp.
Avg. Power 100 VAC
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
-40°C
P = 7.72 W/ 14.50 VA
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
+70°C
P = 8.53 W/ 17.06 VA
2.4 GHz TX50 SISO, -40
1x1
50%
1 x 22 dBm
-40°C
P = 8.49 W/ 15.57 VA
2.4 GHz TX50 SISO +70
1x1
50%
1 x 22 dBm
+70°C
P = 9.12 W/ 17.87 VA
2.4 GHz TX50 2x2 MIMO -40
2x2
50%
2 x 22 dBm
-40°C
P = 9.40 W/ 17.00 VA
2.4 GHz TX50 2x2 MIMO +70
2x2
50%
2 x 22 dBm
+70°C
P = 10.18 W/ 19.40 VA
2.4 GHz TX50 3x3 MIMO -40
3x3
50%
3 x 22 dBm
-40°C
P = 10.31 W/ 18.48 VA
2.4 GHz TX50 3x3 MIMO +70
3x3
50%
3 x 22 dBm
+70°C
P = 11.24 W/ 20.93 VA
2.4 GHz TX90 SISO, -40
1x1
90%
1 x 22 dBm
-40°C
P = 9.35 W/ 16.93 VA
2.4 GHz TX90 SISO +70
1x1
90%
1 x 22 dBm
+70°C
P = 9.89 W/ 19.04 VA
2.4 GHz TX90 2x2 MIMO -40
2x2
90%
2 x 22 dBm
-40°C
P = 10.95 W/ 19.37 VA
2.4 GHz TX90 2x2 MIMO +70
2x2
90%
2 x 22 dBm
+70°C
P = 11.83 W/ 22.11 VA
2.4 GHz TX90 3x3 MIMO -40
3x3
90%
3 x 22 dBm
-40°C
P = 12.55 W/ 21.81 VA
2.4 GHz TX90 3x3 MIMO +70
3x3
90%
3 x 22 dBm
+70°C
P = 13.77 W/ 25.18 VA
Table 22: 2.4 GHz power consumption with 230 VAC
Page 28
RT-370 User Guide
Page 28 (34)
Test case Antennas TX duty
cycle
TX output Amb.
Temp.
Avg. Power 230 VAC
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
-40°C
P = 7.06 W/ 11.96 VA
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
+70°C
P = 7.89 W/ 15.67 VA
2.4 GHz TX50 SISO, -40
1x1
50%
1 x 21 dBm
-40°C
P = 7.80 W/ 13.16 VA
2.4 GHz TX50 SISO +70
1x1
50%
1 x 21 dBm
+70°C
P = 8.51 W/ 16.39 VA
2.4 GHz TX50 2x2 MIMO -40
2x2
50%
2 x 21 dBm
-40°C
P = 8.65 W/ 14.35 VA
2.4 GHz TX50 2x2 MIMO +70
2x2
50%
2 x 21 dBm
+70°C
P = 9.41 W/ 18.29 VA
2.4 GHz TX50 3x3 MIMO -40
3x3
50%
3 x 21 dBm
-40°C
P = 9.50 W/ 15.54 VA
2.4 GHz TX50 3x3 MIMO +70
3x3
50%
3 x 21 dBm
+70°C
P = 10.31 W/ 20.19 VA
2.4 GHz TX90 SISO, -40
1x1
90%
1 x 21 dBm
-40°C
P = 8.64 W/ 14.61 VA
2.4 GHz TX90 SISO +70
1x1
90%
1 x 21 dBm
+70°C
P = 9.26 W/ 17.85 VA
2.4 GHz TX90 2x2 MIMO -40
2x2
90%
2 x 21 dBm
-40°C
P = 10.16 W/ 16.85 VA
2.4 GHz TX90 2x2 MIMO +70
2x2
90%
2 x 21 dBm
+70°C
P = 10.98 W/ 21.26 VA
2.4 GHz TX90 3x3 MIMO -40
3x3
90%
3 x 21 dBm
-40°C
P = 11.68 W/ 19.09 VA
2.4 GHz TX90 3x3 MIMO +70
3x3
90%
3 x 21 dBm
+70°C
P = 12.70 W/ 24.67 VA
Table 23: 5 GHz power consumption with 100 VAC
Test case Antennas TX duty
cycle
TX output Amb.
Temp.
Avg. Power 230 VAC
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
-40°C
P = 7.46 W/ 14.15 VA
2.4 GHz idle
1x1, 2x2, 3x3
2%
1…3 x 22 dBm
+70°C
P = 8.40 W/ 16.42 VA
2.4 GHz TX50 SISO, -40
1x1
50%
1 x 21 dBm
-40°C
P = 8.19 W/ 15.30 VA
2.4 GHz TX50 SISO +70
1x1
50%
1 x 21 dBm
+70°C
P = 8.89 W/ 17.01 VA
2.4 GHz TX50 2x2 MIMO -40
2x2
50%
2 x 21 dBm
-40°C
P = 9.00 W/ 16.60 VA
2.4 GHz TX50 2x2 MIMO +70
2x2
50%
2 x 21 dBm
+70°C
P = 9.74 W/ 18.55 VA
2.4 GHz TX50 3x3 MIMO -40
3x3
50%
3 x 21 dBm
-40°C
P = 9.81 W/ 17.90 VA
2.4 GHz TX50 3x3 MIMO +70
3x3
50%
3 x 21 dBm
+70°C
P = 10.59 W/ 20.09 VA
2.4 GHz TX90 SISO, -40
1x1
90%
1 x 21 dBm
-40°C
P = 9.06 W/ 16.74 VA
2.4 GHz TX90 SISO +70
1x1
90%
1 x 21 dBm
+70°C
P = 9.55 W/ 17.93 VA
2.4 GHz TX90 2x2 MIMO -40
2x2
90%
2 x 21 dBm
-40°C
P = 10.41 W/ 18.34 VA
2.4 GHz TX90 2x2 MIMO +70
2x2
90%
2 x 21 dBm
+70°C
P = 11.24 W/ 20.66 VA
2.4 GHz TX90 3x3 MIMO -40
3x3
90%
3 x 21 dBm
-40°C
P = 11.76 W/ 19.94 VA
2.4 GHz TX90 3x3 MIMO +70
3x3
90%
3 x 21 dBm
+70°C
P = 12.93 W/ 23.39 VA
Table 24: 5 GHz power consumption with 230 VAC
Page 29
RT-370 User Guide
Page 29 (34)
5 Outdoor Radio Access Point Configuration and Use
The complete configuration process is described in reference document [1].
5.1 LED Indicators During Power Up Sequence
LED behavior during power-up sequence is descr ibed i n reference document [1] chapter Status Indication.
Figure 16 Power, operation, failure and FO Ethernet interface LEDs
5.2 Connecting the service Ethernet
The service 10/100/1000Base-T Ethernet interface can be used either for onsite configuration or for normal
backbone interfacing. T he s er vice interface has a protective plug, in case using the interface temporarily please
install the protecting cap again after the service port use.
Page 30
RT-370 User Guide
Page 30 (34)
Figure 17 Service 1000Base-TX interface
The connectors should be assembled with correct torque (appr. 1.0 Nm, check connector manufacturer data).
NOTICE: The service Ethernet Interface connector fulfills the IP-protection when the cable plug or the dust cap is
connected. If the service Ethernet function is not used in application, the protective dust cap must be closed.
Connector Pin Signal name, Function Notes
1
MX1 +
Connector Type: Industrial ETHERNET M12-Socket “X”coded
2
MX1 -
3
MX2 +
4
MX2 -
5
MX4 +
6
MX4 -
7
MX3 -
8
MX3 +
Housing Ground For possible cable protection/screening
Table 25 Service 1000Base-TX Connector
NOTICE: The Pinning is compliant to IONA, Industrial Ethernet Planning and Installation Guide, Release 4.0.
5.2.1 Service Ethernet Port Features
The Ethernet port supports the following network standards:
Network Standard Description
10BASE-T Ethernet over two pairs of twisted wires
100BASE-TX Fast Ethernet over two pairs of twisted wires
1000BASE-TX Gigabit Ethernet over four pairs of twisted wires
Table 26 4.6.1 Ethernet port features
Page 31
RT-370 User Guide
Page 31 (34)
The Ethernet port support auto-negotiated 10 Mbps / 100 Mbps / 1000 Mbps operation. Automatic MDI/MDIX
crossover is supported for 1000BASE-T, 100BASE-T and 10BASE-T operation. For final installation the use of
auto-negotiation is however not recommended.
5.3 RT-370 Factory Reset Interface, Process for Factory Reset
A factory reset is not typically needed for the installation. It is required if the device configuration is lost and the
device shall be set to a known configuration.
The factory reset is performed with a specific factory reset adapter that is connected to the service Ethernet port
during the start-up.
5.3.1 Factory Reset Adapter Specification
The factory reset adapter is a special plug for the Ethernet interface that activates the factory reset signal.
There is a specific factory reset adapter available:
FACTORY RESET PLUG X -CODED
Part No.: 3623-0799

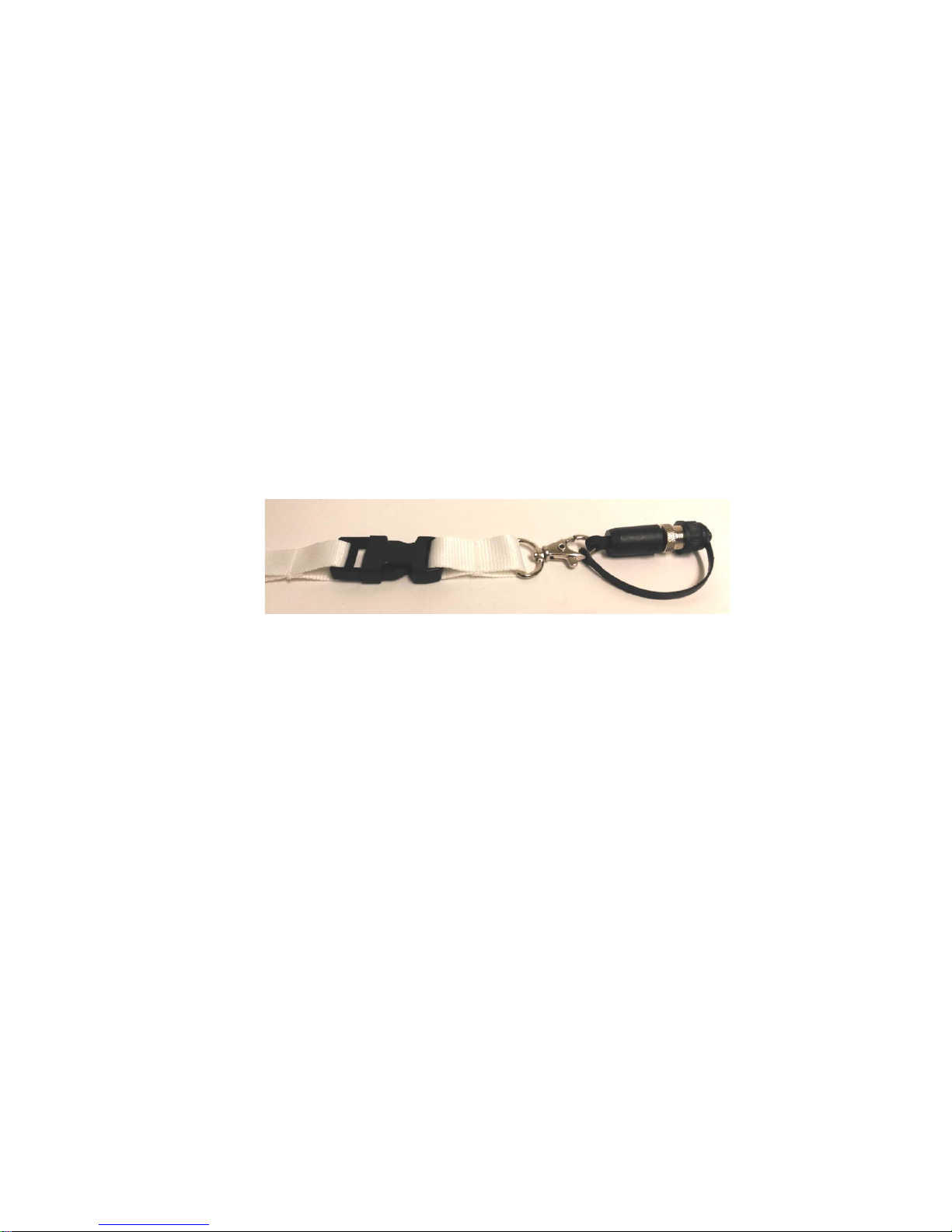

Figure 18 Factory reset plug X-coded
Page 32
RT-370 User Guide
Page 32 (34)
5.3.2 Factory Reset Procedure
The Factory Reset is performed with a factory reset adapter that is connected to the service Ethernet port during
the start-up.
Step Description
1. P lug the factory reset adapter to the service Ethernet interface.
2. Power the device
3. Wait until factory reset adapter is detected. This is indicated by an ORANGE operatio n LED in
combination with a RED status LED
4. Remove factory reset adapter within 15 seconds
5. A successful initiation of a factory Reset is indicated by an ORANGE BLINKING operation LED in
combination with a RED BLINKING failure LED
Table 27 Factory reset procedure
After successful factory reset, the dust cap must be closed to ensure the IP requirements.
Page 33
RT-370 User Guide
Page 33 (34)
6 Maintenance
Danger!
Never try to open the de vice. There are no serv iceable parts inside! B y trying to open the device
you will be exposed to a risk of death or injury.
6.1 Cleaning– Resistance to Chemicals
In case the product is cleaned with cleaning chemicals, the resistance to chemicals of the plastic parts needs to be
respected. The following plastic materials are used in RT-370:
AC Connector
Polybutylene terephthala te ( PBT )
Polyamide 66 (PA66)
Service Ethernet Connector Dust Cap
Polyamide 66 (PA66)
Polyurethane (PUR)
Pressure Equalizer Vent
Polyamide 6 (PA6)
Polytetrafluoroethylene (PTFE)
Stickers
Autotex XE
The resistance to chemicals of the materials mentioned above has been communicated. For guidance which
cleaning liquids are allowed for the cleaning of the product, Westermo is to be contacted.
Page 34
RT-370 User Guide
Page 34 (34)
6.2 Troubleshooting Based on Func t ional Behavior
Please read the troubleshooting instructions in reference document [1].
6.3 Repair Work
The product is exchanged as a whole. On module level no repair work is done in the field. Broken units need to be
returned to the supplier for repair.
6.3.1 Product Exchange
Order of Installation Step Description
1. Remove Cables
Remove cables in the following order:
• AC cable
• Antenna cable A1
• Antenna cable A2
• Antenna cable A3
• Antenna cable A4
• Optical cable
Do not touch connector end surface. Protect it from damages
• Protective earth cable
2. Open Screw
The 4 M6 screws must be opened and removed completely
3. Exchange
Lift the product out of its position. Place a new product to its position
4. Fix Screws
The 4 M6 screws in each corner must be fixed.
5. Connect Cables
Connect cables in the following order:
• Protective earth cable
• Antenna cable A4
• Antenna cable A3
• Antenna cable A2
• Antenna cable A1
• Optical cable
Clean optical connector with isopropyl alcohol before installation.
Note anti-rotation-key
• AC cable
Check correct wiring
6. Configure
Download configuration to the new product
Table 28 Exchange flow
Loading...
