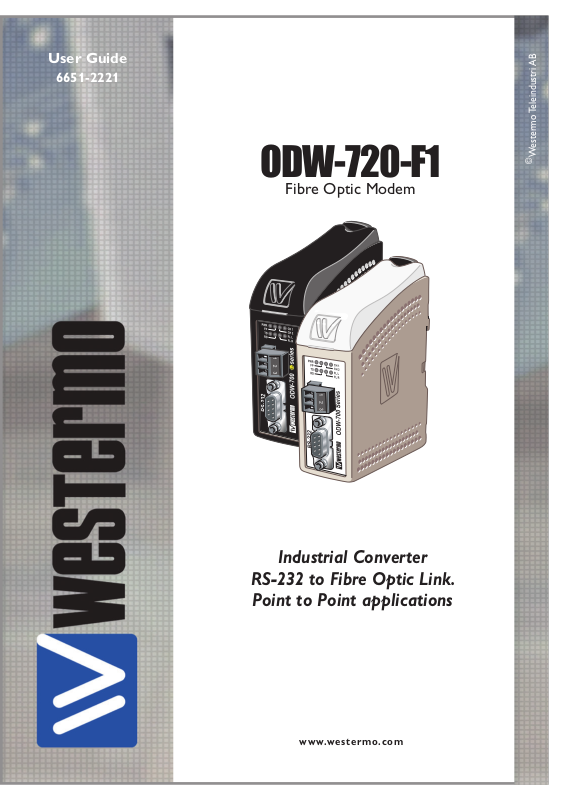

User Guide
6651-2221
ODW-720-F1
Fibre Optic Modem
Westermo Teleindustri AB
©
Industrial Converter
RS-232 to Fibre Optic Link.
Point to Point applications
www.westermo.com
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
2
6651-2221
Safety
Before installation:
!
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
Branch circuit protection (fuse) is required for this unit with rating not
exceeding 20 A.
Product should be connected to UL Listed power supplies rated 12 – 48 VDC,
min 500 mA or 24 VAC, min 500 mA or reliably grounded DC SELV source*.
This unit uses convection cooling. To avoid obstructing the airflow around the
unit, follow the spacing recommendations (see Cooling section).
!
Before mounting, using or removing this unit:
Prevent access to hazardous voltages by disconnecting the unit from the power
supply.
Warning! Do not open a connected unit. Hazardous voltages may occur within
!
this unit when connected to a power supply.
Class 1 Laser Product
This unit is designed to meet the Class 1 Laser regulations. However, the user is warned
not to look directly into fibre optical fibre port or any connected fibre.
Care recommendations
Follow the care recommendations below to maintain full operation of the unit and to
fulfil the warranty obligations.
This unit must not be operated with covers or lids removed.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit. Rough handling beyond the specification may
cause damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc).
The unit is not waterproof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas. Connectors as well as other
mechanical parts may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office, or Westermo Tech support.
Fibre connectors are supplied with plugs to avoid contamination inside the optical port.
The plug should be fitted when no optical fibre is inserted in the connector, e.g. during
storage, service or transportation.
* Applicable for ODW-720-F1 only
6651-2221
3
Note. Fibre Optic Handling
Fibre optic equipment requires careful handling as the fibre components are very
sensitive to dust and dirt. If the fibre is disconnected from the modem, the protective
plug on the transmitter/receiver must be replaced. The protective plug must be kept on
during transportation. The fibre optic cable must also be protected in the same way.
If this recommendation is not followed, it can jeopardise the warranty.
Cleaning of the optical connectors
In the event of contamination, the optical connectors should be cleaned by using forced
nitrogen and some kind of cleaning stick.
Recommended cleaning fluids:
• Methyl-, ethyl-, isopropyl- or isobutyl-alcohol
• Hexane
• Naphtha
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
Agency approvals and standards compliance
Type Approval / Compliance
EMC EN 61000-6-1, Immunity residential environments
EN 61000-6-2, Immunity industrial environments
EN 61000-6-3, Emission residential environments
EN 61000-6-4, Emission industrial environments
EN 55022, Emission IT equipment, class A
EN 55024, Immunity IT equipment
FCC part 15 Class A
EN 50121-4, Railway signalling and telecommunications apparatus
IEC 62236-4, Railway signalling and telecommunications apparatus
Safety UL/CSA/IEC/EN 60950-1, IT equipment*
EN 60950-1, IT equipment**
ATEX** EN 60079-0 and EN 60079-15
* Applicable for ODW-720-F1 only
** Applicable for ODW-720-F1 Ex only
FCC Part 15.105
Notice:
EN 55022 Notice:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
4
6651-2221
ATEX Information (Applicable for ODW-720-F1 EX only)
General
This unit is intended for use in Zone 2 hazardous location only.
Marking
II 3 G
Ex nA IIC T4 Gc
SPECIAL CONDITION
WARNING – DO NOT SEPARATE WHEN ENERGIZED
Indicate that this unit complies with relevant European standards that are
harmonised with the 94/9/EC Directive (ATEX).
II
3
G
Ex Indicates that this unit is in conformity with relevant European Ex standard(s).
nA
IIC Gas group, a typical gas i hydrogen.
T4
Gc
SPECIAL
CONDITION
Equipment group II.
This unit can be installed in all places with an explosive gas atmosphere other
than mines susceptible to firedamp
Equipment category 3.
A category is the classification according to the required level of protection.
This unit ensures the requisite level of protection during normal operation and
is intended for use in areas in which explosive atmosphere caused by gases,
vapours, mists, or dust mixtures are unlikely to occure or, if they do occure, are
likely to do so only infrequently and for a short periode only.
Indicates protection concerning explosive atmospheres caused by gases,
vapours or mists (G).
Type of protection used.
This unit is a non-sparking device "nA" which is constructed to minimize the
risk of occurence of arcs or sparks capable of creating an ignition hazard during
conditions of normal operation.
Temperature class T4 (T4 = 135°C).
This unit is classified in accordance with its maximum surface temperature
(external and internal).
Equipment protection level Gc (EPL Gc).
Equipment for explosive gas atmospheres, having a "enhanced" level of protection, which is not a source of ignition in normal operation and which may have
some additional protection to ensure that it remains inactive as an ignition
source in the case of regular expected occurences. EPL Gc are analogous to the
ATEX Categories (Category 3 G = EPL Gc).
This unit has a special condition of use.
The special condition for safe use contains safety related information that is
necesarry for the correct installation and safe use.
6651-2221
5
Ratings
Power (12 – 48) VDC; 300 mA
Ambient temperature –40ºC ≤ Ta ≤ +70ºC
Ingress protection (IP) IP21
Maximum surface temperatur 135ºC (temperature class T4)
Safety Control Drawing
Degree of protection IP 21
Ambient temperature –40°C to +70°C
Installation spacing
Direction relative this unit!
FP
1234
Minimum 25 mm above / below
Minimum 10 mm left / right
Position Descripton Input / Output values
1 In & out / Relay contact (NO)
2 In & out / Relay contact (C)
3 In & out / Relay contact (NC)
Galvanically isolated via mechanical relay.
See user manual for proven transient protection.
Position Descripton Input /Output values
1 Out / Data Carrier Detect (DCD)
2 Out / Received Data (RD)
3 In / Transmitted Data (TD)
4 Not connected
5 – / Signal Ground (SG)
6 Out / Data Set Ready (DSR)
7 In / Request To Send (RTS)
8 Out / Clear To Send (CTS)
9 Not connected
Uin = 60 VDC max
Iin = 500 mA max
U
= ± 12 Vpk
max
I
= ± 60 mA
max
Data rate:
300 bit/s to 250 kbit/s
Position Descripton Output values
Rx In / Receive port
Tx Out / Transmit port
Max 0 dBm
Position Descripton Intput values
1 In / Common
2 In / +Voltage A
3 In / +Voltage B
4 In / Common
See section Type tests and environmental conditions in this
user manual for proven transient protection.
6
Uin = (10 – 60) VDC
Iin = 400 mA max
PIn = Max 4 W
6651-2221
SPECIAL CONDITION FOR SAFE USE
Ambient temperature:
This unit is designed for use in extreme ambient temperature conditions as follows:
–40 ºC ≤ Ta ≤ +70 ºC
Installation in an apparatus cabinet:
This unit requires installation in an Ex certified apparatus cabinet suitable for the area of use and
providing a degree of protection of at least IP54.
Resistance to impact:
This unit requires installation in an apparatus cabinet where adequate resistance to impact is
provided by the apparatus cabinet. See "Installation in an apparatus cabinet" above for requirements
on the external apparatus cabinet.
Resistance to light:
This unit requires installation in an apparatus cabinet where it is protected from light
(for example daylight or light from luminaires).
See "Installation in an apparatus cabinet" above for requirements on the external apparatus cabinet.
Secureness of plugs:
When this unit is installed in an explosive atmospheres, all connectors must be mechanically secured
to prevent loosening.
Conductor temperature:
When this unit is installed in locations with high ambient temperature, special precautions shall be
taken upon the choice of external conductors and the temperature rating of the conductor(s).
Directive 94/9/EC alongside with other directives:
Directive 2004/108/EC (EMC) applies and to assure a safe performance of this unit under the scope
of Directive 94/9/EC, refer to the electromagnetic immunity level specified under "Type tests and
environmental conditions" in this manual.
Standards and date of compliance
EN 60079-0 and EN 60079-15
2010-12-17
6651-2221
7
Declaration of Conformity
Org.nr/
Registered office
Westermo Teleindustri AB
Declaration of conformity
The manufacturer Westermo Teleindustri AB
Herewith declares that the product(s)
Type of product Model Art no
Industrial fiberoptic repeaters/media
converters
is in conformity with the following EC directive(s).
No Short name
2004/108/EC Electromagnetic Compatibility (EMC)
94/9/EC1 Equipment Explosive Atmospheres (ATEX)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-1 Electromagnetic compatibility – Immunity residential environments 2007
EN 61000-6-2 Electromagnetic compatibility – Immunity industrial environments 2005
EN 61000-6-3 Electromagnetic compatibility – Emission residential environments 2007
EN 61000-6-4 Electromagnetic compatibility – Emission for industrial
EN 55022 Information technology equipment - Emission 2006 + A1:2007
EN 55024 Information technology equipment - Immunity 1998 + A1:2001 +
EN 50121-4 Railway applications – Electromagnetic compatibility – Emission
EN 60079-0 Explosive atmospheres – Equipment – General requirements 2009
EN 60079-15 Electrical apparatus for explosive gas atmospheres –
The last two digits of the year in which the CE marking was affixed: 11
SE-640 40 Stora Sundby, Sweden
ODW-700 series 3651-07xx
ODW-700EX series 3651-37xx
environments
and immunity of the signalling and telecommunications apparatus
Construction, test and marking of type of protection “n” electrical
apparatus
2007
A2:2003
2006
2005
Pierre Öberg
Technical Manager
15th June 2011
1
Applicable for ODW-700EX series only.
Postadress/Postal address
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
8
Tel.
Telefax
Postgiro
Bankgiro Corp. identity number
6651-2221
Type tests and environmental conditions
Electromagnetic Compatibility
Phenomena Test Description Level
ESD EN 61000-4-2 Enclosure contact ± 6 kV
RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 800 MHz
RF field 900 MHz ENV 50204 Enclosure 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
Fast transient EN 61000-4-4 Signal ports ± 2 kV
Surge EN 61000-4-5 Signal ports unbalanced ± 2 kV line to earth, ± 2 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Pulse Magnetic field EN 61000-4-9 Enclosure 300 A/m, 6.4 / 16 µs pulse
Voltage dips
and interruption
Mains freq. 50 Hz EN 61000-4-16 Signal ports 100 V 50 Hz line to earth
Mains freq. 50 Hz SS 436 15 03 Signal ports 250 V 50 Hz line to line
Radiated emission EN 55022 Enclosure Class B
Conducted emission EN 55022 AC power ports Class B
Dielectric strength EN 60950 Signal port to all other
Environmental
Temperature Operating –40 to +70°C
Humidity Operating 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 year
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
Shock IEC 60068-2-27 Operating 15 g, 11 ms
Packaging
Enclosure, ODW-720-F1 UL 94 PC / ABS Flammability class V-1
Enclosure,
ODW-720-F1 EX
Dimension W x H x D 35 x 121 x 119 mm
Weight 0.26 kg
Degree of protection IP 21
Cooling IEC 529 Enclosure Convection
Mounting Horizontal on 35 mm DIN-rail
EN 61000-4-11 AC power ports 10 & 5 000 ms, interruption
FCC part 15 Class A
FCC part 15 AC power ports Class B
EN 55022 DC power ports Class A
Enclosure air ± 8 kV
20 V/m 80% AM (1 kHz), 800 – 1000 MHz
20 V/m 80% AM (1 kHz), 1400 – 2700 MHz
Power ports ± 2 kV
Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 2 kV line to line
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
200 ms, 40% residual voltage
500 ms, 70% residual voltage
isolated ports
Power port to other
isolated ports
Storage & Transport –40 to +70°C
Maximum surface
temperature
Storage & Transport 5 to 95% relative humidity
Cabelec 6141
2 kVrms 50 Hz 1min
3 kVrms 50 Hz 1min
2 kVrms 50 Hz 1min (@ rated power < 60V)
135ºC (temperature class T4)
2 g, 8 – 500 Hz
6651-2221
9
Functional description
STATUS
C
LED’s
Switches
CH 1
SFP
Fibre transceiver
TX
RX
I
E
COM
COM
+VA
O
V
P
+VB
POWER
RS -232
S
DCD
T
S
D
R
C
O
V
P
NO
NC
nternal
lectronics
ODW-720
RD
D
G
SR
TS
TS
HIELD
OVP Over Voltage Protection
OCP Over Current Protection
Converter serial interface – optical fibre
ODW-720-F1 is a fibre optic modem that converts between electrical RS-232 and a fibre
optic link.
ODW-720-F1 can also be used to convert from RS-232 to RS-485 by using one ODW720-F1 and one ODW-730-F1.
Data rate up to 250 kbit/s
ODW-720-F1 converts data using rates from 300 bit/s up to 250 kbit/s.
10
6651-2221
Interface specifications
Power
Rated voltage ODW-720-F1: 12 to 48 VDC and 24 VAC
Operating voltage ODW-720-F1: 10 to 60 VDC and 20 to 30 VAC
Rated current 300 mA @ 12 V
Rated frequency ODW-720-F1: DC and 48 to 62 Hz
Inrush current I²t 0.2 A²s
Startup current* 1.0 Apeak
Polarity Reverse polarity protected
Redundant power input Yes
Isolation to RS-232 and Status port
Connection Detachable screw terminal
Connector size 0.75 – 2.5 mm2 (AWG 18 – 13)
Shielded cable Not required
* External supply current capability for proper startup
Status
Port type Signal relay, changeover contacts
Rated voltage Up to 48 VDC
Operating voltage Up to 60 VDC
Contact rating 500 mA @ 48 VDC
Contact resistance < 50 mW
Isolation to RS-232 and Power port
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 13)
Shielded cable Not required
ODW-720-F1 Ex: 12 to 48 VDC
ODW-720-F1 Ex: 10 to 60 VDC
150 mA @ 24 V
75 mA @ 48 V
ODW-720-F1 Ex: DC
Connect the unit using at least 18 AWG (0.75 mm2) wiring
6651-2221
11
RS-232
Electrical specification EIA RS-232
Data rate 300 bit/s – 250 kbit/s
Protocol Asynchronous or synchronous
Data format 9 – 12 bits in asynchronous mode
Any type in synchronous mode
Data retiming Asynchronous mode only
Transmission range 15 m
Isolation to Status and Power port
Connection 9-pin D-sub female (DCE)
Shielded cable Not required, except when installed in railway applications as
signalling and telecommunications apparatus and located close
to rails*
Conductive housing Isolated to all other circuits and housings
* To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m
boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this port.
This earthing point should have a low impedance connection to the conductive enclosure of the apparatus
cabinet, or similar, where the unit is built-in. This conductive enclosure should be connected to the earthing
system of an installation and may be directly connected to the protective earth.
12
6651-2221
Location of Interface ports, LED’s and DIP-switches
ODW-720-F1
DIP-switches accessible under lid
(for details see page 16)
LED Indicators
(for details see page 15)
Status
screw terminal
Position Description Product
1 Contact with C when fibre
optical links are in operation
2 Common C
3 Open (no contact with C)
when fibre optical links are
not in operation
FX(Fibre)
(for details
see page 12–13)
Power
screw terminal
Position Direction* Description Product
1 In Common
2 In Voltage A + VA
3 In Voltage B +VB
4 In Common
marking
NO
NC
marking
COM
voltage
COM
voltage
* Direction relative this unit
6651-2221
RS-232
D-sub
Position Direction* Description
1 Out Data Carrier Detect (DCD)
2 Out Received Data (RD)
3 In Transmitted Data (TD)
4 Not connected
5 – Signal Ground (SG)
6 Out Data Set Ready (DSR)
7 In Request To Send (RTS)
8 Out Clear To Send (CTS)
9 Not connected
13
LED indicators
LED Status Description
PWR
Power
FP Not used
CH 2 Not used
CH 1
Channel 1 link status
TD Flash Data received on the electrical interface
RD Flash Data received on the optical interface
FL R
Failure link remote
FL L
Failure link local
* Only valid if used togheter with ODW-720-F1 units in a multidrop network.
Note: During power up, all LED’s will turn on for about 1 second.
ON Power is on.
OFF Power is off.
ON Fiber link to other unit has been estab-
lished at CH 1.
Flashing Optical power detected but link to other
unit has not been established at CH 1.
OFF No optical power detected and no link
to other unit has been established at
CH 1.
and transmitted out on the optical interface.
OFF No data received on the electrical inter-
face.
and transmitted out on the electrical
interface.
OFF No data received on the optical interface.
ON Remote fibre link failure.
A fibre link is out of operation at any
other unit than this one*.
Flashing Hardware error or invalid configuration.
ON Local fibre link failure.
A fibre link is out of operation at this
unit.
Flashing Hardware error or invalid configuration.
14
6651-2221
!
DIP-switch settings
Before DIP-switch settings:
Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap)
Note: Disconnect power before DIP-switch settings.
S2S1
The ODW-720-F1 DIP-switches are pre-set from the factory, so that the unit can be
used for point-to-point applications, togheter with an additional ODW-720-F1, straight
out of the box, without the need for any type of user configuration.
The only choise required, is if to enable the RTS to CTS signalling function or not.
See the DIP-switch S2:1 description below.
If the ODW-720-F1 is to be used in a multidrop network togheter with ODW-720-F2
units, please refer to the ODW-720-F2 user guide for details on how to configure the
units.
S1 DIP-switch
ON
1 2 3 4 5 6 7 8
S1:1 – S1:8 always OFF for
point-to-point applications.
S2 DIP-switch
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
CTS always active.
Transport RTS to CTS.
ON
1 2 3 4 5 6 7 8
S2:2 and S2:4 – S2:7 always OFF.
S2:3 and S2:8 always ON for
point-to-point applications.
Factory default
ON
1 2 3 4 5 6 7 8
S1
ON
1 2 3 4 5 6 7 8
S2
6651-2221
15
Start up guide, point-to-point application
Follow the steps below to get the unit up and running in a simple application.
Master Slave
POWER CH 1
COM +VA +VB COM
POWER CH 1
COM +VA +VB COMTX RX TX RX
… Using the factory DIP-switch settings:
… Set DIP-switch S2:1 as desired.
… Connect The fibre link between the ODW-720-F1.
… Connect the power supply to both ODW-720-F1.
… After a few seconds the fibre link should be in operation, indicated by an active CH1
LED.
… Connect the serial cables from PLC master and slave to respective ODW-720-F1.
… Frames from PLC master that are correctly received the ODW-720-F1 should be
indicated by flashing TD LED.
… Frames that are received via the fibre link will be transmitted to the PLC slave
and indicated by flashing RD LED.
… Replies from slave to master will be transferred and indicated in the opposite way.
… The point-to-point application is up and running.
16
6651-2221
About the interfaces
Power
The power terminal has two independent inputs, +VA and +VB, allowing redundant
power input.
The ODW-720-F1 power supply is galvanically isolated from all other interfaces.
Optical fibre interfaces
ODW-720-F1 uses Small Form Factor Pluggable (SFP) transceivers. This means that a
wide range of different fibre transceivers and connectors can be used (see page 12–13).
RS-232 interface
The RS-232 interface is a female 9-position D-sub. Pin assignments are compliance with
the EIA RS-232 standard.
Status port
The status port connects to an internal relay witch may be used to trigger an external
alarm if a fault condition occurs. During normal operation pins 1 and 2 are in contact
with each other, and pins 2 and 3 are isolated. During an optical link failure, or power
failure, pins 1 and 2 are isolated, and pins 2 and 3 are in contact with each other.
6651-2221
17
Mounting
CLICK!
This unit should be mounted on 35 mm DIN-rail, which is
horizontally mounted inside an apparatus cabinet, or similar.
Snap on mounting, see figure.
Cooling
This unit uses convection cooling. To avoid obstructing the airflow around the unit, use the following spacing rules. Minimum
spacing 25 mm (1.0 inch) above /below and 10 mm (0.4 inches)
left /right the unit. Spacing is recommended for the use of unit
in full operating temperature range and service life.
10 mm *
(0.4 inches)
25 mm
* Spacing (left/right) recommended for
full operating temperature range
Removal
Press down the black support at the top of the unit. See figure.
18
25 mm
6651-2221
Westermo • SE-640 40 Stora Sundby, Sweden
Tel +46 16 42 80 00 Fax +46 16 42 80 01
Sales Units
Westermo Data Communications
E-mail: info@westermo.com
www.westermo.com
China
sales.cn@westermo.com
www.cn.westermo.com
France
infos@westermo.fr
www.westermo.fr
Germany
info@westermo.de
www.westermo.de
For complete contact information, please visit our website at www.westermo.com/contact
REV. E 6651-2221 2014-10 Westermo Teleindustri AB, Sweden – A Beijer Electronics Group Company
North America
info@westermo.com
www.westermo.com
Singapore
sales@westermo.com.sg
www.westermo.com
Sweden
info.sverige@westermo.se
www.westermo.se
or scan the QR code with your mobile phone.
United Kingdom
sales@westermo.co.uk
www.westermo.co.uk
Other Offices
Loading...
