zen side table
assembly instructions
! Tools required:
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect nish.
! Proper assembly of this item requires 2 people.
A B
allen key x screw 6x
C D
E
at washer 6xlock washer 6x
wood dowel 8x
9734476/9734484 - 07/07 Page of 3
zen side table
E
A
A
B
B
C
C
D
D
assembly instructions

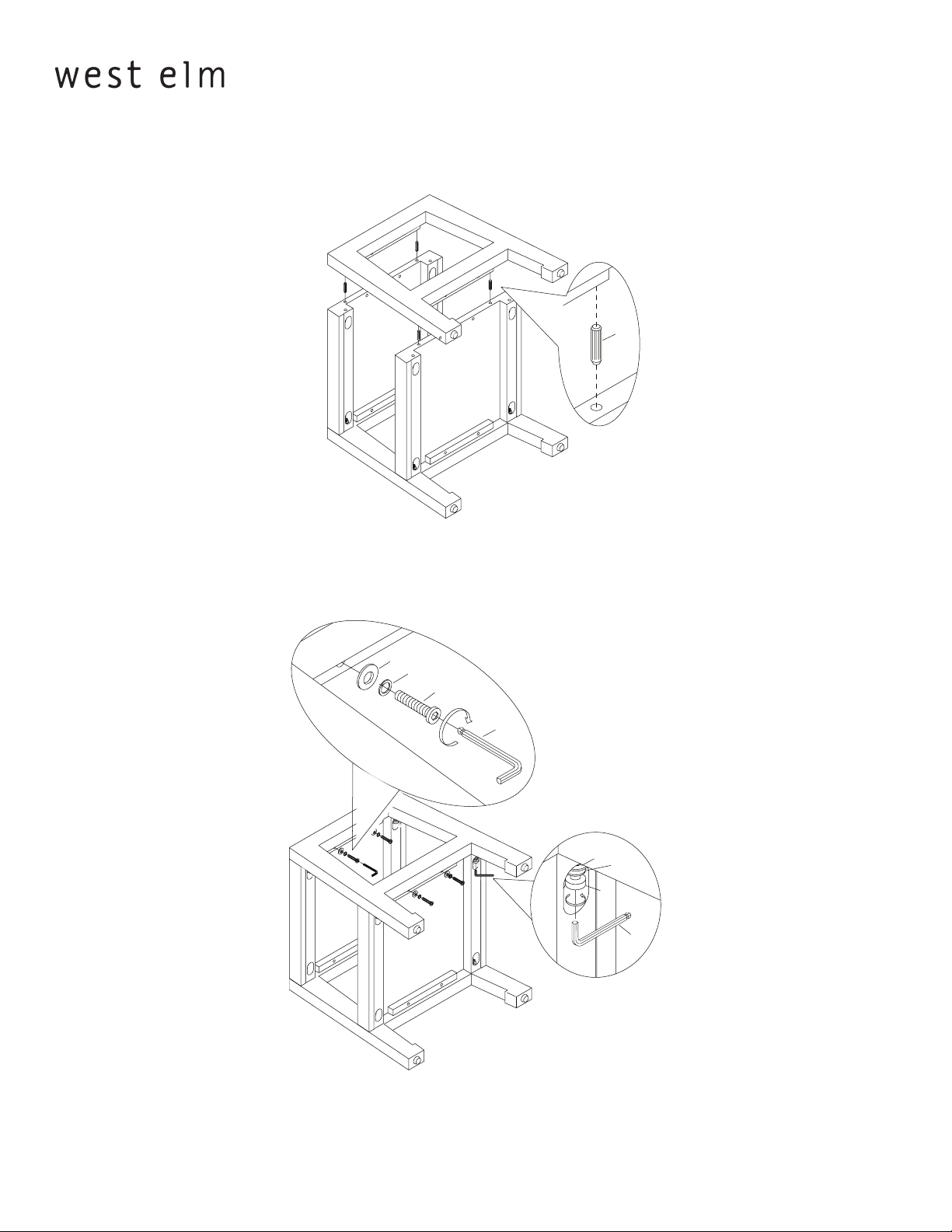

. Insert dowels (E) into one side of top and bottom panels as shown. Set top and bottom panels into the side panel.
2. Fasten top and bottom panels to side panel using at washer (D), lock washer (C), and screw (B) in order as shown. Tighten
screws using allen key (A).
9734476/9734484 - 07/07 Page 2 of 3
zen side table
assembly instructions
3. Insert dowels (E) into the other side of the top and bottom panels. Set top and bottom panels into the side panel.
E
4. Fasten top and bottom panels to the side panel using at washer (D), lock washer (C), and screw (B) in order as shown. Tighten
screws using allen key (A).
D
C
B
A
D
C
B
A
CARE INSTRUCTIONS
Hardware may loosen over time. Periodically check that all connections are tight.
Wipe with a soft, dry cloth. To protect nish, avoid the use of chemicals and household cleaners.
9734476/9734484 - 07/07 Page 3 of 3
