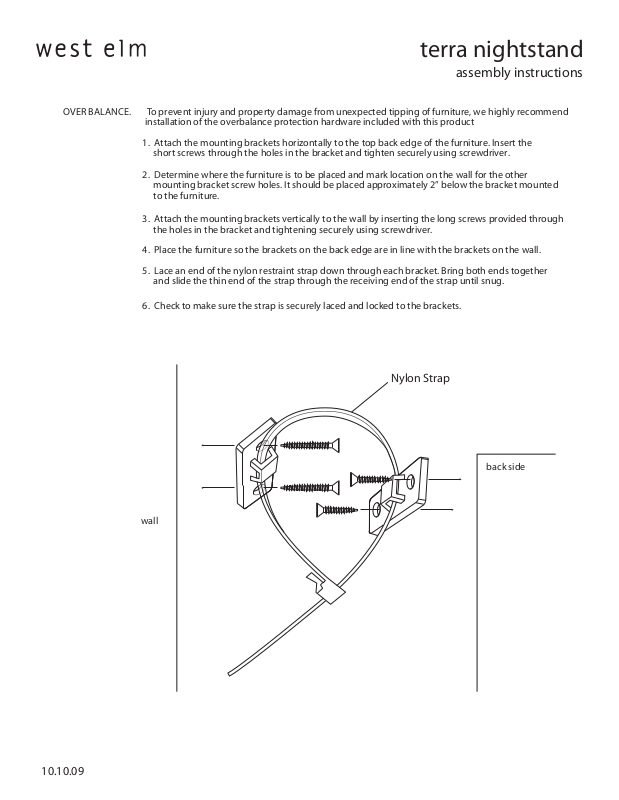

terra nightstand
assembly instructions
OVER BALANCE. To prevent injury and property damage from unexpected tipping of furniture, we highly recommend
installation of the overbalance protection hardware included with this product.
1. Attach the mounting brackets horizontally to the top back edge of the furniture. Insert the
short screws through the holes in the bracket and tighten securely using screwdriver.
2. Determine where the furniture is to be placed and mark location on the wall for the other
mounting bracket screw holes. It should be placed approximately 2” below the bracket mounted
to the furniture.
3. Attach the mounting brackets vertically to the wall by inserting the long screws provided through
the holes in the bracket and tightening securely using screwdriver.
4. Place the furniture so the brackets on the back edge are in line with the brackets on the wall.
5. Lace an end of the nylon restraint strap down through each bracket. Bring both ends together
and slide the thin end of the strap through the receiving end of the strap until snug.
6. Check to make sure the strap is securely laced and locked to the brackets.
wall
Nylon Strap
back side
10.10.09
